Design and synthesis of benzimidazole-chalcone derivatives as potential anticancer agents

Article abstract of DOI:10.3390/molecules24183259

Numerous reports have shown that conjugated benzimidazole derivatives possess various kinds of biological activities, including anticancer properties. In this report, we designed and synthesized 24 new molecules comprising a benzimidazole ring, arene, and alkyl chain-bearing cyclic moieties. The results showed that the N-substituted benzimidazole derivatives bearing an alkyl chain and a nitrogen-containing 5- or 6-membered ring enhanced the cytotoxic effects on human breast adenocarcinoma (MCF-7) and human ovarian carcinoma (OVCAR-3) cell lines. Among the 24 synthesized compounds, (2E)-1-(1-(3-morpholinopropyl)-1H-benzimidazol-2 -yl)-3-phenyl-2-propen-1-one) (23a) reduced the proliferation of MCF-7 and OVCAR-3 cell lines demonstrating superior outcomes to those of cisplatin.

Full text of DOI:10.3390/molecules24183259

Communication
Design and Synthesis of Benzimidazole-Chalcone
Derivatives as Potential Anticancer Agents
1
2
1
3
4
Cheng-Ying Hsieh , Pi-Wen Ko , Yu-Jui Chang , Mohit Kapoor , Yu-Chuan Liang ,
5
6
1,
7,
Hsueh-Liang Chu , Hui-Hsien Lin , Jia-Cherng Horng * and Ming-Hua Hsu *
1
Department of Chemistry, National Tsing Hua University, Hsinchu 30013, Taiwan
Department of Biomedical Engineering and Environmental Sciences, National Tsing Hua University,
2
Hsinchu 30013, Taiwan
3
Chitkara University Institute of Engineering and Technology, Chitkara University, Punjab 140 401, India
Agricultural Biotechnology Research Center, Academia Sinica, Taipei 11529, Taiwan
Graduate Institute of Translational Medicine, College of Medicine and Technology, Taipei Medical
4
5
University, Taipei 11031, Taiwan
Division of Radiotherapy, Department of Oncology, Taipei Veterans General Hospital,
6
Taipei 11217, Taiwan
7
Department of Chemistry, National Changhua University of Education, Changhua 50007, Taiwan
* Correspondence: jchorng@mx.nthu.edu.tw (J.-C.H.); minghuahsu@cc.ncue.edu.tw (M.-H.H.);
Tel.: +886-3-5715131 (ext. 35635) (J.-C.H.); +886-4-7232105(ext. 3547) (M.-H.H.);
Fax: +886-4-7211190 (M.-H.H.)
Academic Editor: Jean Jacques Vanden Eynde; Annie Mayence and Tien L. Huang
Received: 20 August 2019; Accepted: 5 September 2019; Published: 6 September 2019
Abstract: Numerous reports have shown that conjugated benzimidazole derivatives possess
various kinds of biological activities, including anticancer properties. In this report, we designed
and synthesized 24 new molecules comprising a benzimidazole ring, arene, and alkyl chain-bearing
cyclic moieties. The results showed that the N-substituted benzimidazole derivatives bearing an
alkyl chain and a nitrogen-containing 5- or 6-membered ring enhanced the cytotoxic effects on
human breast adenocarcinoma (MCF-7) and human ovarian carcinoma (OVCAR-3) cell lines.
Among the 24 synthesized compounds, (2E)-1-(1-(3-morpholinopropyl)-1H-benzimidazol-2 -yl)-3-
phenyl-2-propen-1-one) (23a) reduced the proliferation of MCF-7 and OVCAR-3 cell lines
demonstrating superior outcomes to those of cisplatin.
Keywords: anticancer activity; benzimidazole; chalcone; human lung carcinoma; human breast
adenocarcinoma; human liver carcinoma; human ovarian carcinoma
1. Introduction
Cancer is the uncontrolled growth of abnormal cells leading to profound changes in
physiological function. Cancer cells, which can evade the immune system, influence the normal cells,
molecules, and blood vessels that surround and feed a tumor. The tumors, which can grow and
metastasize to other locations in the body, can potentially interfere with the digestive, nervous, and
circulatory systems and release hormones that alter body functions. For anticancer drug
development, designing molecules that can selectively inhibit the proliferation of abnormal cells with
minimal or no effect on normal cells is critical. Therefore, developing anticancer drugs is of utmost
importance worldwide [1–3].
Benzimidazole ring systems possess various applications in novel drug development.
Benzimidazole is a naturally occurring bicyclic compound [4] consisting of a fused benzene and
Molecules 2019, 24, 3259; doi:10.3390/molecules24183259
www.mdpi.com/journal/molecules

Molecules 2019, 24, 3259
2 of 19
imidazole ring and is an integral part of vitamin B12. Because of the structural similarities of
benzimidazoles with purine, they can easily interact with the biomolecules of living systems.
Therefore, they have considerable potential for use in medicinal chemistry and are a critical
pharmacophore in drug discovery. [5–7]
Benzimidazole and its derivatives possess various biological activities, including antibacterial,
[8] anti-tubercular, [9,10] antifungal, [11] antimicrobial, [9,11] antiprotozoal, [12,13] anti-HIV, [14] and
antiviral activities, [15] and show potential as protein kinase inhibitors.[16] Achar et al. synthesized
several 2-methylaminobenzimidazole derivatives (Figure 1, 1), that displayed potent in-vivo
analgesic and anti-inflammatory activities. [17] On the basis of this information, Refaat et al. designed
benzylidene cyanomethylbenzimidazole (Figure 1, 2), which showed excellent anticancer activity
potential against human liver carcinoma (HEP-G2) cell lines.[18] Azam et al. reported that
phenylbenzimidazole analogues (Figure 1, 3) possess potent anti-cancer activity against five human
cancer cell lines. [19] Various potent drugs containing a benzimidazole nucleus are currently
available on the market. For example, albendazole (for treatment of certain infections caused by
worms such as pork tapeworm and dog tapeworm, Figure 1, 4) [13], omeprazole (a member of the
group of drugs called proton pump inhibitors that decrease the amount of acid produced in the
stomach, Figure 1, 5), and pimobendan (a calcium sensitizer and selective inhibitor of
phosphodiesterase III with positive inotropic and vasodilator effects, Figure 1, 6). Albendazole also
inhibits hepatocellular carcinoma cell proliferation under both in vitro and in vivo experimental
conditions. [20] Therefore, the optimization of benzimidazole derivatives on the basis of their
structures has attracted considerable attention in recent years.
Figure 1. Benzimidazole analogs with various biological activities.
Chalcones (Figure 2, 7) which belong to the flavonoid family, are open-chained molecules
bearing an α,β-unsaturated carbonyl system between two aromatic rings and represent a crucial class
of molecules that are abundant in edible plants. [21] Chalcones reportedly possess beneficial
biological activities [22], particularly considering their similar mode of action to the structurally
related natural phenol combretastatin (Figure 2, 8). [23] Many studies on chalcone derivatives have
shown that they demonstrate antibacterial [24], antimalarial [25,26], antifungal [27], anti-HIV [28],
anti-inflammatory [29], and anticancer activities [30–33]. Modzelewska et al. synthesized a series of
bis-chalcones (Figure, 9) that demonstrated exceptional performance in inhibiting of the growth of
human breast and colon cancer cells.[32]
Figure 2. Structures of chalcone (7), combretastatin (8), and bis-chalcones (9).

Molecules 2019, 24, 3259
3 of 19
On the basis of a literature survey, we synthesized benzimidazole-chalcone conjugates, which
could lead to the development of potent anti-cancer agents. In the development of new drugs,
combining various moieties with different biological activities may lead to the creation of novel
candidates with exceptional pharmacological activity [34–37]. Some recent studies have proposed
several hybrid benzimidazolyl-chalcone derivatives that display anthelmintic [38], antifungal [39]
and antitumor activities [40]. Woo et al. showed that substituted benzimidazolyl curcumin mimics
(Figure 3, 10) possess anticancer activity, and they hypothesized that the increment in inhibitory
potency is due to the attached benzimidazole functionalities [41]. In addition, some benzimidazole
derivatives serve as antagonists of the chemokine receptor CXCR3 [42] (Figure 3, 11), inhibitors of the
hepatitis B virus [15] (Figure 3, 12), and inhibitors of Francisella tularensis enoyl-ACP reductase [43]
(Figure 3, 13), and antitumor activities [44] (Figure 3, 14) by modifying some monomers on
benzimidazole. Herein, we report the scope of activity of benzimidazole-chalcone conjugates as anti-
cancer agents. Through an analysis of their anti-cancer activities on various cell lines influenced by
the substituents on phenyl and nitrogen, their structure-activity relationship (SAR) guidelines were
deduced.
Figure 3. Reported and proposed anticancer benzimidazole derivatives.
2. Results and Discussion
2.1. Chemistry
The synthetic strategies adopted to obtain the target compounds are depicted in Scheme 1.
Syntheses of benzimidazole-chalcone derivatives were achieved through conjugation of
benzimidazole and aromatic aldehydes under basic conditions. Benzimidazole derivative 16 was
synthesized in high yield [45] through a reaction of o-phenylenediamine with lactic acid (1.1 equiv)
in hydrochloric acid (4.0 N concentration) under reflux for 6.0 h, which underwent oxidation in the
presence of potassium permanganate (2.5 equiv) and solid aluminium oxide to afford the
intermediate compound 17, which was prepared from the oxidation products. After being ground
with a pestle and mortar and then purified, compound 17 was obtained in 72% yield as a white solid

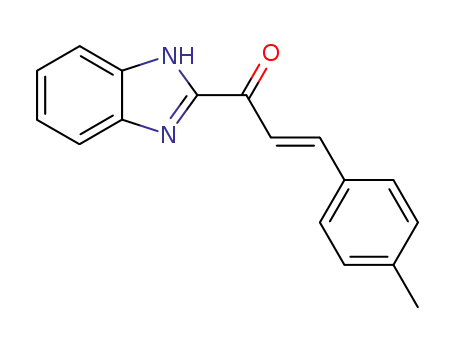

[46]. We prepared the benzimidazolyl-chalcones 18a–18d in 82–95% overall yields by reacting
compound 17 with substituted aromatic aldehydes possessing 4-methyl- (18b), 4-methoxy- (18c), and
4-chloro- (18d) groups in the presence of a base, through conventional Claisen-Schmidt
condensations. [35] To expand the structural diversity of the benzimidazolyl-chalcone derivatives,

Molecules 2019, 24, 3259
4 of 19
we synthesized substituted benzimidazolyl-chalcones 19–23 from allyl bromide or various alkyl
chlorides bearing a hydrocarbon spacer and a nitrogen-containing 5- or 6-membered ring (1.2 equiv)
in the presence of sodium carbonate and acetonitrile. For the preparation of the final compounds,
compounds 18a–18d were reacted with allyl bromide, 4-(2-chloroethyl)morpholine, 1-(2-
chloroethyl)-piperidine, 1-(2-chloroethyl)pyrrolidine or 4-(3-chloropropyl)morpholine (1.2 equiv) in
acetonitrile with potassium carbonate (2.9 equiv) at reflux overnight to afford (2E)-1-(1-allyl-1H-
benzimidazol-2-yl)-3-phenyl-2-propen-1-ones 19a–23a, (2E)-1-(1-allyl-1H-benzimidazol-2-yl)-3-(4-
methylphenyl)-2-propen-1-ones
19b–23b,
(2E)-1-(1-allyl-1H-benzimidazol-2-yl)-3-(4-
methoxyphenyl)-2 -propen-1-ones 19c–23c, and (2E)-1-(1-allyl-1H-benzimidazol-2-yl)-3-(4-
chlorophenyl)-2-propen-1-ones 19d–23d, respectively, in 50–86% overall yields. The characterization
data of compounds are showed in the supporting information.
Scheme 1. Reagents and conditions: (i) lactic acid (1.1 equiv), 4N HCl, reflux, 6 h; (ii) permanganate (2.5
equiv), solid aluminium oxide, no solvent, room temperature, 10 min; (iii) benzaldehyde, 40% KOH,
ethanol, room temperature, 10 min; (iv) potassium carbonate, acetonitrile, reflux, overnight.
2.2. Pharmacology
To determine the SAR, we designed various types of benzimidazole-chalcone derivatives 18–23
having a phenyl ring substituted with electron-donating and electron-withdrawing groups as well as
modified benzimidazolyl groups (allyl, nitrogen-containing 5- or 6-membered rings). All the new
compounds were evaluated against four common types of human cancer, namely human lung
carcinoma (A549), human breast adenocarcinoma (MCF-7), human hepatoma (HEP-G2), and human
ovarian carcinoma (OVCAR-3) cell lines. For comparison purposes, the cytotoxicity of doxorubicin
(a standard antitumor drug) and cisplatin (a platinum-containing anti-cancer drug) were evaluated
under identical conditions. MTT (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide)
assays were conducted. The MTT assay is used calculate the relationship between cell viability under
different treatments [47–49]. The IC50 value (the dose of the compound that causes a 50% reduction in
the survival value) found via MTT assay is used to evaluate the potential anticancer activity of
compounds [50,51]. The IC50 values of compounds 18a–23d are summarized in Table 1.
Most of the compounds demonstrated potential antitumor activities against all of the tested
tumor cell lines. Among the 24 benzimidazole derivatives, eight compounds showed IC50 values in
the 9.73–12.47 μM range and six compounds in the 14.59–19.53 μM range on the A549 cell line. The
IC50 of these 24 compounds on the MCF-7 cell line demonstrated promising activities; 10 of the
compounds showed an IC50 between 8.91 and 12.12 μM. Regarding the HEP-G2 cell line, three
compounds showed an IC50 in the 10.16–10.93 μM range. Finally, the IC50 values of these 24
compounds for the OVCAR-3 cell line were as follows: 11 compounds showed an IC50 in the range of
10.34–14.88 μM, 10 in the range of 16.09–36.48 μM, and the remaining compounds were higher than

Molecules 2019, 24, 3259
5 of 19
42.24 μM. The differences in the IC50 values may be attributable to such factors as the nature of the
N-substitution at the benzimidazole ring system and the functionality of the phenyl moiety on the 4
position of the phenyl ring system, and the genetic and biochemical background of the cell lines.
Table 1. Calculation of lipophilicity and water solubility of the benzimidazole derivatives library and
the relationship between cytotoxicity against MCF-7 and OVCAR-3 cell line. (logP and logS were
calculated from http://www.vcclab.org/lab/alogps/). IC50 values given are mean ± SD of two separate
experiments in duplicate.
Lipophilicity and water solubility
S(cal)
Cancer cells (IC50 μM)
Compound
M.W.
clogP
clogS
A549
MCF-7
HEP-G2
OVCAR-3
(mmol/L)
10.35
5.61
7.67
2.41
7.58
3.81
4.93
2.94
8.48
4.53
5.95
3.55
4.85
2.97
3.32
2.12
16.91
8.41
11.82
5.86
8.03
4.58
6.00
3.26
18a
18b
18c
18d
19a
19b
19c
19d
20a
20b
20c
20d
21a
21b
21c
21d
22a
22b
22c
22d
23a
23b
23c
23d
DOX
Cisplatin
248.29
262.31
278.31
282.73
288.35
302.38
318.38
322.79
345.45
359.47
375.47
379.89
359.47
373.5
389.50
393.92
361.45
375.47
391.47
395.89
375.47
389.5
3.51
3.80
3.41
4.01
4.19
4.30
4.20
4.57
4.20
4.55
4.28
4.71
4.59
4.90
4.70
5.09
3.37
3.74
3.35
3.92
3.82
4.12
3.84
4.32
−4.38
−4.67
−4.56
−5.07
−4.58
−4.90
−4.81
−5.04
−4.61
−4.90
−4.80
−5.03
−4.87
−5.10
−5.07
−5.27
−4.33
−4.65
−4.52
−4.83
−4.67
−4.93
−4.83
−5.10
119.3 ± 29.9
19.17 ± 0.43
17.41 ± 0.16
35.89 ± 0.84
12.47 ± 0.18
41.05 ± 1.61
>314
13.49 ± 0.16
18.09 ± 0.28
16.04 ± 0.24
32.55 ± 3.26
12.12 ± 0.10
53.54 ± 1.12
254.9 ± 13.6
13.42 ± 0.24
9.65 ± 0.06
53.19 ± 0.77
56.09 ± 0.14
14.73±0.09
9.73 ± 0.16
11.14 ± 0.07
21.12 ± 0.53
54.41 ± 0.72
10.38 ± 0.08
10.15 ± 0.06
11.12 ± 0.20
22.93 ± 0.49
8.91 ± 0.07
11.34 ± 0.17
11.93 ± 0.14
35.69 ± 0.47
0.42 ± 0.01
11.7 ± 0.12
24.2 ± 0.32
59.13 ± 0.92
140.85 ± 0.88
36.54 ± 1.35
15.44 ± 0.25
117.28 ± 2.42
>314
16.91 ± 0.37
24.7 ± 1.69
34.44 ± 1.55
36.48 ± 1.36
16.09 ± 0.39
59.01 ± 8.91
299.52 ± 9.27
16.13 ± 0.32
10.5 ± 0.10
28.71 ± 1.44
11.4 ± 0.24
14.04 ± 0.29
10.34 ± 0.19
12.55 ± 0.12
13.29 ± 0.47
33.13 ± 0.14
22.44±0.47
16.32 ± 0.45
14.88 ± 0.67
14.22 ± 0.33
10.76 ± 0.12
13.76 ± 0.27
13.4 ± 0.33
42.24 ± 2.43
3.95 ± 0.09
16.04 ± 0.74
15.79 ± 0.49
10.3 ± 0.13
54.12 ± 1.20
56.21 ± 0.96
19.53 ± 0.71
10.73 ± 0.58
11.64 ± 0.25
22.36 ± 0.54
50.45 ± 0.82
14.59 ± 0.40
10.76 ± 0.29
10.27 ± 0.15
24.06 ± 0.08
9.73 ± 0.07
11.79 ± 0.27
16.92 ± 0.61
81.48 ± 1.40
0.46 ± 0.01
7.31 ± 0.44
17.6 ± 0.25
10.16 ± 0.08
64.91 ± 0.24
36.61 ± 1.89
15.49±0.16
10.33 ± 0.06
32.16 ± 1.83
58.74 ± 0.75
56.45 ± 0.86
36.13 ± 0.75
42.05 ± 0.91
50.24 ± 0.88
21.38 ± 0.68
10.93 ± 0.10
47.88 ± 0.76
32.92 ± 0.38
95.7 ± 2.44
0.72 ± 0.01
3.97 ± 0.04
405.5
409.91
Generally, most of the tested compounds tended to be more active against MCF-7 and OVCAR-
3 than against the other tumor cell lines. Six compounds (20a–23a, 22b, 22c) showed IC50 values of
less than 11.70 μM (the IC50 value of cisplatin) on the MCF-7 cell line. In contrast to the OVCAR-3 cell
line, 11 compounds (20a, 21a, 23a, 21b, 23b, 20c–23c, 20d, 22d) had IC50 values between 10.34 and
14.88 μM, which were less than 16.04 μM (the IC50 value of cisplatin). The most active compound
among the tested benzimidazole derivatives was 23a, which exhibited IC50 values of 9.73, 8.91, 10.93
and 10.76 μM on the A549, MCF-7, HEP-G2 and OVCAR-3 cells, respectively. This compound
showed in vitro cytotoxicity comparable or superior to that of cisplatin.
SAR studies have suggested that the introduction of a nitrogen-containing 5- or 6-membered
ring bearing a hydrocarbon spacer group (20a, 21a, 23a) in the N-substitution pattern of (2E)-1-(1H-
benzimidazol-2-yl)-3-phenyl-2-propen-1-one (18a) leads to an increase in cytotoxic activity on A549,
MCF-7, and OVCAR-3 cells, compared with the unsubstituted compound 18a. Compared with
compounds 23a–23d, (2E)-1-(1-(3-morpholinopropyl)-1H-benzimidazol-2-yl)-3-phenyl-2-propen-1-
one (23a) was generally more active than the 4-methyl-, 4-methoxy- and 4-chloro- functionality on
phenyl moieties (compounds 23b–23d) in A549, MCF-7 and OVCAR-3 cells. Similarly, among
compounds 21a–21d and 20a–20d, we observed the same trend as in compounds 23a–23d. This result
suggests that the hybridization of the chalcone and benzimidazole ring system, which is modified
with a biological side chain bearing a hydrocarbon spacer and a nitrogen-containing 5- or 6-
membered ring in the N-substitution, can lead to enhanced cytotoxic effects on MCF-7 and OVCAR-
3 cells. Notably, these data show that some of the tested compounds are more potent than cisplatin.
In pharmacotherapy, most drugs are taken via oral administration and are absorbed through the
gastrointestinal (GI) system [52]. Some drugs have to cross a series of barriers either by passive
diffusion or carrier conjugation [53]. Therefore, lipophilicity is a very important index in anticancer

Molecules 2019, 24, 3259
6 of 19
drug development [52–54]. The ALOGPS software package predicts lipophilicity and aqueous
solubility of chemical compounds [53–55]. In this software, logP, is accepted as the principal
parameter through which to evaluate lipophilicity of chemical compounds which largely determines
the pharmacokinetic properties of drugs [53].
In this study, no significant correlation was observed between the IC50 values and log P values
of the 24 compounds (Table 1). Therefore, the difference in lipophilicity might not be a significant
factor in the differences in cytotoxicity of the tested compounds. By contrast, we observed no
correlation between the IC50 and water solubility values of these compounds, which differs from the
modified benzimidazole ring system. However, in these compounds, which differ in the 4-methyl-,
4-methoxy-, and 4-chloro- functionality of their phenyl moiety, we observed a correlation between
the IC50 and water solubility values (S (cal), Table 1). For example, the IC50 values of 23a (8.03 mmol/L
water solubility) and 23b–23d (3.26–6.00 mmol/L water solubility) were 8.91 versus 11.34–35.69 μM
(MCF-7) and 10.76 versus 13.76–42.24 μM (OVCAR-3), respectively (Table 1). Similarly, among
compounds 18a–18d, 20a–20d and 20c, 21a, 21b, 21d, we observed the same trend as compared with
compounds 23a–23d. Therefore, the difference in water solubility may be a factor explaining the
difference in cytotoxicity of the benzimidazole derivatives examined in our study.
We conducted a cell cycle analysis through flow cytometry of compounds 20a–23a to elucidate
their mechanism of action. OVCAR-3 cells were treated with compounds 20a–23a for 48 h. The
histograms obtained from the OVCAR-3 cells demonstrated a major peak (G1) and minor peak (G2)
(Figure S1). OVCAR-3 cells treated with 10.50 μM compound 20a and 10.34 μM compound 21a
showed 55% and 63% in the G2/M phase, respectively, whereas an untreated control showed 37% in
the G2/M phase with same value of 8% in the S phase (Table 2). By contrast, treatment of OVCAR-3
cells with the 22.44 μM compound 22a and 10.76 μM compound 23a did not alter the cell cycle
distribution compared with the untreated control. Because compounds 20a and 21a could effectively
induce cell cycle arrest and inhibit cancer cell growth at a similar concentration, our data suggest that
the growth inhibition activities of compounds 20a and 21a are directly related to their abilities to
arrest cell cycle progression. In contrast to 20a and 21a, compound 23a did not induce cell cycle arrest
at 10 μM on OVCAR-3, whereas the IC50 values of compound 23a for cancer cells were observed at
10.76 μM (Table 1), therefore, the cytotoxic effects of 23a might not be due to cell cycle arrest.
Table 2. Cell cycle distribution of ovarian carcinoma OVCR-3 with different treatments.
Treatment
G1 (%) S (%) G2/M (%) IC50 (μM)
Control (PBS)
55.26
37.03
29.37
62.58
60.24
8.00
8.00
8.00
8.00
8.00
36.74
54.96
62.63
29.42
31.76
−
20a
21a
22a
23a
10.50
10.34
22.44
10.76
Percentage of cells was from 10,000 counts in G1, S and G2/M phases
of cell cycle according to FACS-analysis.
3. Materials and Methods
3.1. General Procedures
All reactions were carried out in oven-dried glassware (120 °C) under an atmosphere of nitrogen.
Acetone, acetonitrile, ethanol, dichloromethane, ethyl acetate and hexane from Mallinckrodt
Chemical Co. (Staines-Upon-Thames, United Kingdom) were dried and distilled from CaH2. Allyl
bromide,
benzaldehyde,
4-chlorobenzaldehyde,
4-(2-chloroethyl)morpholine,
4-(3-
chloropropyl)morpholine, 1-(2-chloroethyl)-piperidine, 1-(2-chloroethyl)pyrrolidine, lactic acid, 4-
methylbenzaldehyde, 4-methoxybenzaldehyde, o-phenylenediamine, potassium carbonate, and
potassium permanganate were purchased from Sigma-Aldrich Chemical Co. (St. Louis, MO, USA).
Hydrochloric acid, magnesium sulfate, potassium hydroxide, and sodium hydroxide were purchased
from Showa (Tokyo, Japan). Aluminum oxide was purchased from Merck (Darmstadt, Germany).

Molecules 2019, 24, 3259
7 of 19
Analytical thin layer chromatography (TLC) was performed on precoated plates (silica gel 60 F-
254), purchased from Merck. Purification by gravity column chromatography was carried out by use
1
of Merck Silica Gel 60 (particle size 0.063–0.200 mm, 70–230 mesh ASTM). H-NMR spectra were
obtained on an Avance 500 (500 MHz) spectrometer (Bruker, Billerica, MA, USA) by use of
1
chloroform-d all examples given use acetone and acetone-d6 as solvents. H-NMR chemical shifts
13
were referenced to the CDCl3 singlet (7.24 ppm) and the acetone-d6 quintet (2.05 ppm). C-NMR
spectra were obtained on Bruker Avance 500 (125 MHz), AM-400* (Bruker) and MR-400 (Varian, Palo
Alto, CA, USA) all examples given use a 500 MHz instrument spectrometers by use of acetone-d6 as
13
solvent. C-NMR chemical shifts were referenced to the center of the acetone-d6 septet (29.92 ppm).
Multiplicities were recorded by the following abbreviations: brs, broad singlet; s, singlet; d, doublet;
t, triplet; q, quartet; m, multiplet; J, coupling constant (hertz). High-resolution mass spectra were
obtained by means of a FINNIGAN/MAT-95XL mass spectrometer (Thermo Fisher Scientific,
Waltham, MA, USA). High-performance liquid chromatography (HPLC) analyses were carried out
on an 1100 series system (Agilent, Santa Clara, CA, USA) equipped with a CNW Athena C18 column
(120 Å, 4.6 mm × 250 mm, 5 μm) and UV detection at 254 nm. A mixture of 20% DI water in acetonitrile
was used as eluent and flow rate was at 0.5 mL/min. Infrared (IR) spectra were measured on a RX
1FT-IR spectrometer (Perkin Elmer, Waltham, MA, USA). Absorption intensities were recorded using
the following abbreviations: s, strong; m, medium; w, weak; br, broad.
3.2. Synthesis
3.2.1. Synthesis of 1-(1H-benzoimidazol-2-yl)ethan-1-ol (16).
Hydrochloric acid (4.0 N, 25 mL) was added to a stirred solution of o-phenylenediamine (4.32 g,
40.0 mmol, 1.0 equiv) in lactic acid (3.96 g, 44.0 mmol, 1.1 equiv) and the reaction mixture was heated
to reflux for 16 h. After 16 h, the reaction mixture was cooled down to room temperature and
neutralized with sodium hydroxide solution. The reaction mass was filtered to obtain compound 16
1
(6.15 g, 38.0 mmol) in 95% yield as a pale yellow solid: H-NMR (CDCl3, 500 MHz) δ 1.73 (d, J = 6.0
Hz, 3 H, CH3), 5.22 (q, J = 6.0 Hz, 1 H, CH), 7.26 (d, J = 6.0 Hz, 1 H, ArCH), 7.27 (d, J = 5.5 Hz, 1 H,
ArCH), 7.59 (d, J = 5.5 Hz, 1 H, ArCH), 7.60 (d, J = 6.0 Hz, 1 H, ArCH).
3.2.2. Synthesis of 1-(1H-benzimidazol-2-yl)ethan-1-one (17).
First, alumina-supported permanganate was prepared by mixing solid KMnO4 (2.0 g, 12.65
mmol, 2.5 equiv) and solid aluminium oxide (2.5 g) in a mortar ground with a pestle for 3.0 min. Then
compound (16, 0.810 g, 4.99 mmol, 1.0 equiv) was added in the mortar and stirred for another 10 min.
Acetone (40 mL) was added to the reaction mixture in a beaker and stirred for 20 min. The mixture
was filtered and the filtrate was evaporated to obtain a crude residue. The organic mass was extracted
with EtOAc (2 × 10 mL) and washed with H2O (2 × 5.0 mL), dried over MgSO4(s), filtered, and
concentrated under reduced pressure. The residue was purified by use of column chromatography
(10% ethyl acetate in hexane as eluent) to give the desired compound 17 (0.580 g, 3.62 mmol) in 72%
1
yield as white solids. H-NMR (CDCl3, 400 MHz) δ 2.81 (s, 3 H, CH3), 7.35 (dd, J = 8.0 Hz, 1 H, ArCH),
7.41 (dd, J = 7.5 Hz, 1 H, ArCH), 7.53 (d, J = 8.0 Hz, 1 H, ArCH), 7.90 (d, J = 8.0 Hz, 1 H, ArCH).
3.2.3. Standard Procedure 1 for the Synthesis of Benzimidazolyl-Chalcone Derivatives 18a–18d.
Compound 18a–18d had been reported in previous literatures [56]. Aqueous KOH (40%) was
added to a stirred solution of 2-acetylbenzimidazole (17, 1.0 equiv) and substituted aromatic
aldehydes (1.1 equiv) in ethanol. The resulting mixture was stirred at room temperature for 10 h.
After the consumption of starting materials, the reaction mixture was quenched with water (2–4 mL)
and extracted with EtOAc (10–20 mL). The combined organic layers were washed with brine (5.0
mL), dried over MgSO4(s), filtered, and concentrated under reduced pressure. The residue was
purified by column chromatography to give the desired benzimidazolyl-chalcone derivatives.

Molecules 2019, 24, 3259
8 of 19
3.2.4. Standard Procedure 2 for Synthesis of Side Chain modified Benzimidazolyl-chalcone
Derivatives 19–23.
Potassium carbonate (3.0 equiv) was added to a stirred solution of benzimidazolyl-chalcone
derivatives, 18a–18d (1.0 equiv) and substituted halides (1.2 equiv) in acetonitrile and the resulting
solution was heated at reflux overnight. The reaction mixture was cooled to room temperature,
quenched with water (2.0–4.0 mL), and extracted with EtOAc (10–20 mL). The combined organic
layers were washed with brine (5.0 mL), dried over MgSO4(s), filtered, and concentrated under
reduced pressure. The residue was purified by column chromatography to give the desired side chain
modified benzimidazolyl-chalcone derivatives.
3.3. Compound data
(2E)-1-(1H-benzimidazol-2-yl)-3-phenyl-2-propen-1-one (18a). Standard procedure 1 was followed
by use of compound 17 (0.640 g, 4.0 mmol, 1.0 equiv), benzaldehyde (0.467 g, 4.4 mmol, 1.1 equiv),
and aq. KOH (40%, 2.0 mL) in ethanol (8.0 mL). After workup and purification with column
chromatography (15% EtOAc in hexane as eluent), compound 18a (0.870 g, 3.51 mmol) was obtained
1
in 88% yield as yellow solids: H-NMR (acetone-d6, 500 MHz) δ 7.37 (t, J = 7.5 Hz, 1 H, ArCH), 7.44 (t,
J = 7.5 Hz, 1 H, ArCH), 7.52-7.53 (m, 3 H, 3 × ArCH), 7.68 (d, J = 8.0 Hz, 1 H, ArCH), 7.88 (d, J = 7.5 Hz,
2 H, 2 × ArCH), 7.88 (d, J = 7.5 Hz, 1 H, ArCH), 8.03 (d, J = 16 Hz, 1 H, COCH), 8.17 (d, J = 16.0 Hz, 1
13
H, PhCH); C-NMR (acetone-d6, 125 MHz) δ 113.64, 122.45, 122.55, 124.18, 126.82, 128.97, 129.78,
130.08, 131.77, 131.91, 135.81, 144.70, 145.23, 146.01, 150.20, 181.92; IR (neat) 3357 (s), 3247 (N-H, s),
2920 (s), 2850 (s), 1661 (C=O, s), 1632 (m), 1597 (C=N, s), 1424 (s), 1331 (C–N, s), 1215 (m), 1138 (w),
1089 (w), 971 (w), 741 (w), 721.59 (w); MS (ESI) m/z calcd for C16H12N2O: 248.0950, found: 248.0950. Its
spectroscopic characteristics are consistent with those reported for the same compound [56].
(2E)-1-(1H-benzimidazol-2-yl)-3-(4-methylphenyl)-2-propen-1-one (18b). Standard procedure 1 was
followed by use of compound 17 (0.640 g, 4.0 mmol, 1.0 equiv), 4-methylbenzaldehyde (0.529 g, 4.4
mmol, 1.1 equiv), and aq. KOH (40%, 2.0 mL) in ethanol (8.0 mL). After workup and purification with
column chromatography (20% EtOAc in hexane as eluent), compound 18b (0.942 g, 3.59 mmol) was
1
obtained in 90% yield as yellow solids: H-NMR (acetone-d6, 500 MHz) δ 2.43 (s, 3 H, CH3), 7.34 (d, J
= 8.0 Hz, 2 H, 2 × ArCH), 7.39 (d, J = 6.0 Hz, 1 H, ArCH), 7.40 (d, J = 7.5 Hz, 1 H, ArCH), 7.76 (d, J = 7.5
13
Hz, 4 H, 4 × ArCH), 7.99 (d, J = 16 Hz, 1 H, COCH), 8.13 (d, J = 16 Hz, 1H, PhCH); C-NMR (acetone-
d6, 125 MHz) δ 21.60, 113.63, 121.56, 122.42, 124.15, 126.75, 129.86, 130.78, 132.23, 133.14, 135.80, 142.52,
144.73, 145.33, 181.92; IR (neat) 3839 (s), 3736 (s), 3649 (m), 3568 (m), 3362 (w), 3247 (N–H, br), 2920
(s), 2846 (s), 2363 (s), 1657 (C=O, s), 1594 (C=N, m), 1424 (w), 1328 (C–N, m), 1218 (s), 1089 (m), 982
(m), 809 (w), 738 (m); MS (ESI) m/z calcd for C17H14N2O: 262.1106, found: 262.1107. Its spectroscopic
characteristics are consistent with those reported for the same compound [56].
(2E)-1-(1H-benzimidazol-2-yl)-3-(4-methoxyphenyl)-2-propen-1-one (18c). Standard procedure 1 was
followed by use of compound 17 (0.640 g, 4.0 mmol, 1.0 equiv), 4-methoxybenzaldehyde (0.598 g, 4.4
mmol, 1.1 equiv), and aq. KOH (40%, 2.0 mL) in ethanol (8.0 mL). After workup and purification with
column chromatography (20% EtOAc in hexane as eluent), compound 18c (1.05 g, 3.78 mmol) was
1
obtained in 95% yield as yellow solids: H-NMR (acetone-d6, 500 MHz) δ 3.90 (s, 3 H, OCH3), 7.08 (d,
J = 9.0 Hz, 2 H, 2 × ArCH), 7.35 (t, J = 7.5 Hz, 1 H, ArCH), 7.42 (t, J = 7.5 Hz, 1 H, ArCH), 7.68 (d, J = 8.5
Hz, 1 H, ArCH), 7.84 (d, J = 9.0 Hz, 2 H, 2 × ArCH), 7.87 (d, J = 8.0 Hz, 1 H, ArCH), 7.99 (d, J = 16 Hz,
13
1 H, COCH), 8.04 (d, J = 16 Hz, 1 H, PhCH); C-NMR (acetone-d6, 125 MHz) δ 55.97, 113.59, 115.56,
120.09, 122.37, 124.08, 126.63, 128.45, 131.72, 135.76, 144.73, 145.21, 150.44, 163.29, 181.81; IR (neat)
3357 (s), 3192 (N–H, s), 2920 (s), 2850 (s), 2313 (w), 1756 (br), 1657 (C=O, s), 1634 (s), 1586 (C=N, m),
1514 (m), 1468 (m), 1421 (m), 1369 (w) 1322 (C–N, w) 1243 (s), 1172 (m), 1089 (w), 1056 (w), 823 (w),
718 (w), 631 (w); MS (ESI) m/z calcd for C17H14N2O2: 278.1055, found: 278.1055. Its spectroscopic
characteristics are consistent with those reported for the same compound [56].
(2E)-1-(1H-benzimidazol-2-yl)-3-(4-chlorophenyl)-2-propen-1-one (18d). Standard procedure 1 was
followed by use of compound 17 (0.640 g, 4.0 mmol, 1.0 equiv), 4-chlorobenzaldehyde (0.616 g, 4.4

Molecules 2019, 24, 3259
9 of 19
mmol, 1.1 equiv), and aq. KOH (40%, 2.0 mL) in ethanol (8.0 mL). After workup and purification with
column chromatography (20% EtOAc in hexane as eluent), compound 18d (0.976 g, 3.45 mmol) was
1
obtained in 86% yield as yellow solids: H-NMR (acetone-d6, 500 MHz) δ 7.37 (t, J = 7.5 Hz, 1 H, ArCH),
7.44 (t, J = 7.5 Hz, 1 H, ArCH), 7.55 (d, J = 8.5 Hz, 2 H, 2 × ArCH), 7.68 (d, J = 8.5 Hz, 1 H, ArCH), 7.88
(d, J = 8.5 Hz, 1 H, ArCH), 7.89 (d, J = 8.5 Hz, 2 H, 2 × ArCH), 7.99 (d, J = 16 Hz, 1 H, COCH), 8.16 (d,
13
J = 16 Hz, 1 H, PhCH); C-NMR (acetone-d6, 125 MHz) δ 113.55, 122.37, 123.18, 124.12, 126.79, 128.95,
130.10, 131.23, 133.33, 134.59, 135.72, 137.01, 143.54, 144.61, 149.99, 181.69; IR (neat) 3841 (s), 3736 (s),
3648 (m), 2918 (w), 2846 (w), 2357 (s), 1772 (w), 1646 (C=O, s), 1599 (C=N, s), 1501 (br), 1405 (m), 1327
(C–N, s) 1218 (s), 1084 (s), 977 (s), 823 (s) 765 (w), 744 (s) 642 (w), 546 (w); MS (ESI) m/z calcd for
C16H11ClN2O: 282.0560, found: 282.0562. Its spectroscopic characteristics are consistent with those
reported for the same compound [56].
(2E)-1-(1-Allyl-1H-benzimidazol-2-yl)-3-phenyl-2-propen-1-one (19a). Standard procedure 2 was
followed by use of compound 18a (0.124 g, 0.50 mmol, 1.0 equiv) and allyl bromide (0.0726 g, 0.60
mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium carbonate (0.200 g, 1.45 mmol, 2.9 equiv)
was added. After workup and purification with column chromatography (20% EtOAc in hexane as
1
eluent), compound 19a (0.110 g, 0.38 mmol) was obtained in 76% yield as yellow solids: H-NMR
(acetone-d6, 500 MHz) δ 5.07 (d, J = 17.0 Hz, 1 H, CHCH2(trans)), 5.16 (d, J = 10.0 Hz, 1 H, CHCH2(cis)),
5.44 (d, J = 5.0 Hz, 2 H, NCH2), 6.09–6.16 (m, 1H, CHCH2), 7.40 (t, J = 7.5 Hz, 1 H, ArCH), 7.47 (t, J =
7.5 Hz, 1 H, ArCH), 7.50-7.51 (m, 3 H, 3 × ArCH), 7.67 (d, J = 8.5 Hz, 1 H, ArCH), 7.84 (d, J = 7.5 Hz, 2
H, 2 × ArCH), 7.88 (d, J = 8.5 Hz, 1 H, ArCH), 7.90 (d, J = 16.0 Hz, 1H, CCOCH), 8.31 (d, J = 16.0 Hz,
13
1H, PhCH); C-NMR (acetone-d6, 125 MHz) δ 48.26, 112.44, 117.30, 122.55, 124.13, 124.62, 126.87,
129.72, 130.06, 131.80, 134.46, 135.82, 137.54, 142.84, 144.74, 147.66, 183.18; IR (neat) 3789 (s), 3696 (w),
3663 (w), 3574 (w), 3355 (m), 2920 (s), 2850 (s), 1666 (C=O, s), 1605 (C=N, s), 1473 (w), 1449 (s), 1407
(w), 1332 (C–N, s), 1303 (w), 1165 (m), 1051 (s), 988 (m), 743 (s), 560 (m); MS (ESI) m/z calcd for
C19H16N2O: 288.1263, found: 288.1264.
(2E)-1-(1-Allyl-1H-benzimidazol-2-yl)-3-(4-methylphenyl)-2-propen-1-one (19b). Standard procedure
2 was followed by use of compound 18b (0.131 g, 0.50 mmol, 1.0 equiv) and allyl bromide (0.0726 g,
0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium carbonate (0.200 g, 1.45 mmol, 2.9
equiv) was added. After workup and purification with column chromatography (20% EtOAc in
hexane as eluent), compound 19b (0.088 g, 0.29 mmol) was obtained in 58% yield as yellow solids:
1
H-NMR (acetone-d6, 500 MHz) δ 2.47 (s, 3H, CH3), 5.06 (d, J = 17.0 Hz, 1 H, CHCH2(trans)), 5.16 (d, J =
10 Hz, 1 H, CHCH2(cis)), 5.43 (d, J = 5.0 Hz, 2 H, NCH2), 6.08-6.15 (m, 1 H, CHCH2), 7.32 (d, J = 8.0 Hz,
2 H, 2 × ArCH), 7.39 (t, J = 7.5 Hz, 1H, ArCH), 7.47 (t, J = 7.5 Hz, 1 H, ArCH), 7.66 (d, J = 7.5 Hz, 1 H,
ArCH), 7.72 (d, J = 8.5 Hz, 2 H, 2 × ArCH), 7.87 (d, J = 16.0 Hz, 1 H, COCH), 7.88 (d, J = 8.0 Hz, 1H,
13
ArCH), 8.26 (d, J = 16.0 Hz, 1H, PhCH); C-NMR (acetone-d6, 125 MHz) δ 21.59, 48.27, 112.40, 117.28,
122.58, 123.20, 124.53, 126.75, 129.78, 130.74, 133.17, 134.54, 135.58, 142.35, 142.94, 144.74, 147.80,
183.23; IR (neat) 3835 (s), 3731 (s), 2917 (m), 2846 (w), 2346 (s), 1748 (s), 1657 (C=O, br), 1597 (C=N, m),
1509 (w), 1375 (w), 1339 (C–N, w), 1231 (s), 1204 (w) 1180 (w), 1163 (m), 1048 (w), 985 (w), 812 (m),
752 (w), 738 (w), 724 (w); MS (ESI) m/z calcd for C20H18N2O: 302.1419, found: 302.1417.
(2E)-1-(1-Allyl-1H-benzimidazol-2-yl)-3-(4-methoxyphenyl)-2-propen-1-one (19c). The standard
procedure 2 was followed by use of compound 18c (0.139 g, 0.50 mmol, 1.0 equiv) and allyl bromide
(0.0726 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium carbonate (0.200 g, 1.45
mmol, 2.9 equiv) was added. After workup and purification with column chromatography (20%
EtOAc in hexane as eluent), compound 19c (0.116 g, 0.36 mmol) was obtained in 72% yield as yellow
1
solids: H-NMR (acetone-d6, 500 MHz) δ 3.89 (s, 3 H, OCH3), 5.07 (d, J = 17.0 Hz, 1 H, CHCH2(trans)),
5.16 (d, J = 10.0 Hz, 1 H, CHCH2(cis)), 5.43 (d, J = 5.0 Hz, 2 H, NCH2), 6.08–6.15 (m, 1 H, CHCH2), 7.06
(d, J = 10 Hz, 2 H, 2 × ArCH), 7.39 (t, J = 7.5 Hz, 1 H, ArCH), 7.46 (t, J = 7.5 Hz, 1 H, ArCH), 7.66 (d, J =
8.0 Hz, 1 H, ArCH), 7.80 (d, J = 8.5 Hz, 2 H, 2 × ArCH), 7.87 (d, J = 8.5 Hz, 1 H, ArCH), 7.87 (d, J = 16.0
13
Hz, 1 H, COCH), 8.17 (d, J = 16.0 Hz, 1H, PhCH); C-NMR (acetone-d6, 125 MHz) δ 48.25, 55.95, 112.38,
115.53, 117.26, 121.78, 122.51, 124.48, 126.64, 128.49, 131.64, 134.58, 137.55, 142.92, 144.68, 147.92,
163.19, 183.18; IR (neat) 3789 (s), 3357 (s), 3187 (w), 2920 (s), 2850 (s), 1659 (C=O, s), 1591 (C=N, s), 1330

Molecules 2019, 24, 3259
10 of 19
(C–N, m), 1292 (m), 1254 (s), 1169 (s), 1054 (s), 988 (m), 826 (s), 741 (w); MS (ESI) m/z calcd for
C20H18N2O2: 318.1368, found: 318.1367.
(2E)-1-(1-Allyl-1H-benzimidazol-2-yl)-3-(4-chlorophenyl)-2-propen-1-one (19d). Standard procedure
2 was followed by use of compound 18d (0.141 g, 0.50 mmol, 1.0 equiv) and allyl bromide (0.0726 g,
0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium carbonate (0.200 g, 1.45 mmol, 2.9
equiv) was added. After workup and purification with column chromatography (20% EtOAc in
hexane as eluent), compound 19d (0.123 g, 0.38 mmol) was obtained in 76% yield as yellow solids:
1
H-NMR (acetone-d6, 500 MHz) δ 5.06 (d, J = 17.0 Hz, 1 H, CHCH2(trans)), 5.16 (d, J = 10.0 Hz, 1 H,
CHCH2(cis)), 5.41 (d, J = 5.0 Hz, 2 H, NCH2), 6.07–6.15 (m, 1 H, CHCH2), 7.39 (t, J = 7.5 Hz, 1 H, ArCH),
7.47 (t, J = 7.5 Hz, 1 H, ArCH), 7.52 (d, J = 8.0 Hz, 2H, 2 × ArCH), 7.65 (d, J = 8.0 Hz, 1H, ArCH), 7.85
(d, J = 7.5 Hz, 2H, 2 × ArCH), 7.86 (d, J = 8.5 Hz, 1H, ArCH), 7.87 (d, J = 16.0 Hz, 1H, COCH), 8.29 (d,
13
J = 16.0 Hz, 1H, PhCH); C-NMR (acetone-d6, 125 MHz) δ 48.27, 112.42, 117.33, 122.64, 124.61, 124.87,
126.90, 130.16, 131.23, 134.46, 134.70, 136.97, 137.60, 142.93, 143.02, 147.58, 182.99; IR (neat) 3789 (s),
3352 (s), 3187 (m), 2920 (s), 2850 (s), 1663 (C=O, s), 1605 (C=N, s), 1477 (m), 1449 (w), 1402 (w), 1334
(C–N, s), 1300 (m), 1232 (m), 1163 (m), 1056 (s), 988 (s), 919 (m), 830 (s), 742 (s); MS (ESI) m/z calcd for
C19H15ClN2O: 322.0873, found: 322.0873.
(2E)-3-Phenyl-1-(1-(2-(pyrrolidin-1-yl)ethyl)-1H-benzimidazol-2-yl)-2-propen-1-one (20a). Standard
procedure 2 was followed by use of compound 18a (0.124 g, 0.50 mmol, 1.0 equiv) and 1-(2-
chloroethyl)pyrrolidine (0.0802 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (75% EtOAc in hexane as eluent), compound 20a (0.110 g, 0.32 mmol) was obtained
1
in 64% yield as yellow liquid: H-NMR (acetone-d6, 500 MHz) δ 1.65 (br s, 4 H, NCH2CH2), 2.52 (br s,
4 H, NCH2CH2), 2.84 (t, J = 6.5 Hz, 2 H, pyrrolidine-CH2CH2), 4.83 (t, J = 6.5 Hz, 2 H, piperidine-
CH2CH2), 7.37 (t, J = 7.5 Hz, 1H, ArCH), 7.46 (t, J = 7.5 Hz, 1H, ArCH), 7.50 (d, J = 6.5 Hz, 3 H, 3 ×
ArCH), 7.69 (d, J = 8.0 Hz, 1 H, ArCH), 7.83 (d, J = 8.0 Hz, 2 H, 2 × ArCH), 7.85 (d, J = 8.0 Hz, 1 H,
13
ArCH), 7.90 (d, J = 16.0 Hz, 1 H, COCH), 8.24 (d, J = 16.0 Hz, 1 H, PhCH); C-NMR (acetone-d6, 125
MHz) δ 24.25, 44.80, 54.78, 56.07, 112.24, 122.38, 124.36, 124.41, 126.64, 129.65, 130.00, 131.71, 135.79,
137.55, 142.76, 144.58, 148.35, 183.25; IR (neat) 3650 (s), 3359 (s), 2920 (s), 2850 (s), 2363 (m), 1660 (C=O,
s), 1632 (s), 1602 (C=N, s), 1470 (s), 1333 (C–N, s), 1243 (m), 1166 (m), 1040 (s), 745 (s), 697 (m); MS
(ESI) m/z calcd for C22H23N3O: 345.1841, found: 345.1842.
(2E)-1-(1-(2-(Pyrrolidin-1-yl)ethyl)-1H-benzimidazol-2-yl)-3-(4-methylphenyl)-2-propen-1-one (20b).
Standard procedure 2 was followed by use of compound 18b (0.131 g, 0.50 mmol, 1.0 equiv) and 1-
(2-chloroethyl)pyrrolidine (0.0802 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (60% EtOAc in hexane as eluent), compound 20b (0.134 g, 0.37 mmol) was obtained
1
in 74% yield as brown oil: H-NMR (acetone-d6, 500 MHz) δ 1.65 (p, J = 3.5 Hz, 4 H, NCH2CH2), 2.40
(s, 3 H, PhCH3), 2.52 (br s, 4 H, NCH2CH2), 2.85 (t, J = 6.5 Hz, 2 H, pyrrolidine-CH2CH2), 4.85 (t, J = 6.5
Hz, 2 H, pyrrolidine-CH2CH2), 7.33 (d, J = 7.5 Hz, 2 H, 2 × ArCH), 7.37 (t, J = 7.5 Hz, 1 H, ArCH), 7.46
(t, J = 7.5 Hz, 1 H, ArCH), 7.70 (d, J = 8.5 Hz, 1 H, ArCH), 7.73 (d, J = 8.0 Hz, 2 H, 2 × ArCH), 7.85 (d, J
13
= 8.0 Hz, 1 H, ArCH), 7.88 (d, J = 16.0 Hz, 1 H, COCH), 8.23 (d, J = 16.0 Hz, 1 H, PhCH); C-NMR
(acetone-d6, 125 MHz) δ 21.59, 24.39, 45.13, 54.98, 56.45, 112.26, 122.46, 123.63, 124.27, 126.42, 129.74,
130.77, 133.26, 137.73, 142.28, 143.00, 144.55, 148.82, 183.48; IR (neat) 3775 (m), 3357 (m), 2967 (m), 2879
(s), 2785 (m), 2291 (m), 1705 (s), 1660 (C=O, s), 1596 (C=N, s), 1476 (w), 1449 (w), 1407 (w), 1366 (m),
1327 (C–N, m) 1231 (s), 1037 (m), 982 (w), 894 (w), 812 (s), 755 (m), 741 (m), 727 (w); MS (ESI) m/z calcd
for C23H25N3O: 359.1997, found: 359.1998.
(2E)-3-(4-Methoxyphenyl)-1-(1-(2-(pyrrolidin-1-yl)ethyl)-1H-benzimidazol-2-yl)-2-propen-1-one (20c).
Standard procedure 2 was followed by use of compound 18c (0.139 g, 0.50 mmol, 1.0 equiv) and 1-(2-
chloroethyl)pyrrolidine (0.0802 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (75% EtOAc in hexane as eluent), compound 20c (0.125 g, 0.33 mmol) was obtained
1
in 66% yield as brown oil: H-NMR (acetone-d6, 500 MHz) δ 1.65 (p, J = 3.0 Hz, 4 H, NCH2CH2), 2.53

Molecules 2019, 24, 3259
11 of 19
(br s, 4 H, NCH2CH2), 2.85 (t, J = 6.5 Hz, 2 H, pyrrolidine-CH2CH2), 3.87 (s, 3 H, OCH3), 4.84 (t, J = 6.5
Hz, 2 H, pyrrolidine-CH2CH2), 7.05 (d, J = 8.5 Hz, 2 H, 2 × ArCH), 7.36 (t, J = 7.5 Hz, 1 H, ArCH), 7.45
(t, J = 7.5 Hz, 1 H, ArCH), 7.68 (d, J = 8.0 Hz, 1 H, ArCH), 7.79 (d, J = 9.0 Hz, 2 H, 2 × ArCH), 7.84 (d, J
13
= 9.5 Hz, 1 H, ArCH), 7.87 (d, J = 16.0 Hz, 1 H, COCH), 8.10 (d, J = 16.0 Hz, 1H, PhCH); C-NMR
(acetone-d6, 125 MHz) δ 24.36, 45.06, 54.94, 55.94, 56.93, 112.21, 115.52, 122.16, 122.39, 124.23, 126.33,
128.54, 131.57, 137.67, 142.95, 144.48, 148.83, 163.12, 183.38; IR (neat) 3846 (s), 3736 (s), 3650 (m), 3358
(s), 2921 (s), 2851 (s), 2368 (m), 1661 (C=O, s), 1590 (C=N, s), 1511 (s), 1458 (s), 1333 (C–N, s), 1289 (m),
1254 (s), 1171 (s), 1036 (s), 829 (s), 744 (s); MS (ESI) m/z calcd for C23H25N3O2: 375.1947, found: 375.1948.
(2E)-3-(4-Chlorophenyl)-1-(1-(2-(pyrrolidin-1-yl)ethyl)-1H-benzimidazol-2-yl)-2-propen-1-one (20d).
Standard procedure 2 was followed by use of compound 18d (0.141 g, 0.50 mmol, 1.0 equiv) and 1-
(2-chloroethyl)pyrrolidine (0.0802 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (80% EtOAc in hexane as eluent), compound 20d (0.094 g, 0.25 mmol) was obtained
1
in 50% yield as brown oil: H-NMR (acetone-d6, 500 MHz) δ 1.67 (p, J = 3.0 Hz, 4 H, NCH2CH2), 2.56
(br s, 4 H, NCH2CH2), 2.87 (t, J = 6.5 Hz, 2H, pyrrolidine-CH2CH2), 4.85 (t, J = 6.5 Hz, 2 H, pyrrolidine-
CH2CH2), 7.38 (t, J = 7.5 Hz, 1 H, ArCH), 7.47 (t, J = 8.0 Hz, 1 H, ArCH), 7.54 (d, J = 8.0 Hz, 2 H, 2 ×
ArCH), 7.71 (d, J = 8.5 Hz, 1 H, ArCH), 7.85 (d, J = 8.5 Hz, 1 H, ArCH), 7.87 (d, J = 8.5 Hz, 2 H, 2 ×
13
ArCH), 7.88 (d, J = 16.0 Hz, 1 H, ketone-CH), 8.23 (d, J = 16.0 Hz, 1 H, ph-CH); C-NMR (acetone-d6,
125 MHz) δ 24.36, 45.09, 54.96, 56.39, 112.33, 122.49, 124.40, 125.27, 126.60, 130.21, 131.24, 134.81,
136.95, 140.46, 142.92, 183.23; IR (neat) 3352 (s), 2995 (m), 2912 (m), 2307 (m), 1759 (s), 1654 (C=O, s),
1629 (C=N, s), 1465 (m), 1331 (C–N, w), 1246 (s), 1009 (s); MS (ESI) m/z calcd for C22H22ClN3O: 379.1451,
found: 379.1450.
(2E)-3-Phenyl-1-(1-(2-(piperidin-1-yl)ethyl)-1H-benzimidazol-2-yl)-2-propen-1-one (21a). Standard
procedure 2 was followed by use of compound 18a (0.124 g, 0.50 mmol, 1.0 equiv) and 1-(2-
chloroethyl)piperidine (0.0886 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (33% EtOAc in hexane as eluent), compound 21a (0.120 g, 0.33 mmol) was obtained
1
in 66% yield as yellow liquid: H-NMR (acetone-d6, 500 MHz) δ 1.33 (p, J = 5.5 Hz, 2 H, NCH2CH2CH2),
1.42 (p, J = 5.5 Hz, 4 H, NCH2CH2CH2), 2.40 (br s, 4 H, NCH2CH2CH2), 2.66 (t, J = 6.5 Hz, 2 H,
piperidine-CH2CH2), 4.81 (t, J = 6.5 Hz, 2 H, piperidine-CH2CH2), 7.36 (dd, J = 7.5 Hz, 1 H, ArCH),
7.45 (dd, J = 7.5 Hz, 1 H, ArCH), 7.49 (d, J = 7.0 Hz, 3 H, 3 × ArCH), 7.67 (d, J = 8.0 Hz, 1 H, ArCH),
7.82 (d, J = 8.0 Hz, 2 H, 2 × ArCH), 7.85 (d, J = 8.0 Hz, 1 H, ArCH), 7.89 (d, J = 16.0 Hz, 1 H, COCH),
13
8.28 (d, J = 16.0 Hz, 1 H, PhCH); C-NMR (acetone-d6, 125 MHz) δ 25.03, 26.83, 43.84, 55.67, 59.39,
112.36, 122.44, 124.27, 124.55, 126.42, 129.62, 130.00, 131.65, 135.89, 137.76, 142.87, 144.41, 148.51,
183.32; IR (neat) 3786 (w), 3357 (m), 3055 (w), 3022 (w), 2879 (s), 2775 (w), 2302 (w), 1758 (s), 1662
(C=O, s), 1599 (C=N, s), 1476 (s), 1448 (m), 1407 (m), 1369 (m), 1330 (C–N, s), 1240 (s), 1161 (m), 1117
(w), 1043 (s), 982 (s), 894 (w), 744 (s), 697 (s); MS (ESI) m/z calcd for C23H25N3O: 359.1998, found:
359.1996.
(2E)-1-(1-(2-(Piperidin-1-yl)ethyl)-1H-benzimidazol-2-yl)-3-(4-methylphenyl)-2-propen-1-one (21b).
Standard procedure 2 was followed by use of compound 18b (0.131 g, 0.50 mmol, 1.0 equiv) and 1-
(2-chloroethyl)piperidine (0.0886 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (33% EtOAc in hexane as eluent), compound 21b (0.110 g, 0.29 mmol) was obtained
1
in 58% yield as brown oil: H-NMR (acetone-d6, 500 MHz) δ 1.43 (p, J = 5.5 Hz, 6 H, NCH2CH2CH2
and NCH2CH2CH2), 2.40 (s, 4 H, NCH2CH2CH2), 2.41 (s, 3 H, ph-CH3), 2.67 (t, J = 6.5 Hz, 2 H,
piperidin-CH2CH2), 4.84 (t, J = 6.5 Hz, 2 H, piperidin-CH2CH2), 7.32 (d, J = 7.5 Hz, 2 H, 2 × ArCH), 7.37
(t, J = 7.5 Hz, 1H, ArCH), 7.45 (t, J = 7.5 Hz, 1 H, ArCH), 7.69 (d, J = 8.5 Hz, 1 H, ArCH), 7.72 (d, J = 8.0
Hz, 2 H, 2 × ArCH), 7.84 (d, J = 8.0 Hz, 1 H, ArCH), 7.88 (d, J = 16.0 Hz, 1 H, COCH), 8.23 (d, J = 16.0
13
Hz, 1H, PhCH); C-NMR (acetone-d6, 125 MHz) δ 21.59, 25.07, 26.86, 43.86, 55.72, 59.45, 112.41, 122.43,
123.63, 124.25, 126.36, 129.72, 130.74, 133.26, 137.81, 142.23, 142.94, 144.58, 148.70, 183.47; IR (neat)
3788 (s), 3663 (w), 3574 (w), 3355 (s), 2918 (s), 2846 (s), 1764 (w), 1657 (C=O, w), 1632 (w), 1596 (C=N,

Molecules 2019, 24, 3259
12 of 19
w), 1465 (w), 1246 (w), 1325 (C–N, w), 1300 (w), 1246 (s), 988 (w); MS (ESI) m/z calcd for C24H27N3O:
373.2154, found: 373.2152.
(2E)-3-(4-methoxyphenyl)-1-(1-(2-(piperidin-1-yl)ethyl)-1H-benzimidazol-2-yl)-2-propen-1-one (21c).
Standard procedure 2 was followed by use of compound 18c (0.139 g, 0.50 mmol, 1.0 equiv) and 1-(2-
chloroethyl)piperidine (0.0886 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (40% EtOAc in hexane as eluent), compound 21c (0.166 g, 0.43 mmol) was obtained
1
in 86% yield as brown oil: H-NMR (acetone-d6, 500 MHz) δ 1.33 (p, J = 5.5 Hz, 2 H, NCH2CH2CH2),
1.42 (p, J = 5.5 Hz, 4 H, NCH2CH2CH2), 2.41 (s, 4 H, NCH2CH2CH2), 2.67 (t, J = 6.5 Hz, 2 H, piperidin-
CH2CH2), 3.89 (s, 3 H, OCH3), 4.84 (t, J = 6.5 Hz, 2 H, piperidin-CH2CH2), 7.06 (d, J = 8.5 Hz, 2 H, 2 ×
ArCH), 7.36 (t, J = 7.5 Hz, 1 H, ArCH), 7.45 (t, J = 7.5 Hz, 1 H, ArCH), 7.69 (d, J = 8.0 Hz, 1 H, ArCH),
7.80 (d, J = 9.0 Hz, 2 H, 2 × ArCH), 7.84 (d, J = 8.0 Hz, 1 H, ArCH), 7.87 (d, J = 16.0 Hz, 1 H, ketone-
13
CH), 8.14 (d, J = 16.0 Hz, 1 H, ph-CH); C-NMR (acetone-d6, 125 MHz) δ 25.09, 26.89, 43.87, 55.74,
55.95, 112.40, 115.55, 122.24, 122.38, 124.19, 126.26, 128.59, 131.56, 137.81, 142.96, 144.47, 148.85, 163.14,
183.45; IR (neat) 3780 (s), 3357 (s), 3187 (s), 2921 (s), 2851 (s), 1661 (C=O, s), 1630 (s), 1591 (C=N, s),
1569 (m), 1512 (s), 1473 (m), 1331 (C–N, s), 1255 (s), 1172 (s), 1040 (s), 829 (m), 740 (m); MS (ESI) m/z
calcd for C24H27N3O2: 389.2103, found: 389.2103.
(2E)-3-(4-Chlorophenyl)-1-(1-(2-(piperidin-1-yl)ethyl)-1H-benzimidazol-2-yl)-2-propen-1-one
(21d).
Standard procedure 2 was followed by use of compound 18d (0.141 g, 0.50 mmol, 1.0 equiv) and 1-
(2-chloroethyl)piperidine (0.0886 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (25% EtOAc in hexane as eluent), compound 21d (0.098 g, 0.25 mmol) was obtained
1
in 50% yield as yellow solids: H-NMR (acetone-d6, 500 MHz) δ 1.33 (p, J = 5.5 Hz, 2 H, NCH2CH2CH2),
1.42 (p, J = 5.5 Hz, 4 H, NCH2CH2CH2), 2.41 (s, 4 H, NCH2CH2CH2), 2.67 (t, J = 6.5 Hz, 2 H, piperidin-
CH2CH2), 4.85 (t, J = 6.5 Hz, 2 H, piperidin-CH2CH2), 7.38 (t, J = 7.5 Hz, 1 H, ArCH), 7.47 (t, J = 7.5 Hz,
1 H, ArCH), 7.55 (d, J = 8.5 Hz, 2 H, 2 × ArCH), 7.71 (d, J = 8.5 Hz, 1 H, ArCH), 7.85 (d, J = 8.5 Hz, 1 H,
ArCH), 7.88 (d, J = 9.0 Hz, 2 H, 2 × ArCH), 7.88 (d, J = 16.0 Hz, 1 H, COCH), 8.27 (d, J = 16.0 Hz, 1 H,
13
PhCH); C-NMR (acetone-d6, 125 MHz) δ 25.06, 26.87, 43.89, 55.72, 59.44, 112.49, 122.48, 124.36,
125.33, 126.54, 130.20, 131.22, 134.83, 136.93, 137.85, 142.92, 148.55, 183.28; IR (neat) 3840 (s), 3736 (s),
3650 (m), 3568 (m), 3363 (s), 2921 (s), 2851 (s), 2362 (s), 1666 (C=O, s), 1604 (C=N, s), 1490 (s), 1405 (s),
1334 (C–N, s), 1300 (m), 1164 (s), 1093 (s), 1043 (s), 894 (w), 822 (s), 741 (s), 497 (m); MS (ESI) m/z calcd
for C23H24ClN3O: 393.1608, found: 393.1609.
(2E)-1-(1-(2-Morpholinoethyl)-1H-benzimidazol-2-yl)-3-phenyl-2-propen-1-one
(22a).
Standard
procedure 2 was followed by use of compound 18a (0.124 g, 0.50 mmol, 1.0 equiv) and 4-(2-
chloroethyl)morpholine (0.0898 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) was added potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv). After workup and purification with column
chromatography (33% EtOAc in hexane as eluent), compound 22a (0.152 g, 0.42 mmol) was obtained
1
in 84% yield as yellow solids: H-NMR (acetone-d6, 500 MHz) δ 2.46 (t, J = 5.0 Hz, 4 H, NCH2CH2O),
2.74 (t, J = 6.5 Hz, 2 H, morpholine-CH2CH2), 3.50 (t, J = 5.0 Hz, 4 H, OCH2), 4.88 (t, J = 6.5 Hz, 2 H,
morpholine-CH2CH2), 7.38 (t, J = 7.5 Hz, 1 H, ArCH), 7.47 (t, J = 7.5 Hz, 1 H, ArCH), 7.51 (d, J = 7.0 Hz,
3 H, 3 × ArCH), 7.72 (d, J = 8.0 Hz, 1 H, ArCH), 7.85 (d, J = 7.0 Hz, 2 H, 2 × ArCH), 7.86 (d, J = 7.0 Hz,
13
1 H, ArCH), 7.91 (d, J = 16.0 Hz, 1 H, COCH), 8.29 (d, J = 16.0 Hz, 1 H, PhCH); C-NMR (acetone-d6,
125 MHz) δ 43.43, 54.86, 59.12, 67.47, 112.41, 122.47, 124.41, 124.55, 126.57, 129.71, 130.08, 131.79,
135.88, 137.71, 142.86, 144.72, 148.59, 183.52; IR (neat) 3786 (s), 3352 (s), 2921 (s), 2851 (s), 2308 (w),
1665 (C=O, s), 1602 (C=N, s), 1446 (br), 1410 (m), 1333 (C–N, s), 1300 (m), 1116 (s), 1067 (m), 1040 (m),
867 (w), 744 (s), 554 (w); MS (ESI) m/z calcd for C22H23N3O2: 361.1790, found: 361.1792.
(2E)-1-(1-(2-Morpholinoethyl)-1H-benzimidazol-2-yl)-3-(4-methylphenyl)-2-propen-1-one
(22b).
Standard procedure 2 was followed by use of compound 18b (0.131 g, 0.50 mmol, 1.0 equiv) and 4-
(2-chloroethyl)morpholine (0.0898 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (33% EtOAc in hexane as eluent), compound 22b (0.119 g, 0.32 mmol) was obtained

Molecules 2019, 24, 3259
13 of 19
1
in 64% yield as brown oil: H-NMR (acetone-d6, 500 MHz) δ 2.39 (s, 3 H, PhCH3), 2.45 (t, J = 5.0 Hz, 4
H, NCH2CH2O), 2.72 (t, J = 6.5 Hz, 2 H, morpholine-CH2CH2), 3.50 (t, J = 5.0 Hz, 4 H, OCH2), 4.86 (t, J
= 6.5 Hz, 2 H, morpholine-CH2CH2), 7.32 (d, J = 8.0 Hz, 2 H, 2 × ArCH), 7.37 (t, J = 7.5 Hz, 1 H, ArCH),
7.46 (t, J = 7.5 Hz, 1 H, ArCH), 7.70 (d, J = 8.0 Hz, 1 H, ArCH), 7.72 (d, J = 8.0 Hz, 2 H, 2 × ArCH), 7.85
13
(d, J = 7.0 Hz, 1 H, ArCH), 7.87 (d, J = 16.0 Hz, 1 H, COCH), 8.23 (d, J = 16.0 Hz, 1H, PhCH); C-NMR
(acetone-d6, 125 MHz) δ 21.59, 43.42, 54.87, 59.15, 67.48, 112.35, 122.46, 123.58, 124.32, 126.45, 129.75,
130.74, 133.19, 137.71, 142.30, 142.90, 144.72, 148.66, 183.54; IR (neat) 3786 (s), 3357 (s), 3187 (m), 2920
(s), 2846 (s), 1660 (C=O, s), 1632 (m), 1597 (C=N, s), 1470 (br), 1410 (m), 1333 (C–N, s), 1303 (m), 1180
(m), 1114 (s), 985 (m), 867 (m), 815 (m), 744 (s); MS (ESI) m/z calcd for C23H25N3O2: 375.1947, found:
375.1948.
(2E)-3-(4-Methoxyphenyl)-1-(1-(2-morpholinoethyl)-1H-benzimidazol-2-yl)-2-propen-1-one
(22c).
Standard procedure 2 was followed by use of compound 18c (0.139 g, 0.50 mmol, 1.0 equiv) and 4-(2-
chloroethyl)morpholine (0.0898 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (33% EtOAc in hexane as eluent), compound 22c (0.122 g, 0.31 mmol) was obtained
1
in 62% yield as yellow oil: H-NMR (acetone-d6, 500 MHz) δ 2.45 (t, J = 5.0 Hz, 4 H, NCH2CH2O), 2.72
(t, J = 6.5 Hz, 2 H, morpholine-CH2CH2), 3.50 (t, J = 5.0 Hz, 4 H, OCH2), 3.88 (s, 3 H, OCH3), 4.86 (t, J =
6.5 Hz, 2 H, morpholine-CH2CH2), 7.05 (d, J = 8.0 Hz, 2 H, 2 × ArCH), 7.37 (t, J = 7.5 Hz, 1H, ArCH),
7.45 (t, J = 7.5 Hz, 1 H, ArCH), 7.68 (d, J = 8.5 Hz, 1 H, ArCH), 7.79 (d, J = 8.5 Hz, 2 H, 2 × ArCH), 7.85
13
(d, J = 8.5 Hz, 1 H, ArCH), 7.87 (d, J = 16.0 Hz, 1 H, COCH), 8.15 (d, J = 16.0 Hz, 1H, PhCH); C-NMR
(acetone-d6, 125 MHz) δ 43.40, 43.86, 55.93, 59.14, 67.47, 112.28, 115.50, 122.15, 122.40, 124.25, 126.33,
128.49, 131.57, 137.67, 142.88, 144.60, 148.75, 163.11, 183.54; IR (neat) 3789 (s), 3663 (w), 3359 (br), 2922
(s), 2851 (s), 1645 (C=O, s), 1591 (C=N,s), 1512 (w), 1468 (br), 1333 (C–N, m), 1289 (m), 1256 (s), 1173
(s), 1114 (s), 1067 (m), 1040 (m), 829 (w), 741 (w); MS (ESI) m/z calcd for C23H25N3O3: 391.1896, found:
391.1897.
(2E)-3-(4-Chlorophenyl)-1-(1-(2-morpholinoethyl)-1H-benzimidazol-2-yl)-2-propen-1-one
(22d).
Standard procedure 2 was followed by use of compound 18d (0.141 g, 0.50 mmol, 1.0 equiv) and 4-
(2-chloroethyl)morpholine (0.0898 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (25% EtOAc in hexane as eluent), compound 22d (0.123 g, 0.31 mmol) was obtained
1
in 62% yield as yellow solids: H-NMR (acetone-d6, 500 MHz) δ 2.45 (t, J = 5.0 Hz, 4 H, NCH2CH2O),
2.73 (t, J = 6.5 Hz, 2 H, morpholine-CH2CH2), 3.49 (t, J = 5.0 Hz, 4 H, OCH2), 4.88 (t, J = 6.5 Hz, 2 H,
morpholine-CH2CH2), 7.38 (t, J = 7.5 Hz, 1 H, ArCH), 7.47 (t, J = 7.5 Hz, 1 H, ArCH), 7.54 (d, J = 8.5 Hz,
2 H, 2 × ArCH), 7.72 (d, J = 8.0 Hz, 1 H, ArCH), 7.85 (d, J = 8.0 Hz, 1 H, ArCH), 7.88 (d, J = 8.5 Hz, 2 H,
13
2 × ArCH), 7.88 (d, J = 16.0 Hz, 1 H, COCH), 8.28 (d, J = 16.0 Hz, 1 H, PhCH); C-NMR (acetone-d6,
125 MHz) δ 43.48, 54.91, 59.17, 67.51, 112.44, 122.54, 124.42, 125.31, 126.62, 130.21, 131.25, 134.79,
136.98, 137.80, 142.95, 143.04, 148.53, 183.36; IR (neat) 3357 (s), 3192 (s), 2920 (s), 2850 (s), 1662 (C=O,
s), 1632 (s), 1602 (C=N, s), 1564 (m), 1489 (m), 1470 (s), 1410 (s), 1333 (C–N, s) 1300(s), 1114 (s), 1034
(s), 1010 (s), 823 (s), 740 (s); MS (ESI) m/z calcd for C22H22ClN3O2: 395.1401, found: 395.1403.
(2E)-1-(1-(3-Morpholinopropyl)-1H-benzimidazol-2-yl)-3-phenyl-2-propen-1-one (23a). Standard
procedure 2 was followed by use of compound 18a (0.124 g, 0.50 mmol, 1.0 equiv) and 4-(3-
chloropropyl)morpholine (0.0982 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (66.7% EtOAc in hexane as eluent), compound 23a (0.116 g, 0.31 mmol) was obtained
1
in 62% yield as yellow oil: H-NMR (acetone-d6, 500 MHz) δ 2.30 (s, 6 H, NCH2CH2O and morpholine-
CH2CH2CH2), 2.33 (m, 8 H, morpholine-CH2CH2CH2), 3.57 (t, J = 4.5 Hz, 4 H, OCH2), 4.79 (t, J = 7.0
Hz, 2 H, morpholine-CH2CH2CH2), 7.37 (t, J = 7.5 Hz, 1 H, ArCH), 7.45 (t, J = 7.5 Hz, 1 H, ArCH), 7.49
(d, J = 7.0 Hz, 3 H, 3 × ArCH), 7.75 (d, J = 8.0 Hz, 1 H, ArCH), 7.81 (d, J = 8.0 Hz, 1 H, ArCH), 7.82 (d,
J = 8.0 Hz, 1 H, ArCH), 7.86 (d, J = 7.0 Hz, 1 H, ArCH), 7.88 (d, J = 16.0 Hz, 1 H, COCH), 8.33 (d, J =
13
16.0 Hz, 1 H, PhCH); C-NMR (acetone-d6, 125 MHz) δ 27.45, 44.26, 54.32, 56.24, 67.27, 112.39, 122.38,
124.24, 124.39, 126.58, 129.64, 129.96, 131.68, 135.75, 137.78, 142.64, 144.48, 147.85, 183.09; IR (neat)

Molecules 2019, 24, 3259
14 of 19
3780 (s), 3687 (s), 2918 (w), 2846 (w), 2808 (w), 1770 (m), 1663 (C=O, s), 1599 (C=N, s), 1476 (m), 1457
(w), 1407 (m), 1333 (C–N, s), 1306 (m), 1117 (s), 1043 (m), 979 (m), 859 (m), 744 (s), 686 (m); MS (ESI)
m/z calcd for C23H25N3O2: 375.1947, found: 375.1944.
(2E)-1-(1-(3-Morpholinopropyl)-1H-benzimidazol-2-yl)-3-(4-methylphenyl)-2-propen-1-one
(23b).
Standard procedure 2 was followed by use of compound 18b (0.131 g, 0.50 mmol, 1.0 equiv) and 4-
(3-chloropropyl)morpholine (0.0982 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which
potassium carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with
column chromatography (40% EtOAc in hexane as eluent), compound 23b (0.108 g, 0.28 mmol) was
1
obtained in 56% yield as brown oil: H-NMR (acetone-d6, 500 MHz) δ 2.30 (m, 6 H, NCH2CH2O and
morpholine-CH2CH2CH2), 2.35 (t, J = 6.5 Hz, 2 H, morpholine-CH2CH2CH2), 2.39 (s, 3 H, ph-CH3),
3.57 (t, J = 4.5 Hz, 4 H, OCH2), 4.81 (t, J = 7.5 Hz, 2 H, morpholine-CH2CH2CH2), 7.32 (d, J = 8.0 Hz, 2
H, 2 × ArCH), 7.37 (t, J = 7.0 Hz, 1 H, ArCH), 7.46 (t, J = 7.5 Hz, 1 H, ArCH), 7.70 (d, J = 8.0 Hz, 2 H, 2
× ArCH), 7.76 (d, J = 8.0 Hz, 1 H, ArCH), 7.86 (d, J = 8.0 Hz, 1 H, ArCH), 7.86 (d, J = 16.0 Hz, 1 H,
13
COCH), 8.28 (d, J = 16.0 Hz, 1 H, PhCH); C-NMR (acetone-d6, 125 MHz) δ 21.59, 27.57, 44.28, 54.47,
56.33, 67.40, 112.45, 122.46, 123.41, 124.33, 126.48, 129.74, 130.72, 133.20, 137.94, 142.26, 142.84, 144.50,
148.12, 183.26; IR (neat) 3840 (s), 3736 (s), 3673 (m), 3650 (m), 3568 (m), 2921 (s), 2851 (s), 2348 (s), 1663
(C=O, s), 1600 (C=N, s), 1454 (w), 1407 (w), 1333 (C–N, s), 1180 (s), 1117 (s), 1036 (s), 985 (w), 814 (s),
742 (m); MS (ESI) m/z calcd for C24H27N3O2: 389.2103, found: 389.2101.
(2E)-3-(4-Methoxyphenyl)-1-(1-(3-morpholinopropyl)-1H-benzimidazol-2-yl)-2-propen-1-one
(23c).
Standard procedure 2 was followed by use of compound 18c (0.139 g, 0.50 mmol, 1.0 equiv) and 4-(3-
chloropropyl)morpholine (0.0982 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which potassium
carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with column
chromatography (50% EtOAc in hexane as eluent), compound 23c (0.174 g, 0.43 mmol) was obtained
1
in 86% yield as yellow oil: H-NMR (acetone-d6, 500 MHz) δ 2.31–2.34 (m, 8 H, NCH2CH2O,
morpholine-CH2CH2CH2 and morpholine-CH2CH2CH2), 3.57 (t, J = 4.5 Hz, 4 H, OCH2), 3.87(s, 3 H,
OCH3), 4.80 (t, J = 7.5 Hz, 2 H, morpholine-CH2CH2CH2), 7.04 (d, J = 8.5 Hz, 2 H, 2 × ArCH), 7.36 (t, J
= 7.5 Hz, 1 H, ArCH), 7.44 (t, J = 7.5 Hz, 1 H, ArCH), 7.74 (d, J = 8.0 Hz, 1 H, ArCH), 7.78 (d, J = 9.0 Hz,
1 H, ArCH), 7.84 (d, J = 8.0 Hz, 1 H, ArCH), 7.85 (d, J = 16.0 Hz, 1 H, COCH), 8.18 (d, J = 16.0 Hz, 1 H,
13
PhCH); C-NMR (acetone-d6, 125 MHz) δ 29.62, 44.26, 54.50, 55.94, 56.34, 67.43, 112.41, 115.51, 122.03,
122.43, 124.24, 126.34, 128.54, 131.57, 137.96, 142.89, 144.36, 148.27, 163.11, 183.21; IR (neat) 3359 (s),
3186 (s), 2921 (s), 2851 (s), 1660 (C=O, s), 1632 (s), 1591 (C=N,s), 1511 (s), 1471 (s), 1418 (w), 1410 (w),
1331 (C–N, s), 1255 (s), 1172 (s), 1116 (s), 1036 (s), 828 (s), 741 (s); MS (ESI) m/z calcd for C24H27N3O3:
405.2052, found: 405.2051.
(2E)-3-(4-Chlorophenyl)-1-(1-(3-morpholinopropyl)-1H-benzimidazol-2-yl)-2-propen-1-one
(23d).
Standard procedure 2 was followed by use of compound 18d (0.141 g, 0.50 mmol, 1.0 equiv) and 4-
(3-chloropropyl)morpholine (0.0982 g, 0.60 mmol, 1.2 equiv) in acetonitrile (15 mL) to which
potassium carbonate (0.200 g, 1.45 mmol, 2.9 equiv) was added. After workup and purification with
column chromatography (33% EtOAc in hexane as eluent), compound 23d (0.115 g, 0.28 mmol) was
1
obtained in 56% yield as brown oil: H-NMR (acetone-d6, 500 MHz) δ 2.32 (br s, 4 H, NCH2CH2O),
2.36 (t, J = 6.5 Hz, 2 H, morpholine-CH2CH2CH2), 2.67 (s, 2 H, morpholine-CH2CH2CH2), 3.57 (t, J =
4.5 Hz, 4 H, OCH2), 4.80 (t, J = 7.0 Hz, 2H, morpholine- CH2CH2CH2), 7.38 (t, J = 7.5 Hz, 1 H, ArCH),
7.46 (t, J = 7.5 Hz, 1H, ArCH), 7.54 (d, J = 8.5 Hz, 2H, 2 × ArCH), 7.78 (d, J = 8.0 Hz, 1H, ArCH), 7.86
(d, J = 8.0 Hz, 1H, ArCH), 7.87 (d, J = 8.5 Hz, 2H, 2 × ArCH), 7.88 (d, J = 16.0 Hz, 1H, ketone-CH), 8.32
13
(d, J = 16.0 Hz, 1H, ph-CH); C-NMR (acetone-d6, 125 MHz) δ 27.56, 44.33, 54.50, 56.35, 67.42, 112.55,
122.55, 124.44, 125.16, 126.66, 128.94, 129.61, 130.20, 131.24, 134.81, 138.03, 142.84, 148.01, 183.11; IR
(neat) 3788 (s), 3663 (w), 3573 (w), 3359 (m), 2920 (s), 2850 (s), 1665 (C=O, s), 1602 (C=N, s), 1407 (w),
1334 (C–N, s), 1300 (w), 1117 (s), 1092 (s), 1043 (s), 821 (s), 742 (s); MS (ESI) m/z calcd for C23H24ClN3O2:
409.1557, found: 409.1557.
3.3. MTT Assay

Molecules 2019, 24, 3259
15 of 19
Assays to measure proliferation, viability, and cytotoxicity are commonly used to monitor the
response and health of cells in culture after treatment with various stimuli. First, cell-lines were
seeded in 96 well plates with 3000–5000 cells/well. On the second day, cell-lines were treated with
different compounds in various concentrations of 100, 50, 25, 12.5, 6.25, 0 μg/μL. After 48 h, the MTT
reagent 5(6)-carboxyfluorescein diacetate N-succinimidyl ester (CFSE) (5 mg/mL) was diluted to one
tenth in culture medium as the MTT assay solution. After the addition of MTT assay solution in 96-
well plates (100 μL/well), the sample was incubated at 37 °C for 1–1.5 h. Cell counting using viability
dyes such as trypan blue or calcein-AM can provide both the rate of proliferation as well as the
percentage of viable cells. CFSE is a popular choice for measuring the number of cellular divisions a
population has undergone. Upon entering the cell, CFSE is cleaved by intracellular esterases to form
the fluorescent compound and the succinimidyl ester group covalently reacts with primary amines
on intracellular proteins. After labeling the cells with MTT, as described above, all but 100 μL of
medium was removed from the wells. Then DMSO (50 μL) was added to each well and mixed
thoroughly with a pipette and incubated at 37 °C for 10 min. After incubation, the sample was gently
shaken and absorbance was read at 560 nm by an ELISA reader.
3.4. Flow cytometry
Cell cycle analysis of compounds 20a–23a was performed by propidium iodide (PI) staining
followed by flow cytometry in OVCAR-3 cells. OVCAR-3 cells were seeded into 6-cm dishes at a
5
density of 2 × 10 cells/dish for 24 h. Cells were then treated with serial dilution of compound 20a–
23a for 48 h. The cells were harvested and fixed with ice cold 70% ethanol at 4 °C for 24 h. After the
washes, cells were stained with PI staining solution (20 mg/mL PI in 0.3 mL of PBS containing 200–
400 unit of RNase A) followed by incubation at 37 °C for 30 min in the dark. The cells were analyzed
by flow cytometry (Accuri C6, Becton Dickenson, Bergen, NJ, USA) to determine the proportion of
cells within the cycle.
4. Conclusions
In conclusion, we describe the synthesis and examination of a new series of N-substituted
benzimidazole derivatives with a functional chalcone group. On the basis of the MTT assay against
A549, MCF-7, HEP-G2 and OVCAR-3 cells, we confirmed that these derivatives exhibit considerable
potential as anticancer drugs. In particular, compound 23a ((2E)-1-(1-(3-morpholinopropyl)-1H-
benzimidazol-2-yl)-3-phenyl-2-propen-1-one) attained high IC50 values on A549, MCF-7, HEP-G2 and
OVCAR-3 cells, and showed in vitro cytotoxicity comparable or superior to that of cisplatin. Among
the tested derivatives, 11 compounds (20a, 20c, 20d, 21a–21c, 22c, 22d, 23a–23c) had IC50 values
between 10.34 and 14.88 μM, which were lower than 16.04 μM (the IC50 value of cisplatin), for the
OVCAR-3 cells. According to the MTT results, the nitrogen-containing 5- or 6-membered ring in the
N-substituted benzimidazole derivatives can lead to enhanced cytotoxic effects on MCF-7 and
OVCAR-3 cells, which might serve as new templates in the synthesis and development of potent
therapeutics.
Additionally, the flow cytometry results indicate OVCAR-3 cells treated with compound 20a
and 21a were 55% and 63% in the G2/M phase, respectively (Table 2). The activities of compounds
20a and 21a may be related to their abilities to control cells entering apoptosis from the S or G2/M
phase of the cell cycle. A similar mechanism was also found in thyroid carcinoma, BHT-101, cells
after treatment with 50 μM curcumin [57]. Moreover, compound 23a had low IC50 concentration in
OVCR-3 cells, but it did not show any significant change in flow cytometry results. Cytotoxicity of
compound 23a may have occurred through cell necrosis.
To further improve the efficacy and specificity for cancer cell death, we conclude that the novel
series of N-substituted benzimidazole derivatives can serve as prototype molecules for further
development of a new class of anti-cancer agents.
Supplementary Materials: The supporting information are available online.

Molecules 2019, 24, 3259
16 of 19
Author Contributions: Hsieh C.Y., Ko P.W., Chang Y.J., Kapoor M. performed the synthesis and structure
elucidation. Liang Y.C., Lin H.H., Chu H.L. contributed to evaluation of bioactivity. Horng J.C. and Hsu M.H.
prepared the manuscript and supervised whole research project.
Funding: We thank the National Tsing Hua University and Ministry of Science and Technology of the Republic
of China for financial support, also thanks the Laboratory Animal Core Facility which is funded by Agriculture
Biotechnology Research Center (ABRC) at Academia Sinica for technical support in cytotoxic, cell morphology
and flow cytometry experiments. The authors also thank Ms. Miranda Loney for manuscript editing. This work
was supported by the Ministry of Science and Technology (MOST 104-2119-M-007-017)(MOST 106-2113-M -018-
008)(MOST 107-2113-M-018-008)(MOST 108-2113-M-018-009).
Acknowledgments: The authors thank to Ms. Miranda Jane Loney (ABRC, Academia Sinica, Taiwan) for her
attentive editing of this manuscript.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
Chimento, A.; Sala, M.; Gomez-Monterrey, I.M.; Musella, S.; Bertamino, A.; Caruso, A.; Sinicropi, M.S.;
Sirianni, R.; Puoci, F.; Parisi, O.I.; et al. Biological activity of 3-chloro-azetidin-2-one derivatives having
interesting antiproliferative activity on human breast cancer cell lines. Bioorg. Med. Chem. Lett. 2013, 23,
6401–6405.
2.
3.
Rui, M.; Rossi, D.; Marra, A.; Paolillo, M.; Schinelli, S.; Curti, D.; Tesei, A.; Cortesi, M.; Zamagni, A.; Laurini,
E.; et al. Synthesis and biological evaluation of new aryl-alkyl(alkenyl)-4-benzylpiperidines, novel Sigma
Receptor (SR) modulators, as potential anticancer-agents. Eur. J. Med. Chem. 2016, 124, 649–665.
Jukić, M.; Rastija, V.; Opačak-Bernardi, T.; Stolić, I.; Krstulović, L.; Bajić, M.; Glavaš-Obrovac, L. Antitumor
activity of 3,4-ethylenedioxythiophene derivatives and quantitative structure-activity relationship analysis.
J. Mol. Struct. 2017, 1133, 66–73.
4.
5.
6.
Townsend, L.B.; Wise, D.S. The synthesis and chemistry of certain anthelmintic benzimidazoles. Parasitol.
Today 1990, 6, 107–112.
Woolley, D.W. Some biological effects produced by benzimidazole and their reversal by purines. J. Biol.
Chem. 1944, 152, 225–232.
Fang, Y.; Zhou, H.; Gu, Q.; Xu, J. Synthesis and evaluation of tetrahydroisoquinoline-benzimidazole
hybrids as multifunctional agents for the treatment of Alzheimer’s disease. Eur. J. Med. Chem. 2019, 167,
133–145.
7.
Shimomura, I.; Yokoi, A.; Kohama, I.; Kumazaki, M.; Tada, Y.; Tatsumi, K.; Ochiya, T.; Yamamoto, Y. Drug
library screen reveals benzimidazole derivatives as selective cytotoxic agents for KRAS-mutant lung cancer.
Cancer Lett. 2019, 451, 11–22.
8.
9.
Tuncbilek, M.; Kiper, T.; Altanlar, N. Synthesis and in vitro antimicrobial activity of some novel substituted
benzimidazole derivatives having potent activity against MRSA. Eur. J. Med. Chem. 2009, 44, 1024–1033.
Shingalapur, R.V.; Hosamani, K.M.; Keri, R.S. Synthesis and evaluation of in vitro anti-microbial and anti-
tubercular activity of 2-styryl benzimidazoles. Eur. J. Med. Chem. 2009, 44, 4244–4248.
10. Surineni, G.; Gao, Y.; Hussain, M.; Liu, Z.; Lu, Z.; Chhotaray, C.; Islam, M.M.; Hameed, H.M.A.; Zhang, T.
Design, synthesis, and in vitro biological evaluation of novel benzimidazole tethered
allylidenehydrazinylmethylthiazole derivatives as potent inhibitors of Mycobacterium tuberculosis.
Medchemcomm 2019, 10, 49–60.
11. Zhang, H.Z.; Damu, G.L.; Cai, G.X.; Zhou, C.H. Design, synthesis and antimicrobial evaluation of novel
benzimidazole type of Fluconazole analogues and their synergistic effects with Chloromycin, Norfloxacin
and Fluconazole. Eur. J. Med. Chem. 2013, 64, 329–344.
12. Hernandez-Luis, F.; Hernandez-Campos, A.; Castillo, R.; Navarrete-Vazquez, G.; Soria-Arteche, O.;
Hernandez-Hernandez, M.; Yepez-Mulia, L. Synthesis and biological activity of 2-(trifluoromethyl)-1H-
benzimidazole derivatives against some protozoa and Trichinella spiralis. Eur. J. Med. Chem. 2010, 45, 3135–
3141.
13. Valdez-Padilla, D.; Rodriguez-Morales, S.; Hernandez-Campos, A.; Hernandez-Luis, F.; Yepez-Mulia, L.;
Tapia-Contreras, A.; Castillo, R. Synthesis and antiprotozoal activity of novel 1-methylbenzimidazole
derivatives. Bioorg. Med. Chem. 2009, 17, 1724–1730.

Molecules 2019, 24, 3259
17 of 19
14. Rida, S.M.; El-Hawash, S.A.M.; Fahmy, H.T.Y.; Hazzaa, A.A.; El-Meligy, M.M.M. Synthesis of novel
benzofuran and related benzimidazole derivatives for evaluation of in vitro anti-HIV-1, anticancer and
antimicrobial activities. Arch. Pharmacal Res. 2006, 29, 826–833.
15. Luo, Y.; Yao, J.P.; Yang, L.; Feng, C.L.; Tang, W.; Wang, G.F.; Zuo, J.P.; Lu, W. Design and synthesis of novel
benzimidazole derivatives as inhibitors of hepatitis B virus. Bioorg. Med. Chem. 2010, 18, 5048-5055.
16. Singla, P.; Luxami, V.; Paul, K. Benzimidazole-biologically attractive scaffold for protein kinase inhibitors.
Rsc Adv. 2014, 4, 12422–12440.
17. Achar, K.C.; Hosamani, K.M.; Seetharamareddy, H.R. In-vivo analgesic and anti-inflammatory activities of
newly synthesized benzimidazole derivatives. Eur. J. Med. Chem. 2010, 45, 2048-2054.
18. Refaat, H.M. Synthesis and anticancer activity of some novel 2-substituted benzimidazole derivatives. Eur.
J. Med. Chem. 2010, 45, 2949–2956.
19. Azam, M.; Khan, A.A.; Al-Resayes, S.I.; Islam, M.S.; Saxena, A.K.; Dwivedi, S.; Musarrat, J.; Trzesowska-
Kruszynska, A.; Kruszynski, R. Synthesis and characterization of 2-substituted benzimidazoles and their
evaluation as anticancer agent. Spectrochim. Acta Part A 2015, 142, 286–291.
20. Pourgholami, M.H.; Woon, L.; Almajd, R.; Akhter, J.; Bowery, P.; Morris, D.L. In vitro and in vivo
suppression of growth of hepatocellular carcinoma cells by albendazole. Cancer Lett. 2001, 165, 43–49.
21. Di Carlo, G.; Mascolo, N.; Izzo, A.A.; Capasso, F. Flavonoids: Old and new aspects of a class of natural
therapeutic drugs. Life Sci. 1999, 65, 337–353.
22. Nowakowska, Z. A review of anti-infective and anti-inflammatory chalcones. Eur. J. Med. Chem 2007, 42,
125–137.
23. Pettit, G.R.; Rhodes, M.R.; Herald, D.L.; Hamel, E.; Schmidt, J.M.; Pettitt, R.K. Antineoplastic agents. 445.
Synthesis and evaluation of structural modifications of (Z)- and (E)-combretastatin A-4. J. Med. Chem. 2005,
48, 4087–4099.
24. Sivakumar, P.M.; Ganesan, S.; Veluchamy, P.; Doble, M. Novel chalcones and 1,3,5-triphenyl-2-pyrazoline
derivatives as antibacterial agents. Chem. Biol. Drug Des. 2010, 76, 407–411.
25. Agarwal, A.; Srivastava, K.; Puri, S.K.; Chauhan, P.M.S. Synthesis of substituted indole derivatives as a new
class of antimalarial agents. Bioorg. Med. Chem. Lett. 2005, 15, 3133–3136.
26. Suwito, H.; Jumina; Mustofa; Pudjiastuti, P.; Fanani, M.Z.; Kimata-Ariga, Y.; Katahira, R.; Kawakami, T.;
Fujiwara, T.; Hase, T.; Sirat, H.M.; et al. Design and synthesis of chalcone derivatives as inhibitors of the
ferredoxin—ferredoxin-NADP(+) reductase interaction of plasmodium falciparum: Pursuing new
antimalarial agents. Molecules 2014, 19, 21473–21488.
27. Boeck, P.; Leal, P.C.; Yunes, R.A.; Cechinel, V.; Lopez, S.; Sortino, M.; Escalante, A.; Furlan, R.L.E.; Zacchino,
S. Antifungal activity and studies on mode of action of novel xanthoxyline-derived chalcones. Arch. Pharm.
2005, 338, 87–95.
28. Cheenpracha, S.; Karalai, C.; Ponglimanont, C.; Subhadhirasakul, S.; Tewtrakul, S. Anti-HIV-1 protease
activity of compounds from Boesenbergia pandurata. Bioorg. Med. Chem. 2006, 14, 1710–1714.
29. Mateeva, N.; Gangapuram, M.; Mazzio, E.; Eyunni, S.; Soliman, K.F.A.; Redda, K.K. Biological evaluation
of synthetic chalcone and flavone derivatives as anti-inflammatory agents. Med. Chem. Res. 2015, 24, 1672–
1680.
30. Kamal, A.; Prabhakar, S.; Ramaiah, M.J.; Reddy, P.V.; Reddy, C.R.; Mallareddy, A.; Shankaraiah, N.; Reddy,
T.L.N.; Pushpavalli, S.N.C.V.L.; Pal-Bhadra, M. Synthesis and anticancer activity of chalcone-
pyrrolobenzodiazepine conjugates linked via 1,2,3-triazole ring side-armed with alkane spacers. Eur. J. Med.
Chem. 2011, 46, 3820–3831.
31. Kim, T.H.; Seo, W.D.; Ryu, H.W.; Seo, H.R.; Jin, Y.B.; Lee, M.; Ji, Y.H.; Park, K.H.; Lee, Y.S. Anti-tumor effects
by a synthetic chalcone compound is mediated by c-Myc-mediated reactive oxygen species production.
Chem.-Biol. Interact. 2010, 188, 111–118.
32. Modzelewska, A.; Pettit, C.; Achanta, G.; Davidson, N.E.; Huang, P.; Khan, S.R. Anticancer activities of
novel chalcone and bis-chalcone derivatives. Bioorg. Med. Chem. 2006, 14, 3491–3495.
33. Quintin, J.; Desrivot, J.; Thoret, S.; Le Menez, P.; Cresteil, T.; Lewin, G. Synthesis and biological evaluation
of a series of tangeretin-derived chalcones. Bioorg Med Chem Lett. 2009, 19, 167–169.
34. He, S.W.; Hong, Q.M.; Lai, Z.; Yang, D.X.; Ting, P.C.; Kuethe, J.T.; Cernak, T.A.; Dykstra, K.D.; Sperbeck,
D.M.; Wu, Z.C.; et al. Discovery of a potent and selective DGAT1 inhibitor with a piperidinyl-oxy-
cyclohexanecarboxylic acid moiety. ACS Med. Chem. Lett. 2014, 5, 1082–1087.

Molecules 2019, 24, 3259
18 of 19
35. Shaharyar, M.; Abdullah, M.M.; Bakht, M.A.; Majeed, J. Pyrazoline bearing benzimidazoles: Search for
anticancer agent. Eur. J. Med. Chem. 2010, 45, 114–119.
36. Solomon, V.R.; Hu, C.K.; Lee, H. Hybrid pharmacophore design and synthesis of isatin-benzothiazole
analogs for their anti-breast cancer activity. Bioorg. Med. Chem. 2009, 17, 7585–7592.
37. Wan, M.S.; Xu, L.Y.; Hua, L.; Li, A.L.; Li, S.Q.; Lu, W.J.; Pang, Y.; Cao, C.B.; Liu, X.G.; Jiao, P. Synthesis and
evaluation of novel isoxazolyl chalcones as potential anticancer agents. Bioorg. Chem. 2014, 54, 38–43.
38. Ouattara, M.; Sissouma, D.; Kone, M.W.; Menan, H.E.; Toure, S.A.; Ouattara, L. Synthesis and anthelmintic
activity of some hybrid Benzimidazolyl-chalcone derivatives. Trop. J. Pharm. Res. 2011, 10, 767–775.
39. Reddy, V.M.; Reddy, K.R. Synthesis and biological evaluation of some novel-3-(5-substituted
benzimidazol-2-yl)-5-arylisoxazolines. Chin. Chem. Lett. 2010, 21, 1145–1148.
40. Mathew, B.; Suresh, J.; Vinod, D. Antitumour activity of 5-[(2E)-1-(1H-benzimidazol-2-yl)-3-substituted
phenylprop-2-en-1-ylidene] pyrimidine-2,4,6(1H,3H,5H)-triones against Dalton’s ascitic lymphoma in mice.
Med. Chem. Res. 2013, 22, 3911–3917.
41. Woo, H.B.; Eom, Y.W.; Park, K.S.; Ham, J.; Ahn, C.M.; Lee, S. Synthesis of substituted benzimidazolyl
curcumin mimics and their anticancer activity. Bioorg. Med. Chem. Lett. 2012, 22, 933–936.
42. Hayes, M.E.; Wallace, G.A.; Grongsaard, P.; Bischoff, A.; George, D.M.; Miao, W.Y.; McPherson, M.J.; Stoffel,
R.H.; Green, D.W.; Roth, G.P. Discovery of small molecule benzimidazole antagonists of the chemokine
receptor CXCR3. Bioorg. Med. Chem. Lett. 2008, 18, 1573–1576.
43. Mehboob, S.; Song, J.H.; Hevener, K.E.; Su, P.C.; Boci, T.; Brubaker, L.; Truong, L.; Mistry, T.; Deng, J.P.;
Cook, J.L.; et al. Structural and biological evaluation of a novel series of benzimidazole inhibitors of
Francisella tularensis enoyl-ACP reductase (FabI). Bioorg. Med. Chem. Lett. 2015, 25, 1292–1296.
44. Sharma, A.; Luxami, V.; Paul, K. Synthesis, single crystal and antitumor activities of benzimidazole-
quinazoline hybrids. Bioorg. Med. Chem. Lett. 2013, 23, 3288–3294.
45. Hwu, J.R.; Hsu, M.H.; Huang, R.C.C., New nordihydroguaiaretic acid derivatives as anti-HIV agents. Bioorg.
Med. Chem. Lett. 2008, 18, 1884–1888.
46. Orjales, A.; Alonso-Cires, L.; Lopez-Tudanca, P.; Tapia, I.; Mosquera, R.; Labeaga, L. Benzimidazole-2-
carboxylic acid amides and esters: A new structural class of 5-HT(3) ligands. Eur. J. Med. Chem. 1999, 34,
415–422.
47. Ganot, N.; Meker, S.; Reytman, L.; Tzubery, A.; Tshuva, E.Y. Anticancer metal complexes: Synthesis and
cytotoxicity evaluation by the MTT assay. J. Vis. Exp. 2013, 81, 507–567.
48. Grigalius, I.; Petrikaite, V. Relationship between antioxidant and anticancer activity of trihydroxyflavones.
Molecules 2017, 22, 2169.
49. Mosmann, T. Rapid colorimetric assay for cellular growth and survival: Application to proliferation and
cytotoxicity assays. J. Immunol. Methods 1983, 65, 55–63.
50. Li, F.Y.; Wang, X.; Duan, W.G.; Lin, G.S. Synthesis and in vitro anticancer activity of novel dehydroabietic
acid-based acylhydrazones. Molecules 2017, 22, 1087.
51. Sliwka, L.; Wiktorska, K.; Suchocki, P.; Milczarek, M.; Mielczarek, S.; Lubelska, K.; Cierpial, T.; Lyzwa, P.;
Kielbasinski, P.; Jaromin, A.; et al. The comparison of MTT and CVS assays for the assessment of anticancer
agent interactions. PLoS ONE 2016, 11, doi:10.1371/journal.pone.0155772.
52. Murakami, T. Absorption sites of orally administered drugs in the small intestine. Expert Opin. Drug Discov.
2017, 12, 1219–1232.
53. Tetko, I.V.; Bruneau, P. Application of ALOGPS to predict 1-octanol/water distribution coefficients, logP,
and logD, of AstraZeneca in-house database. J. Pharm. Sci. 2004, 93, 3103–3110.
54. Tetko, I.V.; Tanchuk, V.Y. Application of associative neural networks for prediction of lipophilicity in
ALOGPS 2.1 program. J. Chem. Inf. Comput. Sci. 2002, 42, 1136–1145.
55. Tetko, I.V.; Tanchuk, V.Y.; Kasheva, T.N.; Villa, A.E. Internet software for the calculation of the lipophilicity
and aqueous solubility of chemical compounds. J. Chem. Inf. Comput. Sci. 2001, 41, 246–252.

Molecules 2019, 24, 3259
19 of 19
56. Desai, N.C.; Pandya, D.D.; Joshi, V.V.; Rajpara, K.M.; Vaghani, H.V.; Satodiya, H.M. Synthesis,
characterization and antimicrobial screening of hybrid molecules containing benzimidazole-pyrazole and
pyridine nucleus. Med. Chem. Res. 2012, 21, 4463–4472.
57. Schwertheim, S.; Wein, F.; Lennartz, K.; Worm, K.; Schmid, K.W.; Sheu-Grabellus, S.Y. Curcumin induces
G2/M arrest, apoptosis, NF-kappaB inhibition, and expression of differentiation genes in thyroid carcinoma
cells. J. Cancer Res. Clin. Oncol. 2017, 143, 1143–1154.
Sample Availability: Samples of the compounds are available from the authors.
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
