5240
Organometallics 2004, 23, 5240-5251
Use of Com p u ta tion a l a n d Syn th etic Ch em istr y in
Ca ta lyst Design : A New F a m ily of High -Activity
Eth ylen e P olym er iza tion Ca ta lysts Ba sed on Tita n iu m
Tr is(a m in o)p h osp h in im id e Com p lexes
Chad Beddie, Emily Hollink, Pingrong Wei, J ames Gauld, and
Douglas W. Stephan*
Department of Chemistry and Biochemistry, University of Windsor,
Windsor, Ontario, Canada, N9B3P4
Received J une 22, 2004
DFT calculations of the mechanism of polymerization for the series of catalyst models
derived from CpTiMe2(NPR3) (R ) Me, NH2, H, Cl, F) demonstrate the critical role of ion
pairing in determining the overall barrier to polymerization and suggest that electron-
donating substituents reduce this barrier. Based on these results, a family of precatalysts

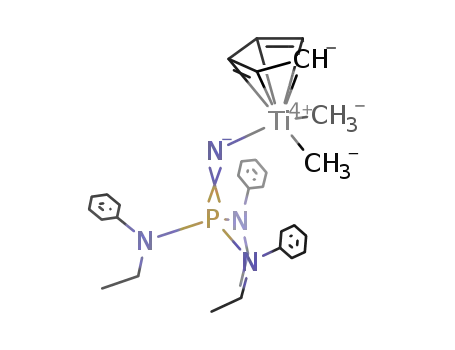

of general formula Cp′TiX2(NP(NR2)3) (X ) Cl, Me) were developed. This approach using
computational methods to guide the synthetic efforts has afforded a new, readily accessible,
and easily varied family of highly active ethylene polymerization catalysts based on titanium
tris(amino)phosphinimide complexes.
In tr od u ction
dienylborate,18 diketimine,19 tropidinyl,20 tridentate,21
and macrocyclic ligands.22 These and other efforts have
been recently reviewed by Gibson and co-workers.23,24
The “constrained geometry catalysts” (CGC) (B)25-33
derived from Cp-amido ligand complexes have been
Since the discovery that zirconocene derivatives can
act as single-site catalysts for olefin polymerization,
efforts have been ongoing both in academic and in
industrial labs to uncover alternative or modified cata-
lyst systems. While many groups have targeted the
control of polymer properties via judicious modification
of zirconocene precursors, others have probed the vi-
ability of early metal complexes with alternative ancil-
lary ligands as effective polymerization catalysts. In
such efforts, a number of systems have drawn consider-
able attention. For example, in 1996, McConville and
co-workers uncovered a nonmetallocene living polym-
erization catalyst (A), based on a bulky chelating
diamide ligand.1 A wide variety of other ligand modifi-
cations have been probed. Appreciable catalytic activi-
ties have been derived from titanium and zirconium
complexes containing amido,2 diamido,3-8 bidentate
aryloxide,9-11 borollide,12,13 boratabenzene,14,15 pendant
cyclopentadienyl borane,16 trimethylene,17 cyclopenta-
(11) Van Der Linden, A.; Schaverien, C. J .; Meijboom, N.; Ganter,
C.; Orpen, A. G. J . Am. Chem. Soc. 1995, 117, 3008-3021.
(12) Bazan, G. C.; Schaefer, W. P.; Bercaw, J . E. Organometallics
1993, 12, 2126.
(13) Bazan, G. C.; Donnelly, S. J .; Ridriguez, G. J . Am. Chem. Soc.
1995, 117, 2671-2672.
(14) Bazan, G. C.; Rodriguez, G.; Ashe, A. J ., III; Al-Ahmad, S.;
Muller, C. J . Am. Chem. Soc. 1996, 118, 2291-2292.
(15) Bazan, G. C.; Rodriguez, G. Organometallics 1997, 16, 2492-
2494.
(16) Spence, R. E. v. H.; Piers, W. E. Organometallics 1995, 14,
4617-4624.
(17) Rodriguez, G.; Bazan, G. C. J . Am. Chem. Soc. 1997, 119, 343-
352.
(18) Sun, Y.; Spence, R. E. v. H.; Piers, W. E.; Parvez, M.; Yap, G.
P. A. J . Am. Chem. Soc. 1997, 119, 5132-5143.
(19) Vollmerhaus, R.; Rahim, M.; Tomaszewski, R.; Xin, S.; Taylor,
N. J .; Collins, S. Organometallics 2000, 19, 2161-2169.
(20) Skoog, S. J .; Mateo, C.; Lavoie, G. G.; Hollander, F. J .; Bergman,
R. G. Organometallics 2000, 19, 1406-1421.
(21) Okuda, J .; Eberle, T.; Spaniol, T. P.; Piquet-Faure, V. J .
Organomet. Chem. 2000, 591, 127-137.
* To whom correspondence should be addressed. E-mail: stephan@
uwindsor.ca.
(1) Scollard, J . D.; McConville, D. H. J . Am. Chem. Soc. 1996, 118,
10008-10009.
(2) Sinnema, P. J .; Okuda, J . J . Organomet. Chem. 2000, 598, 179-
(22) Fokken, S.; Spaniol, T. P.; Kang, H.-C.; Massa, W.; Okuda, J .
Organometallics 1996, 15, 5069-5072.
(23) Gibson, V. C.; Spitzmesser, S. K. Chem. Rev. 2003, 103, 283-
315.
181.
(24) Britovsek, G. J . P.; Gibson, V. C.; Wass, D. F. Angew. Chem.,
Int. Ed. 1999, 38, 428-447.
(3) Lorber, C.; Donnadieu, B.; Choukroun, R. Organometallics 2000,
19, 1963-1966.
(25) Shapiro, P. J .; Bunel, E.; Schaefer, W. P.; Bercaw, J . E.
Organometallics 1990, 9, 867-869.
(4) Scollard, J . D.; McConville, D. H. J . Am. Chem. Soc. 1996, 118,
10008-10009.
(26) Chen, Y.-X.; Marks, T. J . Organometallics 1997, 16, 3649-3657.
(27) Tian, S.; Arredondo, V. M.; Stern, C. L.; Marks, T. J . Organo-
metallics 1999, 18, 2568-2570.
(5) Scollard, J . D.; McConville, D. H.; Vittal, J . J . Organometallics
1995, 14, 8.
(6) Warren, T. H.; Schrock, R. R.; Davis, W. M. Organometallics
1998, 17, 308-321.
(28) Deck, P. A.; Beswick, C. L.; Marks, T. J . J . Am. Chem. Soc.
1998, 120, 1772-1784.
(7) Cloke, F. G. N.; Geldach, T. J .; Hitchcock, P. B.; Love, J . B. J .
Organomet. Chem. 1996, 506, 343-345.
(8) Lee, C. H.; La, Y.-H.; Park, J . W. Organometallics 2000, 19, 344-
351.
(9) Nomura, K.; Naga, N.; Miki, M.; Yanagi, K.; Imai, A. Organo-
metallics 1998, 17, 2152-2154.
(10) Tsukahara, T.; Swenson, D. C.; J ordan, R. F. Organometallics
1997, 16, 3303-3313.
(29) Woo, T. K.; Margl, P. M.; Lohrenz, J . C. W.; Blochl, P. E.;
Ziegler, T. J . Am. Chem. Soc. 1996, 118, 13021-13030.
(30) Shapiro, P. J .; Cotter, W. D.; Schaefer, W. P.; Labinger, J . A.;
Bercaw, J . E. J . Am. Chem. Soc. 1994, 116, 4623-4640.
(31) Devore, D. D.; Timmers, F. J .; Hasha, D. L.; Rosen, R. K.;
Marks, T. J .; Deck, P. A.; Stern, C. L. Organometallics 1995, 14, 3132-
3134.
(32) Lindsay, K. F. Mod. Plast. 1993, 82.
10.1021/om049545i CCC: $27.50 © 2004 American Chemical Society
Publication on Web 09/25/2004

Catalyst Design
Organometallics, Vol. 23, No. 22, 2004 5241
Sch em e 1. Exa m p les of Non -m eta llocen e Ca ta lyst
P r ecu r sor s
of bulky electron-donating amides resulted in improved
catalyst performance.45 While computational studies of
polymerization catalysts have for the most part focused
on metallocene46-70 and constrained geometry-based
catalysts,48,49,51,57,60,62,71,72 group 4 phosphinimide cata-
lysts have only recently been investigated by Ziegler and
co-workers.58,59 While these experimental and theoreti-
cal investigations have illuminated various aspects of
successful olefin polymerization catalyst targets, in
general, the discovery of high-activity nonmetallocene
catalysts has, for the most part, been the product of
serendipity. In this article, we employ computational
methods to provide guidance for the synthetic chemistry
efforts of new phosphinimide catalysts. The energetics
of model reactions of phosphinimide catalysts with
ethylene, resulting in two consecutive insertions, are
computed as a function of the phosphinimide substitu-
ents using density functional theory. These results are
used together with judicious synthetic strategies to
uncover a new family of readily accessible, highly active
ethylene polymerization catalysts based on titanium
tris(amino)phosphinimide complexes.
commercialized by Dow and Exxon. More recently,
Fujita and co-workers at Mitsui Chemicals have devel-
oped the so-called “FI catalysts” (Fenokishi-Imin), which
are phenoxy-imine ligand complexes of zirconium and
titanium (C).34,35 In our own efforts to develop nonmet-
allocene catalyst systems, we have focused on Ti-
phosphinimide ligand complexes. While small substit-
uents on the phosphinimide ligands prompt unique
deactivation pathways, including formation of Ti(IV)
dications36 and multiple C-H activation processes,37-39
sterically demanding phosphinimide complexes such as
(C5H4t-Bu)TiCl2NPCy3 (D) or TiMe2(NPt-Bu3)2 (E) af-
ford highly active catalysts that sustain activity under
industrially relevant conditions.40-42 Further studies
involving a variety of sterically demanding phosphin-
imide ligands have revealed the complexity of catalyst
design issues for these ancillary ligands.43,44 The nature
of desirable electronic features is also unclear. Prelimi-
nary studies using a series of substituted triphenylphos-
phinimide Ti-precatalysts demonstrated increased ac-
tivity when electron-donating substituents were in-
corporated; however these catalysts operate in a rather
low activity regime.42 Nonetheless, a recent study of a
related CpTi-ketimide system showed that incorporation
Exp er im en ta l Section
Gen er a l Da ta . All preparations were done under an
atmosphere of dry, O2-free N2 employing both Schlenk line
techniques and an MBraun inert atmosphere glovebox. Sol-
