58
H.-F. Yao et al. / Journal of Molecular Catalysis A: Chemical 394 (2014) 57–65
diffractometer equipped with Cu-K␣ at a scanning rate of 10◦ min−1
in the 2Â range 3–50◦. The accelerating voltage and the applied
current were 35 KV and 25 mA, respectively. SEM study and the
energy dispersive X-ray spectroscopy (EDS) analyses were car-
ried out with a S-4800 HITACHI scanning electron microscope. Gas
instrument equipped with an FID detector and an SE-54 capillary
column (30 m × 0.25 mm × 0.25 m).
cyanosilylation and styrene oxidation. Cyanosilylation of carbonyl
industrially important compounds [33,34]. Cyanosilylation of
aldehydes does not require strong Lewis acidity, and it is one of
most frequently used model reactions for the study of MOFs as
Lewis acid catalysts [10,35–39]. Catalytic oxidation of alkenes
is a fundamental reaction that finds important applications in
chemical industry. The oxidation of various substrates has been
accomplished using metal-containing homo- or heterogeneous
catalysts, including an increasing number of MOFs [27,28,40–48].
In this paper, we present a systematic study on the catalytic
properties of different CPO-27-M catalysts (M = Co, Mg, Mn, Ni
and Zn) for aldehyde cyanosilylation with trimethylsilylcyanide
and styrene oxidation with tert-butylhydroperoxide. After com-
parative investigations on these different MOFs, we are focused
on the most active catalyst to study the heterogeneity, size selec-
tivity, recyclability and the possible mechanisms. The studies
on two mixed-metal catalysts, CPO-27-Mn0.57Co0.43 and CPO-27-
Mn0.10Co0.90, are also included to confirm the influence of different
metal ions.
2.3. Catalytic reaction
Generally, before a catalytic test, the as-synthesized MOFs were
activated by the following solvent-exchange and heating proce-
dures, if not specified otherwise. The MOFs were immersed and
stirred continuously in methanol for 12 h, and then the liquid was
decanted off. This methanol exchange procedure was repeated
twice. The solid thus obtained was filtered, dried in air, transferred
into a flask, heated at 170 ◦C for 4 h under dynamic vacuum, and
cooled under nitrogen atmosphere to an appropriate temperature
for the catalytic reaction. n-Dodecane was used as the internal
standard for GC analysis. The temperature program for GC analysis
was set as follows: the temperature was held at 40 ◦C for 1 min, then
raised to 260 ◦C at 30 ◦C/min and held for 5 min. Inlet and detector
temperatures were 280 ◦C.
2. Experimental
2.1. Materials and catalyst preparation

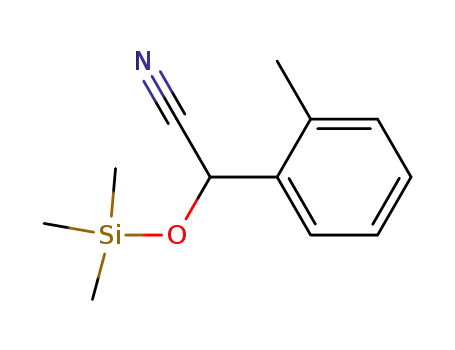

2.3.1. Cyanosilylation of benzaldehyde
The catalytic reactions were carried out in dichloromethane
(DCM) solutions under nitrogen atmosphere. The solvent was
dried and distilled before use. In a typical catalytic experiment,
DCM (15 mL), TMSCN (10 mmol), n-dodecane (5 mmol, as inter-
nal standard) and benzaldehyde (5 mmol) were added into the
flask containing activated CPO-27-M (0.5 mmol). The mixture was
stirred and refluxed in an oil bath. The reaction conversion was
The starting materials for catalyst synthesis [2,5-
dihydroxyterephthalic acid (H4dhtp) and various metal salts]
and those for catalytic reactions [trimethylsilylcyanide (TMSCN),
benzaldehyde, styrene, tert-butylhydroperoxide (TBHP, 5–6 M
in decane)] were all used without further purifications. All of
Sinopharm.
CPO-27-M catalysts were synthesized by the solvothermal pro-
cedures described in the literature. For M = Co, Ni, Mg, Zn, a mixture
of tetrahydrofuran (THF) and water was used as solvent, and the
metal sources are metal acetates or nitrates [21,49]; CPO-27-Mn
was synthesized from manganese chloride with a mixture of N,N’-
dimethylformide (DMF), ethanol and water as solvent [22]. The
method for CPO-27-Mn was also successfully applied to CPO-27-Co.
Two mixed-metal MOFs (solid solutions) were prepared as follows.
CPO-27-Mn0.57Co0.43. This compound was prepared according
to the literature method for CPO-27-Mn. H4dhtp (0.34 mmol,
67 mg), MnCl2.4H2O (0.56 mmol, 110 mg), and CoCl2.6H2O
(0.56 mmol, 132 mg) were dissolved in a mixture of DMF, ethanol
and water (13/1/1, v/v; 15 mL) in a 23 mL Teflon lined stainless
steel autoclave and heated at 135 ◦C for 24 h. After cooling to room
temperature, the solid was filtered out, washed with methanol
three times, and dried in air. Yield: 90%. The metal contents in the
product were determined by EDS analysis
2.3.2. Styrene oxidation
In a typical reaction, the flask containing the activated catalyst
was charged with a given amount of styrene (5 mmol), TBHP (5–6 M
in decane, 15 mmol) and solvent (5 mL, if needed). The reaction
mixture was stirred and kept at the given temperature under nitro-
gen atmosphere. Aliquot samples were withdrawn at different time
intervals and immediately detected by GC.
3. Results and discussion
The XRD patterns (Fig. 1a) of all as-synthesized products with
different metal ions (Co, Ni, Mg, Zn, and Mn) are similar to one
another and in good agreement with those reported elsewhere
[21,22,49], indicating that the products are isostructural and have
the desired CPO-27-type structures. The XRD profiles (Fig. 1b) of the
samples activated by methanol exchange and subsequent vacuum
those for the as-synthesized MOFs, confirming that the structural
integrity of the frameworks is retained after activation.
Initially, CPO-27-Mn was synthesized by a solvothermal reac-
tion for 24 h, according to a literature method [22]. However, we
found that the compound can be obtained within a much shorter
time, under otherwise identical conditions. The XRD pattern and
the SEM picture of the sample obtained by reacting for 4 h are
provided as Fig. S1 in Supplementary material. It is obvious that
the crystalline phase can be well formed within the reduced time.
Catalytic tests (vide infra) indicated that the catalysts synthesized
within 4 and 24 h showed similar activity.
CPO-27-Mn0.10Co0.90. This compound was prepared accord-
ing to the literature method for CPO-27-Co. H4dhtp (0.34 mmol,
67 mg) in THF (1.5 mL) and a solution of Co(OAc)2.4H2O (0.56 mmol,
138 mg) and Mn(OAc).4H2O (0.56 mmol, 136 mg) in H2O (2 mL)
were combined in the Teflon lined steel autoclave. The autoclave
was sealed and heated in a pre-heated oven at 110 ◦C for 3 days.
After cooling to room temperature, the solid was filtered out,
washed with methanol three times, and dried in air. Yield: 85%. The
metal contents in the product were determined by EDS analysis.
2.2. Characterization
The FT-IR spectra were recorded in the range 400–4000 cm−1
using KBr pellets on a Nicolet NEXUS 670 spectrophotometer. Pow-
der X-ray diffraction data were collected on a Rigaku Ultima IV
