Bis(μ-4-chlorobenzoato-k2O:O)bis-[(2-aminopyridine-kN) silver(I)]

Article abstract of DOI:10.1107/S0108270104003609

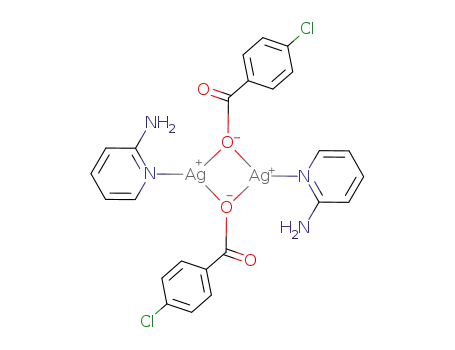

The crystal structure of title silver-carboxylate complex with 2-amino-pyridine was discussed. It was observed that the compound lies about an inversion center and the Ag atom is three-coordinate by two O atoms and One N atom from three different ligands. The 4-chlorobenzoate anion acts as a monodonor ligand, briding two inversion-related Ag atoms of the compound into a dimer. It was also observed that there are weak intermolecular N-H···O hydrogen bonds in the structure.
