A Straightforward Synthesis of Diverse Nickel Dithiolene Complexes
Appended with Hydrogen-Bond Donor/Acceptor Groups
Ste´phane A. Baudron, Narcis Avarvari,* and Patrick Batail*
Chimie, Inge´nierie Mole´culaire et Mate´riaux d’Angers (CIMMA), UMR 6200 CNRS-UniVersite´
d’Angers, Baˆtiment K, 2 bouleVard LaVoisier, 49045 Angers, France
Received February 1, 2005
Nickel dithiolene complexes symmetrically appended with hydrogen-
bond donor/acceptor functionalities such as imide, amide, or cyano/
amide groups have been synthesized by a straightforward method
of wide applicability starting from one single precursor. Single-
crystal X-ray structures reveal the occurrence of one type of ribbon
common to all compounds that is based on a recurrent self-
complementary intermolecular hydrogen-bonded ring motif linking
the symmetrically substituted complexes.
themselves.8 Herein, we report on the straightforward
synthesissstarting from one single precursorsof a series of
nickel dithiolene complexes symmetrically functionalized by
hydrogen-bond donor/acceptor groups, including imides,
orthodiamides, and dual complexes, ortho-functionalized by
a cyano group and a primary amide group. This reaction is
important, as it also provides the network designer with a
set of unprecedented models whose patterns of self-assembly
in the solid state is analyzed.
Neiland’s 4,5-diamido-2-oxo-1,3-dithiole,9 1, was selected
as the starting material for the preparation of amide-
functionalized nickel dithiolene complexes. Paralleling the
work of the Riga group for the preparation of the complex
bearing a uracil-type dithiolate ligand, this dithiocarbonate
is reacted with 4 equiv of sodium methanolate in methanol.
Subsequent metathesis with nickel nitrate and an ammonium
or phosphonium halide salt unexpectedly affords [Ni(midt)2]2-
(22-), a complex of the ligand maleimide dithiolate (midt).
It is of interest to note the dual effect of sodium methanolate,
which acts both as a nucleophile for opening the dithio-
carbonate ring and as a base, abstracting protons and inducing
a synchronous, intramolecular reaction between the two
ortho-amide functionalities to produce an imide upon ring
closure and subsequent elimination of ammonia (Scheme 1).
Note also that the reaction occurs when only 2 equiv of
sodium methanolate are used. This complex can be further
oxidized with iodine to produce [Ni(midt)2]- (2-). Analysis
of the crystal structure of these complexes reveals one-
dimensional chains generated out of self-complementary
intermolecular hydrogen-bond motifs (Figure 1 and Table
1), a feature common to both dianionic (Bu4N)2Ni(midt)2
and (Ph4P)2Ni(midt)2 salts, as well as to the monoanionic,
paramagnetic complex (Ph4P)Ni(midt)2. In the case of both
dianionic complexes, the cations form isolated chains (Sup-
porting Information), whereas in (PPh4)Ni(midt)2, two chains
run parallel to each other, albeit with a slight offset (Figure
An enormous amount of work has been devoted to metallic
and superconducting salts based on nickel dithiolene com-
plexes1,2 and, recently, to the advent of single-component
molecular metals.3 Nevertheless, hydrogen-bonding inter-
actionssand their redox-activated intermolecular patternss
which are the focus of much current attention in the field of
molecular materials,4 have not been used per se to direct
the solid-state structures of metal dithiolene complexes and
manipulate the electronic structure of a class of conducting
and magnetic materials where the double-band concept2,3,5
has yet to reach its full potential. This is because metal
dithiolene complexes appended with hydrogen-bond donor/
acceptor functionalities are not available. Typically then,
crystal engineering issues6 featuring an important class of
functional redox complexes have thus far focused solely on
interactions between ammonium or pyridinum cations and
paramagnetic nickel dithiolene anionic complexes such as
[Ni(mnt)2]-7 or on the organization of the countercations by
* To whom correspondence should be addressed. E-mail:
patrick.batail@univ-angers.fr (P.B.), narcis.avarvari@univ-angers.fr (N.A.).
(1) (a) Robertson, N.; Cronin, L. Coord. Chem. ReV. 2002, 227, 93-127.
Cassoux, P.; Valade, L.; Kobayashi, H.; Kobayashi, A.; Clark, R. A.;
Underhill, A. E. Coord. Chem. ReV. 1991, 110, 115-160.
(b) Faulmann, C.; Cassoux, P. Prog. Inorg. Chem. 2004, 52, 399.
(2) Kato, R. Chem. ReV. 2004, 104, 5319-5346.
(3) Tanaka, H.; Okano, Y.; Kobayashi, H.; Suzuki, W.; Kobayashi, A.
Chem. ReV. 2004, 104, 5243-5264.
(4) Fourmigue´, M.; Batail, P. Chem. ReV. 2004, 104, 5379-5418.
(5) Canadell, E. New J. Chem. 1997, 21, 1147.
(6) (a) Steiner, T. Angew. Chem., Int. Ed. 2002, 41, 48-76. (b) Desiraju,
G. Angew. Chem., Int. Ed. Engl. 1995, 34, 2311-2327.
(7) (a) Coomber, A. T.; Beljonne, D.; Friend, R. H.; Bre´das, J. L.; Charlton,
A.; Robertson, N.; Underhill, A. E.; Kurmoo, M.; Day, P. Nature 1996,
380, 144-146. (b) Fourmigue´, M.; Me´zie`re, C.; Dolou, S. Cryst.
Growth Des. 2003, 3, 805-810.
(8) Nakamura, T.; Akutagawa, T.; Honda, K.; Underhill, A. E.; Coomber,
A. T.; Friend, R. H. Nature 1998, 394, 159-162.
(9) (a) Neilands, O. Y.; Valters, R. A.; Putikis, G. G.; Tilika, V. Z.;
Edzhinya, A. S. Chem. Heterocycl. Compd. 1992, 1079. (b) Neilands,
S.; Belyakov, S.; Tilika, V.; Edzina, A. J. Chem. Soc., Chem. Commun.
1995, 325.
3380 Inorganic Chemistry, Vol. 44, No. 10, 2005
10.1021/ic050174n CCC: $30.25
© 2005 American Chemical Society
Published on Web 04/15/2005

COMMUNICATION

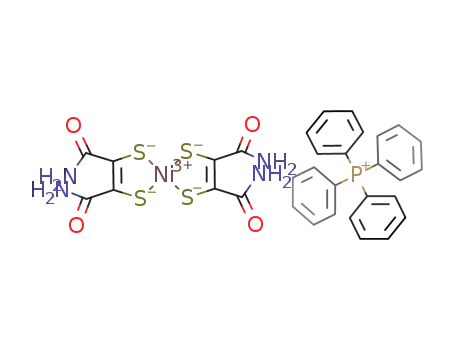

Scheme 1. Synthesis of [Ni(midt)2]2-/1- a
