W. Zhang, C. W. Wu/Chemical Papers
v
Table 3. Elemental composition of dyes
Compound
(M+
)
(M+
)
Formula
Content of –SO3Na in molecule/%
calculated
found
V
VI
VII
665.6914
665.6914
928.9606
546.2a
546.1a
929.0
C24H28N5NaO10S3
C24H28N5NaO10S3
C36H37N6NaO14S4
15.5
15.5
11.1
a) Found as (M – NaHSO4).
the dyed fabrics. The dyed fabrics have low to mod-
erate colour-fastness, which is presumably due to the
scarcity of electron-withdrawing groups in diazonium
salt (Yang & Zhang, 1989).
amount of dye molecule adsorbed, resulting in a re-
duced exhaustion value.
Although VII displays an exhaustion value of
11.2 %, the promotion of the affinity for cotton is still
desirable. This may be explained in terms of the low
hydrophilicity of the dye molecules. The strong hy-
drophilic group (–SO3Na) is attached to the aromatic
ring via an alkyl bridge and its percentage in the dye
molecules is lower than 16 % (Table 3); this means that
its contribution to the improvement of hydrophilicity
is limited. Compared with V and VI, dye VII has a
higher exhaustion to cotton (Fig. 3). This may stem
from the presence of one extra naphthalene ring in the
VII molecule, which leads to the increase in molecular
mass (Table 3) and is beneficial for the improvement
of substantivity to cotton. This is consistent with the
results reported by Smith et al. (2006) and Lewis and
Siddigue (2006). The exhaustion values of V, VI, and
VII to polyester range from 14.2 % to 17.3 %, which
may be associated with the high molecular mass and
poor planarity of the dye molecules.
The key issue in the design and synthesis of a sin-
gle dye molecule that is applicable to multiple types
of fabrics is to calculate the balanced points between
hydrophilicity and hydrophobicity. In addition, the
dye molecule should have a suitable molecular mass
and good planarity. For the dyes obtained here, fur-
ther structural modification is needed; this will fo-
cus on increasing the hydrophilicity by the incorpo-
ration of moderate hydrophilic groups and improving
the molecular planarity.
Effect of dye composition and structure on col-
oration
The macro dyeing properties of a dye molecule are
highly dependent on its composition and microstruc-
ture. If a dye is to be applied to multiple types of
fabrics, several factors need to be taken into account
and balanced: (i) the dye molecule should be neither
too hydrophilic nor too hydrophobic; either extreme
will repel the opposite type of fabric; (ii) molecular
mass is another concern. A low molecular mass dye
is preferable for the coloration of hydrophobic fabrics
as the diffusion of the dye molecule into the fabric is
strengthened. However, a low molecular mass dye is
likely to show poor substantivity for hydrophilic fab-
rics; (iii) a further issue affecting the dyeing perfor-
mance is the planarity of the dye molecule. In general,
good planarity facilitates penetration of the dye into
the fabric, and the occurrence of hydrogen-bonding
and van der Waal’s forces due to the close contact
between the dye molecule and the fibre, resulting in
good substantivity to the fabric. The atomic compo-
sition, molecular mass, and percentage of the sodium
sulphonate group (–SO3Na) in the molecules for dyes
V, VI, and VII are listed in Table 3.
Fig. 3 shows that dyes V, VI, and VII have rea-
sonable dyeing exhaustion values on wool, silk, and
nylon; this means that the dyes as prepared have
a good affinity for these fabrics. Table 2 indicates
that the coloured fabrics have good fastness to laun-
dering, which may be ascribed to the formation of
covalent bonding through operation of the nucle-
ophilic addition between the vinylsulphone group of
the dye molecule and functional groups such as hy-
droxyl (–OH) and amine (–NH2) of the fibre: see
Fig. 2. For acrylic, dyes V and VI have good exhaus-
tion values but VII has a poor one. This may be re-
lated to the higher molecular mass of VII (Table 3).
Under acidic conditions, the tertiary amine group in
dyes can be converted to the quaternary ammonium
cation, which may form salt bonds with anionic dye-
ing sites, hence the acrylic fabric is dyed. However,
once adsorbed, the bulky VII molecule may shield the
adjacent anionic dyeing sites and, in turn, reduce the
Conclusions

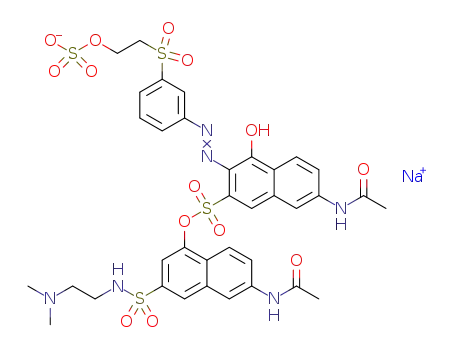

The synthesised dyes possess the characteristics
of a reactive dye (containing β-sulphatoethysulphone
group), a disperse dye (without the strong hydrophilic
group present in the aromatic rings), a cationic
dye (containing the tertiary amine group, which can
be converted to the quaternary ammonium group);
hence, they have the potential to be applied to mul-
tiple types of fabrics. The dyes thus obtained demon-
strate a reasonable performance on wool, silk, ny-
lon, and acrylic. Their performance on cotton and
polyester needs to be improved by enhancement of
their hydrophilicity and molecular planarity.
Acknowledgements. The financial support received from
the National Natural Science Foundation of China (51105051,
11272080) and the Fundamental Research Funds for the Cen-
