TABLE 3. IR Spectra of the Compounds Synthesized*
Com-
pound
Characteristic frequencies, ν, cm-1
1b
2b
509 s, 687 m, 744 s, 760 s, 798 m, 972 s, 1115 s, 1138 s, 1277 vs, 1451 m, 1624 m,
2928 w, 3028 w, 3048 m
513 s, 528 s, 586 m, 694 s, 748 m, 760 s, 972 s, 1138 vs, 1308 vs, 1442 m, 1485 m,
1605 m, 2928 w, 3008 w, 3024 w
3b
4b
509 s, 702 s, 779 s, 964 s, 1130 vs, 1292 s, 1319 s, 1628 m, 2924 w, 3009 w, 3048 m
459 m, 509 s, 698 s, 775 m, 914 s, 1119 vs, 1269 s, 1304 vs, 1323 s, 1454 m, 2928 w,
2978 w
treo-5b
6a
436 m, 513 m, 702 s, 833 s, 952 s, 953 m, 1119 s, 1300 vs, 1312 s, 1454 m, 1493 m,
2928 m, 2978 w
529 s, 700 s, 770 m, 1140 vs (SO2, νs), 1231 m, 1262 s, 1306 s (SO2, νas), 1339 s,
2253 w (CN), 2967 m, 3029 m
6b
6c
706 m, 789 m, 1120 s (SO2, νs), 1146 m, 1236 m, 1310 s (SO2, νas), 1434 m,
1728 vs (C=O), 1747 s (C=O), 2960 w, 3012 w
702 m, 1124 s, 1155 s (SO2, νs), 1248 s, 1309 s (SO2, νas), 1330 s, 1368 w,
1712 vs (C=O), 1734 m (C=O), 3002 w
6d
7
455 m, 706 m, 889 w, 1124 s, 1157 w, 1250 s, 1310 m, 1331 w, 1717 vs, 1738 m,
2955 w, 3002 w
490 m, 540 m, 695 m, 702 m, 772 m, 1142 s, 1262 m, 1323 m, 1343 vs, 1458 w,
1501 w, 2260 vw, 2955 m, 2978 s, 3017 m
9a
478 m, 494 m, 837 m, 1103 m, 1138 s, 1211 m, 1308 m, 1325 vs, 1555 m, 1593 w,
1632 w, 2234 m, 2930 w, 2951 m, 2994 w, 3021 w
9b
11
482 m, 513 m, 536 m, 702 m, 737 m, 795 s, 972 s, 1142 vs, 1149 s, 1315 vs, 1427 m,
1446 m, 1566 m, 1585 w, 2233 m, 2935 w, 3020 w
475 m, 521 m, 706 m, 787 m, 957 m, 1046 m, 1103 s, 1146 s, 1308 vs, 1416 m, 1447 m,
1559 w, 2924 w, 2955 m, 3025 w
12
498 m, 583 m, 753 m, 768 m, 961 m, 1103 m, 1119 m, 1154 s, 1219 m, 1285 s, 1304 vs,
1451 m, 1678 s
_______
* Ten strongest and characteristic absorption bands are quoted
The CH-acids enolates were generated using NaH in THF at 20-45ºC under a dry argon atmosphere. The
broadest range of CH-acids was used in the condensation reactions with bromomethyl vinyl sulfone 1a
(dimethylmalonate, malononitrile, methyl and ethyl acetoacetate). The remaining mono- and dibromosulfones
were only studied using the malononitrile enolate.

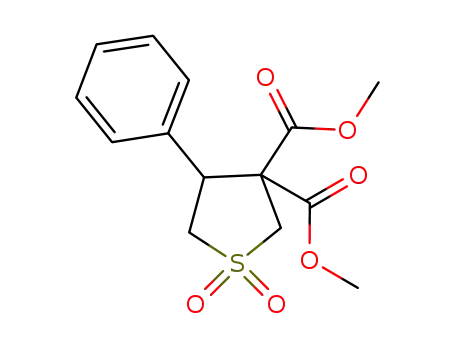

Independently of the nature of the CH-acids the single reaction product of the reaction of the sulfone 1a
was the corresponding heterocyclization product 6a-d*2 in every case.
1
The differences in the H-4 and 2H-5 signals in the H NMR spectra of compounds 6a-d (Table 4)
deserve attention. Whereas in the case of the heterocycle 6a the expected ABX type multiplet is observed, for
compounds 6c,d a degenerate ABX multiplet is seen (approximating to the AA’X type, virtual spin-spin
couplings are given in Table 4, see [8, 9]) and this is due to the closeness of the chemical shifts of the H-5
protons and the high geminal spin spin coupling constant. The exchange of CDCl3 solvent to C6D6 causes a
1
change in the signal chemical shifts in the H NMR spectrum of compound 6d but the form of the discussed
multiplet remains as earlier: a doublet at 3.13 (J = 8.0 Hz) and triplet at 4.57 ppm (J = 7.3 Hz). The
corresponding signal for compound 6b has an intermediate form: in the X part it appears as a triplet (virtual
spin-spin coupling given in Table 4) and in the AB part it is more complex than a doublet, being a multiplet with
one of the H-2 proton signals superimposed.
_______
*2 Part of this material has been reported in [7].
