Introduction of PEG-SANM nanocomposite as a new and highly efficient reagent for the promotion of the silylation of alcohols and phenols and deprotection of the silyl ethers

Article abstract of DOI:10.1080/10426507.2015.1119141

Poly (ethylene glycol)-sulfonated sodium montmorillonite (PEG-SANM) nanocomposite was prepared by a simple method and characterized using XRD, TGA, SEM, TEM, and FT-IR techniques. After preparation and characterization, this reagent was used as a highly efficient and reusable solid acid catalyst for the chemoselective silylation of alcohols and phenols and deprotection of the obtained silyl ethers. Themethod offers several advantages including high to excellent yields of the products, short reaction times, easy preparation of the catalyst and easy work-up procedure. In addition, the catalyst can be recycled and reused at least for five times without significant decrease in the catalytic activity.

Full text of DOI:10.1080/10426507.2015.1119141

Phosphorus, Sulfur, and Silicon and the Related Elements
ISSN: 1042-6507 (Print) 1563-5325 (Online) Journal homepage: http://www.tandfonline.com/loi/gpss20
Introduction Of PEG-SANM Nanocomposite As
A New And Highly Efficient Reagent For The
Promotion Of The Silylation Of Alcohols And
Phenols And Deprotection Of The Silyl Ethers
Farhad Shirini, Abdollah Fallah Shojaei & Seyedeh Zahra Dalil Heirati
To cite this article: Farhad Shirini, Abdollah Fallah Shojaei & Seyedeh Zahra Dalil Heirati
(2016): Introduction Of PEG-SANM Nanocomposite As A New And Highly Efficient
Reagent For The Promotion Of The Silylation Of Alcohols And Phenols And Deprotection
Of The Silyl Ethers, Phosphorus, Sulfur, and Silicon and the Related Elements, DOI:
10.1080/10426507.2015.1119141
To link to this article: http://dx.doi.org/10.1080/10426507.2015.1119141
Accepted author version posted online: 06
Feb 2016.
Submit your article to this journal
Article views: 6
View related articles
View Crossmark data
Full Terms & Conditions of access and use can be found at
http://www.tandfonline.com/action/journalInformation?journalCode=gpss20
Download by: [La Trobe University]
Date: 16 February 2016, At: 21:05

ACCEPTED MANUSCRIPT
INTRODUCTION OF PEG-SANM NANOCOMPOSITE AS A NEW AND HIGHLY
EFFICIENT REAGENT FOR THE PROMOTION OF THE SILYLATION OF ALCOHOLS
AND PHENOLS AND DEPROTECTION OF THE SILYL ETHERS
Farhad Shirini1,* Abdollah Fallah Shojaei1,* Seyedeh Zahra Dalil Heirati1
1Department of Chemistry, College of Science, University of Guilan, Rasht 41335, Iran.
*E-Mail: shirini@guilan.ac.ir (F. Shirini); a-fallah@guilan.ac.ir (A. Fallah Shojaei); Fax: +98
131 3220066
Abstract
Poly (ethylene glycol)-sulfonated sodium montmorillonite (PEG-SANM) nanocomposite was
prepared by a simple method and characterized using XRD, TGA, SEM, TEM and FT-IR
techniques. After preparation and characterization, this reagent was used as a highly efficient and
reusable solid acid catalyst for the chemoselective silylation of alcohols and phenols and
deprotection of the obtained silyl ethers. The method offers several advantages including high to
excellent yields of the products, short reaction times, easy preparation of the catalyst and easy
work-up procedure. Additionally, the catalyst can be recycled and reused at least for five times
without significant decrease in the catalytic activity.
Keywords
Nanocomposite, PEG, SANM, silylation, deprotection.
1
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Clay/polymer nanocomposites are a typical example of nanocomposites. This class of
materials uses smectite-type clays, such as montmorillonite, as a filler to enhance the properties
of polymers. Polymer/montmorillonite nanocomposites have attracted great interests in recent
years, both as novel materials with improved properties and as ideal systems for the study of
polymer behavior in a nanoscopically confined space. [1-3]
Different scientific communities, ranging from medical to materials science and engineering,
are interested in polymer modified clays and they have deeply investigated these hybrid organic-
-inorganic systems. [4-10] Depending on the preparation method and the nature of the components
used containing a polymer matrix and layered silicate, two types of nanocomposites can be
gained. When a single, or occasionally more extended, polymer chain is intercalated between the
silicate layers, intercalated structures are formed, that is a well-ordered multilayer structure of
alternating polymeric and silicate layers, with a repeat distance among them. Instead, when the
silicate layers are well separated from one another and separately dispersed in the continuous
polymer matrix, exfoliated or delaminated structures are gained. [11-14]
Poly (ethylene glycol) (PEG) is a polymer with good physicochemical and biological
properties including the solubility in water and organic solvents, hydrophilic properties, and lack
of toxicity, which allow PEG to be used as a catalyst and /or solvent in many organic reactions.
[15-17]
In particular, the intercalation of poly (ethylene glycol) into montmorillonite (MMT) has
been studied extensively in many researches. This is due to its potential applications as
[18-22]
electrolytes in solid-state batteries.
PEG/MMT nanocomposites show significant increase
in the interlayer space of montmorillonite due to incorporation of poly (ethylene glycol) chains
within it. In this case, the conformation of PEG chains confined into the interlayer space of
2
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
[23]
montmorillonite is not helical as in crystalline PEG.
Recently, the development and
characterization of polymer-clay nanocomposites received special attention, but among different
researches on these materials, there are a few reports in terms of their application as
[24]
heterogeneous catalysts.
When synthesizing polymer--clay nanocomposites, structural
characterization of the products, regardless of their properties, is important.
The protection of the hydroxyl group in alcohols and phenols is an important technique
during multistep synthesis. Among the different methodologies for the protection of hydroxyl
groups, the transformation of alcohols to the corresponding silyl ethers is a popular procedure.
[25]
1,1,1,3,3,3-Hexamethyldisilazane (HMDS) is a stable, inexpensive, and commercially
available reagent that can be used for the conversion of the hydroxyl groups to their
corresponding silyl ethers (TMS ethers), but it suffers from the low reactivity in the silylation
reaction. Therefore, a variety of catalysts such as Au/TiO2 [26], aspartic acid [27], γ-Fe2O3@SiO2-
(CH2)3NH-Sn(n-Bu)3 [28], Boric acid [29], SiO2-Cl [30], H-β zeolite [31], and Bi(OTf)3 [32] have been
developed for the activation of this reagent. Although the silylation ability of HMDS has been
improved using these methods, some problems such as long reaction times, the use of a non-
recoverable catalyst, drastic reaction conditions, need for organic solvents, inability to catalyze
the reverse reaction, and the use of excess amounts of the silylating agents still need to be
overcome. Recently, some of the new effective heterogeneous solid acid catalysts have been
designed for the silylation reaction that can overcome the above problems. For instance, Zareyee
and Karimi reported the application of recoverable sulfonic acid functionalized ordered
[33]
mesoporous silica (MCM-41-Pr-SO3H)
and propyl sulfonic acid functionalized
3
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
[34]
nanostructured SBA-15 (SBA-15-Ph-Pr-SO3H)
phenols.
for the efficient silylation of alcohols and
In our previous research, sulfonic acid-functionalized ordered nanoporous Na+-
montmorillonite (SANM) was demonstrated as an efficient reusable catalyst for the silylation of
[35]
alcohols and phenols.
In continuation of our work on SANM and other heterogeneous solid
acid catalysts [36-39], with the aim of obtaining a new catalyst, we prepared and characterized
PEG-SANM nanocomposite, and then examined its ability as a new heterogeneous solid acid
catalyst in the chemoselective silylation of alcohols and phenols and deprotection of the obtained
products.
Fig. 1 presents the FT-IR spectra of PEG, SANM and the PEG-SANM nanocomposite. In the
case of crystalline PEG, the wagging vibrations of the CH2 occur at 1352 and 1284 cm1. The
CH2 rocking vibrations appear at 953 cm1. The band between 1050 and 1150 cm1 that centered
at 1109 cm1 is due to C-O-C stretching vibrations. The bands appeared at 1352 and 953 cm1
arise from the helical PEG chain. The occurrence of these bands confirms the helical
conformations of PEG chains in crystalline state. [11-14]
In the infrared spectra of the PEG-SANM nanocomposite, some bands shift or merge because
the PEG is confined in the interlayer spaces of SANM. For example, the wagging vibrations of
the CH2 appear as only single band at 1357 cm1. The bands related to helical conformation
(1352 and 953 cm1) disappear because the PEG chains confined into the interlayer space of
SANM lost their helical conformation and became disorder. The absence of these bands confirms
that the PEG chains have been successfully intercalated into the interlayer space of SANM.
4
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
In the case of SANM, the broad band around 1050 cm1 is due to the overlapping of Si-O and
S-O bands that is not affected in the infrared spectra of the PEG-SANM nanocomposite.
The XRD patterns of the PEG-SANM nanocomposite, SANM, Na+-MMT, and PEG-6000
are shown in Fig. 2. The interlayer distance (d) of the PEG-SANM nanocomposite, Na+-MMT,
and SANM calculated from Bragg’s formula: nλ = 2d sin θ. The basal spacing for the Na+-MMT
is 0.98 nm with 2θ = 9°. Because of the intercalation of the sulfonic acid moiety into
montmorillonite interlayer spaces, the basal spacing of SANM became obviously bigger than
that of Na+-MMT (1.29 nm, 2θ = 7°). [35] The PEG-SANM nanocomposite shows a sharp peak at
2θ = 5° with d = 1.77 nm, indicating an increase in the basal spacing compared to SANM. This
increase can be due to the intercalation of the PEG chains into the interlayer spacing of SANM,
which leads to a shift of the diffraction peak towards lower angle, according to Bragg’s law. PEG
shows two crystalline reflections at 2θ = 19.2° and 2θ = 23.4°. Absence of any PEG crystal peaks
in the XRD pattern of the PEG-SANM nanocomposite indicates that a large amount of PEG are
intercalated into the SANM and free PEG on the SANM surface is negligible. The 0.48 nm
expansion is consistent with an adsorbed monolayer PEG between the clay surfaces.
Fig. 3 provides the TGA and DTG curves of PEG-SANM nanocomposite. The complete
thermal decomposition of pure PEG-6000 is a one-step process that is started from 175°C, and is
[8]
completed at 300°C. For SANM there is a weight loss in the range of 25-240°C, attributed to
the loss of the bonded H2O within the interlayer spaces and a weight loss that started from
240°C, which can be attributed to the decomposition of --SO3H groups anchored to the clay
[35]
surface.
However, the trend of weight loss curve of the PEG-SANM nanocomposite is
different from those of the pure PEG-6000 and SANM. The PEG-SANM nanocomposite has
5
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
four weight loss steps. The first weight loss is observed in the range of 75-140°C (0.7% weight
loss), attributed to the loss of the physically adsorbed water. The second weight loss, between
140 and 195°C (1.8% weight loss) which is possibly corresponding to the loss of the bonded
H2O within the interlayer spaces. The third weight loss in the range of 195-380°C (19.5% weight
loss) can be a result of the thermal decomposition of the --SO3H groups and the fourth weight
loss, which started from 380°C can be attributed to the thermal decomposition of PEG-6000.
According to the obtained results it was found that decomposition of the PEG-6000 in the PEG-
SANM nanocomposite requires higher temperature compared to the pure polymer. This shows
that the thermal stability of the PEG confined into the interlayer spacing of SANM has been
increased.
It is well known that SEM method is important for investigation of surface morphology-
structure-property relationships of polymer/clay nanocomposites. The scanning electron
microscopy (EM) photographs of the PEG-SANM nanocomposite are presented in the
Supplemental Materials in Figure S2 (available online in Supplemental Materials). Darker and
lighter areas indicate SANM and PEG, respectively. As seen in the images, the amount of
polymer into the SANM layers is more than that on the SANM surface which is consistent with
the results of X-ray.
TEM is required to image the clay platelets and fully identify the type of nanocomposites that
has been produced. To further confirm the dispersion of polymer fragments in the SANM, TEM
investigations are also required. Since the silicate layers are composed of heavier elements (Al,
Si and O) than the interlayer and surrounding matrix (C, H and O), they appear darker in the
images. Therefore, when nanocomposites are formed, the intersections of the silicate sheets are
6
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
[7]
seen as dark lines which are the cross sections of the silicate layers.
The TEM images
presented in the Supplemental Materials in Figure S 3 (available online in Supplemental
Materials) show the formation of an exfoliated and intercalated nano-morphology between
interlayer spaces of SANM. Black points (agglomerated clay layers) in TEM images are
associated with intercalated structures. The presence of single and partially agglomerated clay
layers indicates the formation of individual dispersion of delaminated clay platelets. According
to TEM images, it was found that predominated structure of nanocomposite is intercalated nano-
morphology.
The acid sites content of the PEG-SANM nanocomposite and SANM were estimated by back
titration using HCl (0.337 N). [24] In this method, 10 mL of NaOH (0.130 N) was added to 0.05 g
of the PEG-SANM nanocomposite and SANM and stirred for 30 min. The catalysts were
separated and washed with deionized water. The excess amount of NaOH was titrated with HCl
(0.337 N) in the presence of phenol phthalein as indicator. The acid sites content were 2.41 and
4.43 mmol g−1 for SANM and the PEG-SANM nanocomposite, respectively. In sulfonated
soduim montmorillonite (SANM), -SO3H groups are randomly scattered into the interlayer
spaces of the SANM, and these groups are less accessible for determining the acidic content.
When PEG is intercalated between the modified clay interlayer, the -SO3H groups because of the
spatial exclusion are oriented towards the outside of the modified clay. Therefore, more -SO3H
groups are available for determining the acidic content that increases the number of acid sites
from 2.41 to 4.43 mmol g1. In fact, the acidity determination only characterizes the accessible
acid sites.
7
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
The silylation of alcohols was chosen as a model reaction to test the catalytic activity of the
PEG-SANM nanocomposite. In order to optimize the reaction conditions, effects of HMDS and
the PEG-SANM nanocomposite amounts on outcome of the silylation of 4-chlorobenzyl alcohol
was studied. As shown in Table 1, the amounts of HMDS (0.5 mmol) and the PEG-SANM
nanocomposite (8 mg) are appropriate for this reaction.
After optimization of the amounts of HMDS and the catalyst, the effects of the solvent and
temperature were also studied in the model reaction. The obtained results clarified that the best
results can be obtained under the conditions showed in Scheme 1.
Using the best conditions established above, different types of alcohols were subjected to
silylation (Table 2, entries 1-24). Benzylic alcohols (including electron releasing or withdrawing
groups and acid sensitive groups) were silylated with relatively high yields (Table 2, entries 1-
15). Silylation of primary, secondary and tertiary aliphatic alcohols also proceeded efficiently
with good to high yields (Table 2, entries 16-22). This method was also found to be useful for
silylation of allylic alcohols, so the carbon-carbon bond remained intact during the course of the
reaction (Table 2, entry 23). Also, the catalytic system is applicable for silylation of diols (Table
2, entry 24). Phenols were also successfully converted to their corresponding silyl ethers in high
yields under the same reaction conditions (Table 2, entries 25, 26). No elimination and
rearrangement by-products were observed at all. Notably, amines and thiols remained unaffected
under the reaction conditions (Table 2, entries 27-30). Thus, this method is highly selective for
silylation of benzylic, primary, secondary and tertiary aliphatic alcohols and phenols in the
presence of amines and thiols. The importance of the selectivity issue in synthetic organic
chemistry led us to carry out competitive reactions in order to evaluate the chemoselectivity of
8
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
this method (Table 2, entries 31-34). The PEG-SANM nanocomposite also shows capability for
the conversion of silyl ethers to the parent alcohols and phenols in MeOH at room temperature
with good to excellent yields (Table 2).
In order to show the efficiency of the present method, we compared our obtained results from
the silylation of benzyl alcohol with some of those that reported in the literature. As can be seen
in Table 3, this method overcomes the disadvantages of other procedures such as long reaction
times, low yields, high loading of the catalyst, and excess amounts of HMDS. It is also important
to note that although SANM, HClO4--SiO2, and RiH are able to catalyze the silylation of
alcohols and phenols in short reaction times and high yields, but the required amounts of the
catalyst are higher than the one used in our catalytic system. As can be seen in Table 3, the
promotion of these reactions need 20 mg of SANM, 50 mg of HClO4--SiO2 and 80 mg of RiH
(Table 3, entries 5, 6, and 7), while the required amount of PEG-SANM nanocomposite is only 8
mg. In spite of the utilization of lower amount of boric acid as the catalyst the reaction time is
too long (Table 3, entry 2). In the case of SiO2-Cl and SBA-15-Ph-Pr-SO3H, the amounts of the
catalysts are higher and also the related reaction times are longer (Table 3, entries 3, 4). In all
cases, the used amounts of HMDS are higher than that the one used in our procedure.
In conclusion, the PEG-SANM nanocomposite was prepared by a simple method and
successfully utilized for the chemoselective silylation of a variety of alcohols and phenols and
deprotection of silyl ethers. This procedure led to high product yields in very short reaction times
by using lower amounts of the catalyst and HMDS reagent. However, the PEG-SANM
nanocomposite has the other important advantages such as easy preparation, reasonable results,
outstanding stability, simple workup and reusability.
9
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
EXPERIMENTAL
General: All chemicals were obtained from Fluka, Merck and Aldrich chemical companies.
All yields refer to the isolated pure products. The purity determination of the substrates and
reaction monitoring were performed on TLC using silica gel SIL G/UV 254 plates. Products
were characterized by comparison of their physical data with authentic samples. Representative
IR spectra for the products 2a-2z are provided in the Supplemental Materials (Figures S 4 -- S
25)
Instrumentation: The FT-IR spectra were run on a VERTEX 70 Bruker company (Germany).
Thermogravimetric analyses (TGA) was performed under Argon using STA-503 at a heating rate
of 10°C/min. The powder XRD patterns of samples was recorded by a Philips PW 1840
diffractometer using Cu Kα radiation (α = 1.54 Å). The patterns were collected in the range of 0-
-30° 2θ and continuous scan mode. Transmission electron microscope (TEM) image was
obtained on a Philips CM10 transmission electron microscope with an accelerating voltage of
100 kV. Scanning image was obtained on a KYKY-EM3200 microscope.
Preparation and characterization of sulfonated sodium montmorillonite (SANM) [35]
:
A 50 mL suction flask charged with sodium montmorillonite (1.0 g, Southern Clay Products)
and CHCl3 (5mL) was equipped with a constant pressure dropping funnel containing
chlorosulfonic acid (0.30 g, 2.5 mmol) and a gas inlet tube for conducting HCl gas over water.
When the reaction mixture was stirred slowly in an ice bath (0°C), chlorosulfonic acid was added
drop-wise to this mixture within 30 min. After addition was completed, the mixture was stirred
for other 30 min to remove all HCl. Then, the mixture was filtered and washed with methanol
(20 mL) and dried at room temperature to afford sulfonated sodium montmorillonite (1.04 g).
10
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Catalyst preparation:
◦
PEG-6000 (1.0 g) was dispersed in ethanol (25 mL) and stirred at 60 C for 30 min. Then
sulfonated sodium montmorillonite (1.0 g) (SANM) was slowly added and the reaction mixture
◦
was stirred for 3 h at 60 C in an oil bath. After the completion of reaction, the reaction mixture
was filtered and air-dried at room temperature for 24 h to obtain the PEG-SANM nanocomposite
as a white powder (1.8 g).
General procedure for silylation of the alcohols and phenols:
HMDS (0.5 mmol) was added to a stirring mixture of the substrate (1 mmol), and the PEG-
SANM nanocomposite (8 mg) in CH3CN (2 mL) at room temperature. The progress of the
reaction was monitored by TLC. After completion of the reaction, the mixture was filtered and
the recovered catalyst was washed with acetonitrile and acetone, dried at 80°C and reused for the
same reaction. Evaporation of the solvent gave almost pure product. Further purification
proceeded by recrystallization to yield pure silyl ether.
General procedure for deprotection of silyl ethers:
A mixture of the substrate (1mmol) and the PEG-SANM nanocomposite (8 mg) in methanol
(2 mL) was stirred at room temperature. After completion of the reaction (monitored by TLC),
the catalyst was filtered off and the solvent was evaporated under reduced pressure. The crude
product was purified by column chromatography on silica gel to yield pure alcohols and phenols.
ACKNOWLEDGEMENTS
The authors are thankful to the University of Guilan Research Council for the partial support of
this work.
11
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
REFERENCES
[1]
LeBaron, P.C.; Wang, Z.; Pinnavaia, T.J, Appl. Clay Sci. 1999, 15, 11-29.
Pavlidou, S.; Papaspyrides, C, Prog. Polym. Sci. 2008, 33, 1119-1198.
Sinha Ray, S.; Okamoto, M, Prog. Polym. Sci. 2003, 28, 1539-1641.
Iliescu, R.I.; Andronescu, E.; Voicu, G.; Ficai, A.; Covaliu, C.I, Appl. Clay Sci. 2011, 52,
62-68.
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
Campbell, K.; Craig, D.Q.; McNally, T, Int. J. Pharm. 2008, 363, 126-131.
Anirudhan, T.; Ramachandran, M, Appl. Clay Sci. 2007, 35, 276-281.
Lagaly, G, Appl. Clay Sci. 1999, 15, 1-9.
Wang, S. H.; Wang, K. H.; Dai, Y. M.; Jehng, J. M, Appl. Surf. Sci. 2013, 264, 470-475.
Zampori, L.; Stampino, P.G.; Cristiani, C.; Dotelli, G.; Cazzola, P, Appl. Clay Sci. 2010,
48, 97-102.
[10] Zampori, L.; Stampino, P.G.; Cristiani, C.; Cazzola, P.; Dotelli, G, Appl. Clay Sci. 2010,
50, 266-270.
[11] Ratna, D.; Abraham, T.; Karger‐Kocsis, J, J. Appl. Polym. Sci. 2008, 108, 2156-2162.
[12] Geng, Y.; Wang, G.; Cong, Y.; Bai, L.; Li, L.; Yang, C, J. Polym. Sci., Part B: Polym.
Phys. 2010, 48, 106-112.
[13] Hoffmann, C.; Rabolt, J, Macromolecules. 1996, 29, 2543-2547.
[14] Yu, J.; Wu, P, Polymer. 2007, 48, 3477-3485.
[15] Kiasat, A.R.; Sayyahi, S, Catal. Commun. 2010, 11, 484-486.
[16] Kiasat, A.R.; Badri, R.; Zargar, B.; Sayyahi, S, J. Org. Chem. 2008, 73, 8382-8385.
12
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
[17] Jorapur, Y.R.; Rajagopal, G.; Saikia, P.J.; Pal, R.R, Tetrahedron Lett. 2008, 49, 1495-
1497.
[18] Choudhary, S.; Sengwa, R, Indian J. Phys. 2012, 86, 335-340.
[19] Moreno, M.; Quijada, R.; Santa Ana, M.A.; Benavente, E.; Gomez-Romero, P.; González,
G, Electrochim. Acta. 2011, 58, 112-118.
[20] Sengwa, R.; Choudhary, S, J. Macromol. Sci. B. 2011, 50, 1313-1324.
[21] Sengwa, R.; Choudhary, S, Bull. Mater. Sci. 2012, 35, 19-25.
[22] Tang, C.; Hackenberg, K.; Fu, Q.; Ajayan, P.M.; Ardebili, H, Nano Lett. 2012, 12, 1152-
1156.
[23] Zhu, S.; Chen, J.; Li, H.; Cao, Y, Appl. Surf. Sci. 2013, 264, 500-506.
[24] Kalbasi, R.J.; Massah, A.R.; Daneshvarnejad, B, Appl. Clay Sci. 2012, 55, 1-9.
[25] Kocienski, P. J.; Enders, D.; Noyori, R.; Trost, B. M.; Eds., Protective Groups. Thieme,
Stuttgart. 1994, p. 191.
[26] Gryparis, C.; Stratakis, M, Chem. Commun. 2012, 48, 10751--10753.
[27] Ghorbani-Choghamarani, A.; Norouzi, M, Chin. J. Catal. 2011, 32, 595-598.
[28] Nikbakht, F.; Ghonche poor, E.; Ziyadi, H.; Heydari, A, RSC Adv. 2014, 4, 34428-34434.
[29] Rostami, A.; Akradi, J.; Ahmad-Jangi, F, J. Braz. Chem. Soc. 2010, 21, 1587-1592.
[30] Ziyaei-Halimjani, A.; Saidi, M, J. Sci. I. R. Iran. 2006, 17, 123-126.
[31] Tillu, V.H.; Jadhav, V.H.; Borate, H.B.; Wakharkar, R.D, Arkivoc. 2004, 14, 83-88.
[32] Kadam, S. T.; Kim, S. S, J. Organomet. Chem. 2009, 694, 2562-2566.
[33] Zareyee, D.; Karimi, B, Tetrahedron Lett, 2007, 48, 1277-1280.
[34] Zareyee, D.; Asghari, R.; Khalilzadeh, M.A, Chin. J. Catal. 2011, 32, 1864-1868.
13
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
[35] Shirini, F.; Mamaghani, M.; Atghia, S. V, Appl. Clay Sci. 2012, 58, 67-72.
[36] Shirini, F.; Mamaghani, M.; Atghia, S. V, Catal. Commun. 2011, 12, 1088-1094.
[37] Shirini, F.; Abedini, M.; Pourhasan, R, Dyes Pigments. 2013, 99, 250-255.
[38] Shirini, F.; Abedini, M.; Nasiri Abkenar, A.; Baghernejad, B, J. Nanostruct. Chem. 2014,
4, 1-6.
[39] Shirini, F.; Abedini, M.; Pourhasan-Kisomi, R, Chin. Chem. Lett. 2014, 25, 111-114.
[40] Shaterian, H. R.; Shahrekipoor, F.; Ghashang, M, J. Mol. Catal. A: Chem. 2007, 272, 142-
151.
[41] Shirini, F.; Marjani, K.; Taherpour Nahzomi, H.; Zolfigol, M. A, Phosphorus, Sulfur
Silicon Relat. Elem. 2008, 183, 168-177.
[42] Shirini, F.; Akbari-Dadamahaleh, S.; Mohammad-Khah, A.; Aliakbar, A. R, C. R. Chimie.
2014, 17, 164-170.
14
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Table 1 Effect of HMDS and the PEG-SANM nanocomposite amounts on silylation of 4-
chlorobenzyl alcohol (1 mmol) in acetonitrile (2 mL) at room temperature (reaction time: 4 min).
HMDS
(mmol)
0.75
0.75
0.5
PEG-SANM
Entry
Convertion(%) Isolated Yields (%)
nanocomposite(mg)
1
2
3
4
5
0
10
10
8
No reaction
100
No reaction
98
98
98
90
100
0.5
100
0.5
5
100
15
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Table2. Silylation of alcohols and phenols and deprotection of silyl ethers in the presence of the
PEG-SANM nanocomposite at room temperature a.
Protection
Deprotection
Entry
Substrate
Product
Ref. Time Yield Time Yield
(min) b (%) (min) b (%)
1
2
3
4
5
PhCH2OH
PhCH2OTMS (2a)
40
4
4
5
4
4
98
98
95
95
97
3
2
98
98
95
92
96
4-ClC6H4CH2OH
2-ClC6H4CH2OH
2-BrC6H4CH2OH
4-BrC6H4CH2OH
4-ClC6H4CH2OTMS (2b) 41
2-ClC6H4CH2OTMS (2c) 41
0.5
4
2-BrC6H4CH2OTMS (2d) 41
4-BrC6H4CH2OTMS (2e) 27
4
2-NO2C6H4CH2OTMS
41
6
2-NO2C6H4CH2OH
8
93
5
91
(2f)
4-NO2C6H4CH2OTMS
(2g)
41
7
8
9
4-NO2C6H4CH2OH
2-MeC6H4CH2OH
3,4-Cl2C6H4CH2OH
4
4
4
98
98
93
2
96
97
96
2-MeC6H4CH2OTMS (2h) 41
0.5
3.5
3,4-Cl2C6H4CH2OTMS
27
(2i)
4-Me3CC6H4CH2OTMS
(2j)
35
10
11
12
13
4-Me3CC6H4CH2OH
4
4
4
4
90
91
92
95
4
1
90
96
96
97
4-
4-Me2CHC6H4CH2OTMS 27
Me2CHC6H4CH2OH
(2k)
3-MeOC6H4CH2OTMS
(2l)
35
40
3-MeOC6H4CH2OH
4-MeOC6H4CH2OH
0.5
1
4-MeOC6H4CH2OTMS
(2m)
14
15
PhCH(OH)Ph
PhCH(OH)Me
PhCH(OTMS)Ph (2n)
PhCH(OTMS)Me (2o)
40
40
4
4
89
87
4
95
96
1.5
16
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
PhCH2CH2CH2OTMS
41
16
17
18
PhCH2CH2CH2OH
PhCH2CH2OH
4
4
4
97
98
98
2
2
2
92
91
93
(2p)
PhCH2CH2OTMS (2q)
40
41
PhCH(Me)CH2OTMS
PhCH(Me)CH2OH
(2r)
19
20
21
22
(2s)
40
35
40
40
41
10
7
90
90
95
93
9
8
93
91
94
96
(2t)
(2u)
25
23
20
20
(2v)
PhCH = CHCH2OTMS
(2w)
23
24
PhCH = CHCH2OH
PhCH(OH) CH2OH
6
7
96
5
5
96

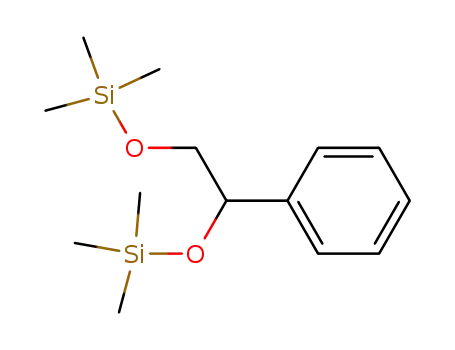

PhCH(OTMS) CH2OTMS 35
97 c
95 d
(2x)
25
26
27
28
29
30
4-EtC6H4OH
4-Me2CHC6H4OH
4-ClC6H4NH2
4-MeC6H4NH2
4-MeC6H4SH
4-BrC6H4SH
4-EtC6H4OTMS (2y)
35
5
90
98
0 e
0 e
0 e
0 e
10
10
-
93
91
-
4-Me2CHC6H4OTMS (2z) 35
8
4-ClC6H4NHTMS
4-MeC6H4NHTMS
4-MeC6H4STMS
4-BrC6H4STMS
-
-
-
-
30
30
30
30
-
-
-
-
-
-
4-ClC6H4CH2OH +4- 4-ClC6H4CH2OTMS + 4-
31
32
33
34
-
-
10
10
10
10
100 f0
100 f0
100 f
-
-
-
-
-
-
-
-
MeC6H4NH2
2-ClC6H4CH2OH +
4-MeC6H4NH2
MeC6H4NHTMS
2-ClC6H4CH2OTMS + 4-
MeC6H4NHTMS
4-MeOC6H4CH2OH
+ 4-MeC6H4SH
4-ClC6H4CH2OH +
4-BrC6H4SH
4-MeOC6H4CH2OTMS
+4-MeC6H4STMS
-
-
4-ClC6H4CH2OTMS + 4-
BrC6H4STMS
100 f0
aThe products were characterized by IR spectra, physical data, and comparison with the data
reported in the literature.
17
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
bIsolated yield.
c1.0 mmol of HMDS and 16 mg of PEG-SANM were used.
d16 mg of PEG-SANM was used.
eThe starting material was recovered intact.
fConversion (%).
18
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Table 3. Comparison of the catalytic efficiency of the PEG-SANM nanocomposite with other
reported catalysts for the silylation of benzyl alcohol (1.0 mmol) using HMDS.
HMDS
(mmol)
Reaction
Time
(min)
Yield
(%)
Entry
1
Catalyst (amount)
Ref.
conditions
PEG-SANM
nanocomposite (8 mg)
Boric Acid (6.2 mg)
SiO2-Cl (50 mg)
SBA-15-Ph-Pr-SO3H
(19 mg)
0.5
r.t./ CH3CN
4
98
this work
2
3
0.8
0.7
r.t./ CH3CN
r.t./ Neat
90
20
90
98
[29]a,c,d
[30]a,b,d
4
0.6
35°C/ CH2Cl2
20
100
[34]a,b
5
6
7
SANM (20 mg)
0.75
0.8
r.t./ CH3CN
r.t./ CH3CN
r.t./ CH3CN
5
2
5
95
98
94
[35]b,d
[40]b,d
[42]b,d
HClO4--SiO2 (50 mg)
RiH (80 mg)
0.75
Drawbacks:
aLong reaction times.
bHigh catalyst loading.
cLow yields.
dUse of excess amounts of HMDS.
19
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
Fig. 1 FT-IR spectra of PEG, SANM and the PEG-SANM nanocomposite.
20
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
SANM
1.29 nm
1600
PEG-SANM
nanocomposite
1.77 nm
1200
800
400
0
Na+-MMT
0.98 nm
4
5
6
7
8
9
10
2θ (degree)
1600
1400
1200
1000
800
600
400
200
0
PEG 6000
PEG-SANM nanocoposite
0
5
10
15
20
25
30
-200
2θ (degree)
Fig. 2 The powder XRD patterns of the PEG-SANM nanocomposite, SANM, and Na+-MMT
(up) and the PEG-SANM nanocomposite and PEG-6000 (down).
21
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
105
100
95
90
25.32%
85
80
75
70
0
100
200
300
400
500
600
700
Temprature (o C)
0.02
0
-0.02
-0.04
-0.06
-0.08
-0.1
-0.12
-0.14
-0.16
-0.18
-0.2
-0.22
-0.24
-0.26
-0.28
-0.3
24
124
224
324
424
524
Temprature (o C)
Fig. 3 TGA and DTG curves of the PEG-SANM nanocomposite.
22
ACCEPTED MANUSCRIPT

ACCEPTED MANUSCRIPT
PEG-SANM (8 mg), HMDS (0.5 mmol), CH3CN (2 mL), r.t.
ROH
ROTMS
2a-z
1
PEG-SANM (8 mg), MeOH, r.t.
SCHEME 1
23
ACCEPTED MANUSCRIPT
