Crystal Structure and Photochemical Behavior in Solution of the
3′-N-Sulfamate Analogue of Thymidylyl(3′-5′)thymidine
Ce´line Moriou,† Martial Thomas,† Marie-The´re`se Adeline,† Marie-The´re`se Martin,†
Ange`le Chiaroni,† Sylvie Pochet,‡ Jean-Louis Fourrey,† Alain Favre,§ and Pascale Clivio*,†
Institut de Chimie des Substances Naturelles, CNRS, 1 AVenue de la Terrasse,
91190 Gif sur YVette, France, Unite´ de Chimie Organique, URA 2128, Institut Pasteur, 25 rue du Docteur
Roux, 75724 Paris cedex, France, and Laboratoire de Photobiologie Mole´culaire, Institut Jacques Monod,
CNRS, UniVersite´s Paris 6 et Paris 7, 2 Place Jussieu, 75251 Paris cedex 05, France
pascale.cliVio@uniV-reims.fr
ReceiVed July 18, 2006
The 3′-N-sulfamate analogue of thymidylyl(3′-5′)thymidine (TnsoT, 1) exhibits a preference for a C3′-
endo conformation in the solution and solid states. Its photochemical behavior in solution is compared
to that of its natural counterpart, thymidylyl(3′-5′)thymidine (TpT, 2), to get further insight into the
significance of the C3′-endo conformation on the photoproduct formation at the single-stranded dinucleotide
level. Irradiation at 254 nm of 1 led to the same type of photoproducts as observed with 2. However, 1
was significantly more photoreactive than 2, and accordingly, the initial rate of photoproduct formation
was enhanced in accordance with its propensity to base stack compared to 2. The corresponding quantum
yields were determined and showed that the enhancement factor (1 compared to 2) is moderate for the
cyclobutane pyrimidine dimer (CPD) (1.26) and much higher for the (6-4) photoproduct (1.8). These
data strongly suggest that the CPD and (6-4) photoproduct arise from distinct minor stacked conformations.
Introduction
in denatured than in native DNA at the same temperature as
well as in film and frozen native DNA;3 and (2) this tendency
is reversed for the pyrimidine(6-4)pyrimidone photoproduct ((6-
4) PP) formation.3 Such an observation suggests either that CPD
formation requires more conformational freedom than (6-4) PP
formation or that the geometry of adjacent thymines in the solid
state (generally associated with the A-DNA conformation) is
more prone to undergo a Paterno´-Bu¨chi reaction (leading to
(6-4) formation) than the one achieved in solution. However,
recently, CPD formation was shown to be reduced in single-
and double-stranded DNA upon a temperature increase whereas
(6-4) PP formation was slightly increased.4 Finally, the A
The interplay between DNA conformation and its photo-
chemistry is among the most important issues to address with
regard to the respective contribution of each kind of DNA
photoproduct (PP) in photoimmune suppression, photocarcino-
genesis, apoptosis, or cell-cycle arrest.1,2 Previous studies
performed on the DNA double helix have evidenced two
interesting photochemical features at dithymine sites: (1) the
formation of the cyclobutane pyrimidine dimer (CPD) is higher
* Current address: FRE 2715 CNRS, Universite´ de Reims Champagne-
Ardenne, 51 rue Cognacq Jay, 51 096 Reims cedex, France.
† Institut de Chimie des Substances Naturelles.
‡ Unite´ de Chimie Organique, De´partement de Biologie Structurale et Chimie.
§ Laboratoire de Photobiologie Mole´culaire.
(3) Patrick, M. H.; Rahn, R. O. In Photochemistry and Photobiology of
Nucleic Acids: Photochemistry of DNA and Polynucleotides: Photoprod-
ucts; Wang, S. Y., Ed.: Academic Press: New York, 1976; Vol. 2, pp
35-95.
(1) (a) Ullrich, S. E. Front. Biosci. 2002, 7, d684-703. (b) Matsumura,
Y.; Ananthaswamy, H. N. Front. Biosci. 2002, 7, d765-783.
(2) Lo, H.-L.; Nakajima, S.; Ma, L.; Walter, B.; Yasui, A.; Ethell, D.
W.; Owen, L. B. BMC Cancer 2005, 5, 135-142.
(4) Douki, T. J. Photochem. Photobiol. B: Biol. 2006, 82, 45-52.
10.1021/jo061488a CCC: $37.00 © 2007 American Chemical Society
Published on Web 12/07/2006
J. Org. Chem. 2007, 72, 43-50
43

Moriou et al.
SCHEME 1a
conformation of DNA or RNA, which is associated with more
nucleobase rigidity, reduces considerably the formation of
dithymine photoproducts with respect to the B conformation
of DNA.5 Despite these observations, no precise relationship
linking PP formation and DNA conformation has ever been
determined. An in-depth understanding of these relationships
at the single-stranded dinucleotide level could be helpful to
understand the phenomenon occurring at the more complex
double-stranded DNA level.
The sugar pucker is one of the major conformational
parameters that distinguishes B- from A-DNA.6a At the dinucle-
otide level, the lack of base-pairing and stacking interactions
with neighboring bases provides accurate information on the
intrinsic puckering effects on the photochemistry. Currently, we
investigate the photochemistry of dinucleotide analogues en-
dowed with an A sugar conformation (major C3′-endo pucker-
ing) and have recently demonstrated that the 254 nm irra-
diation of 2′-O,5-dimethyluridylyl(3′-5′)-2′-O,5-dimethyluridine
(TmopTmo), an analogue of thymidylyl(3′-5′)thymidine (TpT,
2) exhibiting a major C3′-endo conformer population, is
qualitatively comparable to that of 2 but significantly faster.7
These results were rationalized by the increased propensity of
the modified dinucleotide to adopt a base-stacked conformation
geometry reminiscent of that of TpT.7

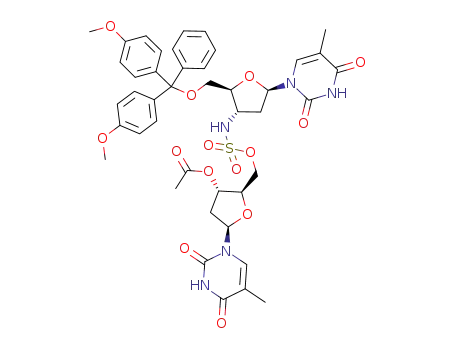

a Reagents and conditions: (a) 4 Å molecular sieves, Et3N, CH2Cl2, 68%;
