Synthesis and Second-Order NLO Properties of Donor-Acceptor
σ-Alkenyl Ruthenium Complexes
Ping Yuan,† Jun Yin,† Guang-ao Yu,† Quanyuan Hu,*,‡ and Sheng Hua Liu*,†,§
Key Laboratory of Pesticide & Chemical Biology of Ministry of Education, College of Chemistry,
Central China Normal UniVersity, Wuhan 430079, People’s Republic of China, Ministry-of-Education,
Key Laboratory for the Synthesis and Application of Organic Functional Molecules, Hubei UniVersity,
Wuhan 430062, People’s Republic of China, and State Key Laboratory of Structural Chemistry, Fujian
Institute of Research on the Structure of Matter, Chinese Academy of Sciences, Fuzhou 350002,
People’s Republic of China
ReceiVed June 29, 2006
The compounds p-R-C6H4-CHdCH-CtC-TMS (R ) NO2, N(CH3)2, OCH3) were obtained from
Wittig olefination of TMS-CtC-CH2PPh3Br with p-R-C6H4-CHO in THF, which can be desilylated
to give p-R-C6H4-CHdCH-CtC-H. Treatment of RuHCl(CO)(PPh3)3 with p-R-C6H4-CHdCH-
CtC-H produced RuCl(CO)(PPh3)2(CHdCH-CHdCH-C6H4-R-p). The later complexes reacted with
4-phenylpyridine (PhPy), 2,6-(Ph2PCH2)2C5H3N (PMP), and KTp (Tp ) hydridotris(pyrazolyl)borate)
to give RuCl(CO)(PhPy)(PPh3)2 (CHdCH-CHdCH-C6H4-R-p), RuCl(CO)(PMP)(CHdCH-CHdCH-
C6H4-R-p), and RuTp(CO)(PPh3) (CHdCH-CHdCH-C6H4-R-p), respectively. The structure of RuTp-
(CO)(PPh3)(CHdCH-CHdCH-C6H4-R-p) (R ) N(CH3)2, 7b) has been confirmed by X-ray diffraction.
The NLO properties (hyper-Rayleigh scattering measurements) of the complexes 5, 6, and 7 reveal that
changes induced in the ligands of ruthenium (5a-7a or 5b,6b) have a large impact on the
hyperpolarizability.
ties, previously reported examples of “push-pull” σ-alkenyl
complexes are limited,7 maybe because of synthesis difficulties.
In this paper, we report some novel σ-alkenyl complexes with
NLO properties, in which the ruthenium end-group and donor-
or acceptor-substituted phenyl are connected by a CHdCH-
CHdCH bridge. The ruthenium end-group behaves more like
an electron-rich group due to the coordinated P’s or N’s lone
electron pairs, though this effect is weakened by the strong
π-acceptor CO. As a result, when R ) NO2 on the other end of
the conjugated bridge, â0 is much larger than when R ) N(CH3)2
or OCH3. The present study focuses on the synthesis, structural
characterization, and NLO properties of these complexes.
Introduction
Synthesis of new organic and organometallic “push-pull”
molecules with NLO properties has been intensively pursued
in resent years due to their potential applications in optoelec-
tronics, telecommunications, and optical storage devices.1 Metal
(organometallic and coordination) complexes are attracting
considerable interest.2,3 Compared to organic molecules, they
offer a larger variety of molecular structures, the possibility of
high environmental stability, and a diversity of electronic
properties by virtue of the coordinated metal center.4 Among
them, metallocenyl and σ-alkynyl complexes command the most
attention. Compared with metallocenyl complexes, σ-multiple-
bond complexes incorporate the metal in the same plane as the
π-conjugated system, which has been suggested to enhance the
NLO response.5,6 Although alkenes tend to be more hyperpo-
larizable than alkynes, as already stated for the solvochromici-
Results and Discussion
Synthesis of Metal Complexes. The general synthetic route
for the preparation of “push-pull” σ-alkenyl complexes is
outlined in Scheme 1. The compounds p-R-C6H4-CHdCH-
CtC-TMS (R ) NO2, N(CH3)2, OCH3) (2) were obtained
from Wittig olefination of TMS-CtC-CH2PPh3Br with p-R-
C6H4-CHO in THF. Like most Wittig reactions, the product
was obtained as a mixture of E and Z isomers, which could not
be completely separated by chromatography. Treatment of 2
with n-Bu4NF in THF produced compounds p-R-C6H4-CHd
CH-CtC-H (R ) NO2, N(CH3)2, OCH3) (3), which were
purified by recrystallization. Compounds 3 were characterized
by NMR spectroscopy.
* Corresponding authors. E-mail: chshliu@mail.ccnu.edu.cn.
† Central China Normal University.
‡ Hubei University.
§ Fujian Institute of Research on the Structure of Matter.
(1) (a) Prasad, P. N.; Williams, D. J. Introduction to Nonlinear Optical
Effects in Molecules and Polymers; Wiley-Interscience: New York, 1991.
(b) Boyd, R. W. Nonlinear Optics; Academic Press: San Diego, CA, 1992.
(c) Zyss, J. Molecular Nonlinear Optics; Academic Press: New York, 1994.
(2) (a) Nalwa, H. S. Appl. Organomet. Chem. 1991, 5, 349. (b) Marder,
S. R. In Inorganic Materials; Bruce, D. W., O’Hare, D., Eds.; Wiley: New
York, 1992; p 116. (c) Long, N. J. Angew. Chem., Int. Ed. Engl. 1995, 34,
291.
(3) Bella, S. D. Chem. Soc. ReV. 2001, 30, 355, and references therein.
(4) (a) Bella, S. D.; Fragala`, I.; Ledoux, I.; Marks, T. J. J. Am. Chem.
Soc. 1995, 117, 9481. (b) Bella, S. D.; Fragala`, I.; Marks, T. J.; Ratner, M.
A. J. Am. Chem. Soc. 1996, 118, 12747. (c) Bella, S. D.; Fragala`, I.; Ledoux,
I.; Diaz-Garcia, M. A.; Marks, T. J. J. Am. Chem. Soc. 1997, 119, 9550.
(d) Coe, B. J. In ComprehensiVe Coordination Chemistry II; McCleverty,
J. A., Meyer, T. J., Eds.; Elsevier Pergamon: Oxford, U.K., 2004; Vol. 9,
pp 621-687.
(6) Cadierno, V.; Conejero, S.; Gamasa, M. P.; Gimeno, J. Organome-
tallics 1999, 18, 582.
(7) (a) Muller, T. J. J.; Netz, A.; Ansorge, M. Organometallics 1998,
18, 5066. (b) Xia, H.-P.; Wen, T. B.; Hu, Q. Y.; Wang, X.; Chen, X.-G.;
Shek, L. Y.; Williams, I. D.; Wong, K. S.; Wong, G. K. L.; Jia, G.-C.
Organometallics 2005, 24, 562. (c) Humphrey, P. A.; Turner, P. A.; Masters,
F.; Field, L. D.; Cifuentes, M. P.; Humphrey, M. G.; Asselberghs, I.;
Persoons, A.; Samoc, M. Inorg. Chim. Acta 2005, 358, 1663.
(5) Calabrese, J. C.; Cheng, L.-T.; Green, J. C.; Marder, S. R.; Tam, W.
J. Am. Chem. Soc. 1991, 113, 7227.
10.1021/om0605736 CCC: $37.00 © 2007 American Chemical Society
Publication on Web 12/07/2006

Donor-Acceptor σ-Alkenyl Ruthenium Complexes
Organometallics, Vol. 26, No. 1, 2007 197
Scheme 1
Compounds 3 reacted with RuHCl(CO)(PPh3)3 to give the
insertion products RuCl(CO)(PPh3)2(CHdCH-CHdCH-C6H4-
R-p) (R ) NO2, N(CH3)2, OCH3) (4), which could be isolated
as a solid (4a, purple; 4b, brown; 4c, red). These compounds
have been characterized by NMR. The 31P NMR spectrum in
CD2Cl2 of complex 4a showed a singlet at 31.23 ppm, which
is slightly downfield from that for complexes 4b (30.94 ppm)
and 4c (30.98 ppm) due to the electron acceptance effect of
NO2. These are typical for RuCl((E)-CHdCHR)(CO)(PPh3)2.8
The 1H NMR spectrum in CD2Cl2 of complex 4a displayed the
Ru-CH signal at 8.60 ppm (4b, 7.90; 4c, 7.76), the chemical
shift of which is similar to those of complexes [RuCl(CO)-
(PPh3)2]2(µ-(CHdCH)n)9 and [RuCl(CO)(PPh3)2]2(µ-CHdCH-
Ar-CHdCH),10 and the five-coordinated complexes 4 are air-
sensitive especially in solution.
PMP complexes, for example RuCl2(PPh3)(PMP) and RuHX-
(PPh3)(PMP) (X ) Cl, OAc),12 have also been reported.
Homonuclear bimetallic complexes [RuCl(PhPy)(CO)(PPh3)2]2-
(µ-(CHdCH)n) (n ) 3, 4), [RuCl(CO)(PMP)]2(µ-(CHdCH)n)
(n ) 3, 4),9b,c and [RuTp(CO)(PPh3)]2(µ-(CHdCH)2-C6H4-
(CHdCH)2)13 and heteronuclear bimetallic complexes Fc(CHd
CH)3RuCl(CO)(PhPy)(PPh3)2, Fc(CHdCH)3RuCl(CO)(PMP),
and Fc(CHdCH)3RuTp(CO)(PPh3)14 were also reported. The
structure of 7b has been confirmed by X-ray diffraction study
(Figure 1).
Crystal Structure of Complex RuTp(CO)(PPh3)(CHd
CH-CHdCH-C6H4-N(CH3)2-p) (7b). The molecular struc-
ture of RuTp(CO)(PPh3)(CHdCH-CHdCH-C6H4-N(CH3)2-
p) (7b) is depicted in Figure 1. The crystallographic details and
selected bond distances and angles are given in Tables 1 and 2,
respectively. The ruthenium center is a distorted octahedron with
Tp occupying three coordinational points. It is worth noting that
the vinyl groups are essentially coplanar with Ru-CO. Thus
Ru(1), C(40), O(1), C(1), and C(2) form a plane with maximum
deviation from the least-squares plane of 0.0105 Å for C(1).
This coplanar phenomenon of the vinyl group and CO is
expected due to the strong π-interaction between CO and vinyl
with metal centers in such a conformation.15 The Ru-N(1) bond
(2.194(3) Å) of complex 7b is slightly longer than the Ru-
N(2) bond (2.125(3) Å) and Ru-N(3) bond (2.154 Å), due to
the strong trans influence of the vinyl ligand.16 The (CH)4 unit
Several related six-coordinated complexes were prepared from
complex 4. Reaction of 4 with 4-phenylpyridine (PhPy), 2,6-
(Ph2PCH2)2C5H3N (PMP), and KTp (Tp ) hydridotris(pyra-
zolyl) borate) gave the corresponding six-coordinated complexes
RuCl(CO)(PhPy)(PPh3)2(CHdCH-CHdCH-C6H4-R-p) (R )

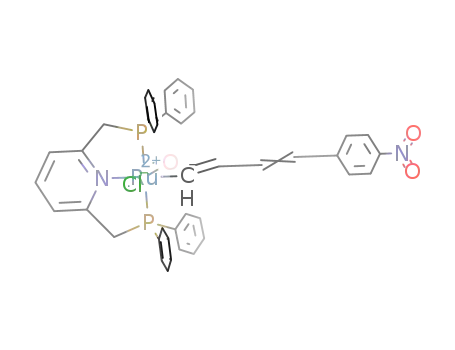

NO2, N(CH3)2, OCH3) (5), RuCl(CO)(PMP)(CHdCH-CHd
