Synthesis of 5,7-dibromotropono[c]pyrazole derivatives

Article abstract of DOI:10.3987/COM-10-12045

A facile synthesis of some novel 5,7-dibromotropono[c]pyrazole derivatives via the condensation reaction of 3-acetyl-5,7-dibromotropolone with aromatic hydrazines is described. All the synthesized compounds were obtained in good yields of 67-88% and their structures were characterized by IR, ¹H NMR, MS, and elemental analysis. The Japan Institute of Heterocyclic Chemistry.

Full text of DOI:10.3987/COM-10-12045

HETEROCYCLES, Vol. 81, No. 11, 2010
2617
HETEROCYCLES, Vol. 81, No. 11, 2010, pp. 2617 - 2623. © The Japan Institute of Heterocyclic Chemistry
Received, 16th August, 2010, Accepted, 9th Spetember, 2010, Published online, 10th September, 2010
DOI: 10.3987/COM-10-12045
SYNTHESIS OF 5,7-DIBROMOTROPONO[c]PYRAZOLE DERIVATIVES
Yang Li and Wentao Gao*
aInstitute of Superfine Chemicals, Bohai University, Jinzhou 121000, China
bhuzh@163.com
Abstract –A facile synthesis of some novel 5,7-dibromotropono[c]pyrazole
derivatives via the condensation reaction of 3-acetyl-5,7-dibromotropolone with
aromatic hydrazines is described. All the synthesized compounds were obtained in
1
good yields of 67-88% and their structures were characterized by IR, H NMR,
MS, and elemental analysis.
The pyrazole moiety is present in a wide variety of biologically active compounds.1-3 Numerous
compounds containing pyrazole moiety have been shown to exhibit antihyperglycemic, analgesic,
anti-inflammatory, antipyretic, antibacterial, hypoglycemic, sedative-hypnotic activity.4-7 This class of
compounds has also a rich chemistry because of their easy reductive cleavage and susceptibility to ring
transformations. Thus, continuous efforts have been devoted to the development of more novel and
interesting pyrazole derivatives.8-10 Although the preparation of substituted pyrazoles has been extensively
investigated, there has been an expansion of these studies to include fused-ring pyrazole derivatives.11-14
On the other hand, troponoid natural products and synthetic troponoid derivatives have attracted
considerable interest due to the unique structure and properties of the troponoid ring. Therefore,
significant effort continues to be directed toward the development of new tropone structures.15-22
Especially, there is much current interest in assembling tropone ring by fusing with heterocyclic systems,
which represent privileged moieties in medicinal chemistry, and are ubiquitous sub-structures associated
with biologically active natural products.23-26 In addition, it is reported that the presence of bromo
moieties on troponoid nucleus is reported to inhibit the Hepatitis C virus.27
In light of these findings and in view of structural diversity playing a prominent role in medicinal and
combinatorial chemistry for a faster and efficient lead generation towards the new drug discovery,28 the
synthesis of novel pyrazoles fused to bromo-substituted tropone ring would be much more attractive. To
the best our knowledge, 3-acetyl-5,7-dibromomotropolone has been synthesized conveniently for many

2618
HETEROCYCLES, Vol. 81, No. 11, 2010
years.29 However, further modification of it is very limited.29 Thus, we are very interested in transforming
3-acetyl-5,7-dibromo-tropolone into some novel 5,7-dibromotropono[c]pyrazole derivatives, which
should be useful precursors for achieving new biologically active tropolone compounds.
In the context of our ongoing studies on troponoid chemistry and as a continuation of our previous work
on the novel synthesis of some new troponoid compounds,30-36 herein, we wish to report the synthesis of
5,7-dibromo-3-methyl-1-aryltropono[c]pyrazoles (2a-f) by the reaction of 3-acetyl-5,7-dibromo-tropolone
(1) with some substituted phenylhydrazine hydrochlorides as shown in Scheme 1. Initially, we examined
the reaction of 1 with free (4-methoxyphenyl)hydrazine in refluxing EtOH. However, the reaction was
found to be very complex and we could not obtain any pyrazole derivatives in appreciable yields. Instead,
we found that the reaction of 1 and (4-methoxyphenyl)hydrazine hydrochloride was performed smoothly
to give the desired 5,7-dibromotropono[c]pyrazole (2a) in good yield of 70%. The reaction result we
obtained is very similar to the literature reported by Lee et al.37 In addition, we also attempted to other
solvents such as MeOH, MeCN, and 1,2-dichloroethane. But the yield could not be improved further.
Some representative results are summarized in Table 1.
R
O
O
Br
Br
Br
Br
NHNH2
EtOH
HCl
OH
O
N
R
N
reflux, 24 h
1
2a-f
R=OMe, Et, F, Cl, Br
Scheme 1. Synthetic route of the title compounds 2a-f
Table 1. Synthesis of 5,7-dibromotropono[c]pyrazole derivatives (2a-f)
Entry
1
Product
Yield (%)a
70
Br
O
O
2a
2b
Br
N
N
Br
O
2
86
Br
N
N

HETEROCYCLES, Vol. 81, No. 11, 2010
2619
Continued (Table 1)
Entry
Product
Yield (%)a
67
Br
O
Br
F
3
4
2c
N
N
Cl
O
Br
Br
2d
74
71
88
N
N
O
Br
Br
Cl
5
2e
2f
N
N
Br
O
Br
Br
6
N
N
aIsolated yield.
From Table 1, it seems that the electronic nature of the substituents has no significant effect on the
reactions; all the tropono[c]pyrazoles with electron-donating (Entries 1 and 2) or electron-withdrawing
(Entries 3-6) worked well and gave the corresponding title compounds in good to excellent yields,
showing little distinction. The ease of isolation of all the products was notable; after aqueous work-up the
products were isolated as the main products.
The formation of 2a-f may be interpreted by the following proposed mechanism as shown in Scheme 2.
Conversion of 3-acetyl-5,7-dibromotropolone (1) into the corresponding hydrazone derivative (A) and
subsequent attack of the resulting hydrazone moiety at the hydroxyl carbon of tropolone ring formed a
pyrazole ring system (B). After this cyclization, dehydration led to the formation of tropono[c]pyrazole
ring 2a-f.

2620
HETEROCYCLES, Vol. 81, No. 11, 2010
R
R
H
N
O
O
Br
Br
NHNH2
HCl
OH
OH
Br
R
-H2O
1
2a-f
NH
N
N
EtOH reflux, 24 h
Br
A
B
Scheme 2. Possible mechanistic pathway of formation of the title compounds 2a-f
The structures of all the new synthesized compounds were confirmed by spectral data and elemental
analysis. For example, the IR spectrum of 2a exhibited the absence of hydroxyl group at about 3180 cm-1
1
and the presence of one typical carbonyl absorptions for the tropone moieties at 1621 cm-1. In the H
NMR spectrum of 2a, the signals from two tropone hydrogens appeared as two doublet signals at 7.87 (d,
1H, J = 1.70 Hz) and 8.48 (d, 1H, J = 1.75 Hz), which arose a result of coupling to each other. The
ESI-MS (positive-ion mode) exhibited a characteristic quasi-molecular ion peak cluster (M+H)+ at m/z
423.02, 424.99, and 427.00 with a ratio of 1׃2׃1, indicating the presence of two Br-atoms in them.
Finally, the structure assigned for this reaction product was fully supported by its elemental analysis,
which established their molecular formulas in accordance with their suggested molecular structure.
It can be concluded that the present investigation has demonstrated a facile synthesis of novel
5,7-dibromo-1-aryl-3-methyltropono[c]pyrazoles (2a-f) in good to excellent yields. The molecules we
have synthesized should allow us, in the future, to investigate structure-activity relationships over various
biotests. Moreover, all these synthesized molecules can be used for the synthesis of highly substituted
tropolones since bromo group on tropone ring can be further elaborated to a variety of other functional
groups, for example, via metal-catalyzed coupling reactions.
EXPERIMENTAL
Melting points (uncorrected) were determined by using WRS-1B melting points apparatus. The 1H NMR
spectra were recorded on a Brucker AVANCE 400 NMR spectrometer at 300 MHz using TMS as internal
standard. The Mass spectra were determined using a MSD VL ESI1 spectrometer. The elemental analyses
was performed for C, H, N using an Elementar Vario EL-III element analyzer. The progress of reactions
was monitored by thin-layer chromatography (TLC) on silica gel GF254 using EtOAc/petroleum ether
(1/3).
General procedure for the synthesis of 5,7-dibromo-1-aryl-3-methyltropono[c]pyrazoles (2a-f). To a
solution of 3-acetyl-5,7-dibromotropolone 1 (0.32 g, 1 mmol) in 5 mL of EtOH was added the
corresponding phenylhydrazine hydrochloride (2 mmol). The resulting mixture was heated at reflux for

HETEROCYCLES, Vol. 81, No. 11, 2010
2621
24 h. After the reaction was complete (TLC), the mixture was cooled to room temperature, and then
poured into some water, filtered to give the crude products, which were further purified by
recrystallization from acetic acid.
5,7-Dibromo-1-(4-methoxyphenyl)-3-methyltropono[c]pyrazole (2a). This compound was obtained as
yellow solid, mp 116-117 oC. IR (KBr) ν/cm-1: 3049, 2978, 1621 (C=O), 1582 (C=N), 1551, 1493, 1452,
1379, 1333, 1141, 1049, 1015, 879, 835; 1H NMR (CDCl3) δ (ppm): 2.59 (s, 3H, Me), 3.86 (s, 3H, OMe),
6.97 (m, 2H, ben-H), 7.24 (m, 2H, ben-H), 7.87 (d, 1H, J = 1.70 Hz, tropone-H), 8.48 (d, 1H, J = 1.75 Hz,
tropone-H); MS (ESI, m/z): 423.02, 424.99, 427.00 (M+H)+; Anal. Calcd for C16H12Br2N2O2: C, 45.31; H,
2.85; N, 6.61. Found: C, 45.10; H, 3.03; N, 6.39.
5,7-Dibromo-1-(2-ethylphenyl)-3-methyltropono[c]pyrazole (2b). This compound was obtained as
yellow solid, mp 170-172 oC. IR (KBr) ν/cm-1: 2965, 2868, 1619 (C=O), 1583 (C=N), 1542, 1495, 1450,
1
1381, 1328, 1124, 1085, 1016, 878, 855; H NMR (CDCl3) δ (ppm): 1.04 (t, 3H, J = 7.6 Hz, CH3), 2.23
(q, 2H, J = 7.6 Hz, CH2), 2.60 (s, 3H, Me), 7.35-7.41 (m, 3H, ben-H), 7.47 (d, 1H, J = 7.8 Hz, ben-H),
7.87 (d, 1H, J = 1.75 Hz, tropone-H), 8.49 (d, 1H, J = 1.75 Hz, tropone-H); MS (ESI, m/z): 421.01,
423.02, 425.03 (M+H)+; Anal. Calcd for C17H14Br2N2O: C, 48.37; H, 3.34; N, 6.64. Found: C, 48.18; H,
3.47; N, 6.41.
5,7-Dibromo-1-(4-fluorophenyl)-3-methyltropono[c]pyrazole (2c). This compound was obtained as
yellow solid, mp 210-212 oC. IR (KBr) ν/cm-1: 1629 (C=O), 1588 (C=N), 1543, 1510, 1430, 1371, 1331,
1291, 1218, 1159, 1088, 1013, 856, 835; 1H NMR (CDCl3) δ (ppm): 2.59 (s, 3H, Me), 7.13-7.16 (m, 2H,
ben-H), 7.29-7.32 (m, 2H, ben-H), 7.88 (d, 1H, J = 1.75 Hz, tropone-H), 8.51 (d, 1H, J = 1.80 Hz,
tropone-H); MS (ESI, m/z): 410.98, 412.99, 414.97 (M+H)+; Anal. Calcd for C15H9Br2FN2O: C, 43.72; H,
2.20; N, 6.80. Found: C, 43.92; H, 2.02; N, 6.59.
5,7-Dibromo-1-(2-chlorophenyl)-3-methyltropono[c]pyrazole (2d). This compound was obtained as
o
white solid, mp 208-209 C. IR (KBr) ν/cm-1: 1622 (C=O), 1584 (C=N), 1517, 1490, 1450, 1367, 1326,
1259, 1210, 1100, 1064, 1017, 879, 853; 1H NMR (CDCl3) δ (ppm): 2.61 (s, 3H, Me), 7.39-7.45 (m, 3H,
ben-H), 7.50 (d, 1H, J = 7.8 Hz, ben-H), 7.90 (d, 1H, J = 1.75 Hz, tropone-H), 8.51 (d, 1H, J = 1.70 Hz,
tropone-H); MS (ESI, m/z): 426.94, 428.94, 430.94, 432.95 (M+H)+; Anal. Calcd for C15H9Br2ClN2O: C,
42.04; H, 2.12; N, 6.54. Found: C, 41.86; H, 2.13; N, 6.40.
5,7-Dibromo-1-(3-chlorophenyl)-3-methyltropono[c]pyrazole (2e). This compound was obtained as
yellow solid, mp 245-246 oC. IR (KBr) ν/cm-1: 1621 (C=O), 1587 (C=N), 1545, 1486, 1446, 1378, 1331,
1
1292, 1199, 1103, 1024, 908, 858, 788; H NMR (CDCl3) δ (ppm): 2.60 (s, 3H, Me), 7.19-7.21 (m, 1H,
ben-H), 7.35-7.40 (m, 2H, ben-H), 7.43-7.45 (m, 1H, ben-H), 7.88 (d, 1H, J = 1.75 Hz, tropone-H), 8.51
(d, 1H, J = 1.75 Hz, tropone-H); MS (ESI, m/z): 426.97, 428.95, 430.97, 432.84 (M+H)+; Anal. Calcd for
C15H9Br2ClN2O: C, 42.04; H, 2.12; N, 6.54. Found: C, 41.90; H, 2.40; N, 6.33.

2622
HETEROCYCLES, Vol. 81, No. 11, 2010

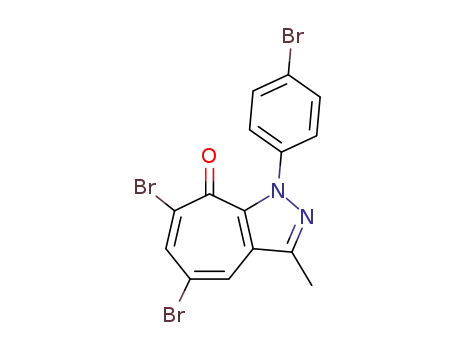

5,7-Dibromo-1-(4-bromophenyl)-3-methyltropono[c]pyrazole (2f). This compound was obtained as
yellow solid, mp 220-222 oC. IR (KBr) ν/cm-1: 1620 (C=O), 1584 (C=N), 1544, 1491, 1392, 1330, 1092,
1008, 856, 825; 1H NMR (CDCl3) δ (ppm): 2.59 (s, 3H, Me), 7.19-7.22 (m, 2H, ben-H), 7.57-7.60 (m, 2H,
ben-H), 7.88 (d, 1H, J = 1.75 Hz, tropone-H), 8.51 (d, 1H, J = 1.75 Hz, tropone-H); MS (ESI, m/z):
470.90, 472.92, 474.88, 476.89 (M+H)+; Anal. Calcd for C15H9Br3N2O: C, 38.09; H, 1.92; N, 5.92.
Found: C, 37.92; H, 2.14; N, 5.78.
ACKNOWLEDGEMENTS
The authors would like to thank the financial support from the Foundation of Liaoning Province Key
Laboratory of Applied Chemistry (Grant No. 2008s001).
REFERENCES
1. J. Elguero, ‘Comprehensive Heterocyclic Chemistry’ Vol. 3, ed. by A. R. Katritzky, C. W. Rees, and
E. F. V. Scriven, Pergamon Press, Oxford, NewYork, 1996, pp. 1–75.
2. M. J. Genin, C. Biles, B. J. Keiser, S. M. Poppe, S. M. Swaney, W. G. Tarpley, Y. Yagi, and D. L.
Romero, J. Med. Chem., 2000, 43, 1034.
3. Y. R. Huang and J. A. Katzenellenbogen, Org. Lett., 2000, 2, 2833.
4. S. R. Stauffer, C. J. Coletta, R. Tedesco, G. Nishiguchi, K. Carlson, J. Sun, B. S. Katzenellenbogen,
and J. A. Katzenellenbogen, J. Med. Chem., 2000, 43, 4934.
5. K. L. Kees, J. J. Fitzgerald, K. E. Steiner, J. F. Mattes, B. Mihan, T. Tosi, D. Mondoro, and M. L.
McCaleb, J. Med. Chem., 1996, 39, 3920.
6. J. W. Lyga, R. M. Patera, M. J. Plummer, B. P. Halling, and D. A. Yuhas, Pestic. Sci., 1994, 42, 29.
7. X. J. Wang, J. Tan, K. Grozinger, R. Betageri, T. Kirrane, and J. R. Proudfoot, Tetrahedron Lett.,
2000, 41, 5321.
8. M. S. Christodoulou, S. Liekens, K. M. Kasiotis, and S. A. Haroutounian, Bioorg. Med. Chem., 2010,
18, 4338.
9. O. I. El-Sabbagh, M. M. Baraka, S. M. Ibrahim, C. Pannecouque, G. Andrei, R. Snoeck, J. Balzarini,
and A. A. Rashad, Eur. J. Med. Chem., 2009, 44, 3746.
10. O. O. Alekseeva, A. Mahadevan, J. L. Wiley, B. R. Martin, and R. K. Razdan, Tetrahedron Lett.,
2005, 46, 2159.
11. L. Dalla Via, A. M. Marini, S. Salerno, C. La Motta, M. Condello, G. Arancia, E. Agostinelli, and A.
Toninello, Bioorg. Med. Chem., 2009, 17, 326.
12. M. F. A. Adamo, E. F. Duffy, D. Donati, and P. Sarti-Fantoni, Tetrahedron, 2007, 63, 2684.
13. P. Mizar and B. Myrbon, Tetrahedron Lett., 2009, 50, 3088.

HETEROCYCLES, Vol. 81, No. 11, 2010
2623
14. P. K. Kalita, B. Baruah, and P. J. Bhuyan, Tetrahedron Lett., 2006, 47, 7779.
15. M. Yamato, J. Ando, J. Sakai, K. Hashigaki, Y. Wataya, S. Tsukagoshi, T. Tashiro, and T. Tsuruo, J.
Med. Chem., 1992, 35, 267.
16. G. H. Harris, K. Hoogsteen, K. C. Silverman, S. L. Raghoobar, G. F. Bills, R. B. Lingham, J. L.
Smith, H. W. Dougherty, C. Cascales, and F. Paláez, Tetrahedron, 1993, 49, 2139.
17. F. Mayerl, Q. Gao, S. Huang, S. E. Klohr, J. A. Matson, D. R. Gustavson, D. M. Pirnik, R. L. Berry,
C. Fairchild, and W. C. Rose, J. Antibiot., 1993, 46, 1082.
18. D. Miyamoto, Y. Kusagaya, N. Endo, A. Sometani, S. Takeo, T. Suzuki, Y. Arima, K. Nakajima,
and Y. Suzuki, Antiviral Res., 1998, 39, 89.
19. P. Cai, D. Smith, B. Cunningham, S. Brown-Shimer, B. Katz, C. Pearce, D. Venables, and D. Houck,
J. Nat. Prod., 1998, 61, 791.
20. U. Lange, C. Schumann, and K. L. Schmidt, Eur. J. Med. Res., 2001, 6, 150.
21. E. Matsumura, Y. Morita, T. Date, H. Tsujibo, M. Yasuda, T. Okabe, N. Ishida, and Y. Inamori, Biol.
Pharm. Bull., 2001, 24, 299.
22. J. E. Baldwin, A. V. W. Mayweg, G. J. Pritchard, and R. M. Adlington, Tetrahedron Lett., 2003, 44,
4543.
23. N. Wahlström, B. Stensland, and J. Bergman, Tetrahedron, 2004, 60, 2147.
24. M. Cavazza, G. Guella, and F. Pietra, Tetrahedron, 2000, 56, 1917.
25. P. Seephonkai, M. Isaka, P. Kittakoop, S. Trakulnaleamsai, R. Rattanajak, M. Tanticharoen, and Y.
Thebtaranonth, J. Antibiot., 2001, 54, 751.
26. D. Mesa-Siverio, A. Estévez-Braun, Á. G. Ravelo, J. R. Murguia, and A. Rodríguez-Afonso, Eur. J.
Org. Chem., 2003, 4243.
27. A. M. Boguszewska-Chachulska, M. Krawczyk, A. Najda, K. Kopanska, A. Stankiewicz-Drogon, W.
Zagorski-Ostoja, and M. Bretner, Biochem. Biophys. Res. Commun., 2006, 341, 641.
28. R. E. Dolle and K. H. Nelson, J. Comb. Chem., 1999, 235.
29. Z. H. Li, Z. T. Jin, B. Z. Yin, and K. Imafuku, J. Heterocycl. Chem., 1987, 24, 779.
30. W. T. Gao, Z. T. Jin, B. Z. Yin, and K. Imafuku, J. Heterocycl. Chem., 1989, 26, 371.
31. Y. Li, M. Q. Chang, M. C. Sun, W. Li, and W. T. Gao, J. Chin. Chem., 2009, 27, 2073.
32. W. T. Gao, M. C. Sun, Y. Li, W. Li, and K. Imafuku, J. Heterocycl. Chem., 2009, 46, 1302.
33. Y. Li, C. H. Zhang, M. C. Sun, and W. T. Gao, J. Heterocycl. Chem., 2009, 46, 1190.
34. W. T. Gao, Y. Li, H. Zhang, M. Q. Chang, and K. Imafuku, J. Heterocycl. Chem., 2009, 46, 1107.
35. W. T. Gao, X. F. Zhang, Y. Li, H. Y. Liu, and K. Imafuku, Heterocycles, 2010, 81, 1689.
36. M. Q. Chang, Y. Li, H. Zhang, and W. T. Gao. J. Chem. Res., 2010, 269.
37. K. Y. Lee, J. M. Kim, and J. N. Kim, Tetrahedron Lett., 2003, 44, 6737.
