The synthesis and antitumor activity of twelve galloyl glucosides

Article abstract of DOI:10.3390/molecules20022034

Twelve galloyl glucosides 1-12, showing diverse substitution patterns with two or three galloyl groups, were synthesized using commercially available, low-cost D-glucose and gallic acid as starting materials. Among them, three compounds, methyl 3,6-di-O-galloyl-?±-D-glucopyranoside (9), ethyl 2,3-di-O-galloyl-?±-D-glucopyranoside (11) and ethyl 2,3-di-O-galloyl-?2-D-glucopyranoside (12), are new compounds and other six, 1,6-di-O-galloyl-?2-D-glucopyranose (1), 1,4,6-tri-O-galloyl-?2-D-glucopyranose (2), 1,2-di-O-galloyl-?2-D-glucopyranose (3), 1,3-di-O-galloyl-?2-D-glucopyranose (4), 1,2,3-tri- O-galloyl-?±-D-glucopyranose (6) and methyl 3,4,6-tri-O-galloyl-?±-D-glucopyranoside (10), were synthesized for the first time in the present study. In in vitro MTT assay, 1-12 inhibited human cancer K562, HL-60 and HeLa cells with inhibition rates ranging from 64.2% to 92.9% at 100 ??g/mL, and their IC50 values were determined to be varied in 17.2-124.7 ??M on the tested three human cancer cell lines. In addition, compounds 1-12 inhibited murine sarcoma S180 cells with inhibition rates ranging from 38.7% to 52.8% at 100 ??g/mL in the in vitro MTT assay, and in vivo antitumor activity of 1 and 2 was also detected in murine sarcoma S180 tumor-bearing Kunming mice using taxol as positive control.

Full text of DOI:10.3390/molecules20022034

Molecules 2015, 20, 2034-2060; doi:10.3390/molecules20022034
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
The Synthesis and Antitumor Activity of Twelve
Galloyl Glucosides
Chang-Wei Li, Hua-Jin Dong and Cheng-Bin Cui *
State Key Laboratory of Toxicology and Medical Countermeasures, Beijing Institute of Pharmacology
and Toxicology, Beijing 100850, China; E-Mails: sdrlcw@126.com (C.-W.L.);
huajind@hotmail.com (H.-J.D.)
* Author to whom correspondence should be addressed; E-Mail: cuicb@126.com or
cuicb@sohu.com; Tel./Fax: +86-10-6821-1656.
Academic Editor: Derek J. McPhee
Received: 26 December 2014 / Accepted: 21 January 2015 / Published: 27 January 2015
Abstract: Twelve galloyl glucosides 1–12, showing diverse substitution patterns with two
or three galloyl groups, were synthesized using commercially available, low-cost
D-glucose and gallic acid as starting materials. Among them, three compounds, methyl
3,6-di-O-galloyl-α-D-glucopyranoside (9), ethyl 2,3-di-O-galloyl-α-D-glucopyranoside (11)
and ethyl 2,3-di-O-galloyl-β-D-glucopyranoside (12), are new compounds and other six,

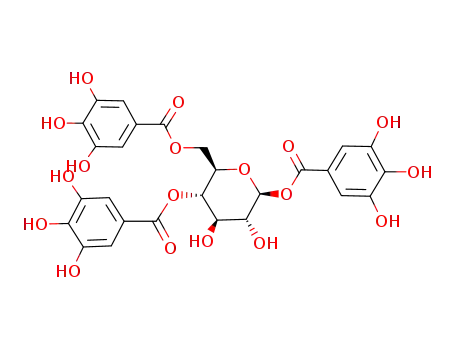

1,6-di-O-galloyl-β-D-glucopyranose (1), 1,4,6-tri-O-galloyl-β-D-glucopyranose (2),
1,2-di-O-galloyl-β-D-glucopyranose (3), 1,3-di-O-galloyl-β-D-glucopyranose (4), 1,2,3-tri-
O-galloyl-α-D-glucopyranose (6) and methyl 3,4,6-tri-O-galloyl-α-D-glucopyranoside (10),
were synthesized for the first time in the present study. In in vitro MTT assay, 1–12
inhibited human cancer K562, HL-60 and HeLa cells with inhibition rates ranging from
64.2% to 92.9% at 100 μg/mL, and their IC50 values were determined to be varied in
17.2–124.7 μM on the tested three human cancer cell lines. In addition, compounds 1–12
inhibited murine sarcoma S180 cells with inhibition rates ranging from 38.7% to 52.8% at
100 μg/mL in the in vitro MTT assay, and in vivo antitumor activity of 1 and 2 was also
detected in murine sarcoma S180 tumor-bearing Kunming mice using taxol as positive control.
Keywords: galloyl glucoside; synthesis; antitumor activity

Molecules 2015, 20
2035
1. Introduction
Galloyl glucosides, a kind of plant polyphenolics, display various important, diverse biological and
pharmacological activities, such as virustatic [1], anti-oxidant and free radical scavenging [2–4],
interaction with protein [5] and enzyme inhibitory [6,7], anti-inflammatory [8], neuronal cell
protecting [9], transient global ischemia/reperfusion-induced brain injury protecting [10], keratinocyte
proliferation and mitochondrial activity stimulating [11], anti-diabetic [12], cisplatin-induced
nephrotoxicity protecting [13] and antitumor [14–18] activities, and so on. Generally, galloyl
glucosides are widespread in various plants, but the low content of their free form in plants and the
high polarity, coupled with their easily oxidized chemical features, have made it difficult to isolate
them in large amounts. The most highly galloylated one, penta-O-galloyl-β-D-glucopyranose (PGG),
can be obtained in large amounts by acidic methanolysis of tannic acid from plants [6,16,19,20] or
chemical synthesis [20,21]. Major biological studies on galloyl glucosides were also developed using
PGG [5–24]. Both the in vitro [13–17,20–24] and in vivo [14,20,21,24] antitumor activities of PGG
had been verified and possible mechanisms had also been explored to some extent [20,21]. For
instance, the following events, but not limited to, were reported to be probably responsible: the
inhibition of DNA polymerases [16], inhibition of fatty acid synthase (FS) in FS-highly expressing
glioma cancer U251 cells [14], induction of apoptosis by activating caspase-3 in HL-60 cells [22],
inhibition of VEGF binding to VEGF receptor to exert anti-angiogenic effect [23], and activation of
p53 tumor suppressor pathway and inhibition of STAT3 oncogenic signaling [24], and so on. In
contrast, biological properties of other galloyl glucosides were not yet sufficiently investigated,
probably because of the difficulty in obtaining sufficient amounts for study. Although the synthesis of
some galloyl glucosides has been reported [25–29], in view of their diverse and important biological
activities, it is still worthwhile to synthesize other galloyl glucosides with less galloyl groups than
PGG to further investigate their biological properties.
Figure 1. Chemical structures of twelve galloyl glucosides 1–12.

Molecules 2015, 20
2036
In the course of our studies on bioactive natural products [30–44], we have reported the isolation of
some phenolic compounds with antitumor, anti-hypoxia, and anti-bacterial activities, including several
galloyl glucosides with one to four galloyl groups, from a medicinal plant, Choerospondias axillaries,
which is used as a traditional herbal medicine in China [41–44]. Previously, we also reported the
inhibitory effect of the galloyl glucosides with one to four galloyl groups on human cancer K562 cells,
pointing out the stronger activity of the galloyl glucosides with two and three galloyl groups than the
others [44]. As an extension of that work, and in view of our previous assay results [44], we recently
synthesized twelve galloyl glucosides 1–12 with two or three galloyl groups, (in Figure 1), and
evaluated their antitumor activity by in vitro MTT assay and/or in vivo test on tumor-bearing mice. Three
of them, 9, 11 and 12, are new compounds and other six, 1–4, 6 and 10, were synthesized for the first time
in the present study. The synthesis and antitumor activity of 1–12 were reported in detail in this paper.
2. Results and Discussion
2.1. Synthesis of 1–12
2.1.1. Synthesis of Esterification Reagent 13 and Intermediates 14–17
Tri-O-benzylgalloyl chloride (BnG-Cl) (13 in Scheme 1) was prepared in 57.2% overall yield using
gallic acid as starting material by benzylation with benzyl chloride (Bn-Cl), hydrolysis, and then
chlorination, as shown in Scheme 1.
HO
O
Cl
O
BnO
O
HO
6
O
1
b)
a)
c)
2
72.1% yield
89.0% yield
89.2% yield
BnO
OBn
BnO
OBn
BnO
OBn
HO
OH
4
OBn
OBn
OBn
OH
13
Gallic acid
(G)
Benzyl tri-O-benzylgallate
Tri-O-benzylgalloyl
chloride (BnG-Cl)
Tri-O-benzyl gallic
Bn: benzyl
acid (BnG)
Reagents and conditions: (a) K2CO3, PhCH2Cl, DMSO, 140 °C, 8 h; (b) NaOH, H2O/MeOH, 90 °C, 5 h;
(c) SOCl2, 90 °C, 9 h.
Scheme 1. Preparation of tri-O-benzylgalloyl chloride (13).
The intermediates 14–17 with a D-glucopyranose core were prepared from D-glucose, as shown in
Scheme 2, and were used as starting materials for further synthesis of 1–12. Acid-catalyzed
methylation of D-glucose by methanol (MeOH) and acetyl chloride (Ac-Cl) gave methyl
α-D-glucopyranoside in 47.3% yield, which, in turn, afforded methyl 4,6-O-benzylidene-α-D-
glucopyranoside (14) in 71.0% yield by reaction with benzaldehyde (PhCHO) using p-toluenesulfonic
acid (pTSA) as catalyst and triethyl orthoformate as dehydrator in tetrahydrofurane (THF) at 85 °C for
16 h (Scheme 2). Compound 14 was reacted with benzyl bromide (PhCH2Br) in the presence of
sodium hydride (NaH) in N,N-dimethylformide (DMF) at room temperature for 4 h (Scheme 2). Then,
the reaction mixture was suspended in water and extracted with chloroform (CHCl3) to obtain a CHCl3
solution. The CHCl3 solution was washed by water and then dried with anhydrous magnesium sulfate
(MgSO4) to remove remaining sodium hydroxide (NaOH, from NaH) in CHCl3. The dried CHCl3
solution was then evaporated, at lower temperature at first to remove CHCl3 and further at 90 °C to

Molecules 2015, 20
2037
remove remaining DMF, to obtain a CHCl3 extract. The whole CHCl3 extract was separated by column
chromatography, followed by recrystallization, to give methyl 2,3-di-O-benzyl-4,6-O-benzylidene-α-
D-glucopyranoside (15) in 87.1% yield.
Reagents and conditions: (a) MeOH, Ac-Cl, refluxing, 72 h; (b) PhCHO, triethyl orthoformate,
p-toluenesulfonic acid monohydrate, THF, 85 °C, 16 h; (c) PhCH2Br, NaH, DMF, at room temperature, 4 h;
(d) PhCHO, p-toluenesulfonic acid monohydrate, DMF, 85 °C, 16 h. * The intermediate 17 was obtained as a
mixture of α,β-anomers.
Scheme 2. Preparation of 14–17 from D-glucose.
On the other hand, direct treatment of D-glucose with benzaldehyde and pTSA catalyst in DMF at
85 °C for 16 h gave 4,6-O-benzylidene-D-glucopyranose (16) in 63.8% yield (Scheme 2). But when
the reaction was performed in the presence of triethyl orthoformate in THF at 85 °C for 16 h, it
produced 17 in 30.4% yield as a mixture of α,β-anomers, as shown in Scheme 2, which was separated
by HPLC to give ethyl 4,6-O-benzylidene-α-D-glucopyranoside (17a) and ethyl 4,6-O-benzylidene-β-
D-glucopyranoside (17b). In the case of this reaction, in addition to 4,6-O-benzylidene ring formation,
triethyl orthoformate underwent hydrolysis to produce ethanol (EtOH), which, in turn, further reacted
with reactive 1-OH in glucose at the acidic condition to produce 17.
2.1.2. Synthesis of 1 and 2 from the Intermediate 15
The aimed two galloyl glucosides, 1,6-di-O-galloyl-β-D-glucopyranose (1) and 1,4,6-tri-O-galloyl-
β-D-glucopyranose (2), were synthesized using 15 (in Scheme 2) as starting material, as shown in
Scheme 3. Acid-catalyzed hydrolysis of 15 (in Scheme 2) by 2 N HCl at 80 °C for 16 h gave 2,3-di-O-
benzyl-D-glucopyranose (18, in Scheme 3) in 41.2% yield. As shown in Scheme 3, reaction of 18 with
BnG-Cl (13, in Scheme 1) in 1:2.7 molar ratio in anhydrous pyridine at 60 °C for 18 h afforded
1,6-O-diesterified product 19 (79.5% yield), while reaction of 18 with BnG-Cl in 1:7.3 molar ratio also
in anhydrous pyridine at 60 °C for 18 h gave 1,4,6-O-triesterified product 20 (76.0% yield). Both 19
and 20 were purified by column chromatography, and hydrogenation of 19 and 20 over 10% Pd-C in
THF containing approximate 25% of aqueous 95% EtOH under 10 atmospheric pressure at 40 °C for
12 h produced 1 and 2 both in 37.9% yields, respectively (Scheme 3).

Molecules 2015, 20
2038
Reagents and conditions: (a) 2 N HCl, 80 °C, 16 h; (b) BnG-Cl, 3 g of 18 in 30 mL anhydrous pyridine,
80 °C, 18 h; (c) BnG-Cl, 4.5 g of 18 in 170 mL anhydrous pyridine, 80 °C, 18 h; (d) H2, 10% Pa-C, in THF
containing approximate 25% of aqueous 95% EtOH, 40 °C, 10 atm, 12 h.
Scheme 3. Synthesis of di-O- and tri-O-galloyl-D-glucosides 1 and 2, from 15.
2.1.3. Synthesis of 3–6 from the Intermediate 16
The target di- and tri-O-galloyl-D-glucosides, 3–4 and 5–6, were synthesized using 16 (Scheme 2)
as starting materials. Reaction of 16 with BnG-Cl (13, in Scheme 1) in 1:2.5 molar ratio in anhydrous
pyridine at 60 °C for 48 h gave 21 as a mixture of 1,2-di-, 1,3-di- and 1,2,3-tri-O-esterified products, as
shown in Scheme 4. Direct hydrogenation of the mixture 21 without separation over 10% Pd-C in THF
containing 6.7% of aqueous 95% EtOH under 10 atmospheric pressure at 40 °C for 12 h, followed by
chromatographic and HPLC separation, gave pure 3–6 in total 4.1% (3), 4.1% (4), 2.1% (5) and 1.5%
(6) yields from 16, respectively.
Reagents and conditions: (a) BnG-Cl, in anhydrous pyridine, 60 °C, 48 h; (b) H2, 10% Pa-C, in THF
containing 6.7% of aqueous 95% EtOH, 40 °C, 10 atm, 12 h.
Scheme 4. Synthesis of di-O- and tri-O-galloyl-D-glucosides, 3–4 and 5–6, from 16 (in
total 4.1%, 4.1%, 2.1% and 1.5% yields of 3, 4, 5 and 6 from 16, respectively).
2.1.4. Synthesis of 7 from the Intermediate 14
The methyl 2,3-di-O-galloyl-α-D-glucopyranoside (7) could be synthesized from 14 (in Scheme 2),
as shown in Scheme 5. Reaction of 14 (in Scheme 2) with BnG-Cl (13, in Scheme 1) in 1:4.1 molar
ratio in anhydrous pyridine at 60 °C for 48 h gave the 2,3-di-O-esterified product 22 (83.0% yield).
Hydrogenation of 22 on 10% Pd-C in THF containing approximate 13% of aqueous 95% EtOH under
10 atmospheric pressure at 40 °C for 12 h could reduce 2,3-di-O-GBn to 2,3-di-O-G, but could not
remove protecting 4,6-benzylidene group in 22 to afford a partially deprotected product 23 (Scheme 5).
Further acid-catalyzed hydrolysis of 23 by 1 N HCl at 55 °C for 6 h, followed by chromatographic
separation, afforded 7 in total 64.5% yield from 22.

Molecules 2015, 20
2039
Reagents and conditions: (a) BnG-Cl, in anhydrous pyridine, 60 °C, 48 h; (b) H2, 10% Pa-C, in THF
containing approximate 13% of aqueous 95% EtOH, 40 °C, 10 atm, 12 h; (c) 1 N HCl, 55 °C, 6 h.
Scheme 5. Synthesis of methyl 2,3-di-O-galloyl-α-D-glucopyranoside 7 from 14 (in total
64.5% yield of 7 from 22).
2.1.5. Synthesis of 8 from the Intermediate 15
The aimed methyl 4,6-di-O-galloyl-α-D-glucopyranoside (8) was synthesized from 15 (in Scheme 2)
as shown in Scheme 6. Hydrolysis of 15 in 50% aqueous acetic acid (AcOH) at 55 °C for 24 h gave
methyl 2,3-di-O-benzyl-α-D-glucopyranoside (24) in 74.1% yield (Scheme 6). Reaction of 24 with
BnG-Cl (13, in Scheme 1) in 1:3.4 molar ratio in anhydrous pyridine at 60 °C for 48 h afforded
4,6-di-O-esterified product 25 in 88.2% yield, and hydrogenation of 25 on 10% Pd-C in THF
containing 13% of aqueous 95% EtOH under 10 atmospheric pressure at 40 °C for 12 h produced 8 in
44.4% yield (Scheme 6).
Reagents and conditions: (a) 50% AcOH, 55 °C, 24 h; (b) BnG-Cl, in anhydrous pyridine, 60 °C, 48 h;
(c) H2, 10% Pa-C, in THF containing approximately 13% of aqueous 95% EtOH, 40 °C, 10 atm, 12 h.
Scheme 6. Synthesis of methyl 4,6-di-O-galloyl-α-D-glucopyranoside (8) from 15.
2.1.6. Synthesis of 8–10 from the Intermediate 14
Two target compounds, methyl 3,6-di-O-galloyl-α-D-glucopyranoside (9) and methyl 3,4,6-tri-O-
galloyl-α-D-glucopyranoside (10) could be synthesized from 14 (in Scheme 2), as shown in Scheme 7.
Meanwhile, methyl 4,6-di-O-galloyl-α-D-glucopyranoside (8) could be also synthesized from 14 with
the synthesis of 9. First, the key intermediate 26 (Scheme 7) was synthesized by reaction of 14 and
benzyl bromide. Compound 14 was reacted with benzyl bromide in presence of NaH in DMF at room
temperature for 6 h. Then, the reaction mixture was suspended in water and extracted with CHCl3 to
obtain a CHCl3 solution. Unlike the workup in the synthesis of 15 from 14 in Scheme 2, the CHCl3
solution was directly evaporated under reduced pressure without washing and drying, at lower
temperature at first to remove CHCl3 and further at 90 °C to remove remaining H2O/DMF, to obtain a
CHCl3 extract. This extract was separated by column chromatography to give methyl 2-O-benzyl-α-D-
glucopyranoside (26) in 46.3% yield. In contrast to the synthesis of 15 from 14 in Scheme 2, the
present post-processing in the presence of remaining NaOH in H2O/DMF at 90 °C resulted in the
hydrolysis of 3-O-benzyl and 4,6-O-benzylidene groups to produce 26. Then, reaction of 26 with
BnG-Cl (13, in Scheme 1) in a 1:2.4 molar ratio in anhydrous pyridine at 60 °C for 48 h produced two

Molecules 2015, 20
2040
di-O-esterified products, 4,6-di-O-esterified 27 (31.0% yield) and 3,6-di-O-esterified 28 (56.3% yield)
obtained by chromatographic separation, while reaction of 26 with BnG-Cl in a 1:5.6 molar ratio at the
same conditions gave a 3,4,6-tri-O-esterified product 29 in 76.2% yield (Scheme 7). Hydrogenation of
27, 28 and 29 over 10% Pd-C in THF containing suitable amount of aqueous 95% EtOH under 10
atmospheric pressure at 40 °C for 12 h afforded 8, 9 and 10 in 37.0%, 20.4% and 80.0%
yields, respectively.
Reagents and conditions: (a) PhCH2Br, NaH, DMF, rt, 6 h; (b) BnG-Cl, in anhydrous pyridine, 60 °C, 48 h;
(c) H2, 10% Pa-C, in THF containing approximately 16% of aqueous 95% EtOH for 27/28 and 9% of
aqueous 95% EtOH for 29, 40 °C, 10 atm, 12 h.
Scheme 7. Synthesis of 8–10 from 14.
2.1.7. Synthesis of 11 and 12 from the Intermediate 17
Ethyl 2,3-di-O-galloyl-α-D-glucopyranoside (11) and ethyl 2,3-di-O-galloyl-β-D-glucopyranoside
(12), were synthesized using 17 (in Scheme 2) as starting materials, as shown in Scheme 8.
Reagents and conditions: (a) BnG-Cl, in anhydrous pyridine, 60 °C, 48 h; (b) H2, 10% Pa-C, in THF
containing 6.7% of aqueous 95% EtOH, 40 °C, 10 atm, 12 h.
Scheme 8. Synthesis of ethyl 2,3-di-O-galloyl-α-D-glucopyranoside (11) and ethyl 2,3-di-
O-galloyl-β-D-glucopyranoside (12) from 17.
As shown in Scheme 8, reaction of 17 (1α,1β mixture, in Scheme 2) with BnG-Cl (13, in Scheme 1)
in 1:2.3 molar ratio in anhydrous pyridine at 60 °C for 48 h gave 2,3-di-O-esterified product 30 (1α,1β
mixture) in 94.1% yield, and hydrogenation of 30 over 10% Pd-C in THF containing 6.7% of aqueous
95% EtOH under 10 atmospheric pressure at 40 °C for 12 h, followed by chromatographic and HPLC
separation, afforded 11 and 12 in 17.2% and 22.7% yields, respectively.
2.2. Antitumor Activity Evaluation
2.2.1. The in Vitro Antitumor Activity of 1–12
The in vitro antitumor activity of 1–12 was assayed by the MTT method on human cancer K562,
HL-60 and HeLa cell lines, using 5-flurouracil (5-FU) and docetaxol (DOC) as positive controls at

Molecules 2015, 20
2041
first. In the MTT assay, 1–12, 5-FU and DOC inhibited the tested three human cancer cell lines by the
inhibition rates (IR%) at 100 μg/mL shown in Table 1, and the half inhibitory concentration (IC50) of
1–12 was determined as given in Table 2. We then further tested the inhibitory effect of 1–12 on the
murine sarcoma S180 cell line by the same MTT assay using taxol as positive control. In the test, 1–12 and
taxol inhibited the S180 cells with following IR% values at 100 μg/mL: 1, 40.7%; 2, 52.8%; 3, 39.2%; 4,
48.7%; 5, 38.4%; 6, 47.7%; 7, 35.7%; 8, 46.6%; 9, 40.1%; 10, 52.4%; 11, 38.7%; 12, 47.3%;
taxol, 59.1%.
Table 1. Inhibition rate (IR%) of 1–12 on human cancer K562, HL-60 and HeLa cells at
100 μg/mL. a
IR% at 100 μg/mL
Cells
1
2
3
4
5
6
7
8
9
10
11
12
5-FU DOC
K562
HeLa
HL-60
78.5 70.5 77.0 72.9 70.9 71.5 81.6 65.5 88.1 73.3 74.9 64.2 74.1 71.8
86.6 83.7 77.7 85.3 75.5 84.7 88.8 88.8 76.9 78.5 85.6 77.7 90.6 82.8
89.4 92.1 92.9 91.8 88.0 89.0 89.0 88.9 89.3 90.6 92.0 88.5 86.3 57.1
a
Notes: The cells were treated with the test samples at the 100 μg/mL for 48 h, and then the inhibition rate
(IR%) was determined by the MTT method. 5-FU: 5-flurouracil, DOC: docetaxol.
Table 2. Half inhibitory concentration (IC50) of 1–12 on human cancer K562, HL-60 and
HeLa cells. a
IC50 (μM)
Cells
1
2
3
4
5
6
7
8
9
10
11
12
K562
HeLa
HL-60
77.9
61.8
36.2
68.2
44.0
18.7
71.1
93.8
35.3
115.3
63.0
30.8
70.3
52.2
19.0
85.8
45.3
19.3
77.5
71.3
30.9
124.7
66.9
30.5
72.1
77.3
39.0
49.8
49.4
17.2
91.0
68.4
32.6
109.4
81.3
32.4
Note: a The IC50 values in this table were determined by the MTT method after treatment of the cells with the
test compounds at different concentrations for 48 h.
2.2.2. The in Vivo Antitumor Activity of 1 and 2 in Mice
The in vivo antitumor activity of 1 and 2 was tested on the murine sarcoma S180 tumor-bearing
Kunming mice, and taxol was used as positive control. Compounds 1–2 at 15 and 30 mg/kg dosages
and taxol at 20 mg/kg dosage were administered by intravenous injection via the mouse tail vein every
day for six continuous days for 1–2 and every other day for six days for taxol, respectively.
On the third day of the last administration, the mice were sacrificed, and the body and tumor
weights were weighed. Then, the inhibition rate (IR%) of the test and taxol groups on the tumor
growth was calculated using mean tumor-weight (TW) values by the following formula:
IR% = TWmodel group − TWsample group/TWmodel group × 100%
In the present test, both 1 and 2 at the 30 mg/kg dosage could significantly inhibit the tumor growth,
although their inhibitory effect was a little weaker than the effect of the positive control taxol (Table 3),
while 1 and 2 at 15 mg/kg dosage did not show significant inhibitory effects on the tumor growth as
shown in Table 3. Moreover, in contrast to the significantly reduced body weight of the mice in taxol

Molecules 2015, 20
2042
group, 1 and 2 both at 15 and 30 mg/kg dosages did not significantly affect the body weight of tested
mice (Table 3).
Table 3. Inhibitory effect of 1 and 2 on the S180 tumor growth in mice (mean ± S.D., n = 8 or 11).
Group
Model group
Taxol
Dose (mg/kg) Body Weight (g) Tumor Weight (g) Inhibition Rate (%)
—
20
15
30
15
30
29.54 ± 3.61
22.28 ± 2.02 *
28.06 ± 3.09
26.90 ± 2.95
28.63 ± 3.90
27.22 ± 3.41
2.45 ± 0.79
1.49 ± 0.46 *
2.10 ± 0.46
—
39.2
14.3
26.9
1.6
1
1.79 ± 0.45 **
2.41 ± 0.72
2
1.87 ± 0.41 **
23.7
Notes: * p < 0.01, ** p < 0.05, compared with model group; n = 8 for taxol group and n = 11 for other groups.
2.3. Discussion
We have presented the synthesis of twelve galloyl glucosides with two (1, 3, 4, 7–9, 11 and 12) and
three (2, 5, 6 and 10) galloyl groups showing diverse substitution patterns, including six with ester
glycoside bonds (compounds 1–6) and other six with general glycoside bonds (compounds 7–12)
covering both β (1–6) and α (7–12) configurations. Generally, α-anomers of galloyl glucosides are rare
in Nature, and because of their lack of availability, studies of α-anomers have been very rare and
largely lagged compared to the β-anomers. Even so, in recently developed studies on α-PGG, made
possible by chemical synthesis, have shown its unique biological properties [17,21]. In view of this
development, we synthesized both α,β-anomers in the present study. Among the twelve synthesized
galloyl glucosides, 9, 11 and 12 are new compounds, and 1–4, 6 and 10 were synthesized for the first
time in the present study, although some galloyl glucosides, including 1–2 [44], 3 [45], 4 [46], 5 [47],
6 [48] and the C-1 epimer of 9 (methyl 3,6-di-O-galloyl-β-D-glucopyranoside [49]), had been isolated
from plants [44–49] and some of the galloyl glucosides, including 5 [28], 7 [26] and 8 [5], had also
been synthesized [5,25–29]. In [4] an isolated galloyl glucoside was recorded as methyl 3,6-di-O-
galloyl-α-D-glucopyranoside (9) in the Abstract and Section 2.1, but the structure of the compound
given in the text, coupled with the cited literature [49] for identification without data, indicated that the
name of this compound in the literature [4] was a miswriting of the correct name methyl 3,6-di-O-
galloyl-β-D-glucopyranoside [49], and no more reports so far have mentioned 9. In addition, 8 has also
once been reported to be synthesized [5], but no any supporting data were provided, and the
physicochemical and spectroscopic data of 8 were recorded for the first time in the present paper.
It is noteworthy that in the 4,6-O-benzylidende ring forming reaction we used triethyl orthoformate
for the first time for the pTSA-catalyzed reaction of D-glucose and benzaldehyde, as shown in Scheme 2,
to obtain the 4,6-O-benzylidende protected ethyl glycoside 17 by a one-pot reaction. Under the acidic
reaction conditions, the triethyl orthoformate underwent hydrolysis to produce EtOH, which in turn
further reacted with the reactive 1-OH in glucose, eventually affording 17. In contrast, the 1-OH free,
4,6-O-protected product 16 could be obtained by the same pTSA-catalyzed reaction of the D-glucose
and benzaldehyde without triethyl orthoformate (Scheme 2). Generally, triethyl orthoformate was used
for the purpose of dehydration in relevant reactions by its hydrolysis to produce ethyl formate or
formic acid and EtOH. Triethyl orthoformate has also been used in the pTSA-catalyzed reaction of a

Molecules 2015, 20
2043
β-D-glucoside and benzaldehyde for protecting the 4,6-OH groups in glucose and the target 4,6-O-
benzylidende-protected product with an unchanged β-D-glycoside bond was obtained in [50]. Similarly,
the pTSA-catalyzed reaction of methyl α-D-glucoside and benzaldehyde in the presence of triethyl
orthoformate in the present study exclusively produced the unchanged α-glycoside bond 4,6-O-
benzylidende protected product 14 (Scheme 2), indicating the stability of the methyl α-glycoside bond
under the acidic reaction conditions. Under the acidic reaction conditions, triethyl orthoformate should
undergo hydrolysis (by H2O from the reaction of methyl α-D-glucoside and benzaldehyde) to produce
formic acid and EtOH. If the methyl α-D-glucoside were also hydrolyzed, the reactive 1-OH in the
D-glucose produced should further react with EtOH to also produce an ethyl 4,6-O-benzylidene-D-
glucoside as byproduct, as seen in the synthesis of 17.
The hydrolysis-resistant nature of the methyl α-D-glycoside bond was also indicated by the
acid-catalyzed hydrolysis of 15. In the hydrolysis of 15 by 2 N HCl at 80 °C for 16 h, shown in
Scheme 3, in addition to the hydrolyzed product 18, quite a large amount of the 1-OCH3 unhydrolyzed
material methyl 2,3-di-O-benzyl-α-D-glucopyranoside was produced in every round of hydrolysis, and
the 41.2% total yield of 18 was obtained by repeated hydrolyses of the 1-OCH3 unhydrolyzed
materials. Incidentally, later by an additional hydrolysis of 15 using 30% trifluoroacetic acid (TFA) as
catalyst in CH3CN-TFA-H2O (3:3:4) at 98 °C for 48 h according to the method in the literature [51],
we could obtain 18 in quite a high 40% yield through a one-step hydrolysis.
In the in vitro MTT assay, compounds 1–12 inhibited the human cancer K562, HL-60 and HeLa
cells with inhibition rates ranging from 64.2% to 92.9% at 100 μg/mL (Table 1), and their IC50 values
were determined to vary from 17.2–124.7 μM on the tested cancer cell lines (Table 2). In the in vitro
MTT assay, 1–12 also inhibited the murine sarcoma S180 cells with inhibition rates ranging from
38.7% to 52.8% at the 100 μg/mL (see Section 2.2.1). The MTT assay for the synthesized 1 and 2 on
K562 cells (IC50: 77.9 μM for 1 and 68.2 μM for 2) reconfirmed our assay previously reported result
for the natural products (IC50: 80.8 μM for natural 1 and 64.8 μM for natural 2) [44]. In addition, it
seems from the IC50 values in Table 2 that the galloyl glucosides with three galloyl groups (2, 5, 6 and
10) possess stronger inhibitory activity than those with two galloyl groups (1, 3, 4, 7–9, 11 and 12) on
the tested three human cancer cell lines, except for 6 on the K562 cell line, and further on the whole,
1–12 all showed stronger activity on the HL-60 cells than on the K562 and HeLa cells (Table 2).
Moreover, two pairs of the α,β-anomers, 5/6 and 11/12, showed no difference in their inhibition of
tested human cancer cell lines between the corresponding α,β-anomers (Table 2), and no relationship
between inhibitory activity and substitution patterns in 1–12 could be found from the IC50 values given
in Table 2. We then carried out antitumor tests in mice for 1 and 2, which were obtained in a larger
amount for the test, in vivo antitumor activity of 1 and 2 was detected on the murine sarcoma S180
tumor-bearing Kunming mice using taxol as positive control as shown in Table 3. The same S180
tumor-bearing mice model were also used in [52,53] for an in vivo antitumor test by a similar
procedure [52,53], including the use of taxol as positive control [52]. Although the in vivo antitumor
activity of 1 and 2 in the present test was certainly weaker than that of taxol, it is noteworthy that 1 and
2 showed also very weak toxicity to the host, as indicated by body weight changes of the tested mice
(Table 3), as documented for PGG in [18,20]. In view of the present results, it seems worthy to further
evaluate the in vivo antitumor activity of these galloly glucosides in detail, including whether they
would exert preventive effect on the tumor development in mice by pre-administration, and so on.

Molecules 2015, 20
2044
3. Experimental Section
3.1. General
Melting points were measured on a Beijing Tiandiyu X-4 exact micro melting point apparatus
(Tiandiyu Science and Technology Co., Ltd., Beijing, China) and the temperature was not corrected.
Optical rotations were measured on an Optical Activity Limited polAAr 3005 spectropolarimeter
(Optical Activity Limited, Ramsey, UK). ESIMS was recorded on an Applied Biosystems API 3000
LC-MS spectrometer (AB SCIEX, Framingham, MA, USA). 1H- and 13C-NMR spectra were obtained
1
13
on a JEOL JNM-GX 400 (400 MHz H- and 100 MHz C-NMR) NMR spectrometer (JEOL Ltd.,
1
13
Tokyo, Japan). The chemical shifts of H- and C-NMR signals were recorded in δ values using the
solvent signals (CDCl3: δH 7.26/δC 77.1; CD3OD: δH 3.31/δC 49.0) as references, respectively. A
VERSAmax-BN03152 micro plate reader (Molecular Devices, Silicon Valley, CA, USA) was used to
read the optical density (OD) and an AE31 EF-INV inverted microscope (Motic China Group Co., Ltd.,
Xiamen, Fujian, China) was used for examination of tumor cell morphology.
Precoated silica gel GF254 plates (10 cm × 20 cm, 0.25 mm thickness, Yantai Chemical Industrial
Institute, Yantai, China) and polyamide thin layers (10 cm × 20 cm, Taizhou Luqiao Sijia Biochemical
Plastic Factory, Taizhou, China) were used in TLC, and spots were detected under UV light (254 and
365 nm) or by using 10% sulfuric acid reagent, Vaughan’s reagent [24 g of ammonium molybdate
tetrahydrate (NH4)6Mo7O24·4H2O and 1 g of ceric sulfate Ce(SO4)2 dissolved in 500 mL of 10%
H2SO4], or 5% FeCl3 reagent (5 g of FeCl3 dissolved in 100 mL of 95% aqueous EtOH). Polyamide
(100–200 mesh, Taizhou Luqiao Sijia Biochemical Plastic Factory) and Sephadex™ LH-20 (GE
Healthcare, Uppsala, Sweden) were used for column chromatography. HPLC was carried out on a
Waters HPLC system (Waters, Milford, MA, USA) equipped with Waters 600 controller, Waters 600
pump, Waters 2996 (for analytical) or 2998 (for preparative) photodiode array detector, and Waters
Empower™ software. The Capcell Pak C18 columns (MG II S5, 4.6 × 250 mm and 20 × 250 mm;
Shiseido Co., Ltd., Tokyo, Japan) were used in analytical and preparative HPLC, respectively.
The human chronic myelogenous leukemia K562 cell line was provided by Prof. Dr. Lili Wang
(Beijing Institute of Pharmacology and Toxicology, Beijing, China). Human acute promyelocytic
leukemia HL-60 and human cervical cancer HeLa cell lines were provided by Prof. Dr. Wenxia Zhou
(Beijing Institute of Pharmacology and Toxicology). Fetal bovine serum was purchased from Tianjin
Hao Yang Biological Manufacture Co., Ltd. (Tianjin, China). The RPMI-1640 medium (lot No.
1403238) was purchased from Gibco (Grand Island, NY, USA) and MTT (lot No. 0793) from
Amresco (Solon, OH, USA). Streptomycin (lot No. 121104) and penicillin (lot No. X1303302) were
purchased from North China Pharmaceutical Group Corporation (Beijing, China). The 5-fluorouracil
(5-FU, lot No.5402), docetaxol (DOC, lot No.20110326) and taxol (lot No.20110427) were purchased
from Aladdin Chemistry Co. Ltd. (Shanghai, China). Gallic acid (lot No. F20070926) and D-glucose
(lot No. 20110514) were purchased form Sinopharm Chemical Reagent Co., Ltd. (Beijing, China). All
other chemicals were purchased as the reagent grade and used without purification unless otherwise
noted. Benzaldehyde was distilled and pyridine was dried by KOH for 24 h, before use in reactions.
The petroleum ether with boiling point 60–90 °C was used throughout the experiments and was
abbreviated as Pet.Et2O in the following descriptions.

Molecules 2015, 20
2045
3.2. Chemical Synthesis
1,6-Di-O-galloyl-β-D-glucopyranose (1)
A solution of 15 (17.4 g, 0.0376 mol) in aqueous 2 N HCl (640 mL) was refluxed at 80 °C for 16 h
to hydrolyze 15. The reaction mixture was then extracted with EtOAc (300 mL × 4) to give an EtOAc
extract. The EtOAc extract was separated by column chromatography on silica gel (bed, 5.0 × 30.0 cm;
eluted by CH2Cl2-MeOH 30:1) to obtain hydrolyzed product 18 and quite a larger amount of the 1-OCH3
unhydrolyzed materials, methyl 2,3-di-O-benzyl-α-D-glucopyranoside. The latter was further subjected,
without weighing, to the same hydrolysis and separation steps to obtain additional amounts of 18, and
the recovered raw materials in this round of experiments were also hydrolyzed and then separated once
again to obtain further additional amount of 18. Eventually, 18 (5.6 g, 0.0155 mol, in 41.2% yield) was
obtained from 17.4 g (0.0376 mol) of 15 as an amorphous powder in CH2Cl2-MeOH. Totally over 10 g
of 18 were prepared from 15 by additionally repeated hydrolyses. 2,3-Di-O-benzyl-D-glucopyranose
(18): An amorphous powder (CH2Cl2-MeOH), positive ion ESI-MS m/z: 361 [M+H]+, 383 [M+Na]+;
1
negative ion ESI-MS m/z: 405 [M+HCO2]−. H-NMR (400 MHz, CDCl3) δ for α-isomer: 7.39–7.21
(10H, m, Ph-H5 in PhCH2 × 2), 5.21 (1H, d, J = 3.6 Hz, H-1), 4.85 and 4.84 (each 1H, d, J = 11.1 Hz,
PhCH2), 4.69 and 4.65 (each 1H, d, J = 11.9 Hz, PhCH2), 3.81–3.75 (1H, m, H-5), 3.79 (1H, t, J = 9.5 Hz,
H-3), 3.77 (1H, dd, J = 12.2, 2.2 Hz, Ha-6), 3.68 (1H, dd, J = 12.2, 5.3 Hz, Hb-6), 3.45 (1H, t, J = 9.5 Hz,
H-4), 3.42 (1H, dd, J = 9.5, 3.6 Hz, H-2); δ for β-isomer: 7.39–7.21 (10H, m, Ph-H5 in PhCH2 × 2),
4.94 and 4.80 (each 1H, d, J = 11.2 Hz, PhCH2), 4.86 and 4.68 (each 1H, d, J = 11.2 Hz, PhCH2), 4.64
(1H, d, J = 8.0 Hz, H-1), 3.86 (1H, dd, J = 11.9, 2.2 Hz, Ha-6), 3.65 (1H, dd, J = 11.9, 5.3 Hz, Hb-6),
3.46 (1H, t, J = 9.5 Hz, H-4), 3.43 (1H, t, J = 9.5 Hz, H-3), 3.34–3.29 (1H, m, H-5), 3.23 (1H, dd,
13
J = 9.5, 8.0 Hz, H-2). C-NMR (100 MHz, CDCl3) δ for α-isomer: 140.7, 140.0, 129.5–128.7 (10C),
all Ph-C6 in PhCH2 × 2; 92.1 (C-1), 83.0 (C-3), 81.5 (C-2), 76.7 (PhCH2), 73.9 (PhCH2), 73.2 (C-5),
71.9 (C-4), 62.7 (C-6); δ for β-isomer: 140.5, 140.3 129.5–128.7 (10C), all Ph-C6 in PhCH2 × 2; 98.8
(C-1), 86.2 (C-3), 84.6 (C-2), 78.1 (C-5), 76.1 (PhCH2), 75.9 (PhCH2), 72.0 (C-4), 63.0 (C-6).
A mixed solution of 18 (3.0 g, 0.0083 mol) and 13 (10.3 g, 0.0225 mol) in 30 mL of anhydrous
pyridine was stirred at 60 °C for 48 h and then evaporated under reduced pressure to obtain a reaction
mixture. The reaction mixture was separated by silica gel column chromatography (bed, 3.5 × 15.0 cm;
eluted by Pet.Et2O-acetone 20:1) to afford crude 19 (8.0 g, 0.0066 mol, 79.5% yield), which did not
give pseudo-molecular ion peaks in both positive and negative ESI-MS measurements. Crude 19 (8.0 g,
0.0066 mol) was dissolved in 200 mL of THF-95% EtOH (15:5) solution, transferred into a 0.5 L
high-pressure reactor, and then reduced by H2 under 10 atmospheric pressure at 40 °C for 12 h using
10% Pd-C (0.8 g) as catalyst. The reaction mixture was filtered to filter out insoluble materials and
evaporated under reduced pressure to give a reaction product. This product was separated by repeated
Sephadex LH-20 column chromatography eluted with H2O-MeOH (75:25→25:75) to afford crude 1.
The crude 1 was recrystallized in 30% MeOH to obtain pure 1 (1.2 g, 0.0025 mol, yield 37.9%).
Needles (MeOH-H2O), m.p. 180–182 °C; [α]2D5 −19.4 (c 0.52, MeOH); positive ion ESI-MS m/z: 507
[M+Na]+; negative ion ESI-MS m/z: 483 [M−H]−. 1H- and 13C-NMR: Tables 4 and 5.

Molecules 2015, 20
2046
Table 4. 400 MHz 1H-NMR data of 1–12 in CD3OD a.
δH
Position
1
2
3
4
5
6
glucose
1
2
3
4
5
6
5.69 (d, J = 6.3 Hz)
3.56–3.49 (m)
5.79 (d, J = 8.3 Hz)
3.66 (dd, J = 9.5, 8.3 Hz)
3.85 (t, J = 9.5 Hz)
5.23 (t, J = 9.5 Hz)
5.90 (d, J = 8.6 Hz)
5.19 (t, J = 8.6 Hz)
3.82–3.70 (m)
5.79 (d, J = 8.2 Hz)
3.79–3.68 (m)
6.06 (d, J = 8.3 Hz)
5.42 (dd, J = 9.7, 8.3 Hz)
5.54 (t, J = 9.7 Hz)
3.88 (t, J = 9.7 Hz)
6.60 (d, J = 3.5 Hz)
5.29 (dd, J = 10.1, 3.5 Hz)
5.86 (t, J = 10.1 Hz)
4.01–3.91 (m)
3.56–3.49 (m)
5.25 (t, J = 9.4 Hz)
3.79–3.68 (m)
3.56–3.49 (m)
3.58–3.52 (m)
3.76–3.67 (m, 1H)
4.55 (br d, J = 12.0 Hz)
4.07 (ddd, J = 9.5, 4.6, 2.0 Hz) 3.58–3.52 (m)
4.45 (dd, J = 12.4, 2.0 Hz) 3.90 (br d, J = 11.9 Hz)
3.61–3.53 (m)
3.70 (ddd, J = 9.7, 4.6, 2.2 Hz) 4.01–3.91 (m)
3.88 (br d, J = 12.1 Hz) 3.93 (dd, J = 12.3, 2.2 Hz)
3.90–3.78 (2H, m)
4.40 (dd, J = 12.0, 4.5 Hz) 4.22 (dd, J = 12.4, 4.7 Hz)
3.82–3.70 (m)
3.79–3.68 (m)
3.81 (dd, J = 12.3, 4.6 Hz)
galloyl
2,6
7.13 (2H, s)
7.08 (2H, s)
7.15 (2H, s)
7.11 (2H, s)
7.07 (2H, s)
7.04 (2H, s)
7.01 (2H, s)
7.15 (2H, s)
7.12 (2H, s)
7.03 (2H, s)
7.02 (2H, s)
6.92 (2H, s)
7.17 (2H, s)
7.06 (2H, s)
6.91 (2H, s)
δH
Position
7
8
9
10
11
12
glucose
1
2
3
4
5
6
5.05–4.98 (m)
4.77 (d, J = 3.6 Hz)
3.58 (dd, J = 9.5, 3.6 Hz)
3.93 (t, J = 9.5 Hz)
4.77 (d, J = 3.7 Hz)
3.71 (dd, J = 9.9, 3.7 Hz)
5.38 (t, J = 9.9 Hz)
3.66 (t, J = 9.9 Hz)
4.86 (d, J = 3.7 Hz)
5.15 (d, J = 3.6 Hz)
4.73 (d, J = 8.0 Hz)
5.05–4.98 (m)
3.88 (dd, J = 9.9, 3.7 Hz) 4.99 (dd, J = 10.2, 3.6 Hz)
5.08 (dd, J = 9.8, 8.0 Hz)
5.39 (dd, J = 9.8, 9.6 Hz)
3.74 (t, J = 9.6 Hz)
5.66 (t, J = 8.3 Hz)
3.82–3.70 (m)
5.64 (t, J = 9.7 Hz)
5.35 (t, J = 9.7 Hz)
5.68 (dd, J = 10.2, 8.6 Hz)
3.91–3.70 (m)
5.10 (t, J = 9.5 Hz)
3.82–3.70 (m)
4.11–4.05 (m)
3.95 (ddd, J = 9.9, 5.8, 2.0 Hz) 4.27–4.20 (m)
3.91–3.70 (m)
3.51 (ddd, J = 9.6, 5.3, 2.2 Hz)
3.77 (dd, J = 12.1, 5.3 Hz)
3.98–3.89 (m)
3.89 (br d, J = 11.6 Hz)
3.82–3.70 (m)
4.38 (br d, J = 11.8 Hz)
4.19 (dd, J = 11.8, 5.8 Hz)
4.55 (dd, J = 11.9, 2.0 Hz)
4.41 (dd, J = 11.9, 5.8 Hz)
4.43 (br d, J = 10.3 Hz) 3.91–3.70 (2H, m)
4.30–4.24 (m)
galloyl
2,6
7.03 (2H, s)
6.98 (2H, s)
7.09 (2H, s)
7.07 (2H, s)
7.13 (2H, s)
7.09 (2H, s)
7.08 (2H, s)
6.99 (2H, s)
6.95 (2H, s)
3.52 (3H, s)
—
7.03 (2H, s)
6.98 (2H, s)
7.00 (2H, s)
6.96 (2H, s)
OCH3
3.44 (3H, s)
—
3.46 (3H, s)
—
3.48 (3H, s)
—
—
—
OCH2CH3
3.91–3.70 (1H, m)
3.98–3.89 (1H, m)
3.52 (1H, dq, J = 10.3, 7.1 Hz) 3.61 (1H, dq, J = 9.7, 7.1 Hz)
1.23 (3H, t, J = 7.1 Hz) 1.12 (3H, t, J = 7.1 Hz)
OCH2CH3
—
—
—
—
Notes: a Chemical shifts were recorded in δC values using the solvent signal (CD3OD: δH 3.31) as reference. Signal assignments were based on the results of 1H-1H COSY and HMQC experiments.

Molecules 2015, 20
2047
Table 5. 100 MHz 13C-NMR data of 1–12 in CD3OD a.
δC
Position
1
2
3
4
5
6
7
8
9
10
11
12
glucose
1
95.9
74.0
78.0
71.1
76.4
64.4
95.8
74.2
75.9
71.7
74.3
63.5
94.1
74.3
76.1
71.2
79.0
62.2
95.8
72.6
79.1
69.3
78.7
61.9
93.8
72.3
76.7
69.2
78.9
61.8
91.2
71.9
74.0
69.0
76.5
61.8
98.5
73.1
74.2
69.8
73.6
62.2
101.1
73.5
73.0
72.6
69.2
64.1
101.2
71.9
76.9
70.2
71.2
64.7
101.3
71.7
74.4
70.6
69.2
63.8
97.2
73.1
74.3
69.9
73.6
62.2
102.0
73.5
77.0
69.8
78.0
62.3
2
3
4
5
6
galloyl
CO
168.3
167.0
168.0
167.4
166.8
121.1
120.9
120.4
110.5
110.3
110.2
167.6
166.5
168.1
168.1
167.7
167.1
166.3
121.0
120.4
119.9
110.5
168.1
167.3
166.3
121.1
120.4
120.2
168.2
167.6
168.1
167.5
168.35
168.25
168.0
167.9
167.2
168.2
167.7
167.8
167.2
1
121.2
120.5
121.1
120.1
121.6
120.5
121.3
120.5
121.2
121.0
121.7
121.3
121.1 (2C) 121.3
121.1
121.0
120.4
120.6
2,6
3,5
4
110.5
110.1
110.4
110.3
110.5
110.3
110.42 110.34
110.3
110.1
110.3
110.0
110.34
110.31
110.17
146.5
146.4
146.3
140.2
139.9
139.8
56.0
110.32
110.27
110.3
110.2
110.35 110.35 110.28
110.28 110.33
146.48
146.44
146.49 146.46
146.44 146.37
146.37
146.5
146.4
146.5
146.31
146.29
140.6
140.1
139.9
—
146.7
146.4
146.3
140.6
140.2
140.0
—
146.37 146.5 (4C) 146.5
146.4 146.33
146.3 146.28
146.34
146.3
140.4
139.9
140.4
140.0
139.8
—
140.5
140.0
140.4
139.7
140.1
139.8
140.0
139.8
139.9
139.7
140.0
139.8
139.9
139.8
OCH3
—
—
—
—
—
—
—
—
—
55.7
—
55.8
—
55.7
—
—
—
OCH2CH3
OCH2CH3
—
—
—
—
64.7
15.4
66.4
15.5
—
—
—
—
—
—
—
Notes: a Chemical shifts were recorded in δC values using the solvent signal (CD3OD: δC 49.00) as reference.
Signal assignments were based on the results of 1H-1H COSY and HMQC experiments.
1,4,6-Tri-O-galloyl-β-D-glucopyranose (2)
A mixed solution of 18 (4.5 g, 0.0125 mol) and 13 (42.0 g, 0.0917 mol) in anhydrous pyridine
(170 mL) was stirred at 60 °C for 48 h and then evaporated under reduced pressure to obtain a reaction
mixture. The mixture was subjected to silica gel column chromatography eluted with CH2Cl2-EtOAc
(100:1) to afford crude 20 (15.5 g, 0.0095 mol, 76.0% yield), which did not give the corresponding
pseudo-molecular ion peaks in positive and negative ESI-MS measurements. The crude 20 (15.5 g,
0.0095 mol) was dissolved in THF-95% EtOH (17:6, 230 mL), transferred into a 1 L high-pressure
reactor, and reduced by H2 under 10 atmospheric pressure at 40 °C for 12 h using 10% Pd-C (1.0 g) as
catalyst. The reaction mixture was filtered to filter out insoluble materials and evaporated to give a
reaction product. This product was separated by repeated Sephadex LH-20 column chromatography
eluted with H2O-EtOH (45:55) to afford crude 2, which was recrystallized in 40% MeOH to give pure
2 (2.3 g, 0.0036 mol, yield 37.9%). Needles (MeOH-H2O), m.p. 173–175 °C; [α]2D5 +50.2 (c 0.51, MeOH);

Molecules 2015, 20
2048
positive ion ESI-MS m/z: 656 [M+Na]+; negative ion ESI-MS m/z: 635 [M−H]−, 671 [M+Cl]−. 1H- and
13C-NMR: Tables 4 and 5.
1,2-Di-O-galloyl-β-D-glucopyranose (3), 1,3-di-O-galloyl-β-D-glucopyranose (4), 1,2,3-tri-O-Galloyl-
β-D-glucopyranose (5) and 1,2,3-tri-O-galloyl-α-D-glucopyranose (6)
A mixed solution of 16 (2.0 g, 0.0075 mol) and 13 (8.5 g, 0.0186 mol) in anhydrous pyridine
(40 mL) was stirred at 60 °C for 48 h and then evaporated under reduced pressure to obtain a reaction
mixture that was separated by silica gel column chromatography (bed, 3.0 × 13.0 cm) using CH2Cl2 as
eluting solvent to afford a mixture of three esterified products 21 (5.8 g). The mixture was dissolved in
THF-95% EtOH (14:1, 150 mL), transferred into a 0.5 L high-pressure reactor, and then reduced by H2
under 10 atmospheric pressure at 40 °C for 12 h using 10% Pd–C (0.7 g) as catalyst. The reaction
mixture was filtered to filter out the undissolved materials and evaporated under reduced pressure to
obtain a reaction product. This reaction product was separated by Sephadex LH-20 column (bed,
1.8 × 60.0 cm; eluted by H2O-EtOH 60:40) to afford 4 (150 mg, 0.31 mmol, 4.1% yield from 16) and
fractions Fr-2 and Fr-3. Further separation of Fr-2 by preparative HPLC (Capcell Pak C18 column,
MGII S5, 20 × 250 mm; 20% methanol, 10 mL/min) gave 5 (200 mg, 0.31 mmol, tR = 37.0 min, 4.1%
yield from 16) and 6 (100 mg, 0.16 mmol, tR = 50.0 min, 2.1% yield from 16), while HPLC separation
of Fr-3 at the same conditions, except for the use of 10% methanol as mobile phase, afford 3 (50 mg,
0.11 mmol, tR = 60.0 min, 1.5% yield from 16). 1,2-Di-O-galloyl-β-D-glucopyranose (3): A crystalline
powder (MeOH), m.p. 150–153 °C; [α]2D5 −64.5 (c 0.44, MeOH); positive ion ESI-MS m/z: 502
[M+NH4]+, 507 [M+Na]+; negative ion ESI-MS m/z: 483 [M−H]−, 519 [M+Cl]−. 1,3-Di-O-galloyl-β-D-
glucopyranose (4): A crystalline powder (MeOH), m.p. 161–163 °C; [α]2D5 +20.4 (c 0.44, MeOH);
positive ion ESI-MS m/z: 507 [M+Na]+; negative ion ESI-MS m/z: 483 [M−H]−, 519 [M+Cl]−, 529
[M+HCO2]−. 1,2,3-Tri-O-galloyl-β-D-glucopyranose (5): A crystalline powder (MeOH), m.p. 176–178 °C;
[α]2D5 +46.7 (c 0.48, MeOH); positive ion ESI-MS m/z: 654 [M+NH4]+, 659 [M+Na]+; negative ion
ESI-MS m/z: 635 [M−H]−, 671 [M+Cl]−, 681 [M+HCO2]−. 1,2,3-Tri-O-galloyl-α-D-glucopyranose (6):
A crystalline powder (MeOH), m.p. 1165–167 °C; [α]2D5 +282.9 (c 0.49, MeOH); positive ion ESI-MS
1
m/z: 654 [M+NH4]+, 659 [M+Na]+; negative ion ESI-MS m/z: 635 [M−H]−, 671 [M+Cl]−. H- and
13C-NMR data for 3–6: Tables 4 and 5.
Methyl 2,3-Di-O-galloyl-α-D-glucopyranoside (7)
A mixed solution of 14 (1.5 g, 0.0053 mol) and 13 (10.0 g, 0.0218 mol) in anhydrous pyridine
(50 mL) was stirred at 60 °C for 48 h and evaporated under reduced pressure to give a reaction mixture.
The reaction mixture was subjected to column chromatography on silica gel (bed: 5.0 × 10.0 cm),
eluted by CH2Cl2, to afford 22 (5.0 g, 0.0044 mol, yield 83.0%). A portion of 22 (3.5 g, 0.0031 mol)
was dissolved in 150 mL of THF-95% EtOH (13:2), transferred into a 0.5 L high-pressure reactor, and
then reduced by H2 under 10 atmospheric pressure at 40 °C for 12 h using 10% Pd-C (1.5 g) as catalyst.
The reaction mixture was filtered to filter out insoluble substances and evaporated to give a reaction
product containing 23 (positive ion ESI-MS m/z: 587 [M+H]+, 609 [M+Na]+; negative ion ESI-MS m/z:
585 [M−H]−) as major component, which was further hydrolyzed without purification in 40 mL of
aqueous 1 N HCl at 55 °C for 6 h. The hydrolysate was separated by column chromatography on

Molecules 2015, 20
2049
polyamide (bed: 3.0 × 26.0 cm, eluted by 70% EtOH) and then Sephadex LH-20 (bed: 2.8 × 55.0 cm,
eluted by 85% MeOH) to afford 7 (1.0 g, 0.0020 mol, 64.5% yield from 22). A crystalline powder
(MeOH), m.p. 160–162 °C; [α]2D5 +171.8 (c 0.52, MeOH); positive ion ESI-MS m/z: 499 [M+H]+, 521
[M+Na]+; negative ion ESI-MS m/z: 497 [M−H]−, 533 [M+Cl]−. 1H- and 13C-NMR: Tables 4 and 5.
Methyl 4,6-Di-O-Galloyl-α-D-glucopyranoside (8) from 15
A solution of 15 (10 g, 0.0216 mol) in 50% aqueous AcOH (200 mL) was refluxed at 55 °C for
24 h and then evaporated under reduced pressure to give a reaction mixture. The reaction mixture was
separated by column chromatography on silica gel (bed: 4.0 × 10.0 cm), eluted by gradient
Pet.Et2O-CH2Cl2 (3:1)→CH2Cl2-MeOH (20:1), to afford methyl 2,3-di-O-benzyl-α-D-glucopyranoside
(24), 6.0 g, 0.0160 mol, 74.1% yield from (15) as a crystalline powder (CH2Cl2-MeOH), m.p.
81–83 °C, [α]2D5 +19.0 (c 1.00, CH2Cl2); positive ion ESI-MS m/z: 397 [M+Na]+; negative ion ESI-MS
1
m/z: 373 [M−H]−, 419 [M+HCO2]−. H-NMR (400 MHz, CDCl3) δ: 7.39–7.28 (10H, m, Ph-H5 in
PhCH2 × 2), 5.02 and 4.71 (each 1H, d, J = 11.5 Hz, PhCH2), 4.77 and 4.66 (each 1H, d, J = 12.1 Hz,
PhCH2), 4.59 (1H, d, J = 3.5 Hz, H-1), 3.83–3.70 (3H, m, H-3 and H2-6), 3.61 (1H, dt, J = 9.7, 3.9 Hz,
H-5), 3.52 (1H, dd, J = 9.7, 8.8 Hz, H-4), 3.49 (1H, dd, J = 9.6, 3.5 Hz, H-2), 3.38 (3H, s, OCH3).
13C-NMR (100 MHz, CDCl3) δ: 138.7, 138.0, 128.8 (2C), 128.6 (2C), 128.3 (2C), 128.2 (2C), 128.1,
128.0, all Ph-C6 in PhCH2 × 2; 98.3 (C-1), 81.4 (C-3), 79.8 (C-2), 75.5 (PhCH2), 73.3 (PhCH2), 70.7
(C-5), 70.4 (C-4), 62.5 (C-6), 55.4 (OCH3).
A mixed solution of 24 (1.9 g, 0.0051 mol) and 13 (8.0 g, 0.0175 mol) in anhydrous pyridine
(30 mL) was stirred at 60 °C for 48 h and then evaporated under reduced pressure to obtain a reaction
mixture that was separated by silica gel column chromatography (bed: 3.0 × 15.0 cm, eluted with a
gradient of Pet. Et2O-CH2Cl2 2:1→CH2Cl2) to afford a crude 25 (5.5 g, 0.0045 mol, 88.2% yield). The
crude 25 (5.5 g, 0.0045 mol) was dissolved without further purification in THF-95% EtOH (13:2,
150 mL), transferred into a 0.5 L high-pressure reactor, and then reduced by H2 under 10 atmospheric
pressure at 40 °C for 12 h using 10% Pd-C (2.0 g) as catalyst. The reaction mixture was filtered to
filter out insoluble substances and evaporated under reduced pressure to give a reaction product. This
product was separated by Sephadex LH-20 column (bed, 2.8 × 60.0 cm; eluted by 40% EtOH) to give
8 (1.0 g, 0.0020 mol, 44.4% yield). A crystalline powder (MeOH), m.p. 163–165 °C; [α]2D5 +113.6 (c
0.47, MeOH); positive ion ESI-MS m/z: 521 [M+Na]+, 537 [M+K]+; negative ion ESI-MS m/z: 497
[M−H]−. 1H- and 13C-NMR: Tables 4 and 5.
Methyl 3,6-Di-O-Galloyl-α-D-Glucopyranoside (9) and Methyl 4,6-di-O-Galloyl-α-D-glucopyranoside
(8) from 14
A mixed solution of 14 (85 g, 0.3014 mol) and NaH (25 g) in DMF (1200 mL) was stirred for
40 min, during which time the solution became hot while stirring and was thus cooled down to room
temperature. To the mixture under stirring benzyl bromide (200 mL) was added dropwise and reacted
at room temperature for 6 h. The reaction mixture solution was poured into distilled water (2000 mL)
and extracted with CHCl3 (2000 mL × 3) to give a CHCl3 solution. Without washing with water and
drying by anhydrous MgSO4 to remove remaining NaOH (from NaH) in CHCl3, the CHCl3 solution
was directly evaporated under reduced pressure, at the lower temperature at first to remove CHCl3 and

Molecules 2015, 20
2050
further at 90 °C to remove remaining DMF, to obtain a reaction mixture that was separated by silica
gel column chromatography (bed, 7.0 × 14.0 cm; eluted by gradient Pet. Et2O-EtOAc 10:1→5:1) to
afford 26 (40 g, 0.1408 mol, 46.7% yield). Methyl 2-O-benzyl-α-D-glucopyranoside (26): A crystalline
powder (MeOH), m.p. 113–115 °C, [α]2D5 +76.5 (c 1.00, MeOH); positive ion ESI-MS m/z: 302
[M+NH4]+, 307 [M+Na]+, 323 [M+K]+; negative ion ESI-MS m/z: 283 [M−H]−, 319 [M+Cl]−, 329
1
[M+HCO2]−. H-NMR (400 MHz, CD3OD) δ: 7.44–7.26 (5H, m, Ph-H5 in PhCH2), 4.76 and 4.64
(each 1H, d, J = 11.9 Hz, PhCH2), 4.64 (1H, d, J = 3.6 Hz, H-1), 3.79 (1H, dd, J = 11.9, 2.3 Hz, Ha-6),
3.74 (1H, t, J = 9.3 Hz, C-3), 3.65 (1H, dd, J = 11.9, 5.6 Hz, Hb-6), 3.49 (1H, ddd, J = 9.8, 5.6, 2.3 Hz,
13
H-5), 3.34 (3H, s, OCH3), 3.33–3.26 (2H, m, H-2,4). C-NMR (100 MHz, CD3OD) δ: 139.8, 129.4
(2C), 129.2 (2C), 128.9, all Ph-C6 in PhCH2; 99.2 (C-1), 81.0 (C-2), 74.3 (C-3), 74.0 (PhCH2), 73.3
(C-5), 71.8 (C-4), 62.6 (C-6), 55.4 (OCH3).
A mixed solution of 26 (2.47 g, 0.0087 mol) and 13 (9.5 g, 0.0207 mol) in anhydrous pyridine
(50 mL) was stirred at 60 °C for 48 h and then evaporated under reduced pressure to give a reaction
mixture that was separated by silica gel column chromatography (bed, 5.0 × 15.0 cm; eluted by a
gradient of Pet. Et2O-EtOAc 6:1→4:1→2:1) to afford crude 27 (3.1 g, 0.0027 mol, 31.0% yield),
eluted by Pet. Et2O-EtOAc (2:1), and 28 (5.5 g, 0.0049 mol, 56.3% yield), eluted by Pet. Et2O-EtOAc
(4:1). The crude 28 (5.5 g, 0.0049 mol) was dissolved in THF-95% EtOH (10:2, 120 mL), transferred
into a 0.5 L high-pressure reactor, and reduced by H2 under 10 atmospheric pressure at 40 °C for 12 h
using 10% Pd–C (0.6 g) as catalyst. The reaction mixture was filtered to filter out the insoluble
substances and evaporated under reduced pressure to give a reaction product that was separated by
column chromatography on Sephadex LH-20 (bed, 2.8 × 60.0 cm; eluted by 50% EtOH) to afford pure
methyl 3,6-di-O-galloyl-α-D-glucopyranoside (9, 0.5 g, 0.0010 mol) in the 20.4% yield. A crystalline
powder (MeOH), m.p. 154–156 °C; [α]2D5 +109.0 (c 0.51, MeOH); positive ion ESI-MS m/z: 521
1
13
[M+Na]+, 537 [M+K]+; negative ion ESI-MS m/z: 497 [M−H]−. H- and C-NMR: Tables 4 and 5.
Similar reduction of crude 27 (3.1 g, 0.0027 mol), followed by separation of reduction product by
Sephadex LH-20 column (bed, 2.8 × 60.0 cm; eluted by 40% EtOH) afforded additional amount of 8
(0.5 mg, 0.0010 mol) for a 37.0% yield.
Methyl 3,6-Di-O-galloyl-α-D-glucopyranoside (10)
A mixed solution of 26 (0.6 g, 0.0021 mol) and 13 (5.4 g, 0.0118 mol) in anhydrous pyridine
(30 mL) was stirred at 60 °C for 48 h and then evaporated under reduced pressure to give a reaction
mixture which was separated by silica gel column chromatography (bed, 6.0 × 8.0 cm; eluted by a
gradient of Pet. Et2O-CH2Cl2 100:0→0:100) to give crude 29 (2.5 g, 0.0016 mol, yield 76.2%). A
portion of the crude 29 (2.3 g, 0.0015 mol) was dissolved in THF-95% EtOH (10:1, 110 mL),
transferred into a 0.3 L high-pressure reactor, and reduced by H2 under 10 atmospheric pressure at
40 °C for 12 h using 10% Pd-C (0.4 g) as catalyst. The reaction mixture was filtered to filter out the
insoluble substances and evaporated under reduced pressure to give a reduction product. This product
was separated by Sephadex LH-20 column chromatography (bed, 2.0 × 70.0 cm; eluted by H2O-EtOH
4:6) to afford methyl 3,6-di-O-galloyl-α-D-glucopyranoside (10, 0.8 g, 0.0012 mol, 80.0% yield). A
crystalline powder (MeOH), m.p. 171–173 °C; [α]2D5 +30.6 (c 0.49, MeOH); positive ion ESI-MS m/z:

Molecules 2015, 20
2051
651 [M+H]+, 668 [M+NH4]+, 673 [M+Na]+; negative ion ESI-MS m/z: 649 [M−H]−, 685 [M+Cl]−. 1H-
and 13C-NMR: Tables 4 and 5.
Ethyl 2,3-Di-O-galloyl-α-D-glucopyranoside (11) and Ethyl 2,3-di-O-galloyl-β-D-glucopyranoside (12)
A mixed solution of 17 (2.0 g, 0.0068 mol) and 13 (7.2 g, 0.0157 mol) in anhydrous pyridine
(40 mL) was stirred at 60 °C for 48 h and then evaporated under reduced pressure to give a reaction
mixture that was separated by silica gel column chromatography (bed, 3.8 × 13.0 cm; eluted by a
gradient of Pet. Et2O-CH2Cl2 2:1→CH2Cl2-MeOH 30:1) to afford crude 30 (a 1α,1β mixture, 7.3 g,
0.0064 mol, 94.1% yield). The crude 30 without further purification was dissolved in THF-95% EtOH
(14:1, 150 mL), transferred into a 0.5 L high-pressure reactor, and reduced by H2 under 10 atmospheric
pressure at 40 °C for 12 h using 10% Pd-C (1.5 g) as catalyst. The reaction mixture was filtered to
filter out the insoluble substances and evaporated under reduced pressure to give a reduction product
which was then separated by repeated Sephadex LH-20 column chromatography (bed, 2.8 × 60.0 cm;
eluted by H2O-EtOH 7:3) to afford a mixture of crude 11 and 12 (total 1.4 g, 0.0027 mol, 42.2% yield).
This mixture was further separated by preparative HPLC on a Capcell Pak C18 column (MG II S5,
2.0 × 25.0 cm), eluted by 30% MeOH, to obtain 11 (0.76 g, 0.0015 mol; tR = 36.0 min) and 12 (0.55 g,
0.0011 mol; tR = 23.0 min) in yields of 22.7% and 17.2%, respectively. Ethyl 2,3-di-O-galloyl-α-D-
glucopyranoside (11): A crystalline powder (MeOH), m.p. 157–159 °C; [α]2D5 +186.4 (c 0.44, MeOH);
positive ion ESI-MS m/z: 513 [M+H]+, 535 [M+Na]+; negative ion ESI-MS m/z: 511 [M−H]−, 547
[M−Cl]−. UV λmax nm (log ε) in MeOH: 223.5 (4.17), 276.4 (4.06). IR νmax cm−1 (diamond ATR
1
13
crystal): 3427, 2988, 2941, 1700, 1613, 1534, 1450, 1338, 1224. H- and C-NMR: Tables 4 and 5.
Ethyl 2,3-di-O-galloyl-β-D-glucopyranoside (12): A crystalline powder (MeOH), m.p. 160–162 °C;
[α]2D5 +98.6 (c 0.51, MeOH); positive ion ESI-MS m/z: 513 [M+H]+, 535 [M+Na]+; negative ion
ESI-MS m/z: 511 [M−H]−, 547 [M+Cl]−. UV λmax nm (log ε) in MeOH: 220.1 (4.14), 276.4 (3.91). IR
1
νmax cm−1 (diamond ATR crystal): 3400, 2986, 2948, 1704, 1613, 1532, 1381, 1325, 1241. H- and
13C-NMR: Tables 4 and 5.
Tri-O-benzylgalloyl chloride (13)
To a solution of anhydrous K2CO3 (200 g) in DMSO (500 mL) was added dried gallic acid (60 g,
0.3529 mol) under stirring and heated to 140 °C. Then, benzyl chloride (300 mL) was added dropwise
over 1.5 h under nitrogen atmosphere and then reacted at 140 °C for 8 h. After cooling down the
reaction solution to the room temperature, the reaction mixture was diluted with cooled-distilled water
(2000 mL) and extracted with CH2Cl2 (2000 mL × 4). The CH2Cl2 solution was combined and
evaporated under reduced pressure to give a solid product. This product was suspended in MeOH
(1800 mL), harvested by filtration, and washed with a suitable amount of methanol in the same filter to
give a white powder. The powder was dried in vacuo and dissolved in CH2Cl2 (1000 mL). To the
solution, MeOH (approximately 1000 mL) was added in portions, and when a lot of fine crystal
species appeared, held at room temperature for two hours. Then, the crystals formed in the solution
were filtered and then dried in vacuo to obtain benzyl tri-O-benzylgallate (135 g, 0.2547 mol, 72.1%
yield). Fine needles (from CH2Cl2-MeOH), m.p. 91–93 °C; positive ESI-MS m/z: 548 [M+NH4]+.
1H-NMR (400 MHz, CDCl3) δ: 7.37–7.12 (22H, m, H-2,6 and Ph-H5 in PhCH2 × 4), 5.24 (2H, s,

Molecules 2015, 20
2052
13
PhCH2), 5.03 (6H, s, PhCH2 ×3). C-NMR (100 MHz, CDCl3) δ: 166.1 (CO), 152.6 (2C, C-3,5),
142.5 (C-4); 137.5, 136.7 (2C), 136.1, 128.7–127.6 (20C), all Ph-C6 in PhCH2 × 4; 125.2 (C-1), 109.2
(2C, C-2,6); 75.2, 71.3 (2C), 66.9, all PhCH2 × 4.
To a solution of NaOH (200 g) in distilled water (500 mL) were added the benzyl tri-O-benzylgallate
(135 g, 0.2547 mol) and MeOH (700 mL), in turn, and the mixture was refluxed at 90 °C for 5 h to
hydrolyze the ester bond in the benzyl tri-O-benzylgallate by the base-catalyzed reaction. The solution
was poured, after cooling to room temperature, into aqueous 1.2 N HCl (2500 mL) to neutralize the
NaOH and stirred at room temperature for 30 min to precipitate the hydrolyzed product. The
precipitate was filtered, washed with distilled water, and dried in vacuo. The precipitate was suspended
in CH2Cl2-MeOH (3:1, 2000 mL) and refluxed to dissolve the precipitate in full, and the solution was
kept at 4 °C overnight for crystallization. Then, the formed crystals in the solution were filtered,
washed with MeOH, and dried in vacuo to obtain pure tri-O-benzyl gallic acid (100 g, 0.2273 mol,
89.2% yield). Fine needles (CH2Cl2-MeOH), m.p. 183–185 °C; positive ESI-MS m/z: 441 [M+H]+,
1
463 [M+Na]+. H-NMR (400 MHz, CDCl3) δ: 12.9 (1H, br s, COOH), 7.23–7.53 (17H, m, H-2,6 and
13
Ph-H5 in PhCH2 × 3), 5.18 (4H, s, PhCH2 × 2), 5.05 (2H, s, PhCH2). C-NMR (100 MHz, CDCl3) δ:
166.8 (COOH), 152.0 (2C, C-3,5), 141.0 (C-4); 137.4, 136.8 (2C), 127.6–128.4 (15C), all Ph-C6 in
PhCH2 × 3; 126.0 (C-1), 108.2 (2C, C-2,6); 74.2, 70.2 (2C), all PhCH2 × 3.
The tri-O-benzyl gallic acid (27 g, 0.0614 mol) was dissolved in SOCl2 (400 mL) and refluxed at
90 °C for 9 h. The solution was evaporated under reduced pressure to give a reaction mixture that was
dried in vacuo and then dissolved in cyclohexane (600 mL) by refluxing. The solution was kept at
room temperature overnight, and the crystals formed in the solution were collected by vacuum
filtration, washed with cyclohexane, and dried in vacuo to obtain tri-O-benzylgalloyl chloride (13, 25 g,
0.0546 mol, 89.0% yield). Needles (from cyclohexane), m.p. 113–115 °C; positive ESI-MS m/z: 459
[M+H]+. 1H-NMR (400 MHz, CDCl3) δ: 7.22–7.56 (17H, m, H-2,6 and Ph-H5 in PhCH2 × 3), 5.18 (4H,
13
s, PhCH2 × 2), 5.04 (2H, s, PhCH2). C-NMR (100 MHz, CDCl3) δ: 166.9 (CO), 152.0 (2C, C-3,5),
141.0 (C-4); 137.4, 136.8 (2C), 127.6–128.4 (15C), all Ph-C6 in PhCH2 × 3; 126.1 (C-1), 108.2 (2C,
C-2,6); 74.3, 70.2 (2C), all PhCH2 × 3.
Methyl 4,6-O-Benzylidene-α-D-glucopyranoside (14)
To stirring MeOH (700 mL) acetyl chloride (32 mL) was added, followed in turn by dried
D-glucose (100 g, 0.55 mol), and the solution was refluxed for 72 h and then evaporated under reduced
pressure to give a reaction mixture that was separated by silica gel column chromatography (bed:
8.0 × 15.0 cm; eluted by CH2Cl2-MeOH 7:1), followed by further purification through recrystallization
in EtOH to obtain pure methyl α-D-glucopyranoside (50 g, 0.26 mol, 47.3% yield). Needles (from
EtOH), m.p. 163–165 °C; positive ESI-MS m/z: 212 [M+NH4]+, 217 [M+Na]+; negative ESI-MS m/z:
1
193 [M−H]−. H-NMR (400 MHz, CD3OD) δ: 4.67 (1H, d, J = 3.7 Hz, H-1), 4.61 (1H, t, J = 9.4 Hz,
H-3), 3.81 (1H, dd, J = 11.8, 2.3 Hz, Ha-6), 3.67 (1H, dd, J = 11.8, 5.7 Hz, Hb-6), 3.52 (1H, ddd,
J = 9.9, 5.7, 2.3 Hz, H-5), 3.39 (1H, dd, J = 9.4, 3.7 Hz, H-2), 3.41 (s, OCH3), 3.28 (1H, dd,
J = 9.9, 9.4 Hz, H-4). 13C-NMR (100 MHz, CD3OD) δ: 101.2 (C-1), 75.1 (C-3), 73.5 (2C, C-2,5), 71.7
(C-4), 62.6 (C-6), 55.5 (OCH3).

Molecules 2015, 20
2053
A mixture of methyl-α-D-glucopyranoside (20 g, 0.10 mol), freshly distilled benzaldehyde (60 mL),
triethyl orthoformate (20 mL), p-toluenesulfonic acid monohydrate (1.0 g) and THF (200 mL) was
refluxed at 85 °C for 16 h. After cooling the reaction mixture to room temperature, K2CO3 (1.0 g) was
added and the mixture was stirred at room temperature for 30 min. The mixture was filtered, and the
filtrate was suspended in distilled water (400 mL) and a suitable amount of 95% EtOH was added to
dissolve the suspended materials in full. Then, the solution was evaporated under reduced pressure,
until a fine crystalline species appeared, and kept at 4 °C for 12 h. The crystals formed in the solution
were filtered, washed with water (100 mL ×2) and cyclohexane (100 mL ×3), and dried in vacuo to
give pure methyl 4,6-O-benzylidene-α-D-glucopyranoside (14, 20 g, 0.071 mol, 71.0% yield). Needles
(EtOH-H2O), m.p. 163–165 °C; positive ion ESI-MS m/z: 283 [M+H]+, 300 [M+NH4]+, 305 [M+Na]+;
1
negative ESI-MS m/z: 327 [M+HCO2]−. H-NMR (400 MHz, CDCl3) δ: 7.52–7.46 (2H, m, Ph-H2 in
PhCH), 7.40–7.34 (3H, m, Ph-H3 in PhCH), 5.52 (1H, s, PhCH), 4.76 (1H, d, J = 3.9 Hz H-1), 4.28
(1H, dd, J = 9.8, 4.3 Hz, Ha-6), 3.91 (1H, t, J = 9.3 Hz, H-3), 3.79 (1H, ddd, J = 9.8, 9.3, 4.3 Hz, H-5),
3.73 (1H, t, J = 9.8 Hz, Hb-6), 3.60 (1H, dd, J = 9.3, 3.9 Hz, H-2), 3.47 (1H, t, J = 9.3 Hz, H-4), 3.44
(3H, s, OCH3). 13C-NMR (100 MHz, CDCl3) δ: 137.1, 129.4, 128.5 (2C), 126.4 (2C), all Ph-C6 in PhCH;
102.1 (PhCH), 99.9 (C-1), 81.0 (C-4), 72.9 (C-2), 71.8 (C-3), 69.0 (C-6), 62.4 (C-5), 55.7 (OCH3).
Methyl 2,3-di-O-Benzyl-4,6-O-benzylidene-α-D-glucopyranoside (15)
A mixed solution of 14 (17.5 g, 0.062 mol) and NaH (5 g) in DMF (300 mL) was stirred for 30 min,
during which it became hot and was thus cooled down to room temperature. To the mixture benzyl
bromide (45 mL) was added dropwise with stirring and reacted at room temperature for 4 h. To the
reaction mixture was added distilled water (200 mL), and then it was extracted with CHCl3 (500 mL).
The CHCl3 solution was washed with water (200 mL × 3), then dried with anhydrous MgSO4, filtered,
and evaporated under reduced pressure, at a lower temperature at first to remove CHCl3 and further at
90 °C to remove the remaining DMF, to obtain a yellow-colored product. This product was separated
by silica gel column chromatography (bed, 2.0 × 50.0 cm), eluted with Pet. Et2O–EtOAc (10:1), to
obtain a fraction containing the target product 15. Recrystallization of the fraction in Pet. Et2O gave 15
(25 g, 0.054 mol) in 87.1% yield. Fine needles (Pet.Et2O), m.p. 91–93 °C; positive ion ESI-MS m/z:
463 [M+H]+, 480 [M+NH4]+, 485 [M+Na]+. 1H-NMR (400 MHz, CDCl3) δ: 7.54–7.24 (15H, m, Ph-H5
in PhCH2 × 2 and PhCH × 1), 5.47 (1H, s, PhCH), 4.93 and 4.76 (each 1H, d, J = 11.2 Hz, PhCH2),
4.78 and 4.62 (each 1H, d, J = 12.4 Hz, PhCH2), 4.61 (1H, d, J = 3.6 Hz, H-1), 4.28 (1H, dd, J = 9.7,
4.7 Hz, Ha-6), 4.07 (1H, t, J = 9.7 Hz, H-3), 3.85 (1H, td, J = 9.7, 4.7 Hz, H-5), 3.72 (1H, t, J = 9.7 Hz,
Hb-6), 3.62 (1H, t, J = 9.7 Hz, H-4), 3.57 (1H, dd, J = 9.7, 3.6 Hz, H-2), 3.42 (3H, s, OCH3). 13C-NMR
(100 MHz, CDCl3) δ: 138.8, 138.2, 137.5, 129.0, 128.6 (2C), 128.4 (2C), 128.3 (2C), 128.2 (2C),
128.1 (2C), 128.0, 127.7, 126.1 (2C), all Ph-C6 in PhCH2 × 2 and PhCH × 1; 101.3 (PhCH), 99.3 (C-1),
82.2 (C-4), 79.2 (C-2), 78.7 (C-3), 75.5 (PhCH2), 73.9 (PhCH2), 69.2 (C-6), 62.4 (C-5), 55.5 (OCH3).
4,6-O-Benzylidene-D-glucopyranose (16)
A mixture of D-glucose (10 g, 0.0555 mol), newly distilled benzaldehyde (20 mL), p-toluenesulfonic
acid monohydrate (1.0 g) and DMF (100 mL) was refluxed at 45 °C for 16 h. After the reaction
mixture was cooled to room temperature, K2CO3 (1.0 g) was added into the mixture, stirred for 30 min,

Molecules 2015, 20
2054
and filtrated to obtain a filtrate. To the filtrate was added distilled water (300 mL), and then the
mixture was concentrated under reduced pressure to give a slimy product, which was separated by silica
gel column chromatography (bed, 3.5 × 10.0 cm), eluted by a gradient of CH2Cl2→CH2Cl2-MeOH
(15:1), to afford 16 (9.5g, 0.0354 mol, yield 63.8%). A crystalline powder (CH2Cl2-MeOH),
m.p. 161–163 °C; positive ion ESI-MS m/z: 269 [M+H]+, 291 [M+Na]+, 559 [2M+Na]+; negative ion
1
ESI-MS m/z: 267 [M−H]−, 303 [M+Cl]−, 313 [M+HCO2]−. H-NMR (400 MHz, CD3COCD3) δ for
α-isomer: 7.52–7.46 (2H, m, Ph-H2 in PhCH), 7.40–7.32 (3H, m, Ph-H3 in PhCH), 5.58 (1H, s, PhCH),
5.18 (1H, d, J = 3.8 Hz, H-1), 4.14 (1H, dd, J = 10.1, 4.9 Hz, Ha-6), 3.96 (1H, td, J = 9.2, 4.9 Hz, H-5),
3.87 (1H, t, J = 9.2 Hz, H-3), 3.70 (1H, dd, J = 10.1, 9.2 Hz, Hb-6), 3.48 (1H, dd, J = 9.2, 3.8 Hz, H-2),
3.43 (1H, t, J = 9.2 Hz, H-4); δ for β-isomer: 7.52–7.46 (2H, m, Ph-H2 in PhCH), 7.40–7.32 (3H, m,
Ph-H3 in PhCH), 5.58 (1H, s, PhCH), 4.65 (1H, d, J = 7.7 Hz, H-1), 4.20 (1H, dd, J = 10.2, 4.6 Hz,
Ha-6), 3.72 (1H, dd, J = 10.2, 8.8 Hz, Hb-6), 3.46 (1H, t, J = 8.8 Hz, H-4), 3.41 (1H, td, J = 8.8, 4.6 Hz,
13
H-5), 3.28 (1H, dd, J = 8.8, 7.7 Hz, H-2). C-NMR (100 MHz, CD3COCD3) δ for α-isomer: 139.3,
129.4 (2C), 128.7, 127.3 (2C), all Ph-C6 in PhCH; 102.2 (PhCH), 94.3 (C-1), 82.8 (C-4), 74.3 (C-2),
71.7 (C-3), 69.7 (C-6), 63.2 (C-5); δ for β-isomer: 139.2, 129.4 (2C), 128.7, 127.3 (2C), all Ph-C6 in
PhCH; 102.0 (PhCH), 98.8 (C-1), 82.1 (C-4), 77.2 (C-2), 74.4 (C-3), 69.3 (C-6), 67.2 (C-5).
Ethyl 4,6-O-Benzylidene-D-glucopyranoside (17)
A mixed solution of D-glucose (20 g, 0.1111 mol), newly distilled benzaldehyde (45 mL), triethyl
orthoformate (20 mL), p-toluenesulfonic acid monohydrate (1.0 g) and THF (200 mL) was refluxed at
85 °C for 16 h. After the reaction mixture cooled down to room temperature, K2CO3 (1.0 g) was added to
the mixture, which was stirred for 30 min, and filtered to obtain a filtrate. The filtrate was concentrated
under reduced pressure and then separated by column chromatography on silica gel (bed, 5.0 × 15.0 cm),
using a gradient of CH2Cl2→CH2Cl2-EtOH (20:1) as eluting solvent, to afford 17 (10 g, 0.0338 mol,
30.4% yield) as a mixture of α,β-isomers. An amorphous powder (CH2Cl2-MeOH), positive ion ESI-MS
m/z: 297 [M+H]+, 314 [M+NH4]+, 319 [M+Na]+; negative ion ESI-MS m/z: 341 [M+HCO2]−. A portion
of 17 (approximate 250 mg) was separated by preparative HPLC (Capcell Pak C18, MG II S5,
20 × 250 mm, 50% MeOH, 10 mL/min) to obtain α-isomer 17a (105 mg, tR = 50.7 min) and β-isomer
17b (100 mg, tR = 36.3 min). Ethyl 4,6-O-benzylidene-α-D-glucopyranoside (17a): positive ion ESI-MS
1
m/z: 297 [M+H]+, 314 [M+NH4]+; negative ion ESI-MS m/z: 341 [M+HCO2]−. H-NMR (400 MHz,
CD3OD) δ: 7.53–7.46 (2H, m, Ph-H2 in PhCH), 7.39–7.31 (3H, m, Ph-H3 in PhCH), 5.57 (1H, s,
PhCH), 4.84 (1H, d, J = 4.0 Hz, H-1), 4.20 (1H, dd, J = 8.9, 3.5 Hz, Ha-6), 3.88–3.70 (3H, m, Hb-6, H-5
and Ha in OCH2CH3), 3.84 (1H, t, J = 9.3 Hz, H-3), 3.64–3.41 (1H, m, Hb in OCH2CH3), 3.51 (1H, dd,
J = 9.3, 4.0 Hz, H-2), 3.45 (1H, t, J = 9.3 Hz, H-4), 1.27 (3H, t, J = 7.1 Hz, OCH2CH3). 13C-NMR (100
MHz, CD3OD) δ: 129.9, 129.0 (2C), 127.5 (2C), 139.2, Ph-C6 in PhCH; 103.3 (PhCH), 100.7 (C-1),
83.0 (C-4), 74.0 (C-2), 72.0 (C-3), 70.0 (C-6), 64.9 (OCH2CH3), 64.0 (C-5), 15.4 (OCH2CH3). Ethyl
4,6-O-benzylidene-β-D-glucopyranoside (17b): positive ion ESI-MS m/z: 297 [M+H]+, 314 [M+NH4]+,
1
615 [2M+Na]+. H-NMR (400 MHz, CD3OD) δ: 7.54–7.47 (2H, m, Ph-H2 in PhCH), 7.39–7.31 (3H,
m, Ph-H3 in PhCH), 5.57 (1H, s, CHPh), 4.40 (1H, d, J =7.8 Hz, H-1), 4.28 (1H, dd, J = 10.1, 4.4 Hz,
Ha-6), 3.91 (1H, dq, J = 9.4, 7.1 Hz, Ha in OCH2CH3), 3.76 (1H, t, J = 10.1 Hz, Hb-6), 3.68–3.59 (2H,
m, H-3 and Hb in OCH2CH3), 3.50–3.39 (1H, m, H-5), 3.48 (1H, t, J = 9.2 Hz, H-4), 3.27 (1H, dd,

Molecules 2015, 20
2055
13
J = 9.1, 7.8 Hz, H-2), 1.24 (3H, t, J = 7.1 Hz, OCH2CH3). C-NMR (100 MHz, CD3OD) δ: 129.9,
129.0 (2C), 127.5 (2C), 139.1, Ph-C6 in PhCH; 104.8 (C-1), 102.9 (PhCH), 82.3 (C-4), 75.9 (C-2),
74.6 (C-3), 69.7 (C-6), 67.6 (C-5), 66.6 (OCH2CH3), 15.5 (OCH2CH3).
3.3. MTT Assay
Compounds 1–12, 5-FU, DOC and taxol were dissolved in DMSO to prepare 10.0 mg/mL stock
solutions, respectively, and serial dilutions were made for the MTT assay. 5-FU, DOC and taxol were
used as positive control, and DMSO was used as blank control. The MTT assay was performed
according to our previous procedure [30–44], and exponentially growing K562, HL-60 and HeLa cells
in RPMI 1640 medium and S180 cells in DMEM medium were treated with samples at 37 °C for 48 h.
The assay was run in triplicate, and the OD value was read at 570 nm. The IR% was calculated using
OD mean values by the formula, IR% = (ODcontrol − ODsample)/ODcontrol × 100%, and the IC50 value for
a sample was obtained from its IR% values at different concentrations.
3.4. The in Vivo Test in Mice for Antitumor Activity of 1 and 2
Compounds 1 and 2 (30 mg of each) and taxol (20 mg) was dissolved in DMSO (1 mL) and mixed
with oxidized castor oil (1 mL) to prepare stock solutions of 1 and 2 at 15 mg/mL and taxol at
10 mg/mL, respectively. Stock solutions were repeatedly prepared according to the need. Before
administration, each 0.4 mL of the stock solution was diluted with 3.6 mL of 5% glucose aqueous
solution to obtain diluted solutions of 1 and 2 at 1.5 mg/mL and taxol at 1.0 mg/mL for each round of
administrations. A blank solvent without test samples was also prepared in the same manner and used
for the model group as blank control.
The in vivo antitumor activity of 1 and 2 was tested by a procedure similar to that described in [52,53].
Sixty three Kunming mice (18–20), which had received a hypodermic injection of murine sarcoma
S180 cells (0.2 mL each of fresh cell suspensions at density of 1 × 107 cells/mL) into the armpit, were
randomly divided into six groups: the model (blank solvent) group with 11 mice, positive control taxol
(20 mg/kg) group with eight mice, and four test groups with 11 mice in each group for 1 and 2 at both
15 and 30 mg/kg, respectively. The drug administration was performed by intravenous injection via the
mouse tail vein from the next day of tumor cell injection. The four test groups were injected every day
continuously 6 days, while the taxol group was injected every other day for 6 days (for a total of three
administrations). The model group was continuously injected the same volume of blank solvent as that
of 30 mg/kg test sample solutions every day for 6 days. On the third day of the last administration, the
mice were sacrificed, the body and tumor weights were weighed, and the inhibition rate of 1–2 and
taxol on the tumor growth was calculated as described in the main text. Statistical analysis for the test
and positive control taxol groups was performed by the Student’s t test using body and tumor weights
in mean ± S.D. values in comparison with the model group.
4. Conclusions
Twelve galloyl glucosides 1–12 with two or three galloyl groups were synthesized from D-glucose
and gallic acid. Three of them, 9, 11 and 12, were new compounds and six others, 1–4, 6 and 10, were

Molecules 2015, 20
2056
synthesized for the first time. In an in vitro MTT assay, 1–12 inhibited human cancer K562, HL-60
and HeLa cells with inhibition rates ranging from 64.2% to 92.9% at 100 μg/mL and their IC50 values
were determined to vary between 17.2–124.7 μM. In addition, 1–12 also inhibited murine sarcoma
S180 cells with inhibition rates ranging from 38.7% to 52.8% at 100 μg/mL in an in vitro MTT assay,
and the in vivo antitumor activity of 1 and 2 was also detected on murine sarcoma S180 tumor-bearing
Kunming mice using taxol as positive control.
Acknowledgments
This work was supported by the grants from the NSFC (81102330) and NSTMP (2012ZX09301-003,
2009ZX09103-019, 2009ZX09301-002). Dedicated to Xin-Sheng Yao on the occasion of his
80th birthday.
Author Contributions
Chang-Wei Li performed whole experiments for the chemical synthesis and in vitro MTT assay and
contributed to the manuscript preparation. Hua-Jin Dong accomplished the in vivo antitumor tests in
mice. Cheng-Bin Cui conceived and designed the experiments and wrote the paper.
Conflicts of Interest
The authors declare no conflict of interest.
References
1. Yang, C.-M.; Cheng, H.W.; Lin, T.-C.; Chiang, L.-C.; Lin, C.-C. The in vitro activity of geraniin
and 1,3,4,6-tetra-O-galloyl-β-D-glucose isolated from Phyllanthus urinaria against herpes simplex
virus type 1 and type 2 infection. J. Ethnopharmacol. 2007, 110, 555–558.
2. Singh, P.P.; Chauhan, S.M.S. Activity-guided isolation of antioxidants from the leaves of
Terminalia arjuna. Nat. Prod. Res. 2014, 28, 760–763.
3. Piao, M.J.; Kang, K.A.; Zhang, R.; Ko, D.O.; Wang, Z.H.; Lee, K.H.; Chang, W.Y.; Chae, S.; Jee, Y.;
Shin, T.; et al. Antioxidant properties of 1,2,3,4,6-penta-O-galloyl-β-D-glucose from Elaeocarpus
sylvestris var. ellipticus. Food Chem. 2009, 115, 412–418.
4. Hsu, F.-L.; Huang, W.-J.; Wu, T.-H.; Lee, M.-H.; Chen, L.-C.; Lu, H.-J.; Hou, W.-C.; Lin, M.-H.
Evaluation of antioxidant and free radical scavenging capacities of polyphenolics from pods of
Caesalpinia pulcherrima. Int. J. Mol. Sci. 2012, 13, 6073–6088.
5. Kawamoto, H.; Nakatsubo, F.; Murakami, K. Quantitative determination of tannin and protein in
the precipitates by high-performance liquid chromatography. Phytochemistry 1995, 40, 1503–1505.
6. Hatano, T.; Yasuhara, T.; Yoshihara, R.; Agata, I.; Noro, T.; Okuda, T. Effect of interaction of
tannins with co-existing substances. VII. Inhibitory effect of tannins and related polyphenols on
xanthine oxidase. Chem. Pharm. Bull. 1990, 38, 1224–1229.
7. Sancheti, S.; Sancheti, S.; Um, B.-H.; Seo, S.-Y. 1,2,3,4,6-penta-O-galloyl-β-D-glucose: A
cholinesterase inhibitor from Terminalia chebula. S. Afr. J. Bot. 2010, 76, 285–288.

Molecules 2015, 20
2057
8. Kang, D.G.; Moon, M.K.; Choi, D.H.; Lee, J.K.; Kwon, T.O.; Lee, H.S. Vasodilatory and
anti-inflammatory effects of the 1,2,3,4,6-penta-O-galloyl-β-D-glucose (PGG) via a nitric
oxide–cGMP pathway. Eur. J. Pharmacol. 2005, 524, 111–119.
9. Choi, B.-M.; Kim H.-J.; Oh, G.-S.; Pae, H.-O.; Oh, H.; Jeong, S.; Kwon, T.-O.; Kim, Y.-M.;
Chung, H.-T. 1,2,3,4,6-Penta-O-galloyl-beta-D-glucose protects rat neuronal cells (Neuro 2A) from
hydrogen peroxide-mediated cell death via the induction of heme oxygenase-1. Neurosci. Lett.
2002, 328, 185–189.
10. Viswanatha, G.L.; Shylaja, H.; Mohan, C.G. Alleviation of transient global ischemia/reperfusion-
induced brain injury in rats with 1,2,3,4,6-penta-O-galloyl-β-D-glucopyranose isolated from
Mangifera indica. Eur. J. Pharmacol. 2013, 720, 286–293.
11. Wang, R.; Lechtenberg, M.; Sendker, J.; Petereit, F.; Deters, A.; Hensel, A. Wound-healing plants
from TCM: In vitro investigations on selected TCM plants and their influence on human dermal
fibroblasts and keratinocytes. Fitoterapia 2013, 84, 308–317.
12. Mohan, C.G.; Viswanatha, G.L.; Savinay, G.; Rajendra, C.E.; Halemani, P.D. 1,2,3,4,6-penta-O-
galloyl-β-D-glucopyranose, a bioactivity guided isolated compound from Mangifera indica inhibits
11β-HSD-1 and ameliorates high fat diet-induced diabetes in C57BL/6 mice. Phytomedicine 2013,
20, 417–426.
13. Ryu, H.-G.; Jeong, S.-J.; Kwon, H.-Y.; Lee, H.-J.; Lee, E.-O.; Lee, M.-H.; Choi, S.-H.;
Ahn, K.-S.; Kim, S.-H. Penta-O-galloyl-β-D-glucose attenuates cisplatin-induced nephrotoxicity
via reactive oxygen species reduction in renal epithelial cells and enhances antitumor activity in
Caki-2 renal cancer cells. Toxicol. In Vitro 2012, 26, 206–214.
14. Zhao, W.; Wang, Y.; Hao, W.; Zhao, M.; Peng, S. In vitro inhibition of fatty acid synthase by
1,2,3,4,6-penta-O-galloyl-β-D-glucose plays a vital role in anti-tumour activity. Biochem. Biophys.
Res. Commun. 2014, 445, 346–351.
15. Oh, G.-S.; Pae, H.-O.; Oh, H.; Hong, S.-G.; Kim, I.-K.; Chai, K.-Y.; Yun, Y.-G.; Kwon, T.-O.;
Chung, H.-T. In vitro anti-proliferative effect of 1,2,3,4,6-penta-O-galloyl-β-D-glucose on human
hepatocellular carcinoma cell line, SK-HEP-1 cells. Cancer Lett. 2001, 174, 17–24.
16. Mizushina, Y.; Zhang, J.; Pugliese, A.; Kim, S.-H.; Lü, J. Anti-cancer gallotannin
penta-O-galloyl-β-D-glucose is a nanomolar inhibitor of select mammalian DNA polymerases.
Biochem. Pharmacol. 2010, 80, 1125–1132.
17. Cao, Y.; Evans, S.C.; Soans, E.; Malki, A.; Liu, Y.; Liu, Y.; Chen, X. Insulin receptor signaling
activated by penta-O-galloyl-α-D-glucopyranose induces p53 and apoptosis in cancer cells.
Apoptosis 2011, 16, 902–913.
18. Chai, Y.; Lee, H.-J.; Shaik, A.A.; Nkhata, K.; Xing, C.; Zhang, J.; Jeong, S.-J.; Kim, S.-H.; Lü, J.
Penta-O-galloyl-β-D-glucose induces G1 arrest and DNA replicative S-phase arrest independently
of p21 cyclin-dependent kinase inhibitor 1A, p27 cyclin-dependent kinase inhibitor 1B and p53
in human breast cancer cells and is orally active against triple-negative xenograft growth.
Breast Cancer Res. 2012, 12, R67.
19. Li, L.; Shaik, A.A.; Zhang, J.; Nhkata, K.; Wang, L.; Zhang, Y.; Xing, C.; Kim, S.-H.; Lü, J.
Preparation of penta-O-galloyl-β-D-glucose from tannic acid and plasma pharmacokinetic analyses
by liquid-liquid extraction and reverse-phase HPLC. J. Pharm. Biomed. Anal. 2011, 54, 545–550.

Molecules 2015, 20
2058
20. Zhang, J.; Li, L.; Kim, S.-H.; Hagerman, A.E.; Lü, J. Anti-cancer, anti-diabetic and other
pharmacologic and biological activities of penta-galloyl-glucose. Pharm. Res. 2009, 26, 2066–2080.
21. Cao, Y.; Himmeldirk, K.B.; Qian, Y.; Ren, Y.; Malki, A.; Chen, X. Biological and biomedical
functions of penta-O-galloyl-D-glucose and its derivatives. J. Nat. Med. 2014, 68, 465–472.
22. Pan, M.-H.; Lin, J.-H.; Lin-Shiau, S.-Y.; Lin, J.-K. Induction of apoptosis by penta-O-galloyl-β-D-
glucose through activation of caspase-3 in human leukemia HL-60 cells. Eur. J. Pharmacol. 1999,
381, 171–183.
23. Lee, S.-J.; Lee, H.M.; Ji, S.-T.; Lee, S.-R.; Mar, W.; Gho, Y.S. 1,2,3,4,6-Penta-O-galloyl-β-D-
glucose blocks endothelial cell growth and tube formation through inhibition of VEGF binding to
VEGF receptor. Cancer Lett. 2004, 208, 89–94.
24. Hu, H.; Lee, H.-J.; Jiang, C.; Zhang, J.; Wang, L.; Zhao, Y.; Xiang, Q.; Lee, E.-O.; Kim, S.-H.;
Lü, J. Penta-1,2,3,4,6-O-galloyl-β-D-glucose induces p53 and inhibits STAT3 in prostate cancer
cells in vitro and suppresses prostate xenograft tumor growth in vivo. Mol. Cancer Ther. 2008, 7,
2681–2691.
25. Romani, A.; Menichetti, S.; Arapitsas, P.; Nativi, C.; Turchetti, B.; Buzzini, P. O-Methylglucogalloyl
esters: Synthesis and evaluation of their antimycotic activity. Bioorg. Med. Chem. Lett. 2005, 15,
4000–4003.
26. Arapitsas, P.; Menichetti, S.; Vincieri, F.F.; Romani, A. Hydrolyzable tannins with the
hexahydroxydiphenoyl unit and the m-depsidic link: HPLC-DAD-MS identification and model
synthesis. J. Agric. Food Chem. 2007, 55, 48–55.
27. He, Q.; Shi, B.; Yao, K.; Luo, Y.; Ma, Z. Synthesis of gallotannins. Carbohydr. Res. 2001, 335,
245–250.
28. Toda, M.; Kawabata, J.; Kasai, T. Inhibitory effects of eliagi- and gallotannins on rat intestinal
α-glucosidase complexes. Biosci. Biotechnol. Biochem. 2001, 65, 542–547.
29. Khanbabaee, K.; Lötzerich, K. Efficient total synthesis of the natural products 2,3,4,6-tetra-O-
galloyl-D-glucopyranose, 1,2,3,4,6-penta-O-galloyl-β-D-glucopyranose and the unnatural
1,2,3,4,6-penta-O-galloyl-α-D-glucopyranose. Tetrahedron 1997, 53, 10725–10732.
30. Chai, Y.-J.; Cui, C.-B.; Li, C.-W.; Wu, C.-J.; Tian, C.-K.; Hua, W. Activation of the dormant
secondary metabolite production by introducing gentamicin-resistance in a marine-derived
Penicillium purpurogenum G59. Mar. Drugs 2012, 10, 559–582.
31. Fang, S.-M.; Cui, C.-B.; Li, C.-W.; Wu, C.-J.; Zhang, Z.-J.; Li, L.; Huang, X.-J.; Ye, W.-C.
Purpurogemutantin and purpurogemutantidin, new drimenyl cyclohexenone derivatives produced
by a mutant obtained by diethyl sulfate mutagenesis of a marine-derived Penicillium purpurogenum
G59. Mar. Drugs 2012, 10, 1266–1287.
32. Cui, X.; Li, C.-W.; Wu, C.-J.; Hua, W.; Cui, C.-B.; Zhu, T.-J.; Gu, Q.-Q. Metabolites of
Paecilomyces lilacinus ZBY-1 from deep-sea water and their antitumor activity. J. Int. Pharm. Res.
2013, 40, 177–186.
33. Xia, M.-W.; Cui, C.-B.; Li, C.-W.; Wu, C.-J. Three new and eleven known unusual C25 steroids:
Activated production of silent metabolites in a marine-derived fungus by chemical mutagenesis
strategy using diethyl sulphate. Mar. Drugs 2014, 12, 1545–1568.

Molecules 2015, 20
2059
34. Chen, X.-W.; Li, C.-W.; Hua, W.; Wu, C.-J.; Cui, C.-B.; Zhu, T.-J.; Gu, Q.-Q. Metabolites of
Aspergillus sp. 16-02-1 isolated from a deep sea sediment and preliminary test of their antitumor
and antifungal activities. Chin. J. Mar. Drugs 2013, 32, 1–10.
35. Cui, X.; Li, C.-W.; Wu, C.-J.; Hua, W.; Cui, C.-B.; Zhu, T.-J.; Gu, Q.-Q. Secondary metabolites
of Paecilomyces lilacinus ZBY-1 and their activities. J. Int. Pharm. Res. 2013, 40, 765–771.
36. Fang, S.-M.; Wu, C.-J.; Li, C.-W.; Cui, C.-B. A practical strategy to discover new antitumor
compounds by activating silent metabolite production in fungi by diethyl sulphate mutagenesis.
Mar. Drugs 2014, 12, 1788–1814.
37. Wu, C.-J.; Li, C.-W.; Cui, C.-B. Seven new and two known lipopeptides as well as five known
polyketides: The activated production of silent metabolites in a marine-derived fungus by
chemical mutagenesis strategy using diethyl sulphate. Mar. Drugs 2014, 12, 1815–1838.
38. Chen, X.-W.; Li, C.-W.; Cui, C.-B.; Hua, W.; Zhu, T.-J.; Gu, Q.-Q. Nine new and five known
polyketides derived from a deep sea-sourced Aspergillus sp. 16-02-1. Mar. Drugs 2014, 12,
3116–3137.
39. Dong, Y.; Cui, C.-B.; Li, C.-W.; Hua, W.; Wu, C.-J.; Zhu, T.-J.; Gu, Q.-Q. Activation of dormant
secondary metabolite production by introducing neomycin resistance into the deep-sea fungus,
Aspergillus versicolor ZBY-3. Mar. Drugs 2014, 12, 4326–4352.
40. Chen, G.; Cui, C.-B.; Ai, D.Q.; Li, C.-W.; Tao, Z.-W.; Ren, R. Polyanthumin, a novel
cyclobutane chalcone trimmer from Memecylon polyanthum. J. Asian Nat. Prod. Res. 2014,
doi:10.1080/10286020.2014.945439.
41. Li, C.-W.; Cui, C.-B.; Cai, B.; Han, B.; Dou, D.-Q.; Chen, Y.-J. Aromatic chemical constituents
of Choerospondias axillaries and their in vitro antitumor activity. Chin. J. Med. Chem. 2005, 15,
138–141, 147.
42. Li, C.-W.; Cui, C.-B.; Cai, B.; Han, B.; Li, M.-M.; Fan, M. Flavanoidal constituents of
Choerospondias axillaries and their in vitro antitumor and anti-hypoxia activities. Chin. J.
Med. Chem. 2009, 19, 48–51, 64.
43. Li, C.-W.; Cui, C.-B. One new and nine known flavonoids from Choerospondias axillaries and
their in vitro antitumor, antihypoxia and antibacterial activities. Molecules 2014, 19, 21363–21377.
44. Li, C.-W.; Cui, C.-B.; Cai, B.; Han, B.; Li, M.-M.; Fan, M. Galloyl glucosidic constituents of
Choerospondias axillaries and their in vitro anti-tumor, anti-hypoxia and anti-bacteria activities.
J. Int. Pharm. Res. 2014, 41, 449–455.
45. Kashiwada, Y.; Nonaka, G.-I.; Nishioka, I.; Yamagishi, T. Galloyl and
hydroxycinnamoylglucoses from rhubarb. Phytochemistry 1988, 27, 1473–1477.
46. Jiang, Z.-H.; Hirose, Y.; Iwata, H.; Sakamota, S.; Tanaka, T.; Kouno, I. Caffeoyl, coumaroyl,
galloyl, and hexahydroxydiphenoyl glucoses from Balanophora japonica. Chem. Pharm. Bull.
2001, 49, 887–892.
47. Lee, J.; Jang, D.S.; Kim, N.H.; Lee, Y.M.; Kim, J.; Kim, J.S. Galloyl glucoses from the seeds of
Cornus officinalis with inhibitory activity against protein glycation, aldose reductase, and
cataractogenesis ex vivo. Biol. Pharm. Bull. 2011, 34, 443–446.
48. Nishizawa, K.; Nakata, I.; Kishida, A.; Ayer, W.A.; Browne, L. Some biologically active tannins
of Nuphar variegatum. Pytochemistry 1990, 29, 2491–2494.

Molecules 2015, 20
2060
49. Lin, T.-C.; Hsu, F.-L. Tannin and related compounds from Terminalia catappa and
Terminalia parviflora. J. Chin. Chem. Soc. 1999, 46, 613–618.
50. Zhang, S.-Q.; Gu, Y.; Tang, L.; Yu, S.-N. Synthesis and the antitumor activity of several
phenylpropanoids. Chin. J. Med. Chem. 2004, 14, 80–83.
51. Jalsa, N.K.; Singh, G. A unique approach to the synthesis of a dengue vaccine and the novel
tetrasaccharide that results. Tetrahedron: Asymmetry 2009, 20, 867–874.
52. Sun, X.; Liu, Y.; Di, D.; Wu, G.; Guo, H. Chemometric analysis of metabolism disorders in blood
plasma of S180 and H22 tumor-bearing mice by high performance liquid chromatography-diode
array detection. J. Chemom. 2011, 25, 430–440.
53. Liao, N.; Ao, M.; Zhang, P.; Yu, L. Extracts of Lycoris aurea induce apoptosis in murine sarcoma
S180 cells. Molecules 2012, 17, 3723–3735.
Sample Availability: Samples of all the compounds are available from the authors.
© 2015 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/4.0/).
