Tetrahedron Letters 48 (2007) 6054–6058
A novel calix[4]arene-based neutral semicarbazone receptor
for anion recognition
Har Mohindra Chawla,* Satya Narayan Sahu and Rahul Shrivastava
Department of Chemistry, Indian Institute of Technology, Hauz Khas, New Delhi 110 016, India
Received 30 April 2007; revised 2 June 2007; accepted 14 June 2007
Available online 20 June 2007
Abstract—A series of novel calix[4]arene-based neutral semicarbazone and thiosemicarbazone receptors have been synthesized and
characterized. The molecular receptor 4a recognizes HSO4 in preference to other anions (Clꢀ, Brꢀ, Iꢀ, ClO4ꢀ, H2PO and PF6
)
ꢀ
ꢀ
ꢀ
4
through a 1:1 binding-stoichiometry.
ꢀ 2007 Elsevier Ltd. All rights reserved.
ꢀ
Anion recognition is extremely important for resolving
biological, chemical and environmental issues.1,2
Though a large volume of research data is available on
recognition of cations, very few molecular receptors
have been examined for anions.3 Different strategies
adopted for anion recognition essentially consist of
either acquiring the positively charged molecular hosts,
which interact with anions through electrostatic interac-
tions4,5 or by utilizing the neutral molecular hosts, which
recognize anions through donor–acceptor attributes,
hydrophobic effects and hydrogen bonds.6 The direc-
tional nature of hydrogen bonds has recently been
explored for better selectivity in recognition processes.6
It was envisaged that the phenolic oligomers represented
by calix[n]arenes could in principle provide excellent
platforms for construction of attractive recognition sites
for host–guest interactions7 and it should be possible to
design molecular receptors for anion recognition by
employing activated amides, urea and thiourea function-
alities.8,9 To the best of our knowledge, the utilization of
calixarenes bearing semicarbazone and thiosemicarba-
zone subunits at their lower rim have not been examined
for anion recognition despite the availability of facile
synthetic protocols. We report herein, the synthesis,
characterization and anion binding properties of a novel
calix[4]arene receptors bearing two semicarbazone and
thiosemicarbazone moieties at the distal 1,3-positions.
These receptors were found to demonstrate significant
binding ability for tetrahedral HSO4 ions in preferencꢀe
to otherꢀanions including Clꢀ, Brꢀ, Iꢀ, ClO4ꢀ, H2PO
4
and PF6
.
The required starting material, calix[4]arene 1 was
obtained by using a literature procedure.10a Dibromo-
alkylation of 1 was achieved by refluxing with 1,3-
dibromopropane in the presence of K2CO3 in CH3CN
for 48–96 h to give 2 in 87% yield.10b Compounds 3a
and 3b were obtained in 86% and 83% yields, respec-
tively, when bis(bromopropyl)-calix[4]arene
2 was
refluxed with p-hydroxybenzaldehyde or p-hydroxy-
acetophenone in the presence of K2CO3 in anhydrous
acetonitrile under a nitrogen atmosphere.11 Treatment
of 3a and 3b with semicarbazide or thiosemicarbazide
reagents12 gave 4a–d13 in good yields as illustrated in
Scheme 1.
Compounds 4a–d were characterized by analysis of their
1H NMR, 13C NMR, FAB-MS and FT-IR spectra. For
1
example, the H NMR spectrum of 4a showed a typical
AB pattern represented by two pairs of doublets at d
3.29 and d 4.14 for the axial and equatorial protons,
respectively, which indicated that 4a existed in a sym-
metrical cone conformation. This was further confirmed
by the observation of a distinct signal at d 31.2 for
13
the methylene carbon in the C NMR spectrum.13
The azo-methine proton (HC@N) appeared as a non-
exchangeable singlet at d 7.59 while the –NH2, –OH
and –NH protons appeared at d 5.77, 8.12 and 10.09,
respectively. These signals disappeared on deuteration
with D2O. Individual assignment of the –OH, –NH
and –NH2 protons were further confirmed by
Keywords: Calix[4]arene; Semicarbazone; Thiosemicarbazone.
*
Corresponding author. Tel.: +91 11 26591517; fax: +91 11
26591502; e-mail: hmchawla@chemistry.iitd.ernet.in
0040-4039/$ - see front matter ꢀ 2007 Elsevier Ltd. All rights reserved.
doi:10.1016/j.tetlet.2007.06.075

H. M. Chawla et al. / Tetrahedron Letters 48 (2007) 6054–6058
6055
( i )
O
O
(H2C)3
Br
O
O
O
O
O
O
H
H
H
H
H
(CH2)3
Br
H
1
2
( ii )
O
O
O
(H2C)3
O
O
O
(H2C)3
O
O
O
O
(CH2)3
O
H
H
H
H
(CH2)3
( iii )
O
X
C
C
X
X
C
N
C
N
X
O
O
N
N
H
H

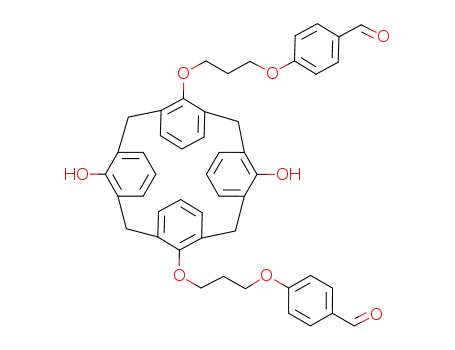

3a X =
H
C
Y
Y
C
3b X = CH3
H2N
NH2
No.
4a
4b
4c
X
H
CH3
H
CH 3
Y
Yield(%)
O
O
S
88
78
82
79
4d
S
Scheme 1. Reagents and conditions: (i) Br–(CH2)3–Br, K2CO3,
CH3CN, reflux; (ii) p-hydroxybenzaldehyde or p-hydroxyacetophe-
none, K2CO3, CH3CN, reflux; (iii) NH2–NH–C(Y)–NH2, methanol,
50 ꢁC, reflux.
Figure 1. Partial 1H NMR (300 MHz and 298 K) spectra of host 4a
(10 mM) upon addition of various aliquots of TBAÆHSO4 (40 mM) in
ꢀ
CDCl3. (A) Host 4a; (B) 4a + 0.5 equiv of HSO4 (C) 4a + 0.75 equiꢀv
ꢀ
ꢀ
of HSO4 (D) 4a + 1.0 equiv of HSO4 (E) 4a + 1.5 equiꢀv of HSO4
ꢀ
(F) 4a + 2.0 equiv of HSO4 (G) 4a + 2.5 equiv of HSO4
= CH, | = OH).
(
= NH,
comparison with those of their precursor compounds,
NOESY experiments and quantitative integrals. The
FT-IR spectrum exhibited a sharp peak at 1605 cmꢀ1
for the >C@N– absorptions.
160
2
The synthesized compounds 4a–d were examined for
