Synthesis of O- and N-Containing Heterocycles
General Cyclization Procedure B. In a 2 dram (8 mL) screw-
capped vial containing a magnetic stir bar was placed homoprop-
argylic methyl ether and water-saturated CH2Cl2 (∼60 mM final
concentration). To the stirred solution at room temperature was
added NaAuCl4‚2H2O (5 mol %). The reaction mixture was stirred
at 35 °C until starting material consumption was complete. The
dark yellow reaction mixture was dried over MgSO4 and the crude
contents of the vial in an ice bath were concentrated by using a N2
gas. Products were purified by silica gel chromatography. For
volatile products yields were determined by GC in accord with the
procedure defined above.
General Cyclization Procedure C. In a 4 dram (16 mL) screw-
capped vial containing a magnetic stir bar was placed homoprop-
argylic methyl ether and water-saturated toluene (∼25 mM final
concentration). To the stirred solution at room temperature were
added Ph3PAuCl (5 mol %) and AgSbF6 (10 mol %). The resulting
white suspension was stirred at 40 °C until starting material
consumption was complete. The crude contents of the vial were
directly purified by silica gel chromatography.
crude residue was purified by flash chromatography (4:1, hexanes/
EtOAc) to afford ketone (573 mg, 3.41 mmol, 41%) as a colorless
oil. H NMR (300 MHz, CDCl3) δ 3.36 (s, 3H), 3.29 (m, 1H),
1
2.45 (t, J ) 6.4 Hz, 2H), 2.39 (m, 2H), 2.12 (s, 3H), 1.98 (t, J )
2.6 Hz, 1H), 1.73-1.54 (m, 4H); 13C NMR (75 MHz, CDCl3) δ
208.6, 80.8, 79.0, 70.0, 57.0, 43.6, 33.0, 29.8, 23.0, 19.6; IR (neat)
3287, 2933, 2827, 2118, 1715, 1427, 1360, 1160, 1112 cm-1
;
HRMS (EI) m/z calcd for C7H13O2 (M - C3H3)+ 129.0915, found
129.0919.
(12R,E)-N-(6-Methoxynon-8-yn-2-ylidene)-2-methylpropane-
2-sulfinamide (41). To a solution of the appropriate ketone (500
mg, 2.97 mmol) in THF (3 mL) was added Ti(OEt)4 (3.10 mL,
14.9 mmol) at room temperature, followed by adding a solution of
40 (540 mg, 4.46 mmol) in THF (3 mL). The reaction mixture
was stirred at 70 °C for 12 h. The reaction was cooled to 0 °C
immediately and then poured into a brine solution with vigorous
stirring. The resulting white suspension was filtered through a Celite
pad and rinsed with EtOAc. The organic layer was separated and
the aqueous layer was extracted with EtOAc. The combined organic
phase was washed with brine, dried over MgSO4, filtered, and
concentrated under reduced pressure. The crude residue was purified
by flash chromatography (10:1 to 4:1, hexanes/EtOAc with 5%
Et3N) to afford 41 (584 mg, 2.15 mmol, 72%) as a colorless oil.
1H NMR (300 MHz, CDCl3) δ 3.36 (s, 3H), 3.30 (m, 1H), 2.40
(m, 4H), 2.31 (s, 3H), 1.98 (t, J ) 2.6 Hz, 1H), 1.67 (m, 4H), 1.22
(s, 9H); 13C NMR (75 MHz, CDCl3) δ 185.0, 80.8, 79.0, 70.0,
57.0, 56.2, 43.2, 33.0, 23.1, 22.9, 22.2, 21.3; IR (neat) 3469, 3294,
1-(1-(2-Nitrophenylsulfonyl)piperidin-2-yl)propan-2-one (31).
General procedure C was followed with homopropargylic methyl
ether 20 (50.0 mg, 0.147 mmol), Ph3PAuCl (3.8 mg, 7.7 µmol),
and AgSbF6 (5.2 mg, 15 µmol) in water-saturated toluene (6.0 mL)
for 12 h. The residue was purified by flash chromatography (20:1,
1
CH2Cl2/EtOAc) to give 31 (41 mg, 84% isolated yield). H NMR
(300 MHz, CDCl3) δ 8.09 (m, 1H), 7.67 (m, 3H), 4.46 (m, 1H),
3.78 (dm, J ) 13.6 Hz, 1H), 3.00 (td, J ) 13.6 Hz, 1H), 2.87 (dd,
J ) 16.7, 9.1 Hz, 1H), 2.70 (dd, J ) 16.7, 4.3 Hz, 1H), 2.11 (s,
3H), 1.72-1.44 (m, 6H); 13C NMR (75 MHz, CDCl3) δ 205.5,
147.7, 133.7, 133.4, 131.8, 131.2, 124.3, 49.2, 44.0, 41.8, 30.3,
28.1, 25.1, 18.3; IR (neat) 2944, 1716, 1544, 1342, 1372, 1160
cm-1; HRMS (ESI) m/z calcd for C14H18N2O5SNa (M + Na)+
349.0834, found 349.0811.
3235, 2928, 2826, 2118, 1624, 1475, 1362, 1189, 1112 cm-1
;
HRMS (EI) m/z calcd for C14H26NO2S (M + H)+ 272.1684, found
272.1685.
(R,Z)-N-((4R)-4-Hydroxy-10-methoxytridec-12-yn-6-ylidene)-
2-methylpropane-2-sulfinamide (42). To 1.0 M solution of LDA
in THF (2.2 mL, 2.2 mmol) at -78 °C was added a cooled solution
of 41 (502 mg, 1.85 mmol) in THF (8 mL). The mixture was stirred
for 30 min and anhydrous MgBr2 (670 mg, 3.70 mmol) was added
in one portion. The mixture was stirred at -78 °C for 1 h. To the
light yellowish metalloenamine solution was added n-butyraldehyde
(0.25 mL, 2.8 mmol) dropwise. The reaction mixture was stirred
at -78 °C for 24 h. After reaction was complete, a cooled 2.0 N
solution of AcOH in THF (10 mL) was added dropwise and the
resulting mixture was then stirred at -78 °C for 20 min. Brine and
saturated aqueous NaHCO3 solution were added and the reaction
was allowed to warm to room temperature. The organic layer was
separated and the aqueous layer was extracted with EtOAc. The
combined organic phase was dried over MgSO4, filtered, and
concentrated under reduced pressure. The crude was purified by
flash chromatography (4:1 to 2:1, hexanes/EtOAc with 5% Et3N)
to afford 42 (410 mg, 1.19 mmol, 65%) as a colorless oil, which
was immediately used for the next step because of the instability

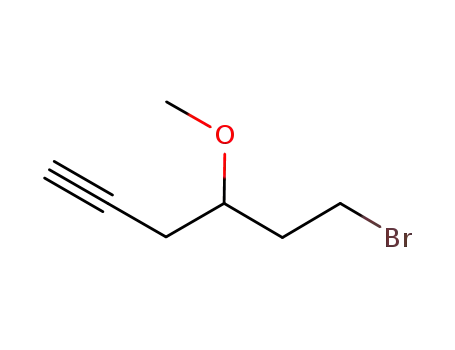

6-Bromo-4-methoxyhex-1-yne (39). To a solution of 3-bro-
mopropionaldehyde dimethyl acetal (38) (2.31 g, 11.4 mmol) in
CH2Cl2 (15 mL) at -78 °C was added allenyltributyltin (5.2 mL,
17. mmol), followed by the dropwise addition of TiCl4 (13.6 mL,
1.0 M solution in CH2Cl2, 13.6 mmol). The dark brown mixture
was stirred at -78 °C for 3 h. The reaction was quenched with
saturated aqueous NaHCO3 at -78 °C and then was allowed to
warm to room temperature. The reaction mixture was poured into
saturated aqueous NaHCO3 solution. The crude material was
extracted with EtOAc (2×). The combined organic phase was
washed with brine (2×), dried over MgSO4, filtered, and concen-
trated under reduced pressure. The crude residue was purified by
flash chromatography (20:1, hexanes/EtOAc) to afford 39 (2.10 g,
1
10.5 mmol, 93%) as a colorless oil. H NMR (300 MHz, CDCl3)
δ 3.54 (m, 3H), 3.43 (s, 3H), 2.45 (dd, J ) 5.4, 2.7 Hz, 2H), 2.14
(m, 2H), 2.03 (t, J ) 2.7 Hz, 1H); 13C NMR (75 MHz, CDCl3) δ
80.1, 76.8, 70.5, 57.4, 37.1, 29.8, 22.8; IR (neat) 3298, 2931, 2828,
2120, 1433, 1360, 1260, 1109 cm-1; HRMS (EI) m/z calcd for C4H9-
OBr (M - C3H3)+ 151.9837, found 151.9824.
1
of 42. H NMR (300 MHz, CDCl3) δ 4.32 (d, J ) 9.4 Hz, 1H),
3.77 (m, 1H), 3.38 (s, 3H), 3.31 (m, 1H), 3.11 (t, J ) 11.4 Hz,
1H), 2.40 (m, 4H), 1.99 (t, J ) 2.5 Hz, 1H), 1.71-1.33 (m, 8H),
1.26 (s, 9H), 0.92 (t, J ) 6.8 Hz, 3H).
6-Methoxynon-8-yn-2-one. To a 1.0 M solution of LDA in THF
(10 mL, 10 mmol) with HMPA (3.5 mL, 20 mmol) at -45 °C was
added a cooled solution (-78 °C) of acetone cyclohexylimine43
(1.40 g, 10.1 mmol) in THF (5 mL) dropwise. The yellow mixture
was stirred at -45 °C for 1.5 h. To a solution of metalloenamine
was added a cooled solution (-78 °C) of bromide 39 (1.58 g, 8.27
mmol) in THF (10 mL) dropwise. The resulting mixture was stirred
at -45 °C for 2 h and allowed to warm to room temperature. The
reaction mixture was then stirred at room temperature for 12 h.
The reaction was quenched with water and acidified with 10%
aqueous HCl solution at 0 °C (pH 6). The organic layer was
separated and the aqueous layer was extracted with EtOAc (2×).
The combined organic phase was washed with brine, dried over
MgSO4, filtered, and concentrated under reduced pressure. The
(S)-N-((4R,6S)-4-Hydroxy-10-methoxytridec-12-yn-6-yl)-2-
methylpropane-2-sulfinamide. To a solution of 42 (404 mg, 1.18
mmol) in THF (8 mL) at -50 °C was added catecholborane (0.38
mL, 3.5 mmol) dropwise. The reaction mixture was stirred at
-50 °C for 2 h. MeOH (10 mL) and saturated aqueous sodium
potassium tartrate solution (10 mL) were added. The resulting
mixture was stirred for an additional 20 min and allowed to warm
to room temperature. The white solution was washed with brine
and extracted with EtOAc. The organic layer was separated and
the aqueous layer was extracted with EtOAc. The combined organic
phase was dried over MgSO4, filtered, and concentrated. The crude
mixture was purified by flash chromatography (1:1, hexanes/EtOAc
to 100% EtOAc) to afford pure syn-hydroxy sulfinamide (258 mg,
1
0.75 mmol, 64%) as a colorless oil. H NMR (300 MHz, CDCl3)
δ 3.89 (m, 1H), 3.72 (m, 1H), 3.36 (s, 3H), 3.30 (m, 2H), 2.90 (dd,
J ) 6.8, 2.9 Hz, 1H), 2.39 (m, 2H), 1.98 (t, J ) 2.6 Hz, 1H), 1.80
(43) Perez, A. L.; Gries, R.; Gries, G.; Oehlschlager, A. C. Bioorg. Med.
Chem. 1996, 4, 445.
J. Org. Chem, Vol. 72, No. 19, 2007 7365
