Activation of lysine-specific demethylase 1 inhibitor peptide by redox-controlled cleavage of a traceless linker

Article abstract of DOI:10.1016/j.bmc.2016.12.033

We have previously employed cyclization of a linear peptide as a strategy to modulate peptide function and properties, but cleavage to regenerate the linear peptide left parts of the linker structure on the peptide, interfering with its activity. Here, we focused on cyclization of a linear peptide via a “traceless” disulfide-based linkage that would be cleaved and completely removed in a reducing environment, regenerating the original linear peptide without any linker-related structure. Thus, the linker would serve as a redox switch that would be activated in the intracellular environment. We applied this strategy to a lysine-specific demethylase 1 (LSD1) inhibitor peptide 1. The resulting cyclic peptide 2 exhibited approximately 20 times weaker LSD1-inhibitory activity than peptide 1. Upon addition of reducing reagent, the linker was completely removed to regenerate the linear peptide 1, with full restoration of the LSD1-inhibitory activity. In addition, the cyclic peptide was far less susceptible to proteolysis than the linear counterpart. Thus, this switch design not only enables control of functional activity, but also improves stability. This approach should be applicable to a wide range of peptides, and may be useful in the development of peptide pharmaceuticals.

Full text of DOI:10.1016/j.bmc.2016.12.033

Accepted Manuscript
Activation of lysine-specific demethylase 1 inhibitor peptide by redox-control-
led cleavage of a traceless linker
Yuichi Amano, Naoki Umezawa, Shin Sato, Hisami Watanabe, Takashi
Umehara, Tsunehiko Higuchi
PII:
S0968-0896(16)31208-1
DOI:
http://dx.doi.org/10.1016/j.bmc.2016.12.033
BMC 13460
Reference:
Bioorganic & Medicinal Chemistry
To appear in:
Received Date:
Revised Date:
Accepted Date:
16 November 2016
20 December 2016
21 December 2016
Please cite this article as: Amano, Y., Umezawa, N., Sato, S., Watanabe, H., Umehara, T., Higuchi, T., Activation
of lysine-specific demethylase 1 inhibitor peptide by redox-controlled cleavage of a traceless linker, Bioorganic &
Medicinal Chemistry (2016), doi: http://dx.doi.org/10.1016/j.bmc.2016.12.033
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to our customers
we are providing this early version of the manuscript. The manuscript will undergo copyediting, typesetting, and
review of the resulting proof before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.

Activation of lysine-specific demethylase 1 inhibitor peptide by
redox-controlled cleavage of a traceless linker
Yuichi Amano †, Naoki Umezawa †*, Shin Sato ‡, Hisami Watanabe ‡, Takashi Umehara
‡§*, Tsunehiko Higuchi †*
† Graduate School of Pharmaceutical Sciences, Nagoya City University, 3-1
Tanabe-dori, Mizuho-ku, Nagoya 467-8603, Japan
‡ RIKEN Center for Life Science Technologies, 1-7-22 Suehiro-cho, Tsurumi-ku,
230-0045, Japan
§ PRESTO, Japan Science and Technology Agency (JST), 4-1-8 Honcho, Kawaguchi,
332-0012, Japan
*Corresponding Author
E-mail Address:
umezawa@phar.nagoya-cu.ac.jp (Naoki Umezawa)
takashi.umehara@riken.jp (Takashi Umehara)
higuchi@phar.nagoya-cu.ac.jp (Tsunehiko Higuchi)
+81-52-836-3438 (Naoki Umezawa)
Tel & Fax:
+81-45-503-9457 (Takashi Umehara)
+81-52-836-3435 (Tsunehiko Higuchi)
1

Abstract
We have previously employed cyclization of a linear peptide as a strategy to
modulate peptide function and properties, but cleavage to regenerate the linear peptide
left parts of the linker structure on the peptide, interfering with its activity. Here, we
focused on cyclization of a linear peptide via a “traceless” disulfide-based linkage that
would be cleaved and completely removed in a reducing environment, regenerating the
original linear peptide without any linker-related structure. Thus, the linker would
serve as a redox switch that would be activated in the intracellular environment. We
applied this strategy to a lysine-specific demethylase 1 (LSD1) inhibitor peptide 1. The
resulting cyclic peptide 2 exhibited approximately 20 times weaker LSD1-inhibitory
activity than peptide 1. Upon addition of reducing reagent, the linker was completely
removed to regenerate the linear peptide 1, with full restoration of the LSD1-inhibitory
activity. In addition, the cyclic peptide was far less susceptible to proteolysis than the
linear counterpart. Thus, this switch design not only enables control of functional
activity, but also improves stability. This approach should be applicable to a wide
range of peptides, and may be useful in the development of peptide pharmaceuticals.
Keywords: Epigenetics; Histone demethylase; Inhibitor peptide; Cyclic peptide;
Traceless linker; Redox-responsive linker
2

1. Introduction
Peptides are attractive drug candidates, since they show specific and potent
biological activities [1] and can bind to protein surfaces with high specificity [2].
Consequently, they have the potential to inhibit protein-protein interactions, which
mediate many important physiological pathways that may be altered in disease states.
However, peptides are easily metabolized by proteases, and often have short half-lives in
plasma, so that they are generally unsuitable for clinical use.
Many efforts have been made to develop general methods to improve the
pharmacokinetic properties of peptides without reducing their activity. Representative
methodologies include incorporation of non-natural amino acids such as D-amino acids
[3, 4] or β-amino acids [5-8], changing the position of side chains, as in peptoids [3],
N-methylation of backbone amide bond(s) [9], and covalent macrocyclization [10-12].
These approaches are effective, but tend to reduce the biological activity, although they
may improve cell membrane permeability. As a general method to control peptide
function, we have explored the cyclization of active linear peptides to restrict their
conformation, so that an active conformation cannot be formed. Our strategy is based on
the occurrence of a large structural change after photoirradiation, as illustrated in Figure
1, and is thus potentially versatile. The basic idea is that a stimulus-responsive linker is
incorporated into the cyclic peptide sequence, and then when the stimulus is applied, the
linker is cleaved to form a linear peptide, which can adopt the active conformation. This
approach offers at least two advantages: firstly, the switch stimulus can be selected to
enable targeting of the activation process to a desired environment (thereby reducing
non-target-related side effects), and secondly, cyclic peptides are generally more
metabolically stable than linear ones (thereby enabling use of lower doses). We have
already employed this strategy to develop a photo-responsive matrix metalloproteinase-3
(MMP-3) inhibitor peptide whose Ki value was increased around 50 times upon
photoirradiation [13]. However, portions of the linker moiety remain on the linear
peptide after cleavage, and interfere with the activity, so that the full activity of the intact
linear peptide is not regained. Therefore, the aim of the present work was to examine the
feasibility of a macrocyclization strategy using a “traceless” disulfide-based linkage that
would be cleaved and completely removed in a reducing environment, regenerating the
original linear peptide without any linker-related structure. This linker would serve as
a redox switch that would be activated in the intracellular environment.
3

Figure 1. Concept of our cyclization strategy to control peptide activity.
As a model peptide for this study, we focused on lysine-specific demethylase 1
(LSD1/KDM1A), which is a flavin adenine dinucleotide (FAD)-dependent lysine
demethylase that removes one or two methyl groups from histone H3 lysine 4 (H3K4) or
lysine 9 (H3K9) in complexes with several nuclear proteins, such as the corepressor
CoREST and the androgen receptor [14-19]. We chose LSD1 as a model protein for the
following reasons: firstly, structural information for its complexes with several native
peptide substrates such as histone H3 and SNAIL1 is available [20, 21]; secondly, since
the N-terminal ends of peptide substrates are completely embedded within the enzyme’s
catalytic cavity, an additional moiety (such as a part of a linker) at the N-terminus might
significantly impair the enzyme–substrate interaction; and thirdly, inhibitors of the
enzyme are considered to be potential anti-cancer agents. In this study, we synthesized a
series of cyclic and linear peptide derivatives based on SNAIL1 peptide sequence, and
assessed their LSD1-inhibitory activity and proteolytic stability.
4

2. Results and Discussion
2.1. Design and synthesis of cyclic LSD1 inhibitor peptide activatable in a reducing
environment.
For the present purpose, we selected a redox-activated switching moiety,
because the concentration of cellular free thiols, such as glutathione (GSH), is markedly
higher inside cells than outside cells. Thus, disulfide bonds are stable in the extracellular
space, but are cleaved inside cells by cellular free thiols.
Disulfide-based
functionalization has widely been used in the development of chemosensors [22, 23],
prodrugs [24-28], and so forth [29]. We also took account of reports that cyclic peptides
with a disulfide bond linkage show superior stability to proteases [30-32].
In our previous study [13], we used a photocleavable linker, of which a part
remained in the linear peptide after photocleavage. This impacted negatively on the
activity, and the photocleaved peptide showed 5 to 10 times weaker activity than the
parent linear peptide. To overcome this problem, in the present work we chose a
traceless linker, which leaves no linker-related structures in the product after cleavage.
The chemical structures of peptides used in this study are shown in Figure 2.
Linear peptide 1 is the N-terminal domain of transcription factors of the SNAIL1 family,
and is known to bind to the active site of LSD1 and to potently inhibit its activity [33].
We therefore designed cyclic peptide 2, in which the N-terminal secondary amine of Pro1
is linked to the primary amine of Lys8 side chain via a redox-activatable linker, as a
candidate redox-responsive LSD1 inhibitor. Cyclization is expected to restrict the
overall peptide conformation, so that the active conformation cannot be formed. The
expected reaction mechanism in a reducing environment is shown in Scheme 2. We also
synthesized the reducing conditions-stable cyclic peptide 3, which contains a CH2-CH2
bond instead of the S-S bond, for comparison.
5

Figure 2. Chemical structures of peptides used in this study.
Linear peptide 1 was synthesized according to the standard Fmoc solid-phase
peptide synthesis. The designed cyclic peptides 2 and 3 were synthesized according to
Scheme 1. First, the linear peptide was synthesized on resin with the standard Fmoc
protocol, using the Dde group [34, 35] as side chain-protecting group for Lys8 (for the
linear peptide 1, a Boc group was used). The Fmoc group at the N-terminus was cleaved
with 20% piperidine in DMF and the Dde group on the Lys8 side chain was selectively
cleaved with 2% hydrazine in DMF. Then, the resin-bound peptide was treated with

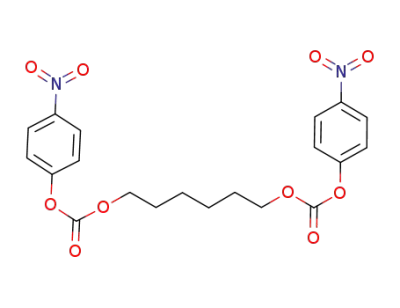

activated linker 4 or 5. Activated linkers 4 and 5 were synthesized in a single step from
commercially available bis(2-hydroxyethyl) disulfide (for linker 4) or 1,6-hexanediol (for
6

linker 5) by treatment with p-nitrophenyl chloroformate. The progress of linker
incorporation was monitored by means of the Kaiser test. This simple protocol
proceeded moderately well, probably due to the pseudo-dilution effect on a solid support
[36-38]. Cleavage and deprotection of remaining side chain protecting groups were
achieved simultaneously with TFA/water (95:5). In general, cleavage cocktails contain
a reducing reagent as a scavenger, such as triisopropylsilane (TIPS) or 1,2-ethanedithiol
(EDT). However, a scavenger-free condition is critical in this case, since a reducing
reagent would cleave the disulfide bond and result in decomposition of the cyclic peptide.
Scheme 1. Solid-phase synthesis of cyclic peptides 2 and 3.
The proposed reaction mechanism of peptide 2 in a reducing environment is
shown in Scheme 2. The disulfide bond is cleaved to form linear intermediate 6, and the
resulting thiolates react intramolecularly. Although two different reaction mechanisms
can be considered (see intermediate 6 in Scheme 2; the two thiols react differently) [27,
7

39, 40], all linker-related substructure is completely eliminated in either case [22, 24, 27,
41], and the unmodified linear peptide 1 is formed.
Scheme 2. Plausible reaction mechanism of cyclic peptide 2 in a reducing
environment to afford unmodified linear peptide 1.
2.2. Reactivity of cyclic peptide 2 in a reducing environment.
The reactivity of cyclic peptide 2 was evaluated in the presence and absence of
tris(2-carboxyethyl)phosphine hydrochloride salt (TCEP) as a reducing reagent. Three
molar equivalent of TCEP relative to disulfide was added [42]. As shown in Figure 3,
cyclic peptide 2 was converted to intermediate 6 within one minute in the presence of
TCEP, that is, cleavage of the disulfide bond was rapid and clean. Then, the dithiol
peptide 6 was converted to linear peptide 1 via peptide 7 or 8. Each of these
8

intermediates (6, 7 or 8) and product (1) was identified by MALDI-TOF-MS. The
retention time of peptide 1 was identical with that of synthesized peptide 1. The
conversion proceeded cleanly without any prominent byproduct and was almost
completed in 3 hours. As for the thiol-based reducing reagent, dithiothreitol (DTT) gave
similar result to TCEP at the same concentration of reducing reagent, although the
reduction of disulfide was slower than that with TCEP (see Supplementary material,
Figure S1). As expected, control cyclic peptide 3 was stable under the same conditions
(Figure 4). Also, peptide 2 was completely stable under the conditions in the absence of
reducing reagent (Figure 5).
Figure 3. Conversion of cyclic peptide 2 to linear peptide 1 in the presence of TCEP
in PBS (10 mM, pH 7.4; 3% DMSO) at 37 ºC. [2] = 100 µM, [TCEP] = 300 µM.
9

Figure 4. Reaction of cyclic peptide 3 in the presence of TCEP in PBS (10 mM, pH
7.4; 3% DMSO) at 37 ºC. [3] = 100 µM, [TCEP] = 300 µM.
Figure 5. Reaction of cyclic peptide 2 in the absence of TCEP in PBS (10 mM, pH
7.4; 3% DMSO) at 37 ºC. [2] = 100 µM, [TCEP] = 0 µM.
2.3. LSD1-inhibitory activity.
The LSD1-inhibitory activity of the synthesized peptides was measured in vitro
using the peroxidase-coupled assay system. The Ki values are summarized in Table 1.
Linear peptide 1 showed potent activity (Ki = 1.9 ± 0.2 µM), although this value is about
10 times weaker than the reported value (Ki = 0.14 µM) [33]. However, this difference is
likely due to differences in the assay conditions. Cyclic peptide 2 showed approximately
20 times weaker activity (Ki = 44 ± 10 µM) than linear peptide 1, while cyclic peptide 3
was inactive (Ki > 300 µM). We suspected that peptide 2 might have been partially
10

activated by residual reducing reagent, since DTT was used for the preparation of human
LSD1 protein (the final concentration of DTT was approximately 17 µM), and therefore
we prepared human LSD1 without DTT and repeated the experiment. But, as shown in
Table 1, the inhibitory activity was almost the same (Ki = 37 ± 8 µM), suggesting that the
residual DTT hardly reduced peptide 2, although the possibility still remains that peptide
2 was partially activated under the assay condition without DTT. To rule out any
possible effect of the disulfide bond in peptide 2, we examined the activity of the linker
moiety, bis(2-hydroxyethyl) disulfide, but this compound did not perturb the assay or
inhibit LSD1. These results suggested that cyclic peptide 2 was partially activated even
under the assay condition without DTT. Otherwise, the difference in linker structure
between peptides 2 and 3 (i.e. -S-S- vs. -CH2-CH2-) might influence the overall
conformation and the LSD1-inhibitory activity.
Table 1. Ki values of synthesized peptides for LSD1 inhibition.
Reducing reagent
Peptide
Ki (M)
-
-
-
-
-
1.9 ± 0.2
44 ± 10
>300
1
2
3
2 a
3 a
2
37 ± 8
>300
b
+
1.6 ± 0.1 c
190 ± 30
-
9
a
b
LSD1 protein was prepared and handled without DTT.
After treatment with
TCEP, resulting peptide was roughly purified by HPLC, since remaining TCEP
c
interfered with the assay.
product.
Calculated based on the concentration of the reaction
11

Next, we examined the activation of cyclic peptide 2 by reducing reagent.
Since our assay measures H2O2 produced by LSD1-catalysed demethylation reaction,
added reducing reagent might react with H2O2 and perturb the assay. Indeed, TCEP,
DTT, and 2-mercaptoethanol were all incompatible with the assay. Thus, in order to
remove any remaining reducing reagent, we purified the reaction product of cyclic
peptide 2 with TCEP by HPLC. As shown in Table 1, the resulting peptide showed
potent LSD1-inhibitory activity (Ki = 1.6 ± 0.1 µM), at essentially the same level as the
linear peptide 1. These data confirm that conversion of cyclic peptide 2 to linear peptide
1, with full functional activation, can be achieved by redox switching.
In order to confirm the superiority of the traceless linker, we synthesized
peptide 9 (Figure 6), which contains linker-related structures at the N- and C-termini of
peptide 1. Peptide 9 was originally designed for the other stimulus-responsive linkers
(manuscript in preparation), but serves as a good control for this purpose. Peptide 9
showed considerably weaker LSD1-inhibitory activity (Ki = 190 ± 30 µM) than peptide 1
(Ki = 1.9 ± 0.2 µM), as shown in Table 1. The decrease of LSD1-inhibitory activity
compared with peptide 1 is considered to be due to the presence of the linker-related
hydroxyacetyl (-COCH2OH) group at the N-terminus, because the N-terminal Pro1 of the
native SNAIL1 substrate peptide is embedded within the LSD1 catalytic cavity in the
crystal structure, whereas the C-terminal Pro9 is located outside the cavity [21]. The
hydroxyacetyl group at Pro1 is expected to clash sterically with Ala539 of human LSD1
and disturb hydrogen bonding between Pro1 of the peptide and Ala539 of LSD1, which
would account for the decreased LSD1-inhibitory activity. Peptide 9 (Ki = 190 ± 30 µM)
showed even weaker activity than cyclic peptide 2 (Ki = 44 ± 10 µM), further suggesting
the possibility of partial activation of cyclic peptide 2 under the assay condition. This
result also suggests that even a slight chemical modification at the peptide termini can
greatly impair the inhibitory activity, and highlights the advantage of our traceless linker
for the present purpose.
12

Figure 6. Chemical structure of peptide 9. Linker-related structures are shown in blue.
Cyclic peptide 2 was designed as a prototypal compound that may exhibit
biological function under reducing conditions such as inside cells although it would need
further modification(s) to acquire cell permeability. Therefore, we assessed whether
peptide 2 inhibits proliferation of human acute promyelocytic leukemia cell line HL-60
which is sensitive to LSD1 inhibition [43]. We found that peptide 2, along with peptides
1 and 3, did not show inhibitory effect on the proliferation of HL-60 cells at the final
concentration up to 800 µM, suggesting that cyclic peptide 2 did not penetrate the cell
membrane effectively. Additional modification(s) of peptide 2 should be necessary to
obtain practical membrane permeability, which is under investigation in our laboratories.
2.4. Stability of the peptides to protease.
Cyclic peptides [10-12], including those containing a disulfide bond [30-32],
often show enhanced stability to proteases. Here, we examined the stability of cyclic
peptide 2 toward -chymotrypsin as a representative protease. -Chymotrypsin is a
member of the serine protease family, which cleaves backbone amide bonds on the
C-terminal side of hydrophobic and/or aromatic residues in peptides, such as Phe, Leu,
Tyr, or Trp [44]. As shown in Figure 7, cyclic peptide 2 showed enhanced stability to
-chymotrypsin, compared with linear peptide 1. This result confirmed that cyclization
is effective to improve stability toward protease, and potentially supports the idea that our
molecule would be effective to deliver the fully active linear inhibitor to target sites in a
redox-dependent manner, although further modification of cyclic peptide 2 is necessary
for membrane permeability.
13

Figure 7. Proteolytic digestion of peptides 1 and 2 by -chymotrypsin in Tris buffer
(10 mM, pH 8.0; 0.5% DMSO) at 37 ºC; [peptide] = 20 µM, [-chymotrypsin] = 0.1
µg/mL; closed circle: peptide 2, open square: peptide 1.
14

3. Conclusion
We constructed a redox-responsive cyclic peptide 2 with a traceless linker,
and showed that it is cleanly converted to the unmodified linear peptide 1 in a reducing
environment. Cyclic peptide 2 showed approximately 20 times weaker
LSD1-inhibitory activity than peptide 1, but upon addition of reducing reagent TCEP,
the linker was cleaved and the LSD1-inhibitory activity increased, becoming essentially
the same as that of peptide 1. Also, cyclic peptide 2 was more stable to
-chymotrypsin than peptide 1. These results suggest that the cyclization strategy
used here, with a disulfide-based traceless linker, is effective. Thus, this switch design
not only enables control of functional activity, but also improves stability to hydrolytic
enzyme. The methodology presented here could be applicable to a wide variety of
peptides, and may be advantageous in the development of fine-tuned peptide
pharmaceuticals. Appropriate linker design should also be possible to design peptides
responsive to other stimuli, such as light, pH, or enzymatic activity. Work to develop
other stimulus-responsive peptides is in progress in our laboratories.
15

4. Experimental
4.1. Chemical synthesis
4.1.1. Materials
N-(9-Fluorenylmethyloxycarbonyl)
(Fmoc)-protected
amino
acids,
1-hydroxybenzotriazole (HOBt), 2-(1H-benzotriazol-1-yl)-1,1,3,3-tetramethyluronium
hexafluorophosphate (HBTU), Fmoc-NH-SAL-Resin (0.54 mmol/g),
N,N-diisopropylethylamine (DIPEA), piperidine, trifluoroacetic acid (TFA), and
triisopropylsilane (TIPS) were purchased from Watanabe Chemical Industries
(Hiroshima, Japan). Dichloromethane (DCM) and N,N-dimethyformamide (DMF) were
purchased from Kanto Chemical Co., Inc. (Tokyo, Japan) and Merck Biosciences
(Darmstadt, Germany). Unless otherwise stated, other chemicals and reagents were
obtained commercially and used without further purification. Purified -chymotrypsin
(from bovine pancreas, Type II, lyophilized powder, ≥40 units/mg protein) was purchased
from Sigma-Aldrich (St. Louis, USA).
4.1.2. Disulfide linker 4
To a stirred solution of bis(2-hydroxyethyl) disulfide (400 mg, 2.59 mmol) in DCM
(12.0 mL) at 0 ºC were added pyridine (1.03 g, 13.0 mmol) and p-nitrophenyl
chloroformate (1.31 g, 6.49 mmol). The reaction mixture was allowed to warm to
room temperature and stirred for 6 h. The mixture was diluted with DCM (50 mL),
and washed sequentially with sat. NaHCO3 (30 mL x 3), water (30 mL), 10% citric acid
(30 mL x 2), water (30 mL), and brine (30 mL). The organic layer was dried over
Na2SO4, filtered and concentrated. The resulting residue was purified by silica gel
column chromatography (5% to 50% AcOEt/hexane) to afford disulfide linker 4 (1.26 g,
quant) as a white powder. 1H-NMR (500 MHz, CDCl3): δ 8.28 (d, J = 8.9 Hz, 4H),
13
7.39 (d, J = 8.9 Hz, 4H), 4.57 (t, J = 6.5 Hz, 4H), 3.08 (t, J = 6.5 Hz, 4H). C-NMR
(125 MHz, CDCl3): δ 155.4, 152.4, 145.6, 125.4, 121.9, 66.9, 36.9. IR (KBr, cm-1):
1770, 1520, 1348, 1260, 1213, 928, 860. m.p.: 74.0-74.5 ºC. HR-MS (m/z, EI): calcd for
C18H16N2O10S2 (M+), 484.0246; found, 484.0255.
4.1.3. Methylene linker 5 [45]
To a stirred solution of 1,6-hexanediol (301 mg, 2.55 mmol) in DCM (11.7 mL) at 0 ºC
were added pyridine (1.01 g, 12.7 mmol) and p-nitrophenyl chloroformate (1.28 g, 6.35
16

mmol). The reaction mixture was allowed to warm to room temperature and stirred at
room temperature for 3 h. The mixture was diluted with DCM (20 mL), and washed
sequentially with sat. NaHCO3 (20 mL x3), water (20 mL), 10% citric acid (20 mL x2),
water (20 mL), and brine (20 mL). The organic layer was dried over Na2SO4, filtered,
and concentrated.
The resulting residue was purified by silica gel column
chromatography (3% to 100% AcOEt/hexane) to afford desired linker 5 (995 mg, 87%)
1
as a pale brown powder. H-NMR (500 MHz, CDCl3): δ 8.28 (d, J = 9.1 Hz, 4H), 7.38
(d, J = 9.1 Hz, 4H), 4.31 (d, J = 6.6 Hz, 4H), 1.84-1.78 (m, 4H), 1.53-1.50 (m, 4H).
13C-NMR (125 MHz, CDCl3): δ 155.4, 152.4, 145.6, 125.4, 121.9, 66.9, 36.9. IR (KBr,
cm-1): 1766, 1525, 1347, 1255, 1213, 950, 862. m.p.: 112-114 ºC, HR-MS (m/z, ESI+) :
calcd for C20H20N2NaO10 ([M+Na]+), 471.1016; found, 471.1018.
4.1.4. Synthesis of Fmoc-Lys(Dde)-OH [34, 46, 47]
The synthesis of 2-acetyldimedone (Dde-OH) was performed according to the literature
with slight modifications [46]. Dimedone (6.05 g, 43.2 mmol) and pyridine (3.83 mL,
47.5 mmol) were added to DCM (70 mL), and the mixture was cooled to 0 ºC. Acetyl
chloride (3.73 mL, 10.1 mmol) was added, and stirring was continued at 0 ºC for 1 h.
The reaction mixture was allowed to warm to room temperature, and stirred for 7 h.
The mixture was diluted with DCM (50 mL), and the organic phase was washed with 1
M HCl (100 mL), sat. NaHCO3 (100 mL), and brine (100 mL). The solution was dried
over Na2SO4, filtered, and concentrated. The resulting residue was dissolved in DCM
(97 mL), and AlCl3 (12.21 g, 91.6 mmol) was added. The reaction mixture was stirred at
room temperature for 7 h, then poured into 6 M HCl (70 mL). The aqueous phase was
extracted with DCM (100 mL x 6) and AcOEt (100 mL x 3). The combined organic
layers were dried over Na2SO4, filtered, and concentrated. The resulting residue was
purified by silica gel column chromatography (10% to 20% AcOEt/hexane) to give
2-acetyldimedone (6.05 g, 77%) as a pale yellow oil. Spectroscopic data were identical
to the published data [47]. 1H-NMR (500 MHz, CDCl3): δ 2.61 (s, 3H), 2.53 (s, 2H),
2.36 (s, 2H), 1.08 (s, 6H), MS (m/z, EI): 182 [M]+
Fmoc-Lys(Boc)-OH (5.66 g, 12.1 mmol) was dissolved in 4 M HCl/dioxane (120 mL),
and stirred at room temperature for 2 h to remove the side-chain Boc group. The
solvent was removed under reduced pressure. The resulting residue was dissolved in
EtOH (60 mL), and then 2-acetyldimedone (3.36 g, 18.4 mmol) and DIPEA (6.2 mL,
17

35.6 mmol) were added. The reaction mixture was refluxed for 17 h. After cooling
to room temperature, the solvent was removed under reduced pressure. The residue
was dissolved in AcOEt (300 mL) and washed with 1 M HCl (100 mL) and brine (100
mL), dried over Na2SO4, filtered, and concentrated. The resulting residue was purified
by silica gel column chromatography (0.5% to 3% MeOH/DCM) to give
Fmoc-Lys(Dde)-OH (2.64 g, 41%) as a white solid. Spectroscopic data are identical to
the published data [34]. 1H-NMR (500 MHz, CDCl3): δ 13.31 (brs, 1H), 7.75 (d, J =
7.8 Hz, 2H), 7.59 (t, J = 7.8 Hz, 2H), 7.38 (t, J = 7.8 Hz, 4H), 7.31-7.28 (m, 2H), 5.73
(d, J = 8.0 Hz, 1H), 4.48-4.45 (m, 1H), 4.37 (d, J = 7.1 Hz, 2H), 4.20 (t, J = 7.1 Hz, 1H),
3.43-3.40 (m, 2H), 2.55 (s, 3H), 2.36 (s, 4H), 2.00-1.50 (m, 6H), 1.01 (s, 6H). HR-MS
(m/z, FAB): calcd for C31H37N2O6 ([M+H]+), 533.2652; found, 533.2643.
4.1.5. Synthesis of linear peptide 1.
The linear peptide 1 was synthesized by standard Fmoc solid-phase peptide synthesis.
Prior to the peptide synthesis, Fmoc-NH-SAL-Resin was washed with DMF 5 times.
Three molar amounts of Fmoc amino acid, HBTU, HOBt and 6 molar amounts of
DIPEA were used for each coupling. DMF was used as the reaction solvent. The
reaction mixture was shaken for 30 min at room temperature for each coupling step.
The completion of amino acid coupling was monitored with the Kaiser test. For Fmoc
deprotection steps, the resin was treated twice with 20% (v/v) piperidine in DMF and
shaken for 20 min at room temperature.
When peptide elongation was complete, the peptide was cleaved from the resin and
side-chain protecting groups were removed by shaking with TFA/TIPS/H2O (95:2.5:2.5,
v/v/v) for 2 h. The resin was removed by filtration and rinsed with additional cleavage
cocktail. The combined filtrate was concentrated by blowing Ar. The peptide was
precipitated from cold diethyl ether, and collected by centrifugation/decantation. The
crude peptide was purified by semipreparative, reversed-phase HPLC on an Inertsil
ODS-3 column (GL Sciences, Tokyo, Japan) on a Shimadzu instrument with a linear
gradient system of 10:90 to 50:50 CH3CN/H2O (0.1% TFA) over 40 min at the flow rate
of 3.0 mL/min. The purity of peptide 1 was >99%, based on the peak areas in
analytical HPLC traces at 220 nm. MS (m/z, MALDI-TOF): 1098.7 [M+H]+.
4.1.6. Synthesis of cyclic peptides 2 and 3
18

Fmoc-Lys(Dde)-OH was used for Lys8, instead of Fmoc-Lys(Boc)-OH. After
completion of linear peptide elongation, the resin was swollen with DMF, treated with
20% (v/v) piperidine in DMF for 20 min to remove N-terminal Fmoc protecting group,
and washed with DMF (x 5). The resin was then treated twice with 2% hydrazine
monohydrate (v/v) in DMF [34, 35] for 1 h to remove the Dde group on the Lys8 side
chain, and washed with DMF (x 5).
To the resin-bound peptide with two free amino groups was added activated linker 4
(for peptide 2, 1.5 equiv) or linker 5 (for peptide 3, 1.5 equiv) in DMF and DIPEA (3
equiv). The mixture was shaken at room temperature for 3 h, and then washed with
DMF (x 5) and DCM (x 5). Resin-bound cyclic peptide was cleaved by shaking with
TFA/H2O (for peptide 2, 95:5, v/v) or TFA/TIPS/H2O (for peptide 3, 95:2.5:2.5, v/v/v)
for 2 h. The resin was removed by filtration and rinsed with additional cleavage
cocktail. The combined filtrate was concentrated by blowing Ar. To the mixture was
added cold diethyl ether.
The resulting precipitate was collected by
centrifugation/decantation. The purification was performed by reversed-phase HPLC
using a linear gradient system of 25:75 to 40:60 CH3CN/H2O (0.1% TFA) over 30 min
at the flow rate of 3.0 mL/min. The purities of peptides 2 and 3 were >96% and >97%,
respectively, based on the peak areas in analytical HPLC traces at 220 nm. MS (m/z,
MALDI-TOF): 1304.7 [M+H]+ (2), 1268.7 [M+H]+ (3).
4.1.7. Synthesis of O-tritylglycolic acid[48]
To a solution of glycolic acid (620 mg, 8.15 mmol) in pyridine (30 mL) was added
TrtCl (2.71 g, 9.72 mmol). The mixture was stirred at room temperature for 21 h, then
diluted with AcOEt (100 mL), washed with brine (60 mL x 3), dried over Na2SO4, and
concentrated. The resulting residue was purified by silica gel column chromatography
(0% to 1.5% MeOH/DCM) to give O-tritylglycolic acid (270 mg, 10%) as a white solid.
1H-NMR (500 MHz, CDCl3): δ 7.42 (d, J = 7.5 Hz, 6H), 7.34 (t, J = 7.5 Hz, 6H), 7.27 (t,
J = 7.5 Hz, 3H), 3.91 (s, 2H). HR-MS (m/z, ESI-): calcd for C21H17O3 ([M-H]-),
317.1178; found, 317.1172.
4.1.8. Synthesis of peptide 9
Fmoc-Lys(Dde)-OH was used for C-terminal Lys (Lys10).
For Lys8,
Fmoc-Lys(Boc)-OH was used. After completion of peptide elongation, the N-terminal
19

Fmoc group and Dde group on the Lys10 side chain were sequentially removed as
described for the synthesis of cyclic peptides 2 and 3. The resin-bound peptide with
two free amino groups was treated with 6 molar amounts of O-tritylglycolic acid,
HBTU, HOBt and 12 molar amounts of DIPEA (3 and 6 molar amounts for each amino
group, respectively). The reaction mixture was shaken for 3.5 h at room temperature,
and then washed with DMF (x 5) and DCM (x 5). Then, the peptide was cleaved from
the resin according to the same protocol described for the synthesis of linear peptide 1.
The crude peptide was purified by reversed-phase HPLC with a linear gradient system
of 10:90 to 40:60 CH3CN/H2O (0.1% TFA) over 30 min at the flow rate of 3.0 mL/min.
The purity of peptide 9 was >99%, based on the peak areas in analytical HPLC traces at
220 nm. MS (m/z, MALDI-TOF): 1342.8 [M+H]+.
4.2. Reaction of peptides 2 and 3 with TCEP or DTT
The reaction of the cyclic peptides (final concentration: 100 µM) with TCEP (final
concentration: 300 µM) was monitored by HPLC. Peptide 2 or 3 was dissolved in
DMSO (10 mM) and diluted with PBS (pH 7.4) to prepare peptide solution (102 µM,
10.2 mM PBS, 1.02% DMSO v/v). To the peptide solution (49 µL), TCEP•HCl in
DMSO (15 mM, 1 µL) was added. For the TCEP-free control, DMSO was added
instead. The reaction mixture was shaken at 37 ºC. At each time point, the reaction
mixture (50 µL) was diluted with CH3CN/H2O (1:4, v/v, 450 µL), and injected into the
RP-HPLC. A linear gradient system of 10:90 to 50:50 CH3CN/ H2O (0.1% TFA) over
40 min at the flow rate of 1.0 mL/min was used for separation, with monitoring at 220
nm. Essentially same procedure was used for the reaction of peptide 2 (final
concentration: 100 µM) with DTT (final concentration: 300 µM). Peptide 2 was
dissolved in DMSO (3.3 mM) and diluted with PBS (pH 7.4) to prepare peptide solution
(102 µM, 10.2 mM PBS, 3.06% DMSO v/v). To the peptide solution (49 µL), DTT in
water (15 mM, 1 µL) was added.
4.3. LSD1 inhibition assay
In vitro LSD1-inhibitory activity was measured by the peroxidase-coupled reaction
method as described previously [49]. Briefly, human LSD1 protein (2.8 µM) was
incubated with serial dilutions of LSD1 inhibitor peptides in 50 mM HEPES-Na (pH
7.5) buffer containing 400 µM 4-aminoantipyrine, the modified Trinder’s reagent
20

TOOS (N-ethyl-N-(2-hydroxy-3-sulfopropyl)-3-methylaniline, sodium salt, dihydrate)
and 40 µg/mL horseradish peroxidase at room temperature for 10 min. Then, the
reaction mixture was incubated with 83 µM H3 (1–20) K4me2 peptide for 30 min.
Absorption of the peroxidase byproduct generated by LSD1 demethylation was
measured at 562 nm with a microplate reader (Ultrospec Visible Plate Reader II 96; GE
Healthcare). The results (determined in triplicate) were fitted with the Morrison
equation to obtain Ki using Prism 6 software (version 6.0e). LSD1 was buffered in 20
mM HEPES (pH 7.5), 300 mM NaCl, 2 mM DTT. This sample was loaded onto a
HiPrep 26/10 desalting column, and eluted with 20 mM HEPES (pH 7.5), 300 mM
NaCl in order to remove DTT. LSD1 samples with or without DTT were each used
for the assays. Regarding the cell-based assay, proliferation inhibition was assessed by
alamarBlue cell viability assay (Bio-Rad Laboratories), using the human acute
promyelocytic leukemia cell line HL-60. Cells were cultured in RPMI-1640 medium
(Sigma-Aldrich) which was supplemented with 10% fetal bovine serum (Gibco), 100
units/mL penicillin (Sigma-Aldrich) and 0.1 mg/mL streptomycin (Sigma-Aldrich).
The medium contained only 1 mg/L glutathione (reduced). The cultured cells were
seeded at a density of 4×103 cells per well in a 96-well plate. After 4 h incubation,
peptides 1–3 were added and the cells were incubated at 37 °C for 72 h in a humidified
5% CO2 incubator. Then, alamarBlue reagent was added and cells were treated at 37
°C for 2 h. The fluorescence (excitation: 535 nm, emission: 600 nm) was measured
with EnVision (PerkinElmer) and cell viability was calculated.
4.4. Proteolytic assay [6]
The stability of peptides 1 and 2 to -chymotrypsin was evaluated by conducting
protease reactions at 37 ºC. The reaction was performed in 10 mM Tris-HCl buffer
(pH 8.0) containing 0.5% DMSO (v/v). Tris-HCl buffer (477 µL; pH 8.0) was added
to each polypropylene tube and gently shaken at 37 ºC for 15 min for temperature
equilibration. Then, a solution of peptide (3.0 µL; 4.0 mM in DMSO), and a solution
of -chymotrypsin in 10 mM Tris-HCl buffer (120 µL; 0.5 µg/mL, pH 8.0) were added
sequentially. The final concentrations of peptides and enzyme were 20 µM and 0.1
µg/mL, respectively. The reaction mixtures were gently shaken at 37 ºC, and aliquots
were taken and quenched with a solution of TFA in water (5%, v/v, 200 µL) at the
21

selected time points. The progress of proteolysis was quantified by HPLC analysis of
the quenched reaction solutions on an Inertsil ODS-3 column.
22

Acknowledgement
This work was supported by JSPS KAKENHI Grant Numbers 24590142 (N.U.) and
24613007 (T.U.), and the Asahi Glass Foundation (N.U.). We thank Dr. Masaki
Kikuchi (RIKEN), Dr. Makoto Nishizuka (NCU), and Prof. Mineyoshi Aoyama (NCU)
for helpful discussions.
23

References
[1] K. Fosgerau, T. Hoffmann, Peptide therapeutics: current status and future directions,
Drug Discov. Today, 20 (2015) 122-128.
[2] L. Nevola, E. Giralt, Modulating protein-protein interactions: the potential of
peptides, Chem. Commun., 51 (2015) 3302-3315.
[3] S.M. Miller, R.J. Simon, S. Ng, R.N. Zuckermann, J.M. Kerr, W.H. Moos,
Proteolytic studies of homologous peptide and N-substituted glycine peptoid oligomers,
Bioorg. Med. Chem. Lett., 4 (1994) 2657-2662.
[4] R. Tugyi, K. Uray, D. Ivan, E. Fellinger, A. Perkins, F. Hudecz, Partial D-amino acid
substitution: Improved enzymatic stability and preserved Ab recognition of a MUC2
epitope peptide, Proc. Natl. Acad. Sci. U. S. A., 102 (2005) 413-418.
[5] C. Cabrele, T.A. Martinek, O. Reiser, L. Berlicki, Peptides containing -amino acid
patterns: challenges and successes in medicinal chemistry, J. Med. Chem., 57 (2014)
9718-9739.
[6] J.D. Sadowsky, J.K. Murray, Y. Tomita, S.H. Gellman, Exploration of backbone
space in foldamers containing - and -amino acid residues: developing
protease-resistant oligomers that bind tightly to the BH3-recognition cleft of Bcl-xL,
ChemBioChem, 8 (2007) 903-916.
[7] H.S. Haase, K.J. Peterson-Kaufman, S.K. Lan Levengood, J.W. Checco, W.L.
Murphy, S.H. Gellman, Extending foldamer design beyond -helix mimicry:
/-peptide inhibitors of vascular endothelial growth factor signaling, J. Am. Chem.
Soc., 134 (2012) 7652-7655.
[8] H.N. Gopi, G. Ravindra, P.P. Pal, P. Pattanaik, H. Balaram, P. Balaram, Proteolytic
stability of β-peptide bonds probed using quenched fluorescent substrates incorporating
a hemoglobin cleavage site, FEBS Lett., 535 (2003) 175-178.
[9] J. Chatterjee, F. Rechenmacher, H. Kessler, N-methylation of peptides and proteins:
an important element for modulating biological functions, Angew. Chem. Int. Ed., 52
(2013) 254-269.
[10] E.M. Driggers, S.P. Hale, J. Lee, N.K. Terrett, The exploration of macrocycles for
drug discovery-an underexploited structural class, Nat. Rev. Drug Discov., 7 (2008)
608-624.
[11] L.D. Walensky, G.H. Bird, Hydrocarbon-stapled peptides: principles, practice, and
24

progress, J. Med. Chem., 57 (2014) 6275-6288.
[12] R. Dharanipragada, New modalities in conformationally constrained peptides for
potency, selectivity and cell permeation, Future Med. Chem., 5 (2013) 831-849.
[13] N. Umezawa, Y. Noro, K. Ukai, N. Kato, T. Higuchi, Photocontrol of Peptide
function: backbone cyclization strategy with photocleavable amino Acid,
ChemBioChem, 12 (2011) 1694-1698.
[14] Y. Shi, F. Lan, C. Matson, P. Mulligan, J.R. Whetstine, P.A. Cole, R.A. Casero, Y.
Shi, Histone demethylation mediated by the nuclear amine oxidase homolog LSD1, Cell,
119 (2004) 941-953.
[15] M.G. Lee, C. Wynder, N. Cooch, R. Shiekhattar, An essential role for CoREST in
nucleosomal histone 3 lysine 4 demethylation, Nature, 437 (2005) 432-435.
[16] Y.J. Shi, C. Matson, F. Lan, S. Iwase, T. Baba, Y. Shi, Regulation of LSD1 histone
demethylase activity by its associated factors, Mol. Cell, 19 (2005) 857-864.
[17] E. Metzger, M. Wissmann, N. Yin, J.M. Muller, R. Schneider, A.H. Peters, T.
Gunther, R. Buettner, R. Schule, LSD1 demethylates repressive histone marks to
promote androgen-receptor-dependent transcription, Nature, 437 (2005) 436-439.
[18] B. Laurent, L. Ruitu, J. Murn, K. Hempel, R. Ferrao, Y. Xiang, S. Liu, B.A. Garcia,
H. Wu, F. Wu, H. Steen, Y. Shi, A specific LSD1/KDM1A isoform regulates neuronal
differentiation through H3K9 demethylation, Mol. Cell, 57 (2015) 957-970.
[19] T. Wada, D. Koyama, J. Kikuchi, H. Honda, Y. Furukawa, Overexpression of the
shortest isoform of histone demethylase LSD1 primes hematopoietic stem cells for
malignant transformation, Blood, 125 (2015) 3731-3746.
[20] F. Forneris, C. Binda, A. Adamo, E. Battaglioli, A. Mattevi, Structural basis of
LSD1-CoREST selectivity in histone H3 recognition, J. Biol. Chem., 282 (2007)
20070-20074.
[21] R. Baron, C. Binda, M. Tortorici, J.A. McCammon, A. Mattevi, Molecular mimicry
and ligand recognition in binding and catalysis by the histone demethylase
LSD1-CoREST complex, Structure, 19 (2011) 212-220.
[22] M.M. Pires, J. Chmielewski, Fluorescence imaging of cellular glutathione using a
latent rhodamine, Org. Lett., 10 (2008) 837-840.
[23] B. Zhu, X. Zhang, Y. Li, P. Wang, H. Zhang, X. Zhuang, A colorimetric and
ratiometric fluorescent probe for thiols and its bioimaging applications, Chem.
Commun., 46 (2010) 5710-5712.
25

[24] L.R. Jones, E.A. Goun, R. Shinde, J.B. Rothbard, C.H. Contag, P.A. Wender,
Releasable luciferin−transporter conjugates:ꢀ Tools for the real-time analysis of cellular
uptake and release, J. Am. Chem. Soc., 128 (2006) 6526-6527.
[25] W.A. Henne, D.D. Doorneweerd, A.R. Hilgenbrink, S.A. Kularatne, P.S. Low,
Synthesis and activity of a folate peptide camptothecin prodrug, Bioorg. Med. Chem.
Lett., 16 (2006) 5350-5355.
[26] A. El Alaoui, F. Schmidt, M. Amessou, M. Sarr, D. Decaudin, J.C. Florent, L.
Johannes, Shiga toxin-mediated retrograde delivery of a topoisomerase I inhibitor
prodrug, Angew. Chem. Int. Ed., 46 (2007) 6469-6472.
[27] S.A. Kularatne, C. Venkatesh, H.K. Santhapuram, K. Wang, B. Vaitilingam, W.A.
Henne, P.S. Low, Synthesis and biological analysis of prostate-specific membrane
antigen-targeted anticancer prodrugs, J. Med. Chem., 53 (2010) 7767-7777.
[28] Y. Ishii, Y. Hattori, T. Yamada, S. Uesato, Y. Maitani, Y. Nagaoka, Histone
deacetylase inhibitor prodrugs in nanoparticle vector enhanced gene expression in
human cancer cells, Eur. J. Med. Chem., 44 (2009) 4603-4610.
[29] M.H. Lee, Z. Yang, C.W. Lim, Y.H. Lee, S. Dongbang, C. Kang, J.S. Kim,
Disulfide-cleavage-triggered chemosensors and their biological applications, Chem.
Rev., 113 (2013) 5071-5109.
[30] A. Rozek, J.-P.S. Powers, C.L. Friedrich, R.E.W. Hancock, Structure-based design
of an indolicidin peptide analogue with increased protease stability, Biochemistry, 42
(2003) 14130-14138.
[31] R. Tugyi, G. Mezo, E. Fellinger, D. Andreu, F. Hudecz, The effect of cyclization on
the enzymatic degradation of herpes simplex virus glycoprotein D derived epitope
peptide, J. Pept. Sci., 11 (2005) 642-649.
[32] L.T. Nguyen, J.K. Chau, N.A. Perry, L. de Boer, S.A. Zaat, H.J. Vogel, Serum
stabilities of short tryptophan- and arginine-rich antimicrobial peptide analogs, PLoS
One, 5 (2010) e12684.
[33] M. Tortorici, M.T. Borrello, M. Tardugno, L.R. Chiarelli, S. Pilotto, G. Ciossani,
N.A. Vellore, S.G. Bailey, J. Cowan, M. O'Connell, S.J. Crabb, G. Packham, A. Mai, R.
Baron, A. Ganesan, A. Mattevi, Protein recognition by short peptide reversible
inhibitors of the chromatin-modifying LSD1/CoREST lysine demethylase, ACS Chem.
Biol., 8 (2013) 1677-1682.
[34] B.W. Bycroft, W.C. Chan, S.R. Chhabra, N.D. Hone, A novel lysine-protecting
26

procedure for continuous flow solid phase synthesis of branched peptides, J. Chem. Soc.,
Chem. Commun., (1993) 778-779.
[35] G.B. Bloomberg, D. Askin, A.R. Gargaro, M.J.A. Tanner, Synthesis of a branched
cyclic peptide using a strategy employing Fmoc chemistry and two additional
orthogonal protecting groups, Tetrahedron Lett., 34 (1993) 4709-4712.
[36] L.T. Scott, J. Rebek, L. Ovsyanko, C.L. Sims, Organic chemistry on the solid phase.
Site-site interactions on functionalized polystyrene, J. Am. Chem. Soc., 99 (1977)
625-626.
[37] S. Mazur, P. Jayalekshmy, Chemistry of polymer-bound o-benzyne. Frequency of
encounter between substituents on crosslinked polystyrenes, J. Am. Chem. Soc., 101
(1979) 677-683.
[38] M.C. Alcaro, G. Sabatino, J. Uziel, M. Chelli, M. Ginanneschi, P. Rovero, A.M.
Papini, On-resin head-to-tail cyclization of cyclotetrapeptides: optimization of crucial
parameters, J. Pept. Sci., 10 (2004) 218-228.
[39] M. Lapeyre, J. Leprince, M. Massonneau, H. Oulyadi, P.Y. Renard, A. Romieu, G.
Turcatti, H. Vaudry, Aryldithioethyloxycarbonyl (Ardec): a new family of amine
protecting groups removable under mild reducing conditions and their applications to
peptide synthesis, Chem. Eur. J., 12 (2006) 3655-3671.
[40] A.K. Jain, M.G. Gund, D.C. Desai, N. Borhade, S.P. Senthilkumar, M. Dhiman,
N.K. Mangu, S.V. Mali, N.P. Dubash, S. Halder, A. Satyam, Mutual prodrugs containing
bio-cleavable and drug releasable disulfide linkers, Bioorg. Chem., 49 (2013) 40-48.
[41] M.H. Lee, J.Y. Kim, J.H. Han, S. Bhuniya, J.L. Sessler, C. Kang, J.S. Kim, Direct
fluorescence monitoring of the delivery and cellular uptake of a cancer-targeted RGD
peptide-appended naphthalimide theragnostic prodrug, J. Am. Chem. Soc., 134 (2012)
12668-12674.
[42] C.J. Bowerman, B.L. Nilsson, A Reductive Trigger for Peptide Self-Assembly and
Hydrogelation, J. Am. Chem. Soc., 132 (2010) 9526-9527.
[43] T. Schenk, W.C. Chen, S. Gollner, L. Howell, L. Jin, K. Hebestreit, H.U. Klein,
A.C. Popescu, A. Burnett, K. Mills, R.A. Casero, Jr., L. Marton, P. Woster, M.D.
Minden, M. Dugas, J.C. Wang, J.E. Dick, C. Muller-Tidow, K. Petrie, A. Zelent,
Inhibition of the LSD1 (KDM1A) demethylase reactivates the all-trans-retinoic acid
differentiation pathway in acute myeloid leukemia, Nat. Med., 18 (2012) 605-611.
[44] J.A. Motyan, F. Toth, J. Tozser, Research applications of proteolytic enzymes in
27

molecular biology, Biomolecules, 3 (2013) 923-942.
[45] J.M.J. Frechet, S.M. Standley, R. Jain, C.C. Lee, Main chain acid-degradable
polymers for the delivery of bioactive materials, US patent, 2012, 8,137,700.
[46] A.A. Akhrem, F.A. Lakhvich, S.I. Budai, T.S. Khlebnicova, I.I. Petrusevich, A New
Simple Synthesis of 2-Acylcyclohexane-1,3-diones, Synthesis, 1978 (1978) 925-927.
[47] D. Goodwin, P. Simerska, C.H. Chang, F.M. Mansfeld, P. Varamini, M.J. D'Occhio,
I. Toth, Active immunisation of mice with GnRH lipopeptide vaccine candidates:
Importance of T helper or multi-dimer GnRH epitope, Bioorg. Med. Chem., 22 (2014)
4848-4854.
[48] D.T.S. Rijkers, J.W.M. Höppener, G. Posthuma, C.J.M. Lips, R.M.J. Liskamp,
Inhibition of Amyloid Fibril Formation of Human Amylin by N-Alkylated Amino Acid
and α-Hydroxy Acid Residue Containing Peptides, Chem. Eur. J., 8 (2002) 4285-4291.
[49] S. Mimasu, N. Umezawa, S. Sato, T. Higuchi, T. Umehara, S. Yokoyama,
Structurally designed trans-2-phenylcyclopropylamine derivatives potently inhibit
histone demethylase LSD1/KDM1, Biochemistry, 49 (2010) 6494-6503.
28

29
