X. Gao, S. Zhu, M. Dong et al.
Journal of Catalysis 399 (2021) 201–211
extracted by ethyl acetate, and analyzed with ethyl benzoate as
internal standard. Diethyl ether was used as extract in the conver-
sion of stearic acid and palmitic acid. The gas products were ana-
lyzed by Agilent 7890A gas chromatograph equipped with a TCD
detector. All the products were identified by a Shimadzu GCMS-
QP2010 gas chromatogram–mass spectrometer (GC-MS) and
NMR spectroscopy (Bruker AV-III 400 MHz NMR spectrometer).

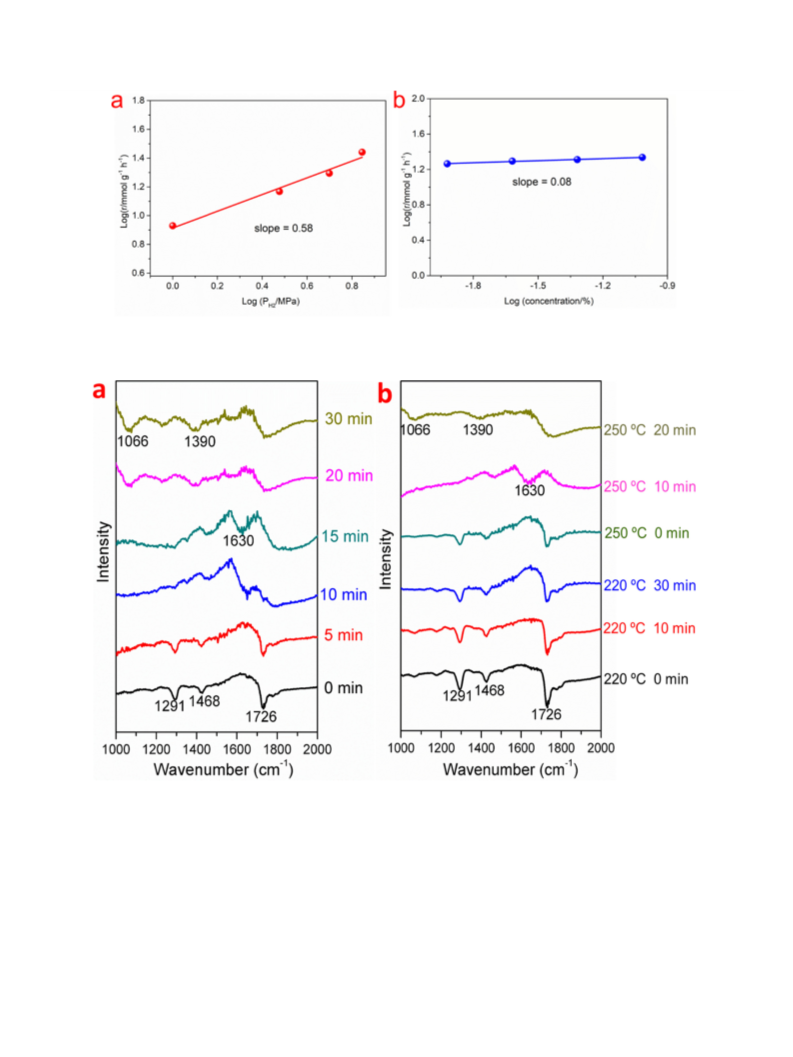

The turnover frequency (TOF) in the conversion of acetic acid
was calculated based on surface Co atoms at low conversion. The
surface Co atoms were estimated on total Co atoms and Co disper-
sion. According to previous report [30], Co dispersion (D) can be
calculated by the equation D = 96/d, in which d refers to Co mean
particle size in nm from TEM counting.
phene layers outside Co NPs are not totally closed, and some cracks
in 0.2–0.8 nm can be found. The annealed samples were fiercely
oxidized once it exposed to air, implying that O2 molecules can
freely pass through graphene layers via cracks to react with hcp-
Co species. Notably, these cracks play a decisive role in exposing
active Co facets for catalytic reaction.
For other samples annealing at 300, 500, 600 and 700 °C
(Figs. S1–S4), all the hcp-Co NPs are well covered by graphene
shell, despite with many cracks. The increased pyrolysis tempera-
ture improves Co particle size, graphene layers and graphitization
degree, but correspondingly declines graphene defects and cracks.
For Co@G300, the presence of both hcp-Co and Co3[Co(CN)6]2 spe-
cies in XRD patterns indicates that Co3[Co(CN)6]2 is not completely
decomposed at 300 °C, as supported by its low Co content but high
N content (Table 1). The BET surface area of hcp-Co@G300 reaches
332.4 m2/g and is much higher than other high temperature sam-
ples, also suggesting that it contains some remaining Co3[Co(CN)6]2
species.
As displayed in Fig. 2a, the diffraction reflections at 17.4°, 24.7°,
35.2°, 39.5° and 51.4° are ascribed to Co3[Co(CN)6]2 over hcp-
Co@G300 [34]. The reflections at 41.4°, 44.5° and 47.4° are
assigned to (010), (002) and (011) planes of hcp-Co phase [26].
Both Co3[Co(CN)6]2 and hcp-Co species are co-existed in hcp-
Co@G300, suggesting the incomplete decomposition of Co3[Co
(CN)6]2. The diffraction peaks of hcp-Co gradually increase in inten-
sity with increasing annealing temperature, indicating a steady
growth of Co particle size. The increase of Co particle size is also
supported by TEM statistical analysis. Additionally, TEM and XRD
results show that (002) plane is the most exposed facet in all the
hcp-Co@G catalysts.
Mole number of con
Number of surface Co atoms ꢂ reation time
verted acetic acid
TOF ¼
In the catalytic reusability tests, the used hcp-Co@G400 catalyst
was magnetically separated from the reaction mixture. The col-
lected catalyst was directly reused for the next run.
2.4. DFT calculation
Periodic DFT calculations were performed in Vienna ab initio
simulation package (VASP) with projector-augmented wave
(PAW) method [31]. Exchange and correlation energies were trea-
ted with spin-polarized generalized gradient approximation and
Perdew, Burke, and Ernzcrhof (PBE) functional [32]. A plane wave
energy cutoff was set as 450 eV, and a 4 ꢂ 4 ꢂ 1 Monkhorst-
Pack k-points were used.
The hcp Co (002) and fcc Co (111) surfaces were modeled by a
four-layer slab with 3 ꢂ 3 unit cell. A 15 Å vacuum layer was set
between the slabs to avoid interlayer interactions along z-
direction. The top two layers of Co atoms and adsorbates were fully
relaxed, while the bottom two layers were fixed during the calcu-
lation. The adsorption energy (Eads) are defined as the equation
Eads = Eads/slab ꢁ Egas ꢁ Eslab, in which Eads/slab, Eads and Eslab are
the energies of the adsorbate with slab, adsorbate in the gas phase,
and the clean slab, respectively.
The transition states calculations were implemented by climb-
ing image nudge elastic band (CI-NEB) method [33]. All the transi-
tion states were validated by vibrational frequency analysis. The
activation energy barrier (Ea) and reaction energy (Er) were deter-
mined by Ea = ETS ꢁ EIS and Er = EFS ꢁ EIS, wherein EIS, ETS, and EFS
are the energies of the initial state (IS), transition state (TS) and
final state (FS), respectively.
The Raman spectra of all the samples are illustrated in Fig. 2b.
The well-resolved two bands at 1344 and 1574 cmꢁ1 are assigned
to D and G bands, respectively [15,21].The D band is associated
with defects or discorded carbon, while G band refers to sp2-
hybridized graphitic carbon [15]. The hcp-Co@G300 catalyst show
very low intensity of D and G bands owing to the preservation of
substantial Co3[Co(CN)6]2. The relative intensity of IG/ID is indica-
tive of graphitization degree. For other samples, the IG/ID ratio
increases with increasing annealing temperature and indicates an
improved graphitization degree, coincident with the enhanced gra-
phene layer number [21].
Unexpectedly, pure hcp Co NPs are successfully fabricated and
remain stable even at high temperature up to 700 °C, which has
never been reported. The hcp Co is only stable below the allotropic
transformation temperature(420–450 °C), whereas the fccstructure
is thermodynamically stable above this temperature [36]. Previous
studies [28,29] have shown that the control synthesis of pure hcp-
Co is a great challenge when the preparation process needs high
temperature thermal treatment. Thus, the formation mechanism
of graphene encapsulated hcp-Co species was necessarily probed
by in situ UV–vis spectra and in situ XRD (Fig. 3a,b and Fig. S5). In
comparison with XRD, UV–vis spectroscopy is more sensitive to
detect surface or minor metal cation species. Fig. 3a in UV–vis spec-
tra show that the as-prepared Co3[Co(CN)6]2 displays many peaks at
250, 320, 528, 600, 638 and 690 nm, which are associated with Co2+
and Co3+. When the annealing temperature enhanced from 30 °C to
100 °C, the presence of very strong adsorption band at 587 nm is
ascribed to the isolated mononuclear octahedral Co2+ [37], originat-
ing from the decomposition of Co3[Co(CN)6]2. A moderate decline in
characteristic peak intensity of Co3[Co(CN)6]2 is also observed in
in situ XRD pattern (Fig. 3b) at 100 °C. The characteristic band of iso-
lated Co2+ is still detected up to 400 °C at UV–Vis spectra. Simultane-
ously, new XRD diffraction reflections at 41.3°, 42.6° and 45.2°
appear, which are assigned to Co2C crystalline [38]. With increasing
annealing time (Fig. S5) or temperature (Fig. 2b), the Co2C character-
istic peaks disappear both in UV–vis spectra and XRD patterns. Since
3. Results and discussion
3.1. Fabrication of hcp-Co@G and structure characterization
Prussian blue analogues (PBA) are one of the most extensively
explored MOFs for their uniform sizes, special thermal properties
and unique reactivity [34,35]. A series of core-shell structure cata-
lysts were prepared by pyrolyzing PBA-structured Co3[Co(CN)6]2
NPs at different temperature in 10% H2/Ar flow. As illustrated in
Fig. 1, the TEM and HRTEM images show that all the uniform Co
NPs in hcp-Co@G400 are well encapsulated by ultrathin graphene
shell. Considering its ultrahigh Co content up to 63.1% (Table 1),
the average Co particle size of 8.8 nm indicates its formation of
rather homogenous Co NPs. The formation of metastable hcp-Co
can be identified by its (111) lattice fringe of 0.202 nm [26], and
no fcc Co is detected.
Statistical analysis of more than 300 core-shell nanocomposites
confirms that the number of graphene shell is only consisted of 2–5
layers. Careful observation in HRTEM images show that the gra-
