Precise 2D-Patterned Incompatible Catalysts for Reactions in One-Pot

Article abstract of DOI:10.1002/chem.201903486

Precise and direct two-dimensional (2D) printing of the incompatible polymer acid–base catalysts and their utility in one-pot two-step reactions were shown. Multistep catalytic reactions using incompatible catalysts in a one-pot reaction cascade requires

Full text of DOI:10.1002/chem.201903486

A Journal of
Accepted Article
Title: Precise 2D-patterned Incompatible Catalysts for Reactions in
One-pot
Authors: Martin O. Pretscher, Tingting Chen, Gabriel Sitaru, Stephan
Gekle, Jian Ji, and Seema Agarwal
This manuscript has been accepted after peer review and appears as an
Accepted Article online prior to editing, proofing, and formal publication
of the final Version of Record (VoR). This work is currently citable by
using the Digital Object Identifier (DOI) given below. The VoR will be
published online in Early View as soon as possible and may be different
to this Accepted Article as a result of editing. Readers should obtain
the VoR from the journal website shown below when it is published
to ensure accuracy of information. The authors are responsible for the
content of this Accepted Article.
To be cited as: Chem. Eur. J. 10.1002/chem.201903486
Link to VoR: http://dx.doi.org/10.1002/chem.201903486
Supported by

10.1002/chem.201903486
Chemistry - A European Journal
Precise 2D-patterned Incompatible Catalysts for Reactions in One-pot
Martin O. Pretscher, Tingting Chen, Gabriel Sitaru, Stephan Gekle, Jian Ji and Seema
Agarwal*
M. O. Pretscher, Prof. Dr. S. Agarwal
Macromolecular Chemistry II, Bavarian Polymer Institute, University of Bayreuth,
Universitätsstraße 30, 95440 Bayreuth, Germany
E-mail: agarwal@uni-bayreuth.de
T. Chen, Prof. Dr. J. Ji
MOE Key Laboratory of Macromolecule Synthesis and Functionalization of Ministry of
Education Department of Polymer Science and Engineering, Zhejiang University, Hangzhou
310027, China
G. Sitaru, Prof. Dr. S. Gekle
Theoretical Physics VI, Biofluid Simulation and Modelling, University of Bayreuth,
Universitätsstraße 30, 95440 Bayreuth
Keywords: 2D printing, heterogenous catalysis, acid base, incompatible catalysts
We show precise and direct two-dimensional (2D) printing of the incompatible polymer acid-
base catalysts and their utility in one-pot two-step reactions. Multi-step catalytic reactions using
incompatible catalysts in a one-pot reaction cascade require special methods and materials for
isolation of catalysts from each other. This, in general is a tedious process requiring special
polymer architectures as catalysts’ carrier for preserving the activity of otherwise incompatible
catalysts. We propose the immobilization of incompatible polymer catalysts, such as polymer
acid and base catalysts, on a substrate in variable sizes and amounts by precise 2D printing.
The copolymers with a basic (4-vinylpyridine) and acidic (styrene sulfonic acid) functionality
and methacryloyl benzophenone as a UV cross-linking unit were used for 2D printing on poly
(ethylene terephthalate) (PET). The printed meshes were immersed together in a reaction
solution containing (dimethoxy methyl)-benzene and ethyl cyanoformate, resulting in a two-
step acid-base catalyzed cascade reaction, i.e. deacetalization followed by carbon-building
reaction. The time-dependent consumption of (dimethoxymethyl)-benzene to the intermediate
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
benzaldehyde and the product was monitored, and a kinetic model was developed to investigate
the underlying reaction dynamics. The complexity of multi-step Wolf-Lamb-type reactions
was generally significantly decreased using our approach due to the easy polymerization and
immobilization procedure.
1. Introduction
Mutually incompatible functional groups, such as acid and base, deactivate each other in
solution. When used as catalysts for organic reactions in one-pot, they lose their catalytic
activity. Such catalysts are called Wolf-Lamb-type catalysts. The work of Patchornik opened
up new possibilities of making one-pot reactions with incompatible catalysts of Wolf-Lamb-
type by immobilizing them on solid supports.[1,2] The catalysts become mutually active and do
not interfere with each other’s catalytic activity if immobilized separately on two different solid
supports which do not come into contact or on one support in a site-isolated manner. This is
highly desirable for cascade reactions in one-pot in which the catalysts (more than one) and
reactants, combined in one reactor, undergo a sequence of precise catalytic steps.
The site-isolated spatial positioning of the catalysts to prevent their deactivation in a simple
way requires new concepts. Polymeric microcapsules are interesting carriers for the site-
isolation of two incompatible catalysts.[3] Microporous organic nanotube networks made by
hyper cross-linking core–shell bottlebrush copolymers immobilized with site-isolated acid and
base catalyst systems showed good catalytic performance for deacetalization-Knoevenagel
cascade reactions.[4] The core and cross-linked shell of self-assembled amphiphilic triblock
copolymers can also be used as separate compartments for the site-isolation of metal catalysts.
Instead, the catalysts can be immobilized in the core of star polymers and a mixture of star
polymers with different core catalysts (acids and bases) can also be used as site-isolated
catalysts in one-pot reactions.[5,6] Mesoporous silica support with acid and basic groups and
sol-gel have also been used for one-pot cascade reactions.[7-9] Compartmentalization by layered
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
Pickering emulsion was recently achieved for carrying out cascade reactions in one-pot. The
acid and base catalysts were immobilized in droplets in different layers avoiding contact with
each other.[10,11] Layer-by-layer self-assembly is another interesting approach to build
multicomponent thin films for cascade reactions.[12]
Although some research progress has been achieved over the years, one-pot multistep reactions
are still not generally applicable in chemo- or bio-catalysis due to the time-consuming special
procedures required for making appropriate carriers. New, efficient and scalable carrier
systems for cascade reactions which are experimentally feasible in a simple way are always
sought.
We recently used electrospun acid and base nonwovens, for a two-step Wolf-Lamb type
catalytic reaction sequence in one-pot. The individual acid and base nonwovens fixed on
separate frames were inserted in the reaction medium in one-pot.[13]
Three-dimensional (3D) printing offers the possibility of precise material structuring, and size
and shape modulations which can be of high utility in heterogenous catalysis. Coelho et al.
have combined the 3D printing of silica monolith and post-printing surface modifications with
palladium and copper metals for catalysis.[14] The use of 3D printing in making structured
catalysts and reaction reactors has been reviewed recently.[15] The inactive scaffolds are
generally produced by 3D printing, followed by the incorporation of functional groups for
catalysis in a post-printing step.[16,17]
Slowing et al. printed directly functional monomers followed by ultraviolet (UV) cross-linking
for making reactor parts for catalytic applications.[18] We show here the 2D patterning of Wolf-
Lamb-type catalysts on a neutral substrate by direct printing of Wolf-Lamb-type (acid and
base) catalytically active polymers and their use in a two-step one-pot reaction. The reaction
sequence tested was the standard deacetalization of (diemethoxymethyl)-benzene as the first
step and C-C bond formation as the second step. The separation between the 2D printed acid-
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
base catalysts is achieved by fixing individual printed membranes in a reaction flask in one-
pot. The technique can be easily extended in a modular way with more than two catalysts for
multi-step reactions in the future.
2. Discussion and results
The acidic and basic copolymer catalysts were synthesized by free radical ter-copolymerization
of styrene, 4-vinylpyridine (basic, Scheme 1 I) or styrene sulfonic acid (SSA) (acidic,
Scheme 1 II/III) units and methacryloyl benzophenone (MABP) to enable post-processing
cross-linking of the polymer to prevent it from dissolving and to let the 2D-printed structures
swell in reaction solution, which is necessary to enable high reachability to the catalytic sites
in the bulk. MABP is a photoreactive cross-linker, very well-known in the literature for the
cross-linking reactions.[19] The benzophenone unit of MABP forms radicals by photo-
illumination, followed by abstraction of C-H hydrogen from the polymer chain and then radical
combination reactions leading to cross-linking as shown in Scheme S1 in SI. The molecular
weight (Mn) was 52000 with a molar mass dispersity (Ð) 1.7 (Supporting information, Figure
S1). The copolymer compositions as determined by 1H-NMR for basic terpolymer is 47 % 4-
vinylpyridine, 42 % styrene and 11 % 4-benzoylphenyl methacrylate (Supporting information,
Figure S2). The copolymer composition for acid terpolymer could not be determined through
only 1H-NMR (Supporting information, Figure S3) due to the overlapping peaks. Therefore,
elemental analysis was used to determine the amount of SSA to be around 16 mol%; with 1H-
NMR, and the amount of styrene and MABP was calculated to be 71 mol% and 13 mol%,
respectively. The molecular weight determined (Mn) was 124000 with a molar mass dispersity
(Ð) 1.7 (Supporting information, Figure S4).
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
m
n
o
ran
O
O
O
O
AIBN
I
m
+ n
+
o
N
Dioxane 70 °C
N
O
O
m
n
o ran
O
O
O
O
AIBN
n
o
+
+
m
II
Dioxane 70 °C
Na
SO3
Na
SO3
O
O
m
n
o
ran
m
n
o ran
HCl
III
O
O
O
O
MeOH
Na
SO3
H
SO3
O
O
Scheme 1. Free radical copolymerization for the formation of polymeric base (I) and acid (II).
The copolymers individually were dissolved in a mixture of THF and DMF (9 to 1 with 20
wt% in the case of acid copolymer, viscosity at 26 Pa s at a shear rate of 10 s-1 and 30 wt% in
the case of base copolymer, viscosity at 0.3 Pa s at a shear rate of 10 s-1 (Supporting
information, Figure S5)).
The polymers are separately patterned on commercial poly(ethylene terephthalate) (PET) mesh
with a line width of 120 µm (Figure 1) followed by UV cross-linking. The patterned structure
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
shows a good alignment with the printing file (Supporting information, Figure S6). The 3D
printer Celllink Inkredible+ was used for patterning the catalysts.
Figure 1. Digital photographic image of the patterned printed structure used. (A) is for the acid
copolymer and (B) is for the basic copolymer.
The patterned cross-linked samples had about 3 mg of the catalytic polymers per cm², which
leads to 12 µmol in the case of the basic catalyst (4-VP units) and 6 µmol in the case of the
acidic catalyst (SSA units) per cm². The samples were analyzed using microscopy and Raman
imaging (Figure 2 and 3; microscopic stitching images are shown in the supporting
information, Figure S7). The position of the acid and basic polymer catalysts could be
identified utilizing Raman measurements. The acid polymer catalyst p(S-co-SSA-co-MABP)
was deposited between the cavities of the PET mesh (Figure 2 B, C) separated by PET spacers
with only a very thin layer on top of the PET structure.
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal

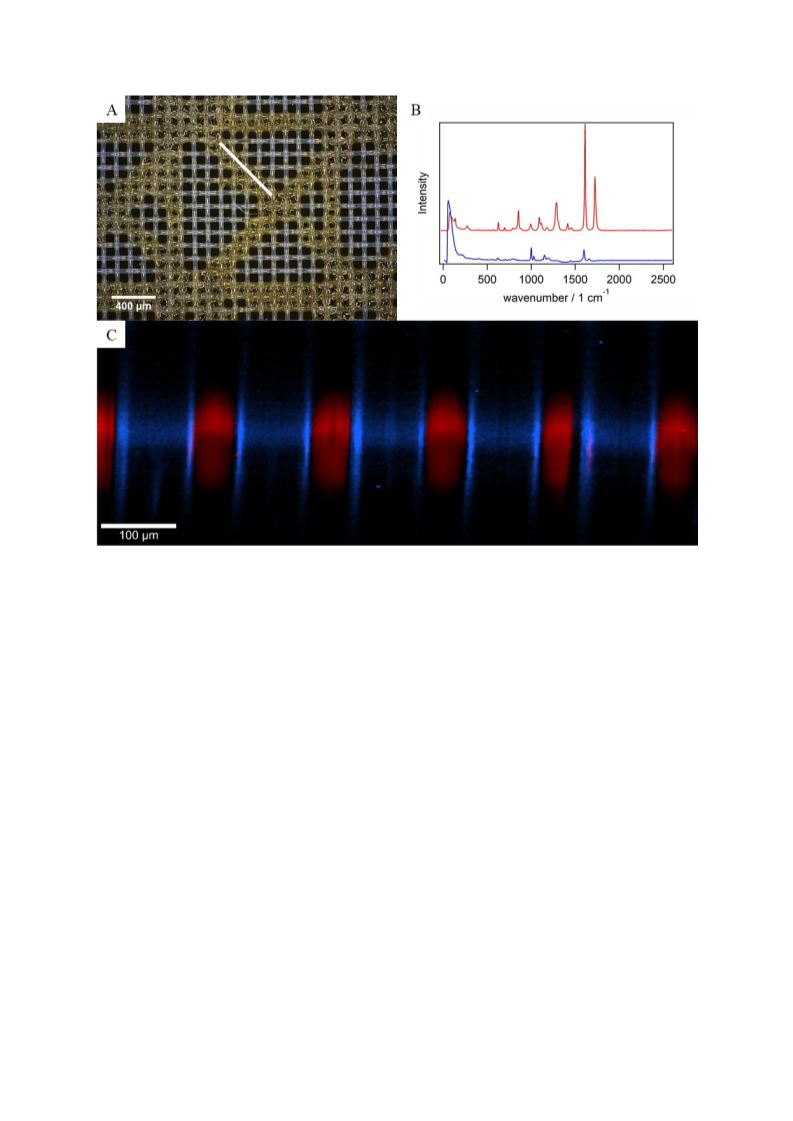

Figure 2. Microscopy image of the 3D-printed acid copolymer with a white line showing the
place used for Raman imaging (A), the Raman spectrum for PET (red) and acid copolymer
(blue) (B) and the Raman imaging for the 2D-printed structure indicating high amounts of the
copolymer in between the meshes (C).
The microscopy images and the Raman spectra (Figure 3A and 3B) showed the deposition of
the polymer in the cavity between the PET spacers and on top of the PET for the basic
polymeric catalyst. The polymer catalysts deposited between the PET spacers have a high
accessibility from both sides.
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal

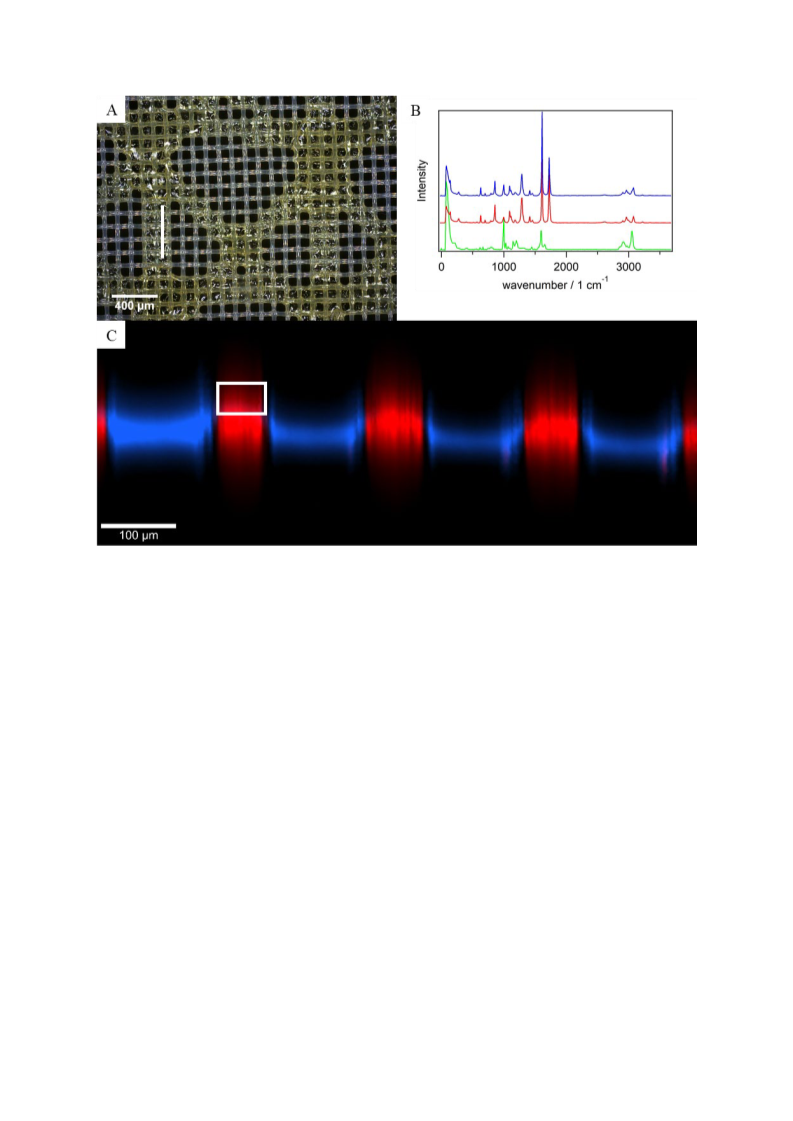

Figure 3. Microscopy image of the 3D-printed basic polymer (A) with a white line indicating
the measured position in Raman imaging, the Raman spectrum for PET (blue), basic polymer
(green) and for the white box within image the Raman imaging (red), in which the red part is
the PET mesh and the blue part the 3D-printed polymer (C).
The patterned cross-linked polymer catalysts were immersed in DMF to check their solvent
stability and the structures were monitored afterwards utilizing microscopy images (Figure
S8). The structures were stable after immersion in DMF and a swollen state was observed. The
swelling of the polymers should be advantageous for the catalytic experiment because the
swollen 2D-printed structure would have good accessibility to catalytic sites.
Subsequently, the patterned acid-base (Wolf-Lamb-type) catalysts were tested for their activity
by performing deacetalization and the formation of cyano(phenyl)methyl ethyl carbonate (two-
step) reactions in one-pot. The first step was catalyzed by acid and the second by base
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
(Scheme 2). The reactions were followed by gas chromatography (GC) measurements with the
help of undecane as an internal standard.
O
O
O
O
O
O
+
+
H
2O
O
Acid
NC
Basic
O
CN
Scheme 2. Two-step reaction sequence catalyzed by incompatible acid and base catalysts : first
step- deacetalization of (dimethoxy)methyl benzene to benzaldehyde (acid catalyzed), second
step- C-C bond formation by reaction of ethyl cyanoformate and benzaldehyde (base
catalyzed).
Firstly, the individual acid catalysts were used in different amounts (Figure 4). The acid
catalyzed deacetalization was fast: 50 % conversion to benzaldehyde was achieved in 10 min
using 15 mg of the acid catalyst (16 µmol, 0.75 mol% SSA, Figure 4A green x). The rate
increased further on increasing the amount to 30 mg (32 µmol, 1.5 mol% SSA, Figure 4A blue
cross) and 90 % benzaldehyde was produced in 10 min. Subsequently, the two-step system was
established. The pure acidic reactions were compared with the acidic part of a Wolf-Lamb-type
two-step reaction leading to the result that the reaction was slower using the same amount of
acidic catalyst (30 mg; Figure 4A green “x” for pure acidic reaction) but faster than using half
of the amount (15 mg; Figure 4A blue “+” symbol), indicating a slight deactivation due to
water within the reaction chamber, which is unavoidable as it is necessary for the
deacetalization reaction. Still, the reaction produced more than 90 % benzaldehyde in 60 min.
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal

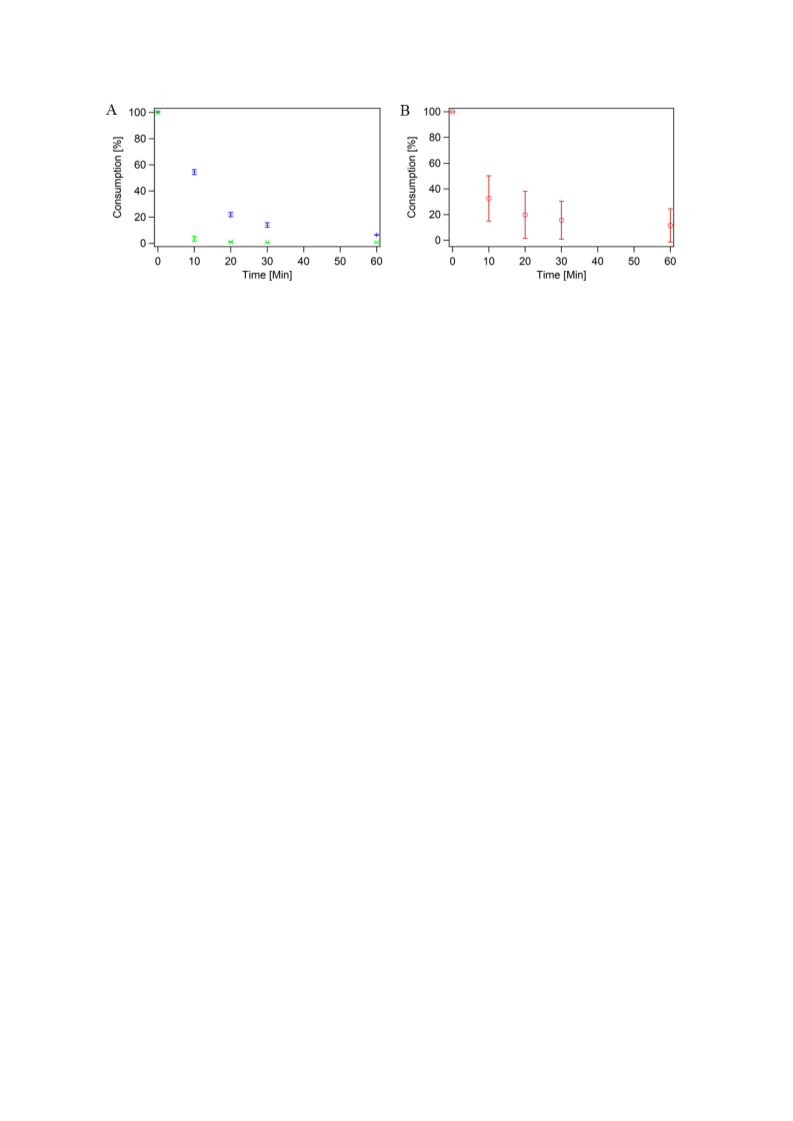

Figure 4. Consumption of the deacetalization from (dimethoxy)methyl benzene to
benzaldehyde in a single step reaction. The reaction stops after 60 min with a consumption of
over 95 % (A), the catalytic load was 1.5 mol% (green x) and, respectively, 0.75 mol% (blue
+). A comparison shows that similar results are obtained for 2D-printed structures in two-step
reactions. (B) Partial deactivation is observable as the resulting time consumption curve
(1.5 mol L-1 catalytic load) is faster than the blue crosses, but slower than the green x. The
reaction condition for all experiments was 80 °C and consumption was monitored using GC;
all reagents were dissolved at the beginning.
As a model reaction, the deacetalization described already was further followed by a basic
catalyzed reaction of benzaldehyde and ethyl cyanoformate (Scheme 2), which led to the
formation of a carbonate group. Here, the study was performed with 30 mg (1.5 mol% of SSA
groups) of acidic catalyst and 60 mg (9.6 mol% of 4-vinylpyridine groups) of basic catalyst.
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal

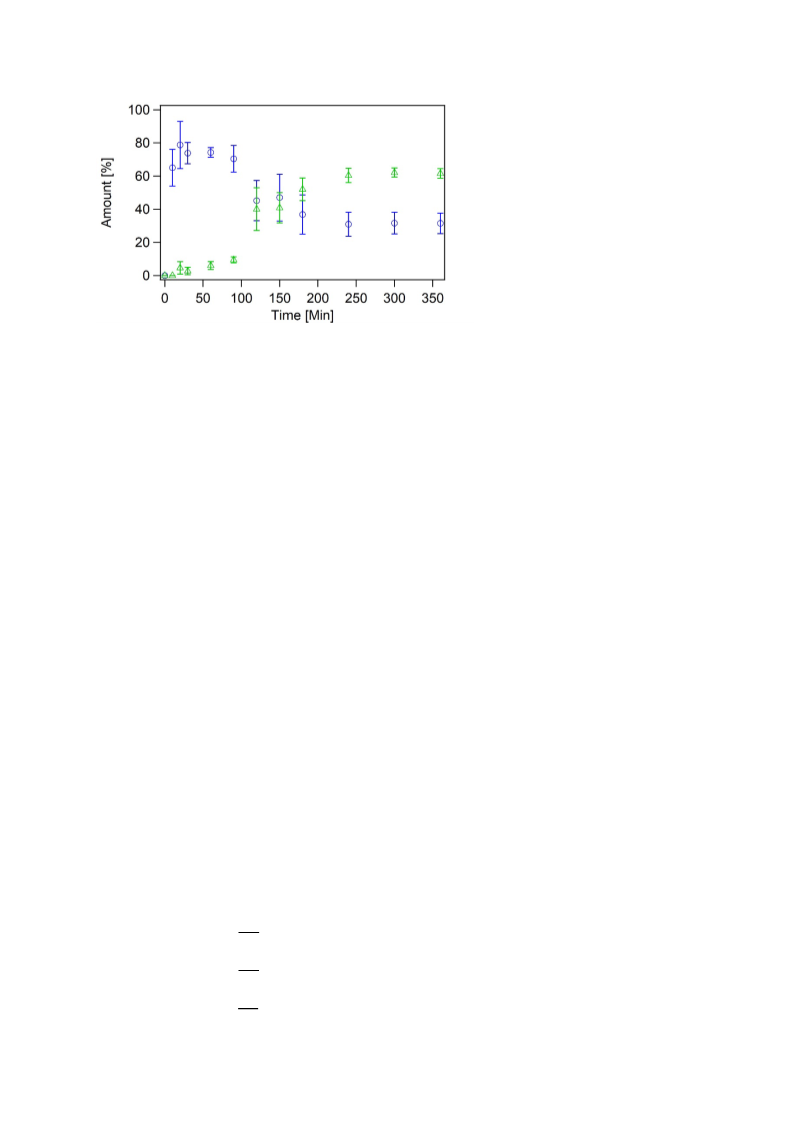

Figure 5. Two-step Wolf-Lamb-type reaction showing the amount of benzaldehyde (blue
circle) and cyano(phenyl)methyl ethyl carbonate (green triangles). The amount of catalyst used
was 1.3 mol% (30 mg acid terpolymer) styrene sulfonic acid and 9.6 mol% 4-vinylpyridine (60
mg base terpolymer). The catalytic reaction was performed at 80 °C, all reagents and catalysts
were immersed at the beginning and the amount was monitored utilizing GC.
As expected, the amount of benzaldehyde increases towards a maximum at around 60 min with
an amount of around 80 % (Figure 5). The amount of cyano(phenyl)methyl ethyl carbonate
increases significantly after 60 min until the maximum is reached at 250 min with a conversion
of 62 %. The low conversion can be explained by the low basicity of 4-vinylpyridine, which
can be improved in future by using a strong base. Furthermore, it was possible to show that it
is possible to restart the basic reaction by the addition of ethyl cyanoformate (Supporting
information, Figure S10), possibly due to an effect of equilibrium in combination with a low
catalytic load.
Kinetical studies were carried out to gain a greater understanding. The reactions were fitted
with differential equations describing the reaction rates (equation 1-5).
ꢀꢁ
ꢂ
= −ꢄ1ꢅꢆ(ꢇ)ꢅꢈ(ꢇ)
(1)
(2)
(3)
ꢀꢃ
ꢀꢁ
ꢉ
= −ꢄ1ꢅꢆ(ꢇ)ꢅꢈ(ꢇ)
ꢀꢃ
ꢀꢁ
ꢊ
= ꢄ1ꢅꢆ(ꢇ)ꢅꢈ(ꢇ) − ꢄ2ꢅꢋ(ꢇ − ꢌꢇ)ꢅꢍ(ꢇ)
ꢀꢃ
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
ꢀꢁ
ꢎ
ꢏ
= −ꢄ2ꢅꢋ(ꢇ − ꢌꢇ)ꢅꢍ(ꢇ)
= ꢄ2ꢅꢋ(ꢇ − ꢌꢇ)ꢅꢍ(ꢇ)
(4)
(5)
ꢀꢃ
ꢀꢁ
ꢀꢃ
Here, ꢅꢆ is the concentration of (dimethoxy)methyl benzene, ꢅꢈ is the concentration of water,
ꢅꢋ is the concentration of benzaldehyde and ꢅꢍ is the concentration of ethyl cyanoformate. k1
and k2 are the reaction rates of the first and second reaction step, respectively. The necessity of
a parameter ꢌꢇ was already described in our previous work for this specific reaction.[13] There,
we were able to show that the retarded start needed to be expressed by this specific parameter,
as otherwise, no reasonable fits were obtained. A retarded start is generally expected for such
reactions.[20,21]
The resulting fitted parameters (Table 1) are close to the experimental values. Only the value
for water (ꢅꢈ0) is much lower (0.44 mol L-1) compared to the experimental value of 1 mol L-1.
A possible explanation is the adsorption of water within the printed structures leading to a
decrease of its availability. The fits show a reasonable alignment with the data (Figure 6).
Table 1. Resulting fitted parameters after solving equation 1-5.
Parameter
ꢅꢆ0
Fitted value
0.48 mol L-1
0.44 mol L-1
0.6 mol L-1
ꢅꢈ0
ꢅꢍ0 (fixed)
Δt
39 min
0.51 mol (L min)-1
0.01 mol (L min)-1
ꢄ1
ꢄ2
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal

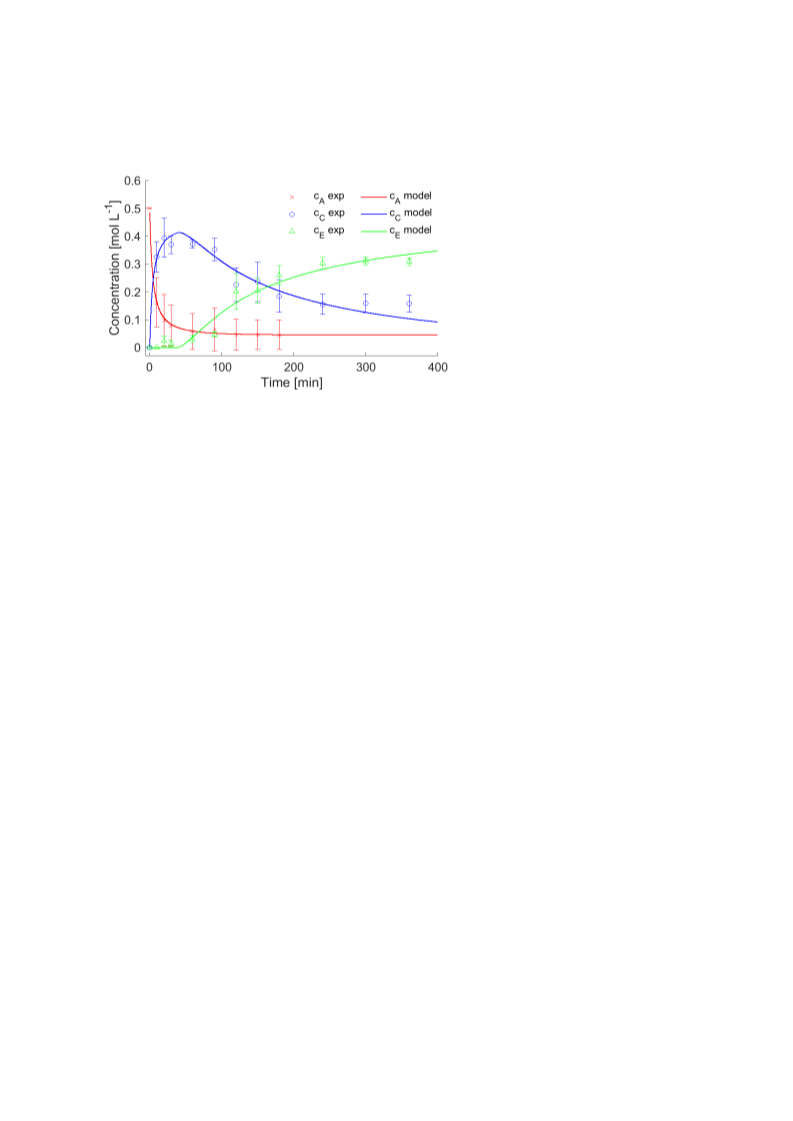

Figure 6. Kinetical fitted parameters of the two-step cascade reaction catalyzed by
incompatible acid-base catalysts: red, blue and green are the amounts of (dimethoxy)methyl
benzene, benzaldehyde and cyano(phenyl)methyl ethyl carbonate, respectively.
3. Conclusion
The 2D-printed structures were shown to be suitable carrier material for incompatible acid-
base catalysts for one-pot cascade reaction sequence. The polymers reacting as acid and base
catalysts were made by free radical polymerization and 2D printing on top of a PET mesh was
done using a 3D printer. Here, we were able to characterize the 2D-printed structures by optical
microscopy and Raman studies. The polymer-carrying meshes were immersed in the reaction
solution for the two-step reaction. Although, both reaction steps were achieved in parallel, but
the second step showed a retarded start of 50 min. The overall conversion was around 90 % for
the first step and 62 % for the second step. Subsequently, a kinetic model was designed to
observe the underlying reaction dynamics. The complexity of such systems was significantly
decreased with our approach due to the easy polymerization and immobilization techniques
used.
The conversions need to be improved in future studies to obtain a higher overall yield.
Functionality of the basic monomer can be changed towards, for example, amine-based
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
comonomers, as done by other groups, to increase the amount of reactions that can be catalyzed.
Overall, a great toolkit for such catalytic reactions was achieved which is usable for further
studies.
4. Experimental Section
Materials
The DMSO (p.a. grade), THF (p.a. grade) and DMF (p.a. grade) were purchased from Alfa
Aesar and used as received. The 4-vinylpyridine (98 %) and styrene were purchased from
Sigma Aldrich and distilled in vacuo. Sodium styrene sulfonate (90 %, Alfa Aesar) was
recrystallized from a mixture of ethanol and water (90/10 volume%). The ethyl cyanoformate
(98 % Alfa Aesar), dimethoxybenzylacetal (99 %, Alfa Aesar) and undecane (> 99 %, Alfa
Aesar) for the catalytic experiments were used as received.
Methods
Nuclear magnetic resonance (NMR) spectroscopy: 1H-NMR experiments were recorded on a
Ultrashield-300 spectrometer at room temperature in either CDCl3 or DMSO-d6. Spectra were
calibrated according to the residue protons of the deuterated solvent signal. Evaluation of
spectra was carried out with MestReNova (Mestrelab research, version 6.1).
The 3D printing was performed with a Celllink Inkredible+ with a one-needle setup. Solutions
were 20 wt% for poly(S-co-SSA-co-MABP) and 30 wt% for poly(S-co-4VP-co-MABP) in
THF/DMF (90/10). A pressure of 170 kPa was used for polymer solution flow through the
syringe. The solutions were printed on a PET mesh with a mesh width of 120 µm. The printed
structure was cross-linked for 3 h under UV light with an UV-F 400 F (honle UV technology)
from the top side of the samples.
Optical Microscope images were taken by a Smartzoom5 (Zeiss).
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
Size Exclusion Chromatography (SEC) measurements were performed in DMF (HPLC grade)
with lithium bromide (5 g L-1) as an eluent and solvent and an internal standard of toluene on
2 PSS-GRAM gel columns (particle size = 10 μm) with a porosity of 100 to 3000 Å, a flow
rate of 0.5 mL min-1 and a refractive index detector (Agilent Technologies) on a SEC 1260
Infinity (Agilent Technologies). A narrowly distributed polystyrene homopolymer was used
(PSS calibration kit) for calibration.
Gas Chromatography (GC): The GC measurements were performed on a GC-FID system (GC-
2010 Plus, Shimadzu), using nitrogen as a carrier gas. An amount of 10 µL of the reaction
mixture was dissolved in 1 mL acetonitrile. A volume of 1 µL was injected with a split ratio of
1:50 and measured from 50 °C (2-min hold) up to 300 °C with a heating rate of 15 K min-1.
Raman imaging was performed with a WITec alpha 300 RA+ imaging system with a UHTS
300 spectrometer and a back-illuminated Andor Newton 970 EMCDD camera. An excitation
wavelength of λ = 352 nm and an integration time of 0.5 s pixel-1 was used.
Rheology was measured with a Modular Compact Rheometer MCR 302 (Anton Paar) using a
standard Measuring System CC17 (concentric cylinder) with a shear rate starting at 0.01 s-1 to
100 s-1 with 5 points per decade. Points were measured starting with 20 s down to 5 s during
measurements.
MatLab Version 2015a was used for the fitting of the differential equations.
Synthesis of cross-linkable base polymer
The 0.1 eq methacryloyl benzophenon was placed in a round-bottom Schlenk flask and
dissolved in THF. The 0.4 eq styrene and 0.5 eq 4-vinylpyridine were added to the mixture
subsequently and the reaction mixture was degassed with Argon for 30 min (the concentration
of monomers was 4 mol L-1). The reaction mixture was heated to 60 °C, 0.8 wt% AIBN was
added and it was stirred for 16 h. The polymer was precipitated in diethyl ether, the resulting
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
polymer was redissolved twice in DMSO and precipitated in diethyl ether. The crude product
was then dried at 60 °C in vacuo.
1H NMR (300 MHz, CDCl3, δ): 1.0–1.6 (polymer backbone, CH2; CH3); 1.6–2.5 (polymer
backbone CH); 6.0–6.6 (aromatic, CH); 6.6–7.2 (aromatic, CH); 7.4–7.7 (aromatic CH;); 8.1–
8.5 (aromatic, CH).
Synthesis of cross-linkable acid polymer
The 0.1 eq methacryloyl benzophenone and 0.15 eq recrystallized sodium styrene sulfonate
were placed in a round-bottom Schlenk flask and dissolved in DMSO. The quantity of 0.75 eq
styrene was added to the solution and the reaction mixture was degassed with argon, heated to
70 °C and 0.6 wt% AIBN was added. The polymer was then precipitated in Isopropanol and
dried at 60 °C in vacuo.
The crude product obtained was dissolved in methanol and concentrated HCl solution was
added dropwise to obtain a white solid. The product obtained was filtered and dried at 60 °C
in vacuo.
1H NMR (300 MHz, DMSO-d6, δ): 0–1.6 (polymer backbone, CH2; CH3); 1.6–2.5 (polymer
backbone CH); 6.0–6.6 (aromatic, CH); 6.6–7.2 (aromatic, CH); 7.4–7.7 (aromatic, CH).
Catalytic experiment two-step system
The 3D-printed structures (30 mg (1.5 mol%) of the acidic poly(styrene-stat-SSA-stat-methyl
acryloyl benzophenone)) and 60 mg (9.6 mol% of (dimethoxymethyl)benzene) of the basic
poly(styrene-stat-4-vinylpyridine-stat-methyl acryloyl benzophenone) on PET meshes were
added into a 10 mL vial.
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
A solution of 1 eq dimethoxybenzylacetal was dissolved in DMF (c = 0.5 mol/L) and,
subsequently, 1.2 eq ethyl cyanoformate, 2 eq water (Milli-Q) and undecane as an internal
standard were added for the catalytic experiments. The reaction mixture was heated to 80 °C
and the immobilized nonwoven structures were immersed in the reaction medium.
Conflict of interest
The authors have no conflict of interest to declare.
Supporting Information
Supporting Information is available from the Wiley Online Library or from the authors.
Acknowledgements
The authors are indebted to the DFG-SFB 840, A12 for financial founding. Dr. Holger
Schmalz, Mina Heidari and Rika Schneider are thanked for analytical assistance.
Received: ((will be filled in by the editorial staff))
Revised: ((will be filled in by the editorial staff))
Published online: ((will be filled in by the editorial staff))
[1] B. J. Cohen, M. A. Kraus, A. Patrchonik, J. Am. Chem. Soc. 1977, 99, 4165.
[2] B. J. Cohen, M. A. Kraus, A. Patchornik, J. Am. Chem. Soc. 1981, 103, 7621.
[3] S. L. Poe, M. Kobaslija, D. T. McQuade, J. Am. Chem. Soc. 2006, 128, 15586.
[4] H. Zhang, L. Xiong, L., Z. He, A. Zhong, T. Wang, Y. Xu, K. Huang, New J. Chem. 2016,
9, 7282.
[5] B. Helms, S. J. Guillaudeu, Y. Xie, M. McMurdo, C. J. Hawker, J. M. J. Fréchet, Angew.
Chem. Int. Ed. 2005, 117, 6542.
[6] Y. Chi, T. Scroggins, J. M. J. Fréchet, J. Am. Chem. Soc. 2008, 130, 6322.
[7] N. R. Shiju, A. H. Albers, S. Khalid, D. R. Brown, G. Rothenberg, Angew. Chem. Int. Ed.
2011, 50, 9615.
[8] S. Shylesh, A. Wagener, A. Seifert, S. Ernst, W. Thiel, Angew. Chem. Int. Ed. 2010, 49,
184.
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
[9] Yang, Y., Lio, Xiao, Li, X., Zhao, J., Bai, S., Lui J., Yang, Q., Angew. Chem. Int. Ed. 2012,
51, 9164.
[10] H. Yang, L. Fu, L. Wie, J. Liang, B. P. Binks, J. Am. Chem. Soc. 2015, 137, 1362.
[11] N. Xue, G. Zhang, X. Zhang, H. Yang, Chem. Commun. (Camb) 2018, 92, 13014.
[12] S. Disawal, J. Qiu, B. B. Elmore, Y. M. Lvov, Colloids Surf. B Biointerfaces 2003, 32,
145.
[13] M. O. Pretscher, S. Gekle, S. Agarwal, Macromol. Rapid Commun. 2019, 1900148.
[14] A. S. Diaz-Marta, C. R. Tubio, C. Carbajales, C. Fernández, L. Escalante, E. Sotelo, F.
Gitián, V. L. Barrio, A. Gil, A. Coelho, ACS Catal. 2018, 8, 392.
[15] C. Parra-Cabrera, C. Achille, S. Kuhn, R. Ameloot, Chem. Soc. Rev. 2018, 47, 209.
[16] P. J. Kitso, M. D. Symes, V. Dragone, L. Cronin, Chem. Sci. 2013, 4, 3099.
[17] J. Lefevere, M. Gysen, S. Mullens, V. Meynen, J. Van Noyen, Catal. Today 2013, 216,18.
[18] J. S. Manzano, Z. B. Weinstein, A. D. Sadow, I. I. Slowing, ACS Catal. 2017, 7, 7567.
[19] G. Dormán, G. D. Prestwich, Biochemistry, 1994, 33, 5661.
[20] M. North, S. Urwin, Tetrahedron 2014, 70, 7100.
[21] H. Seto, K. Imai, Y. Hoshino, Y. Miura, Polym. J. 2016, 48, 897.
This article is protected by copyright. All rights reserved.

10.1002/chem.201903486
Chemistry - A European Journal
The 2D patterned structures were used as Wolf-Lamb-type catalysts. Here, an acid and
base polymer were synthesized, printed on separate PET, cross-linked by UV light and
then immersed in solution to monitor the kinetic of such a multi-step one-pot catalysis.
The kinetical constants were calculated using differential equations.
Keyword heterogenous catalysis
Martin O. Pretscher, Tingting Chen, Gabriel Sitaru, Stephan Gekle, Jian Ji and Seema
Agarwal*
Precise 2D-patterned Incompatible Catalysts for Reactions in One-pot
This article is protected by copyright. All rights reserved.
