(a)
(b)
1
0.8
0.6
0.4
0.2
0
0.4
0.3
0.2
nL
(ML)n
0
1
2
300
500
700
Molar ratio of [Mn]/[L]
Mn(OAc)3 2H2O
Wavelength / nm
L1
KOH

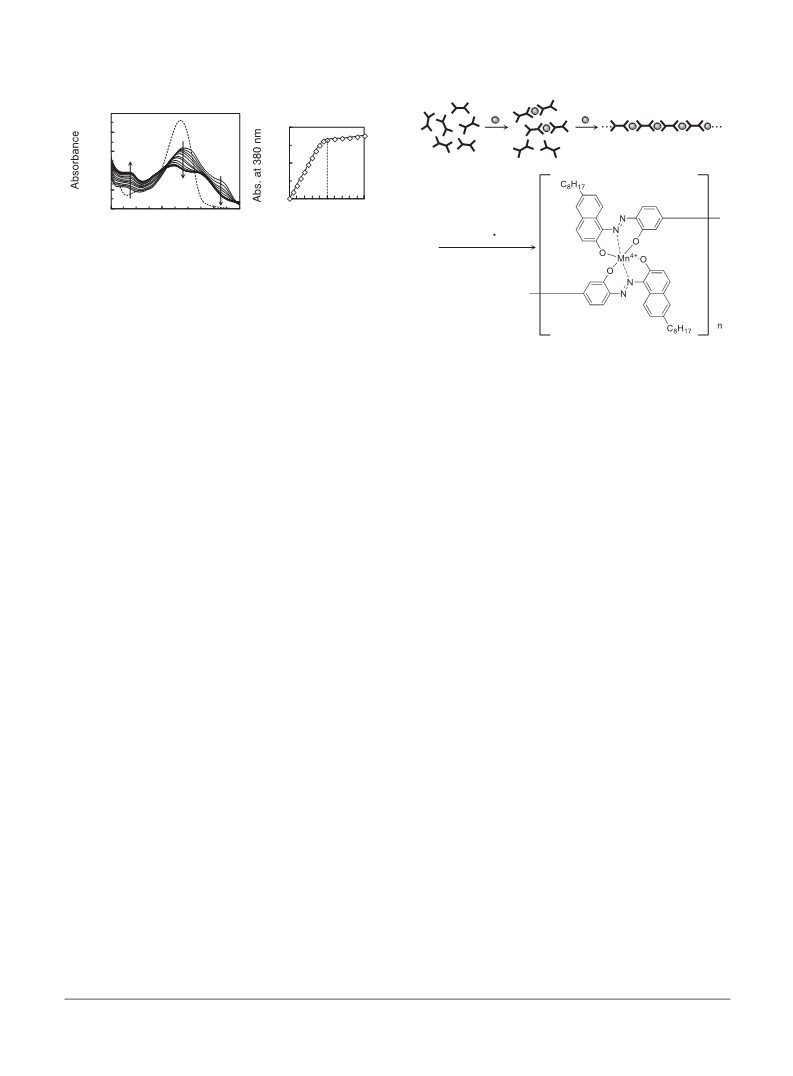

Figure 3. (a) UV-vis spectra of L1 in DMSO during the
addition of Mn(OAc)3¢2H2O (broken line: L1 (20 ¯M), solid
line: L1 (20 ¯M) + triethylamine (80 ¯M) + [Mn(III)] (0-40
¯M)). (b) Absorbance change at 380 nm as a function of the
molar ratio of [Mn]/[L1].
EtOH/DMF
100 °C, 24 h
spectroscopy (Figure 3). The experiments were performed under
air conditions to promote auto-oxidation of Mn(III) to Mn(IV).
When a DMSO solution of Mn(OAc)3¢2H2O (16 mM) was
gradually added to a DMSO solution including L1 (20 ¯M)
and triethylamine (80 ¯M), the absorptions at 577 and 732 nm
decreased and those at 380 and 880 nm increased due to the
complexation (Figure 3a). The color of the solution changed
from violet to gray. The absorbance change at 380 nm was
plotted as a function of the molar ratio of [Metal]/[L]
(Figure 3b). The absorbance at 380 nm enhanced linearly on
increasing the molar ratio up to 1.0, and the spectral change
became almost silent for further addition of Mn ions. This
absorbance change suggests that the complexation of L1 and Mn
ions proceeds at a 1:1 ratio. A similar complexation behavior
was also conformed in the absence of the base, too: the final
spectrum was almost similar to that shown in Figure 3, though
the initial spectrum was different. It indicates that the ability of
Mn ions to complex with L1 is much higher than that of protons,
probably because of the thermodynamically higher stability of
Mn complex moieties by the multidentate coordination of L1.
The complexation of L1 with Co(II) or Cr(III) ions was also
investigated. During the addition of Co(OAc)2 to a DMSO
solution of L1, the absorbance at 365 and 615 nm increased and
that at 525 nm decreased until the molar ratio of L1 and Co(II)
ions became 1:1. It is expected that Cr(III) ions also form a
1:1 complex with L1 according to a previous study,13 but the
complexation with Cr(OAc)3 was not observed at room temper-
ature. As for the complexation of L1 with Cu(II), Ni(II), and
Zn(II) ions, their titration results revealed that the molar ratio in
the complex was not 1:1 but 1:2.
A Mn-based metallo-supramolecular polymer polyMnL1
was synthesized by the 1:1 complexation of L1 and Mn(OAc)3¢
2H2O (Figure 4). KOH (0.800 mmol) was added to an ethanol/
DMF (1/1, v/v) solution (500 mL) of L1 (0.200 mmol).
After the solution was heated up to 50 °C, Mn(OAc)3¢2H2O
(0.200 mmol) was added to the solution. Then, the solution was
heated at 100 °C for 24 h under air. After the reaction, the
solvent was evaporated and the residue was washed using water
and methanol. PolyMnL1 was obtained as dark violet powder in
89% yield (IR (KBr) ¯ (cm¹1): 3043, 2953, 2941, 2852, 1585,
1560, 1546, 1492, 1456, 1438, 1388, 1344, 1313, 1284, 1203,
1163, 1112, 999, 908, 837, 827, 798, 563; UV-vis spectrum (in
NMP): -: 334, 590, 890 nm). While L1 is soluble in common
Figure 4. Synthesis of polyMnL1.
organic solvents, polyMnL1 is soluble only in highly polar
solvents such as THF, DMF, and 1-methyl-2-pyrrolidone
(NMP). An NMR spectrum of polyMnL1 was not obtained
due to the paramagneticity.12 In the IR spectrum, the N=N
¹1
stretching bond was shifted from 1618 (L1) to 1585 cm
(polymer) because of the complexation. The Ar-O stretching
vibration also moved to 1217 from 1205 cm¹1. Similarly, Co-
and Cr-based polymers polyCoL1 and polyCrL1 were also
prepared at 100 °C by the 1:1 complexation of using L1 and
Co(OAc)2 or Cr(OAc)3, respectively (polyCoL1: yield: 92%; IR
(KBr) ¯ (cm¹1): 3043, 2953, 2941, 2852, 1589, 1546, 1491,
1446, 1350, 1305, 1211, 1161, 997, 825, 798, 500; UV-vis
spectrum (in NMP): -: 357, 591, 620 nm; polyCrL1: yield:
>99%. IR (KBr) ¯ (cm¹1): 3043, 2953, 2941, 2852, 1589, 1545,
1491, 1473, 1298, 1161, 995, 831, 804, 500; UV-vis spectrum
(in NMP): -: 377, 619, 672 nm).
UV-vis spectra of L1 and the obtained polymers were
measured in NMP (Figure S3 (SI)). L1 showed characteristic
peaks at 321 and 542 nm, which are assigned to the π-π* and
n-π* transitions. PolyMnL1 showed a broad band from 300
to 1000 nm and has a characteristic small band at 900 nm. The
absorption at 642 and 900 nm were assigned as metal to ligand
charge transfer (MLCT) and the d-d transition of the metal,
respectively. The absorption of polyCoL1 appeared at 620 nm
and has a shoulder peak at 579 nm. In case of polyCrL1, three
characteristic absorption peaks were observed at 614, 673, and
919 nm.
Cyclic voltammogram of polyMnL1 was measured in both
the solution and film state (Figures 5 and S4). A polyMnL1 film
showed a reversible redox wave attributed to the Mn(III)/(IV)
couple (E1/2 = ¹0.46 V vs. Ag/AgCl).12 As shown in Figure 5,
the current in the redox wave gradually increased for the first
several cycles, following which, it became constant. This
behavior indicates the introduction of counter cations in the
electrolyte solution into the polymer film during the redox of
Mn ions, because the original polyMnL1 is a neutral compound.
The redox wave appeared at a similar voltage in the solution,
too. In polyCoL1, the reduction peak appeared at ¹0.025 V,
but an oxidation peak was not observed. In polyCrL1, a redox
wave appeared at 0.495 V vs. Ag/AgCl in the film state, based
on the redox of Cr(III)/(IV).
© 2014 The Chemical Society of Japan
