S. Wang, et al.
MolecularCatalysis468(2019)117–124
flowing by means of the calibrated sample to titrate the O2. The amount
of chemisorbed H2 was obtained by subtracting the two isotherms, and
the dispersion was calculated by assuming H2 dissociative adsorption
on the Pb metallic atoms.
Temperature-programmed reduction of H2 (H2-TPR) was performed
using Micro TP-5076 chemisorption analyzer. Typically, catalyst was
first flushed with flowing N2 of 20 mL/min for 50 min at 400 °C and
then cooled to room temperature. Subsequently, the temperature was
heated up to 800 °C in flowing hydrogen-nitrogen mixture (containing
10 vol.% of hydrogen) at a heating rate of 10 °C/min, and the con-
sumption H2 was monitored with thermal conductivity detector. The
quantification of H2 was calculated by a calibration curve of CuO as
standard.
Ammonia temperature programmed desorption (NH3-TPD) was
conducted by the same instrument as that used for H2-TPR. Before
adsorption, the catalyst was first pretreated at 400 °C for 1.5 h under N2
flow. When the temperature cooled down to ambient temperature, NH3
was performed by
a flowing stream of 12 mL/min for 40 min.
Fig. 1. XRD patterns of pure and zirconia supported Pb-based catalysts.
Subsequently, N2 flow was introduced to remove physically adsorbed
ammonia, and then NH3 desorption was taken up to 800 °C at a heating
rate of 10 °C/min.
Pyridine-infrared spectroscopy (Py-IR) was carried out to detect the
acidic property of the catalysts. Sample was pressed into disks and
placed at a quartz cell, which was pretreated under vacuum for 3 h at
300 °C to evacuate adsorbed impurities. When the temperature cooled
down to ambient temperature, the sample was exposed to pyridine for
1 h and then outgassed for 2 h to remove the physically adsorbed pyr-
idine. Finally, FT-IR spectra were measured.
For MZ-Pb catalyst, monoclinic zirconia phases remain stable, but PbO
crystalline phases appear at ca. 29.1, 31.5 35.4, 45.6, 49.3, 55.5 and
60.1° whose partial diffraction peaks overlap with those of MZ, and this
reason is probably due to the different support properties of zirconia
polymorphs. Thus, it may be inferred that the introduction of lead has a
great influence on the crystalline organization of zirconia. The XRD
results indicate that the dispersion of PbO on TZ-Pb is higher than MZ-
Pb. For further confirmation, the lead dispersion degree is also de-
termined by hydro-oxygen titration and the result is listed in Table 1.
Clearly, TZ-Pb exhibits a higher dispersion degree than that of MZ-Pb,
which was consistent with the XRD analysis.

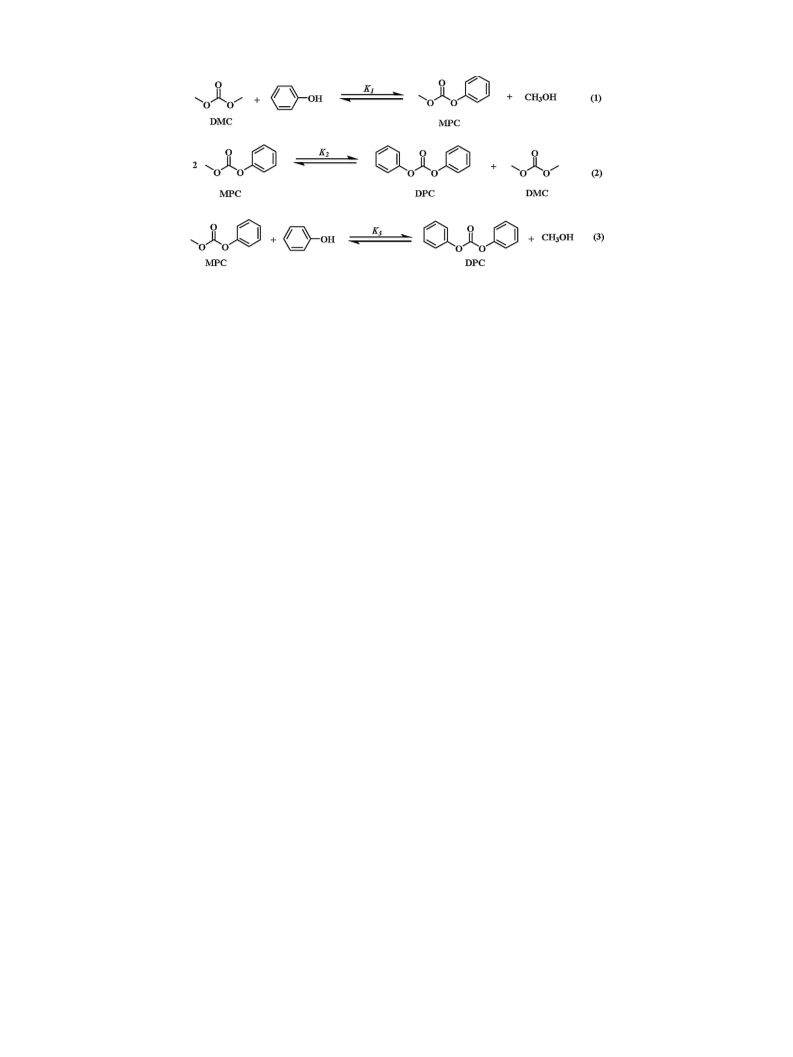

2.3. Catalytic performance evaluation
The disproportionation of MPC was conducted in three-necked
round-bottom flask connected to a liquid dividing head at atmosphere
pressure. Typically, under nitrogen atmosphere, 150 mmol MPC and
catalyst was added into the flask. When the reaction was heated up to
the desired temperature under stirring, the temperature was kept.
During the reaction procedure, DMC distillate was collected in a re-
ceiver flask to break the equilibrium limitation towards the formation
of DPC. After the reaction completion, the mixture was gradually
cooled down to room temperature. The catalyst was filtered, and the
products in the reaction mixture were detected by GC–MS analyses
using HP-6890/5973 gas chromatograph equipped with HP-5 capillary
column (30 m × 0.25 mm × 0.25 um). The conversion, yield and se-
lectivity were quantitatively analyzed using GC-7890 A gas chromato-
graph with HP-5 capillary column (30 m × 0.32 mm × 0.25 μm) and
FID detector.
The textural properties of all the samples determined by nitrogen
adsorption/desorption are listed in Table 1, and they exhibit great
difference in surface area, pore volume and pore size. The surface area
and pore volume of TZ-Pb remarkably decrease as comparison with
those of pure TZ support, but the pore size is almost unchanged, which
may be ascribed to the dispersion and deposition of PbO on the surface
of TZ. However, for MZ-Pb catalyst the surface area and pore volume
show nearly no change as comparison with MZ. It probably suggests
that PbO is not evenly distributed on MZ support due to relatively small
surface area, resulting in the low dispersion. Moreover, the surface
composition of TZ-Pb and MZ-Pb is determined by XRF technique, and
Table 1 displayed that the surface molar ratio of Pb to Zr over MZ-Pb is
larger than the nominal molar ratio of 0.082, further suggesting the
aggregation of PbO on MZ support, and it is well in line with the
characteristic peaks of PbO observed in the XRD patterns. Conse-
quently, the structural and textural differences for TZ-Pb and MZ-Pb are
distinctly associated with the different support properties of zirconia
polymorphs. In contrast, TZ-Pb reveals not only the higher dispersion of
PbO but also larger BET surface areas, and therefore it is favorable to
expose more active sites, contributing to the improvement of its
3. Results and discussion
3.1. Material characterization
3.1.1. Structural and textural characterization
Fig. 1 displays XRD patterns of pure and zirconia supported Pb-
based catalysts. When as-prepared zirconium hydroxide is calcined at
500 °C, the obtained TZ exhibits a purely tetragonal phase structure
(2θ = 30.3, 35.2, 50.2 and 60.2°, JCPDS No. 27-997) [30,31]. The
obtained MZ by calcination of 750 °C is predominantly monoclinic
phase structure (2θ = 24.1, 28.3, 31.5, 34.2 and 50.4°, JCPDS No. 37-
1484) and only a weak diffraction peak of tetragonal phase at
2θ = 30.3° is noticed. After lead addition, there is mostly the existence
of tetragonal phase for TZ-Pb and two weak diffraction peaks assigned
to monoclinic phase are observed at 28.3 and 31.5°, suggesting that the
introduction of lead results in the structure transformation of tetragonal
phase, while no diffraction peaks belonging to PbO crystalline phases
are detected, which suggest that the lead dispersion on TZ-Pb catalyst is
good, and lead oxide may be highly dispersed on the catalyst surface.
Table 1
The textural properties of pure and zirconia supported Pb-based catalysts.
Catalysts SBET
(m2/g)
Pore
Average
pore
diameter
(nm)
Pb/Zra Pb/Zrb Pb dispersionc
volume
(cm3/g)
TZ
TZ-Pb
MZ
43
0.127
0.099
0.126
0.101
7.0
7.0
20.0
20.0
–
–
–
34
15
13
0.082
–
0.091
–
0.016
–
MZ-Pb
0.082
0.103
0.007
a
Calculated by Pb and Zr stoichiometric molar ratio.
Measured by XRF.
Determined by hydro-oxygen titration method.
b
c
119
