Rociletinib (CO-1686), a 2,4-diaminopyrimidine derivative, is a highly potent tyrosine kinase inhibitor (TKI) that acts on epidermal growth factor receptor (EGFR) with L858R/T790M mutations. We supposed radioiodinated CO-1686 would function as a useful tool for monitoring EGFR L858R/T790M mutations. To aid in patient selection before therapy with EGFR-TKIs, this study aimed to develop a ¹²⁵I-labeled derivative of CO-1686, N-{3-[(2-{[4-(4-acetylpiperazin-1-yl)-2-methoxyphenyl]amino}-5-(trifluoromethyl)pyrimidine-4-yl] amino}-5-([¹²⁵I]iodophenyl)acrylamide ([¹²⁵I]ICO1686) and evaluate its selectivity toward EGFR L858R/T790M. Radiosynthesis was performed by iododestannylation of the corresponding tributylstannyl precursor with [¹²⁵I]NaI and N-chlorosuccinimide. The selectivity of the tracer for detecting EGFR L858R/T790M was evaluated using three relevant non-small cell lung cancer (NSCLC) cell lines—H1975, H3255 and H441 overexpressing the dual mutation EGFR L858R/T790M, active mutant EGFR L858R and wild-type EGFR, respectively. The nonradioactive ICO1686 and the precursor compound were successfully synthesized. A novel radiolabeled probe, [¹²⁵I]ICO1686, was prepared with high radiochemical yield (77%) and purity (>99%). ICO1686 exhibited high cytotoxicity toward H1975 (IC₅₀ 0.20 ± 0.05 μM) and H3255 (IC₅₀ 0.50 ± 0.21 μM), which is comparable to that of CO-1686. In contrast, the cytotoxicity of ICO1686 toward H441 was 10-fold lower than that toward H1975. In the cell uptake study, the radioactivity uptake of [¹²⁵I]ICO1686 in H1975 was 101.52% dose/mg, whereas the uptakes in H3255 and H441 were 33.52 and 8.95% dose/mg, respectively. The uptake of [¹²⁵I]ICO1686 in H1975 was greatly reduced to 45.61% dose/mg protein by treatment with excess CO-1686. In vivo biodistribution study of the radiotracer found that its accumulation in H1975 tumor (1.77 ± 0.43% ID/g) was comparable to that in H3255 tumor (1.63 ± 0.23% ID/g) and the accumulation in H1975 tumor was not reduced by pretreatment with an excess dose of CO-1686. Although this radiotracer exhibited highly specific in vitro uptake in target cancer cells, structural modification is required to improve in vivo biodistribution.

Full text of DOI:10.3390/molecules25122914

molecules
Article
Synthesis and Fundamental Evaluation of
Radioiodinated Rociletinib (CO-1686) as a Probe to
Lung Cancer with L858R/T790M Mutations of
Epidermal Growth Factor Receptor (EGFR)
Muammar Fawwaz 1,2 , Kenji Mishiro 3, Ryuichi Nishii 4, Izumi Sawazaki 1, Kazuhiro Shiba 5,
Seigo Kinuya 1 and Kazuma Ogawa 1,3,
*
1
Graduate School of Medical Sciences, Kanazawa University, Kakuma-machi, Kanazawa,
Ishikawa 920-1192, Japan; muammar.fawwaz@stu.kanazawa-u.ac.jp (M.F.);
izumisw@stu.kanazawa-u.ac.jp (I.S.); kinuya@med.kanazawa-u.ac.jp (S.K.)
Faculty of Pharmacy, Universitas Muslim Indonesia, Urip Sumoharjo KM. 10, Makassar 90-231, Indonesia
Institute for Frontier Science Initiative, Kanazawa University, Kakuma-machi, Kanazawa,
Ishikawa 920-1192, Japan; mishiro@p.kanazawa-u.ac.jp
National Institute of Radiological Sciences (NIRST), QST, Inage-ku, Chiba 263-8555, Japan;
nishii.ryuichi@qst.go.jp
Advanced Science Research Center, Kanazawa University, Takara-machi, Kanazawa,
Ishikawa 920-8640, Japan; shiba@med.kanazawa-u.ac.jp
2
3
4
5
*
Correspondence: kogawa@p.kanazawa-u.ac.jp; Tel.: +81-76-234-4460; Fax: 81-76-234-4459
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 25 May 2020; Accepted: 20 June 2020; Published: 24 June 2020
Abstract: Rociletinib (CO-1686), a 2,4-diaminopyrimidine derivative, is a highly potent tyrosine
kinase inhibitor (TKI) that acts on epidermal growth factor receptor (EGFR) with L858R/T790M
mutations. We supposed radioiodinated CO-1686 would function as a useful tool for monitoring
EGFR L858R/T790M mutations. To aid in patient selection before therapy with EGFR-TKIs, this study
aimed to develop a 125I-labeled derivative of CO-1686, N-{3-[(2-{[4-(4-acetylpiperazin-1-yl)-2-
methoxyphenyl]amino}-5-(trifluoromethyl)pyrimidine-4-yl] amino}-5-([125I]iodophenyl)acrylamide
([125I]ICO1686) and evaluate its selectivity toward EGFR L858R/T790M. Radiosynthesis was
performed by iododestannylation of the corresponding tributylstannyl precursor with [125I]NaI and
N-chlorosuccinimide. The selectivity of the tracer for detecting EGFR L858R/T790M was evaluated
using three relevant non-small cell lung cancer (NSCLC) cell lines—H1975, H3255 and H441
overexpressing the dual mutation EGFR L858R/T790M, active mutant EGFR L858R and wild-type
EGFR, respectively. The nonradioactive ICO1686 and the precursor compound were successfully
synthesized. A novel radiolabeled probe, [125I]ICO1686, was prepared with high radiochemical yield
(77%) and purity (>99%). ICO1686 exhibited high cytotoxicity toward H1975 (IC50 0.20 ± 0.05 µM
)
and H3255 (IC50 0.50 0.21 M), which is comparable to that of CO-1686. In contrast, the cytotoxicity
±
µ
of ICO1686 toward H441 was 10-fold lower than that toward H1975. In the cell uptake study,
the radioactivity uptake of [125I]ICO1686 in H1975 was 101.52% dose/mg, whereas the uptakes
in H3255 and H441 were 33.52 and 8.95% dose/mg, respectively. The uptake of [125I]ICO1686 in
H1975 was greatly reduced to 45.61% dose/mg protein by treatment with excess CO-1686. In vivo
biodistribution study of the radiotracer found that its accumulation in H1975 tumor (1.77
±
0.43%
ID/g) was comparable to that in H3255 tumor (1.63 0.23% ID/g) and the accumulation in H1975
±
tumor was not reduced by pretreatment with an excess dose of CO-1686. Although this radiotracer
exhibited highly specific in vitro uptake in target cancer cells, structural modification is required to
improve in vivo biodistribution.
Molecules 2020, 25, 2914; doi:10.3390/molecules25122914
www.mdpi.com/journal/molecules

Molecules 2020, 25, 2914
2 of 16
Keywords: imaging; EGFR; prediction of therapeutic effects; mutation status; radiopharmaceutical;
tyrosine kinase inhibitor
1. Introduction
Despite the continuous development of cancer treatments, lung cancer remains a deadly disease
worldwide [
of all lung cancers [2,3
1
]. Non-small cell lung cancer (NSCLC) is the most prevalent type, accounting for over 80%
]. Activated mutations in exons 18–21, in the kinase domain of epidermal growth
factor receptor (EGFR), were associated with NSCLC; among them, frequently occurring mutations are
the single L858R mutation in exon 21 and the EGFR exon 19 deletion [4–6].
The treatment of patients with NSCLC with EGFR-tyrosine kinase inhibitors (TKIs) has shown
impressive therapeutic outcomes [
significantly prolonged the overall survival of patients with NSCLC with the EGFR exon 19 deletion
or EGFR L858R mutation [ ]. However, most patients acquire a further mutation in EGFR after
long-term drug administration of first-generation EGFR-TKIs. Drug resistance eventually develops.
T790M in exon 20 was identified as the most frequent cause of resistance [ 10]. Some third-generation
EGFR-TKIs were designed to overcome drug resistance, among which osimertinib (Tagrisso ) was
3,7]. The first-generation EGFR-TKIs, gefitinib and erlotinib,
8,9
7
,
™
approved by the Food and Drug Administration (FDA) for the treatment of patients with NSCLC with
EGFR L858R/T790M mutations [8,9,11].
Currently, biopsy is a common strategy for detecting EGFR mutations in NSCLC. Biopsy samples
provide information concerning cancer genetics through gene sequencing, immunohistochemistry and
fluorescence in situ hybridization (FISH) analysis [12,13]. However, the analysis of biopsy specimens
does not necessarily reflect complete tumor mutation status because tumor tissues are heterogenous
and the tiny fraction of them in a biopsy may not be representative of the whole tumor profile [14
,15].
Additionally, repeated biopsies are invasive and a significant burden on patients [12 13]. In contrast,
,
nuclear medicine imaging, such as positron emission tomography (PET) and single-photon emission
computed tomography (SPECT), is a revolutionary invention in the field of clinical diagnostics
because of its non-invasive character and great ability to determine the expression levels of target
molecules [13,16].
To effectively use third-generation EGFR-TKIs on patients with NSCLC with EGFR L858R/T790M
mutations [8,17], we hypothesized that PET or SPECT imaging would be a suitable and non-invasive
tool for selecting patients who are sensitive to third-generation EGFR-TKIs. Radiotracers based
on the third-generation EGFR-TKIs, such as [11C]osimertinib and [11C]rociletinib ([11C]CO-1686),
were developed to display the brain penetration of TKIs in a preclinical setting [11,18]; however,
these studies were not designed for the selection of patients sensitive to EGFR L858R/T790M TKIs.
Until now, although some molecular probes for the L858R mutation were developed no reports
exist [19,20], to our knowledge, on molecular probes with sufficient sensitivity for L858R/T790M double
mutations and the development of such probes is anticipated.
CO-1686, a third-generation EGFR-TKI, is a mutant-selective, irreversible inhibitor of EGFR
mutations, including exon 19 deletions, L858R and T790M but not exon 20 insertions [21]. CO-1686
exhibited striking potency against EGFR with L858R/T790M mutations in in vitro studies and clinical
trials [22,23]. Meanwhile, preclinical data have confirmed that CO-1686 shows low activity against
wild-type EGFR [21–23].
Inthisstudy, wedesignedandsynthesizedanon-radioactiveiodinated, N-(3-{[2-({4-[4-acetylpiperazin-
1-yl]-2-methoxyphenyl}amino)-5-(trifluoromethyl)pyrimidin-4-yl]amino}-5-iodophenyl)acrylamide
(ICO1686, Scheme 1, 10) and a radioactive iodinated 10 ([125I]ICO1686, Scheme 2, [125I]10),
and evaluated it using three types of human NSCLC cell lines—H1975 (dual mutations EGFR
L858R/T790M), H3255 (EGFR L858R active mutant) and H441 (wild-type EGFR)—for use in selecting
patients with NSCLC and predicting treatment strength of third-generation EGFR-TKIs. In this study,

Molecules 2020, 25, 2914
3 of 16
although we aimed at developing probes for PET (124I) or SPECT (123I), 125I was used as an alternative
radionuclide for initial fundamental studies because of its longer half-life.
2. Results and Discussion
2.1. Synthesis of Non-Radioactive Compound

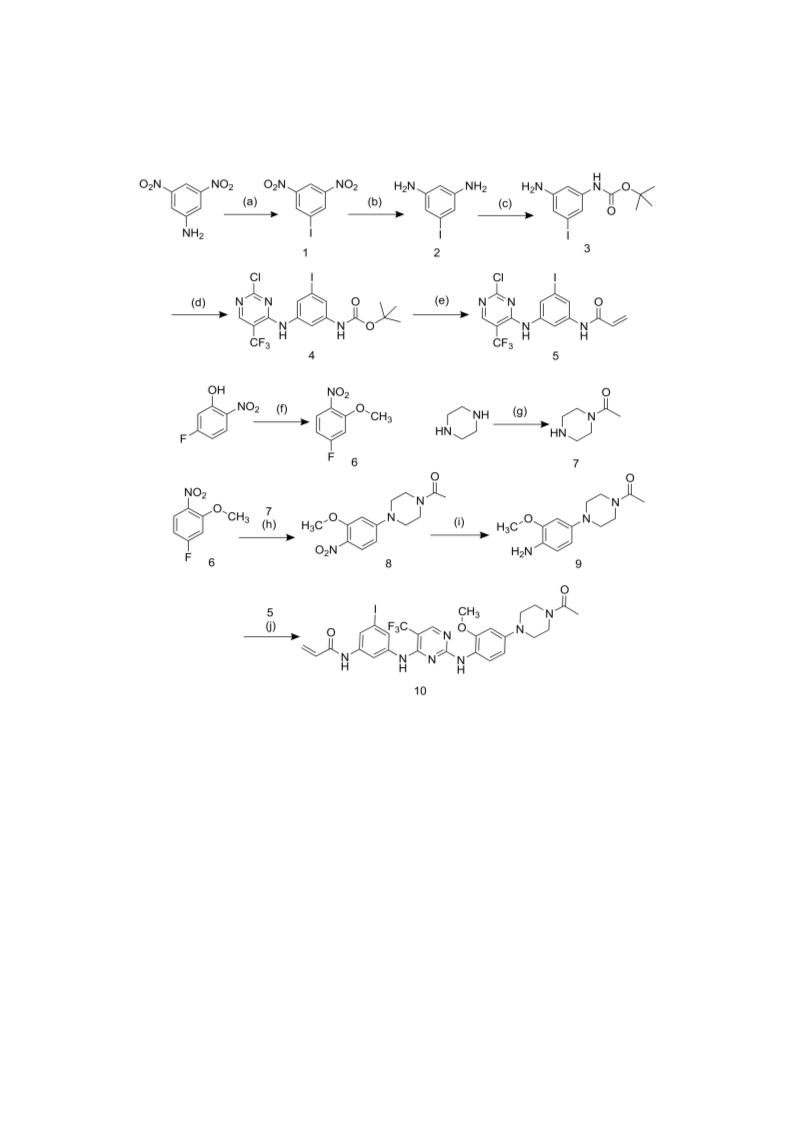

The non-radioactive iodinated compound 10, a derivative of CO-1686, was synthesized according
to the reported synthesis procedure of CO-1686 starting from 5-iodo-m-phenylenediamine instead
of m-phenylenediamine (Scheme 1). 5-Iodo-m-phenylenediamine was synthesized in two steps from
commercially available 1,3-dinitroaniline. Iodine was introduced to the diaminophenyl group of
CO-1686, because this substituent would not overly influence the affinity of CO-1686 for EGFR
L858R/T790M due to the complex crystal structure of CO-1686 and T790M EGFR [
7]. Their complex
crystal structure suggests that the anilinopyrimidine core, methoxy and trifluoromethyl groups are the
most important substituents and play a key role in the binding of CO-1686 to EGFR L858R/T790M [7].
2.2. Cell Viability Assays
As displayed in Table 1, the cytotoxicity of 10 toward H1975 and H3255 were similar to
those of CO-1686, whereas the cytotoxicity of 10 toward H441 was significantly lower than that
of non-iodinated CO-1686. These results demonstrate that the iodine substituent in 10 did not
significantly affect activity toward H1975 with L858R/T790M EGFR and H3255 with L858R EGFR
mutations. In this study, the introduction of iodine reduced the cytotoxicity of 10 toward H441; however,
this was unimportant because CO-1686 is indeed less potent against wild-type than L858R/T790M
mutations [20,24]. Conversely, gefitinib exhibited high cytotoxicity toward only H3255 cells. All of
these results are consistent with previous reports and clinical data [19
–
23]. For example, the IC50 value
of CO-1686 to H1975 (0.14
study [25].
µ
M) in this study is consistent with the value (0.137 M) in the previous
µ
In our study, CO-1686 showed moderately inhibitory activity toward a human lung cancer
cell line with a wild-type EGFR (H441). Walter et al. reported that CO-1686, which did not inhibit
wild-type EGFR kinase activity, exhibited moderate cytotoxicity toward a cancer cell line with wild-type
EGFR [24]. Although the mechanism of cytotoxicity is unclear, the cytotoxicity of CO-1686 toward
H441 observed in our study may be associated with CO-1686 drug activity not related to EGFR.
Table 1. The half maximal inhibitory concentration (IC50) after exposure of 10, CO-1686 or gefitinib
to non-small cell lung cancer (NSCLC) cell lines by 2-(2-methoxy-4-nitrophenyl)-3-(4-nitrophenyl)-5-
(2,4-disulfophenyl)-2H tetrazolium monosodium salt (WST-8) assay.
IC50 (µM)
Cell Lines
Mutation Status
10
CO-1686
Gefitinib
H1975
H3255
H441
L858R/T790M
L858R
Wild-type
0.20 ± 0.05
0.50 ± 0.21
1.84 ± 0.44
0.14 ± 0.05
0.15 ± 0.02
0.26 ± 0.04
>10
0.02 ± 0.02
>10
Data represent the mean ± SD of three separate experiments.
2.3. EGFR-Tyrosine Kinase (TK) Inhibition Assay
Inhibition activities of CO-1686 and 10 to EGFR-TK were evaluated. IC50 values to EGFR-TK
with L858R/T790M mutation and wild-type EGFR-TK are shown in Table 2. CO-1686 inhibited EGFR
L858R/T790M enzyme activity at low concentration (IC50 = 0.04
that in a previous report (IC50 = 0.02 M) [25]. Although the inhibition activity of 10 to L858R/T790M
(IC50 = 0.31 M) was weaker than that of CO-1686, 10 exhibited high selectivity index (SI > 32) of
EGFR with L858R/T790M double mutations to wild-type EGFR. It was comparable to that of CO-1686
µM). The IC50 value is consistent with
µ
µ

Molecules 2020, 25, 2914
4 of 16
(SI = 42). These results indicate that not only CO-1686 but also 10 has high specificity toward EGFR
with L858R/T790M double mutations.
Table 2. Inhibition activities to epidermal growth factor receptor (EGFR) tyrosine kinases (wild-type
and L858R/T790M mutations).
IC50 Value (µM)
Compound
SI (WT: L858R/T790M)
Wild-Type (WT)
L858R/T790M
CO-1686
10
1.68 ± 0.15
>10
0.04 ± 0.01
42
>32
0.31 ± 0.15
Data represent the mean ± SD of three separate experiments.
2.4. Radiolabeling of [125I]ICO1686 ([125I]10)
A stannylated radiolabeling precursor 11 was prepared by a palladium-catalyzed stannylation
reaction of 10 in 10% yield after purification using high-performance liquid chromatography (HPLC).

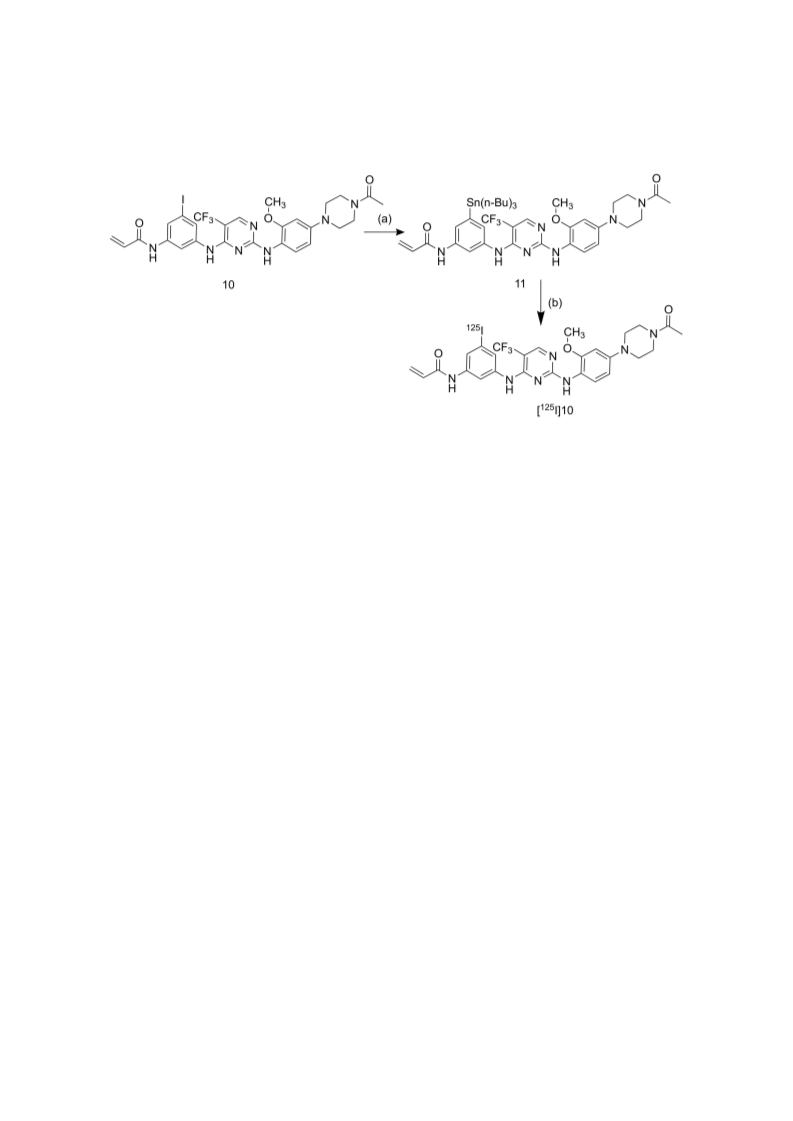

As provided in Scheme 2, [
125I]10 was synthesized by an iododestannylation reaction with the
corresponding tributyltin precursor 11. This radiotracer was◦synthesized using N-chlorosuccinimide
(NCS) as an oxidizing agent in an acidic solution at 37 C in high radiochemical yield (77%).
Radiochemical purity was over 99% after purification using RP-HPLC. The identity of [125I]10
was confirmed by comparing the retention times of the radioiodinated compound and nonradioactive
10 in the HPLC analyses. These peaks were shown at the same retention time in the chromatograms
(Figure S12).
2.5. Determination of Partition Coefficient
The n-octanol/phosphate buffer partition coefficients (log P) values are one explanation for how
[
125I]10 behaves in the body. The log P value indicating lipophilicity is significant in terms of membrane
permeability of radiotracer into the intracellular domain, such as at an EGFR-TK site. The shake-flask
method by phase separation resulting in the log P value for [125I]10 was 1.84
±
0.01. This result indicates
that [125I]10 exhibits appropriate lipophilicity to passively penetrate the cell membrane [26].
2.6. In Vitro Stability Experiments
The stability profile of [125I]10 in phosphate-buffered saline (PBS) and murine plasma is shown in
the Supporting Information (Figure S13). Until 1 h, [125I]10 slightly decomposed in either the PBS or
plasma and its purity decreased gradually after 24 h incubation.
2.7. Cellular Uptake Studies

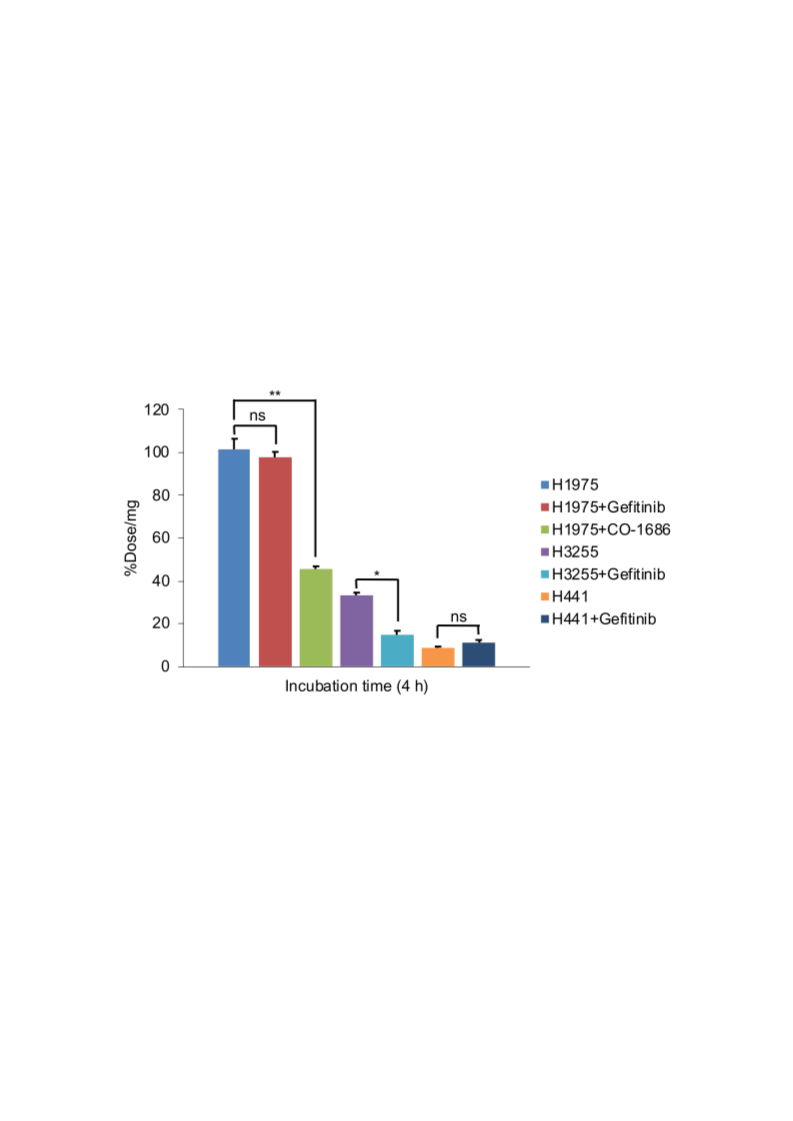

To investigate the differences in [125I]10 uptake based on EGFR mutational and/or expression
status, we performed in vitro cell uptake experiments using three types of NSCLC cell lines—H1975
(L858R/T790M active mutant EGFR), H3255 (L858R active mutant EGFR) and H441 (wild-type EGFR).
As shown in Figure 1, H1975 cells exhibited a high accumulation of [125I]10, at 101.52% dose/mg protein
at 4 h incubation. The accumulation was significantly higher than that in H3255 and H441 cells at 33.52
and 8.95% dose/mg protein, respectively. The presence of the T790M activating mutation in the EGFR
kinase domain accounts for the greater accumulation of [125I]10 in H1975 cells [21,22].
In fact, drug resistance is caused by EGFR L858R/T790M mutations that result in
threonine-to-methionine substitution at residue 790, namely the gatekeeper residue (T790M).
These mutations do not only enhance the affinity of the kinase for adenosine triphosphate (ATP) but
also decrease the affinity with TKIs, such as gefitinib and erlotinib [7]. Therefore, CO-1686, with its
unique structure, was developed to encounter this resistance. The anilinopyrimidine core of CO-1686
forms bidentate hydrogen bonds with the main chain NH and CO of Met793 in the EGFR kinase domain.
The methoxyl group contributes to the selectivity of CO-1686 for EGFR. In addition, the trifluoromethyl

Molecules 2020, 25, 2914
5 of 16
substituent of CO-1686 is conducive to forming hydrophobic interactions with Met790 as the mutant
gatekeeper residue [ ]. This hydrophobicity is only accorded by Met790 which is not accorded by
wild-type gatekeeper residue (Thr790) [
]. This explains why [125I]10 prefers to accumulate in H1975
7
7
expressing EGFR L858R/T790M mutations.
In the blocking studies, the uptakes of [125I]10 in H1975 were significantly reduced to 45.61%
dose/mg protein by pretreatment with an excess of CO-1686, indicating that [125I]10 bound competitively,
versus CO-1686, to EGFR-TK with L858R/T790M double mutations. However, the degree of the blocking
effects was lower than we expected. It means that the nonspecific binding of [125I]10 on or inside
H1975 cells may be not low. Although H1975 cells harbor the L858R EGFR mutation, gefitinib did
not reduce the accumulation of [125I]10 in in vitro blocking experiments. This was due to the T790M
mutation, which interferes with the binding of gefitinib to the tyrosine kinase domain of EGFR, thereby
conferring resistance to gefitinib [20]. In contrast, the radiotracer accumulation of [125I]10 in H3255
was dramatically reduced (over 50%) by pretreatment with a dose of gefitinib, which is attributable to
the high affinity for gefitinib of H3255 cells carrying the L858R mutation [19,27,28].
Figure 1. The cell uptake of radiolabeled compound [125I]10 to the H1975, H3255 and H441 cell lines.
Significance was determined using Dunnett’s multiple-comparison test or unpaired Student’s t-test
(* p < 0.001; ** p < 0.0001) ns: not significant.
2.8. Biodistribution Studies
Biodistribution experiments were performed in order to determine the in vivo accumulation
of [125I]10 in tissues. The biodistribution data in normal mice are summarized in Table 3. The high
radioactivity rapidly accumulated in liver after the injection of [125I]10. This was considered to have
been caused by the relatively hydrophobic structure of [125I]10 (Log P 1.84
±
0.01). Liver activity
decreased gradually and [125I]10 was transferred to the small intestine via bile excretion [29] and then
to large intestine as time passed; as a result, the large intestine exhibited high uptake of the radiotracer
(53.44
±
6.73% ID/g) at 4 h post injection. Finally, almost 70% of the radiotracer was excreted in
feces 24 h after injection. Namely, [125I]10 was mainly eliminated through hepatobiliary clearance.
Meanwhile, Ballard et al. reported a PET image of [11C]CO-1686 in a monkey [11]. In the PET image
using average data from 0 to 123 min, [11C]CO-1686 showed high accumulation in the intestine and
moderate accumulation in the liver. Moreover, [11C]CO-1686 hardly accumulated in the brain [11].
These results seem to be similar to the biodistribution pattern of [125I]10.

Molecules 2020, 25, 2914
6 of 16
Table 4 summarizes the biodistribution data in tumor-bearing mice inoculated with H1975 and
H3255 cells. The accumulation of [125I]10 in H1975 tumors (1.77
0.43% ID/g) was comparable to that
in H3255 tumors (1.63 0.23% ID/g). Our data indicate that the in vivo uptake in mouse xenografts
±
±
did not correlate with the in vitro uptake of [125I]10 toward EGFR double mutations. Moreover,
accumulation in H1975 tumors was not inhibited by pretreatment with an excess dose of CO-1686.
In some cases, the blocking dose did not significantly inhibit radiotracer accumulation in tumors.
Zhang et al. reported that gefitinib did not sufficiently block the uptake of [11C]gefitinib. In this case,
it may have been due to high nonspecific binding in tumor regions [30].
Table 3. Biodistribution of [125I]10 at 10 min, 1, 4 and 24 h after i.v. injection in ddY mice.
Time after Injection
Tissues
10 min
1 h
4 h
24 h
[
125I]10
–
–
–
–
Blood
Liver
Kidney
Small intestine
Large intestine
Spleen
1.06 (0.19)
26.69 (0.81)
7.48 (1.55)
9.46 (2.19)
0.57 (0.04)
2.14 (0.50)
1.93 (0.37)
4.47 (1.39)
3.11 (0.64)
3.52 (2.70)
1.16 (0.21)
1.40 (0.16)
0.11 (0.02)
–
0.49 (0.05)
18.57 (2.72)
3.76 (0.40)
23.96 (2.18)
0.53 (0.08)
0.90 (0.17)
0.99 (0.26)
1.33 (0.08)
0.79 (0.13)
5.10 (1.18)
0.50 (0.22)
0.44 (0.05)
0.05 (0.02)
–
0.33 (0.07)
7.85 (0.92)
2.37 (0.17)
9.81 (1.03)
53.44 (6.73)
0.58 (0.11)
0.41 (0.03)
0.86 (0.10)
0.35 (0.09)
1.38 (0.56)
0.29 (0.11)
0.13 (0.03)
0.03 (0.01)
–
0.05 (0.01)
0.80 (0.10)
0.25 (0.01)
0.10 (0.01)
0.34 (0.08)
0.08 (0.04)
0.10 (0.11)
0.26 (0.03)
0.09 (0.05)
0.08 (0.02)
0.07 (0.05)
0.04 (0.04)
0.01 (0.01)
4.07 (0.83)
69.93 (15.71)
‡
Pancreas
Lung
Heart
Stomach ‡
Bone
Muscle
Brain
Urine
Feces
–
–
–
Data were presented as % ID/g tissue. Each value represents mean ± SD for four mice. Presented as % ID/organ.
Table 4. Biodistribution of [125I]10 at 1 and 4 h after i.v. injection in tumor-bearing mice.
Time after Injection
Tissues
1 h
4 h
Blocking (1 h)
[
125I]10
–
–
–
Blood
Liver
Kidney
Small intestine
Large intestine
Spleen
1.74 (0.18)
28.12 (5.43)
5.26 (1.50)
85.58 (7.68)
0.77 (0.07)
12.40 (1.06)
1.62 (0.26)
9.82 (3.17)
1.79 (0.21)
21.77 (2.83)
4.19 (1.28)
60.68 (6.67)
8.96 (7.48)
2.81 (0.77)
3.87 (0.87)
3.40 (0.93)
1.53 (0.58)
1.44 (0.57)
1.07 (0.36)
1.09 (0.42)
0.10 (0.02)
1.65 (0.64)
1.47 (0.71)
‡
18.65 (19.88) 144.21 (10.97)
3.20 (0.62)
1.99 (0.52)
4.67 (0.85)
1.46 (0.31)
1.04 (0.36)
0.50 (0.40)
0.86 (0.21)
0.11 (0.08)
1.77 (0.43)
1.63 (0.23)
0.71 (0.19)
0.49 (0.12)
1.02 (0.28)
0.60 (0.67)
0.48 (0.19)
0.24 (0.20)
0.27 (0.08)
0.04 (0.02)
0.43 (0.08)
0.70 (0.13)
Pancreas
Lung
Heart
Stomach ‡
Bone
Muscle
Brain
H1975
H3255
Data were presented as % ID/g tissue. Each value represents mean ± SD for four mice. Presented as % ID/organ.
As above-mentioned, the purpose of our study is the development of probes for PET or SPECT
imaging using 124I or 123I. However, it must be difficult to visualize the tumor for [123/124I]10, even if the
imaging would be performed using tumor-bearing mice because tumor/blood ratio was approximately

Molecules 2020, 25, 2914
7 of 16
1. Moreover, tumor/lung ratio is also important for imaging of NSCLC patients in clinical. Therefore,
an increase of tumor uptake and/or decrease of non-target tissue uptake to be background, such as
lung and blood, are necessary.
Lack of specific tumor uptake of [125I]10 was likely not caused by metabolic instability in blood,
as we found that [125I]10 hardly decomposed in the plasma until 1 h in the in vitro stability experiment.
The high level of nonspecific uptake in normal tissues and the high hepatobiliary excretion are the
possible reasons why tumor uptake was suboptimal [30]. The high lipophilicity was related to the
hepatobiliary excretion of [125I]10, resulting in very high elimination of radiotracer, which might have
influenced the intratumoral uptake of [125I]10 [31]. Improving water solubility may be necessary to
improve the accumulation of [125I]10 in tumors. Structural modification by a short-chain polyethylene
glycol in the linker phenyl group may be an alternative for reducing nonspecific accumulation without
a significant reduction of the affinity for EGFR L858R/T790M [7,32,33].
3. Materials and Methods
3.1. General Chemistry
All chemical reagents and solvents were purchased commercially from Tokyo Chemical Industry,
Co., Ltd. (Tokyo, Japan), Merck (Darmstadt, Germany), Nacalai Tesque, Inc. (Kyoto, Japan),
Fujifilm Wako Pure Chemical Corporation (Osaka, Japan) and Kanto Chemical, Co., Inc. (Tokyo,
Japan). [125I]Sodium iodide (644 GBq/mg) was purchased from Perkin Elmer (Waltham, MA, USA).
The radioactivity was measured by an Auto Gamma System ARC-7010B (Hitachi, Ltd., Tokyo, Japan).
Reactions were performed at respective temperature and monitored by thin-layer chromatography
(TLC) on silica plates 60 F254 (Merck, Darmstadt, Germany).
Dulbecco’s Modified Eagle Medium (DMEM)/Ham’s F-12 and RPMI-1640 medium,
penicillin-streptomycin, phosphate-buffered saline (PBS) and trypsin–EDTA (0.25%) were obtained
from Nacalai Tesque, Inc. (Kyoto, Japan). Fetal bovine serum (FBS) was obtained from Biowest
(Nuaillé, France).
Nuclear magnetic resonance (NMR) spectroscopy was obtained on JEOL JNM-ECS 400 and JEOL
JNM-ECA 600 (JEOL Ltd., Tokyo, Japan). Direct analysis in real time mass spectra (DART-MS) was
obtained on JEOL JMS-T100TD (JEOL Ltd., Tokyo, Japan). Fast atom bombardment mass spectra
(FAB-MS) was obtained on JEOL JMS-T700 (JEOL Ltd., Tokyo, Japan). Analytical high-performance
liquid chromatography (HPLC) system was obtained on the Shimadzu SPD-20A system (Shimadzu
Corp., Kyoto, Japan). The optical density in WST-8 assay and luminescence density in kinase assay
were obtained on Infinite® F200 Pro microplate reader (TECAN, Männedorf, Switzerland).
3.2. Synthesis Scheme
Intermediate compounds were synthesized according to the outlined studies, with slight
modifications [34–39]. Detailed procedures and analysis were shown in Scheme 1 and Supporting
Information (Figures S1–S11).
3.2.1. Synthesis of 1-Iodo-3,5-dinitrobenzene (1)
To a stirred mixture of 3,5-dinitroaniline (C6H5N3O4) (0.70 g, 3.82 mmol, 1.0 eq.) and sulfuric acid
(H2SO4) (0.60 mL, 11.46 mmol, 3.0 eq.), sodium nitrite (NaNO2) (0.40 g, 5.73 mmol, 1.5 eq.) was added
at 0 ◦C. After the formation of the diazonium salt was confirmed by TLC, potassium iodide (KI) (1.60 g,
9.55 mmol, 2.5 eq.) was added to the mixture and the mixture was stirred at room temperature for
3 h. After the reaction was completed, pH was adjusted to neutral using saturated aqueous sodium
bicarbonate (NaHCO3). Then the reaction mixture was extracted with ethyl acetate. The organic layer
was separated, dried over sodium sulfate (Na2SO4), filtered and concentrated under reduced pressure
1
to afford
1
(1.1 g, 97%) as a brown crystal. H–NMR (400 MHz, CDCl3):
δ
8.88 (2H, d, J = 1.6 Hz), 9.02

Molecules 2020, 25, 2914
8 of 16
(1H, t, J = 2.0 Hz). 13C–NMR (100 MHz, CDCl3):
δ
93.5, 118.5, 137.8, 148.5. HRMS (FAB+) calculated
for C6H3IN2O4 [M + H]+: m/z = 294.9216, found 294.9225.
Scheme 1. Synthetic scheme of non-radioactive iodinated compound. Reagent: (a) H2SO4, NaNO2,
◦
◦
KI, 0 C, rt, 3 h; (b) Ethanol, SnCl2
·
2H2O, 45 C, 1 h; (c) Acetonitrile, Boc2O, rt, 2 h; (d) n-butanol,
◦
2,4-dichloro-5(trifluoromethyl) pyrimidine, DIPEA, 0 C, 1 h, rt, 4 h; (e) HCl/ethyl acetate, rt, 1 h,
dichloromethane, acryloyl chloride, DIPEA,
−
30 ◦C, rt, 1 h; (f) Acetone, K2CO3, CH3I, 0 ◦C, 5 h;
(g) Dichloromethane, acetic anhydride, 0 ◦C, 5 h; (h) DMA, DIPEA, 90 ◦C, overnight; (i) Pd/C 10%, H2,
rt, 5 h; (j) Dioxane, TFA, 60 ◦C, 3 h.
3.2.2. Synthesis of 5-Iodobenzene-1,3-diamine (2)
To a stirred mixture of
1 (1.10 g, 3.74 mmol, 1.0 eq.) and ethanol (20 mL), tin (II) chloride dihydrate
(SnCl2
·
2H2O) (4.22 g, 18.70 mmol, 5.0 eq.) was added at 45 ◦C and the mixture was stirred for 1 h
under nitrogen atmosphere. After the reaction was completed, the pH was adjusted to neutral using
saturated aqueous sodium bicarbonate (NaHCO3). The reaction mixture was extracted with ethyl
acetate. The organic layer was separated, dried over sodium sulfate (Na2SO4), filtered and concentrated
1
under reduced pressure to afford
2
(0.62 g, 71%) as a brown solid. H–NMR (400 MHz, CDCl3):
δ
3.57
95.5, 101.0,
114.8, 148.5. HRMS (FAB+) calculated for C6H7IN2 [M + H]+: m/z = 233.9654, found 233.9645.
(4H, s), 5.95 (1H, t, J = 2.0 Hz), 6.48 (2H, d, J = 2.0 Hz). 13C–NMR (100 MHz, CDCl3):
δ

Molecules 2020, 25, 2914
9 of 16
3.2.3. Synthesis of tert-Butyl (3-amino-5-iodophenyl)carbamate (3)
To a stirred mixture of
2 (0.62 g, 2.65 mmol, 1.0 eq.) and acetonitrile (5.0 mL), di-tert-butyl
dicarbonate (Boc2O) (0.60 g, 2.65 mmol, 1.0 eq.) was added at room temperature and the mixture was
stirred for 2 h under nitrogen atmosphere. After the reaction was completed, the product was purified
by column chromatography on silica gel (hexane/ethyl acetate = 7/3) and concentrated under reduced
1
pressure to afford
3
(0.28 g, 32%) as an orange crystal. H–NMR (400 MHz, CDCl3):
δ
1.50 (9H, s), 3.68
(2H, s), 6.34 (1H, s), 6.71 (1H, t, J = 1.6 Hz), 6.86 (1H, s), 6.96 (1H, t, J = 1.6 Hz). 13C–NMR (100 MHz,
CDCl3):
δ 28.5 (3C), 80.9, 94.8, 104.0, 117.2, 118.7, 140.3, 148.3, 152.5. HRMS (FAB+) calculated for
C11H15IN2O2 [M + H]+: m/z = 334.0178, found 334.0168.
3.2.4. Synthesis of tert-Butyl (3-{[2-chloro-5-(trifluoromethyl)pyrimidin-4-yl]amino}-5-iodophenyl)
carbamate (4)
To a stirred mixture of
2,4-dichloro-5(trifluoromethyl)pyrimidine (115
(DIPEA) (296
3
(0.28 g, 0.85 mmol, 1.0 eq.)
and n-butanol (2.6 mL),
µL, 0.85 mmol, 1.0 eq.), N,N-diisopropylethylamine
µ
L, 1.70 mmol, 2.0 eq.) were added at 0 ◦C and stirred for 1 h. The stirring was continued
at room temperature for 4 h. After the reaction was completed, the crude product was purified using
column chromatography on silica gel (dichloromethane) and concentrated under reduced pressure to
1
afford
4
(0.29 g, 66%) as a colorless solid. H–NMR (400 MHz, CDCl3):
δ
1.53 (9H, s), 6.68 (1H, s), 7.00
(1H, s), 7.58 (1H, t, J = 1.6 Hz), 7.61 (1H, t, J = 1.6 Hz), 7.72 (1H, t, J = 1.6 Hz), 8.46 (1H, s). 13C–NMR
(100 MHz, CDCl3): 28.2 (3C), 81.4, 93.8, 106.7 (q, JCF = 31.4 Hz), 111.6, 123.0 (q, JCF = 270 Hz),
δ
124.2, 125.4, 137.6, 140.1, 152.2, 156.1 (q, JCF = 4.7 Hz), 157.0, 163.5. HRMS (FAB+) calculated for
C16H15ClF3IN4O2 [M + H]+: m/z = 513.9880, found 513.9875.
3.2.5. Synthesis of N-(3-{[2-chloro-5-(trifluoromethyl)pyrimidin-4-yl]amino}-5-iodophenyl) acrylamide (
5)
The mixture of compound (1.0 g, 1.94 mmol, 1.0 eq.) and 4.0 N HCl/ethyl acetate (1.0 mL) was
4
stirred at room temperature for 1 h. The reaction was monitored by TLC (hexane/ethyl acetate =
7/3) after the reaction was completed, the solvent was removed by nitrogen gassing and the residue
was dried under reduced pressure to afford a colorless solid (0.81 g). The crude material was used
to the next step without further purification. To a stirred mixture of the crude material (0.81 g), N,
N-diisopropylethylamine (DIPEA) (1.0 mL, 5.85 mmol, 3.0 eq.) and dichloromethane (20 mL), acryloyl
chloride (237 µ
L, 2.93 mmol, 1.5 eq.) were added at -30 ◦C and stirred at room temperature for 1 h.
The crude product was dissolved in ethyl acetate and washed with 1.0 M aqueous hydrochloric acid
(HCl), saturated aqueous sodium bicarbonate (NaHCO3) and brine successively. The organic layer
was separated, dried over sodium sulfate (Na2SO4), filtered and concentrated under reduced pressure.
The crude product was purified using column chromatography on silica gel (hexane/ethyl acetate =
1
7/3) and concentrated under reduced pressure to afford
(400 MHz, (CD3)2SO):
J = 16.4, 10.0 Hz), 7.56 (1H, d, J = 2.0 Hz), 7.77 (1H, d, J = 2.0 Hz), 7.99 (1H, d, J = 2.0 Hz), 8.62 (1H,
s), 9.57 (1H, s), 10.31 (1H, s). 13C NMR (150 MHz, (CD3)2SO):
93.6, 106.1 (q, JCF = 30.2 Hz), 115.8,
5
(380 mg, 43%) as a colorless solid. H NMR
δ
5.79 (1H, dd, J = 10.0, 2.0 Hz), 6.27 (1H, dd, J = 16.8, 2.0 Hz), 6.40 (1H, dd,
δ
123.0 (q, JCF = 270 Hz), 125.0, 127.7, 128.9, 131.4, 138.4, 140.4, 156.9 (q, JCF = 4.4 Hz), 157.5, 162.3, 163.4.
HRMS (FAB+) calculated for C14H9ClF3IN4O [M + H]+: m/z = 468.9461, found 468.9559.
3.2.6. Synthesis of 4-Fluoro-2-methoxy-1-nitrobenzene (6)
To a stirred mixture of 5-fluoro-2-nitrophenol (C6H4FNO3) (1.0 g, 6.43 mmol, 1.0 eq.) and acetone
(15 mL), potassium carbonate (K2CO3) (1.77 g, 12.80 mmol, 2.0 eq.)◦and iodomethane (CH3I) (0.80 mL,
12.80 mmol, 2.0 eq.) were added. The mixture was stirred at 0 C for 5 h. After the reaction was
completed, ethyl acetate and water (1:1) were added to the mixture. The organic layer was separated,
dried over sodium sulfate (Na2SO4), filtered and concentrated under reduced pressure to afford
6
1
(1.1 g, 100%) as an orange crystal. H–NMR (400 MHz, CDCl3):
δ 3.97 (3H, s), 6.74 (1H, dt, J = 8.4,

Molecules 2020, 25, 2914
10 of 16
2.0 Hz), 6.80 (1H, dd, J = 10.4, 2.4 Hz), 7.96 (1H, dd, J = 8.4, 6.4 Hz). 13C–NMR (100 MHz, (CD3)2SO):
56.7, 101.5, 107.0, 128.0, 155.3, 164.3, 167.0. HRMS (DART+) calculated for C7H6FNO3 [M + H]+:
δ
m/z = 172.0331, found 172.0345.
3.2.7. Synthesis of 1-(Piperazine-1-yl)ethan-1-one (7)
To a stirred mixture of piperazine (C4H10N2) (1.70 g, 19.70 mmol, 2.0 eq.) and dichloromethane
(50 mL), acetic anhydride (C4H6O3) (0.94 mL, 9.90 mmol, 1.0 eq.) was added at 0 ◦C and the mixture
was stirred for 5 h. After the reaction was completed, the reaction mixture was quenched with water
(15 mL) and extracted with dichloromethane, the organic layer then dried over sodium sulfate (Na2SO4),
1
filtered and concentrated under reduced pressure to afford
7
(0.26 g, 20%) as a colorless solid. H–NMR
(400 MHz, CDCl3):
δ
2.13 (3H, s), 3.40–3.70 (8H, m). 13C–NMR (100 MHz, CDCl3):
δ 21.3, 41.2 (2C),
45.7 (2C), 169.1. HRMS (FAB+) calculated for C6H12N2O [M + H]+: m/z = 129.0949, found 129.1031.
3.2.8. Synthesis of 1-(4-{3-Methoxy-4-nitrophenyl}piperazine-1-yl)ethan-1-one (8)
To a stirred mixture of 7 (1.90 g, 11.0 mmol, 1.0 eq.) and dimethylacetamide (DMA) (6.0 mL), 6
(1.40 g, 11.0 mmol, 1.0 eq.) and N,N-diisopropylethylamine (DIPEA) (2.0 mL) were added at 90 ◦C.
The mixture was stirred overnight under nitrogen atmosphere with a reflux condenser. After the
reaction was completed, the reaction mixture was quenched with water and extracted with ethyl
acetate. The organic layer was dried over sodium sulfate (Na2SO4), filtered and concentrated under
reduced pressure. The crude product was purified using column chromatography on silica gel
1
(chloroform/methanol = 150/1) to afford
CDCl3):
6.33 (1H, d, J = 1.6 Hz), 6.42 (1H, dd, J = 6.0, 1.6 Hz), 8.02 (1H, d, J = 6.4 Hz). 13C–NMR (100 MHz,
8
(2.61 g, 83%) as a pale brown solid. H–NMR (400 MHz,
δ
2.16 (3H, s), 3.40–3.50 (4H, m), 3.67 (2H, t, J = 4.0 Hz), 3.81 (2H, t, J = 4.0 Hz), 3.97 (3H, s),
CDCl3): δ, 21.2, 40.5, 45.2, 46.5, 46.6, 56.0, 97.0, 105.1, 128.4, 129.5, 155.0, 156.0, 169.0. HRMS (FAB+)
calculated for C13H17N3O4 [M + H]+: m/z = 280.1219, found 280.1295.
3.2.9. Synthesis of 1-(4-{4-Amino-3-methoxyphenyl}piperazine-1-yl)ethan-1-one (9)
To a stirred mixture of
8 (100 mg, 0.35 mmol, 1.0 eq.) and ethanol (3.50 mL) under a nitrogen
atmosphere, palladium on carbon (Pd/C 10%) (20 mg) was added at room temperature. The mixture
then stirred under a hydrogen atmosphere for 5 h. After the reaction was completed, the catalyst
was removed by filtration through a pad of Celite®; the filtrate was concentrated under reduced
pressure to afford
9 (98 mg, 100%) as a purple solid. This compound was so unstable that it was used
in the following reaction without further purification right after characterization by 1H NMR and MS
1
analyses. H–NMR (400 MHz, CDCl3):
δ 2.13 (3H, s), 2.95–3.08 (4H, m), 3.62 (2H, t, J = 5.6 Hz), 3.77
(2H, t, J = 5.2 Hz), 3.85 (3H, s), 6.42 (1H, dd, J = 8.8, 2.8 Hz), 6.52 (1H, s), 6.66 (1H, d, J = 8.4 Hz). HRMS
(FAB+) calculated for C13H19N3O2 [M + H]+: m/z = 249.1477, found 249.1464.
3.2.10. Synthesis of N-(3-{[2-({4-[4-acetylpiperazin-1-yl]-2-methoxyphenyl}amino)-5-
(trifluoromethyl)pyrimidin-4-yl]amino}-5-iodophenyl)acrylamide (10)
To a stirred mixture of compound
5 (25 mg, 0.05 mmol, 1.0 eq.) and 2.0 M TFA/dioxane, compound
9
was added (17 mg, 0.068 mmol, 1.36 eq.) and the mixture was stirred at 60 ◦C for 3 h. After the
reaction was completed, the pH was adjusted to neutral using saturated aqueous sodium bicarbonate
(NaHCO3). The reaction mixture was extracted with ethyl acetate. The organic layer was separated,
dried over sodium sulfate (Na2SO4), filtered and concentrated under reduced pressure. The crude
product was purified by HPLC with mobile phase system ethyl acetate/methanol = 97/3, using a
Cosmosil® 5SL-II (20 ID
×
250 mm) column, flow rate 9.5 mL/min. The column temperature was
maintained at 40 ◦C. The pure product was concentrated under reduced pressure to afford 10 (30 mg,
1
73%) as a colorless solid. H–NMR (400 MHz, (CD3)2SO):
δ
2.05 (3H, s), 3.10 (2H, t, J = 4.8 Hz), 3.16
(2H, t, J = 4.4 Hz), 3.53–3.63 (4H, m), 3.82 (3H, s), 5.77 (1H, dd, J = 10.0, 2.0 Hz), 6.25 (1H, dd, J = 16.8,
2.0 Hz), 6.41 (1H, dd, J = 16.8, 10.0 Hz), 6.49 (1H, dd, J = 8.8, 2.0 Hz), 6.71 (1H, s), 7.74 (1H, s), 7.77

Molecules 2020, 25, 2914
11 of 16
(2H, s), 7.82 (1H, s), 7.86 (1H, s), 8.35 (1H, s), 9.79 (1H, s), 10.14 (1H, s). 13C–NMR (100 MHz, (CD3)2SO):
21.0, 40.8, 45.4, 48.7, 49.0, 56.0, 94.1, 98.3 (q, JCF = 30.5 Hz), 100.8, 107.5, 110.9, 119.1, 122.2, 124.1, 124.5,
δ
124.8 (q, JCF = 270 Hz), 127.4, 131.6, 140.1, 141.2, 149.0, 151.8, 155.2 (q, JCF = 4.8 Hz), 156.8, 160.8, 163.2,
168.3. HRMS (FAB+) calculated for C27H27F3IN7O3 [M + H]+: m/z = 681.1172, found 681.1186.
3.2.11. Synthesis of N-(3-{[2-({4-[4-acetylpiperazin-1-yl]-2-methoxyphenyl}amino)-5-
(trifluoromethyl)pyrimidin-4-yl]amino}-5-{tributylstannyl}phenyl)acrylamide (11)
To a stirred mixture of compound 10 (35 mg, 51.40
µ
mol, 1.0 eq.) and dry dioxane (5 mL),
L, 1.03 mmol, 20 eq.) and palladium(II)bis(triphenylphosphine) dichloride
mol, 0.4 eq.) were added, the mixture was stirred at 60 ◦C for 18 h under
hexabutyldistannane (519
(PdCl2(PPh3)2) (15 mg, 21
µ
µ
nitrogen atmosphere. After the reaction was completed, the catalysis was removed by filtration
through a pad of Celite®; the filtrate was concentrated under reduced pressure. The crude product
was purified by HPLC with mobile phase system ethyl acetate/methanol = 97/3, using a Cosmosil®
5SL-II (20 ID × 250 mm) column, flow rate 9.5 mL/min. The column temperature was maintained at
40 ◦C. The pure product was concentrated under reduced pressure to afford 11 (4 mg, 10%) as a white
1
solid. H–NMR (400 MHz, (CDCl3):
δ 0.88 (9H, t, J = 7.6 Hz), 1.06 (6H, t, J = 8.0 Hz), 1.33 (6H, sex,
J = 7.6 Hz), 1.54 (6H, quin, J = 7.6 Hz), 2.14 (3H, s), 3.10–3.20 (4H, m), 3.62 (2H, t, J = 5.6 Hz), 3.78
(2H, t, J = 5.6 Hz), 3.91 (3H, s), 5.75 (1H, d, J = 11.2 Hz), 6.23 (1H, dd, J = 17.2, 10.8 Hz), 6.43 (1H, d,
J = 1.6 Hz), 6.48 (1H, dd, J = 7.6, 2.0 Hz), 6.54 (1H, d, J = 2.4 Hz), 7.68 (1H, s) 7.06 (1H, s), 7.14 (1H, s),
7.20 (1H, s), 7.44 (1H, s), 7.97 (1H, s), 8.16 (1H, d, J = 8.4 Hz), 8.29 (1H, s). HRMS (FAB+) calculated for
C39H54F3N7O3Sn [M + H]+: m/z = 845.3267 found 845.3262.
3.3. Cell Viability Assays (WST-8 Assay)
WST-assay was performed to evaluate the cytotoxicity of 10, CO-1686 and gefitinib toward NSCLC
cell lines. The NSCLC cell lines H1975, H441 and H3255 were kindly supplied by Dr. Juri G. Gelovani,
formerly of the Department of Experimental Diagnostic Imaging, at the University of Texas, MD
Anderson Cancer Center, Houston, TX, USA. H1975 (2.5
×
103 cells/well), H441 (2.5
×
103 cells/well)
and H3255 (1
×
104 cells/well) were seeded in 96-well tissue culture plates and cultured in medium
supplemented with 10% fetal bovine serum (FBS) and penicillin (100 IU/mL) streptomycin (100 mg/mL)
at 37 ◦C in a humidified atmosphere with 5% CO2. After incubation for 24 h, cells were treated with
various concentrations (0.01–100 µM) of 10, CO-1686 or gefitinib for 48 h and cell viability was assessed
using the Cell Counting Kit-8 (Dojindo, Kumamoto, Japan) following the manufacturer’s protocol.
All data were analyzed using GraphPad Prism 5.0 software (GraphPad Software, San Diego, CA., USA)
and presented as mean ± standard deviation (SD).
3.4. Kinase Enzymatic Assays
The inhibition ability of 10 and CO-1686 on EGFR tyrosine kinase activity was performed using
an ADP-Glo Lipid Kinase Assay kit (Promega Corporation, Madison, AL, USA). The experiments were
carried out according to the instructions of the manufacturer. The test was performed in a 384-well
plate and the luminescence density was determined on Infinite® F200 Pro microplate reader. All data
were analyzed using GraphPad Prism 5.0 software and presented as mean ± SD.
3.5. Radiosynthesis of [125I]ICO1686 ([125I]10)
Radiosynthesis was performed as in the previous study with a slight alteration [40]. [125I]10
was synthesized by an iododestannylation reaction of the corresponding precursor 11 (Scheme 2).
A solution of [125I]NaI in NaOH aqueous solution (2.5 MBq, 1
µ
L) was charged into a sealed vial
L) and NCS (20 mg/mL, 10 L). The mixture was
vortexed 5 min and shaken 15 min at 37 ◦C. The product was quenched by the addition of aqueous
sodium hydrogen sulfite (5 mg/mL, 10 L) and was analyzed by reversed-phase (RP)-HPLC with
mobile phase system water (A) and methanol (B), B: 70–100%, 20 min using a Cosmosil® 5C18 MSII
containing 11 (1 mg/mL, 10
µL), acetic acid (5%, 30
µ
µ
µ

Molecules 2020, 25, 2914
12 of 16
(4.6 ID
×
150 mm) column, a flow rate 1 mL/min. The column temperature was maintained at 40 ◦C.
Radiochemical yields and purities were determined by an auto well gamma counter.
Scheme 2. Synthesis of tin precursor 11 and radioiodinated compound [125I]10. (a) Dry dioxane,
hexabutyldistannane, PdCl2(PPh3)2, 60 ◦C, 18 h; (b) [125I]NaI, acetic acid, NCS, 37 ◦C, 15 min.
3.6. Determination of Partition Coefficient
The partition coefficient of [125I]10 was measured, as previously reported with a slight
modification [41]. Briefly, [125I]10 was added to the mixture of each 3 mL of n-octanol and 0.1 M
phosphate buffer (pH 7.4) in a test tube. The test tube was vortexed for 1 min, left at room temperature
for 10 min and centrifuged at 3000× g and 4 ◦C for 5 min. The n-octanol layer (2 mL) was transferred
into a new test tube followed by adding 1 mL of new n-octanol and 3 mL of phosphate buffer.
The radioactivity of each 1 mL layer, n-octanol and phosphate buffer was measured using an auto well
gamma counter (n = 4). The log P value was calculated by the logarithm of the ratio of radioactivity
per milliliter (cpm/mL) in n-octanol to that in phosphate buffer and represents mean ± SD.
3.7. In Vitro Stability Experiments
The in vitro stability of [125I]10 was examined in phosphate buffered saline (PBS) and mouse
plasma. Briefly, ◦[125I]10 solution (50
µL) in a sealed tube containing 0.1 M PBS pH 7.4 (450 µL) was
incubated at 37 C for 1 and 24 h. After incubation, the purities of radiotracers were analyzed by
RP-HPLC with mobile phase system water (A) and methanol (B), B: 70–100%, 20 min using a Cosmosil®
5C18 MSII (4.6 ID
×
150 mm) column, a flow rate 1 mL/min. The column temperature was kept at 40 ◦C.
◦
The plasma was prepared by centrifugation of murine blood at 4 C for 20 min at 100 rpm.
The reaction was started by the addition of [125I]10 (20
µ
L) in the plasma (180
incubated in a shaker at 300 rpm at 37 ◦C, which was carried out three times. Samples (100
taken at 0, 1 and 24 h and 100 L acetonitrile, divided into five portions, was added for deproteinization
of the plasma. The samples were left in the fridge for 15 min and then centrifuged at 4 ◦C for 15 min at
150 rpm. The supernatant was filtered through a pore size of 0.45 m, then analyzed by RP-HPLC
with a mobile phase gradient system water (A) and methanol (B), B: 70–100%, for 20 min using a
µL). The mixture was
µL) were
µ
µ
Cosmosil® 5C18 MSII (4.6 ID
×
150 mm) column at a flow rate of 1 mL/min. The column temperature
was maintained at 40 ◦C. Radioactivity was measured by an auto well gamma counter.
3.8. Cellular Uptake Studies
The NSCLC cell lines H1975 (1
×
105 cells/well), H441 (1
×
105 cells/well) and H3255
(
2 × 105 cells/well) were grown in medium supplemented with 10% FBS and penicillin (100 IU/mL)
streptomycin (100 mg/mL) on 6-well culture plates at 37 ◦C in a humidified atmosphere with 5% CO2

Molecules 2020, 25, 2914
13 of 16
for 24 h. Then, the cell culture was incubated in a serum-free medium containing [125I]10 (3.7 kBq/well)
for 4 h. The medium from each well was removed and the cells were washed with 1 mL of ice-cold PBS.
Finally, all cell fractions were lysed twice with 0.5 mL of 1 M NaOH aqueous solution. The radioactivity
of every fraction was determined by an auto well gamma counter. Total cell protein was determined
using the Bicinchoninic Acid (BCA) Protein Assay Kit (Nacalai) protocol, which uses bovine serum
albumin as a standard reference. In blocking experiments, inhibitors (CO-1686 and gefitinib with a
final concentration of 100 µM) were combined with radiotracer and assessed using the same method
mentioned above. All data were expressed as percent dose per milligram of protein (% dose/mg
protein) ± SD.
3.9. Animals
Male ddY mice (27–30 g, 6 weeks old) and female BALB/c nu/nu mice (12–17 g, 4 weeks old)
were purchased from Japan SLC Inc. (Hamamatsu, Japan). The mice were housed in a cage with
free access to food and water maintained at a constant temperature (23–25 ◦C) with a 12 h light/dark
cycle. To prepare tumor-bearing mice, female BALB/c nu/nu mice were implanted subcutaneously,
with H1975 (5
×
106 cells/100
µ
L) and H3255 (1
×
107 cells/100
µL) in the left and right shoulder,
respectively. The tumor reached palpable size 2- and 3-weeks post-inoculation. Animal experiments
were conducted in accordance with laboratory guidelines for the care and use of animals of Kanazawa
University. The animal handling protocol was approved by the Kanazawa University Animal Care
Committee (approval number: AP-163766).
3.10. Biodistribution Studies
Mice were injected intravenously via the lateral tail vein with a saline solution of [125I]10 (25 kBq,
100 µL) containing 1% tween-80 and 10% ethanol. The ddY mice were sacrificed at 10 min, 1, 4 and 24 h;
meanwhile, the tumor-bearing mice were sacrificed at 1 and 4 h post injection. The selected tissues
and organs were collected and weighed and their radioactivity was measured using an auto well
gamma counter. In blocking experiments, female BALB/c nu/nu mice were intraperitoneally injected
with CO-1686 (30 mg/kg) as a blocking agent 1 h prior to intravenous injection of [125I]10 (25 kBq,
100 µL). The mice were sacrificed 1 h after the administration of radiotracer. The biodistribution data
are expressed as percent injected dose per gram of tissue (% ID/g) along with the SD.
3.11. Statistical Analysis
All data were analyzed using GraphPad Prism 5.0. All values are presented as mean
±
SD.
Differences between groups were analyzed either by one-way ANOVA followed by a Tukey’s
multiple-comparison test or Dunnett’s multiple-comparison test or two-tailed unpaired Student’s t-test.
The level of statistical significance was set to a p < 0.05.
4. Conclusions
This study successfully synthesized a radiotracer labeled with 125I with high yield and purity.
In vitro evaluation in NSCLC demonstrated that [125I]10 exhibits high in vitro specificity to NSCLC
cells with EGFR L858R/T790M mutations compared to that to wild-type EGFR. However, the in vivo
study showed inadequate tumor uptake, resulting in a low tumor-to-blood ratio. Rapid hepatobiliary
clearance due to high lipophilicity may have caused low intratumoral uptake. Therefore, in order to
achieve high tumor uptake and low nonspecific binding, structural modifications need to be made that
decrease lipophilicity without reducing affinity toward EGFR L858R/T790M.

Molecules 2020, 25, 2914
14 of 16
Supplementary Materials: The following are available online at http://www.mdpi.com/1420-3049/25/12/2914/s1,
Figure S1: The proton and carbon NMR peak of 1-iodo-3,5-dinitrobenzene ( ), Figure S2: The proton and
carbon NMR peak of 5-iodobenzene-1,3-diamine ( ), Figure S3: The proton and carbon NMR peak of
tert-butyl (3-amino-5-iodophenyl)carbamate ( ), Figure S4: The proton and carbon NMR peak of tert-butyl
(3-((2-chloro-5-(trifluoromethyl)pyrimidin-4-yl)amino)-5-iodophenyl)carbamate ( ), Figure S5: The proton and
carbon NMR peak of N-(3-((2-chloro-5-(trifluoromethyl)pyrimidin-4-yl)amino)-5-iodophenyl) acrylamide ( ),
Figure S6: The proton and carbon NMR peak of 4-fluoro-2-methoxy-1-nitrobenzene ( ), Figure S7: The proton
and carbon NMR peak of 1-(piperazine-1-yl)ethan-1-one ( ), Figure S8: The proton and carbon NMR
peak of 1-(4-(3-methoxy-4-nitrophenyl)piperazine-1-yl)ethan-1-one ( ), Figure S9: The proton NMR peak of
1-(4-(4-amino-3-methoxyphenyl)piperazine-1-yl)ethan-1-one ( ), Figure S10: The proton and carbon NMR
1
2
3
4
5
6
7
8
9
peak of N-(3-((2-((4-(4-acetylpiperazin-1-yl)-2-methoxyphenyl)amino)-5-(trifluoromethyl)pyrimidin-4-yl)amino)-5-
iodophenyl)acrylamide (10), Figure S11: The proton NMR peak of N-(3-((2-((4-(4-acetylpiperazin-1-yl)-2-
methoxyphenyl)amino)-5-(trifluoromethyl)pyrimidin-4-yl)amino)-5-(tributylstannyl) phenyl) acrylamide (11),
Figure S12: The chromatograms of (a) nonradioactive iodinated compound 10 (ICO1686) and (b) radioactive
compound [125I]10 ([125I]ICO1686), Figure S13: The stability of radiolabeled compound [125I]10 in PBS and plasma.
Author Contributions: Conceptualization, K.O. and R.N.; methodology, K.O. and K.M.; validation, K.O.,
K.M., M.F., R.N., K.S. and S.K.; formal analysis, M.F. and K.M.; investigation, M.F. and I.S.; resources, R.N.;
writing—original draft preparation, M.F.; writing—review and editing, K.M. and K.O.; supervision, K.O. and
K.M.; project administration, K.O.; funding acquisition, K.O. and R.N. All authors have read and agreed to the
published version of the manuscript.
Funding: This work was supported in part by Terumo Life Science Foundation and Grants-in-Aid for Scientific
Research (16H05397) from the Ministry of Education, Culture, Sports, Science and Technology, Japan.
Acknowledgments: Greatly acknowledge to Indonesia Endowment Fund for Education (LPDP) and Ministry of
Research, Technology and Higher Education of the Republic of Indonesia for providing BUDI-LN scholarship.
Conflicts of Interest: The authors have declared that no conflict of interest.
References
1.
2.
Siegel, R.L.; Miller, K.D.; Jemal, A. Cancer statistics. CA Cancer J. Clin. 2020, 70, 7–30. [CrossRef] [PubMed]
Bray, F.; Ferlay, J.; Soerjomataram, I.; Siegel, R.L.; Torre, L.A.; Jemal, A. Global cancer statistics 2018:
GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer
J. Clin. 2018, 68, 394–424. [CrossRef] [PubMed]
3.
4.
Rodriquez-Canales, J.; Parra-Cuentas, E.; Witsuba, I.I. Diagnosis and Molecular Classification of Lung Cancer.
In Lung Cancer Treatment and Research; Reckamp, K.L., Rosen, S.T., Eds.; Springer International Publishing:
Basel, Switzerland, 2016; pp. 25–28.
Bronte, G.; Rizzo, S.; La Paglia, L.; Adamo, V.; Siragusa, S.; Ficorella, C.; Santini, D.; Bazan, V.; Colucci, G.;
Gebbia, N.; et al. Driver mutations and differential sensitivity to targeted therapies: A new approach to the
treatment of lung adenocarcinoma. Cancer Treat. Rev. 2010, 36, S21–S29. [CrossRef]
5.
6.
Yarden, Y.; Shilo, B.-Z. SnapShot: EGFR Signaling Pathway. Cell 2007, 131, 1018-e1. [CrossRef] [PubMed]
Gazdar, A.F. Personalized Medicine and Inhibition of EGFR Signaling in Lung Cancer. N. Engl. J. Med. 2009
,
361, 1018–1020. [CrossRef] [PubMed]
7.
8.
9.
Yan, X.-E.; Zhu, S.-J.; Liang, L.; Zhao, P.; Choi, H.G.; Yun, C.-H. Structural basis of mutant-selectivity and
drug-resistance related to CO-1686. Oncotarget 2017, 8, 53508–53517. [CrossRef]
Singh, M.; Jadhav, H.R. Targeting non-small cell lung cancer with small-molecule EGFR tyrosine kinase
inhibitors. Drug Discov. Today 2018, 23, 745–753. [CrossRef]
Lu, X.; Yu, L.; Zhang, Z.; Ren, X.; Smaill, J.B.; Ding, K. Targeting EGFRL858R/T790M and
EGFRL858R/T790M/C797S resistance mutations in NSCLC: Current developments in medicinal chemistry.
Med. Res. Rev. 2018, 38, 1550–1581. [CrossRef]
10. Pao, W.; Wang, T.Y.; Riely, G.J.; Miller, V.A.; Pan, Q.; Ladanyi, M.; Zakowski, M.F.; Heelan, R.T.; Kris, M.G.;
Varmus, H.E. KRAS mutations and primary resistance of lung adenocarcinomas to gefitinib or erlotinib.
PLoS Med. 2005, 2, e17. [CrossRef]
11. Ballard, P.; Yates, J.W.T.; Yang, Z.; Kim, D.W.; Yang, J.C.H.; Cantarini, M.; Pickup, K.; Jordan, A.; Hickey, M.;
Grist, M.; et al. Preclinical comparison of osimertinib with other EGFR-TKIs in EGFR-mutant NSCLC brain
metastases models, and early evidence of clinical brain metastases activity. Clin. Cancer Res. 2016. [CrossRef]

Molecules 2020, 25, 2914
15 of 16
12. Hirsch, F.R.; Varella-Garcia, M.; McCoy, J.; West, H.; Xavier, A.C.; Gumerlock, P.; Bunn, P.A.; Franklin, W.A.;
Crowley, J.; Gandara, D.R. Increased epidermal growth factor receptor gene copy number detected
by fluorescence in situ hybridization associates with increased sensitivity to gefitinib in patients with
bronchioloalveolar carcinoma subtypes: A southwest oncology group study. J. Clin. Oncol. 2005, 23, 6838–6845.
[CrossRef] [PubMed]
13. Xiao, Z.; Song, Y.; Kai, W.; Sun, X.; Shen, B. Evaluation of 99mTc-HYNIC-MPG as a novel SPECT radiotracer
to detect EGFR-activating mutations in NSCLC. Oncotarget 2017, 8, 40732–40740. [CrossRef] [PubMed]
14. Zhang, J.; Späth, S.S.; Marjani, S.L.; Zhang, W.; Pan, X. Characterization of cancer genomic heterogeneity by
next-generation sequencing advances precision medicine in cancer treatment. Precis. Clin. Med. 2018, 1,
29–48. [CrossRef] [PubMed]
15. Richard, M.B.; Derek, G.P.; Seamus, O. Intratumor Heterogeneity and Branched Evolution. N. Engl. J. Med.
2012, 366, 2132–2133. [CrossRef]
16. Ogawa, K.; Takeda, T.; Mishiro, K.; Toyoshima, A.; Shiba, K.; Yoshimura, T.; Shinohara, A.; Kinuya, S.;
Odani, A. Radiotheranostics Coupled between an At-211-Labeled RGD Peptide and the Corresponding
Radioiodine-Labeled RGD Peptide. ACS Omega 2019, 4, 4584–4591. [CrossRef]
17. Song, A.; Zhang, J.; Ge, Y.; Wang, C.; Meng, Q.; Tang, Z.; Peng, J.; Liu, K.; Li, Y.; Ma, X. C-2 (E)-4-(Styryl)aniline
substituted diphenylpyrimidine derivatives (Sty-DPPYs) as specific kinase inhibitors targeting clinical
resistance related EGFRT790M mutant. Bioorganic Med. Chem. 2017, 25, 2724–2729. [CrossRef]
18. Waaijer, S.J.H.; Kok, I.C.; Eisses, B.; Schröder, C.P.; Jalving, M.; Brouwers, A.H.; Lub-de Hooge, M.N.;
de Vries, E.G.E. Molecular Imaging in Cancer Drug Development. J. Nucl. Med. 2018, 59, 726–732. [CrossRef]
19. Yeh, H.H.; Ogawa, K.; Balatoni, J.; Mukhapadhyay, U.; Pal, A.; Gonzalez-Lepera, C.; Shavrin, A.;
Soghomonyan, S.; Flores, L.; Young, D.; et al. Molecular imaging of active mutant L858R EGF receptor
(EGFR) kinase-expressing nonsmall cell lung carcinomas using PET/CT. Proc. Natl. Acad. Sci. USA 2011, 108,
1603–1608. [CrossRef]
20. Su, H.; Seimbille, Y.; Ferl, G.Z.; Bodenstein, C.; Fueger, B.; Kim, K.J.; Hsu, Y.T.; Dubinett, S.M.; Phelps, M.E.;
Czernin, J.; et al. Evaluation of [18F]gefitinib as a molecular imaging probe for the assessment of the epidermal
growth factor receptor status in malignant tumors. Eur. J. Nucl. Med. Mol. Imaging 2008, 35, 1089–1099.
[CrossRef]
21. Sequist, L.V.; Soria, J.-C.; Goldman, J.W.; Wakelee, H.A.; Gadgeel, S.M.; Varga, A.; Papadimitrakopoulou, V.;
Solomon, B.J.; Oxnard, G.R.; Dziadziuszko, R.; et al. Rociletinib in EGFR -Mutated Non–Small-Cell Lung
Cancer. N. Engl. J. Med. 2015, 372, 1700–1709. [CrossRef]
22. Tran, P.N.; Klempner, S.J. Profile of rociletinib and its potential in the treatment of non-small-cell lung cancer.
Lung Cancer Targets Ther. 2016, 7, 91–97. [CrossRef]
23. Hirano, T.; Yasuda, H.; Tani, T.; Hamamoto, J.; Oashi, A.; Ishioka, K.; Arai, D.; Nukaga, S.; Miyawaki, M.;
Kawada, I.; et al. In vitro modeling to determine mutation specificity of EGFR tyrosine kinase inhibitors
against clinically relevant EGFR mutants in non-small-cell lung cancer. Oncotarget 2015, 6, 38789–38803.
[CrossRef] [PubMed]
24. Walter, A.O.; Sjin, R.T.T.; Haringsma, H.J.; Sun, J.; Ohashi, K.; Lee, K.; Dubrovskiy, A.; Labenski, M.; Wang, Z.;
Zhu, Z.; et al. Discovery of a mutant-selective covalent inhibitor of EGFR that overcomes T790M mediated
resistance in NSCLC. Cancer Discov. 2013, 3, 1404–1415. [CrossRef] [PubMed]
25. Li, Y.; Song, Z.; Jin, Y.; Tang, Z.; Kang, J.; Ma, X. Novel Selective and Potent EGFR Inhibitor that Overcome
T790M-Mediated Resistance in Non-Small Cell Lung Cancer. Molecules 2016, 21, 1462. [CrossRef]
26. Liu, X.; Testa, B.; Fahr, A. Lipophilicity and its relationship with passive drug permeation. Pharm. Res. 2011
,
28, 962–977. [CrossRef]
27. Pal, A.; Balatoni, J.A.; Mukhopadhyay, U.; Ogawa, K.; Gonzalez-Lepera, C.; Shavrin, A.; Volgin, A.; Tong, W.;
Alauddin, M.M.; Gelovani, J.G. Radiosynthesis and initial in vitro evaluation of [18F]F- PEG 6-IPQA-A novel
PET radiotracer for imaging EGFR expression-activity in lung carcinomas. Mol. Imaging Biol. 2011, 13,
853–861. [CrossRef]
28. Zhang, K.; Wang, L.; Wei, A.; Jia, X.; Liu, X. CM082, a novel angiogenesis inhibitor, enhances the antitumor
activity of gefitinib on epidermal growth factor receptor mutant non-small cell lung cancer in vitro and
in vivo. Thorac. Cancer 2020, 11, 1566–1577. [CrossRef]

Molecules 2020, 25, 2914
16 of 16
29. Makino, A.; Miyazaki, A.; Tomoike, A.; Kimura, H.; Arimitsu, K.; Hirata, M.; Ohmomo, Y.; Nishii, R.;
Okazawa, H.; Kiyono, Y.; et al. PET probe detecting non-small cell lung cancer susceptible to epidermal
growth factor receptor tyrosine kinase inhibitor therapy. Bioorganic Med. Chem. 2018, 26, 1609–1613. [CrossRef]
30. Zhang, M.R.; Kumata, K.; Hatori, A.; Takai, N.; Toyohara, J.; Yamasaki, T.; Yanamoto, K.; Yui, J.; Kawamura, K.;
Koike, S.; et al. [11C]Gefitinib ([11C]Iressa): Radiosynthesis, In Vitro uptake, and In Vivo imaging of intact
murine fibrosarcoma. Mol. Imaging Biol. 2010, 12, 181–191. [CrossRef]
31. Slobbe, P.; Windhorst, A.D.; van Walsum, M.S.; Schuit, R.C.; Smit, E.F.; Niessen, H.G.; Solca, F.; Stehle, G.;
van Dongen, G.A.M.S.; Poot, A.J. Development of [18F]afatinib as new TKI-PET tracer for EGFR positive
tumors. Nucl. Med. Biol. 2014, 41, 749–757. [CrossRef]
32. Song, Y.; Xiao, Z.; Wang, K.; Wang, X.; Zhang, C.; Fang, F.; Sun, X.; Shen, B. Development and Evaluation
of 18F-IRS for Molecular Imaging Mutant EGF Receptors in NSCLC. Sci. Rep. 2017, 7, 3121. [CrossRef]
[PubMed]
33. Xu, X.; Yuan, L.; Yin, L.; Jiang, Y.; Gai, Y.; Liu, Q.; Wang, Y.; Zhang, Y.; Lan, X. Synthesis and Preclinical
Evaluation of 18F-PEG3-FPN for the Detection of Metastatic Pigmented Melanoma. Mol. Pharm. 2017, 14,
3896–3905. [CrossRef] [PubMed]
34. Lux, J.; Chan, M.; Vander Elst, L.; Schopf, E.; Mahmoud, E.; Laurent, S.; Almutairi, A. Metal chelating
crosslinkers form nanogels with high chelation stability. J. Mater. Chem. B 2013, 1, 6359–6364. [CrossRef]
[PubMed]
35. Hu, S.; Liu, X.; Bai, J.; Long, W. Protein Tyrosine Kinase Modulators and Methods of Use. WO2015003658, 15
January 2015.
36. Poot, A.; Slobbe, P.; Windhorst, A.; Haumann, R.; Schuit, R.; Van Dongen, G. [11C]nintedanib as TKI-PET
tracer for angiogenesis imaging in vivo. J. Nucl. Med. 2016, 57, 1153.
37. Zhou, W.; Ercan, D.; Chen, L.; Yun, C.H.; Li, D.; Capelletti, M.; Cortot, A.B.; Chirieac, L.; Iacob, R.E.; Padera, R.;
et al. Novel mutant-selective EGFR kinase inhibitors against EGFR T790M. Nature 2009, 462, 1070–1074.
[CrossRef] [PubMed]
38. Dulla, B.; Vijayavardhini, S.; Rambau, D.; Anuradha, V.; Rao, M.; Pal, M. Catalyst / Surfactant Free
Chemoselective Acylation of Amines in Water. Curr. Green Chem. 2013, 1, 73–79. [CrossRef]
39. Koura, M.; Yamaguchi, Y.; Kurobuchi, S.; Sumida, H.; Watanabe, Y.; Enomoto, T.; Matsuda, T.; Okuda, A.;
Koshizawa, T.; Matsumoto, Y.; et al. Discovery of a 2-hydroxyacetophenone derivative as an outstanding
linker to enhance potency and
3436–3446. [CrossRef]
β-selectivity of liver X receptor agonist. Bioorganic Med. Chem. 2016, 24,
40. Effendi, N.; Ogawa, K.; Mishiro, K.; Takarada, T.; Yamada, D.; Kitamura, Y.; Shiba, K.; Maeda, T.;
Odani, A. Synthesis and evaluation of radioiodinated 1-{2-[5-(2-methoxyethoxy)-1H-benzo[d]imidazol-
1-yl]quinolin-8-yl}piperidin-4-amine derivatives for platelet-derived growth factor receptor
β (PDGFRβ)
imaging. Bioorganic Med. Chem. 2017, 25, 5576–5585. [CrossRef]
41. Ogawa, K.; Shiba, K.; Akhter, N.; Yoshimoto, M.; Washiyama, K.; Kinuya, S.; Kawai, K.; Mori, H. Evaluation
of radioiodinated vesamicol analogs for sigma receptor imaging in tumor and radionuclide receptor therapy.
Cancer Sci. 2009, 100, 2188–2192. [CrossRef]
Sample Availability: Sample of the compound ICO1686 available from the authors.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
