Catalytic synthesis of organic cyclic carbonate through CO2 fixation and production of β-amino alcohol via ring opening of epoxides under green condition by polystyrene embedded Al(III) catalyst

Article abstract of DOI:10.1016/j.jorganchem.2019.120877

Development of low cost, eco-friendly heterogeneous catalyst for the production of value added organic compounds has been drawn a considerable attention to the synthetic chemists in recent era. Keeping the above idea in our mind, we have design and synthesized a polymer anchored Al(III) composite from modified Merrifield resin. The composite was characterized properly by FT-IR spectra, SEM, EDAX, elemental analysis, ICP-AES and PXRD studies. The low cost material is very efficient heterogeneous catalyst for the production of fine organic chemicals such as organic cyclic carbonates and 2-amino alcohols under green and mild reaction conditions. Organic cyclic carbonates were synthesized through the insertion of carbon dioxide into epoxides at room temperature under solvent free condition. The developed protocol of catalytic synthesis of cyclic carbonates is sustainable, eco-friendly and cost-effective. Moreover atmospheric carbon dioxide is utilized here. Besides, the catalyst is very much efficient to produce 2-amino alcohol from ring opening of epoxides by nucleophilic attack of amine under solvent free condition and at room temperature. This polymer anchored Al(III) can be recovered and reused easily. The catalyst preserved its catalytic intensity even after use of eight successive catalytic cycles.

Full text of DOI:10.1016/j.jorganchem.2019.120877

Accepted Manuscript
Catalytic synthesis of organic cyclic carbonate through CO fixation and production
2
of β-amino alcohol via ring opening of epoxides under green condition by polystyrene
embedded Al(III) catalyst
Surajit Biswas, Dipanwita Roy, Swarbhanu Ghosh, Sk Manirul Islam
PII:
S0022-328X(19)30320-1
DOI:
https://doi.org/10.1016/j.jorganchem.2019.120877
Article Number: 120877
Reference:
JOM 120877
To appear in: Journal of Organometallic Chemistry
Received Date: 27 June 2019
Revised Date: 22 July 2019
Accepted Date: 24 July 2019
Please cite this article as: S. Biswas, D. Roy, S. Ghosh, S.M. Islam, Catalytic synthesis of organic cyclic
carbonate through CO fixation and production of β-amino alcohol via ring opening of epoxides under
2
green condition by polystyrene embedded Al(III) catalyst, Journal of Organometallic Chemistry (2019),
doi: https://doi.org/10.1016/j.jorganchem.2019.120877.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT
Catalytic synthesis of organic cyclic carbonate through CO2 fixation and production of β-
amino alcohol via ring opening of epoxides under green condition by polystyrene
embedded Al(III) catalyst
Surajit Biswas#, Dipanwita Roy#, Swarbhanu Ghosh, Sk Manirul Islam*
Department of Chemistry, University of Kalyani, Kalyani, Nadia, 741235, W.B., India. E-mail:
manir65@rediffmail.com
#Authors contributed equally.
Abstract
Development of low cost, eco-friendly heterogeneous catalyst for the production of value added
organic compounds has been drawn a considerable attention to the synthetic chemists in recent era.
Keeping the above idea in our mind, we have design and synthesized a polymer anchored Al(III)
composite from modified Merrifield resin. The composite was characterized properly by FT-IR
spectra, SEM, EDAX, elemental analysis, ICP-AES and PXRD studies. The low cost material is very
efficient heterogeneous catalyst for the production of fine organic chemicals such as organic cyclic
carbonates and 2-amino alcohols under green and mild reaction conditions. Organic cyclic carbonates
were synthesized through the insertion of carbon dioxide into epoxides at room temperature under
solvent free condition. The developed protocol of catalytic synthesis of cyclic carbonates is
sustainable, eco-friendly and cost-effective. Moreover atmospheric carbon dioxide is utilized here.
Besides, the catalyst is very much efficient to produce 2-amino alcohol from ring opening of epoxides
by nucleophilic attack of amine under solvent free condition and at room temperature. This polymer
anchored Al(III) can be recovered and reused easily. The catalyst preserved its catalytic intensity even
after use of eight successive catalytic cycles.
Key words: Poloystyrene support, Aluminium, Carbon dioxide, cyclic carbonate, β-amino alcohol.
Introduction
For sustainable development a sensible resource management is necessary. The level of sustainability
is not satisfactory in case of feedstock of chemical industry. Until now coal, crude oil and natural gas
are the prime resource of carbon. Along with biomass, CO2 can be used as renewable carbon
economy. The amount of CO2 is continuously increased from the pre-industrial time. Now CO2 is
responsible for green house effect and abnormal climate change of the earth. Combustion of fossil
fuel is responsible for increasing carbon dioxide in the atmosphere, which in turn causes green house
effect and increases global warming [1].
Currently world is producing major part of energy needed for mankind by combustion of fossil fuel
such as coal, oil and natural gas. Though after enormous efforts to develop alternatives renewable
energy sources, these fossil fuels remain as predominant energy source. To maintain carbon dioxide
level in atmosphere it is necessary to control CO2 emission in atmosphere and to introduce efficient
carbon capture and storage (CCS) systems. Through CCS carbon dioxide is separated, purified,
pressurized and dumped underground or under sea storage [2]. This stored and dumped carbon
dioxide can be utilized in large scale production of different chemicals by carbon capture and

ACCEPTED MANUSCRIPT
utilization, (CCU) [3]. As CO2 is readily available, non toxic and recyclable it is used as one carbon
building block (C-1) for organic synthesis. In recent years one of the research interests is to utilize the
carbon dioxide to an available feedstock for the production of organic fine chemicals [4].
Carbon dioxide is thermodynamically stable and kinetically inert because it is the most oxidised form
of carbon. For this reason activation and utilisation of CO2 is not easy. Generally highly reactive
substrates or drastic reaction conditions are employed for CO2 activation and this is the limitation of
such methods. Strong carbon nucleophilic reagents like organolithiums, Grignard reagents are used to
create C-C bond with CO2. CO2 can be catalytically coupled with high energy substrate like epoxides
and aziridines to produce poly carbonates/polycarbamates and cyclic carbonates/cyclic carbamates.
Over past decades transformation of CO2 in organic synthesis have been achieved and gradually
improving its efficiency.
There are several strategies were invented to reduce the amount of CO2 in atmosphere. Incorporation
of CO2 into epoxides to produce carbonates is one of them and is playing a significant roll in organic
synthesis. Cyclic carbonates are very important synthetic target as they have a wide range of
established and potential applications. They are utilised in lithium ion battery as electrolyte solvent, in
many reaction they are used as environment friendly polar aprotic solvents, in the synthesis of many
fine chemicals they are the intermediates [5]. Cyclic carbonates are also used as raw materials in
paints and oils. As cyclic carbonates can undergo ring opening polymerization, Polycarbonates and
polyurethanes, are synthesized from cyclic carbonates [6]. Cyclic carbonates with five membered ring
can act as an alkylating reagent for aromatic amines, thiols and phenols at high temperature. This ring
opening is used in polymer modification, pre-polymer synthesis and super absorbent polymers
production [7].
Traditionally cyclic carbonates were manufactured through a hazardous, poisonous, and corrosive
pathway involving phosgene and glycol. Recently these carbonates are synthesized by cyclo-addition
of carbon dioxide to epoxides in presence of suitable catalysts. Many homogeneous catalysts already
been employed for this catalytic fixation such as alkali metal salts [8], quaternary
phosphonium/ammonium salts [9], bromine [10], ionic liquids [11], metal complexes [12],
polyoxometalate [13], organo catalyst [14] etc. But homogeneous catalysts have general disadvantage
of recyclability and reusability. On the other hand, many heterogeneous catalytic systems also
developed e.g., MOFs [15], COFs [16], inorganic-organic hybrid core shell microspheres [17] etc. to
beat those problems. But the catalytic system requires inconsiderate reaction conditions such as very
high carbon dioxide pressure, temperature and poisonous organic solvents. For these aspects, it is very
much desirable to explore recyclable and reusable catalytic system, which can perform its catalytic
activity under atmospheric pressure, room temperature and solvent free condition. That’s why; we
have been designed and synthesized a polymer supported aluminium metal complex which can act as
an efficient heterogeneous catalyst for the synthesis of cyclic carbonate under 1 atm CO2 pressure and
room temperature in solvent free condition.
β-Amino alcohol is very attractive intermediates for the synthesis of some important biologically
active natural as well as synthetic products including chiral auxiliaries [18]. These take part in pivotal
role of organic synthesis, pharmaceuticals and medicinal chemistry. β-blockers are widely used as
insecticidal agents [19] and also in treatment of various human disorders, such as heart failure, cardiac
arrhythmias, sympathetic nervous system disorders and hypertension etc. [20]. In classical method,
these compounds were produced through aminolysis of epoxides by heating in presence of excess
amine. But the method has lots of disadvantages, like excess inorganic base required, large reaction
duration, for deactivated aromatic amines low nucleophilicity observed, and use of elevated

ACCEPTED MANUSCRIPT
temperature may not be the standard condition for sensitive functional groups molecules [21]. In
recent year synthesis of β-amino alcohol through ring opening of epoxides with amine in presence of
catalyst gaining a lots of attention to the scientific community [22]. Different types of Lewis base
such as NbCl5 [23], SmI2 [24], ZrCl4 [25], RuCl3 [26], Y(NO3)3.6H2O [27], Sc(OTf)3 [28] etc. have
been used as catalyst for manufacturing this compounds. Under mild and improved reaction
conditions metal halides [29] silica perchloric acid [30], metal alkoxides [31], metal amides [32] and
alumina [33] also been utilized as efficient catalyst for this compounds preparation. But due to the
homogeneous catalytic nature of above mentioned catalysts and also metal toxicity; design and
synthesis of eco-friendly and low cost heterogeneous catalyst is still very desirable for production of
β-amino alcohols through nucleophilic ring opening of epoxides by different amines.
In this paper we sketch and synthesize a polymer embedded monometallic aluminium (III) complex
which can show its catalytic activity towards the insertion of CO2 to various epoxides to produce
cyclic carbonates under atmospheric pressure and ambient temperature and solvent free condition.
Again the catalyst is very efficient to produce β-amino alcohols via nucleophilic ring opening of
epoxides by aromatic amines under solvent free condition and at room temperature. This polymer
anchored catalyst is easily separable from reaction mixture after completion of reaction and can be
reused without any significant loss in its activity.
2. Experimental
2.1. Catalyst preparation
This catalyst was easily synthesized in three steps procedure. In the first step Schiff base,
4-Acetylpyridinethiosemicarbazone was prepared. Then chloromethyl polystyrene was reacted with
this Schiff base to produce polymer anchored Schiff base ligand. Finally, this polymer-anchored
Schiff base ligand reacted with aluminium chloride salt in ethanol to produce polymer-anchored
aluminium, [PS-AlIII(L)(Cl)3] catalyst (Scheme 1).
2.1.1. Synthesis of 4-Acetylpyridine thiosemicarbazone (L)
4-acetylpyridine and thiosemicarbazide were mixed in a stoichiometric ratio to synthesize the Schiff
base ligand 4-Acetylpyridine thiosemicarbazone. In methanol (100 mL) 4-acetylpyridine (0.10 mol),
thiosemicarbazide (0.10 mol) were mixed and heated to reflux for 2 h. A white coloured precipitate
was appeared after cooling the reaction mixture. This precipitate was filtered off and washed with
methanol. A white crystal appeared after re-crystallisation of the precipitate from methanol. 1H NMR:
(400 MHz, DMSO-d6) δ 2.288 (s, 3H), 7.889 (dd, J=1.6 Hz, 2H), 8.144 (s, −NH2), 8.446 (s, −NH2),
13
8.560 (dd, J=1.6 Hz, 2H) ppm (Fig. S1); C NMR: (100 MHz, DMSO-d6) δ 13.83, 121.13, 145.15,
145.53, 150.21, 179.69 (Fig. S2)
2.1.2. Synthesis of Polymer-Anchored Al(III) Catalyst [PS-AlIII(L)(Cl)3]
Polymer-Anchored aluminium catalyst was synthesised in two steps process. 4-acetylpyridine
thiosemicarbazone (1.07 g) was dissolved in DMF (20 mL) then chloromethylated polystyrene (2 g)
was added to this solution and refluxed for 24 h. After completion the reaction, it was cooled to room
temperature. A light yellow coloured polymer beads were obtained which was filtered and washed
properly with methanol. The product was dried in vacuum. The polymer supported Schiff base (1 g)
was taken in methanol (10 mL) in a round bottom flask. To this mixture, 10 ml methanolic solution of

ACCEPTED MANUSCRIPT
AlCl3 (1 % w/v) was added over a period of 30 minutes and refluxed for another 9 h. Then yellow
coloured aluminium loaded beads were filtered, washed with methanol and dried under vacuum.
Scheme 1. Synthesis of [PS-AlIII(L)(Cl)3] catalyst.
2.2. General Experimental Procedure for insertion of CO2 to epoxides
A mixture of epoxides (10 mmol) and [PS-AlIII(L)Cl3] catalyst (40 mg) were taken in a round bottom
flux, tetrabutyl ammonium bromide (TBAB) (1 mmol) was added to the above mixture as a co-
catalyst. The reaction mixture was stirred under one atmospheric pressure of carbon dioxide at room
temperature. The progress of reaction was monitored by TLC. After completion of the reaction
ethylacetate (10 ml) was added to the reaction mixture and washed with water (10 ml) for three times.
Organic part was collected in a conical flux and dried over anhydrous sodium sulphate. Then organic
layer was evaporated via rotary evaporator and analyzed by Varian 3400 gas chromatograph. The gas
chromatograph was equipped with a 30 m CP-SIL8CB capillary column and a Flame Ionization
Detector. Peak position of various reaction products were compared and matched with the retention
times of authentic samples. Identity of the products was also confirmed by using NMR spectroscopy.
2.3. General Experimental Procedure of β-amino alcohols synthesis via nucleophilic ring opening of
epoxides by aromatic amines in presence of [PS-AlIII(L)Cl3] catalyst
In a 50 ml R.B. flask, 40 mg of [PS-AlIII(L)Cl3] catalyst, amine (5 mmol), epoxides (5mmol) were
taken and the mixture was stirred at room temperature till completation of the reaction. Thin layer
chromatography was used to check the completation of the reaction. Then the reaction mixture was
poured into 30 ml chloroform and washed with water (10 ml) for three times through solvent
extraction technique. Organic part was collected in a R. B. flask and dried over anhydrous Na2SO4.
After evaporating the organic solvent part via rotary evaporator, the obtained crude product was
purified through column chromatography using pet ether and ethyl acetate as eluent. The pure product
was identified by NMR spectroscopy and compare with reported literature.
3. Result and discussion
3.1. Characterization of [PS-AlIII(L)Cl3] catalyst
3.1.1. Elemental analysis

ACCEPTED MANUSCRIPT
The elemental analysis data of Schiff base ligand (L), polystyrene supported Schiff base ligand
[PS-(L)] and catalyst [PS-AlIII(L)Cl3] are given in Table 1. The elemental data of 4-Acetylpyridine
thiosemicarbazone (L) are quite similar to that of calculated values. Thus the result indicates that
compound was synthesized properly. Again zinc loading on polystyrene supported Schiff base ligand
is 3.8524 (calculated from ICP-AES analysis data) also mentions the successful attachment of
aluminium on the support.
Table 1
Elemental composition table (in percentage weight)
Compound
Color
White
Light
C
H
N
Al
Ligand (L)
49.05 (49.46) 4.99 (5.19) 28.44 (28.84)
------
------
Polymer supported ligand [PS-(L)]
66.45
5.89
18.84
yellow
Light
yellow
[PS-AlIII(L)(Cl)3] catalyst
46.68
4.32
10.32
5.8524
5.8502a
Parentheses values are calculated values; aReused catalyst zinc loading (after 8th cycle).
3.1.1. IR spectra
IR spectra of polystyrene embedded 4-Acetylpyridine thiosemicarbazone [PS-(L)] showed one broad
band centered at 3414 cm-1 is due to ν(−ΝΗ2) vibration (Fig. 1). Another band appeared at 3075 cm-1
is because of ν(−ΝΗ) vibration. The peak observed at 1639 and 1160 cm-1 are the characteristics
frequencies of ν(-C=N) and ν(-C=S) groups of 4-Acetylpyridine thiosemicarbazone moiety
respectively [34]. In [PS-AlIII(L)Cl3] catalyst these two characteristics bands shifts towards lower
frequencies which clearly indicates the interactions between aluminium metal with N atom of
azomethine (-C=N) group and that of Al with S atom of (-C=S) group. Two new bands also seen in
the IR spectra of catalyst at 510 cm-1 and 465 cm-1 that can be assign as ν(Al-N) and ν(Al-S)
respectively [34].
Fig. 1. IR spectra of polymer supported 4-Acetylpyridine thiosemicarbazone ligand [PS-(L)] and its aluminium
catalyst [PS-AlIII(L)Cl3].

ACCEPTED MANUSCRIPT
3.1.2. Field emission scanning electron microscopy (SEM) and energy dispersive X-ray analyses
(EDX)
In order to understand the morphological changes occurs during the course of reaction for the
formation of polymer supported aluminium catalyst from polystyrene embedded 4-Acetylpyridine
thiosemicarbazone ligand, FE SEM analysis for single beads of the support have been carried out. The
surface of chloromethylated polystyrene beads is smooth (not shown hare). After the reaction with 4-
Acetylpyridine thiosemicarbazone, the surface of beads becomes slightly rough due to covalent
bonding between them (Fig 2(a)). Again the surface of the beads appears more rough and small
particles deposited on the surface after loading of aluminium metal (Fig. 2(b)).
Energy dispersive X-ray analyses have been monitored to know the elemental composition of both
ligand and catalyst. In ligand C, N, S elements are present whereas the catalyst contains same
elements along with aluminium metal (Fig. 3). Thus a FE SEM and EDAX analysis confirms the
successful synthesis of polymer supported ligand as well as its aluminium complex.
Fig. 2. FESEM images of [PS-(L)] ligand (a) and [PS-AlIII(L)Cl3] catalyst (b).
Fig. 3. EDX analyses of [PS-(L)] ligand (a) and [PS-AlIII(L)Cl3] catalyst (b).

ACCEPTED MANUSCRIPT

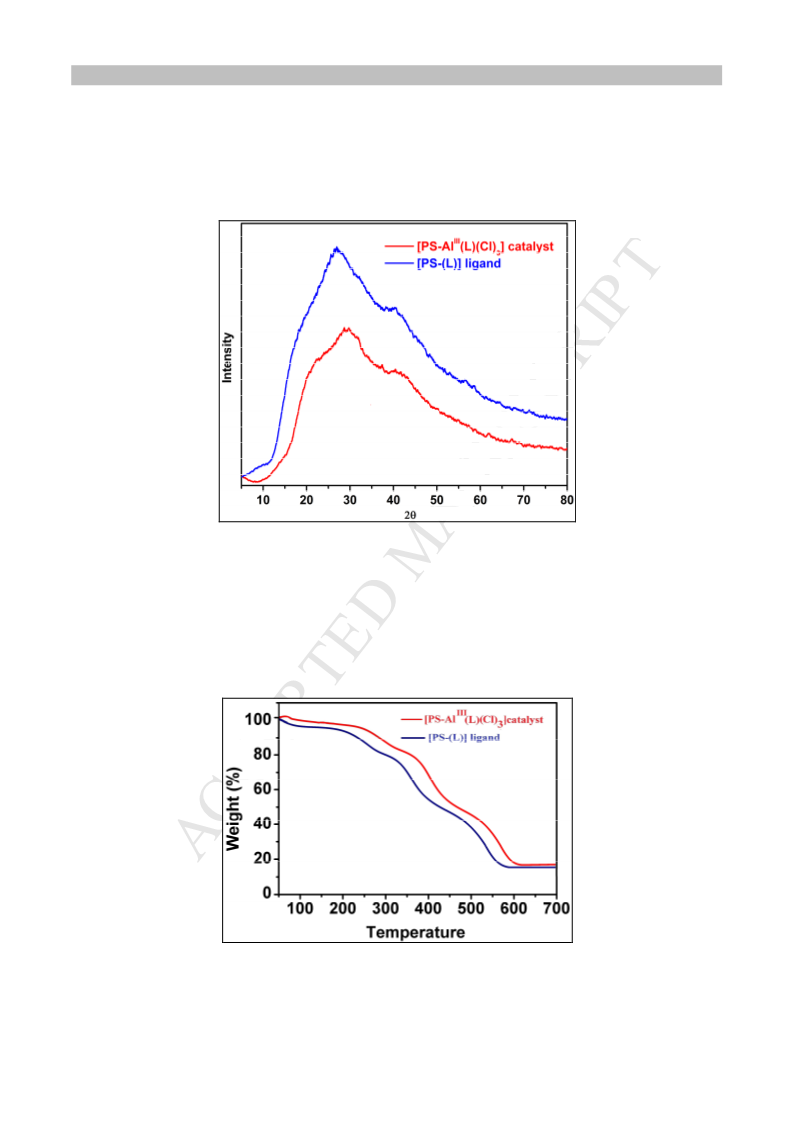

3.1.3. Powder X-ray diffraction
Powder X-ray diffraction pattern of [PS-(L)] ligand and [PS-AlIII(L)Cl3] catalyst exhibit a broad
spectral band in between range of 2θ (10-50) (Fig. 4). From this pattern we can conclude that both
ligand as well as catalyst is amorphous in nature and no nanoparticle of aluminium metal was formed
during the course of catalyst formation reaction [35].
Fig. 4. PXRD spectra of [PS-(L)] ligand and [PS-AlIII(L)Cl3] catalyst.
3.1.3. Thermogravimetry analysis
Thermogravimetry analysis of polystyrene supported ligand and catalyst was monitored under
nitrogen atmosphere. The heating rate of the analysis was kept 10 °C/minutes. Both ligand and
catalyst were quite stable up to 200 °C (Fig. 5). Catalyst was relatively more stable than ligand.
Complete decomposition of ligand as well as catalyst was occurred beyond 400 °C.
Fig. 5. Thermograms of [PS-(L)] ligand and [PS-AlIII(L)Cl3] catalyst.

ACCEPTED MANUSCRIPT
3.2. Catalytic activity
3.2.1. Catalytic fixation of CO2 into epoxides for the formation of organic cyclic carbonates in
presence of [PS-AlIII(L)Cl3] catalyst

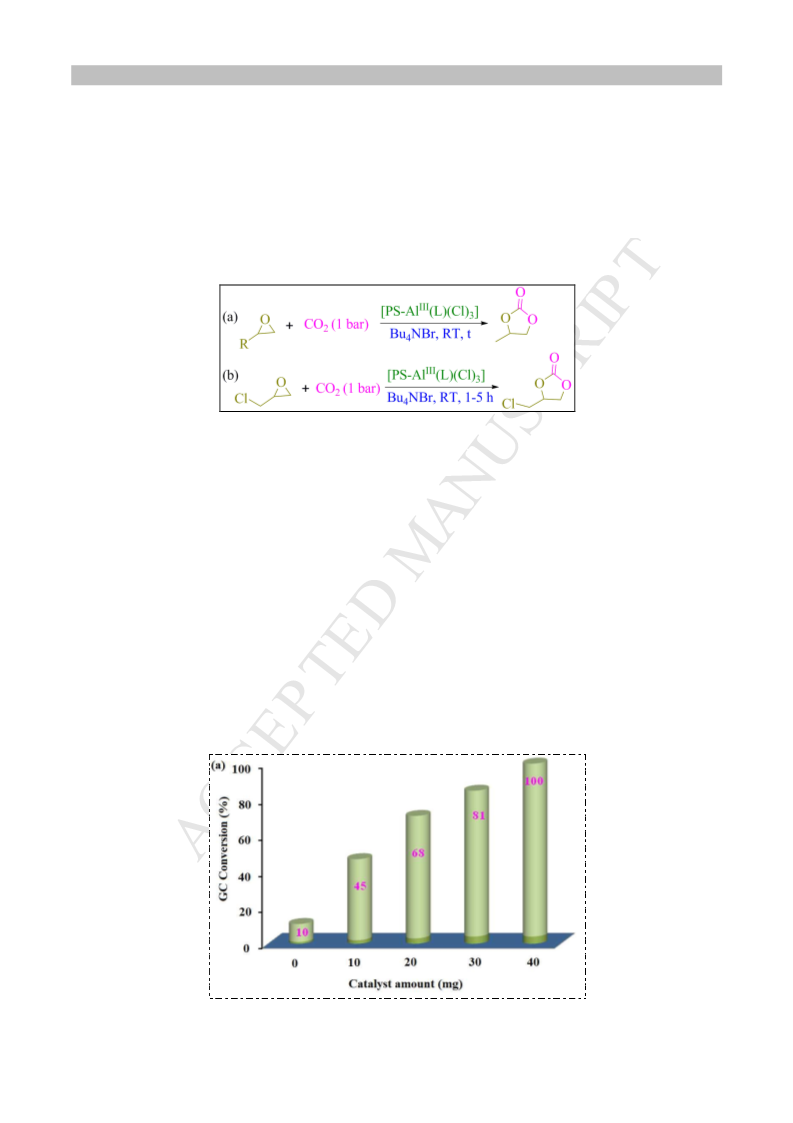

Scheme 2a represents the preparation of cyclic carbonates from epoxides through insertion of
atmospheric CO2 at room temperature under solvent free condition in presence of [PS-AlIII(L)Cl3]
catalyst and tetra-n-butylammmonium bromide (TBAB) as co-catalyst. For optimization of catalytic
reaction conditions, the reaction between epichlorohydrin with carbon dioxide was taken as model
reaction (Scheme 2b).
Scheme 2. Synthetic paths of (a) organic cyclic carbonates and (b) epichlorohydrin carbonate through CO2
fixation.
The effects of various parameters like amount of [PS-AlIII(L)Cl3] catalyst and co-catalyst, reaction
duration etc. for formation of epichlorohydrin carbonate from epichlorohydrin (5 mmol) were
monitored in order to optimize the reaction conditions. Fig. 6a showing the effects of catalyst amount
on the reaction of epichlorohydrin (5 mmol) with CO2 (1 bar) and TBAB (1 mmol). From the figure it
is clear that very poor amount of substrate conversion (~10%) was observed in absence of the catalyst.
In presence of 10 mg catalyst, the substrate conversion proceeds smoothly and gave 45% conversion
after 6 hrs. With increasing catalyst amount the conversion of substrate into product also increases.
We got maximum conversion of epichlorohydrine (100%) while 40 mg of catalyst was used.

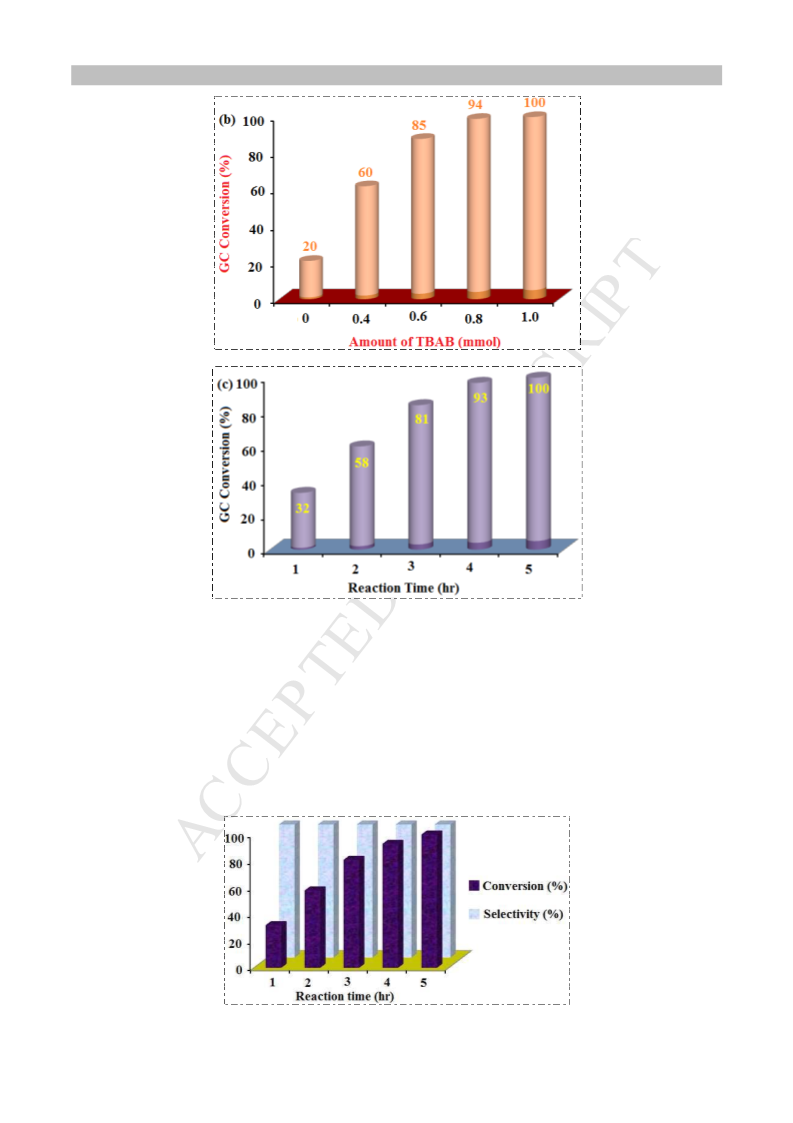

Effect of TBAB amount on the same catalytic reaction in presence of 40 mg catalyst is depicted in
Fig. 6b. Partial conversion of epichlorohydrin to epichlorohydrin carbonate was observed with use of
more or less amount of TBAB than 1 mmol. Use of 1 mmol TBAB gave us maximum conversion
(100%) of substrate after 5 hrs of reaction.
Fig. 6c describes the effect of reaction time on substrate conversion into desired carbonate. From this
Figure it is confirmed that 5 hrs reaction time is sufficient for obtaining optimize yield.

ACCEPTED MANUSCRIPT
Fig. 6. Effects of (a) catalyst amount (b) amount of TBAB (c) reaction duration on the conversion of
epichlorohydrin.
The conversion of epichlorohydrin and selectivity of epichlorohydrin carbonate formation
with respect to reaction time is given in Fig. 7. Throughout the reaction, the progress of
selectivity of epichlorohydrin carbonate formation from epichlorohydrin remains same (i.e.
100%) but when the reaction is carried out in presence of 1 mmol TBAB without catalyst the
selectivity of desired carbonate formation decreases to only 38% under optimized reaction
conditions. Thus [PS-AlIII(L)Cl3] catalyst definitely have an important role to improve the
conversion of substrate as well as selectivity of desired product.
Fig. 7. Conversion and selectivity with respect to reaction duration over [PS-AlIII(L)Cl3] catalyst.

ACCEPTED MANUSCRIPT
Substrate scopes for this organic cyclic carbonates synthesis reaction through CO2 insertion
was checked with various epoxides such as epichlorohydrin, 1,2-epoxy-3-phenoxy propane,
glycidol, allyl glycidyl ether, glycidyl isopropyl ether, styrene oxide, propylene oxide and
cyclohexene oxide under optimized reaction conditions. Almost all the substrates showed
very good conversion and selectivity towards respective desired product (Table 2). From our
observations it was noticeable that aliphatic terminal epoxides (Table 2, entries 1-6) showed
relatively better yield of the cyclic carbonates than the aromatic terminal epoxides (Table 1,
entries 7,8).
Table 2
Synthesis of organic cyclic carbonate through CO2 fixation by catalysed by [PS-AlIII(L)Cl3] catalysta
Time
(h)
% of GC conversion
(% Selectivity)
TOFb
11.49
Entry
1
Epoxides
Product
5
5
5
5
5
5
100 (≥99)
100 (≥99)
97 (≥99)
95 (≥99)
95 (≥99)
93 (≥99)
2
3
4
5
6
11.49
11.15
10.92
10.92
10.67

ACCEPTED MANUSCRIPT
7
8
5
90 (≥99)
87 (≥99)
10.34
10.00
5
aReaction conditions: Epoxides (5 mmol), TBAB (1 mmol), catalyst (40 mg, 0.087 mmol based on Al metal),
Room temperature, No solvent;
bTOF (Turn Over Frequency): no. of moles of the substrate being converted per mole of active site of the
catalyst/time (in h).
3.2.2. Probable mechanism of catalytic synthesis of organic cyclic carbonates
The catalytic reaction mechanism for synthesis of cyclic carbonate from epoxides in presence of a
bimetallic aluminium(salen) complex and TBAB was check up and established appropriately by
Michael North and Riccardo Pasquale [36]. The formation of amine carbamate salts through the
breaking of TBAB is also well accepted in previous reports [36, 37]. In this work although we could
not recognize and separates any intermediate species, a probable mechanism is shown here
(Scheme 3) with the help of reported literatures. The catalytic cycle is initiated through the epoxides
activation by Lewis acidic Al centre of [PS-AlIII(L)Cl3] catalyst, then nucleophilic attack of Br- of
TBAB creates epoxides ring-opening to make Al-bonded bromo-alkoxide. Next, alkoxide
intermediate works as nucleophile and attacks carbon dioxide to make the metal carbonate
intermediate. This so formed metal carbonate intermediate produced desired carbonate compound via
an intra-molecular ring-closure reaction and leave the catalyst as free for next catalytic cycle.
Scheme 3. Probable mechanistic pathway of catalytic cyclic carbonates synthesis reaction.

ACCEPTED MANUSCRIPT
3.2.3. Catalytic synthesis of β-amino alcohol via ring opening of epoxides in presence of
[PS-AlIII(L)Cl3] catalyst
Catalytic synthesis of β-amino alcohol via ring opening reaction of epoxides and amine in presence of
[PS-AlIII(L)Cl3] catalyst is shown in Scheme 4a. To optimize the reaction, effects of catalyst amount
and reaction duration was checked by taking epichlorohydrin (1mmol) and aniline (1 mmol) at room
temperature under solvent free condition (Scheme 4b).
Scheme 4. Synthetic paths of (a) β-amino alcohol and (b) 1-chloro-3-(phenylamino)propan-2-ol through ring
opening reaction of epoxide.
Fig. 8a showing the effects of catalyst amount on 1-chloro-3-(phenylamino)propan-2-ol formation
through ring opening of epichlorohydrin by aniline. From the figure it is clear that very poor amount
of 2-amino alcohol product is formed (~5%) in absence of the catalyst after 24 hr of reaction. In
presence of 10 mg catalyst, the reaction proceeds smoothly and gave 58% yield of desired product
after 4 hrs. With increasing catalyst amount the product yield also increases. We got maximum yield
of product (96%) while 30 mg (or 35 mg) of catalyst was used.
Fig. 8b describes the effect of reaction time on yield of desired 2-amino alcohol product formation.
From this Figure it is clear that 3 hrs reaction time is sufficient for obtaining optimum yield of
product.

ACCEPTED MANUSCRIPT
Fig. 8. Effects of (a) catalyst amount (b) reaction duration on the production of 1-chloro-3-
(phenylamino)propan-2-ol from epichlorohydrin and aniline.
Scheme 5 depicts the various pathways of products formation by means of nucleophilic attacks of
amine on epoxides. There is a possibility of getting two products from the reaction involving three
probable routes. The advantage of our catalytic reaction is production of β-amino alcohols from
nucleophilic attack at the terminal carbon of epoxides as the sole product. The reactions mechanism is
very simple, straightforward and product yields are usually high.
Scheme 5. Ring opening of epichlorohydrin by nucleophilic attack of amine.
The substrate tolerance for this catalytic 2-amino alcohol production reaction was tested with different
epoxides viz. epichlorohydrin, glycidol, allyl glycidyl ether, cyclohexene oxide, styrene oxide and
1,2-epoxy-3-phenoxy propane with anilines and derivatives of anilines under optimized reaction
condition. The observed results are summarized in Table 3. Generally the catalyst [PS-AlIII(L)Cl3] was
very efficient to produce desired 2-amino alcohol product in 3 h. A facile attack by aniline at benzylic
position or the less-hindered terminal carbon of styrene oxide and aryloxy epoxides respectively
produced the regioselective product (Table 3, entries 5 and 6) through this catalytic reaction.
Cyclohexene oxide, a meso epoxides was also took part in the epoxide ring opening reaction with
aniline. With this meso epoxide we got high yields of desired product (90%) (Table 3, entry 4).
Moreover both electron-donating and electron-withdrawing group substituted anilines undergoes this
catalytic reaction very smoothly and furnishes very good amount of product yield (Table 3, entries 7-
10).

ACCEPTED MANUSCRIPT
Table 3
Synthesis of 2-amino alcohol via ring opening reaction of epoxides by amine nucleophile in presence of
[PS-AlIII(L)Cl3] catalysta
Entry
1
Epoxides
Amine
Product
Isolated yield (%)
96
2
3
4
5
6
7
92
91
90
97
97
91
8
88

ACCEPTED MANUSCRIPT
9
85
87
10
aReaction conditions: epoxides (1 mmol), aniline (1 mmol), [PS-AlIII(L)Cl3] catalyst (30 mg, 0.065 mmol based
on Al metal), Room temperature, No solvent, 3 hr.
3.2.4. Comparison of catalytic activity of our synthesized catalyast with other reported systems
The efficiency of catalytic activity of [PS-AlIII(L)Cl3] catalyst can be proved by comparing it with
other reported catalytic protocols. Here we compared organic cyclic carbonates synthesis as well as 2-
amino alcohol production reactions by [PS-AlIII(L)Cl3] catalyst with other reported methods (Table 4)
[38-48]. The result from the comparison table clearly indicates that our synthesized catalyst is very
efficient in both cyclic carbonates and 2-amino alcohol formation reactions.
Table 4:
Relative catalytic activity study of [PS-AlIII(L)Cl3] with other reported systems
Catalyst
Reaction conditions
Yield (%)
Ref.
PISA-350
Dinuclear
Epichlorohydrine (6 mmol), catalyst (0.03 mmol), CO2
pressure (1.0 MPa), 100 °C, 4 h
98
97
[38]
[39]
Aluminum Epichlorohydrine (16.63 mmol), 0.3 mol% catalyst, 0.9
Poly(phenolate)
Complexes
Al-HCP
mol% TBAB, 1 bar CO2 (balloon), 85 °C, 18 h.
Epichlorohydrine (3 mmol), 0.25 mol % catalyst, TBAB (2
mol% ), CO2 (1.0 MPa), 40 °C, 2.5 h.
97
80
[40]
[41]
Bimetallic
Aluminium(Salphen)
Complex
Epichlorohydrine (1.66 mmol)), 0.25 mol% catalyst, TBAB
(0.5 mol% ), CO2 (10 bar), 50 °C, 24 h
Amidinate
complex
aluminium Epichlorohydrine (1.66 mmol), catalyst (0.083 mmol), and
Bu4NI (27 mg, 0.083 mmol), CO2 (10 bar), 50 °C, 24 h.
89
[42]
[43]
Helical
Catalysts
Aluminium Epichlorohydrine (1.7 mmol mmol), catalyst (17.0 µmol),
TBAB (17.0 µmol), CO2 (10 bar), 50-90 °C, 16 h.
94
[PS-AlIII(L)Cl3] catalyst Epichlorohydrine (5 mmol), TBAB (1 mmol), catalyst
(40 mg, 0.087 mmol based on Al metal), CO2 (1 bar),
Room temperature, No solvent, 5h
≥99
This
work

ACCEPTED MANUSCRIPT
Vanadium-
Salan Complex
Cyclohexene oxide (1.0 mmol), anilines (1.0 mmol),
Catalyst (10 mol %), DCM, 0 oC, 24 h.
84
98
90
[44]
[45]
[46]
Macrocyclic
salen complex
Cr(III) Cyclohexene oxide (1 mmol), anilines (1 mmol), Catalyst
(0.5 mol%), DCM/MeOH, room temperature, 24 h
Fe(ClO4)2.6H2O
Bolm’s ligand
and 2,3-diphenyloxirane (1.0 equiv.), aniline (1.0 equiv.),
Fe(ClO4)2.6H2O (5 mol %), Bolm’s ligand (6 mol %), 16 h
Organocatalyst
PS-AN-Ce
Cyclohexene oxide (0.2 mmol), anilines (0.22 mmol),
Catalyst (20 mol%), DCM, room temperature, 24 h,.
95
92
[47]
[48]
Cyclohexene oxide (1.5 mmol), aniline (2.25 mmol), 25 mg
PS-AN-Ce catalyst, solvent free condition, room
temperature, 2.5 hour.
[PS-AlIII(L)Cl3] catalyst Cyclohexene oxide (1 mmol), aniline (1 mmol), catalyst
(30 mg, 0.065 mmol based on Al metal), Room
temperature, solvent free, 3 hr.
90
This
work
4. Heterogeneity of [PS-AlIII(L)Cl3] catalyst
Heterogeneity nature of [PS-AlIII(L)Cl3] catalyst was confirmed by hot filtration test and checking
PXRD pattern as well as ICP-AES analysis of fresh and used catalyst. Epichlorohydrin carbonate
formation reaction was carried out by stirring epichlorohydrin (5 mmol), TBAB (1 mmol) at room
temperature under 1 bar CO2 pressure in presence of catalyst (40 mg) for 2 hr. The conversion of
substrate was found (58%) by GC. After 2 hr of catalytic reaction, the catalyst was separated by
filtration and the filtrate was continued to stir for another 2 hr without catalyst. Finally the conversion
of substrate was further verified by GC but no more conversion of epichlorohydrin was observed.
ICP-AES analysis of fresh and used catalyst after first cycle suggested that both of them contains
same amount of Al metal loading (i.e. 5.8524% of metal). No considerable amount decrease of metal
loading was seen even after use of eight consecutive catalytic cycles (5.8502% of metal). The PXRD
spectral pattern of catalyst and used catalyst was almost similar (Fig. S21). Thus all these data
confirmedly assured the heterogeneity nature of [PS-AlIII(L)Cl3] catalyst.
5. Recyclability of [PS-AlIII(L)Cl3] catalyst
It is very meaningful for a heterogeneous catalyst to check its separation, recoverability and
reusability. To monitor the recyclability of the catalyst we use cyclic carbonates formation reaction
from epichlrorhydrin through CO2 insertion in presence of [PS-AlIII(L)Cl3] catalyst. The catalyst was
isolated after each catalytic cycle by simple filtration process. Then separated catalyst was washed
properly by methanol and acetone simultaneously. The washed catalyst was heated in oven at 80 °C
for 12 hr. Then it was kept under vacuum till the use of next catalytic cycle. From fig. 9 it is clear that
the [PS-AlIII(L)Cl3] catalyst can be used for eight cycles without considerable amount loss of product
yield. So from this data we can conclude that the catalyst is fully heterogeneous in nature.

ACCEPTED MANUSCRIPT

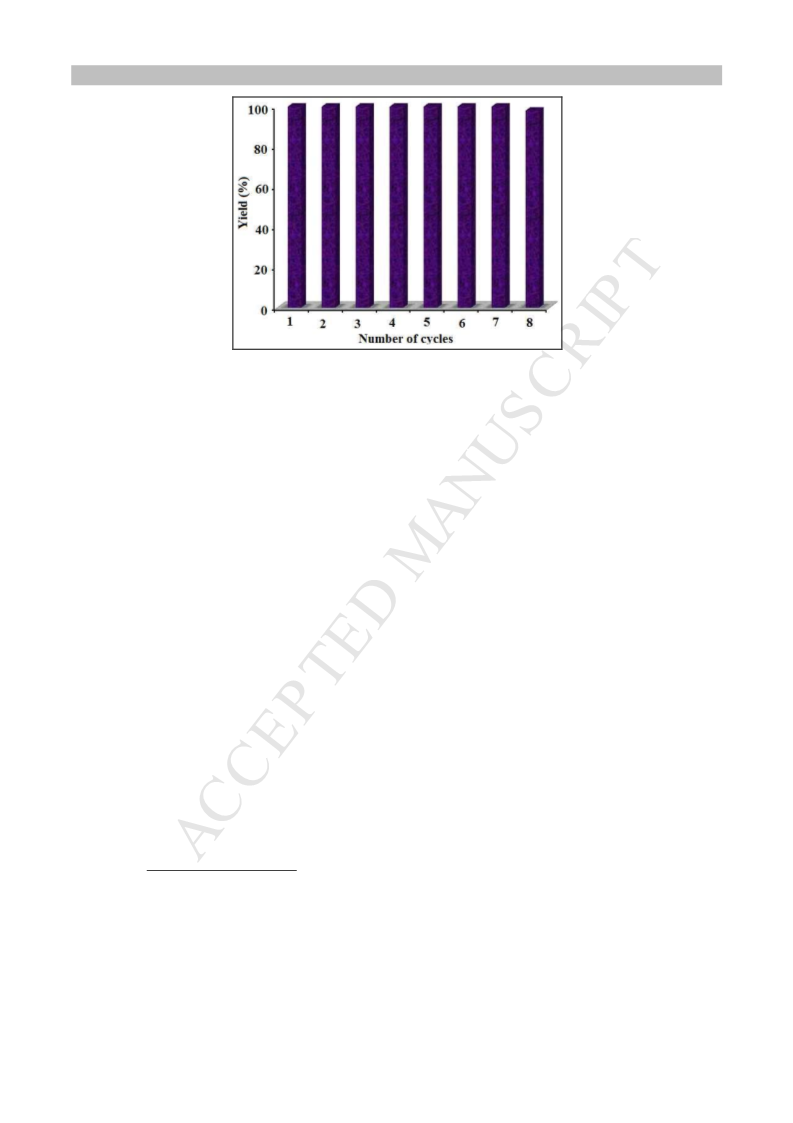

Fig. 9. Recyclability of [PS-AlIII(L)Cl3] catalyst in epichlorohydrin carbonate production reaction.
6. Conclusion
We have design and synthesized a modified polystyrene supported Al(III) catalyst. The catalyst was
characterized properly by X-ray powder diffraction analysis, FT-IR spectroscopy, Elemental analysis,
Thermogravimetry and ICP-AES analysis. The catalyst is very capable in fixation of carbon dioxide
towards epoxides under 1 bar pressure at room temperature for the synthesis of organic cyclic
carbonates. Not only that the catalyst is very effective for regioselective preparation of 2-amino
alcohol via epoxides ring opening by nucleophilic attacks of aromatic amines. Both type of catalytic
reactions proceeds through solvent free, hazardless and environmentally benign conditions. We
expect low cost, heterogeneous and recyclable (effective after use of eight successive cycles) catalytic
system may gain an attention in industrial applications in future.
ACKNOWLEDGMENT
Prof. S. M. Islam acknowledges Department of Science and Technology (DST-W.B.) (Project
sanction No. 871(Sanc.)/ST/S&T/4G-8/2014), West Bengal, for financial support. Dr. S. Biswas and
Dr. D. Roy acknowledges University Grants Commission (UGC) for financial support through D. S.
Kothari Post-Doctoral Fellowship (Award letter no. F.4-2/2006(BSR)/CH/16-17/0026 and F.4-2/2006
(BSR)/CH/16-17/0239 respectively). We acknowledge UGC and DST New Delhi, India for finalcial
and instrumental support to Department of Chemistry, University of Kalyani under PURSE, FIST and
SAP program.
AUTHOR INFORMATION
Corresponding Author
*Email: manir65@rediffmail.com
References
[1]
(a) F. M. Orr Jr., Energy Environ. Sci. 2 (2009) 449-458;
(b) F. Schierbaum, Carbon Dioxide as Chemical Feedstock Vol. 62 (ed. Aresta, M.) Wiley-
VCH (2010).
[2]
[3]
D. P. Schrag, Science 315 (2007) 812-813.
(a) M. Aresta, A. Dibenedetto, Dalton Trans. (2007) 2975-2992;

ACCEPTED MANUSCRIPT
(b) K. M. K. Yu, I. Curcic, J. Gabriel, S. C. E. Tsang, ChemSusChem. 1 (2008) 893-899;
(с) P. Styring, K. Armstrong, Chem. Today 29 (2011) 28-31.
[4]
(a) J. Jia, C. Qian, Y. Dong, Y. F. Li, H. Wang, M. Ghoussoub, K. T. Butler, A. Walsh, G. A.
Ozin, Chem. Soc. Rev. 46 (2017) 4631-4644;
(b) Q.-W. Song, Z.-H. Zhou, L.-N. He, Green Chem. 19 (2017) 3707-3728;
(c) M. M.-J. Li, S. C. E. Tsang, Catal. Sci. Technol. 8 (2018) 3450-3464;
(d) S. Wang, C. Xi, Chem. Soc. Rev. 48 (2019) 382-404;
(e) T. Biswas, V. Mahalingam, Sustainable Energy Fuels 3 (2019) 935-941;
(f) A. Hazra Chowdhury, I. Hazra Chowdhury, S. M. Islam, Ind. Eng. Chem. Res. 58 (2019)
11779-11786;
(g) S. Ghosh, A. Ghosh, S. Biswas, M. Sengupta, D. Roy, S. M. Islam, ChemistrySelect 4
(2019) 3961-3972;
(h) R. Khatun, S. Biswas, S. Islam, I. H. Biswas, S. Riyajuddin, K. Ghosh, S. M. Islam,
ChemCatChem 11 (2019) 1303-1312.
[5]
(a) S. Fukuoka, M. Kawamura, K. Komiya, M. Tojo, H. Hachiya, K. Hasegawa, M. Aminaka,
H. Okamoto, I. Fukawa, S. Konno, Green Chem. 5 (2003) 497-507;
(b) T. Sakakura, K. Kohno, Chem. Commun. (2009) 1312–1330;
(c) B. Schaffner, F. Schaffner, S.P. Verevkin, A. Borner, Chem. Rev. 110 (2010) 4554-4581.
R. Zevenhoven, S. Eloneva, S. Teir, Catal. Today 115 (2006) 73-79.
W.-F. Lee, G.-H. Lin, J. Appl. Polym. Sci. 79 (2001) 1665-1674.
Z. Xi, Z. Yi1, Y. Xiangui, Y. Jie, W. Gongying, Chin. J Catal. 31 (2010) 765-768
Q.W. Song, L.N. He, J.Q. Wang, H. Yasuda, T. Sakakura, Green Chem. 15 (2013) 110-115.
[6]
[7]
[8]
[9]
[10] J.A. Kozak, J. Wu, X. Su, F. Simeon, T.A. Hatton, T.F. Jamison, J. Am. Chem. Soc. 135
(2013) 18497-18501.
[11] (a) A.L. Girard, N. Simon, M. Zanatta, S. Marmitt, A.L. Girard, N. Simon, M. Zanatta, S.
Marmitt, Green Chem. 16 (2014) 2815–2825;
(b) B.-H. Xu, J.-Q. Wang, J. Sun, Y. Huang, J.-P. Zhang, X.-P. Zhang, S.-J. Zhang, Green
Chem. 17 (2015) 108–122;
(c) J. Tharun, K.-M. Bhin, R. Roshan, D. W. Kim, A. C. Kathalikkattil, R. Babu, H. Young
Ahn, Y. S. Won, D.-W. Park, Green Chem. 18 (2016) 2479-2487.
[12] (a) T. Ema, Y. Miyazaki, S. Koyama, Y. Yano, T. Sakai, Chem. Commun. 48 (2012) 4489-
4491;
(b) Y. Ren, J. Chen, C. Qi, H. Jiang, ChemCatChem 7 (2015) 1535-1538;
(c) M. İkiz, E. İspir, E. Aytar, M. Ulusoy, Ş. Karabuğa, M. Aslantaş, Ö. Çelik, New J. Chem.
39 (2015) 7786-7796;
(d) Y. Xu, D. Yuan, Y. Wang, Y. Yao, Dalton Trans. 46 (2017) 5848-5855;
(e) T. Marino, F. Ponte, G. Mazzone, E. Sicilia, M. Toscano, N. Russo, Dalton Trans. 46
(2017) 9030-9035.
[13] S.M. Chen, Y. Liu, J.P. Guo, P.Z. Li, Z.Y. Huo, P.T. Ma, J.Y. Niu, J.P. Wang, Dalton Trans.
44 (2015) 10152-10155.
[14] (a) R.L. Paddock, S.T. Nguyen, J. Am. Chem. Soc. 123 (2001) 11498-11499;
(b) Q. Gong, H. Luo, D. Cao, H. Zhang, W. Wang, X. Zhou, Bull. Korean Chem. Soc. 33
(2012) 1945-1949;
(c) M. Alves, B. Grignard, R. Mereau, C. Jerome, T. Tassaing, C. Detrembleur, Catal. Sci.
Technol. 7 (2017) 2651-2684.
[15] (a) M.H. Beyzavi, R.C. Klet, S. Tussupbayev, J. Borycz, N.A. Vermeulen, C.J. Cramer, J.F.
Stoddart, J.T. Hupp, O.K. Farha, J. Am. Chem. Soc. 136 (2014) 15861-15864;
(b) D.J. Darensbourg, W.C. Chung, K. Wang, H.C. Zhou, ACS Catal. 4 (2014) 1511-1515;
(c) P.-Z. Li, X.-J. Wang, J. Liu, J.S. Lim, R. Zou, Y. Zhao, J. Am. Chem. Soc. 138 (2016)
2142-2145;
(d) J.W. Maina, C. Pozo-Gonzalo, L. Kong, J. Schütz, M. Hill, L.F. Dumée, Mater. Horiz. 4
(2017) 345-361;
(e) B. Parmar, P. Patel, R. S. Pillai, R. I. Kureshy, N. H. Khan, E. Suresh, J. Mater. Chem. A 7
(2019) 2884-2894.
[16] (a) J. Roeser, K. Kailasam, A. Thomas, ChemSusChem 5 (2012) 1793-1799;

ACCEPTED MANUSCRIPT
(b) Y. Zhi, P. Shao, X. Feng, H. Xia, Y. Zhang, Z. Shi, Y. Mu, X. Liu, J. Mater. Chem. A
6 (2018) 374-382.
[17] Q. An, Z. Li, R. Graff, J. Guo, H. Gao, C. Wang, ACS Appl. Mater. Interfaces 7 (2015) 4969-
4978.
[18] (a) E. J. Corey, F. Zhang, Angew. Chem., Int. Ed. 38 (1999) 1931-1934;
(b) C. W. Johannes, M. S. Visser, G. S. Weatherhead, A. H. Hoveyda, J. Am. Chem. Soc. 120
(1998) 8340-8347; (c) P. O’Brien, Angew. Chem., Int. Ed. 38 (1999) 326-329;
(d) B. L. Chang, A. Ganesan, Bioorg. Med. Chem. Lett. 7 (1997) 1511-1514;
(e) G. Li, H.-T. Chang, K. B. Sharpless, Angew. Chem., Int. Ed. 35 (1996) 451-454;
(f) G. A. Rogers, S. M. Parson, D. S. Anderson, L. M. Nilson, B. A. Bahr, W. D. Kornreich,
R. Kaufman, R. S. Jacobs, B. Kirtman, J. Med. Chem. 32 (1989) 1217-1230;
( g ) J. De Cree, H. Geukens, J. Leempoles, H. Verhaegen, Drug Dev. Res. 8 (1986) 109-117.
[19] C. Auvin-Guette, S. Rebuffat, Y. Prigent, B. Bodo, J. Am. Chem. Soc. 114 (1992) 2170-2174.
[20] (a) M. Castellano, M. Bohm, Hypertension 29 (1997) 715-722;
(b) S. Yamada, T. Ohukara, S. Uchida, K. Inabe, Y. Iwatani, R. Kimura, T. Hoshino, T.
Kaburagi, Life Sci. 58 (1996) 1737-1744.
[21] J. A. Deyrup, C. L. Moyer, J. Org. Chem. 34 (1969) 175-179.
[22] (a) D. M. Hodgson, A. R. Gibbs,G. P. Lee, Tetrahedron 52 (1996) 14361-14384;
(b) S. C. Bergmeier, Tetrahedron 56 (2000) 2561-2576.
[23] M. G. Constantino, V. Lacerda Jr., V. Aragao, Molecules 6 (2001) 770-776.
[24] P. V. de Weghe, J. Collin, Tetrahedron Lett. 36 (1995) 1649-1652.
[25] A. K. Chakraborti, A. Kondaskar, Tetrahedron Lett. 44 (2003) 8315-8319.
[26] S. K. De, R. A. Gibbs, Synth. Commun. 35 (2005) 2675-2680.
[27] M. J. Bhanushali, N. S. Nandurkar, M. D. Bhor, B. M. Bhanage, Tetrahedron Lett. 49 (2008)
72-3676.
[28] A. T. Placzek, J. L. Donelson, R. Trivedi, R. A. Gibbs, S. K. De, Tetrahedron Lett. 46 (2005)
9029-9034.
[29] (a) J. Iqbal, A. Pandey, Tetrahedron Lett. 31 (1990) 575-576;
(b) S. Chendrashekhar, T. Ramchandar, S. J. Prakash, Synthesis (2000) 1817-1818.
[30] Y. L. Murthy, B. S. Diwakar, B. Govindh, R. Venu, K. Nagalakshmi, Chem. Sci. Trans. 2
(2013) 805-812.
[31] (a) S. Sagava, H. Abe, H. Hase, T. Inaba, J. Org. Chem. 64 (1999) 4962-4965;
(b) S. Rampalli, S. S. Chaudhari, K. G. Akamanchi, Synthesis (2000) 78-80.
[32] (a) L. E. Overman, L. A. Flippin, Tetrahedron Lett. 22 (1981) 195-198;
(b) M. C. Carre, J. P. Houmounou, P. Caubeae, Tetrahedron Lett. 26 (1985) 3107-3110.
[33] G. H. Posner, D. Z. Rogers, J. Am. Chem. Soc. 99 (1977) 8208-8214.
[34] R. Tada, N. Chavda, M. K. Shah, J. Chem. Pharm. Res. 3 (2011) 290-297.
[35] (a) R. Khatun, S. Biswas, S. Ghosh, S. M. Islam, J. Organomet. Chem. 858 (2018) 37–46;
(b) S. Biswas, R. Khatun, M. Sengupta, S. M. Islama, Mol. Cat. 452 (2018) 129–137;
(c) R. K. Mondal, S. Riyajuddin, A. Ghosh, S. Ghosh, K. Ghosh, S. M. Islam, J. Organomet.
Chem. 880 (2019) 322-33.
[36] M. North, R. Pasquale, Angew. Chem. Int. Ed. 48 (2009) 2946-2948.
[37] (a) Z. Wang, Z. Bu, T. Cao, T. Ren, L. Yang, W. Li, Polyhedron 32 (2012) 86-89;
(b) H.V. Babu, K. Muralidharan, Dalton Trans. 42 (2013) 1238-1248;
(c) Q.-W. Song, Z.-H. Zhou, L.-N. He, Green Chem. 19 (2017) 3707-3728.
[38] R. Luo, X. Zhou, S. Chen, Y. Li, L. Zhou, H. Ji, Green Chem. 16 (2014) 1496-1506.
[39] P. Gao, Z. Zhao, L. Chen, D. Yuan, Y. Yao, Organometallics 35 (2016) 1707-1712.
[40] Y. Chen, R. Luo, Q. Xu, W. Zhang, X. Zhou, H. Ji, ChemCatChem 9 (2017) 767-773.
[41] X. Wu, M. North, ChemSusChem 10 (2017) 74-78.
[42] D. O. Meléndez, A. Lara-Sánchez, J. Martínez, X. Wu, A. Otero, J. A. Castro-Osma, M.
North, R. S. Rojas, ChemSusChem 10 (2017) 74-78.
[43] M. A. Gaona, F. de la Cruz-Martínez, J. Fernández-Baeza, L. F. Sánchez-Barba, C. Alonso-
Moreno, A. M. Rodríguez, A. Rodríguez-Diéguez, J. A. Castro-Osma, A. Otero, A. Lara-
Sánchez, Dalton Trans. 48 (2019) 4218-422.
[44] J. Sun, Z. Dai, M. Yang, X. Pan, C. Zhu, Synthesis 13 (2008) 2100-2104.

ACCEPTED MANUSCRIPT
[45] R. I. Kureshy, K. J. Pratap, M. Kumar, P. K. Bera, N. H. Khan, S. H. R. Abdi, H. C. Bajaj,
Tetrahedron 67 (2011) 8300-8307.
[46] B. Plancq, T. Ollevier, Chem. Commun. 48 (2012) 3806-3808.
[47] M. Kumar, R. I. Kureshy, S. Saravanan, S. Verma, A. Jakhar, N. H. Khan, S. H. R. Abdi, H.
C. Bajaj, Org. Lett. 16 (2014) 2798-2801.
[48] T. K. Dey, K. Ghosh, P. Basu, S. M. Islam, 136 (2019) 47650.

ACCEPTED MANUSCRIPT
Research Highlights
•
•
•
•
Organically modified polystyrene embedded Al(III) catalyst has been synthesized and
characterized.
The catalyst is efficient towards the synthesis of organic cyclic carbonate under
solvent free and 1 bar CO2 pressure.
The catalyst is also very effective for the formation of 2-amino alcohol from epoxides
under green condition.
The catalyst was stable, easily separable and efficiently reusable for several cycles.
