Porous polymer supported palladium catalyst for cross coupling reactions with high activity and recyclability

Article abstract of DOI:10.1007/s11426-011-4491-8

Porous polymer supported palladium catalyst for cross coupling reactions with high activity has been successfully prepared by coordination of Pd2+ species with Schiff bases functionalized porous polymer. The catalyst has been systemically investigated by a series of characterizations such as TEM, N2 adsorption, NMR, IR, XPS, etc. TEM and N2 isotherms show that the sample maintains the nanoporous structure after the modification and coordination. XPS results show that chemical state of palladium species in the catalyst is mainly +2. More importantly, the catalyst shows very high activities and excellent recyclability in a series of coupling reactions including Suzuki, Sonogashira, and Heck reactions. Hot filtration and poison of catalysts experiments have also been performed and the results indicate that soluble active species (mainly Pd(0) species) in-situ generated from the catalyst under the reaction conditions are the active intermediates, which would redeposit to the supporter after the reactions. Science China Press and Springer-Verlag Berlin Heidelberg 2012.

Full text of DOI:10.1007/s11426-011-4491-8

SCIENCE CHINA
Chemistry
October 2012 Vol.55 No.10: 2095–2103
doi: 10.1007/s11426-011-4491-8
• ARTICLES •
Porous polymer supported palladium catalyst for cross coupling
reactions with high activity and recyclability
SUN Qi1, ZHU LongFeng2, SUN ZhenHua3, MENG XiangJu1* & XIAO Feng-Shou1*
1Key Lab of Applied Chemistry of Zhejiang Province, Department of Chemistry, Zhejiang University (XiXi Campus), Hangzhou 310028, China
2State Key Laboratory of Inorganic Synthesis and Preparative Chemistry; Jilin University, Changchun 130012, China
3Shenyang National Laboratory for Materials Science, Institute of Metal Research, Chinese Academy of Sciences, Shenyang 110016, China
Received November 6, 2011; accepted December 9, 2011; published online January 11, 2012
Porous polymer supported palladium catalyst for cross coupling reactions with high activity has been successfully prepared
by coordination of Pd2+ species with Schiff bases functionalized porous polymer. The catalyst has been systemically investi-
gated by a series of characterizations such as TEM, N2 adsorption, NMR, IR, XPS, etc. TEM and N2 isotherms show that the
sample maintains the nanoporous structure after the modification and coordination. XPS results show that chemical state of
palladium species in the catalyst is mainly +2. More importantly, the catalyst shows very high activities and excellent recycla-
bility in a series of coupling reactions including Suzuki, Sonogashira, and Heck reactions. Hot filtration and poison of catalysts
experiments have also been performed and the results indicate that soluble active species (mainly Pd(0) species) in-situ gener-
ated from the catalyst under the reaction conditions are the active intermediates, which would redeposit to the supporter after
the reactions.
heterogenous catalysis, Pd, coupling reactions, nanoporous polymers
pared with conventional organic supports, inorganic sup-
1 Introduction
ports with nanopores can provide high surface area, large
pore volume, and 3-dimesional pore architecture, which are
favorable for mass transfer in catalysis. However, the dis-
advantages of inorganic supports including relatively low
stability in alkaline media and complex functionalization of
organic groups are a challenge for preparation of heteroge-
neous catalysts with high activity and excellent recyclability.
For example, Si–O–Si bonds in ordered mesoporous silicas
are not stable in alkaline media, and immobilization of pal-
ladium species on silica surface generally requires unique
organic linkers [41, 42].
Recently, novel porous polymers (polydivinylbenzene,
PDVB) with good stabilities in both acidic and alkaline me-
dia as well as controllable and simple functionalization of
organic groups have been reported [43, 44]. We demon-
strate here a successful coordination of palladium species
with Schiff bases functionalized porous PDVB. As hetero-
geneous catalysts, they exhibit both high activities and ex-
Cross-coupling reactions of Suzuki, Heck, Negishi, and
Sonogashira are greatly important for the creation of new
C–C bonds [1, 2]. Normally, these reactions are performed
in the homogeneous catalytic process, but the difficulty for
separating or removing the homogeneous palladium cata-
lysts from the products strongly hinders their wide applica-
tions in large scale due to the high cost of palladium cata-
lysts coupled with toxic effects associated with environ-
mental and economic concern [3–7]. To solve this problem,
immobilization of palladium catalysts onto supports has
been employed, and typical supports are block polymers
[8–10], ligand-incorporated polymers [11–15], zeolites
[16–23], carbons [24–28], hydroxides [29–31], mesoporous
silicas [32–37], and mesoporous zeolites [38–40]. Com-
*Corresponding authors (email: mengxj@zju.edu.cn; fsxiao@mail.jlu.edu.cn)
© Science China Press and Springer-Verlag Berlin Heidelberg 2012
chem.scichina.com www.springerlink.com

2096
Sun Q, et al. Sci China Chem October (2012) Vol.55 No.10
cellent recyclability in Suzuki, Heck, and Sonogashira cou-
pling reactions.
1.2 mmol of phenylboric acid (vinylic substrate or phenyla-
cetylene), 1.5 mmol of K3PO4·3H2O, 0.01 g (0.36% mol)
catalyst, 1 mmol of dodecane (internal standard), and 5 mL
of solvent were stirred at required temperature. After the
reaction for various time, the catalyst was taken out from
the system by centrifufation and the liquid can be analyzed
by gas chromatography (GC-1690 Kexiao Co., flame
ionization detector) with a flexible quartz capillary column
coated with HP-INNOWAX.
2 Experimental section
2.1 Catalyst preparation
2.1.1 Porous copolymer of divinylbenzene with meth-
acrylic acid (1)
At the same time, many products were also isolated and
purified by column chromatography on silica gel (200–300
mesh), followed by futher identification of 1H NMR
technique (Supporting Inforamtion). As a typical run for
isolation, the catalyst was removed by centrifugation and
washing with acetone. Then, the filtrate was collected. After
evaporation of the solvent, a crude product was obtained.
The pure product was obtained from further treatment of the
crude product by column chromatography on silica gel with
a mixed solvent (ethyl acetate with petroleum ether, volume
ratio of 1/10) as eluent.
1 was synthesized according to refs. [43, 44]. As a typical
run, 2 g of divinylbenzene (DVB) and 0.44 g of methacrylic
acid (MA) monomers (molar ratio of DVB to MA at 3)
were dissolved in 27 mL of ethyl acetate, followed by addi-
tion of 0.067 g of azobisisobutyronitrile (AIBN). After stir-
ring for 3 h at room temperature, the mixture was trans-
ferred into an autoclave for 24 h at 100 C. After evapora-
tion of solvent, a solid product (1) was obtained.
2.1.2 Transformation of carboxyl groups into acyl chlo-
rides (2)
2 was also synthesized according to the refs. [43, 44]. As a
typical run, 1 g of 1 was refluxed at 80 C in thionyl chlo-
ride solution for 12 h, followed by evaporation of the thio-
nyl chloride and by-product HCl.
2.3 Characterization
Nitrogen isotherms at the temperature of liquid nitrogen
were measured using Micromeritics ASAP 3020M and
Tristar system. The samples were outgassed for 10 h at
100 C before the measurements. Transmission electron
microscope (TEM) experiments were performed on a
Philips Tecnai F30 electron microscope (FEI Company)
with an acceleration voltage of 300 kV. The loading of Pd
was determined by inductively coupled plasma (ICP) with a
Perkin-Elmer plasma 40 emission spectrometer. The 13C
MAS NMR spectra were recorded on a Bruker Avance-
2.1.3 Functionalization with amino groups (3)
3 was synthesized by acylamidation 2 with 1,6-hexanedia-
mine in CH2Cl2. As a typical run, 1 g of 2 was mixed into
30 mL of CH2Cl2, followed by addition of 1 g of
1,6-hexane-diamine and 1 g of triethylamine dissolved in 5
mL of CH2Cl2. The mixture was stirred at room temperature
for 24 h. After filtrating, washing with excess ethanol and
water (until the pH at 7), and drying at 90 C overnight, 3
was finally obtained.
1
400WB spectrometer. H NMR spectra were recorded on a
Bruker Avance-400 (400 MHz) spectrometer. Chemical
shifts are expressed in ppm downfield from TMS at  0
ppm, and J values are given in Hz. FTIR spectra were per-
formed on an IFS 66 V (Bruker) IR spectrometer in the
range of 400–4000 cm–1. XPS spectra were performed on a
Thermo ESCALAB 250 with Al K irradiation at  = 90
for X-ray sources, and the binding energies were calibrated
using the C1s peak at 284.9 eV.
2.1.4 Functionalization with Shiff bases (4)
The functionalization of Shiff bases on the supports was
synthesized as described in refs. [45–47]. After reaction of
pyridine-2-aldehyde (the same mol to MA in the synthesis
of 1) with dried 3 in ethanol at room temperature for 24 h,
filtration, washing with ethanol, and drying at 90 C over-
night, 4 was finally obtained.
2.1.5 Supporting palladium species on 4 (5)
3 Results and discussion
Palladium species supported on 4 sample was carried out by
treatment of Pd(OAc)2 with 4. As a typical run, 0.1 g of
Pd(OAc)2 was introduced into 50 mL of acetone, followed
by addition of 1 g 4. After stirring at room temperature for
24 h, a solid sample with brown color (5) was obtained by
filtrating, washing with acetone and toluene, and drying at
90 °C overnight.
As shown in Scheme 1, PDVB with carboxyl groups (1)
was prepared via copolymerization of divinylbenzene (DVB)
and methacrylic acid (MA). After refluxing in thionyl chlo-
ride, acyl chloride was successfully grafted on PDVB (2).
After acylamidation of 2 with 1,6-hexanediamine in CH2Cl2,
amido-functionalized PDVB (3) was obtained. Reaction of
3 with pyridine-2-aldehyde in ethanol resulted in the for-
mation of Schiff base-functionalized PDVB (4). After
treatment of 4 with Pd(OAc)2 in acetone, palladium species
2.2 Catalytic tests
As a typical run for coupling reactions, 1 mmol of halide,

Sun Q, et al. Sci China Chem October (2012) Vol.55 No.10
2097

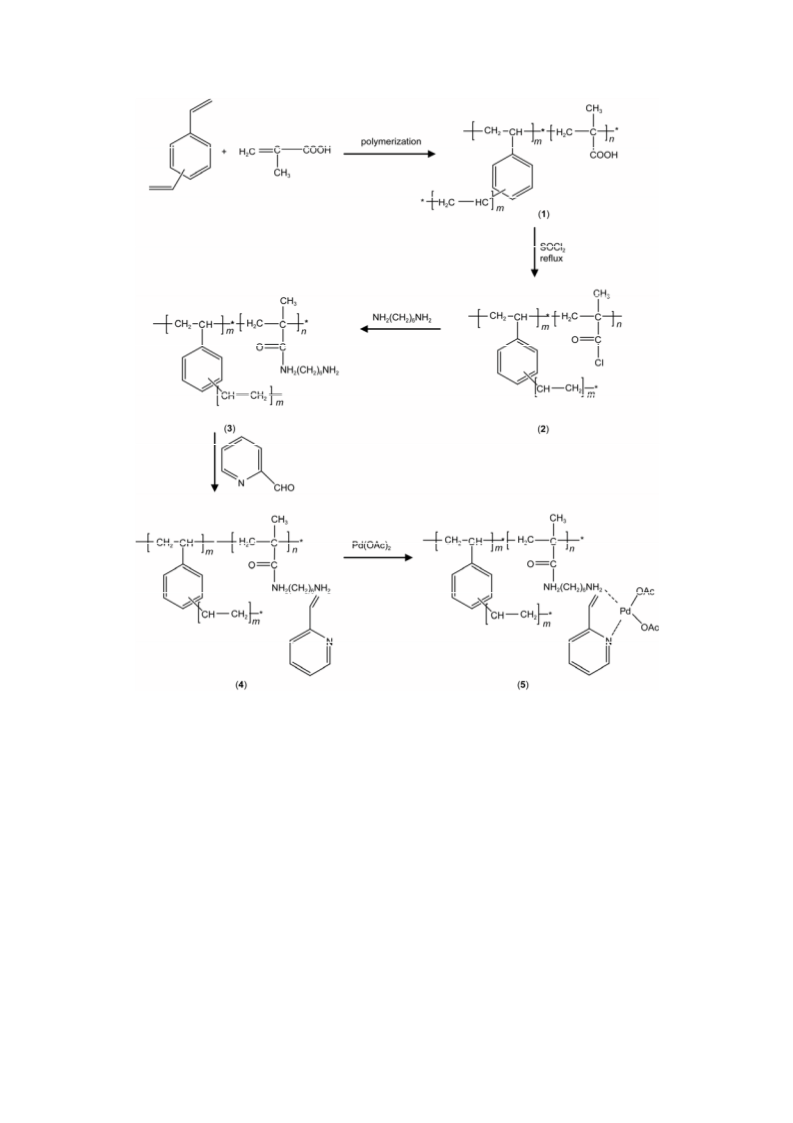

Scheme 1 Preparation of porous polymer supported palladium catalyst.
coordinated with Schiff bases functionalized PDVB (5)
were finally obtained [45–47]. The loading of Pd in the cat-
alysts was 0.36 mmol/g, detected by inductively coupled
plasma (ICP).
addition, elemental mapping shows obvious signals
associated Pd and N elements in 5 (Figure 1(E, F)), con-
firming the presence of Pd and N elements in the sample.
Moreover, high resolution TEM image shows that it is dif-
ficult to observe Pd clusters or nanoparticles (Figure 1(G))
in the sample.
Figure 1(A) shows N2 isotherms of 1 and 5. Both sam-
ples show typical type-IV isotherms with a hysteresis loop
at 0.70–0.98, indicating the presence of large porosity in the
samples. BET surface area and pore volume are 544 and
313 m2/g as well as 0.89 and 0.65 cm3/g for 1 and 5, respec-
tively. Transmission electron microscope (TEM) images of
1 and 5 in a large area (Figure 1(B–D)) clearly show the
presence of abundant large pores (20–100 nm). Notably, the
pore sizes of 1 and 5 are similar (Figure 1(B–D)), suggest-
ing that the pore structure in the samples is basically stable
under the chemical treatments as shown in Scheme 1. In
Figure 2(A) shows 13C spectra of 1 and 4. 1 gives a peak
at 185 ppm associated with characteristic peak of carboxyl
groups [48], indicating that MA is copolymerized with
DVB. Interestingly, in the spectrum of 4, a strong peak ap-
peared at 175 ppm, assigned to acylamide species [49].
Figure 2(B) shows IR spectra of 1, 4, and 5. 1 shows a band
at 1700 cm–1, which is associated with carboxyl groups [50].
4 shows very broad and strong bands at 1663 cm–1, which is
due to overlapping of signals for amide groups and conju-

2098
Sun Q, et al. Sci China Chem October (2012) Vol.55 No.10
would provide great potential opportunity for this sample as
a popular efficient catalyst in a wide range of Suzuki reac-
tions for the synthesis of fine chemicals, because aryl io-
dides are more expensive than aryl bromides while aryl
bromides are much less active than aryl iodides in conven-
tional Suzuki reactions [58]. Compared with aryl bromides
and aryl iodines, aryl chlorides give very low activities in
Suzuki reactions (entry 9–11, Table 1). For example, when
the reaction is carried out at 120 C for 120 min, the yield is
only 37%. Therefore, it is still a challenge for synthesis of
highly active heterogeneous catalysts for the coupling of
aryl chlorides with phenylboronic acid. Additionally, when
aryl halides are changed with electron donating and with-
drawing groups, the catalyst is still very active (95%–99%
yield, entry 2–8, Table 1), suggesting a good suitability for
this catalyst in Suzuki reaction. It is remarkable that high
reactivity could be observed at a very low catalyst loading
of 0.1–0.01 mol% (entry 12 and 13, Table 1). The turnover
frequency (TOF) almost achieves 2500 h–1 for the coupling.
Furthermore, the effect on solvent and base has also been
investigated. The results show that a solvent of toluene or a
mixture of water and ethanol as well as a base of
K3PO4·3H2O is suitable for this reaction (Table S1). Con-
sidering the economical and environmental concerns, wa-
ter-ethanol solvent is more preferable [59–62].
Normally, homogeneous Sonogashira coupling requires
the presence of CuI as a co-catalyst [63–67]. However, 5 is
very active for Sonogashira reaction even in the absence of
CuI (entry 17–21, Table 2), giving the yields higher than
Figure 1 (A) N2 isotherms of (a) 1 and (b) 5; large-area TEM images of
(B) 1 and (C) 5; (D) STEM image of 5; (E) Pd and (F) N mapping of 5
corresponding to the red rectangle area in STEM image (D); (G) HR TEM
image of 5.
Table 1 Catalytic data in Suzuki reaction over 5 a)
R1
X
R1
+
B(OH)2
gated C–N bonds [51, 52]. After interaction of Pd2+ species
with 4, 5 gives an additional band at 1648 cm–1, a shift to
low frequency ca. 15 cm–1, suggesting the coordination
between Pd2+ species with Schiff bases in the sample [53].
Figure 2(C) shows N1s spectra of 4 and 5. Compared with
4 (401.0 eV), 5 shows relatively low binding energy (399.4
eV). This result confirms the coordination between Pd2+
species with Schiff bases in the sample (Figure 2(C)) [53].
Figure 2(D) shows Pd3d spectrum of 5, giving Pd3d5/2
and Pd3d3/2 at 337.8 and 343.1 eV, respectively. These
results suggest that chemical state of palladium species
is mainly +2 [55]. However, compared with Pd(OAc)2
(338.6 eV for Pd3d5/2), the binding energy of Pd2+ in 5 is
negatively shifted to 337.8 eV, which is also good in
agreement with that the Schiff base could donate electrons
to Pd2+ species [56, 57].
Entry
1
R1
H
X
Time (min)
15
Yields (%) b)
>99(98)
>98(96)
>99(96)
>99(97)
95(93)
97(94)
98(95)
98(96)
37
I
2
CH3
CH3O
H
I
15
3
I
15
4
Br
Br
Br
Br
Br
Cl
Cl
Cl
Br
Br
Br
Br
Br
20
5
CH3
CH3O
CN
20
6
20
7
15
8
CH3CO
H
15
9
120
120
120
30
10
11
12 c)
13 d)
14 e)
15 f)
16 g)
NO2
COCH3
CN
59(53)
53
>99
CN
240
15
>99
CN
>99
CN
15
98
CN
15
92
Table 1 presents catalytic activities of 5 in Suzuki reac-
tions under mild conditions. In Suzuki reactions, both aryl
iodines and aryl bromides could be completely coupled with
phenylboronic acid in 95%–99% yield within a very short
reaction time (15–20 min, entry 1–8, Table 1). This feature
a) Reaction conditions: aryl halides (1 mmol), phenylboronic acid (1.2
mmol), K3PO4·3H2O (1.5 mmol), 5 (0.36 mol%), ethanol-water (2 mL/3
mL), 80 C; b) GC yields (isolated yields); c) 0.1 mol% 5 was used as
catalyst; d) 0.01 mol% 5 was used as catalyst; e) reuse; f) recycles for 10
times; g) 0.36 mol% Pd(OAc)2 was used as catalyst.

Sun Q, et al. Sci China Chem October (2012) Vol.55 No.10
2099
Figure 2 (A) 13C MAS NMR spectra, (B) IR spectra, (C) N1s spectra, and (D) Pd3d spectra of (a) 1, (b) 4, and (c) 5.
Table 2 Catalytic data in Sonogashira reaction over 5 a)
99%. The CuI-free in the Sonogashira reaction completely
avoids the formation of 1,4-diphenyl-1,3-butadiyne by-
product, which results from side-reaction of phenylacety-
lene homocoupling. When aryl iodines are replaced by aryl
bromides, 5 still gives very high yields (higher than 99%,
entry 20 and 21, Table 2) by increasing the temperature
(120 C) and time (60–100 min). Additionlly, 5 still exhibits
high conversion even at very low catalyst loading of
0.1–0.01 mol% (entry 22 and 23, Table 2), but takes longer
time. Catalytic tests show that alcohols such as butanol and
ethanol are good solvents, and suitable bases include
K3PO4·3H2O, NaOH, and KOH (Table S2).
In Heck reaction, 5 is also very active (entry 27–33, Ta-
ble 3). For example, aryl iodines with electron donating
could be fully coupled with various vinylic substrates in a
short time (20 min), giving the yields at 99% (entry 27–30,
Table 3). Particularly, when aryl bromide is used, the yields
are still 99% (entry 32 and 33, Table 3). Similarly, the stud-
ies on solvents and bases show that N-methy-2-pyrroli-
1
1
+
X
R
R
Entry
17
R1
H
X
I
Time (min)
Yields (%) b)
>99(96)
>99(97)
>99(96)
>99(92)
>99(93)
94
30
30
18
CH3
CH3O
CN
I
19
I
30
20
Br
Br
I
60
21
CH3CO
100
90
22 c)
23 d)
24 e)
25 f)
26 g)
H
H
H
H
H
I
720
30
99
I
98
I
30
92
I
30
74
a) Sonogashira reaction conditions: ary hailide (1 mmol), phenylacety-
lene (1.2 mmol), K3PO4·3H2O (1.5 mmol), 5 (0.36 mol%), ethanol (5 mL),
80 C; b) GC yields (isolated yields); c) 0.1 mol% 5 was used as catalyst;
d) 0.01 mol% 5 was used as catalyst; e) reuse; f) recycles for 5 times; g)
0.36 mol% Pd(OAc)2 was used as catalyst.

2100
Sun Q, et al. Sci China Chem October (2012) Vol.55 No.10
Table 3 Catalytic data in Heck reactions over 5 a)
2
R
1
1
+
R
X
R
2
R
Entry
27
R1
H
R2
X
I
Time (min) Yields (%) b)
CH3COO
CH3COO
CH3COO
C2H5COO
Ph
20
20
20
20
60
40
40
60
20
20
20
>99(98)
>98(96)
>99(96)
>99(97)
95(93)
98(95)
98(96)
99
28
CH3
I
29
CH3O
I
30
H
H
I
31
I
32
CN
CH3CO
H
CH3COO
CH3COO
CH3COO
CH3COO
CH3COO
CH3COO
Br
Br
I
33
34 c)
35 d)
36 e)
37 f)
H
I
>99
H
I
98
H
I
91
Figure 3 Reaction progress as a function of time on (A) Suzuki, (B)
Sonogashira and (C) Heck reactions by using 5 under normal conditions
(■), in the presence of 400 equiv of Hg(0) (◄), in the presence of 400
equiv of PVP (●) and in the presence of 400 equiv of SBA-propyl-SH (►).
a) Heck reaction conditions: ary hailide (1 mmol), vinylic substrates
(1.2 mmol), K3PO4·3H2O (1.5 mmol), 5 (0.36 mol%), 1-methy-2-pyrroli-
dinone (5 mL), 130 C; b) GC yields (isolated yields); c) 0.1 mol% 5 was
used as catalyst; d) reuse; e) recycles for 5 times; f) 0.36 mol% Pd(OAc)2
was used as catalyst.
dinone (NMP), N,N-dimethylformamide (DMF), and dime-
thyl sulfoxide (DMSO) are good solvents, and K3PO4·3
H2O is a suitable base (Table S3).
To determine the nature of the active species, the poison
of catalysts has also been investigated. And three poison
reagents (about 400 equivalent to total palladium content),
including insoluble cross-linked poly(4-vinylpyridine),
thiol-modified mesoporous materials and Hg(0), are em-
ployed, working as an excellent scavenger for soluble or
naked Pd [68–70]. All the reactions almost quenched in the
presence of poison reagents (Figure 3), suggesting that the
reactions occurred in homogeneous solutions [79–83]. Ad-
ditionally, hot filtration technique has also been employed,
and 14% yields in Suzuki reaction can be achieved, con-
firming the existence of active species (soluble Pd (0)) in
the hot filtrate. However, if the solution is cooled to room
temperature before filtration, the cold filtrate is completely
inactive (Figure S1), which suggests that the soluble active
species redeposit to the support and are undetectable in the
filtrate [84–86]. XPS Pd3d spectrum of reused 5 for Suzuki
reaction still shows that palladium species are still +2
(Figure S2). Additionally, ICP analysis of the solution in-
dicated that no Pd was detected in the solution after reac-
tion. These results suggest that Pd2+ species in 5 are stable
and almost leaching-free, which is responsible for the recy-
clability in Suzuki, Sonogashira, and Heck reactions as
shown in Tables 1–3 (entry 14–15, 24–25, 35–36). For
example, after reuse or even 10 recycles, the yield in
Suzuki reaction was higher than 98% (entry 15, Figure 4).
On the contrary, the same ligands with Pd grafted on inor-
ganic mesoporous MCM-41 showed low recyclability and
lost half activities after 5 recycles (Figure S3), attributed to
the low stability of inorganic framework in alkaline medi-
um [41, 42].
Figure 4 Recycle of 5 in Suzuki reaction using 4-bromobenzenitrile with
phenylboronic acid.
Thus, the catalysis reaction process over the nanoporous
polymers supported Pd(II) catalyst can be summarized as
follows: the catalyst itself is insoluble in the solvent; then
under the reactions conditions, it can in-situ generate solu-
ble active species (mainly Pd(0) species) that subsequently
react with reactants to form the products [75]; finally, when
the reactions are over and temperature cools down, the sol-
uble Pd species redeposit to the support and return to its
original structure, which can then be easily separated and
reused [75]. Compared with homogeneous catalysts, heter-
ogeneous catalysts are excellently recyclable and almost
leaching-free, which is very important for wide applications
of industrial processes at a large scale. Combining the ad-
vantages of homogeneous catalysis (high activity) and het-
erogeneous catalysis (easy separation and recycle), such
nanoporous polymers supported Pd catalyst thus provides a
green approach for a series of homogeneous catalytic reac-
tions [86–91].

Sun Q, et al. Sci China Chem October (2012) Vol.55 No.10
2101
2010, 12: 65–69
4 Conclusion
16 Djakovitch L, Rollet P. Sonogashira cross-coupling reactions cata-
lysed by copper-free palladium zeolites. Adv Synth Catal, 2004, 346:
1782–1792
17 Okumura K, Nota K, Yoshida K, Niwa M. Catalytic performance and
elution of Pd in the Heck reaction over zeolite-supported Pd cluster
catalyst. J Catal, 2005, 231: 245–253
18 Toebes ML, van Dillen JA, de Jong KP. Synthesis of supported pal-
ladium catalysts. J Mol Catal A: Chem, 2001, 173: 75–98
19 Meanest CP, Weaver DW, Ying JY. Heterogeneous Heck catalysis
with palladium-grafted molecular sieves. J Am Chem Soc, 1998, 120:
12289–12296
20 Djakovitch L, Köhler K. Heck reaction catalyzed by Pd-modified ze-
olites. J Am Chem Soc, 2001, 123: 5990–5999
21 Djakovitch L, Köhler K. Heterogeneously catalysed Heck reaction
using palladium modified zeolites. J Mol Catal A: Chem, 1999, 142:
275–284
We have prepared an efficient catalyst of palladium species
coordinated with Schiff bases functionalized porous poly-
mer, which is highly active and excellently recyclable in a
series of cross couplings including Suzuki, Sonogashira,
and Heck reactions. Combining the advantages of homoge-
neous catalysis (high activity) and heterogeneous catalysis
(easy separation and recycle), such nanoporous polymers
supported Pd catalyst thus provides a green approach for a
series of homogeneous catalytic reactions for the synthesis
of fine chemicals.
22 Djakovitch L, Heise H, Köhler K. Heck reactions between aryl hal-
ides and olefins catalysed by Pd-complexs entrapped into zeolites
NaY. J Organomet Chem, 1999, 584: 16–26
23 Chang JR, Xu Z, Purnell SK, Gates BC. Synthesis and decarbonyla-
tion of platinum carbonyl cluster anions in zeolite NaY made basic
by treatment with CsOH. J Mol Catal, 1993, 80: 49–58
24 Lysén M, Köhler K. Suzuki-miyaura cross-coupling of aryl chlorides
in water using ligandless palladium on activated carbon. Synlett, 2005,
11: 1671–1674
This work was supported by the National Natural Science Foundation of
China (20973079 & 21003107), State Basic Research Project of China
(2009CB623507), and Fundamental Research Funds for the Central Uni-
versities (2010QNA3035).
1
2
Miyaura N, Suzuki A. Palladium-catalyzed cross-coupling reactions
of organoboron compounds. Chem Rev, 1995, 95: 2457–2483
Wu XF, Anbarasan P, Neumann H, Beller M. Palladium-catalyzed
carbonylative C–H active of heteroarenes. Angew Chem Int Ed, 2010,
49: 9047–9050
25 Arvela R K, Leadbeater NE. Suzuki coupling of aryl chlorides with
phenyboronic acid in water, using microwave heating with simulta-
neous cooling. Org Lett, 2005, 7: 2101–2104
3
Yin L, Liebscher J. Carbon-carbon coupling reactions catalyzed by
heterogeneous palladium catalysts. Chem Rev, 2007, 107: 133–173
references herein
Schaarachmidt D, Lang H. P,O-ferrocenes in Suzuki-Miyaura C,C
couplings. ACS Catal, 2011, 1: 411–416
Lu CH, Chang FC. Polyhedral oligomeric silsesquioxane-encapsu-
lating amorphous palladium nanoclusters as catalysts for Heck reac-
tions. ACS Catal, 2011, 1: 481–488
Fierro-Gonzalez JC, Gates BC. Catalysis by gold dispersed on sup-
ports: The importance of cationic gold. Chem Soc Rev, 2008, 37:
2127–2134
26 Zhao F, Bhanage BM, Shirai M, Arai M. Heck reactions of iodoben-
zene and methy acrylate with conventional supported palladium cat-
alysts in the presence of organic and/or inorganic bases without
ligands. Chem Eur J, 2000, 6: 843–848
27 Hagiwara H, Shimizu Y, Hoshi T, Suzuki T. Ando M. Ohkubo K,
Yokoyama C. Heterogeneous Heck reaction catalyzed by Pd/C in
ionic liquid. Tetrahedron Lett, 2001, 42: 4349–4351
28 Zhao F, Shirai M, Arai M. Palladium-catalyzed homogeneous and
heterogeneous Heck reactions in NMP and water mixed solvebts us-
ing organic, inorganic and mixed bases. J Mol Catal A: Chem, 2000,
154: 39–44
4
5
6
7
8
Gates BC. Supported metal clusters: Synthesis, structure, and cataly-
sis. Chem Rev, 1995, 95: 511–522
Blaser HU, Indolese A, Schnyder A, Steiner H, Studer M. Supported
palladium catalysts for fine chemicals synthesis. J Mol Catal A:
Chem, 2001, 173: 3–18
Akiyama R, Kobayashi S. The polymer incarcerated method for the
preparation of highly active heterogeneous palladium catalysts. J Am
Chem Soc, 2003, 125: 3412–3413
29 Mori K, Yamaguchi K, Hara T, Mizugaki T, Ebitani K, Kaneda K.
Controlled synthesis of hydroxyapatite-supported palladium com-
plexs as highly efficient heterogeneous catalysts. J Am Chem Soc,
2002, 124: 11572–11573
30 Choudary BM, Madhi S, Chowdari NS, Kantam ML, Sreedhar B.
layered double hydroxide supported nanopalladium catalyst for Heck-,
Suzuki-, Sonogashira-, and Stille-type coupling reactions of chloroa-
renes. J Am Chem Soc, 2002, 124: 14127–14136
9
10 Okamoto K, Akiyama R, Yoshida H, Yoshida T, Kobayashi S. For-
mation of nanoarchitectures including subnanometer palladium clus-
ter and their use as highly active catalysts. J Am Chem Soc, 2005, 127:
2125–2135
11 Leadbeater NE, Marco M. Preparation of polymer-supported ligands
and metal complexes for use in catalysis. Chem Rev, 2002, 102:
3217–3274
12 McNamara CA, Dixon MJ, Bradley M. Recoverable catalysts and
reagents using recyclable polystyrene-based supports. Chem Rev,
2002, 102: 3275–3300
13 Ramos ALD, Alves P da S, Aranda DAG, Schmal M. Characteriza-
tion of carbon supported palladium catalysts: Inference of electronic
and particle size effects using rection probes. Appl Catal A, 2004, 277:
71–81
14 Yu Y, Hu T, Chen X, Xu K, Zhang J, Huang J. Pd nanoparticles on a
porous ionic copolymer: A highly active and recyclable for Suzu-
ki-Miyaura reaction under air in water. Chem Commun, 2011, 47:
3592–3594
15 Liu G, Hou M, Song J, Jiang T, Fan H, Zhang Z, Han B. Immobiliza-
tion of Pd nanoparticles with functional ionic liquid grafted onto
cross-linked polymer for solvebt-free Heck reaction. Green Chem,
31 Parvulescu AN, Hausoul PJC, Bruijnincx PCA, Korhonen ST,
Teodorescu C, Klein RJM, Weckhuysen BM. Telomerization of
1,3-butadiene with biomass-derived alcohols over a heterogeneous
Pd/TPPTS catalyst based on layered double hydroxides. ACS Catal,
2011, 1: 526–536
32 Mehnert CP, Weaver DW, Ying JY. Heterogeneous Heck catalysis
with palladium-grafted molecular sieves. J Am Chem Soc, 1998, 120:
12289–12296
33 Crudden CM, Sateesh M, Lewis R. Mercaptopropyl-modified meso-
porous silica: A remarkable support for the preparation of a reusable
heterogeneous palladium catalyst for coupling reactions. J Am Chem
Soc, 2005, 127: 10045–10050
34 Paetzold E, Oehme G, Fuhrmann H, Richter M, Echelt R, Pohl M-M,
Kosslick H. Suzuki reaction over palladium-complex loaded
MCM-41 catalysts. Microporous Mesoporous Mater, 2001, 44-45:
537–545
35 Bedford RB, Singh UG, Walton RI, Williams RT, Davis SA. Nano-
particulate palladium supported by covalently modified silicas: Syn-
thesis, characterization, and application as catalysts for the Suzuki
coupling of aryl halides. Chem Mater, 2005, 17: 701–707
36 Parlett CMA, Bruce DW, Hondow NS, FLee A, Wilson K. Sup-

2102
Sun Q, et al. Sci China Chem October (2012) Vol.55 No.10
port-enhanced selective aerobic alcohol oxidation over Pd/mesopo-
rous silicas. ACS Catal, 2011, 1: 636–640
highly recyclable catalyst for the Suzuki and Heck reactions. Green
Chem, 2009, 11: 1184–1193
37 Liu G, Hou M, Wu T, Jiang T, Fan H, Yang G, Han B. Pd(II) immo-
bilized on mesoporous silica by N-heterocyclic carbene ionic liquids
and catalysis for hydrogenation. Phys Chem Chem Phys, 2011, 13:
2062–2068
38 Choi M, Lee DH, Na K, Ryoo R. High catalytic activity of palladi-
um(II)-exchange mesoporous sodalite and NaA zeolite for bulky aryl
coupling reactions: Reusability under aerobic conditions. Angew
Chem Int Ed, 2009, 48: 3673–3676
39 Lee DH, Choi M, Yu BW, Yu B-W, Ryoo R. Expand heterogeneous
Suzuki-Miyaura coupling reactions of aryl and heteroaryl chlorides
under mild conditions. Adv Synth Catal, 2009, 351: 2912–2920
40 Jin MJ. Tahur A, Kang HJ, Choi M, Ryoo R. Palladium acetate im-
mobilized in a hierarchical MFI zeolite-supported ionic liquid: A
highly active and recyclable catalyst for Suzuki reaction in water.
Green Chem, 2009, 11: 309–313
41 Groen JC, Peffer LAA, Moulijin JA, Pérez-Ramírez J. On the intro-
duction of intracrystalline mesoporousity in zeolites upon desilication
in alkaline medium. Microporous Mesoporous Mater, 2004, 69:
29–34
56 Adam S, Bauer A, Timpe O, Wild U, Mestl G, Bensch W, Schlögl R.
The origin of the positive effect of cadmium acetate on the action of
supported palladium catalysts. Chem Eur J, 1998, 4: 1458–1469
57 Kan C, Huang J, He W, Zhang F. Periodic mesoporous sili-
ca-immobilized palladium(II) complex as an effective and reusable
catalyst for water-media carbon-carbon coupling reactions. J Or-
ganomet Chem, 2010, 695: 120–127
58 Stevens PD, Fan JD, Gardimalla HMR, Yen M, Gao Y. Superpara-
magnetic nanoparticle-supported catalysis of Suzuki cross-coupling
reactions. Org Lett, 2005, 7: 2085–2088
59 Sonogashira K, Tohda Y, Hagihara N. A convenient synthesis of
acetylenes: Catalytic substitutions of acetylenic hydrogen with bro-
moalkenes, iodoarenes and bromopyridines. Tetrahedron Lett, 1975,
16: 4467–4470
60 De-la-Rosa MA, Velarde E, Guzmán A. Cross-coupling reactions of
monosubstituted acetylenes and aryl halides catalyzed by palladium
on charcoal. Synth Commun, 1990, 20: 2059–2064
61 Li PH, Wang L. An amine-,copper- and phosphine-free sonogashira
coupling reaction catalyzed by immobilization of palladium in or-
ganic-inorganic hybrid materials. Adv Synth Catal, 2006, 348:
681–685
62 Fulmer DA, Shearouse WC, Medonza ST, Mack J. Solvent-free So-
nogashira coupling reaction via high speed ball milling. Green Chem,
2009, 11: 1821–1825
63 Karimi B, Akhavan PF. A study on applications of N-substituted
main-chain NHC-palladium polymers as recyclable self-supported
catalysts for the Suzuki-miyaura coupling of aryl chlorides in water.
Inorg Chem, 2011, 50: 6063–6072
64 Richardson JM, Jones CW. Poly(4-vinylpyridine) and quadrapure TU
as selective poisons for soluble catalytic species in palladi-
um-catalyzed coupling reactions-application to leaching from poly-
mer-entrapped palladium. Adv Synth Catal, 2006, 348: 1207–1216
65 Klingelhofer S, Heitz W, Greiner A. Preparation of palladium col-
loids in block copolymer micelles and their use for the catalysis of
the Heck reaction. J Am Chem Soc, 1997, 119: 10116–10120
66 Karimi B, Elhamifar D, Clark JH, Hunt AJ. Ordered mesoporous or-
ganosilica with ionic-liquid framework: An efficient and reusable
support for the palladium-catalyzed Suzuki-Miyaura coupling reac-
tion in water. Chem Eur J, 2010, 16: 8047–8053
67 Richardson JM, Jones CW. Strong evidence of solution-phase cataly-
sis associated with palladium leaching from immobilized thiols dur-
ing Heck and Suzuki coupling of aryl iodides, bromides, and chlo-
rides. J Catal, 2007, 251: 80–93
68 Crudden CM, Sateesh M, Lewis R. Mercaptopropyl-modified meso-
porous silica: A remarkable support for the preparation of a reusable,
heterogeneous palladium catalyst for coupling reactions. J Am Chem
Soc, 2005, 127: 10045–10050
69 Karimi B, Zareyee D. Design of a highly efficient and water-tolerant
sulfonic acid nanoreactor based on tunable ordered porous silica for
the von pechmann reaction. Org Lett, 2008, 10: 3989–3992
70 Hankari SE, Kadib AE, Finiels A, Bouhaouss A, Moreau JJE,
Crudden CM, Brunel D, Hesemann P. SBA-15-Type organosilica
with 4-mercapto-N,N-bis-(3-Si-propyl) butanamide for palladium
scavenging and cross-coupling catalysis. Chem Eur J, 2011, 17:
8984–8994
71 Yu K, Sommer W, Richardson JM, Weck M, Jones CW. Evidence
that SCS Pincer Pd(II) complexes are only precatalysts in Heck ca-
talysis and the implications for catalyst recovery and reuse. Adv Synth
Catal, 2005, 347: 161–171
72 Widegren JA, Finke RG. A review of the problem of distinguishing
true homgeneous catalysis from soluble or other metalparticle heter-
ogeneous catalysis under reducing conditions. J Mol Catal A, 2003,
198: 317–341
73 Consorti CS, Flores FR, Dupont J. Kinetics and mechanistic aspects
of the Heck reaction promoted by a CN-palladacycle. J Am Chem Soc,
2005, 127: 12054–12065
42 Karimi B, Enders D. New N-heterocyclic carbene palladium com-
plex/ionic liquid matrix immobilized on silica: Application as recov-
erable catalyst for the Heck reaction. Org Lett, 2006, 8: 1237–1240
43 Zhang Y, Wei S, Liu F, Du Y, Liu S, Ji Y, Yokoi T, Tatsumi T, Xiao
F-S. Superhydrophobic nanoporous polymers as efficient adsorbents
for organic compounds. Nano Today, 2009, 4: 135–142
44 Zhang Y, Wei S, Liu F, Nawaz F, Liu S, Zhang H, Xiao F-S. Sol-
vothermal synthesis of carboxyl and amido functionalized mesopo-
rous resins dor water treatmants.
4609–4614
J Mater Chem, 2010, 20:
45 Clark JH, Macquarrie DJ, Mubofu EB. Preparation of a novel
silic-supported palladium catalyst and its use in the Heck reaction.
Green Chem, 2000, 2: 53–56
46 Mubofu EB, Clark JH, Macquarrie DJ. A novel Suzuki reaction sys-
tem based on a supported palladium catalyst. Green Chem, 2001, 3:
23–25
47 Paul S, Clark JH. A highly active and reusable heterogeneous catalyst
for the Suzuki reaction: Synthesis of biaryls and polyaryls. Green
Chem, 2003, 5: 635–638
48 Inbar L, Lapidot A. The structure and biosynthesis of new tetrahy-
dropyrimidine detrivatives in actinomycin D producer Streptomyces
parvulus. Use of 13C-and 15N-labeled L-glutamate and 13C and 15N
NMR. J Biol Chem, 1988, 263: 16014–16022
49 Rizeler O, Hennig L, Findeisen M, Welzel P. Search for new
moenomycin structure-active relationships synthesis of a trisaccha-
ride precursor of a moenomycin analogue. Tetrahedron Lett, 1997, 53:
1675–1694
50 Mawhinney DB, Yates Jr JT. FTIR study of the oxidation of amor-
phous carbon by ozone at 300 K—Direct COOH formation. Carbon,
2001, 39: 1167–1173
51 Wang L, Meng X, Wang B, Chi W, Xiao F-S. Pyrrolidone-modified
SBA-15 supported Au nanoparticles with superior catalytic properties
in aerobic oxidation of alcohols. Chem Commum, 2010, 46:
5003–5005
52 Mubofu EB, Clark JH, Macquarrie DJ. Novel supported heterogene-
ous palladium catalysts for carbon-carbon forming reactiond. Green
Chem, 2000, 3: 23–25
53 Yang Y, Zhang Y, Hao S, Guan J, Ding D, Shang F, Kan Q. Hetero-
genization of functionalized Cu(II) and VO(IV) Schiff base com-
plexes by direct immobilization onto amino-modified SBA-15: Sty-
rene oxidation catalysts with H2O2. Appl Catal A: Gen, 2010, 381:
274–218
54 Mo W, Liu H, Xiong H, Li M, Li G. Preparation of CuCl/1,10-
phenanthroline immobilized on polystyrene and catalytic perfor-
mance in oxidative carbonylation of methanol. Appl Catal A: Gen,
2007, 333: 172–176
55 Yang H, Han X, Li G, Wang Y. N-Heterocyclic carbene palladium
complex supported on ionic liquid-modified SAB-16: an efficient and
74 Eberhard MR. Insights into the Heck reaction with PCP pincer palla-

Sun Q, et al. Sci China Chem October (2012) Vol.55 No.10
2103
dium(II) complexes. Org Lett, 2004, 6: 2125–2128
Adv Synth Catal, 2003, 345: 931–935
75 Pröckl SS, Kleist W, Gruber MA, Köhler K. In situ generation of
highly active dissolved palladium species from sold catalysts-A con-
cept for the activation of aryl chlorides in the Heck reaction. Angew
Chem Int Ed, 2004, 43: 1917–1918
83
Dyer UC, Shapland PD, Tiffin PD. Preparation of enantiopure
4-arylmandelic acids vis a Pd/C catalysed Suzuki coupling of
enantiopure 4-bromomandelic acid. Tetrahedron Lett, 2001, 42:
1765–1767
76 Heidenreich RG, Krauter JGE, Pietsch J, Köhler K. Control of Pd
leaching in Heck reactions of bromoarenes catalyzed by Pd supported
on activated carbon. J Mol Catal A, 2002, 182-183: 499–509
77 MauQuarrie S, Horton JH, Barnes J, McEkeney K, Loock H-P,
Crudden CM. Visual observation of redistribution and dissolution of
palladium during the Suzuki-Miyaura reaction. Angew Chem Int Ed,
2008, 47: 3279–3282
78 Amatore C, Jutand A. Anionic Pd(0) and Pd(II) intermediates in pal-
ladium-catalyzed Heck and cross-coupling reactions. Acc Chem Res,
2000, 33: 314–321
84 Albéniz AC, Carrera N. Polymers for green C–C couplings. Eur J
Inorg Chem, 2011, 15: 2347–2360
85 Lamblin M, Nassar-Hardy L, Hierso JC, Fouquet E, Felpin F-X.
Recyclable heterogeneous palladium catalysts in pure water:
Sustainale developments in Suzuki, Heck, Sonogashira and
Tsuji-Trost reactions. Adv Synth Catal, 2010, 352: 33–79
86 Weck M, Jones CW. Mizoroki-Heck coupling using immobilized
molecular precatalysts: Leaching active species from Pd pinceers,
entrapped Pd salts, and Pd NHC complexes. Inorg Chem, 2007, 46:
1865–1875
79 Ennis DS, Mcmanus J, Wood-Kaczmar W, Richardson J, Smith GE,
Carstais A. Multikilogram-scale synthesis of a biphenyl carboxylic
acid derivative using a Pd/C-mediated suzuki coupling approach. Org
Process Res Dev, 1999, 3: 248–252
80 LeBlond CR, Andrews AT, Sun YK, Sowa JR. A ctivation of aryl
chlorides for Suzuki cross-coupling by ligandless, heterogeneous
palladium. Org Lett, 2001, 3: 1555–1557
87 Xi Z, Zhou N, Sun Y, Li K. Reaction-controlled phase-transfer catal-
ysis for propylene epoxidation to propylene oxide. Science, 2001, 292:
1139–1141
88 Brink GJT, Arends IWCER, Sheldon A. Green, catalytic oxidation of
alcohols in water. Science, 2000, 287: 1636–1639
89 Joo F. Aqueous biphasic hydrogenations. Acc Chem Res, 2002, 35:
738–745
81 Heidenreich RG, Köhler K, Krauter JGE, Pietsch J. Pd/C as a highly
active catalyst for Heck, Suzuki and Sonogashira reactions. Syn Lett,
2002, 1118–1201
82 Conlon DA, Pipik B, Ferdinand S, LeBlond CR, Sowa JR, Izzo B.
Suzuki-miyaura cross-coupling with quasi-heterogeneous palladium.
90 Ooi T, Maruoka K. Recent advances in asymmetric phase-transfer
catlysis. Angew Chem Int Ed, 2007, 46: 4222–4266
91 Leng Y, Wang J, Zhu D. Heteropolyanion-based ionic liquids: Reac-
tion-induced self-separation catalysts for esterification. Angew Chem
Int Ed, 2008, 121: 174–177
