Peng Zhang et al.
FULL PAPERS
References
General Procedure for the Formation ofIodinated
Products
[1] a) A. Butler, M. Sandy, Nature 2009, 460, 848–854;
b) A. S. Dudnik, N. Chernyak, C. Huang, V. Gevorgy-
an, Angew. Chem. 2010, 122, 8911–8914; Angew. Chem.
Int. Ed. 2010, 49, 8729–8732.
[2] a) A. de Meijere, F. E. Meyer, Angew. Chem. 1994, 106,
2473–2506; Angew. Chem. Int. Ed. Engl. 1994, 33,
2379–2411; b) I. P. Beletskaya, A. V. Cheprakov, Chem.
Rev. 2000, 100, 3009–3066.

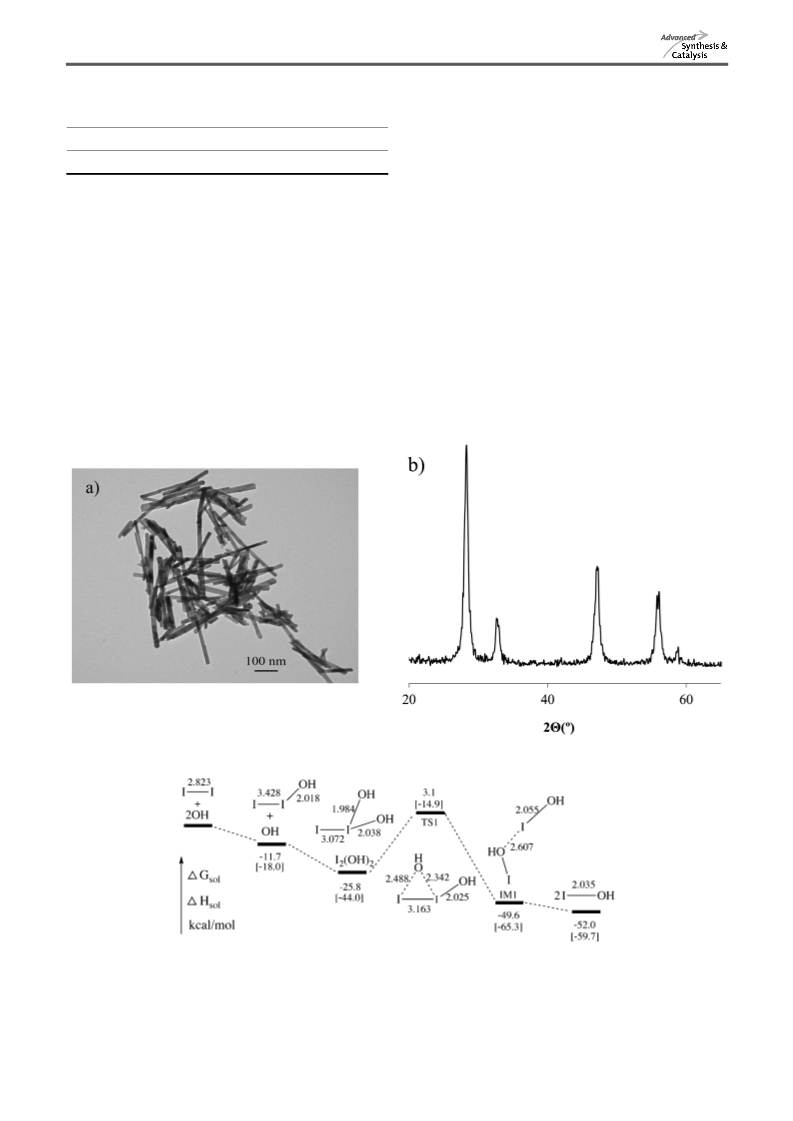

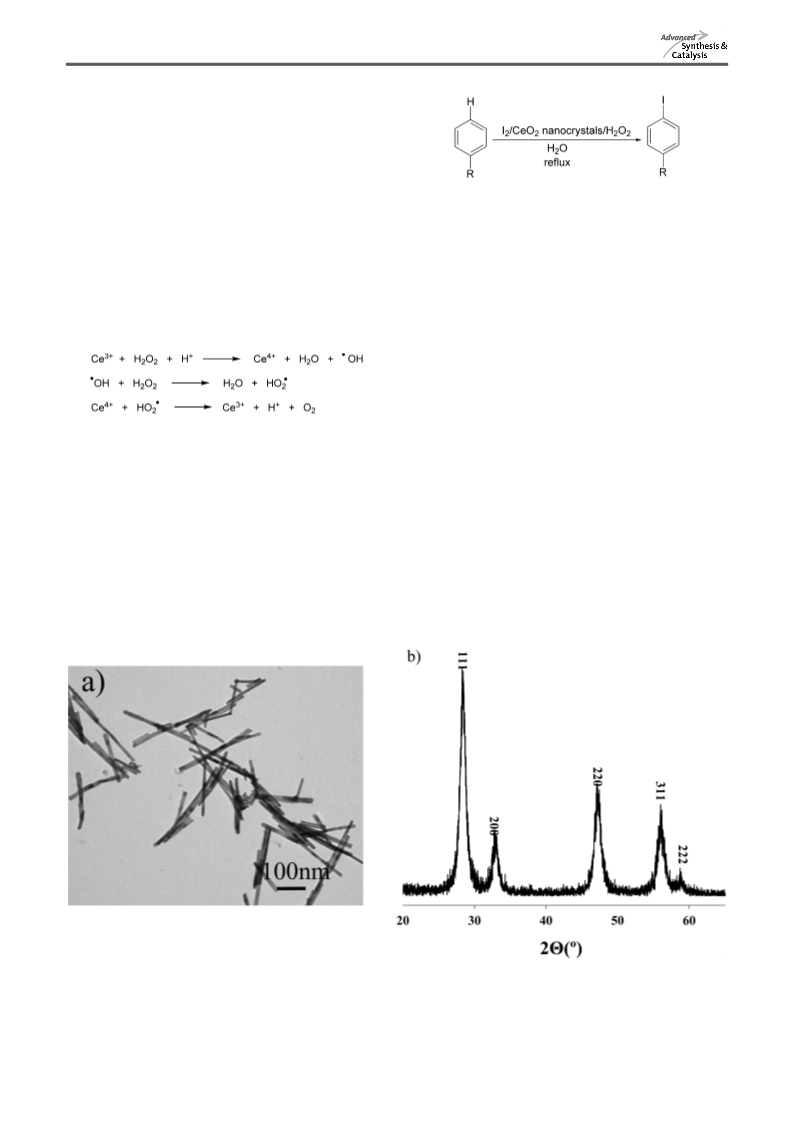

All the reactants were used directly without further treat-
ment. In a 25-mL three-neck flask, substrates (1 mmol), I2
(0.1270 g, 0.5 mmol), 35 wt% H2O2 aqueous solution (2 mL)
and CeO2 nanocrystals (0.05 g) were added in 1 mL of de-
ionized water under air. The pH value of the water layer
was 3.0 which was maintained automatically by the H2O2
aqueous solution. The reaction mixture was stirred at reflux
temperature for a period of time (0.5 to 24 h). The resulting
reaction mixture was centrifugated to separated the CeO2
nanocrystals, then the supernatant was treated with Na2S2O4
(10 mol%, 10 mL) and extracted with diethyl ether (2ꢃ
10 mL). The ethereal solution was dried over anhydrous
Na2SO4 and filtered. Evaporation of the solvent resulted in
the desired crude product which was further purified by
column chromatography on silica gel with petroleum ether
and ethyl acetate (1:10) as eluent to furnish the pure com-
pound.
[3] N. Miyaura, A. Suzuki, Chem. Rev. 1995, 95, 2457–
2483.
[4] a) J. N. Moorthy, K. Senapati, S. Kumar, J. Org. Chem.
2009, 74, 6287–6290; b) K. Midorikawa, S. Suga, J.
Yoshida, Chem. Commun. 2006, 36, 3794–3796.
[5] a) K. Orito, T. Hatakeyama, M. Takeo, H. Suginome,
Synthesis 1995, 10, 1273–1275; b) Y. Noda, Tetrahedron
Lett. 1997, 38, 6225–6228; c) S. M. Hubig, W. Jung, J. K.
Kochi, J. Org. Chem. 1994, 59, 6233–6244.
[6] D. Kalyani, A. R. Dick, W. Q. Anani, M. S. Sanford,
Analytical thin layer chromatography was performed
using glass plates pre-coated with silica gel (0.25 mm, 60 ꢂ
pore size, 230–400 mesh, Yantai Chemical Industry Research
Org. Lett. 2006, 8, 2523–2526.
ˇ
[7] A. Podgorsek, M. Zupan, J. Iskra, Angew. Chem. 2009,
121, 8576–8603; Angew. Chem. Int. Ed. 2009, 48, 8424–
8450.
[8] N. Narender, K. S. K. Reddy, K. Mohan, S. J. Kulkarni,
Tetrahedron Lett. 2007, 48, 6124–6128.
[9] M. Sosnowski, L. Skulski, Molecules 2002, 7, 867–870.
[10] H. Firouzabadi, N. Iranpoor, S. Kazemi, A. Ghaderi, A.
Garzan, Adv. Synth. Catal. 2009, 351, 1925–1932.
[11] E. G. Heckert, S. Seal, W. T. Self, Environ. Sci. Technol.
2008, 42, 5014–5019.
[12] a) K. B. Zhou, X. Wang, X. M. Sun, Q. Peng, Y. D. Li,
J. Catal. 2005, 229, 206–212; b) X. W. Liu, K. B. Zhou,
L. Wang, B. Y. Wang, Y. D. Li, J. Am. Chem. Soc. 2009,
131, 3140–3141.
Institute) impregnated with
a
fluorescent indicator
(254 mm). TLC plates were visualized by exposure to ultra-
violet light (UV). Proton nuclear magnetic resonance
(1H NMR) spectra and carbon nuclear magnetic resonance
(13C NMR) were recorded with JOEL JNM-ECA600
(600 MHz/150 MHz) NMR spectrometers. Chemical shifts
for protons are reported in parts per million (d scale) and
internally referenced to the SiMe4 signal. Chemical shifts for
carbon are reported in parts per million (d scale) and refer-
enced to the carbon resonances of the solvent (CDCl3: d=
77.36, the middle peak). Data are represented as follows:
chemical shift, multiplicity (s=singlet, d=double, t=triple),
coupling constant in Hz, and integration. Gas chromato-
graphic (GC) analyses for the determination of conversion
were performed on an SP-2100 Series instrument.
[13] M. Suthanthiran, S. D. Solomon, P. S. Williams, A. L.
Rubin, A. Novogrodsky, K. H. Stenzel, Nature 1984,
307, 276–278.

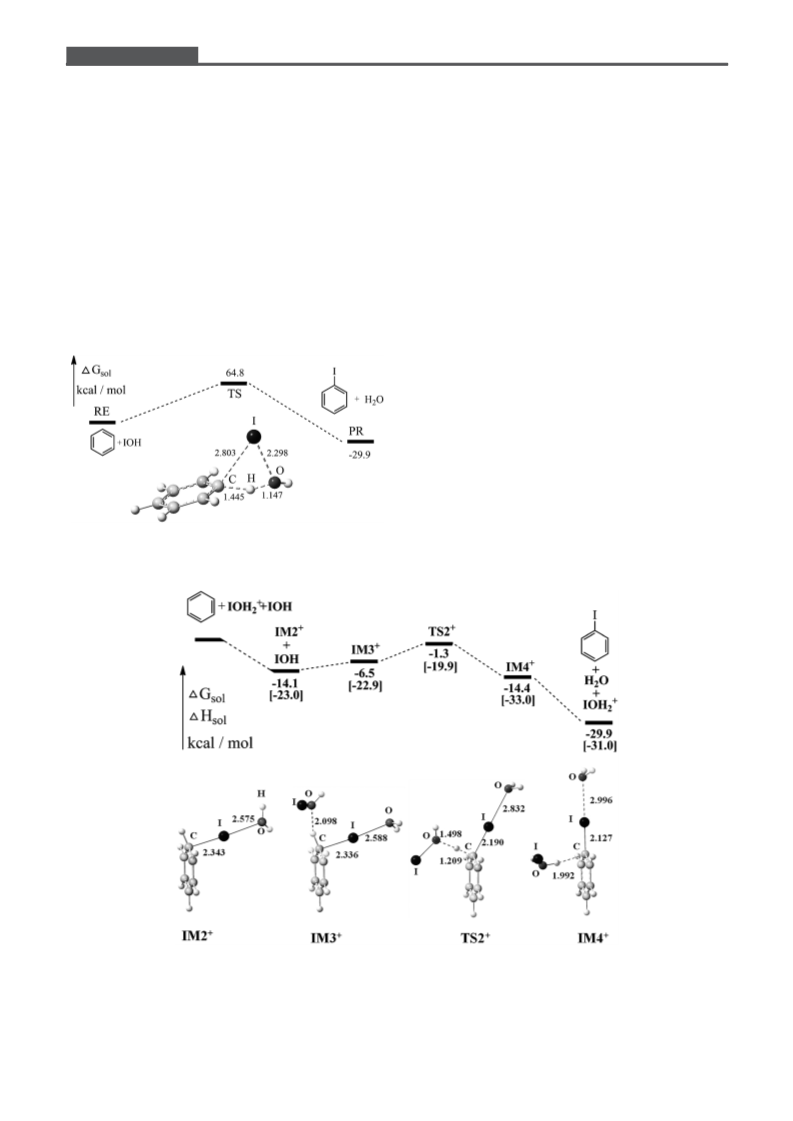

Computational Methods
[14] A. S. Breitbach, A. H. Broderick, C. M. Jewell, S. Gu-
nasekaran, Q. Lin, D. M. Lynn, H. E. Blackwell, Chem.
Commun. 2011, 47, 370–372.
[15] Y. Naito, T. Yoshikawa, T. Tanigawa, K. Sakurai, K.
Yamasaki, M. Uchida, M. Kondo, Free Radical Biol.
Med. 1995, 18, 117–123.
[16] D. Bianchi, R. Bortolo, R. Tassinari, M. Ricci, R. Vi-
gnola, Angew. Chem. 2000, 112, 4491–4493; Angew.
Chem. Int. Ed. 2000, 39, 4321–4323.
[17] C. Walling, R. A. Johnson, J. Am. Chem. Soc. 1975, 97,
363–367.
[18] M. K. Eberhardt, J. Am. Chem. Soc. 1981, 103, 3876–
3878.
[19] a) M. A. Brook, L. Castle, J. R. L. Smith, R. Higgins,
K. P. Morris, J. Chem. Soc. Perkin Trans. 2 1982, 687–
692; b) C. R. Jetcoate, J. R. L. Smith, R. O. C. Norman,
J. Chem. Soc. B 1969, 1013–1018.
All the structures involved in this work were optimized and
then characterized by frequency analysis calculations in the
solvent (water) by using M05-2X functional with the basis
sets of 6-311+ +G** for H, C, O and SDD for I. The sol-
vent effects of water were simulated by the IEFPCM (inte-
gral equation formalism polarizable continuum solvent
model) solvent model with the UFF atomic radii. The har-
monic frequencies were used for thermal and entropic cor-
rections at 297.15 K and 1 atm. When necessary, the intrinsic
reaction coordinate (IRC) calculations were used to confirm
the correct connection between a transition state and its
backward and forward minima. All the calculations were
performed by using Gaussian 03.
[20] a) H. Firouzabadi, N. Iranpoor, A. Garzan, Adv. Synth.
Catal. 2005, 347, 1925–1928; b) A. R. Hajipour, M. Ar-
babian, A. E. Ruoho, J. Org. Chem. 2002, 67, 8622–
8624.
[21] Z. X. Zhou, R. G. Parr, J. Am. Chem. Soc. 1990, 112,
5720–5724.
Acknowledgements
This work was supported by the National Natural Science
Foundation of China (20703065, 20877097, 20973197) and
the Ministry of Science and Technology of China
(2008AA06Z324).
728
ꢁ 2012 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Adv. Synth. Catal. 2012, 354, 720 – 729
