Catalytic transfer hydrogenation of biomass-derived levulinic acid to γ-valerolactone over Sn/Al-SBA-15 catalysts

Article abstract of DOI:10.1039/d0nj01288b

Gamma valerolactone (GVL) is an important chemical feedstock from which several value-added fine chemicals, fuels and fuel additives are manufactured. GVL is the product obtained in the hydrogenation of levulinic acid (LA), which in turn is generally manufactured from several renewable resources such as pentoses and hexoses. The present work deals with the synthesis of SBA-15 and Sn loaded catalysts [x% Sn/Al-SBA-15 (x = Si/Sn = 10, 25, 50, 75 and 100 with Si/Al = 25)] using a hydrothermal in situ method. A variety of both bulk and surface characterization techniques such as XRD, FT-IR, BET, FE-SEM, HR-TEM, XPS, TGA/DTA and UV-DRS were used to characterize the bare and Sn/Al-SBA-15 catalysts. The characterization studies revealed the presence of Sn species well dispersed in the uniform pore channels of Al-SBA-15. All the synthesized catalysts were tested in the liquid-phase catalytic transfer hydrogenation of levulinic acid at atmospheric N₂ pressure under mild reaction conditions. Among them, the Sn/Al-SBA-15 (Si/Sn = 25) catalyst showed remarkable conversion of levulinic acid (99%) and very high selectivity towards GVL (100%). The various reaction parameters such as metal loading, reaction temperature, reaction time and catalyst weight were optimized to get the maximum conversion of levulinic acid with high selectivity towards the desired product. The stability and reusability of the best catalysts were also tested up to five cycles and there was not much variation in the catalytic activity in terms of conversion.

Full text of DOI:10.1039/d0nj01288b

View Article Online
View Journal
NJC
New Journal of Chemistry
Accepted Manuscript
A journal for new directions in chemistry
This article can be cited before page numbers have been issued, to do this please use: S. Kumaravel, S.
Thiripuranthagan, D. Mani, E. ERUSAPPAN and T. Vembuli , New J. Chem., 2020, DOI:
10.1039/D0NJ01288B.
Volume 42
This is an Accepted Manuscript, which has been through the
Number
6
21 March 2018
Pages 3963-4776
Royal Society of Chemistry peer review process and has been
accepted for publication.
NJC
New Journal of Chemistry
rsc.li/njc
A journal for new directions in chemistry
Accepted Manuscripts are published online shortly after acceptance,
before technical editing, formatting and proof reading. Using this free
service, authors can make their results available to the community, in
citable form, before we publish the edited article. We will replace this
Accepted Manuscript with the edited and formatted Advance Article as
soon as it is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes to the
text and/or graphics, which may alter content. The journal’s standard
Terms & Conditions and the Ethical guidelines still apply. In no event
shall the Royal Society of Chemistry be held responsible for any errors
or omissions in this Accepted Manuscript or any consequences arising
from the use of any information it contains.
ISSN 1144-2546
PAPER
Chechia Hu, Tzu-Jen Lin et al.
Yellowish and blue luminescent graphene oxide quantum dots
prepared via a microwave-assisted hydrothermal route using
H2O2 and KMnO4 as oxidizing agents
rsc.li/njc

Page 1 of 33
New Journal of Chemistry
P a g e | 1
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
Catalytic transfer hydrogenation of levulinic acid to γ-valerolactone over Sn/Al-SBA-15
5
6
catalysts
7
8
9
Sakthivel Kumaravel a, Sivakumar Thiripuranthagan a*, Mani Durai b, Elangovan Erusappana,
and Thanigaivel Vembuli a
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
a Catalysis Laboratory, Department of Applied Science and Technology, Anna University,
Chennai, India
bCentre for Nanoscience and Technology, Anna University, Chennai, India
*Corresponding author Email: tssivakumar@yahoo.com
ABSTRACT
Gamma valerolactone (GVL) is an important chemical feedstock from which several
value-added fine chemicals, fuels & fuel additives are manufactured. GVL is the product
obtained in the hydrogenation of levulinic acid (LA) which in turn is generally manufactured
from several renewable resources such as pentoses and hexoses. The present work deals with
the synthesis of SBA-15 and Sn loaded catalysts [x% Sn/Al-SBA-15 (x = Si/Sn=10, 25, 50,
75 and 100 with Si/Al=25)]) by hydrothermal In-situ method. A variety of both bulk and
surface characterization techniques such as XRD, FT-IR, BET, FE-SEM, HR-TEM, XPS,
TGA and UV-DRS were used to characterize bare and Sn/Al-SBA-15 catalysts. The
characterization studies revealed the presence of Sn species well dispersed in the uniform
pore channels of Al-SBA-15. All the synthesized catalysts were tested for the liquid-phase
catalytic transfer hydrogenation of levulinic acid in atmospheric pressure under mild reaction
conditions. Among them, Sn/Al-SBA-15 (Si/Sn= 25) catalyst showed remarkable conversion
of levulinic acid (99 %) and with very high selectivity towards GVL (100 %). The various
reaction parameters such as metal loading, reaction temperature, reaction time and catalyst
weight were optimized to get maximum conversion of levulinic acid with high selectivity
towards the desired product. The stability and reusability of the best catalysts was also tested
upto five cycles and there was not much variation in the catalytic activity in terms of
conversion.
Keywords: Hydrogenation, Levulinic acid, GVL, mesoporous catalyst, Sn/Al-SBA-15

New Journal of Chemistry
Page 2 of 33
P a g e | 2
1
2
3
4
5
View Article Online
DOI: 10.1039/D0NJ01288B
1. Introduction
6
7
8
9
A decision was taken at United Nations Climate Change Conference at Paris to reduce
1
global warming to less than 2 ºC from the year 2020 onwards . Hence, the researchers
devoted much of their time to find out newer and greener ways of producing fuels to mitigate
over-dependency on fossil fuels. Renewable carbon can be obtained from non-edible
biomasses such as lignocellulose2,3. United States Department of Energy identified 12
biomass-based compounds that may replace the fossil fuel-based chemical building blocks1,4-
6. The sustainable production of value-added chemicals, intermediates, polymers, fuels, etc.,
through greener catalytic routes from one of the 12 identified biomasses is the need of the
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
hour 5,7
.
Among the different non-edible, renewable carbon sources, levulinic acid (LA), which
can be obtained by hydrolysis of the most abundant lignocellulose is an important feedstock
for the production of fuels, fuel additives, value-added fine chemicals, flavoring agents, green
solvents, polymer and resins 8-12. It is expected that the global demand for levulinic acid may
reach around 4000 tons by the end of the year 2020 5,13,14. Since levulinic acid possesses both
keto and carboxylic acid groups it is the potential candidate from which umpteen number of
other interesting compounds such as ethyl levulinates, gamma valerolactone (GVL), 1,4
pentane diol, MTHF derivatives, valeric esters, etc., can be obtained 6,15-22. Among them the
conversion of levulinic acid into GVL is the most essential process as the unique properties
of GVL such as high boiling points, low toxicity, high energy density, etc., make GVL to be
23-25
used as green fuels, fuel additives, green solvents, green polymer, resins, etc.,
.
Hydrogenation followed by dehydration of levulinic acid can be effected either through
liquid-phase and/or vapor phase using heterogeneous or homogeneous catalysts to obtain γ-
valerolactone (GVL) 26,27. However, in most such conversions noble metals and gaseous
hydrogen at high pressure are used and hence have several disadvantages such as high cost of
noble metals, longer reaction time, usage of harmful gaseous hydrogen, etc.,23,28
.
Hence, efficient production of GVL from LA without using noble metal catalyst and
gaseous hydrogen is the need of the hour. Instead of gaseous hydrogen sources such as formic
29
acid and 2-propanol were used for the catalytic transfer hydrogenation of levulinic acid .
30
But, in most of the reactions, they are catalyzed by using noble metals such as Ni/TiO2
W/Ni-ZSM-5 31, Cu/Al2O3-ZrO2 32, Cu-ZrO2 13, Ru/C 33, Ni/ZrO2-Al2O3 34, Ru/Sn/C
SnO2/SBA-15 29, Ru-Ni/OMC 36, ZrO2 37, Cu-Ni/SiO2 38, Ru/Al2O3-TiO2 39, Ni/SiO2
,
,
,
35
40
Ru/TiO2 41, Ru/HAP 42, Cu/ZrO2 43, ZrO2/SBA-15 44, Ni/MgO-Al2O3 45 and Ru/H-ZSM-5 46

Page 3 of 33
New Journal of Chemistry
P a g e | 3
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
The conversion of levulinic acid into GVL through liquid-phase catalytic transfer
hydrogenation has been reported elsewhere but at very high hydrogen pressure (5-100 bar) 5.
To the best of our knowledge, only a few reports were found for the catalytic transfer
hydrogenation of levulinic acid at ambient H2 pressure 23. Hence, it is a challenge to develop
an inexpensive catalytic system which can show high catalytic conversion and selectivity
under mild reaction condition such as usage of ambient H2 pressure and non-corrosive
solvents for the production of GVL. The liquid-phase catalytic transfer hydrogenation of
levulinic acid using highly dispersed Sn particles supported on Al-SBA-15 has not been
reported so far.
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
In the present work, we report the synthesis of SBA-15 and Sn loaded catalysts [x%
Sn/Al-SBA-15 (x = Si/Sn=10, 25, 50, 75 and 100 with Si/Al=25)]) by hydrothermal In-situ
method. The characterization studies revealed the presence of Sn species well dispersed on in
the uniform pore channels of Al-SBA-15. The catalyst exhibited both Lewis and Bronsted
acidities which are essential for the conversion of levulinic acid. All the synthesized catalysts
were tested for the liquid-phase catalytic transfer hydrogenation of levulinic acid in
atmospheric pressure under mild reaction conditions. Among them, Sn/Al-SBA-15 (Si/Sn=
25) catalyst showed a remarkable conversion of levulinic acid (99 %) with very high
selectivity towards GVL (100 %). Usage of noble metal-free catalysts possessing high
recyclability and showing the highest conversion of levulinic acid and selectivity towards
GVL under noncorrosive conditions are the attractive features of this work.
2. Experimental
2.1. Materials and method
SBA-15 was synthesized by using a triblock copolymer (Pluronic P-123) and a silicon
source Tetraethylorthosilicate (TEOS), (Sigma Aldrich 98% purity). Aluminium
isopropoxide Al(O-i-Pr)3 purchased from Alfa Aesar and SnCl4.4H2O purchased from Sigma
Aldrich were used as precursors for Al & Sn respectively. Levulinic acid (Sigma Aldrich
98% purity) was used for the catalytic transfer hydrogenation reactions. Hydrochloric acid
(37 %, Sigma Aldrich) was used as received.

New Journal of Chemistry
Page 4 of 33
P a g e | 4
1
2
3
4
2.2. Synthesis of mesoporous SBA-15, Al-SBA-15 & Sn-SBA-15 catalystsViewbAyrticle Online
DOI: 10.1039/D0NJ01288B
5
6
hydrothermal method
7
8
9
The mesoporous SBA-15 was synthesized according to the procedure previously
reported 47,48. The mixture containing 4g of Pluronic P-123, 25 ml of concentrated HCl and
125 ml of water were taken in a polypropylene container and stirred for 4 h until transparent
solution was obtained. 9 g silica source TEOS was added directly to the above reaction
mixture and stirred for 24 h. The white suspension resulted was then subjected to
hydrothermal treatment in a Teflon lined stainless steel autoclave for 24 h at 373 K. After
cooling down to room temperature, the solid products were separated by centrifugation,
thoroughly washed with deionized water to remove the unreacted soluble organics and
inorganics and heated at 393 K for 12 h. The white mass obtained was finely grounded and
fired at 823 K for 6 h to remove the template if any present. This procedure yielded
mesoporous silica SBA-15. Al-SBA-15 (Si/Al = 25 and 50) and Sn-SBA-15 (Si/Sn=25 and
50) catalysts were also synthesized by following the above procedure by adding the
calculated amounts of aluminium isopropoxide Al(O-i-Pr)3 or SnCl4.4H2O along with TEOS.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2.3 Synthesis of Mesoporous Sn/Al-SBA-15 catalysts with different Si/Al and Si/Sn
ratios by hydrothermal in-situ method
Sn/Al-SBA-15 catalysts with Si/Al of 25 and Si/Sn of 10, 25, 50, 75 & 100 were also
synthesized as described above using Pluronic P-123 as surface directing agent, TEOS as
silicon source, aluminium isopropoxide as Al source and SnCl4.4H2O as Sn source. For
comparison purposes, other supported catalysts such as Sn/Al-SBA-16, Sn/Al-SBA-1, Sn/Al-
KIT-5, Sn/Al-KIT-6, Sn/Al-MCM-41 and Sn/Al-MCM-48 were also synthesized by
following the procedures reported in the literature 49-54
.
2.4 Catalyst characterization
The purity and phase formation of all the synthesized catalysts were analyzed from the
XRD pattern recorded using Rigaku, Mini Flex with Niβ filter CuKα (λ=1.54 nm). FT-IR
spectra were recorded to find out the functional groups present in all the synthesized catalysts
using Thermo scientific NICOLET 4700 in the wavenumber range between 400 cm-1 and
4000 cm-1 using KBr pellet technique. The Lewis and Bronsted acidities of all the synthesized
catalysts were determined from pyridine adsorbed FT-IR spectra in the wavenumber range
between 1400 and 1800 cm-1. The surface area was calculated by the BET method (BEL

Page 5 of 33
New Journal of Chemistry
P a g e | 5
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
SORP-mini, Bel-Japan analyzer) at -469 K. Pore volume and average pore size were
5
6
7
8
calculated by the BJH method. Prior to the adsorption measurement, the catalyst (100 mg)
was evacuated at 150C for 12 hr. The morphology studies of all the synthesized catalysts
were carried out by using Field Emission Scanning Electron Microscope (Hitachi S-8230)
and structure analysis was performed using energy-dispersive X-ray spectroscopy (EDS)
analysis and elemental mapping. High-Resolution Transmission Electron Microscopic (HR-
TEM) images of the mesoporous catalysts were taken by using a Hitachi H9500 microscope
at an operating voltage of 300 kV. X-ray photoelectron spectroscopy (XPS) measurements
were carried out on an ESCA+, with the AlKα source (1486.6 eV) and a charge neutralizer.
Thermal analysis of the most active catalyst was analyzed by Perkin Elmer, Diamond
TG/DTD. The UV-Visible absorption spectra of the sample were recorded using JASCO V-
650 UV-Vis spectrophotometer with BaSO4 as reference
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2.5 Evaluation of catalytic activity
The liquid phase catalytic transfer hydrogenation of levulinic with 2-PrOH was
carried out in the batch reactor at atmospheric pressure. The substrate, catalyst, and solvent
were mixed in the reactor, then pure N2 was introduced to remove the air. 100 mg of the
catalyst was added to the mixture containing 1:4 mole ratio of levulinic acid and 2-propanol,
the reaction temperature was varied from 373 K to 523 K and the reaction was conducted for
3 h under vigorous stirring. The reactor was cooled to room temperature and aliquots (0.5 ml)
of the product were withdrawn in eppendorfs, centrifuged, filtered through a nylon membrane
filter of 0.2µ microns and quantified by using gas chromatograph (Shimadzu GC-17A). An
FFAP capillary column (30m × 0.32mm x 0.25 nm) and flame ionization detector (FID). The
o
o
o
column temperature was raised from 40 C to 250 C at the heating rate of 3 C and the
sampling volume of 0.2 μL were used for the analysis. The % conversion of levulinic acid
and selectivity towards GVL were determined by the following equations:
Levulinic acid in ― Levulinic acid out
Conversion (%) =
x 100
Levulinic acid in
GVL formed
Selectivity (%) =
x 100
Sum of all the products

New Journal of Chemistry
Page 6 of 33
P a g e | 6
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
3. Result and Discussion
5
6
3.1 X-ray diffraction (XRD)
7
8
9
The low angle XRD pattern of bare SBA-15 and Sn/Al-SBA-15 catalysts with
different molar ratios were recorded to determine the structural order and shown in Figure 1
(A). Both SBA-15 and Sn/Al-SBA-15 catalysts exhibited one strong diffraction peak at 2θ=
0.9 º (100) and two weak peaks at 2θ= 1.6 º (110) and 2θ= 1.9 º (200) which are
characteristic of the 2D hexagonal mesoporous structure with space group (P6mm) symmetry
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
48
55. These peaks confirm the presence of excellent textural uniformity . The intensity of the
peak decreased and move towards higher angle with decrease in Si/Sn ratio 56. This is
because the ionic radii of Al3+ and Sn4+ are larger than that of Si4+ which leads to the lattice
expansion 57. This result clearly indicates that Al and Sn are present in the framework of
SBA-15 materials. The increase in the d-spacing also confirmed the incorporation of Sn into
the framework of SBA-15 without disturbing the mesoporous structure of SBA-15 58. The
physicochemical properties of all the synthesized catalysts are given in Table 1.

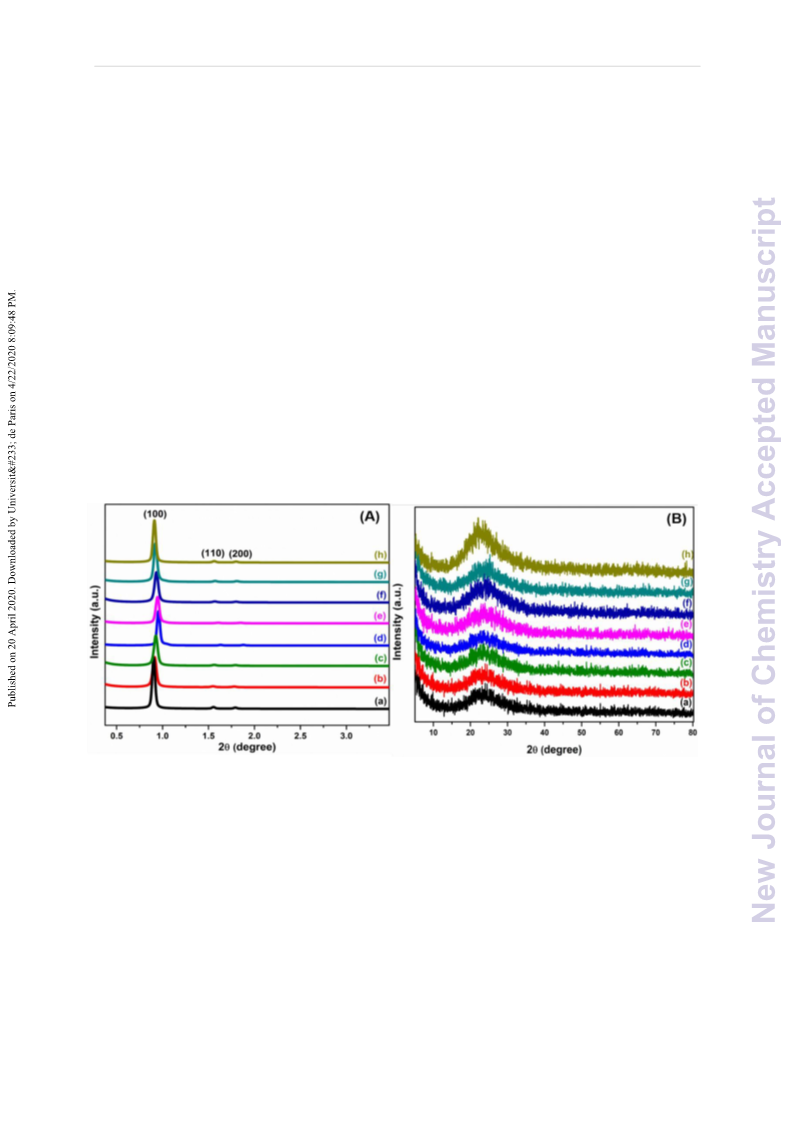

Figure 1. (A) Low-angle and (B) high angle XRD patterns of (a) SBA-15, (b) Al-SBA-15
(25), (c) Sn-SBA-15 (25), (d) Sn/Al-SBA-15 (10), (e) Sn/Al-SBA-15 (25), (f) Sn/Al-SBA-15
(50), (g) Sn/Al-SBA-15 (75) and (h) Sn/Al-SBA-15 (100) catalysts.

Page 7 of 33
New Journal of Chemistry
P a g e | 7
1
2
3
4
Table 1. Texture parameters of bare SBA-15, Al-SBA-15 and Sn/Al-SBA-15 catalystVsiew Article Online
DOI: 10.1039/D0NJ01288B
5
6
a
b
c
d
e
d100
a0
SBET
VP
d P
SWTf
7
8
9
Catalyst
(nm)
9.80
9.70
9.59
9.33
9.39
9.50
9.59
9.70
(nm)
11.31
11.20
11.07
10.73
10.48
10.96
11.07
11.20
(m2/g)
1120
980
(cm3/g)
2.16
1.88
1.68
1.28
1.41
1.38
1.64
1.77
(nm)
8.97
8.51
7.68
5.01
5.49
6.21
6.91
7.34
(nm)
2.34
2.69
3.39
5.72
4.99
4.75
4.16
3.86
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
SBA-15
Al-SBA-15 (25)
Sn-SBA-15 (25)
830
Sn/Al-SBA-15 (10)
Sn/Al-SBA-15 (25)
Sn/Al-SBA-15 (50)
Sn/Al-SBA-15 (75)
Sn/Al-SBA-15 (100)
650
710
760
810
810
ad100 calculated from the x-ray diffraction pattern from (100) plane.
bUnit cell size calculated using the formula, a0=2d100/√3.
cSBET - Surface area calculated from BET equation at P/P0 range of 0.05 to 0.3
dVp - Pore volume calculated at P/P0 = 0.98.
edp -Pore diameter calculated from the adsorption branch of the isotherm
fSWT- Single wall thickness calculated using, b = a0-dP.
The wide-angle XRD pattern of bare SBA-15, Al-SBA-15 and Sn/Al-SBA-15
catalysts are shown in Figure 1(B). They all showed a strong and broad-band in the range of
59
2θ=20-30° due to amorphous silica walls of mesoporous material . The wide-angle XRD
patterns did not show any diffraction peaks to confirm the presence of Sn which indicates that
the Sn species are homogeneously dispersed inside the framework of SBA-15 60. The
presence of Sn and Al species is then confirmed by instrumental techniques such as
SEM/EDX and XPS (discussed later). The increase Si/Sn molar ratio increased the peak
intensity, which confirmed the incorporation of Sn into the framework of SBA-15. The
decrease Si/Sn ratio decreased the peak intensity confirming the higher amount incorporation
of Sn into the framework mesopores.

New Journal of Chemistry
Page 8 of 33
P a g e | 8
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
3.2 FT-IR analysis
5
6
7
8
Qualitative identification of functional groups present in bare SBA-15 and Sn/Al-SBA-
15 catalysts was done by recording FT-IR spectra in the wavenumber region of 4000 to 500
cm-1 and shown in Figure 2 (A). A broad peak at 3448 cm-1 appears in the FT-IR spectra of
all the catalysts due to the -OH stretching vibration of a water molecule 61. The bending,
symmetric stretching and asymmetric stretching of Si-O-Si vibration bands were observed in
all the synthesized catalysts at 463, 802 and 1081 cm-1 respectively 62. The band around 962
cm-1 corresponds to the asymmetrical stretching vibration of Si-OH group 63. The peak
around 960 - 980 cm-1 is assigned to stretching vibration of Si-O-M linkage and the change in
its intensity may be attributed to the differential interaction of metal with Si-O linkage 63. The
peak intensity at about 1630 cm-1 is attributed to O-H bending vibration of adsorbed water
molecules and surface silanol groups 64. IR peak at 970 cm-1 was not observed to indicate the
presence of Sn in Al-SBA-15 catalysts which indicates that Sn species were highly dispersed
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
into the mesoporous framework of SBA-15 65,66
.
Figure 2. (A) FT-IR and (B) Pyridine adsorbed FT-IR spectra of (a) SBA-15, (b) Al-
SBA-15 (25), (c) Sn-SBA-15 (25), (d) Sn/Al-SBA-15 (10), (e) Sn/Al-SBA-15 (25), (f)
Sn/Al-SBA-15 (50), (g) Sn/Al-SBA-15 (75) and (h) Sn/Al-SBA-15 (100) catalysts.
Figure 2 (B) shows the pyridine adsorbed FT-IR spectra of Al-SBA-15 (25) and
Sn/Al-SBA-15 catalysts. All the synthesized catalysts exhibit bands at 1492 and 1546 cm-1
corresponding to pyridine adsorbed on Lewis acid sites, both Lewis and Bronsted acid sites
and the IR band around 1634 cm-1 is attributed to Bronsted acid sites formed due to bridged
hydroxyl groups.47. The presence of acidic sites in Sn-based catalysts was confirmed by
pyridine adsorbed FT-IR spectra. Catalytic transfer hydrogenation of levulinic acid reaction
requires high acidic sites to produce GVL with good selectivity and hence it is expected to

Page 9 of 33
New Journal of Chemistry
P a g e | 9
1
2
3
4
play a key role in the conversion of LA. The incorporation of Sn provides enough acidicVsieiwteAsrticle Online
DOI: 10.1039/D0NJ01288B
5
6
for CTH reaction.
7
8
9
3.3 BET N2 adsorption-desorption isotherms of bare SBA-15 & Sn/Al-SBA-15 catalysts
The N2 adsorption-desorption isotherms for bare SBA-15 and Sn/Al-SBA-15 catalysts
are shown in Figure 3 (A). High order mesoporous nature of the synthesized catalysts was
confirmed by their type IV isotherm with H1 hysteresis loop at (P/Po = 0.6-0.8) 67. BET
surface area, pore diameter, pore volume and wall thickness values were calculated for all the
synthesized catalysts and given in Table 1. The type IV isotherm suggested that the
incorporation of Sn and Al with framework of SBA-15 did not destroy its mesoporous
structure. The specific surface area of bare SBA-15 was found to be the highest (1120 m2/g).
However, when siliceous SBA-15 is converted into Al-SBA-15 the surface area reduced to
980 m2/g. Al-SBA-15 on further incorporation of Sn showed less surface area. However, with
increase in Si/Sn ratio, the surface area increased gradually. The increase in Si/Sn molar ratio
from 10 to 100 increases the BET surface area gradually. This result is in good agreement
with XRD results. This behavior may be attributed to the presence of Sn and Al elements in
the framework. However, the incorporation of Sn does not affect the mesoporous structure of
SBA-15.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

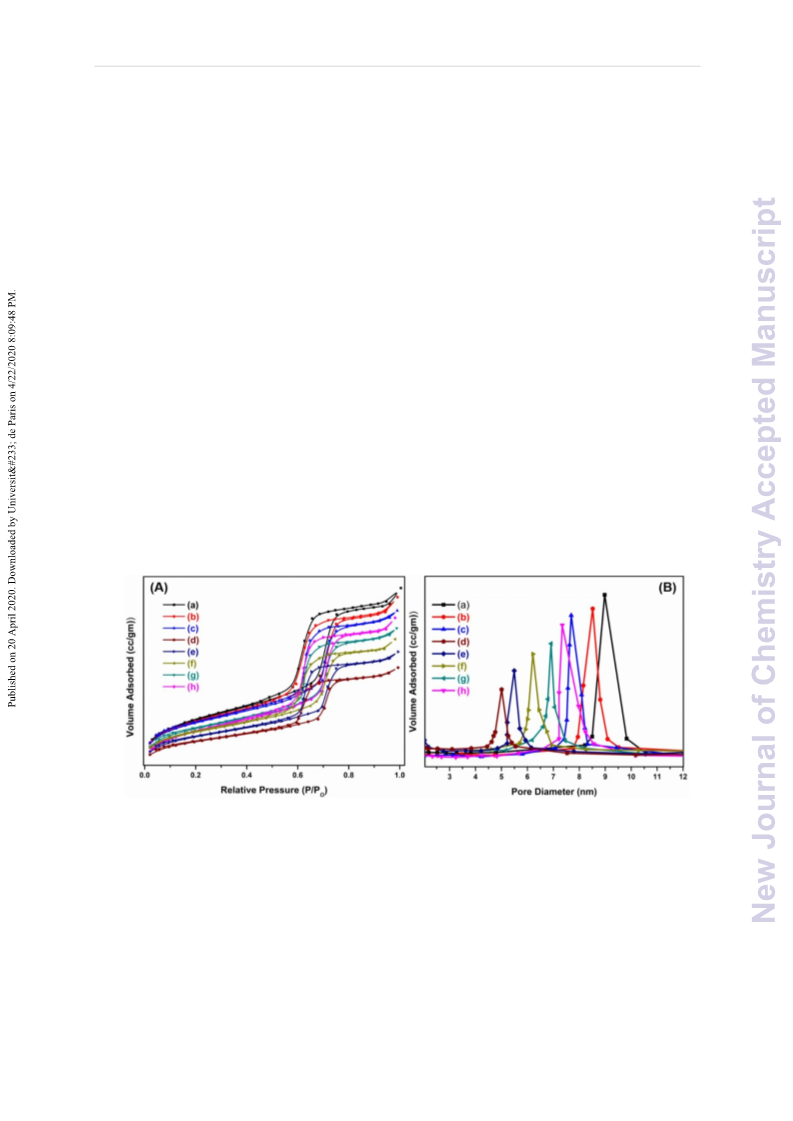

Figure 3. (A) Adsorption-desorption isotherms and (B) pore size distribution of (a)
SBA-15, (b) Al-SBA-15 (25), (c) Sn-SBA-15 (25), (d) Sn/Al-SBA-15 (10), (e) Sn/Al-SBA-
15 (25), (f) Sn/Al-SBA-15 (50), (g) Sn/Al-SBA-15 (75) and (h) Sn/Al-SBA-15 (100)
catalysts.
The BJH pore size distribution curve of all the synthesized catalysts is shown in
Figure 3 (B). All the catalysts show sharp peaks revealing, uniform regular porous structure.
Pore diameter, pore volume and wall thickness of all the synthesized catalysts were

New Journal of Chemistry
Page 10 of 33
P a g e | 10
1
2
3
View Article Online
calculated and given in Table1. Among the synthesized catalyst siliceous SBA-15DsOhI:o10w.10e3d9/tDh0eNJ01288B
highest pore diameter (8.97 nm) and the largest pore volume (2.16 cm2/g). These two values
decreased when either Al or Sn or both is incorporated into the lattice. Thus Sn/Al-SBA-15
(Si/Sn=10) showed the pore diameter of 5.01 nm and pore volume of 1.28 cm2/g. However,
these values increased gradually with increase in Si/Sn ratio from 10 to 100. The wall
thickness increased from 2.34 nm to 3.86 nm. This result clearly indicates that the specific
surface area, pore-volume, pore diameter, and silica wall thickness decreased with the
decreasing Si/Sn molar ratio, due to the blockage of the mesopores in SBA-15 68.
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3.4 XPS
XPS is an important characterization technique used to determine the chemical
composition and oxidation states. The high-resolution XPS survey spectrum and the core
level spectra of the most active Sn/Al-SBA-15 (25) catalyst is shown in Figure 4. The survey
scan spectrum [(Figure 4 (a)] shows the presence of dominant elements such as O (2s and 1s),
Al (2p), Si (2p, 2s, and 1s), C (1s) and Sn (3d) in Sn/Al-SBA-15 (25) catalyst. The
characteristic O 1s peak [(Figure 4 (b)] is located at 533.1 eV 69. The peak located at 74.7 eV
70
[(Figure 4 (c)] is attributed to Al 2p . The core-level XPS spectra showed a strong spin-
orbital doublet, (Sn 3d3/2, 3d5/2 ) at 494.61 and 485.32 eV which are attributed to Sn4+
respectively 71. This result suggests that Sn species were successfully incorporated into SBA-
15 framework by hydrothermal in-situ method.

Page 11 of 33
New Journal of Chemistry
P a g e | 11
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 4. (a) XPS survey spectrum and core-level spectra, (b) O 1s (c) Al 2p and (d)
Sn 3d of the most active catalyst Sn/Al-SBA-15 (25).
3.5 FE-SEM
The FE-SEM images of bare SBA-15 and Sn/Al-SBA-15 catalysts are shown in
Figure 5 (a-f). Figure 5 (a & b ) illustrates the FE-SEM image of bare SBA-15 and Al-SBA-
15 catalysts which show a uniform cylindrical rod-like morphology 47,48. Sn/Al-SBA-15
catalysts show similar rod-like morphology and long-range parallel mesochannels as shown
in Figure 5 (c-f). The FE-SEM image of Sn/Al-SBA-15 (10) catalyst show small
agglomerates on the small rod-like structure due to the presence of high Sn content in Al-
SBA-15 mesoporous catalysts. However, when Sn content decreases (at higher Si/Sn ratio),
the agglomerates were not formed. This indicates that Sn has been incorporated in the
framework structure of Al-SBA-15 catalysts as shown in Figure 5 (d, f). The FE-SEM low
and high magnification of the image of (Sn/Al-SBA-15 (25) catalyst) are shown in Figure 5
(d & e). The long mesochannels ranging from 500 to 850 nm were found in the Sn/Al-SBA-
15 (25) rods. The Sn nanoparticles accelerate the self-assembly of P123 and TEOS, resulting
in the formation of rods 72,73. This observation is more clearly seen in HR-TEM image also.

New Journal of Chemistry
Page 12 of 33
P a g e | 12
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

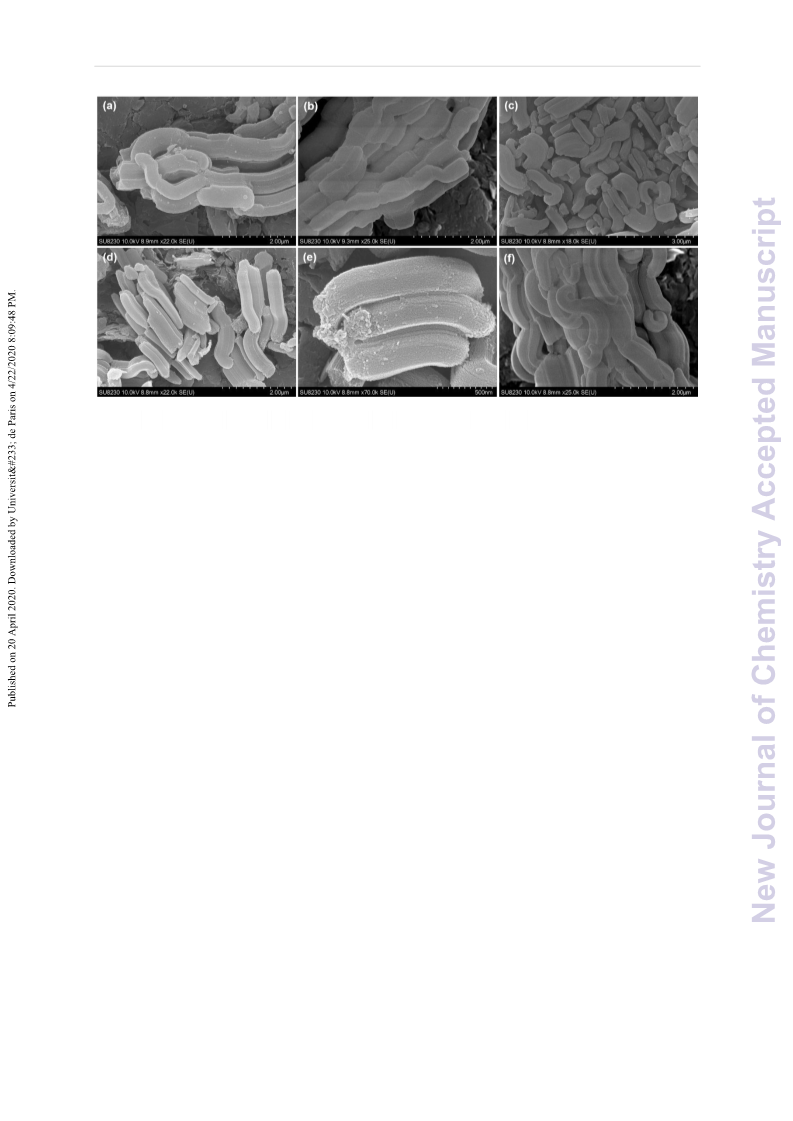

Figure 5. FE-SEM image of (a) SBA-15, (b) Al-SBA-15 (25), (c) Sn/Al-SBA-15 (10), (d-e)
high and low magnification image of Sn/Al-SBA-15 (25) and (f) Sn/Al-SBA-15 (50)
catalysts.

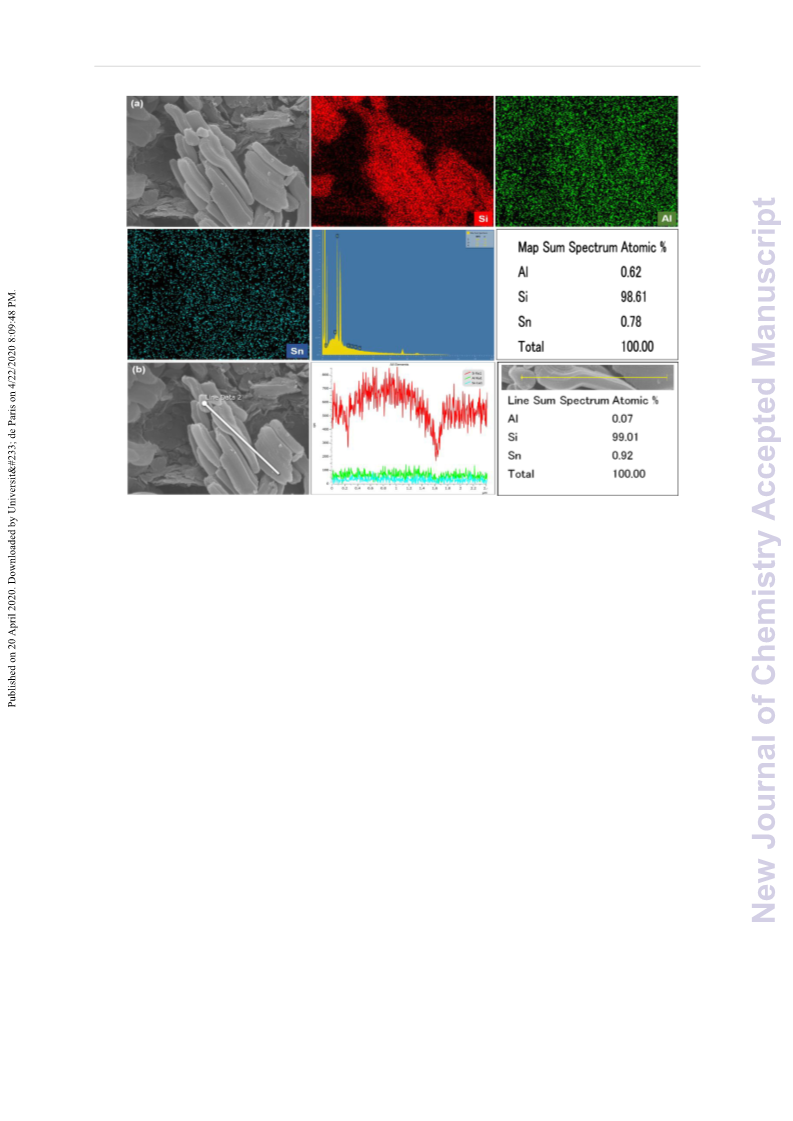

The FE-SEM-EDX image of Sn/Al-SBA-15 (25) catalyst is shown in Figure 6 (a).
The elemental mapping and line scanning were also performed to check the presence and
distribution of all the elements present in the SBA-15. The wide-angle X-ray diffraction
patterns of Sn/Al-SBA-15 (25) catalyst did not show clear evidence of presence of crystalline
Sn within the framework of Al-SBA-15 catalyst. However, energy dispersive X-ray (EDX)
mapping analysis confirms the presence of Sn particles evenly distributed within the
framework of SBA-15. The line scanning EDX spectrum of Sn/Al-SBA-15 (25) is shown in
Figure 6 (b) which indicates the presence of Sn, Si, and Al elements and well dispersion in
the mesoporous structure. The SEM-EDX spectra show no other elements in the catalysts
confirming the purity of samples.

Page 13 of 33
New Journal of Chemistry
P a g e | 13
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 6. (A and B) FE-SEM micrographs, elemental mapping and EDX line-scanning
spectra of the most active Sn/Al-SBA-15 (25) catalyst.
3.6 HR-TEM
HR-TEM image of bare SBA-15 and Sn/Al-SBA-15 catalysts are shown in Figure 7
(a-f). The hexagonal structure with honeycomb shape characteristic of 2D mesoporous is seen
in the HRTEM images of bare and Sn/Al-SBA-15 catalyst. The HR-TEM image of Sn/Al-
SBA-15 catalyst further confirmes the high dispersion of Sn within the framework of Al-
SBA-15 60. The small agglomerates were formed on the surface of Sn/Al-SBA-15 (10)
catalysts due to the high concentration of Sn (Figure 7 b). At lower concentration Sn in
Sn/Al-SBA-15 (100) homogeneous dispersion of Sn nanoparticle takes place within the
framework (Figure 7 f). The dark region in the HR-TEM images indicates the dispersion of
Sn particles.

New Journal of Chemistry
Page 14 of 33
P a g e | 14
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 7. HR-TEM images of (a) SBA-15, (b) Sn/Al-SBA-15 (10), (c) Sn/Al-SBA-15 (25),
(d) Sn/Al-SBA-15 (50), (e) Sn/Al-SBA-15 (75) and (f) Sn/Al-SBA-15 (100) catalysts.
3.7 UV-vis diffuse reflectance spectra of bare and Sn/Al-SBA-15 catalysts
UV-vis DRS was used to understand the chemical nature, coordination state and the
presence of Sn in framework and extra-framework of SBA-15 catalysts. UV‐vis diffuse
reflectance spectra of Al-SBA-15 and Sn/Al-SBA-15 catalysts are shown in Figure 8 (a). The
absorption peaks at 233 nm (strong) were observed. The peak is assigned to the ligand to
metal charge transfer (O → Sn4+) in tetrahedral coordination 74. This peak is due to the
presence of isolated Sn4+ species dispersed in the mesoporous framework of SBA-15 75.

Page 15 of 33
New Journal of Chemistry
P a g e | 15
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
Figure 8. (A) UV-Visible diffuse reflectance spectra (UV-DRS) image of (a) Al-SBA-15
5
6
7
8
(25), (b) Sn-SBA-15 (25), (c) Sn/Al-SBA-15 (10), (d) Sn/Al-SBA-15 (25), (e) Sn/Al-SBA
15 (50), (f) Sn/Al-SBA-15 (75), (g) Sn/Al-SBA-15 (100) catalysts and (B) TG (a) &
DTA (b) thermograms of Sn/Al-SBA-15 (25) catalyst.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3.8 Thermal stability of Sn/Al-SBA-15 (25) catalyst
TGA and DTA Thermograms of Sn/Al-SBA-15 (25) catalysts are shown in Figure 8
(B). The TGA analysis shows that the as-prepared mesoporous catalysts have high thermal
stability. The two weight-losses, one below 150 ºC is due to the physically adsorbed water
and the minor and negligible loss in the wide temperature range between 300 and 1000 ºC.
The DTA thermogram also confirms the same.
4. Catalytic Activities
4.1 Effect of Si/Sn molar ratio on catalytic performance
The catalytic transfer hydrogenation of levulinic acid was carried out in a batch
reactor using 2-PrOH as a solvent. Al-SBA-15 (Si/Al=25 & 50) and Sn-SBA-15 (Si/Sn=25 &
50) catalyst were evaluated for their catalytic conversion of levulinic acid and the results are
given in Table 2. As far as the selectivity towards the desired product GVL is concerned Al-
SBA-15 (Si/Al= 25, 50) catalysts show poor selectivity towards GVL and high selectivity
towards angelica lactone (AL). The acidic sites of the catalyst initiate the dehydration of
levulinic acid to intermediate product angelica lactone. Further angelica lactone
hydrogenation leading to the formation of GVL does not occur due to the lack of metallic
sites. Hence the presence of Sn is absolutely essential for obtaining very high conversion and
high degree of selectivity towards GVL. The incorporation of Sn species increases the acidity
of the catalyst, while the conversion increase with the incorporation of Sn in SBA-15, the
selectivity towards GVL increased tremendously. Both conversion and selectivity increased
with a decrease in Si/Sn molar ratio. Further increase in conversion and selectivity was
observed when Sn was incorporated into Al-SBA-15. Hence, this study confirms that the
presence of both Al & Sn are required to obtain high conversion with 100% selectivity
towards GVL. Hence, further optimization studies were carried out using Sn/Al-SBA-15 (25)
catalyst.

New Journal of Chemistry
Page 16 of 33
P a g e | 16
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
Table 2. Effect of molar ratio on levulinic acid conversion
5
6
7
Catalyst
Conversion
Selectivity (%)
8
9
(%)
38
GVL
4-HPA
AL
85
97
-
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Al-SBA-15 (50)
Al-SBA-15 (25)
Sn-SBA-15 (50)
Sn-SBA-15 (25)
Sn/Al-SBA-15 (25)
1
3
-
-
50
62
90
98
100
10
2
72
-
99
-
-
{Reaction conditions: Weight of the catalyst 100 mg, reaction temperature 473 K, molar
ratio of levulinic acid and 2-PrOH (1:4), reaction time 3 h}
4.2 Effect of temperature on conversion and selectivity
The reaction temperature plays an important role in the catalytic transfer
hydrogenation of levulinic acid. This study was conducted to identify the optimum reaction
temperature and the most active catalyst among the various synthesized catalysts. The effect
of reaction temperature on the conversion of levulinic acid was studied using a batch reactor
by varying the reaction temperature between 373 to 523 K. All Sn/Al-SBA-15 the
mesoporous catalysts with Si/Sn=10, 25, 50, 75, 100 and Si/Al=25 were evaluated for their
catalytic activities in the above temperature range and the results are given in Table 3. These
results clearly indicate that the conversion of levulinic acid increase with the increase in
reaction temperature over all the catalysts. Gamma valerolactone (GVL) and 4-
hydroxypentanoic acid (4-HPA) were found to be the products. The decrease in Si/Sn ratio
increased both the conversion of levulinic acid and selectivity towards GVL. As far as Sn/Al-
SBA-15 catalysts are concerned, both conversion and selectivity increased with decrease in
Si/Sn ratio upto 25 and further increase in Sn content (Si/Sn=10) decreased both conversion
and selectivity while the increase in reaction temperature had pronounced effect of Sn/SBA-
15 catalysts it had only a marginal effect on Sn/Al-SBA-15 catalysts. All the catalysts show
maximum conversion of levulinic acid with high degree of selectivity at 473 K. Further
increase in temperature to 523 K did not have any significant effect rather it decreased
slightly the conversion and selectivity. Among the catalysts Sn/Al-SBA-15 (25) catalyst
exhibited the maximum conversion of LA (99 %) with the highest selectivity towards GVL
(100 %) at 473K. Hence, further optimization studies were carried out at 473 K.

Page 17 of 33
New Journal of Chemistry
P a g e | 17
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
Table 3. Effect of reaction temperature on levulinic acid conversion.
5
6
7
8
Reaction
Conversion
(%)
37
Selectivity (%)
Catalyst
Temperature (K)
373
GVL
80
86
90
81
95
96
98
96
53
62
74
60
70
77
83
79
74
79
83
84
96
98
100
100
95
96
98
99
4-HPA
20
14
10
19
5
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Sn/SBA-15 (50)
423
42
473
62
523
59
373
47
Sn/SBA-15 (25)
Sn/Al-SBA-15 (100)
Sn/Al-SBA-15 (75)
Sn/Al-SBA-15 (50)
Sn/Al-SBA-15 (25)
Sn/Al-SBA-15 (10)
423
52
4
473
72
2
523
68
4
373
66
47
38
26
40
30
23
17
21
26
21
17
16
4
423
71
473
78
523
81
373
76
423
80
473
88
523
86
373
87
423
90
473
96
523
94
373
90
423
95
2
473
99
-
523
98
-
373
80
5
423
90
4
473
97
2
523
95
1
{Reaction conditions: Weight of the catalyst 100 mg, molar ratio of levulinic acid and 2-
PrOH (1:4), and reaction time 3 h}

New Journal of Chemistry
Page 18 of 33
P a g e | 18
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
4.3 Effect of time on stream on conversion
5
6
7
8
The stability of the most active catalyst [Sn/Al-SBA-15 (Si/Sn=25)] has been
examined by Time On Stream (TOS) studies. To study the effect of reaction time on the
conversion of LA and selectivity towards GVL, the reaction was conducted for 6 h over 100
mg of Sn/Al-SBA-15 (25) catalyst at the optimized reaction temperature of 473 K. This
reaction was conducted continuously for 6 h to identify the catalyst deactivation if any. The
product was collected every hour, analyzed and the results are shown in Figure 9. The
conversion of levulinic acid and selectivity of the desired product GVL increased slightly
with increase in reaction time up to 3ꢀh and after 3ꢀh, again there was a marginal decrease in
conversion and selectivity. Hence, the reaction time of 3 h was found to be the optimum.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 9. Time on stream studies over Sn/Al-SBA-15 (25) catalyst.
{Reaction conditions: Weight of the catalyst 100 mg, reaction temperature 473 K, molar ratio
of levulinic acid and 2-PrOH (1:4)}
4.4 Effect of weight of catalyst on conversion of LA
To study the performance of weight of catalysts on conversion and selectivity, the
weight of Sn/Al-SBA-15 (Si/Sn=25) was varied from 50 to 200 mg and the reaction was
carried out at the optimized reaction conditions. The obtained results are shown in Figure 10.
It was found that the catalytic conversion increased with the weight of the catalyst from 50 to
100 mg owing to the increase in the catalytically active sites with increase in the catalyst
weight. 99 % conversion of levulinic acid obtained over 100 mg of Sn/Al-SBA-15 (25)

Page 19 of 33
New Journal of Chemistry
P a g e | 19
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
catalyst. However, a further increase in the catalyst weight upto 200 mg decreased the
5
6
7
levulinic acid conversion and selectivity. Hence catalyst weight of 100 mg was used for
further studies.
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

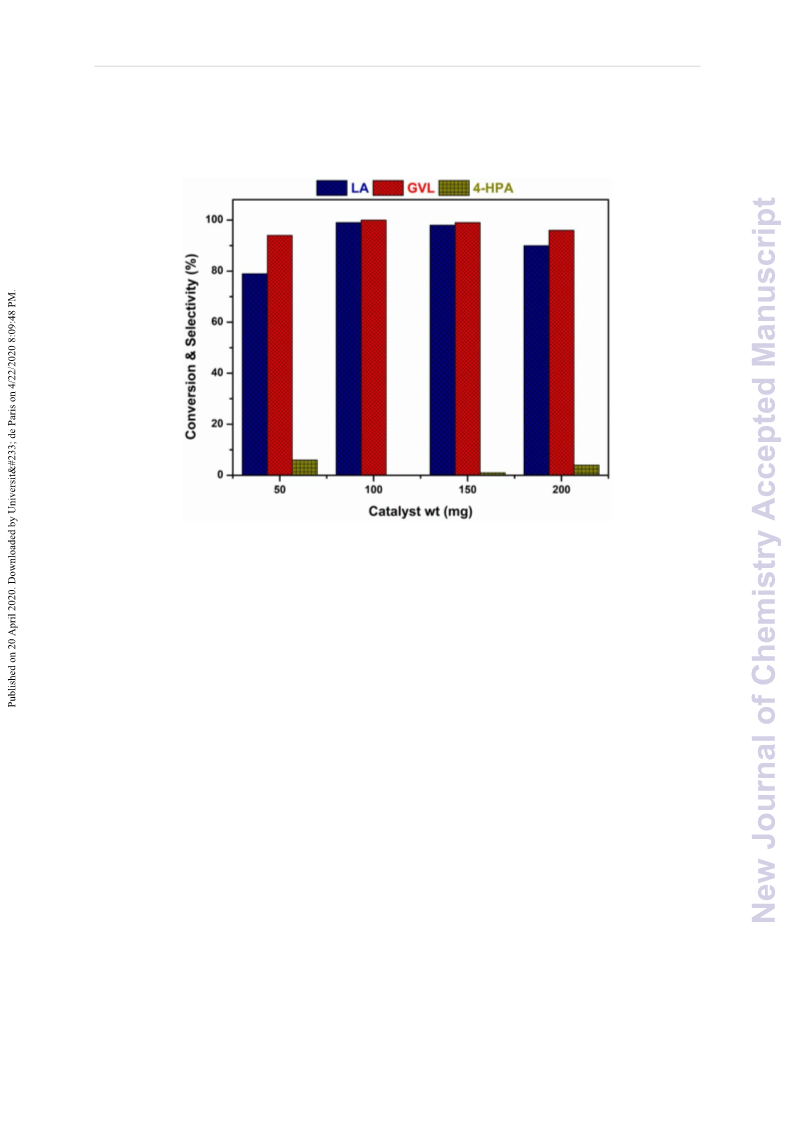

Figure 10. Effect of weight of catalyst on conversion of LA
{Reaction conditions: weight of Sn/Al-SBA-15 (25) catalyst, reaction temperature 473 K,
reaction time 3 h, molar ratio of levulinic acid and 2-PrOH (1:4)}
4.5 Effect of alcohol molar ratio on conversion
In order to check the effect of the molar ratio of levulinic acid to GVL on conversion
and selectivity of desired product, the catalytic transfer hydrogenation reaction was
performed with different levulinic acid: 2-PrOH molar ratios varying from 1:2 to 1:10 under
the optimized reaction conditions (Catalyst Sn/Al-SBA-15 (25), temperature 473 K, time 3 h)
the product was collected after 3 h, analyzed and the results are illustrated in Figure 11. The
figure clearly indicates that the molar ratio of LA:2-PrOH of 1:4 was found to be the best as it
gives maximum conversion and selectivity of the desired product.

New Journal of Chemistry
Page 20 of 33
P a g e | 20
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 11. Effect of the molar ratio over Sn/Al-SBA-15 (25) catalyst.
{Reaction conditions: weight of the catalyst 100 mg, reaction temperature 473 K and
reaction time 3 h}
4.6 Effect of addition of alcohols (hydrogen donors) with the substrate (LA) on catalytic
activity
The liquid phase hydrogenation at atmospheric pressure has not been reported
so far. Catalytic transfer hydrogenation of levulinic acid can be affected with different
alcohols hydrogen donors. The liquid phase catalytic transfer hydrogenation of levulinic acid
was carried out by using different hydrogen donors such as MeOH, EtOH, 2-PrOH, 2-BuOH,
and CyOH under the optimized reaction conditions over Sn/Al-SBA-15 (25) catalyst and the
results are shown in Figure 12. Interestingly the catalyst shows the hydrogenation activity in
the presence of all the alcohols but to different extents. The catalyst showed poor conversion
and selectivity towards the desired product of GVL when MeOH and EtOH were used as
hydrogen donors, but with 2-PrOH, a conversion of 99 % of levulinic acid was observed
whereas with the other alcohols such as 2-BuOH, and CyOH the conversion decreased to
98% and 89% respectively. Figure 12 shows that secondary alcohols ((2-PrOH, 2-BuOH))
showed better conversion of LA than primary alcohols (methanol and ethanol), which may
be related to their better reduction potentials 37,80 Hence, 2-propanol was found to be the best
hydrogen donor for the present catalytic system.

Page 21 of 33
New Journal of Chemistry
P a g e | 21
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 12. Effect of hydrogen donor on conversion and selectivity over Sn/Al-SBA-15
(25) catalyst
{Reaction conditions: Weight of the catalyst 100 mg, levulinic acid and alcohol molar ratio
(1:4), reaction temperature 473 K and Reaction time 3 h}
4.7 Catalytic transfer hydrogenation of other substrates over Sn/Al-SBA-15 (25) catalyst
As Sn/Al-SBA-15 (25) catalyst exhibit tremendous conversion of LA and selectivity
towards GVL, it was evaluated for its catalytic activity with other substrates such as methyl
levulinate and ethyl levulinate using 2-PrOH as hydrogen donor under the optimized reaction
conditions and the results are shown in Figure 13. Interestingly, these substrates were also
converted to the extents of 96 % and 97 % with 97 % and 98 % selectivities towards GVL.

New Journal of Chemistry
Page 22 of 33
P a g e | 22
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 13. Effect of different substrates on conversion over Sn/Al-SBA-15 (25) catalyst
{Reaction conditions: Weight of the catalyst 100 mg, alcohol molar ratio (1:4), reaction
temperature 473 K and Reaction time 3 h}
4.8 Effect of support on the catalytic conversion
In order to check the effect of support on the catalytic conversion of levulinic acid, Si
& Al were incorporated into various supports such as SBA-15, SBA-16, SBA-1, KIT-5 &
KIT-6 and their catalytic activities were evaluated and the results are summarized in Table 4.
Among the different supports, SBA-15 showed not only the highest conversion of levulinic
acid (99%) but also 100% selectivity towards the desired products (GVL). Hence further
studies were carried out with SBA-15 support. The liquid phase catalytic transfer
hydrogenation reaction was carried out by using different heterogeneous catalysts reported
elsewhere, compared and given in Table S1. The results indicate that, in addition to several
advantages such as noncorrosive conditions, short reaction time and easy work-up, our
catalyst also shows outstanding conversion and high selectivity towards the desired product.

Page 23 of 33
New Journal of Chemistry
P a g e | 23
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
Table 4. Effect of the various supported catalyst
5
6
7
8
Catalysts
Conversion
Selectivity (%)
(%)
GVL
4-HPA
Sn/Al-SBA-15 (25)
Sn/Al-SBA-16 (25)
Sn/Al-SBA-1 (25)
Sn/Al-KIT-6 (25)
Sn/Al-KIT-5 (25)
Sn/Al-MCM-41 (25)
Sn/Al-MCM-48 (25)
99
100
-
9
88
72
79
82
85
81
80
75
70
73
78
81
20
25
30
27
22
19
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
{Reaction conditions: Weight of the catalyst 100 mg, molar ratio of levulinic acid and 2-
PrOH (1:4), reaction temperature (473 K) and reaction time 3 h}
4.9 The reaction pathways and mechanism in the conversion of levulinic acid over
Sn/Al-SBA-15 catalyst
Based on the experimental results a possible reaction pathway is suggested. Levulinic
acid is converted into GVL through 4-HPA (where the hydrogen donor secondary alcohol is
converted into a ketone) as illustrated below:
Scheme 1. Catalytic transfer hydrogenation (CTH) of levulinic acid using alcohol as a
hydrogen donor.
In the case of 2-PrOH, acetone is the other product. Hence the reaction product was
found to contain 4-HPA, GVL H2O, ketone and unreacted reactants such as levulinic acid and
secondary alcohol. We propose a possible reaction mechanism (Scheme 2) based on the
formation of the above different products. In step, I the acidic sites of the Sn species is
responsible for the dehydration of the secondary alcohol and formation of alkoxide species on
Sn sites.

New Journal of Chemistry
Page 24 of 33
P a g e | 24
1
2
3
4
5
6
7
8
9
View Article Online
Step II illustrates the adsorption of levulinic acid on the same Sn site.DDOI:u1e0.10to39/tDh0eNJ01288B
shifting of electrons transfer of hydrogen atom from alkoxide part to the adsorbed levulinic
acid occurs in step III and at the same time carbonyl compound is released from Sn sites (step
IV). In step V the water removed in the first step converts the other alkoxide part on Sn site
into 4-HPA (a thermally unstable compound) which then undergoes cyclization in step VI
to form GVL and at the end, the catalyst is regenerated with a hydroxyl group on Sn atom.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Scheme 2. Proposed reaction mechanism of the catalytic transfer hydrogenation of
levulinic acid over Sn/Al-SBA-15(25) catalyst using secondary alcohol.
4.10 Reusability of Sn/Al-SBA-15 (25) catalyst.
The recyclability of Sn/Al-SBA-15 (25) catalyst was examined by performing the
reaction at the optimized conditions [(Temperature=473 K), (weight=100 mg), (time=3 h)
and molar ratio (1:4) of LA: 2-PrOH for five subsequent runs and the results are illustrated in
Figure 14. After every catalytic cycle, the spent catalyst was removed from the reactor
washed with water and dried to be reused for the next run. The catalyst retained almost the
same performance with very small activity loss. These results prove that Sn/Al-SBA-15 (25)
catalyst is stable. The morphology by HR-SEM, EDX, and HR-TEM of the used catalyst
after five runs are shown in Figure 15 which also suggests the same observation. The results
confirmed that the catalyst has not undergone any significant change in its structure and
morphology. The HR-SEM/EDX images of the used catalyst clearly indicate that it is intact
and has the same texture and morphology before and after the hydrogenation. The qualitative

Page 25 of 33
New Journal of Chemistry
P a g e | 25
1
2
3
4
5
analysis of Sn was made to check the leaching of Sn ions during the reactionDOanI: 1d0.1i0t3V9aie/wlDs0AorNtiJcl0e1O2n8l8inBe
indicated that there was no leaching of any metal ions in the product mixture
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 14. Recyclability of Sn/Al-SBA-15 (25) catalyst.
{Reaction conditions: Weight of the catalyst 100 mg, molar ratio of levulinic acid and 2-
PrOH (1:4) and reaction temperature 473 K}

New Journal of Chemistry
Page 26 of 33
P a g e | 26
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 15. (a) HR-SEM and (b) HR-TEM image and (c) FE-SEM/EDX elemental
mapping of Sn/Al-SBA-15 (25) spent catalyst and overlay image.
5. Conclusion
Hydrothermal in-situ method were used successfully for the synthesis of Sn-SBA-15
and Sn/Al-SBA-15 catalysts with different molar ratios. The characterization studies revealed
the presence of Sn and Al species and their well dispersion over SBA-15. The Sn/Al-SBA-15
(25) catalyst maintained the mesoporous structure even after the incorporation of Sn species.
The presence of both Lewis and Bronsted acidic sites in Sn/Al-SBA-15 catalysts were
confirmed by FT-IR. The HR-SEM/EDX and TEM images showed that Sn species were
highly dispersed in the uniform pore channels of SBA-15. All the synthesized catalysts were
tested for catalytic transfer hydrogenation of levulinic acid at ambient pressure and the
different reaction parameters were optimized. Among them, Sn/Al-SBA-15 (25) exhibited the
highest catalytic activity with 99% conversion of levulinic acid and 100% selectivity towards
GVL. The recyclability test proved that the catalyst is recyclable. This noble metal-free
catalytic route clearly proves a greener way for the production of GVL from levulinic acid
which can easily be obtained from the most abundant lignocellulose.

Page 27 of 33
New Journal of Chemistry
P a g e | 27
1
2
3
4
5
6
7
8
9
View Article Online
DOI: 10.1039/D0NJ01288B
Conflicts of interest
There are no conflicts to declare.
Acknowledgment
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The first author is grateful for CSIR through SRF (Award letter No.
09/468/0516/2018 EMR-I, 13/04/2018) and second and last author thanks DST-TPD for
financial support.
References
1. M. Al-Naji, P. Popova, Z. Chen, N. Wilde and R. Gläser, ACS Sustain. Chem. Eng.,
2020, 8, 393-402.
2. D. M. Alonso, J. Q. Bond, J. A. Dumesic, Green Chem., 2010, 12, 1493-1513.
3. S. S. Enumula, K. S. Koppadi, V. R. B. Gurram, D. R. Burri and S. R. R. Kamaraju,
Sustainable Energy & Fuels., 2017, 1, 644-651.
4. W. Li, W. Geng, L. Liu, Q. Shang, L. Liu and X. Kong, Sustainable Energy Fuels.
2020,
5. T. Tabanelli, E. Paone, P. Blair Vásquez, R. Pietropaolo, F. Cavani and F. Mauriello,
ACS Sustain. Chem. Eng, 2019, 7, 9937-9947.
6. J. J. Bozell and G. R. Petersen, Green Chem, 2010, 12, 539-554
7. E. Soszka, H. M. Reijneveld, M. Jędrzejczyk, I. Rzeźnicka, J. Grams and A. M.
Ruppert, ACS Sustain. Chem. Eng., 2018, 6, 14607-14613.
8. Z. Xue, D. Yu, X. Zhao and T. Mu, Green Chem., 2019, 21, 5449-5468.
9. J. Feng, J. Jiang, C. Y. Hse, Z. Yang, K. Wang, J. Ye and J. Xu, Sustainable Energy &
Fuels., 2018, 2, 1035-1047.
10. G. W. Huber, J. N. Chheda, C. J. Barrett and J. A. Dumesic, Science., 2005, 308,
1446-1450.
11. Y. Liu, Z. Chen, X. Wang, Y. Liang, X. Yang and Z. Wang, ACS Sustain. Chem.
Eng., 2017, 5, 744-751.

New Journal of Chemistry
Page 28 of 33
P a g e | 28
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
12. T. Mizugaki, T. Yamakawa, Y. Nagatsu, Z. Maeno, T. Mitsudome, K. Jitsukawa and
5
6
7
8
K. Kaneda, ACS Sustain. Chem. Eng., 2014, 2, 2243-2247.
13. J. Hirayama, I. Orlowski, S. Iqbal, M. Douthwaite, S. Ishikawa, P. J. Miedziak and T.
Murayama, J. Phy. Chem. C., 2018, 123, 7879-7888.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
14. Grand View Research, Levulinic Acid Market Analysis And Segment Forecasts To
2020, 2015, 1-75
15. X. Kong, S. Wu, X. Li and J. Liu, Energy & Fuels., 2016, 30, 6500-6504.
16. M. Li, G. Li, N. Li, A. Wang, W. Dong, X. Wang and Y. Cong, Chem Commun.,
2014, 50, 1414-1416.
17. G. B. Kasar, N. S. Date, P. N. Bhosale and C. V. Rode, Energy & Fuels., 2018, 32,
6887-6900.
18. F. Liguori, C. Moreno-Marrodan and P. Barbaro, Acs Catal., 2015, 5, 1882-1894.
19. I. T. Horvath, H. Mehdi, V. Fábos, L. Boda and L. T. Mika, Green Chem., 2008, 10,
238-242.
20. T. Mizugaki, Y. Nagatsu, K. Togo, Z. Maeno, T. Mitsudome, K. Jitsukawa and K.
Kaneda, Green Chem., 2015, 17, 5136-5139.
21. P. Sun, G. Gao, Z. Zhao, C. Xia and F. Li, App. Catal. B Environ., 2016, 189, 19-25.
22. W. Li, Y. Li, G. Fan, L. Yang and F. Li, ACS Sustain. Chem. Eng., 2017, 5, 2282-
2291.
23. M. Liu, S. Li, G. Fan, L. Yang and F. Li, Industrial & Engineering Chemistry
Research., 2019, 58, 10317-10327.
24. D. J. Braden, C. A. Henao, J. Heltzel, C. C. Maravelias, J. A. Dumesic, Green Chem.,
2011, 13, 1755-1765.
25. J. C. Serrano-Ruiz, D. Wang, J. A. Dumesic, Green Chem., 2010, 12, 574–577.
26. L. E. Manzer, App. Catal. A Genral., 2004, 272, 249-256.

Page 29 of 33
New Journal of Chemistry
P a g e | 29
1
2
3
4
View Article Online
DOI: 10.1039/D0NJ01288B
27. J. M. Tukacs, M. Novák, G. Dibó and L. T. Mika, Catalysis Science & Technology.,
5
6
2014, 4, 2908-2912.
7
8
9
28. B. Han, Green Chem., 2014, 16, 3870−3875.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
29. S. Xu, D. Yu, T. Ye and P. Tian, RSC adv., 2017, 7, 1026-1031.
30. V. V. Kumar, G. Naresh, M. Sudhakar, J. Tardio, S. K. Bhargava and A. Venugopal,
App. Catal. A Genral, 2015, 505, 217-223.
31. V. K. Velisoju, N. Gutta, J. Tardio, S. K. Bhargava, K. Vankudoth, A. Chatla and V.
Akula, App. Catal. A Genral., 2018, 550, 142-150.
32. D. He, Q. He, P. Jiang, G. Zhou, R. Hu and W. Fu, Catal. Commun., 2019, 125, 82-
86.
33. A. M. Ruppert, M. Jędrzejczyk, O. Sneka-Płatek, N. Keller, A. S. Dumon, C. Michel
and J. Grams, Green Chem., 2016, 18, 2014-2028.
34. W. Li, G. Fan, L. Yang and F. Li, ChemCatChem., 2016, 8, 2724-2733.
35. S. G. Wettstein, J.Q. Bond, D. M. Alonso, H. N. Pham, A. K. Datye and J. A.
Dumesic, App. Catal. B Environ., 2012, 117, 321-329.
36. Y. Yang, G. Gao, X. Zhang and F. Li, ACS Catal., 2014, 4, 1419-1425.
37. X. Tang, H. Chen, L. Hu, W. Hao, Y. Sun, X. Zeng and S. Liu, App. Catal. B
Environ., 2014, 147, 827-834.
38. R. Yoshida, D. Sun, Y. Yamada and S. Sato, Mol catal., 2018, 454, 70-76.
39. R. Wang, L. Chen, X. Zhang, Q. Zhang, Y. Li, C. Wang and L. Ma, RSC adv., 2018,
8, 40989-40995.
40. M. Varkolu, D. Raju Burri, S. R. Rao Kamaraju, S. B. Jonnalagadda and W. E. van
Zyl, Chemi. Engin. Tech., 2017, 40, 719-726.
41. F. Liu, J. Ftouni, P. C. Bruijnincx and B. M. Weckhuysen, ChemCatChem., 2019, 11,
2079-2088.
