Preparation of nickel (oxide) nanoparticles confined in the secondary pore network of mesoporous scaffolds using melt infiltration

Article abstract of DOI:10.1016/j.cattod.2019.01.064

Effective encapsulation strategies are highly sought-after in heterogeneous catalysis for preparing highly active and stable metal (oxide) nanocatalysts. Herein, we report an optimized Melt Infiltration (MI) procedure to confine nickel(oxide) nanoparticles (NPs) into hierarchical microporous-mesoporous scaffolds. Three SBA-15 silicas were synthesized in order to obtain different degrees of interconnectivity between the main mesopores. The impact of the SBA-15 pore characteristics, i.e., this interconnectivity, also named secondary intra-wall porosity (IWP), on the final nickel (oxide) NPs size and localization has been specifically investigated. Using MI, which consisted in the diffusion of the precursor in the liquid state inside the porosity of the support in the presence of the native surfactant occluding the pores, a selective localization of the NiO NPs inside the IWP was obtained, without large NPs plugging the main mesopores if IWP pores connecting the main mesopores do exist. When IWP – selective localization – occurs for the NPs, they show a size directly depending on the IWP dimensions. The obtained materials were tested, after reduction, in the hydrogenation reactions of cinnamaldehyde and 5-hydroxymethylfurfural. The catalytic results underline the positive effect of IWP - confinement of NPs to obtain and maintain an elevated dispersion of the metallic Ni active phase and to reach a high catalytic activity in hydrogenation under mild reaction conditions.

Full text of DOI:10.1016/j.cattod.2019.01.064

Accepted Manuscript
Title: Preparation of nickel (oxide) nanoparticles confined in
the secondary pore network of mesoporous scaffolds using
melt infiltration
Authors: S. Chen, C. Ciotonea, A. Ungureanu, E. Dumitriu, C.
Catrinescu, R. Wojcieszak, F. Dumeignil, S. Royer
PII:
S0920-5861(18)30852-6
DOI:
Reference:
https://doi.org/10.1016/j.cattod.2019.01.064
CATTOD 11935
To appear in:
Catalysis Today
Received date:
Revised date:
Accepted date:
1 July 2018
18 January 2019
25 January 2019
Please cite this article as: Chen S, Ciotonea C, Ungureanu A, Dumitriu E, Catrinescu
C, Wojcieszak R, Dumeignil F, Royer S, Preparation of nickel (oxide) nanoparticles
confined in the secondary pore network of mesoporous scaffolds using melt infiltration,
Catalysis Today (2019), https://doi.org/10.1016/j.cattod.2019.01.064
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

Preparation of nickel (oxide) nanoparticles confined in the secondary pore
network of mesoporous scaffolds using melt infiltration
S. Chen,a C. Ciotonea,a* A. Ungureanu,b* E. Dumitriu,b C. Catrinescu,b R. Wojcieszak,a F.
Dumeignil,a S. Royera
a Univ. Lille, CNRS, ENSCL, Centrale Lille, Univ. Artois, UMR 8181 - UCCS - Unité de Catalyse et
Chimie du Solide, F-59000 Lille, France
b "Gheorghe Asachi” Technical University of Iasi, Faculty of Chemical Engineering and Environmental
Protection, 73 Prof. D. Mangeron Bvd., 700050 Iasi, Romania
Corresponding authors: Dr. C. Ciotonea (carmen.ciotonea@univ-lille.fr); Dr. A. Ungureanu
(aungureanu@tuiasi.ro)
Graphical abstract
1

Highlights



Melt infiltration is efficient for the dispersion of nickel in micro-mesoporous silica
Properties of the secondary intra-wall porosity is decisive in dispersing Ni phase
A high degree of interconnectivity between the two porosities is in favor of NPs formation in
the intra-wall pores

Excellent properties for cinnamaldehyde and 5-HMF hydrogenations are obtained over intra-
wall pore confined NPs
ABSTRACT
Effective encapsulation strategies are highly sought-after in heterogeneous catalysis for preparing highly
active and stable metal (oxide) nanocatalysts. Herein, we report an optimized Melt Infiltration (MI)
procedure to confine nickel-oxide nanoparticles (NPs) into hierarchical microporous-mesoporous
scaffolds. Three SBA-15 silica were synthesized in order to obtain different degrees of interconnectivity
between the main mesopores. The impact of the SBA-15 pore characteristics, i.e., this interconnectivity,
also named secondary intra-wall porosity (IWP), on the final nickel (oxide) NPs size and localization
has been specifically investigated. Using MI, which consisted in the diffusion of the precursor in the
liquid state inside the porosity of the support in the presence of the native surfactant occluding the pores,
selective localization of the NiO NPs inside the IWP was obtained, without large NPs plugging the main
mesopores if IWP pores connecting the main mesopores do exist. When IWP – selective localization –
occurs for the NPs, they show a size directly depending on the IWP dimensions. The obtained materials
were tested, after reduction, in the hydrogenation reactions of cinnamaldehyde and 5-
hydroxymethylfurfural. The as-obtained results underline the positive effect of IWP - confinement of
NPs to keep/maintain an elevated dispersion of the metallic Ni active phase and to reach a high catalytic
activity in hydrogenation under mild reaction conditions.
2

Keywords: nickel; melt infiltration; nanoparticles; selective hydrogenation; biomass; mesoporous
materials; heterogeneous catalysis
1. INTRODUCTION
Transition metals (TM) - based catalysts (e.g., TM = Ni, Co, Fe, Cu) have a wide range of catalytic
applications implying reactions such as hydrogenation, hydrogenolysis, hydrodeoxygenation, various
energy transformation processes: Fischer–Tropsch synthesis, reforming, and water–gas shift reactions
[1, 2, 3]. Hydrogenation reactions are of particular interest, considering the economic importance of the
as-produced chemicals, including pharmaceuticals, agrochemicals, fragrances and flavors,
intermediates, and other value-added products, for instance those derived from biomass. Consequently,
TM-based catalysts were extensively studied during the last decades, with a specific focus on the
preparation of highly dispersed and stable nanoparticles (NPs) supported on high-surface area materials
in order to maximize the catalytic activity and/or selectivity as well as the long-term stability under
reaction conditions [4].
To tailor the morphostructural properties and stability of transition metal (oxides) - TM(O) NPs in order
to suit specific applications is however a difficult task, especially at high metal loading (> 5 wt.%), due
to the mechanistically-complex NP growth by migration and coalescence, and Ostwald ripening during
high-temperature catalyst activation and/or operation, resulting in a partial or even total loss of active
surface [5, 6]. It was shown that the stability of NPs basically depends on (i) the properties of individual
NPs (i.e., particle size-dependent Tamman/Hüttig temperature and chemical composition), (ii) the
properties of host structure (i.e., pore architecture, surface area, surface properties), and (iii) the
properties of particle/host system (i.e., loading, spatial distribution of NPs, and strength of interactions
between the support and NPs) [7, 8]. Therefore, there is still a strong motivation to improve the catalytic
performance and stability of supported TM-based catalysts, to meet the durability targets required for
practical applications, which now calls for the design of active and stable NPs dispersed within
mesoporous scaffolds.
Indeed, mesoporous materials encompassing members of silica SBA, KIT, MCM, FDU and MSU
families have received much attention as prospective host structures for the guest NPs due to their unique
3

structural, textural and chemical characteristics: high-surface area, controlled pore architecture, tunable
pore size, adjustable chemical composition and so on [9-13]. There is a large diversity of methods for
the preparation of supported TM(O) NPs into the porosity of mesoporous silica supports (e.g.,
impregnation, sol-gel processes, sonochemical methods, deposition-precipitation or chemical vapor
deposition), but impregnation (wet impregnation – WI, and incipient wetness impregnation – IWI) is by
far the most used method [6]. Impregnation involves several successive steps [7]: (i) putting into contact
the support with the solution of metal precursors such as nitrates, chlorides and acetates; (ii) maturation
and solvent evaporation by drying of the impregnate, (iii) thermal decomposition of the precursor and
stabilization of the material, and (iv) activation of the catalyst for the specific application. Each step has
to be carefully optimized (concentration of precursor in the initial impregnation solution, temperature
and time of drying, heating rate and gas atmosphere for the stabilization/activation, etc.); It is noteworthy
that the drying step is particularly important in order to reach a homogeneous repartition of NPs
throughout the support surface [14]. On the contrary, thermal stability of emerged NPs is mostly
conditioned by the interactions between the support surface and the dispersed active phase [15, 16].
One of the most efficient and direct approaches to improve thermal stability of catalysts is to encapsulate
(confine) the active metal (oxide) NPs inside the pore channels of the mesoporous scaffolds to mitigate
particle growth [3, 4]. By this way, the mesoporous materials act as: (i) physical shields to prevent the
coalescence of NPs, (ii) nanoreactors to spatially confine NPs and suppress their growth, or
(iii) modulators of metal (oxide)-support interactions to suppress sintering. Such encapsulated catalysts
are renowned as superior catalytic systems regarding their catalytic activity, selectivity and reusability.
We previously applied this approach to produce sintering-resistant materials obtained by confining NPs
in the main mesopores of ordered SBA-15, using IWI approach [14, 17]. However, by confining NPs in
mesopores: (i) relatively large NPs are obtained, having a size close to the mesopore diameter (8 nm
in the case of SBA-15), and (ii) some pore plugging occurs, that could result in inaccessible catalytic
centers, decreased activity, and significant mass-transfer resistances.
Less often used for the preparation of TM(O) NPs encapsulated inside the pores of mesoporous supports
is the Melt Infiltration (MI) method [18]. MI consists in blending the support and the precursor in solid
4

form, followed by a calcination of the mixture [18, 19]. As compared with the impregnation methods,
MI solves some drawbacks related to the diffusion of precursor solution during the impregnation step
and/or the drying step [20-24], while it is a solvent-free, green synthesis procedure. The control of the
final dispersion for MI-derived materials can be achieved by changing several parameters such as the
nature and structure of the support and the time of infiltration applied prior to the calcination step [25].
Ordered mesoporous silica scaffolds were generally used as supports for MI preparation (MCM-41, KIT-
6, SBA-15), based on their high surface areas and abundant surface silanol groups, which favor an
improved wettability of the support by the molten phase [26-29]. Nevertheless, TM(O) NPs with sizes
close to that of the support pores’ diameter are usually reported, meaning confinement of NPs in the
main mesopores [30-32]. A significant improvement for the dispersion of the TM(O) NPs was observed
when SBA-15 support pores are occluded with the porogen surfactant molecules. For instance, we
recently reported an optimized MI method (MI-IWP, Melt Infiltration in the Intra-Wall Pores), which
led to small NPs (< 2 nm) encapsulated inside the secondary pore network of SBA-15 showing an
excellent thermal stability up to 900 °C (oxidizing/reducing atmospheres), whereas the main mesopores
remained fully opened and free of bulky NPs [25, 26].
One of the remarkable properties of the SBA-15-type support is the hierarchical microporous-
mesoporous architecture and the possibility to control the secondary porosity (i.e., the intra-wall porosity
– IWP; generated by removal of wall-inserted ethyleneoxide segments of the P123 surfactant molecule),
simply by the hydrothermal (ageing) temperature or using swelling agents [33-37]. Playing on the
temperature of ageing is particularly an effective way to change the secondary porosity from
ultramicroporosity (pore size < 1 nm) to secondary mesoporosity [33-36] as well as the degree of pore
interconnectivity. The IWP can significantly contribute to the total pore volume of the host material and
provide a unique, yet incompletely explored confinement space for encapsulating NPs at a very small
size. We investigate herein the impact of the secondary porosity on the infiltration efficiency of nickel
precursor-based molten phase in the pores of SBA-15 occluded with Pluronic P123 surfactant. In
principle, interconnected micro-mesoporous channels in SBA-15 should facilitate mass-transfer of
melted precursors to the support internal surface during MI preparation, which is crucial to achieve small
and stable NPs encapsulated within the secondary pores of the mesoporous scaffold. Effect of this
5

secondary porosity consisted in: (i) it determined the final dispersion of the nickel active phase, (ii) its
thermal resistance to sintering, and (iii) the catalytic properties for hydrogenation reactions. The study
shows that the interconnected mesochannel network provides spaces for direct access of guest nickel
precursor species, and suppress the growth of particles during the thermal steps, while preventing as
well significant blockage of the main mesopores with confined NPs.
2. EXPERIMENTAL PROCEDURES
2.1. Chemicals
All chemicals required to synthesized mesoporous SBA-15 silica and Ni-containing catalysts
were used as purchased: tetraethylorthosilicate (Si(OC2H5)4, TEOS, 98%, Sigma-Aldrich), non-
ionic triblock copolymer Pluronic P123 (poly(ethyleneoxide)-block-poly(propyleneoxide)-
blockpoly(ethyleneoxide)-block), PEO20PPO70PEO20, molecular weight of 5800, BASF Corp.),
hydrochloric acid (HCl, 37%, Sigma-Aldrich), hexahydrate nickel nitrate (Ni(NO3)2·6H2O,
98%, Sigma-Aldrich).
Chemicals used for the hydrogenation reactions were also used as received: trans-cinnamaldehyde
(C6H5–CH=CH–CHO, 98%, Merck) as reagent and iso-propanol (C3H8O, 99%, Sigma-Aldrich) as
solvent, 5-hydroxymethylfurfural (HMF, 99%, Sigma-Aldrich) as reagent and 1,4-dioxane
(99.8 %, Sigma-Aldrich) as solvent.
2.2. Material synthesis
2.2.1. Support syntheses: Three SBA-15 supports were synthesized according to classical
procedure [37], and changing the ageing temperature to reach different secondary porosity
properties [33, 34]. 4 g of Pluronic P123 were dissolved in a 1.6M solution of HCl at 40 °C.
Thereafter, 8.5 g of a TEOS, was added dropwise to the solution, and the solution was submitted
to magnetic stirring for 24 h. The resulting gel was submitted for 48 h to hydrothermal ageing,
at 60 °C, 100 C or 140 °C. After recovering by filtration, the SBA-15 samples were washed
with water, and dried at 100 °C for 24h. The dried SBA-15 samples were the materials used for
the melt infiltration procedure. However, for characterization purpose, parts of the different
6

supports were calcined at 550 °C for 6 h in a muffle furnace, using a heating ramp of 1.5 °C min-
1. The calcined supports were named SBA-15_T, where T (ageing temperature in °C) = 60, 100
and 140.
.
2.2.2. Nickel catalyst preparation: an adequate mass of Ni(NO3)2 6H2O precursor (calculated to
obtain 10 wt.% of Ni in the final material) was first hand mixed with selected dried SBA-15
support. Following the method reported in our previous studies [25, 26], the mixture was heat-
treated at 57 °C for 4 days (optimized diffusion time as reported in [25]). Once the diffusion step
was completed, the solid was calcined under static conditions at 500 °C for 5 h, using a heating
rate of 1.5 °C min-1. The calcined materials, NiO/SBA-15 samples prepared on the different
supports, were named Ni_T, where T = 60, 100 and 140 (the temperature in °C at which the
support was aged).
2.3. Material characterization
The chemical composition of the samples was determined by ICP analyses using sequential
scanning inductively coupled plasma with an optical emission spectrometer (Perkin Elmer
Optima 2000 DV). A known amount of sample was dissolved in a diluted HF-HCl solution and
heated under microwave until complete dissolution. Results showed that the Ni final loading was
in agreement with the expected 10 wt.% ± 0.3 wt.%.
X-ray diffraction patterns were recorded on a PANalytical Empyrean X-ray diffractometer in
Bragg-Brentano configuration, with a CuK radiation ( = 1.54184 Å). For small-angle analysis,
the data were collected in a 2θ range from 0.5 to 5° with a step size of 0.01 each 2s. Wide-angle
analyses were performed using a 2θ range between 10 and 80° with a step size of 0.05° each 2s.
Crystal average size was calculated using the Scherrer equation: Dhkl = Kλ/bcosθ, where K is a
structure constant (0.9 for spherical crystals); λ is the incident ray wavelength; b is the peak
width at half height after correction for instrumental broadening; and θ is the Bragg angle.
N2 physisorption experiments were performed at 196 °C, on a Micromeritics Tristar II Plus
instrument. Before analysis, a known mass of ~ 0 mg of solid was heat-treated under vacuum at
350 °C for 3 h. Specific surface area (SBET) was calculated using the B.E.T. equation, on the
7

linear part of the B.E.T. plot (P/P0=0.10–0.25) of the desorption branch. Pore volume (Vp) was
measured on the adsorption branch of the isotherms, at a P/P0 value of 0.98. The t-plot method
was applied to quantify the micropore volume and surface area (de Boer statistical thickness of
3.8-6.5 Å). Pore diameter (Dp) was calculated applying the Barrett-Joyner-Halenda model on the
desorption branch of the isotherms. Cumulative pore volume was calculated on the desorption
branch of the isotherms, using the non-local density functional theory (NL-DFT) model for silica
cylindrical pores (equilibrium model).
Samples were analysed by transmission electron microscopy (TEM, JEOL 2100 UHR, operated
at 200 kV with a LaB6 source and equipped with a Gatan Ultra scan camera). Samples were
embedded in a polymeric resin (spurr), before being sliced into 50 nm-thick sections using an
ultramicrotome, before being deposited on a carbon grid.
Temperature-programmed reduction under H2 (H2-TPR) was conducted on an AUTOCHEM
chemisorption instrument (Micromeritics) equipped with a TCD. Before H2-TPR experiment,
the catalyst was activated up to 500 °C (heating ramp of 10 °C.min-1, plateau of 1 h) under
simulated air (total flow rate of 50 mL.min-1). After cooling down to 50 °C, the H2-containing
flow was stabilized (50 mL.min-1, 5.0 Vol.% H2 in Ar) and the temperature-programmed
reduction was performed (from 50 to 900 °C, with a temperature ramp of 5 °C min-1).
2.4. Catalytic hydrogenation reactions
Catalytic performances of Ni/SBA-15 materials were first assessed in the high-pressure hydrogenation
of cinnamaldehyde reaction. Calcined NiO/SBA-15 precursors (Ni_T samples), were reduced at 500 °C
for 10 h (heating ramp of 6 °C.min-1) under H2 flow (1 L.h-1). After this reduction step, the reaction was
performed in a Parr reactor under the following typical conditions: 1 mL cinnamaldehyde, 40 mL
isopropanol as a solvent, 0.133 g catalyst, 10 bar H2 and reaction temperature of 60 °C. Preliminary tests
were performed with different granulometric fractions, stirring rates and catalyst loadings, to determine
conditions under which no diffusional limitations will occur: grain size lower than 0.126 mm, stirring
rate of 750 rpm, 0.066-0.265 g catalyst. In addition, a blank experiment was conducted under N2 pressure
(instead of H2), in order to confirm the absence of hydrogenation product by hydrogen-transfer reaction
8

(after 6 h of reaction). Finally, a blank experiment with calcined SBA-15_100 sample was performed to
determine the support impact on the cinnamaldehyde concentration in solution. No modification of the
concentration is observed after 6 h of reaction. Aliquots of the reaction mixture were withdrawn
periodically and analyzed by gas chromatography (HP 5890, equipped with a DB-5 capillary column
and a FID detector). The identification of the reaction products was achieved from the retention times
of pure compounds and from additional analysis by GC-MS (Agilent 6890 N, equipped with an Agilent
5973 MSD detector and a DB-5-ms column).
The hydrogenation reaction of 5-hydroxymethylfurfural (HMF) was performed in a SPR multi-reactor
(6 mL total volume) from Unchainedlabs. Prior to the catalytic tests, the catalysts were reduced at 550 °C
for 2 h (heating ramp of 10 °C.min-1) under 5 Vol.% H2 in Ar flow (50 mL.min-1). For a typical reaction,
the reactor was charged under the controlled atmosphere of a glove box with 0.030 g of HMF, 1.5 mL
of 1,4-dioxane as a solvent and 0.021 g of catalyst, sealed and purged with H2. Then, the reactor was
pressurized with 15 bar H2, heated at 130 °C and stirred at a speed of 700 rpm for 1 h. Blank experiment,
performed with calcined SBA-15_100 showed 1.5 mol.% conversion of HMF. This conversion could
be most probably associated to an adsorption of HMF on the support surface. The products were
collected and analyzed by GC (Shimadzu 2010 Plus) equipped with ZB-WAX Plus capillary column
(30.0 m × 0.25 mm × 0.25 µm) and a flame ionization detector (FID), and by GC-MS (Shimadzu
QP2010 Ultra EI) equipped with a ZB-1XT capillary column (15.0 m × 0.53 mm × 0.25 µm) and a FID
detector.
3. RESULTS AND DISCUSSION
3.1. Pore structure periodicity in SBA-15 supports and NiO/SBA-15 materials
The low angle XRD patterns registered for the SBA-15_T calcined supports are presented in Figure 1.
The three support diffractograms show the main peaks associated to the (100), (110) and (200) lattice
reflections of the ordered hexagonal pore structure with P6mm symmetry. The presence of the three
reflections indicates a good mesostructure ordering for the three supports [38-40]. The presence of (210)
and (300) reflections at 2 > 2°, for materials synthesized at ageing temperature above 100 °C, are
9

evidences of an excellent textural uniformity in SBA-15_100 and SBA-15_140. The evolution of the
mesostructure geometric characteristics is directly reflected by the changes is the reflection positions
(modification of interplanar spacing, “d” and cell parameter, “a”, with modification of wall thickness
and main mesopore diameter).
Figure 1. Low-angle XRD patterns recorded for SBA-15_T supports and Ni_T materials in calcined forms.
When ageing temperature is increased from 60 °C to 140 °C, (100) reflection shifted at lower 2θ, given
a cell parameter increasing from 10.2 nm to 11.4 nm (Table 1). This increase in cell parameter is mostly
issued from the P123 micelle size dilatation with the temperature of ageing [33]. After deposition of the
nickel oxide phase (Ni_T samples), only few modifications of the diffractograms are visible (Figure 1).
As a first remark, the remaining of the three major reflections confirms the maintaining of the pore
ordering after melt infiltration procedure and further decomposition of the precursors to form NiO. A
decrease in the reflection intensities is observed, which could be explained by the specific localization
of the NiO NPs inside the support pores that become filled, thus reducing the electron density contrast
between the pores and silica walls [17]. Very small changes in d(100) spacing (Figure 1) and cell
parameter values (a0, Table 1) are also measured between calcined support and calcined NiO materials.
A ± 0.3 nm fluctuation of the a0 values is then measured. This result suggests no significant modification
10

of the hexagonal cell when the MI procedure is performed, and that the materials prepared by the MI
process possess comparable properties than those of the pure SBA-15 supports synthesized under the
different ageing conditions. The limited variation in a0 is not associated to the shrinking of the mesopores
in the materials, and is preferably associated to the deposition of the nickel phase inside the mesopores,
inducing a modification of the scattering contrast between the SBA-15 walls and the material deposited
in the pores and reported to be at the origin of (i) the variation of the intensity of the (100) reflection as
previously mentioned, and (ii) small a0 values variations [17].
3.2. Textural properties of SBA-15 supports and evolutions in NiO/SBA-15 materials
The textural properties issued from nitrogen physisorption experiments are gathered in Table 1, while
the isotherms are presented in Figure 2. For all samples, N2 adsorption-desorption isotherms of supports,
as well as of NiO/SBA-15 catalyst precursors (Ni_T materials), are of type IV (Figures 2). Type IV is
characterized by a plateau of saturation, and is obtained over mesoporous materials in which capillary
condensation occurs within the pores. The length of the plateau of saturation is significantly affected by
the ageing temperature applied to obtain the support, being the longest for SBA-15_60 and being almost
not visible for SBA-15_140. This evolution indicates a significant change in the pore diameter, as it can
be confirmed following the evolution of the B.J.H. pore diameter (Table 1), observed to increase from
5.4 nm (SBA-15_60) to 14.0 nm (SBA-15_140). Comparing these values obtained over the supports
with those obtained for Ni_T materials, it appears that the MI process has very limited effect on the main
mesopore size, confirming data issued from low-angle XRD. A hysteresis forms between the adsorption
and the desorption branches of the isotherms, which is of H1-type (parallel and vertical adsorption and
desorption branches, Figure 2). These characteristics fit perfectly with the expected SBA-15 textural
properties. Consequently, after MI process and further calcination for supported NiO formation, the
supports retain their excellent ordering degrees, whatever the ageing temperature used (60 °C, 100 °C
or 140 °C).
11

Figure 2. (A) N2 physisorption isotherms recorded for SBA-15_T supports and Ni_T materials in calcined forms.
For sake of clarity, isotherms are shifted by 200 cm3 g-1 each; (B) NL-DFT cumulative pore volume as a function
of the pore diameter recorded for the supports in the calcined forms.
Table 1. Textural and structural properties of the synthesized materials.
S/b
m2.g-1
291
168
116
34
V/d
cm3.g-1
0.128
0.074
0.050
0.013
0.030
0.027
a
SBET
/
Vp/c
cm3.g-1
0.71
Dp/e
nm
a0/f
dNiO / nm
Sample
m2.g-1
765
537
673
498
361
350
nm
XRD
-
TEM
-
SBA-15_60
Ni_60
5.4
11.4
11.1
10.6
10.9
10.2
9.9
0.55
5.4
8.5
n.a.
-
SBA-15_100
Ni_100
0.91
6.8
-
n.d.
-
0.83
6.6
2.1
-
SBA-15_140
Ni_140
68
1.10
14.0
13.7
64
1.02
3.5
3,1
a, B.E.T. surface area; b, microporous surface area; c, total pore volume; d, micropore volume; e, B.J.H. mean pore
size; f,unit cell parameter; n.d.: not detectable; n.a.: not applicable.
Besides the pore diameter, B.E.T. surface area, microporous surface area, and total pore volume are also
significantly affected by the ageing temperature (Table 1). As can be expected together with a pore
12

diameter increase (when the ageing temperature increases), the pore volume increases (from 0.71 cm3.g-
1 to 1.10 cm3.g-1), while the surface area decreases (from 765 m2/g to 361 m2/g). At the same time, some
fluctuations of the microporous characteristics of the materials are observed, reflecting the changes in
the properties of the secondary porosity. Comparison of textural properties obtained in this work is
paralleled to observations done in references dealing with pore topology of SBA-15 with synthesis
temperature [33, 34], with at low temperature of ageing (60°C in this study), a significant proportion of
micropore forms, with a S of 291 m2/g and a V of 0.128 cm3/g obtained. At this ageing temperature, it
was previously reported that SBA-15 presents small mesopores and thick walls (comparable to the
distance consecutive hydrated micelles in water, ~ 4 nm) and ultramicropores, as well [41, 42]. As the
silica walls may replicate the topology of the hydration shells of the PEO chains in water, at temperature
of ageing of 60 °C, no micropores bridging the main mesopores are expected [33]. The presence of such
low size porosity is visible on the cumulative pore volume evolution with pore size for the SBA_60
sample (Figure 2(B)) that is the support presenting the largest volume associated to pores of low size,
and the smallest main mesopore size. After ageing at 100 °C, P123 mesophase is modified since the
temperature exceeds the cloud point of the surfactant (~90 oC) [43]. Under such conditions, a decrease
in the strength of the interaction between the surfactant and the inorganic matter results in the
densification of the walls, which is reflected in the final material by the formation of larger mesopores
and thinner silica walls, as observed in this study for the SBA-15_100 (Table 1). The presence of a
secondary porosity is the result of the collapse of the ultramicropores (decreases in S and V, Table 1).
In this case, micropores and small mesopores connecting the adjacent mesopores are expected, with
sizes in the range of 1.5-4 nm [33, 34], such pores contributing to the cumulative pore volume of the
support in Figure 2(B) for this sample. Compared to the properties of the SBA-15_60, a decrease of the
micropore fraction, as well as an increase of the main mesopore size are easily observed over SBA-
15_100 in Figure 2(B). Finally, when the ageing temperature is increased at 140 °C, the destabilization
of the corona of PEO due to the loss of hydration H2O at high temperature resulted in a decreased micelle
surface / silica interaction [43]. As described in the literature, densification of the silica walls will occurs
to bring about an important decrease in the wall thickness and microporous volume. Therefore,
compared to the material synthesized at 100°C, the SBA-15_140 presents larger mesopores (14.0 nm),
13

separated by 2 nm - width silica walls, and being crossed by a secondary mesoporosity according to the
pore topology model given in [33]. In our case, applying the NL-DFT model to the desorption branch
did not allowed to detect such secondary bridging mesoporosity (even if residual micropore volume is
detected applying t-plot method, Table 1), and only a pore volume associated to the main mesopores is
visible in Figure 2(B). However, the reduced width of the hysteresis loop supports the formation of fully
interconnected 3-D network of mesochannels [34]. Such hysteresis behavior is consistent with that
observed for KIT-6 materials with interconnected 3-D pore network. After MI process, the NiO -
containing materials exhibit slightly different textural properties. The most important differences are
noticed between SBA-15_60 and Ni_60, with decreases of SBET (-30%) and Vp (-22%), associated with
important decreases in microporous surface area (-42%) and volume (-42%). In the case of the Ni_100
and Ni_140 samples, the variations of surface area and pore volume are lower. Only an important
decrease of the microporous surface is measured between SBA-15_100 and Ni_100, of around 43 %
(Table 1).
3.3. Support morphology, localization and size of NiO NPs
TEM images for the calcined forms of the MI-derived materials (Ni_T materials) are presented in
Figures 3-5. For the three materials, the SBA-15 pore topology is easily observed at low magnification.
At high magnification, the changes in pore diameter and wall width with the ageing temperature are
clearly observed. Thus, thick walls are observed at low ageing temperature, but wall thickness decreases
with the temperature of ageing. Likewise, a progressive increase in pore diameter can be noticed.
14

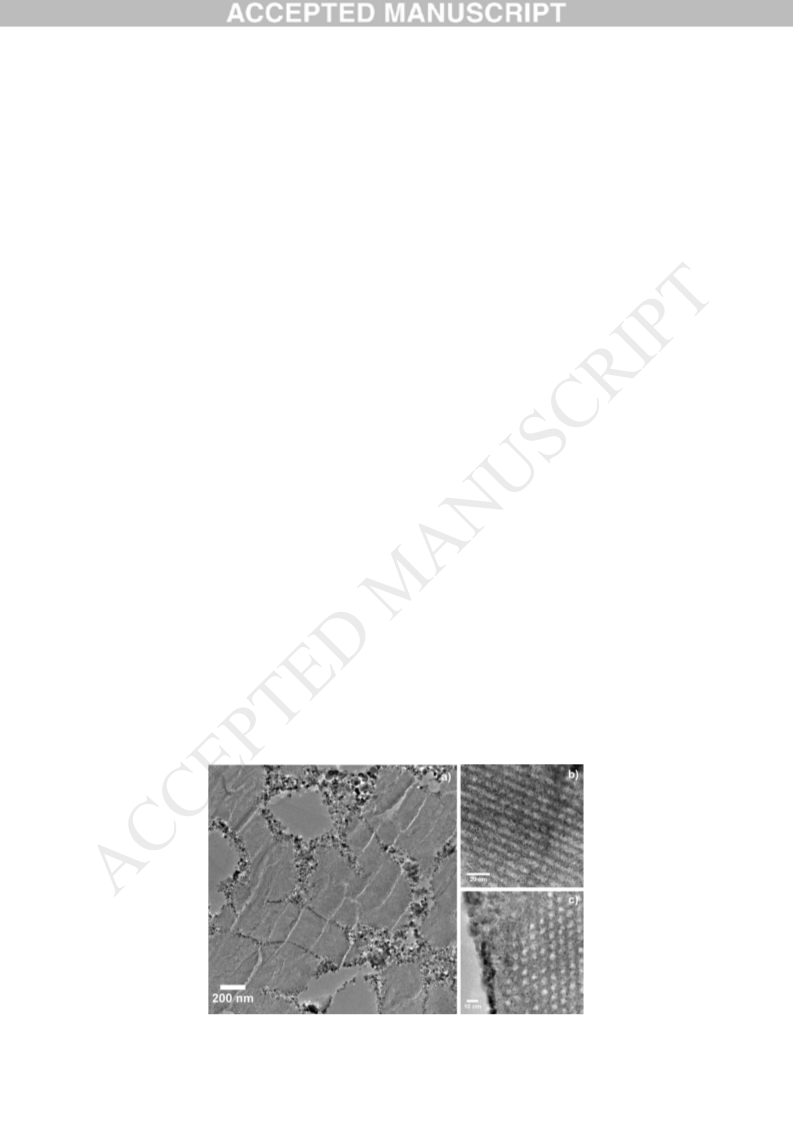

Figure 3. Selected TEM images obtained for Ni_60 material in calcined form: a) low magnification image; b)
longitudinal view of the channels at high magnification; c) transversal view of the channels at high magnification.
Representative micrographs obtained for Ni_60 are presented in Figure 3. From Figure 3a, it is evident
that most of the NiO NPs appear located around the silica grains, under the form of large aggregates of
small particles. Analysis of the images allows to plot the particle size histogram (Figure 6a). Elementary
particles constituting the external aggregates are of wide size, most of them being above 10 nm. High
magnification observation on the silica grain evidences the formation of some small NPs located inside
the pores, with a size below 5 nm. However, the frequency of this low size particle population is
approximatively 15% (Figure 6a), meaning that most of the NiO are present as external phases.
Consequently, these results show that the optimized melt infiltration does not allow to obtain fine NPs
homogeneously dispersed inside the silica grains, when the SBA-15_60 support is used.

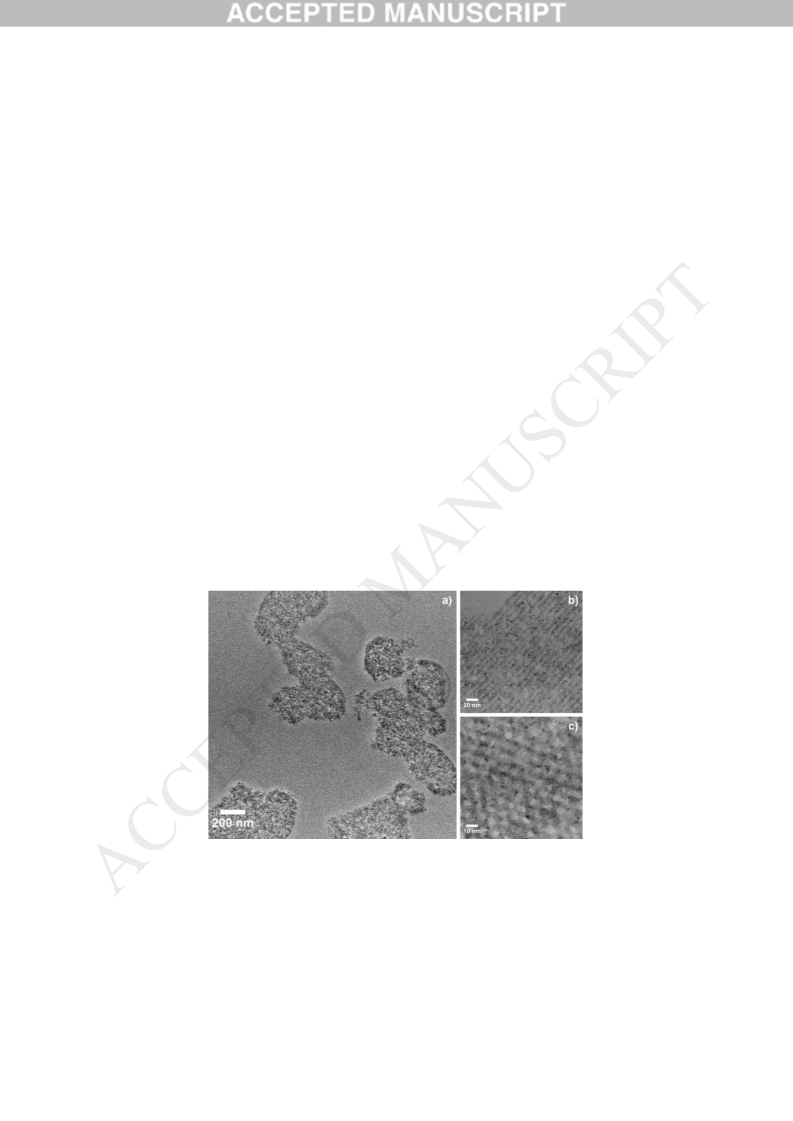

Figure 4. Selected TEM images for Ni_100 material in calcined form: a) low magnification image; b)
longitudinal view of the channels at high magnification; c) transversal view of the channels at high
magnification.
Low magnification images of the Ni_100 sample (Figure 4a) are completely different from those
acquired on Ni_60. Indeed, no extra-porous oxide phases can be detected, despite the similar nickel
loading. Increasing the magnification allows distinguish the mesopores (Figure 4b) which are free of
mesopore confined NPs (10 nm in size), as usually observed when classical IWI or MI procedures are
applied for the preparation [14, 15, 17, 25, 26]. Remarkably, the formation of very small NPs is
15

observed, and they appear as located inside the silica wall (Figure 4b,c). Statistical analysis of images
(Figure 6) showed that NiO particles are exclusively below 3nm in size, 90 % of them being of 2 nm
(average size of 2.1 nm, Table 1). Consequently, for the support obtained at 100 °C, the optimized MI
approach is highly efficient to encapsulate small NiO NPs inside the pores of SBA-15, with a very fine
and homogeneous distribution over the mesoporous scaffold, in contrast with SBA-15_60.
Finally, Figure 5 shows the results obtained for Ni_140. Low magnification image (Figure 5a) and high
magnification images (Figure 5b,c) evidenced a behavior comparable with Ni_100: (i) absence of
external NiO NPs formation, (ii) absence of 10 nm mesopore confined NiO NPs plugging the pores,
and (iii) formation of fine NPs with sizes largely below the main mesopore size and being relatively
homogenously distributed throughout the silica grains. Thus, the main difference between Ni_140 and
Ni_100 resides in the size of the NPs produced, which are observed to be not monomodal (Figure 6c),
with an average size measured at 3.1 nm (Table 1). It can be concluded that, similarly with SBA-15_100,
the optimized MI approach is efficient to disperse NiO in SBA-15_140 support, and that the particle
size is essentially controlled by the intra-wall pore dimensions.

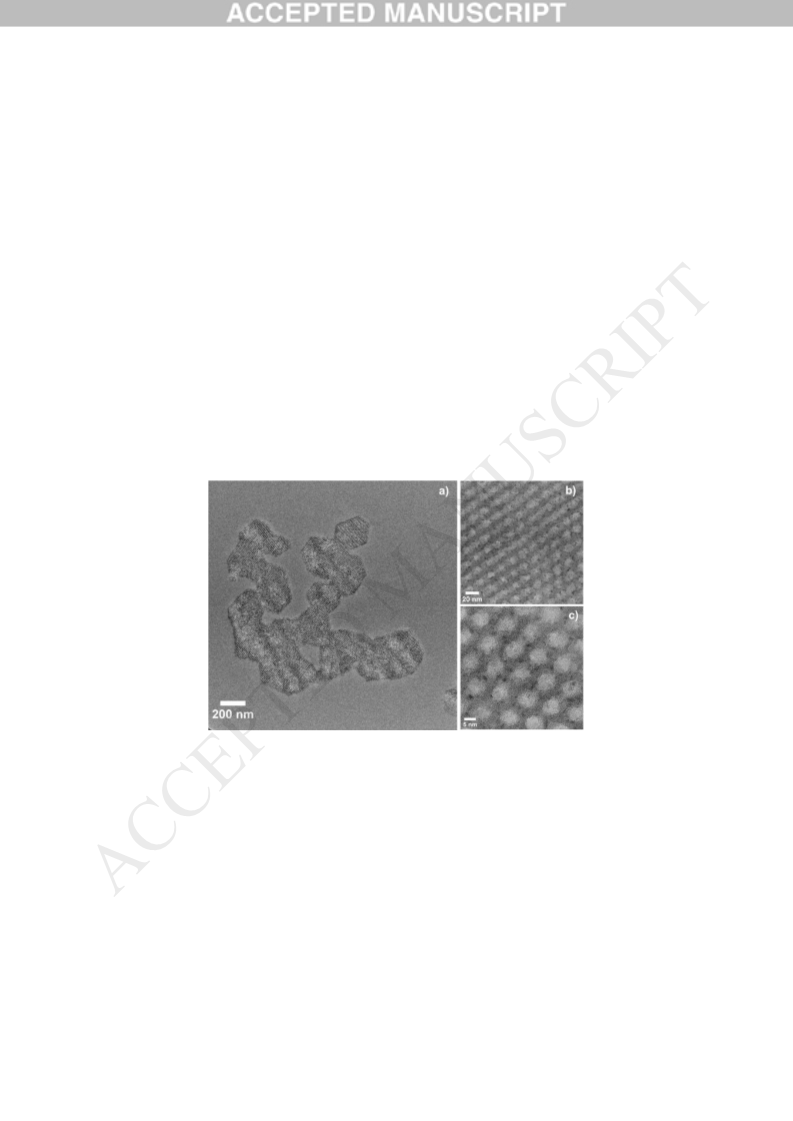

Figure 5. Selected TEM images for Ni_140 material in calcined form: a) low magnification image; b)
longitudinal view of the channels at high magnification; c) transversal view of the channels at high
magnification.
16

Figure 6. NiO Particle size distribution in Ni_T materials in calcined forms.
These interesting results, clearly showing the lack of dispersion efficiency in the case of SBA-15_60
and the difference in NiO NPs size obtained over SBA_100 and SBA_140 supports, can be rationalized
by taking into consideration the different textural properties and pore architectures for the distinct SBA-
15 host materials. Thus, SBA-15_60 is the only support in the series showing not interconnected
mesoporosity, and in this case, we observed that the diffusion of the molten precursor is not efficient.
Such problem is not encountered for the two other SBA-15 supports synthesized at higher ageing
temperature, which display interconnected mesoporosity, and demonstrate an efficient and complete
infiltration of the molten phase inside the pores of the scaffolds (Ni_100 and Ni_140, Figures 4 and 5).
At the same time, as Ni_140 is obtained over a support prepared at a higher ageing temperature than
Ni_100, the secondary pores increase in size, and evolves from microporous to small mesoporous. The
evolution of the mean NiO NPs size shown in Figure 6 follows the trend in the size of secondary pores,
which is a clear indication that NiO NPs are confined inside the intra-wall porosity of the mesoporous
hosts. Diffractograms recorded over the different Ni_T samples at wide-angles (Figure 7) are in
agreement with TEM observations and reinforce this interpretation. Reflections ascribed to NiO are only
distinguished for Ni_60 and Ni_140, whereas average NiO crystal domain sizes are of 8.5 nm and 3.5 nm
(calculated by Scherrer equation), respectively. For Ni_100, no crystalline NiO phases can be detected
by XRD, yet some fluctuations in the pattern baseline are observed at positions corresponding to NiO,
clearly demonstrating that NPs are highly dispersed, in line with the analyses by TEM (Figure 4).
17

Figure 7. Wide-angle X-ray diffraction patterns obtained for Ni_T materials in calcined forms. Bottom: NiO,
JCPDS file n°47-1049.
3.4. Activation of the catalyst
Considering the hydrogenation applications, the reducibility of nickel oxide phase in the different
materials was investigated by TPR (Figure 8). First, the hydrogen consumed during the TPR process
was evaluated to correspond to the quantity necessary to fully reduce NiO into Ni0 (±5 % of the
theoretical value). These data indicate the accessibility of the NiO NPs to hydrogen, even if they are
located in the intra-wall pores of mesoporous silica scaffolds.
Reduction of NiO in Ni_60 occurs in two distinct steps: (1) first hydrogen consumption step centered at
308 °C; (2) second hydrogen consumption centered at 478 °C. For the two other materials, Ni-100 and
Ni_140, the first hydrogen consumption step is significantly depressed and most of the hydrogen
consumption (> 90%) occurs during the second step with the reduction maximum at 490 °C.
In the light of previous discussions concerning the size and distribution of NiO NPs, it seems reasonable
to assume that:
18

- Reduction of bulk NiO, located at the external surface of the silica (observed only for Ni_60), will
occur at the lowest temperature, Tmax  310 °C;
- Reduction of small size NiO particles, located in the intra-wall porosity of the mesoporous host, will
occur at a higher temperature, Tmax  485 °C [26, 43].
The presence of small broad hydrogen consumptions at T  310 °C for Ni_100 and Ni_140 suggests the
presence of a very low fraction of NiO external particle of large size in these two materials, however
not observed by TEM.
Figure 8. H2 temperature programmed reduction profiles recorded for the Ni_T materials in calcined forms.
Always in view of the practical application, stability of materials under reducing atmosphere was
evaluated by TEM for Ni_100 and Ni_140 in order to determine if the produced NPs are thermally stable
or suffer sintering during activation under hydrogen. Representative images are presented in Figure 9.
19

Figure 9. TEM images obtained for: a) Ni_100 and b) Ni_140 materials reduced ex situ at 900 °C. c) Particle size
distribution for Ni_140 after reduction at 900 °C.
For Ni_100, no visible modification of the NPs size takes place upon activation under reducing
conditions (Figure 9a). Observed Ni0 NPs exhibit sizes always below or equal to 3 nm, very close to
what was observed for the calcined form. This result supports our previous interpretation consisting in
a selective localization of the NPs inside the intra-wall pores of the support. A completely different
behavior is obtained over Ni_140 materials. The corresponding material shows NPs of metallic Ni of
larger size than the initial NiO NPs particle (Figure 9 b,c). Ni0 NPs of size reaching 11 nm are observed,
but the NPs population is centered at 4-5 nm, with an average NPs size calculated at 5.1 nm. Considering
the textural features of the support synthesized at 140 °C, and the wall thickness, the silica walls are
probably not robust enough upon this severe activation treatment, resulting in some alteration of the
pore network periodicity (Figure 9b) and some visible – but remaining reasonable - Ni NPs sintering at
high temperature (Figure 9c).
3.5. Catalytic properties of Ni/SBA-15 materials
20

Figure 10. CNA conversion evolution with reaction time (a), and the initial conversion rate as a function of the
initial NiO NPs size (for Ni_100 and Ni_140 from TEM; for Ni_60 from average crystallite size from XRD (b)
for the MI-derived materials. Reaction conditions: 1 mL CNA, 0.133 g catalyst, 40 mL isopropanol,
P(H2) = 10 bar, T = 60 °C, stirring rate = 750 rpm.
MI-derived Ni catalysts were first tested in the liquid-phase hydrogenation of cinnamaldehyde, under
mild reaction conditions of temperature. Cinnamaldehyde (CNA) is an -unsaturated aldehyde, which
generally can produce various products issued by hydrogenation of both C=C and C=O groups. Over
Ni-based catalysts, only hydrocinnamaldehyde (HCNA, by C=C bond hydrogenation) and
hydrocinnamyl alcohol (HCNOL, by hydrogenation of HCNA) are expected to form, with a selectivity
towards HCNA higher than 80 % at all conversion levels [25]. Therefore, the hydrogenation of CNA is
proposed here as a model reaction for the evaluation of the catalytic properties of solids, thus allowing
a pertinent assessment of the samples only in accord with their catalytic activity. The evolutions of the
conversion of CNA with reaction time, obtained for Ni_60, Ni_100 and Ni_140 catalysts, are presented
in Fig. 10a. For Ni_60 (large particle size - Figure 6), the complete CNA conversion is not achieved in
360 min, and a hydrogenation initial rate of 37.47 mmolCNA.gcata.−1.h−1 is measured (Figure 10). Ni_140
sample shows a nearly complete CNA conversion after 240 min and an initial reaction rate of
82.18 mmolCNA.gcata.−1.h−1. When small Ni NPs are highly dispersed on the silica support (Ni_100), the
21

complete CNA conversion is obtained in 90 min, with an initial reaction rate of
122.76 mmolCNA.gcata.−1.h−1, which is the maximum reaction rate in the series. Thus, Ni_100 shows
superior catalytic activity, which is about 1.5 times higher than that of Ni_140 and 3 times higher than
Ni_60. In Figure 10b, it can be observed that the initial reaction rate well - correlates with the NPs size
for the MI_derived catalyst. The results highlight the improvement of catalytic activity of Ni/SBA-15
catalysts with the decrease in the NPs size. These results are explained by the specific localization of
small NPs (confined in mesopores or micropores), the high dispersion of the metallic Ni NPs in the case
of Ni_100, this material exposing consequently the highest fraction of active Ni atoms able to activate
and transform CNA molecules by reaction with the molecular hydrogen. For Ni_140, where the NPs
size increases up to 3.5 nm, the difference in activity is clearly observed in terms of decreased
conversion.
Given the outstanding performance of Ni catalysts developed herein in CNA transformation, exploration
of the efficiency of these MI-derived materials in the reductive conversion of another important biomass-
based platform chemical (i.e., HMF) was also performed. It has been well-established that the partial
hydrogenation of HMF leads to the formation of BHMF (2,5-bis(hydroxymethyl)furan) while the full
hydrogenation gives BHMTHF (2,5-bis(hydroxymethyl)tetrahydrofuran), as shown in Scheme 1,
both of which are value-added chemicals serving as polymer precursors and solvents [44,45]. The
formation of BHMTHF involves the reduction of the furan ring, which generally requires relatively high
hydrogenation activity of the catalyst [46]. The hydrogenolysis of the pendant groups leads to a valuable
biofuel - DMF (2,5 -dimethylfuran) [47].
The conversions and product distributions obtained over Ni_60, Ni_100 and Ni_140 catalysts are
reported in Figure 11. Among the three MI-derived catalysts, Ni_60 exhibits relatively limited
hydrogenation ability in HMF transformation, primarily catalyzing only the partial hydrogenation of
HMF to BHMF (54 % yield) and giving a HMF conversion of 87 %. Ni_140 with a better dispersion of
Ni NPs leads to an increase of HMF conversion up to 95 % though the partial hydrogenation reaction
still dominates (64 % yield), indicating a higher hydrogenation activity than that of Ni_60. For Ni_100
bearing highly dispersed Ni NPs, a nearly complete conversion of HMF (98.5 %) is obtained with a
22

combination yield of BHMF and BHMTHF of 75 %. The heavily induced full hydrogenation of HMF
over Ni_100 results in the formation of BHMTHF as the main product, indicating the high
hydrogenation activity of this catalyst. Notably, a large quantity of DMF (17 % yield) is also formed
over Ni_100, suggesting some hydrogenolysis ability of this catalyst. These results confirm the
efficiency of the IWP-confined Ni NPs to reach high hydrogenation activities, and at the same time,
indicate the good potential of the application of the well-dispersed Ni_100 and Ni_140 for the
production of valuable BHMF and BHMTHF from HMF.
Scheme 1. Reaction pathway for the transformation of HMF to some of the targeted compounds in the
literature. HMF: 5-hydroxymethylfurfural; BHMF: 2,5-bis(hydroxymethyl)furan; BHMTHF:
2,5-bis(hydroxymethyl)tetrahydrofuran; MFFR: 5-methylfurfural; MFOL: 5-methylfurfuryl
alcohol; DMF: 2,5 –dimethylfuran; DMTHF: 2,5-dimethyltetrahydrofuran.
23

Figure 11. HMF conversion and the product distributions over the MI-derived materials. Reaction conditions:
0.03 g HMF, 21.1 mg catalyst, 1.5 mL 1,4-dioxane, P(H2) = 15 bar, T = 130 °C, reaction time = 1 h, stirring
rate = 700 rpm.
CONCLUSIONS
The second pore network of the SBA-15 host materials plays an important role in determining the Ni(O)
NPs size and localization. The absence of the IWP connection between adjacent pores results in a worse
diffusion of the precursor melt, thus forming large extra-porous aggregates. The size of the IWP and the
presence of interconnected pores both facilitate the formation of pore-encapsulated and very small Ni(O)
NPs, which can be of around 2 nm in size for Ni_100. The catalytic activity of Ni MI-derived materials
in the liquid-phase hydrogenation reaction of cinnamaldehyde is shown to significantly increase when
the very small nickel particles are located in the silica intra-wall pores. Besides, the MI-derived catalysts
with finely dispersed nickel particles show high potential in the reductive transformation of HMF to
value-added BHMF and BHMTHF. This study provides new insights into how the microenvironment
existing between the pore-occluded polymer and inorganic walls can be explored to stabilize highly
dispersed M(O) NPs, in fine, to produce excellent catalysts for hydrogenation reactions.
ACKNOWLEDGEMENTS
This work was partially supported by two grants of the Romanian National Authority for Scientific
Research, CNCS-UEFISCDI (project numbers PN-II-RU-TE-2012-3-0403 and PN-II-ID-PCE- 2011-3-
0868). Shuo CHEN acknowledges Chinese Scholarship Council for the support through the Ph.D. grant
No.201505130002. Chevreul Institute (FR 2638), Ministère de l’Enseignement Supérieur et de la
Recherche et de l’Innovation, Région Hauts-de-France and FEDER are acknowledged for supporting
and funding partially this work.
REFERENCES
[1] P. Mäki-Arvela, J. Hájek, T. Salmi, D.Y. Murzin, Appl. Catal. A: Gen. 292 (2005) 1-49.
[2] Z. Bian, S. Das, M. H. Wai, P. Hongmanorom, S. Kawi, ChemPhysChem 18(22) (2017) 3117-
3134.
24

[3] H. Tian, X. Li, L. Zeng, J. Gong, ACS Catal. 5 (2015) 4959-4977.
[4] S. Singh, R. Kumar, H. D. Setiabudi, S. Nandac, D.-V. N. Vo, Appl. Catal. A: Gen. 559 (2018) 56-
74.
[5] T.W. Hansen, A.T. Delariva, S.R. Challa, A.K. Datye, Acc. Chem. Res. 46 (2013) 1720-1730
[6] P. Munnik, P.E. de Jongh, K.P. de Jong, Chem. Rev. 115 (2015) 6687-6718.
[7] J.R.A. Sietsma, J.D. Meeldijk, M. Versluijs-Helder, A. Broersma, A.J. van Dillen, P.E. de Jongh,
K.P. de Jong, Chem. Mater. 20 (2008) 2921-2931.
[8] G. Prieto, J. Zečević, H. Friedrich, K. P. de Jong, P.E. de Jongh, Nat. Mater. 12 (2013) 34-39.
[9] U. Ciesla, F. Schuth, Microporous Mesoporous Mater. 27 (1999) 131-149.
[10] A. Taguchi, F. Schuth, Microporous Mesoporous Mater. 77 (2005) 1-45.
[11] F. Schurh, A. Wingen, J. Sauer, Microporous Mesoporous Mater. 44-45 (2001) 465-476.
[12] L.H. Wee, M. Meledina, S. Turner, K. Custers, S. Kerkhofs, G. van Tendeloo, J. A. Martens, J.
Mater. Chem. A. 3 (2015) 19884-19891.
[13] L.H. Wee, M. Meledina, S. Turner, K. Custers, S. Kerkhofs, S.P. Sree, E. Gobechiya, C.E.A.
Kirschhock, G. Van Tendeloo, J. A. Martens, RSC Adv. (2016) 46678-46685.
[14] A. Ungureanu, B. Dragoi, A. Chirieac, S. Royer, D. Duprez, E. Dumitriu, J. Mater. Chem. 21
(2011) 12529- 12541.
[15] C. Ciotonea, B. Dragoi, A Ungureanu, A. Chirieac, S. Petit, S. Royer, E. Dumitriu, Chem.
Commun. 49 (2013) 7665-7667.
[16] Y. Park, T. Kang, P. Kim, J. Yi, J. Colloid Interface Sci. 295 (2006) 464-471.
[17] A. Ungureanu, B. Dragoi, A. Chirieac, C. Ciotonea, S. Royer, D. Duprez, A.S. Mamede, E.
Dumitriu, ACS Appl. Mater. Interfaces 5 (2013) 3010-3025.
[18] Y.M. Wang, Z.Y. Wu, J.H. Zhu, J Solid State Chem. 177 (2004) 3815-3823.
[19] Y.M. Wang, Z.Y. Wu, H.J. Wang, J.H. Zhu, Adv. Funct. Mater. 16 (2006) 2374-386.
25

[20] W.H. Tian, L.B. Sun, X.L. Song, X.Q. Liu, Y. Yon, Langmuir 26 (2010) 17398-17404.
[21] C.F. Zhou, Y.M. Wang, Y. Cao, T.T. Zhuang, W. Huang, Y.A. Chun, J.H. Zhu, J. Mater. Chem. 16
(2006) 1520-1528.
[22] J.K. Shon, S.S. Kong, Y.S. Kim, J.H. Lee, W.K. Park, S.C. Park, J.M. Kim, Microporous
Mesoporous Mater. 120 (2009) 441-446.
[23] M.B. Zheng, J. Cao, S.T. Liao, J.S. Liu, H.Q. Chen, Y. Zhao, W.J. Dai, G.B. Ji, J.M. Cao, J. Tao, J.
Phys. Chem. C 113 (2009) 3887-3894.
[24] K. Jian, T.C. Truong, W.P. Hoffman, R.H. Hurt, Microporous Mesoporous Mater. 108 (2008) 143-
151.
[25] C. Ciotonea, B. Dragoi, A. Ungureanu, C. Catrinescu, S. Petit, H. Alamdari, E. Marceau, E. Dumitriu,
S. Royer, Catal. Sci. Technol. 7 (2017) 5448-5456.
[26] C. Ciotonea, I. Mazilu, B. Dragoi, C. Catrinescu, E. Dumitriu, A. Ungureanu, H. Alamdari, S.
Petit, S. Royer, ChemNanoMat. 3 (2017) 214-222.
[27] Q Zhang, T. Zhang, Y. Shi, B. Zhao, M. Wang, Q. Liu, J. Wang, K. Long, Y. Duan, P. Ning, Journal
CO2 Utilization 17 (2017) 10-19.
[28] X. Ning, Y. Lu, H. Fu, H. Wan, Z. Xu, S. Zheng, ACS Appl. Mater. Interfaces 9 (2017) 19335-
19344.
[29] P.E. de Jongh, T.M. Eggenhuisen, Adv. Mater. 25 (2013) 6672-6690.
[30] W. Yue, W. Zhou, Chem. Mater. 19 (2007) 2359-2363.
[31] Q. Jiang, Z.Y. Wu, Y.M. Wang, Y. Cao, C.F. Zhou, J.H. Zhu, J. Mater. Chem. 16 (2006) 1536-1542.
[32] T.M. Eggenhuisen, J.P. den Breejen, D. Verdoes, P.E. de Jongh, K.P. de Jong, J. Am. Chem. Soc.
132 (2010) 18318- 8325.
[33] A. Galarneau, H. Cambon, F. Di Renzo, R. Ryoo, M. Choi, F. Fajula, New J. Chem. 27 (2003) 73-
79.
[34] F. Kleitz, F. Bérubé, R. Guillet-Nicolas, C. M. Yang, M. Thommes, J. Phys. Chem. C 114 (2010)
9344-9355.
26

[35] F. Bérubé, A. Khadraoui, M. T. Janicke, F. Kleitz, S. Kaliaguine, Ind. Eng. Chem. Res. 49 (2010)
6977-6985.
[36] F. Bérubé, A. Khadraoui, J. Florek, S. Kaliaguine, F. Kleitz, J. Colloid Interface Sci. 449 (2015)
102-114.
[37] D. Zhao, J. Feng, N. Huo, G. Melosh, H. Fredrickson, B. F. Chmelka, G. D. Stucky, Science 279
(1998) 548-552.
[38] L. Cao, T. Man, M. Kruk, Chem. Mater. 21(6) (2009) 1144-1153.
[39] V.T. Hoang, Q. Huang, M. Eic, T.O. Do, S. Kaliaguine, Effect of the intrawall microporosity on
the diffusion characterization of bi-porous SBA-15 materials, in W.C., Conner J. Fraissard (Eds.),
Fluid Transport in Nanoporous Materials, Springer, Netherlands, 2006, pp. 591-602.
[40] C.J. Rasmussen, A. Vishnyakov, M. Thommes, B.M. Smarsly, F. Kleitz, A.V. Neimark,
Langmuir 26 (2010) 10147-10157.
[41] C. He, Q. Li, P. Li, Y. Wang, X. Zhang, J. Cheng, Z. Hao, J Chem. Engineer. 162 (2010) 901-
909.
[42] G. Wanka, H. Hoffmann, W. Ulbricht, Macromolecules 27 (1994) 4145-4159.
[43] A.B.R. Mayer, Polym. Adv. Technol. 12 (2001) 96-105.
[44] D. Scholz, C. Aellig, I. Hermans. ChemSusChem. 7 (2014) 268-275.
[45] L. Hu, L. Lin, Z. Wu, S. Y. Zhou, S. J. Liu. Renew. Sustain. Energy Rev. 74 (2017) 230-257.
[46] X. Tang, J. Wei, N. Ding, Y. Sun, X. Zeng, L. Hu, S. Liu, T. Lei, L. Lin. Renew. Sustain. Energy
Rev. 77 (2017) 287-296.
[47] Y. Qian, L. Zhu, Y. Wang, X. Lu. Renew. Sustain. Energy Rev. 41 (2015) 633-646.
27
