Pd/CoFe2O4/chitosan: A highly effective and easily recoverable hybrid nanocatalyst for synthesis of benzonitriles and reduction of 2-nitroaniline

Article abstract of DOI:10.1016/j.jpcs.2020.109772

In this study, a novel catalyst system with high activity and easy recoverability was successfully prepared through the deposition of Pd nanoparticles (NPs) onto designed sustainable hybrid beads containing magnetic cobalt ferrite and chitosan (Pd/CoFe₂O₄/chitosan). The catalytic potential of Pd/CoFe₂O₄/chitosan hybrid nanocatalyst was then assessed in i) preparation of benzonitriles via aryl halides cyanation and ii) reduction of 2-nitroaniline (2-NA). Various aryl iodides and bromides were successfully cyanated by Pd/CoFe₂O₄/chitosan hybrid nanocatalyst with excellent reaction yields within 3 h. In addition to the production of benzonitriles, the hybrid nanocatalyst showed excellent activity by reducing 2-NA in 65 s. It was proved that the Pd/CoFe₂O₄/chitosan hybrid nanocatalyst outperformed many catalysts used in the cyanation of aryl halides and catalytic reduction of 2-NA previously reported in the literature. Moreover, it was found that the designed Pd/CoFe₂O₄/chitosan hybrid nanocatalyst was easily and effectively separated from the reaction mixture using an external magnet and reused several times in catalytic reactions without considerable loss of catalytic activity.

Full text of DOI:10.1016/j.jpcs.2020.109772

Journal Pre-proof
Pd/CoFe O /chitosan: A highly effective and easily recoverable hybrid nanocatalyst
2 4
for synthesis of benzonitriles and reduction of 2-nitroaniline
Talat Baran, Mahmoud Nasrollahzadeh
PII:
S0022-3697(20)32022-9
https://doi.org/10.1016/j.jpcs.2020.109772
PCS 109772
DOI:
Reference:
To appear in: Journal of Physics and Chemistry of Solids
Received Date: 2 August 2020
Revised Date: 5 September 2020
Accepted Date: 19 September 2020
Please cite this article as: T. Baran, M. Nasrollahzadeh, Pd/CoFe O /chitosan: A highly effective and
2 4
easily recoverable hybrid nanocatalyst for synthesis of benzonitriles and reduction of 2-nitroaniline,
Journal of Physics and Chemistry of Solids (2020), doi: https://doi.org/10.1016/j.jpcs.2020.109772.
This is a PDF file of an article that has undergone enhancements after acceptance, such as the addition
of a cover page and metadata, and formatting for readability, but it is not yet the definitive version of
record. This version will undergo additional copyediting, typesetting and review before it is published
in its final form, but we are providing this version to give early visibility of the article. Please note that,
during the production process, errors may be discovered which could affect the content, and all legal
disclaimers that apply to the journal pertain.
© 2020 Published by Elsevier Ltd.

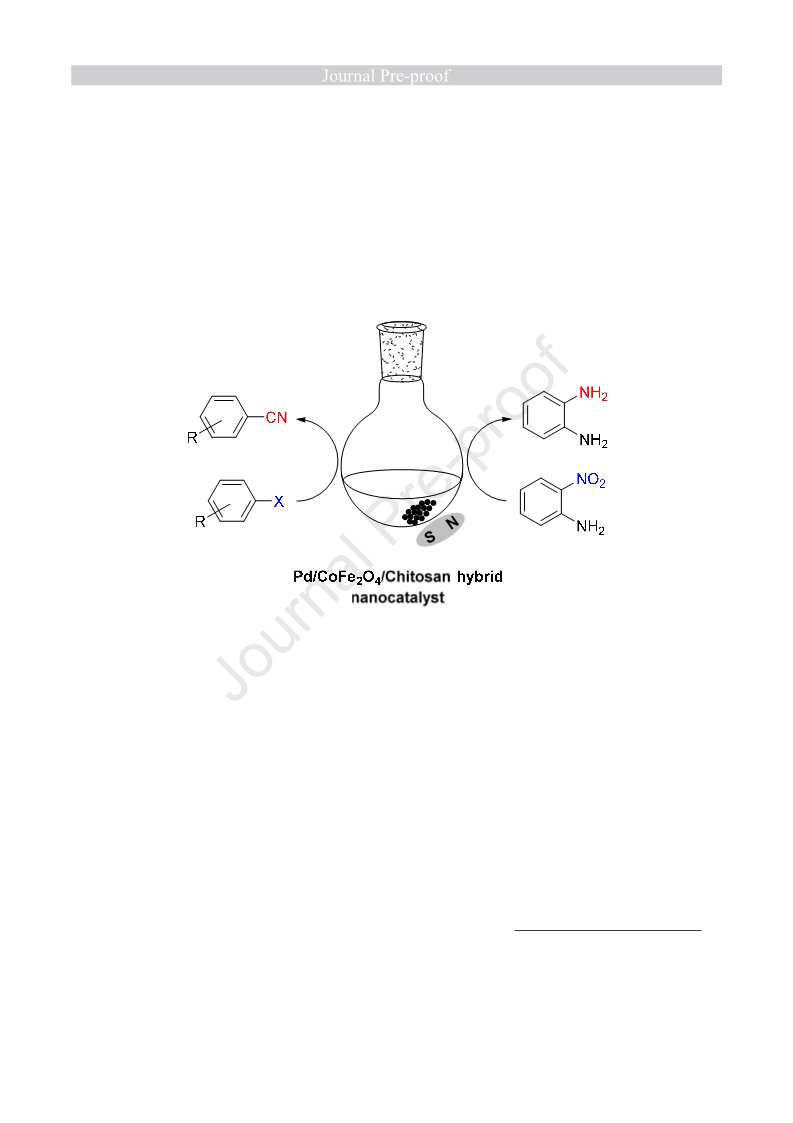

Graphical Abstract
Pd/CoFe2O4/chitosan: A highly effective and easily recoverable hybrid
nanocatalyst for synthesis of benzonitriles and reduction of 2-nitroaniline
Talat Baran and Mahmoud Nasrollahzadeh*
*Corresponding author.
E-mail address: mahmoudnasr81@gmail.com, m.nasrollahzadeh@qom.ac.ir (M. Nasrollahzadeh)

1
Pd/CoFe2O4/chitosan: A highly effective and easily recoverable
2 hybrid nanocatalyst for synthesis of benzonitriles and reduction of
3
4
2-nitroaniline
Talat Barana, Mahmoud Nasrollahzadeh*
,b
5
6
aDepartment of Chemistry, Faculty of Science and Letters, Aksaray University, 68100,
Aksaray, Turkey
7
8
9
b Department of Chemistry, Faculty of Science, University of Qom, 3716146611, Qom, Iran
Abstract
10
11
12
13
14
15
16
17
18
19
20
In this study, a novel catalyst system with high activity and easy recoverability was
successfully prepared through the deposition of Pd nanoparticles (NPs) onto designed
sustainable hybrid beads containing magnetic cobalt ferrite and chitosan
(Pd/CoFe2O4/chitosan). The catalytic potential of Pd/CoFe2O4/chitosan hybrid nanocatalyst
was then assessed in i) preparation of benzonitriles via aryl halides cyanation and ii) reduction
of 2-nitroaniline (2-NA). Various aryl iodides and bromides were successfully cyanated by
Pd/CoFe2O4/chitosan hybrid nanocatalyst with excellent reaction yields within 3 h. In addition
to the production of benzonitriles, the hybrid nanocatalyst showed excellent activity by
reducing 2-NA in 65 s. It was proved that the Pd/CoFe2O4/chitosan hybrid nanocatalyst
outperformed many catalysts used in the cyanation of aryl halides and catalytic reduction of
2-NA previously reported in the literature. Moreover, it was found that the designed
*Corresponding author.
E-mail address: mahmoudnasr81@gmail.com, m.nasrollahzadeh@qom.ac.ir (M. Nasrollahzadeh).
1

21
22
23
Pd/CoFe2O4/chitosan hybrid nanocatalyst was easily and effectively separated from the
reaction mixture using an external magnet and reused several times in catalytic reactions
without considerable loss of catalytic activity.
24
Keywords: Pd catalyst, Chitosan, Benzonitrile, 2-Nitroaniline
25
26
1. Introduction
Recently, generation of noble metal nanocatalysts has attracted the attention of scientists due
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
to their excellent catalytic performance, nanosized structures, good electronic/optical
properties and huge surface areas [1, 2]. Therefore, different noble metals have been designed
as homogeneous or heterogeneous nanocatalysts for different organic reactions [3, 4].
Although homogeneous catalysts are highly effective and selective, they suffer from
separation problems and usually need costly and specific separation techniques [5, 6]. To
address this problem, preparation of heterogeneous catalysts on various organic/inorganic
support materials has recently received significant attention due to the facile separation of
catalysts [7-9]. However, in most cases, the recovery of heterogeneous catalysts from the
reaction medium via simple traditional methods such as filtration and centrifugation is a
tedious and time consuming task. These problems can be eliminated by the preparation of
catalysts on the modified magnetic composites as catalyst supports to obtain easily separable
catalyst [9, 10]. Additionally, catalysts with magnetic nature can be reused several times due
to retaining their initial activity, which makes them sustainable and ideal catalysts in organic
reactions. Modified magnetic composites are usually prepared on a magnetic core and then
modified with various compounds to obtain different stabilizers/supports [11, 12].
42
43
44
45
The development of magnetically recoverable catalytic systems from the reaction media
without using conventional costly and tedious work-up methods plays a crucial role in both
organic reactions and industrial applications. Among magnetic NPs, cobalt spinel ferrites
(CoFe2O4) have superior properties such as high magnetization, excellent mechanical and
2

46
47
48
49
50
51
52
53
54
55
56
57
chemical stability as well as easily modified surfaces [13, 14]. Therefore, various compounds
can be combined with CoFe2O4 to synthesize catalyst supports. Chitosan, which is a versatile
and renewable biopolymer obtained from natural sources, has outstanding properties such as
biocompatibility, low cost, abundance and high thermal stability [15, 16]. More importantly, it
has free hydroxyl and amine functional groups, which can provide coordination of transition
metals on the polymer backbone [17]. Additionally, chitosan hydrogel beads can be easily
obtained via these functional groups to improve the metal binding capacity of chitosan [18].
There are several reports concerning the application of chitosan based magnetic catalysts in
organic synthesis [19-21]. Therefore, chitosan can be modified with CoFe2O4, followed by the
preparation of CoFe2O4/chitosan hybrid beads as stabilizers. Afterwards, different metallic
nanoparticles can be immobilized on the designed support and their catalytic role in various
organic reactions can be investigated.
58
59
60
61
62
63
64
65
66
67
68
69
70
Benzonitriles are important structural moieties of several valuable compounds such as
agrochemicals, biologically active compounds, natural products and dyes [4,22]. Moreover,
these versatile compounds can be readily transformed into different functional groups such as
aldehydes, amides, acids, amines and ketones [4,22]. For more than a century, benzonitriles
have been synthesized by Rosenmund-von Braun and Sandmeyer reactions [23-26]. However,
these traditional methods suffer from some disadvantages such as i) high reaction
temperatures, ii) large quantities of heavy metal wastes and iii) use of stoichiometric amounts
of CuCN [27, 28]. Therefore, transition metal catalyzed aryl halide cyanation reactions have
been developed as a new methodology for the synthesis of benzonitriles using cyanating
agents such as Cu(CN)2, NaCN, KCN, TMSCN, Zn(CN)2 etc. [4,29-31]. However, the
application of many cyanide agents is generally limited in in the industry due to their highly
toxic nature [4, 30]. Therefore, there is a need for a low toxic cyanation source in this
reaction. Recently, K4[Fe(CN)6] has been utilized as a cyanation agent by researchers due to
3

71
72
73
74
75
76
its inexpensiveness, non-toxicity, safety, simplicity of handling and commercial availability
[27, 32]. Different metal catalysts have been designed and utilized in the aryl halide cyanation
in the presence of K4[Fe(CN)6] [33, 34]. Owing to their high catalytic activity and excellent
functional group tolerance, Pd catalysts play an important role in this reaction compared to the
other metal catalysts [30, 35]. Pd catalysts with efficient catalytic performance are thus highly
desired in the cyanation of aryl halides.
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
Nowadays, water and environmental pollution caused by various organic pollutants;
especially nitro compounds, has become an important issue [36, 37]. Among nitro
compounds, 2-nitroaniline (2-NA) is one of the most dangerous compounds for aquatic and
human life due to its potential mutagenic and carcinogenic effects [38]. Therefore, 2-NA
poses a great threat to both environmental and public health even at very low concentrations
in water [39]. Hence, the removal of 2-NA from environmental waters is vital to protect
human health. Up till now, different strategies such as thermal decomposition, photocatalytic
degradation, adsorption and catalytic reduction have been developed to remove nitro
compounds [36, 40-42]. Among these, catalytic reduction is one of the most preferable
processes since it provides easy operation, high performance and cost effectiveness [43, 44].
Additionally, catalytic reduction products can be used in various areas. For example, o-
phenylenediamine, which is the reduction product of o-NA, has been widely utilized in the
synthesis of different products such as surfactants, polymers and dyes [45-47]. Therefore, the
reduction of o-NA to o-phenylenediamine in the presence of catalysts is also of great
importance both in terms of environmental and industrial issues and catalysts with high
performance are greatly desired in this reaction.
93
94
95
In this study, a new heterogeneous Pd nanocatalyst was prepared on magnetic hybrid
microbeads consisting of CoFe2O4/chitosan as the support and its chemical structure was
characterized by FT-IR, FE-SEM, EDS, TEM and XRD. Based on the characterizations,
4

96
97
Pd/CoFe2O4/chitosan was homogeneously dispersed with a particle size of about 25 nm. The
catalytic behavior of Pd/CoFe2O4/chitosan hybrid nanocatalyst was then investigated in i) aryl
halide cyanation and ii) 2-NA reduction. Pd/CoFe2O4/chitosan hybrid nanocatalyst showed
high catalytic performance in the halide cyanation with a high reaction yield of up to 98%.
Pd/CoFe2O4/chitosan hybrid nanocatalyst developed also successfully converted o-NA to o-
phenylenediamine within a very short reaction time (65 s). More importantly,
Pd/CoFe2O4/chitosan hybrid nanocatalyst displayed high reusability in both aryl halide
cyanation and o-NA reduction due to its magnetic recoverability.
98
99
100
101
102
103
104
105
106
3. Results and discussion
2. Experimental
2.1. Tools and reagents
107
108
109
110
111
112
113
114
115
116
117
118
Chitosan (De-acetylation degree: 78%, low molecular weight), FeCl3.6H2O, CoCl2.6H2O,
glutaraldehyde, PdCl2, 2-nitroaniline, K4[Fe(CN)6], NaBH4, Na2CO3, KOH, NaOH, Cs2CO3,
K2CO3, DMF, DMSO, NMP, toluene and aryl halides were purchased from Sigma-Aldrich

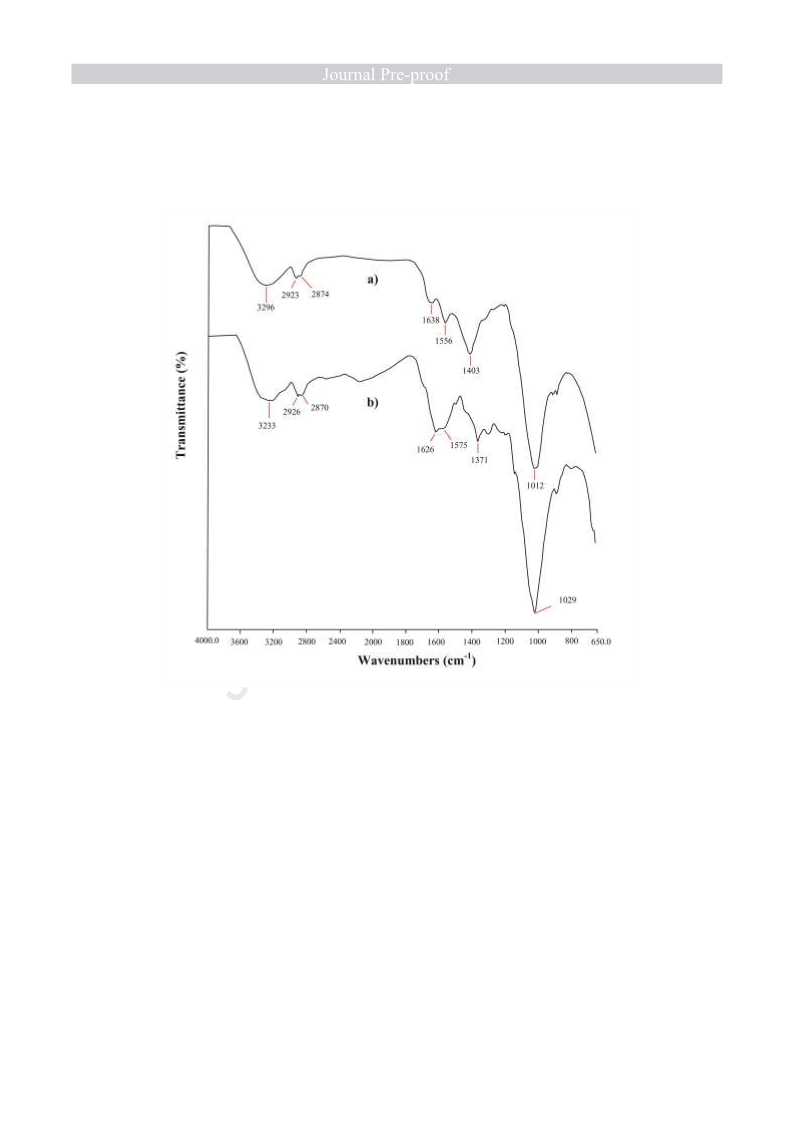

Chemical Co. The FT-IR spectra of CoFe2O4/chitosan and Pd/CoFe2O4/chitosan nanocatalyst
were recorded on a Perkin Elmer Spectrum 100 FT-IR spectrophotometer. The XRD patterns
of CoFe2O4, CoFe2O4/chitosan and Pd/CoFe2O4/chitosan hybrid nanocatalyst were obtained

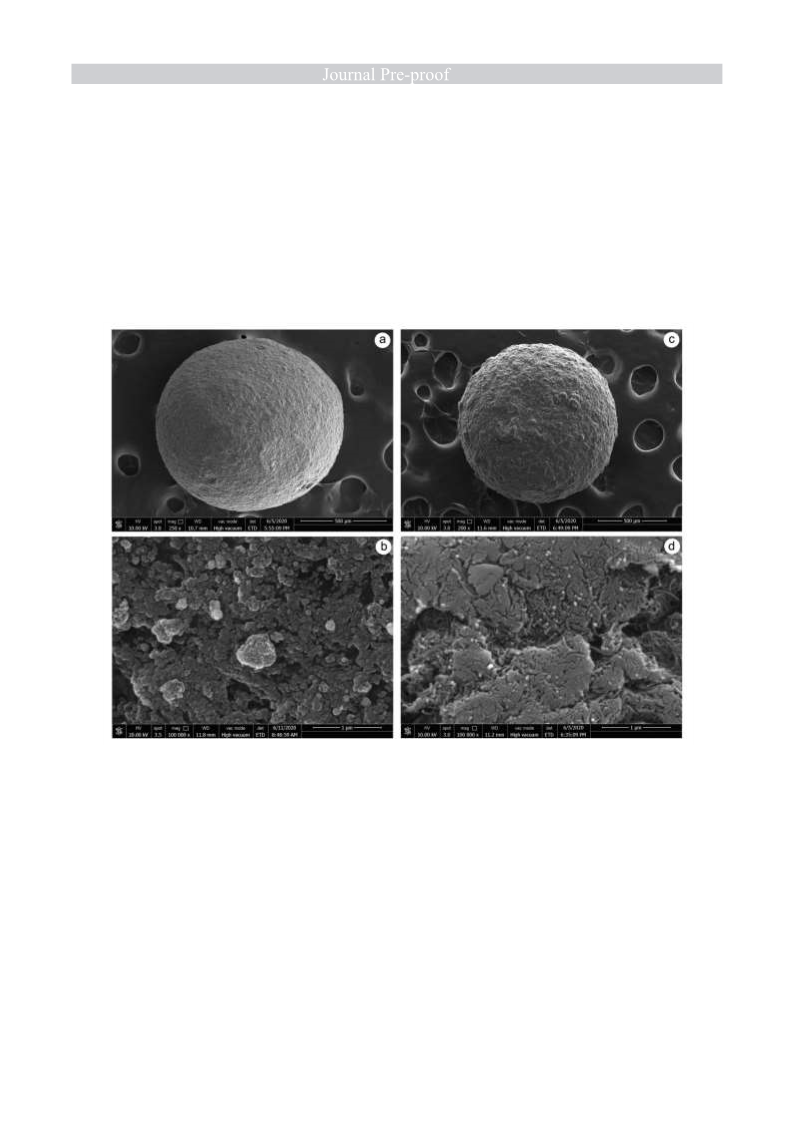

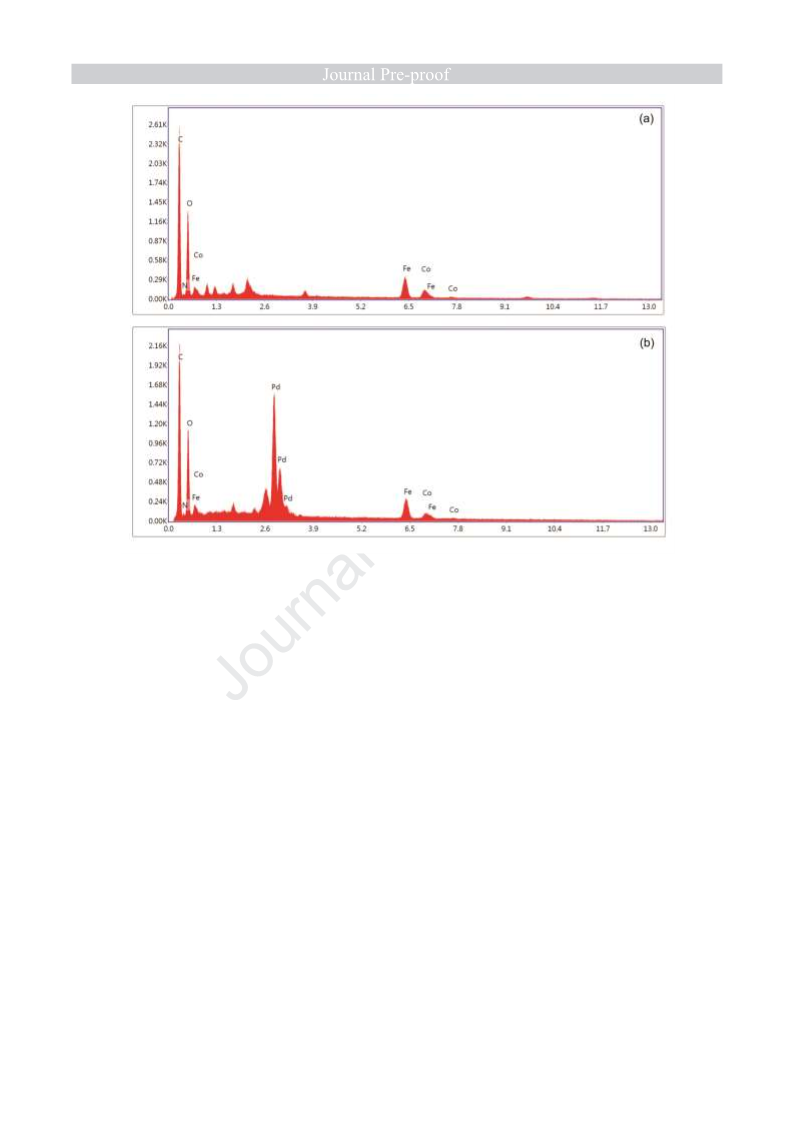

using a Rigaku smart lab system. The FE-SEM micrograms and EDS images of
CoFe2O4/chitosan and Pd/CoFe2O4/chitosan hybrid nanocatalyst were obtained using a

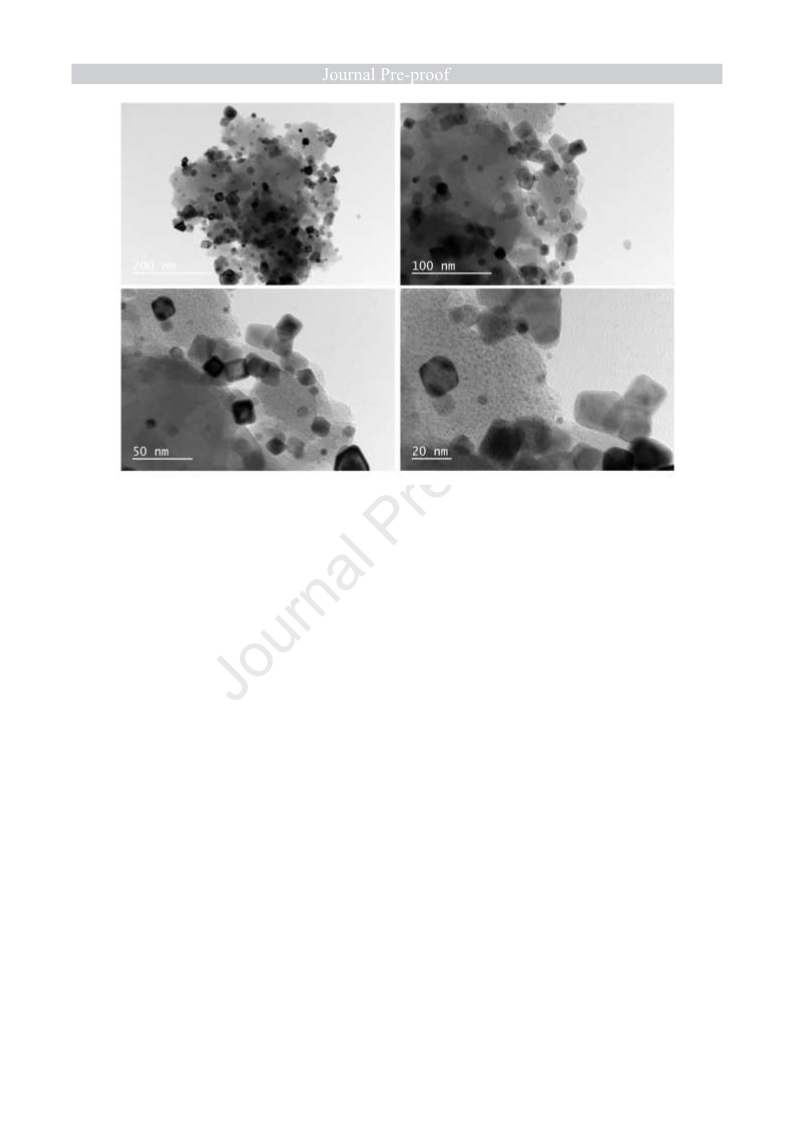

QUANTA-FEG 250ESEM. The TEM images of Pd/CoFe2O4/chitosan hybrid nanocatalyst
were recorded by a TEM JEOL JEM-2100 (UHR) instrument. The reduction of 2-NA was
followed by UV-Vis spectroscopy (Genesys 10S UV-Vis spectrophotometer). Benzonitriles
were characterized using a GC-MS Agilent GC-7890 A-MS 5975 instrument.
119
2.2. Synthesis of CoFe2O4
5

120
121
122
123
124
125
126
FeCl3.6H2O (8.2 mmol) and CoCl2.6H2O (4.1 mmol) were dissolved in 75 mL of water and
the solution obtained was stirred at room temperature (RT). 3 g of NaOH (15 mL) were then
added to the reaction mixture dropwise over a period of 10 min during which a black colored
precipitate was formed. Afterwards, the reaction temperature was increased to 90 °C and
stirring was continued for 2 h. Finally, the mixture was cooled to RT and magnetic particles
were then collected by an external magnet, rinsed with water, dried at 80 °C overnight and

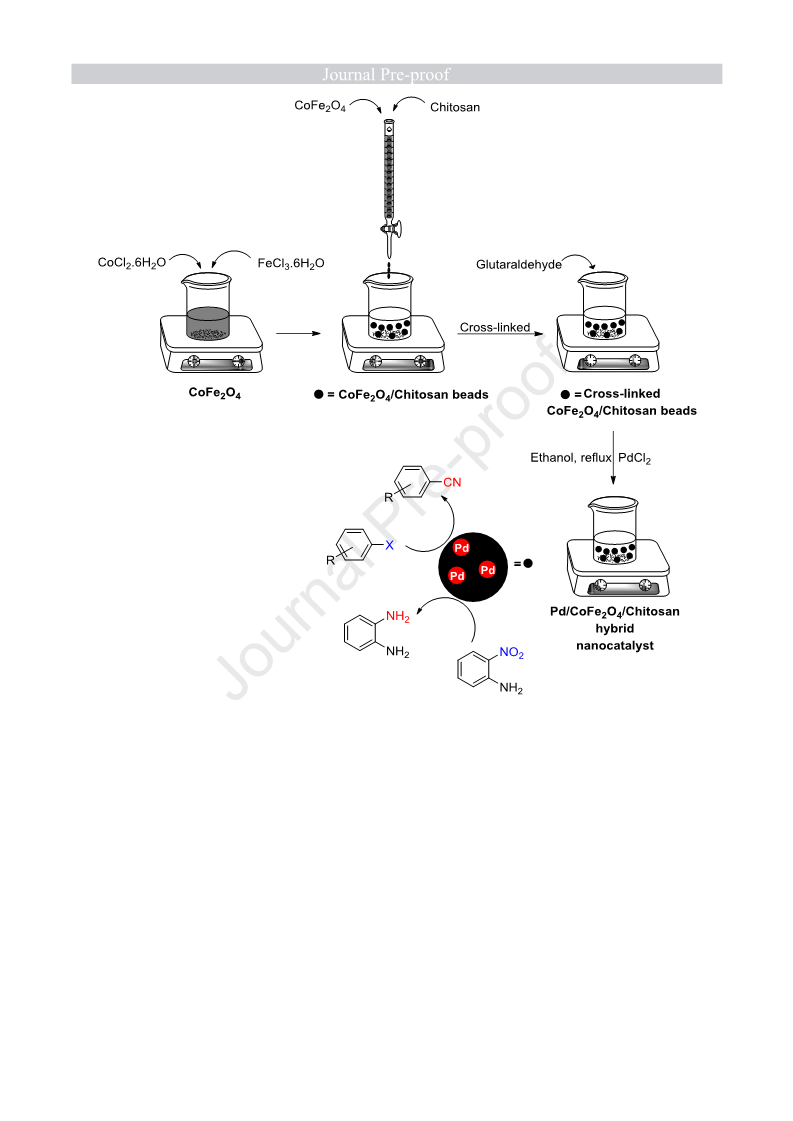

calcined at 500 °C for 5 h (Scheme 1).
127
2.3. Synthesis of CoFe2O4/chitosan hybrid beads as stabilizer
128
129
130
131
132
133
134
135
1 g of chitosan was dissolved in acetic acid solution (100 mL, 2% v/v) at RT, followed by the
addition of 1 g of CoFe2O4 and stirring for 3 h. The resulting mixture was poured into an
alkaline solution containing NaOH (12 g), water (40 mL) and methanol (60 mL) to form
spherical gel beads. CoFe2O4/chitosan hydrogel beads were then recovered by filtration and
washed with water. Cross-linking was performed by stirring CoFe2O4/chitosan hydrogel beads
with glutaraldehyde (3 mL) in 50ꢀmL of methanol at 70ºC for 6 h. Finally, the cross-linked
CoFe2O4/chitosan beads were collected, washed with water and dried to use as a catalyst
support in the synthesis of Pd NPs (Scheme 1).
136
2.3. Preparation of Pd/CoFe2O4/chitosan hybrid nanocatalyst
137
138
139
140
141
1.5 g of the designed CoFe2O4/chitosan microcapsules and 0.3 g of PdCl2 were added into 30
mL of ethanol and the mixture obtained was stirred 70ꢀ°C for 4 h. At the end of this period,
Pd/CoFe2O4/chitosan nanocatalyst was collected using an external magnet, washed with
ethanol and dried to test its catalytic performance in both aryl halide cyanation and 2-NA
reduction (Scheme 1).
6

142
143
144
Scheme 1. Preparation of Pd/CoFe2O4/chitosan hybrid nanocatalyst.
145
146
2.4. Typical procedure for aryl halide cyanation using Pd/CoFe2O4/chitosan hybrid
nanocatalyst
147
148
149
150
To a Schlenk tube, aryl halide (1.0 mmol), Na2CO3 (1.5 mmol), K4[Fe(CN)6] (0.2 mmol),
Pd/CoFe2O4/chitosan hybrid nanocatalyst (0.25 mol. %) and DMF (6 mL) were transferred
and the resulting mixture was stirred at 120 °C for 3 h. At the end of cyanation reaction,
Pd/CoFe2O4/chitosan hybrid nanocatalyst was separated by an external magnet from the
7

151
152
153
154
reaction medium. The reaction mixture was then extracted using H2O: diethyl ether mixture
three times and the organic phase, which contained benzonitriles, was dried over Na2SO4.
Finally, the desired benzonitrile products were obtained by evaporating the solvents and
benzonitriles were characterized by FT-IR and GC-MS (Fig. S1-S7) analyses.
155
2.5. Reduction of 2-NA catalyzed by Pd/CoFe2O4/chitosan hybrid nanocatalyst
156
157
158
159
160
161
162
Freshly prepared NaBH4 (0.1 mL, 2.5ꢀ×ꢀ10-2ꢀM) was added to a 2-NA solution (1 mL,
1.25ꢀ×ꢀ10-4ꢀM) and the resulting mixture was stirred at RT for 2 min. Afterwards,
Pd/CoFe2O4/chitosan hybrid nanocatalyst (4 mg) was added to the mixture and stirring was
continued until completion of 2-NA reduction. The progress of the conversion of 2-NA to o-
phenylenediamine was monitored by UV-Vis spectroscopy. After the 2-NA reduction was
complete, Pd/CoFe2O4/chitosan hybrid nanocatalyst was easily separated using an external
magnet, washed with water and dried to use in recycling studies.
163
164
3. Results and discussion
3.1 Characterization of Pd/CoFe2O4/chitosan hybrid nanocatalyst
165
166
167
168
169
170
171
172
173
174
Fig. 1 shows the comparative FT-IR spectra of CoFe2O4/chitosan and Pd/CoFe2O4/chitosan
hybrid nanocatalyst. In the spectrum of CoFe2O4/chitosan, characteristic adsorption peaks
were observed at 3293 cm-1 (-OH stretching), 2923-2874 cm-1 (-CH stretching), 1556 cm-1 (-
NH bending vibration), 1403 cm-1 (-C-H stretching), 1012 cm-1 (-C-O-C stretching) [48].
Moreover, a new peak was observed at 1638 cm-1, which corresponded to the stretching of the
imine group, confirming the formation of CoFe2O4/chitosan beads. Although the FT-IR
spectrum of Pd/CoFe2O4/chitosan is similar to that of its support CoFe2O4/chitosan), it was
observed that the peaks corresponding to the functional groups of CoFe2O4/chitosan shifted to
lower wavelengths because of interaction of palladium with CoFe2O4/chitosan microbeads.
On the other hand, the FT-IR analysis of samples was carried out using ATR-FT-IR (4000-
8

175
176
177
650 cm-1). The characteristic Fe bands, which generally occur at low wavenumbers (<600 cm-
1), were not observed in the spectrum. Therefore, the presence of Fe peaks confirmed the
results of XRD and EDS analyses.
178
179
180
Fig. 1. FT-IR spectra of CoFe2O4/chitosan (a) and Pd/CoFe2O4/chitosan hybrid nanocatalyst
(b).
181
182
183
184
185
186
The XRD patterns of CoFe2O4, CoFe2O4/chitosan and Pd/CoFe2O4/chitosan hybrid
nanocatalyst are shown in Fig. 2. The XRD spectrum of CoFe2O4 displayed typical diffraction
peaks at 18.25º, 30.14º, 35.55º, 43.11º, 53.75º, 57.06º and 62.68º, which are assigned to [111],
[220], [311], [400], [422], [511] and [440] planes of CoFe2O4, respectively [49, 50]. These
peaks confirmed the successful fabrication of CoFe2O4. Following the synthesis of
CoFe2O4/chitosan microbeads, a new broad peak was observed at 20.06º, which was due to
9

187
188
189
190
191
chitosan [17]. As for the XRD pattern of Pd/CoFe2O4/chitosan hybrid nanocatalyst, five new
diffraction peaks were clearly observed at 40.15°, 46.66°, 68.12º, 82.06º and 86.50°, which
are attributed to (111), (200), (220), (311) and (222) crystalline planes of face-centered
palladium, respectively, confirming the fabrication of Pd NPs on CoFe2O4/chitosan
microbeads [51].
192
193
194
Fig. 2. XRD patterns of CoFe2O4 (a), CoFe2O4/chitosan (b) and Pd/CoFe2O4/chitosan
hybrid nanocatalyst (c).
195
196
197
198
199
200
Fig.
3
demonstrates the SEM images of the CoFe2O4/chitosan and
Pd/CoFe2O4/chitosan hybrid nanocatalysts, respectively. SEM images evidently indicated that
both CoFe2O4/chitosan and Pd/CoFe2O4/chitosan hybrid nanocatalyst had spherical
morphologies, confirming the formation of their microbead form (Fig. 3a, c). Additionally,
the surface morphologies of CoFe2O4/chitosan and Pd/CoFe2O4/chitosan hybrid nanocatalyst
beads were investigated at higher magnifications. The images showed that both cobalt ferrite
10

201
202
203
204
205
206
and Pd NPs were fabricated (Fig. 3b,d). On the other hand, the elemental compositions of
CoFe2O4/chitosan and Pd/CoFe2O4/chitosan hybrid nanocatalyst beads were studied by EDS
analysis (Fig. 4). The EDS spectrum of CoFe2O4/chitosan beads showed the presence of C, N,
O, Fe and Co peaks (Fig. 4a). In the EDS spectrum of Pd/CoFe2O4/chitosan hybrid
nanocatalyst, Pd element was clearly observed, indicating the production of Pd nanocatalyst
on the support (CoFe2O4/chitosan) (Fig. 4b)
207
208
209
Fig. 3. SEM micrograms of CoFe2O4/chitosan (a,b) and Pd/CoFe2O4/chitosan hybrid
nanocatalyst (c,d).
11

210
211
212
Fig. 4. EDS spectra of CoFe2O4/chitosan (a) and Pd/CoFe2O4/chitosan hybrid nanocatalyst
(b).
213
214
215
216
The TEM analysis of Pd/CoFe2O4/chitosan hybrid nanocatalyst beads was performed
for further characterization and the obtained TEM images are shown in Fig. 5. The TEM
images showed that Pd NPs were successfully immobilized on CoFe2O4/chitosan and their
average diameter were around ~20ꢀnm.
217
218
The content of the Pd within Pd/CoFe2O4/chitosan, as determined by ICP-OES
(Inductively coupled plasma-optical emission spectrometry), was found to be 9.36 wt%.
12

219
220
Fig. 5. TEM images of Pd/CoFe2O4/chitosan hybrid nanocatalyst.
221
3.2. Investigation of catalytic activity of Pd/CoFe2O4 chitosan hybrid nanocatalyst
222
223
224
225
226
227
228
229
230
231
232
The catalytic behavior of Pd/CoFe2O4/chitosan hybrid nanocatalyst was first evaluated in aryl
halide cyanation in the presence of K4[Fe(CN)6], which is a cyanide source with low toxicity,
cost effectiveness and ready availability. To optimize the reaction parameters, the cyanation
of p-NO2C6H4Br by Pd/CoFe2O4/chitosan hybrid nanocatalyst was chosen as the model
reaction. Preliminary experiments were then performed under various reaction conditions and
the isolated yields are listed in Table 1. Based on the results of the control experiment, the
optimal reaction conditions were as follows; catalyst loading: 0.25 mol. %, base: Na2CO3,
solvent: DMF, reaction temperature: 120 °C and reaction time: 3 h. The scope of activity of
Pd/CoFe2O4/chitosan hybrid nanocatalyst was then studied in the cyanation of a range of aryl
halides under optimal conditions and the results are summarized in Table 2. The results
showed that both aryl iodide and bromide cyanation reactions proceeded smoothly with good
13

233
234
235
236
237
238
239
reaction yields in the presence of Pd/CoFe2O4/chitosan nanocatalyst. In addition,
Pd/CoFe2O4/chitosan was an effective nanocatalyst with a broad range of substrates in aryl
halide cyanation. Additionally, the catalytic efficacy of Pd/CoFe2O4/chitosan hybrid
nanocatalyst was compared to that of other reported catalysts in the cyanation of p-CH3C6H4I
and the results are given in Table 3. As observed in the Table, the developed catalyst system
(Pd/CoFe2O4/chitosan hybrid nanocatalyst) is superior to the other reported systems in terms
of yield, amount of catalyst and reaction time.
240
241
Table 1. The optimization of reaction conditions for cyanation of p-NO2C6H4Br using
K4[Fe(CN)6].
Entry Catalyst (mol%) Solvent
Base
K2CO3
K2CO3
K2CO3
K2CO3
KOH
Time (h)
Yield (%)
1
2
3
4
5
6
7
8
9
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.25
0.1
Toluene
DMF
NMP
DMSO
DMF
DMF
DMF
DMF
DMF
DMF
DMF
2
2
2
2
2
2
2
3
3
3
3
70
82
65
45
45
52
88
98
78
98
0
NaOH
Na2CO3
Na2CO3
Na2CO3
Na2CO3
Na2CO3
10
11
0.3
0
242
243
Reaction conditions: p-NO2C6H4Br (1.5 mmol), K4Fe(CN)6 (0.2 mmol), base (1.8 mmol), DMF (6.0 mL), 120
°C.
244
245
Table 2. Catalytic role of Pd/CoFe2O4/chitosan hybrid nanocatalyst in the synthesis of
benzonitriles.
Entry
R
X
I
I
I
I
Yielda (%)
1
2
3
4
m-NO2
p-CH3O
p-CH3
m-CH3
97
95
93
91
14

5
6
7
8
9
10
11
12
o-CH3
m-NO2
p-NO2
p-CH3O
p-CN
p-CH3
m-CH3
o-CH3
I
90
96
98
94
99
92
89
88
Br
Br
Br
Br
Br
Br
Br
246
247
Reaction conditions: aryl halides (1.5 mmol), K4Fe(CN)6 (0.2 mmol), Na2CO3 (1.8 mmol), Pd/CoFe2O4/chitosan
hybrid nanocatalyst (0.25 mol %), DMF (6.0 mL), 3h, 120 °C.
248
a Isolated yields.
249
250
Table 3. Comparison of Pd/CoFe2O4/chitosan hybrid nanocatalyst with other reported
catalysts in the cyanation of p-NO2C6H4Br.
251
Entry
Catalyst
Pd@CuFe2O4
Pd-CD-PU-NS
Time Yield (%)
Ref.
[21]
[52]
[53]
[54]
1
2
3
4
5
6
7
24 h
10 h
12 h
7h
78
89
85
85
93
95
98
Pd-LHMS-3
Pd NPs
Pd/PPy nanocomposite
Pd NPs@CAP
6h
8h
[31]
[55]
Pd/CoFe2O4/chitosan hybrid nanocatalyst
3h
Present study
252
253
254
255
256
257
258
259
260
261
On the other hand, the catalytic performance of Pd/CoFe2O4/chitosan hybrid
nanocatalyst was also investigated in 2-NA reduction in water at room temperature using
NaBH4 as the hydrogen source. 2-NA reduction in the presence of Pd/CoFe2O4/chitosan
nanocatalyst was followed by UV-Vis spectroscopy. It is known that 2-NA has typical UV-
Vis bands of λmax at about 283 nm and 410 nm [56]. It was reported that following the
reduction of 2-NA i) the band at 410 nm diminished and ii) the band at 2 3 nm shifted to
higher wavelength due to the formation of o-phenylenediamine [57]. In this study, as
observed in Fig. 6a, 2-NA gave two characteristic absorption bands at 283 nm and 400 nm in
the absence of Pd/CoFe2O4/chitosan hybrid nanocatalyst. After adding the prepared
15

262
263
264
265
266
267
268
269
270
271
272
Pd/CoFe2O4/chitosan hybrid nanocatalyst into the reaction mixture containing 2-NA and
NaBH4, the adsorption band of 2-NA at 410 nm gradually decreased as the catalytic reaction
proceeded and completely disappeared within 65 s. Additionally, it was observed that the
yellow color of the reaction mixture solution converted into colorless as the reaction
continued. Moreover, the band at 283 nm shifted to 292 nm, confirming the formation of o-
phenylenediamine. These observations showed that 2-NA was successfully converted to o-
phenylenediamine by Pd/CoFe2O4/chitosan hybrid nanocatalyst within 65 s. On the other
hand, the control experiment was performed in the absence of Pd/CoFe2O4/chitosan hybrid
nanocatalyst and no reduction product was observed at extended period of time in the UV-Vis
spectrum. This indicated that Pd/CoFe2O4/chitosan hybrid nanocatalyst was critically
important in the 2-NA reduction.
273
274
275
276
Fig. 6b displayed shows a linear correlation between ln (c/c0) and reaction time (t) for
2-NA reduction using Pd/CoFe2O4/chitosan hybrid nanocatalyst. Since NaBH4 concentration
is higher than that of 2-NA, the catalytic system follows pseudo first order kinetics. The rate
constant was calculated as 0.0131s-1 using the following equation:
277
ln (c/c0)ꢀ=ꢀ-kt
278
279
where, c0 and c are the initial concentrations of 2-NA at tested reaction time (t), and
also k (s-1) is the reaction rate.
280
281
282
283
284
285
It has been reported that ferrites NPs are important magnetic materials, which are used
for various applications such as drug delivery, magnetothermal therapy, microwave absorbent
sensors, and as catalysts in for many organic transformations [58,59]. However, among the
nanoparticles, Pd NPs stand out as effective catalysts due to their high activity and stability in
different organic reactions. For further investigation, the activity of Pd/CoFe2O4/chitosan
nanocatalyst was compared to that of CoFe2O4/chitosan nanocatalyst. Cyanation of p-
16

286
287
288
289
290
291
NO2C6H4Br, which was selected as the model reaction, was carried out in the presence of
CoFe2O4/chitosan nanocatalyst under optimal reaction conditions (Na2CO3, DMF, 120 °C, 3 h
etc.) and a very low yield was obtained (~3%). On the other hand, the reduction of 2-NA in
the presence of CoFe2O4/chitosan nanocatalyst was complete after 15 min. These results show
that the designed Pd/CoFe2O4/chitosan nanocatalyst is critically significant in the cyanation of
aryl halides and 2-NA reduction.
292
293
294
295
To show the superiority of Pd/CoFe2O4/chitosan hybrid nanocatalyst, its catalytic
efficiency was compared with that of some reported catalysis in 2-NA reduction (Table 4).
According to the results, Pd/CoFe2O4/chitosan is a more effective catalyst than other catalysts
in terms of reaction time and catalyst amount.
296
297
298
299
Fig. 6. UV-Vis spectrum of the product of 2-NA reduction in the presence of
Pd/CoFe2O4/chitosan hybrid nanocatalyst (a) and linear dependence graph between ln(c/c0)
and time (b)
300
301
Table 4. Comparison of Pd/CoFe2O4/chitosan hybrid nanocatalyst with some reported
catalysts in 2-NA reduction.
Entry
Catalyst
Amount of catalyst
10 mg
Time
150 s
6 min
8 min
Ref.
[38]
[60]
[61]
1
2
3
SiO2@CuxO@TiO2
MMT@Fe3O4@Cu MNPs
Fe-Cu@MCC system
20 mg
0.05g
17

4
5
6
Fe3O4@SiO2@Cu-Ni-Fe-Cr LDH
NiFe2O4@Cu NPs
0.01g
0.15g
6 mg
13 min
1 min
1.5 h
[62]
[63]
[64]
Pd NPs/RGO
7
Ag/mNC nanocatalyst
5 mg
3 h
[65]
8
9
10
Fe3O4‐ Glu‐ Ag nanocatalyst
Fe3O4@EDTA-Pd
Pd/CoFe2O4/chitosan hybrid nanocatalyst
60 mg
20 mg
4 mg
12 min
10 min
65 s
[66]
[67]
Present
study
302
303
3.3. Recyclability of Pd/CoFe2O4/chitosan hybrid nanocatalyst
304
305
306
307
308
309
310
311
312
313
314
Recyclability/recoverability is one of the significant properties of catalyst systems from
economic, practical and sustainability aspects. Therefore, the reusability of
Pd/CoFe2O4/chitosan hybrid nanocatalyst was tested in both p-NO2C6H4Br cyanation and 2-
NA reduction. To reuse Pd/CoFe2O4/chitosan nanocatalyst, it was readily recovered using an
external magnet after each catalytic test, rinsed with water and dried for further tests. The
recyclability tests indicated that Pd/CoFe2O4/chitosan hybrid nanocatalyst successfully
catalyzed both cyanation of p-NO2C6H4Br and reduction of 2-NA for five successive times.
The SEM and TEM analyses of Pd/CoFe2O4/chitosan hybrid nanocatalyst after five cycles
indicated that its particle size, shape and morphology were almost the same as that of the fresh
catalyst (Fig. 7), confirming the excellent chemical stability of Pd/CoFe2O4/chitosan hybrid
nanocatalyst.
315
18

316
317
Fig. 7. SEM and TEM images of recycled Pd/CoFe2O4/chitosan hybrid nanocatalyst after the
5 runs.
318
4. Conclusion
319
320
321
322
323
324
325
326
327
328
329
330
331
332
In conclusion, a new heterogeneous palladium nanocatalyst system was successfully
fabricated on CoFe2O4/chitosan beads as a stabilizer and characterized. Characterization
studies showed that Pd NPs were immobilized on CoFe2O4/chitosan hybrid beads and their
particle size was about 20 nm. The catalytic potential of Pd/CoFe2O4/chitosan hybrid
nanocatalyst was then tested in the aryl halide cyanation and 2-NA reduction. Different
benzonitriles were successfully generated with excellent yields using Pd/CoFe2O4/chitosan
hybrid nanocatalyst. Additionally, Pd/CoFe2O4/chitosan hybrid nanocatalyst converted 2-NA
to o-phenylenediamine within only 65 s. Furthermore, it was found that Pd/CoFe2O4/chitosan
hybrid nanocatalyst can be reused up to five cycles in both reactions. To sum up, the designed
catalytic system exhibited valuable characteristics such as facile recoverability, high stability,
easy work-up, long life, and excellent catalytic activity within a short reaction time.
Considering the unique properties of Pd/CoFe2O4/chitosan hybrid nanocatalyst, it can be
utilized in the degradation of environmental pollutants such as organic dyes/nitroarenes and
production of different benzonitriles.
333
334
335
Conflict of Interest: Authors declare no conflict of interest.
336
Acknowledgments
337
338
We gratefully acknowledge Aksaray University and the University of Qom for the support of
this work.
19

339
340
341
Appendix A. Supplementary data
Contains information about the GC-MS spectra of synthesized benzonitriles.
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
References
[1] M. Nasrollahzadeh, Z. Issaabadi, M. M. Tohidi, S. M. Sajadi, Recent progress in
application of graphene supported metal nanoparticles in C−C and C−X coupling reactions,
Chemical Record, 18(2) (2018) 165-229.
[2] M.-C. Daniel, D. Astruc, Gold nanoparticles: assembly, supramolecular chemistry,
quantum-size-related properties, and applications toward biology, catalysis, and
nanotechnology, Chemical reviews, 104 (2004) 293-346.
[3] A. Zhang, M. Liu, M. Liu, Y. Xiao, Z. Li, J. Chen, Y. Sun, J. Zhao, S. Fang, D. Jia,
Homogeneous Pd nanoparticles produced in direct reactions: green synthesis, formation
mechanism and catalysis properties, Journal of Materials Chemistry A, 2 (2014) 1369-1374.
[4] U. S. Kanchana, T. V. Mathew, G. Anilkumar, Recent advances and prospects in the
nickel- catalyzed cyanation, Journal of Organometallic Chemistry, 920 (2020) 121337.
[5] P. Das, W. Linert, Schiff base-derived homogeneous and heterogeneous palladium
catalysts for the Suzuki–Miyaura reaction, Coordination Chemistry Reviews, 311 (2016) 1-
23.
[6] A. Naghipour, A. Fakhri, Heterogeneous Fe3O4@chitosan-Schiff base Pd nanocatalyst:
Fabrication, characterization and application as highly efficient and magnetically-recoverable
catalyst for Suzuki–Miyaura and Heck–Mizoroki C–C coupling reactions, Catalysis
Communications, 73 (2016) 39-45.
20

362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
[7] V. Polshettiwar, Á. Molnár, Silica-supported Pd catalysts for Heck coupling reactions,
Tetrahedron, 30 (2007) 6949-6976.
[8] T. Baran, M. Nasrollahzadeh, Facile synthesis of palladium nanoparticles immobilized on
magnetic biodegradable microcapsules used as effective and recyclable catalyst in Suzuki-
Miyaura reaction and p-nitrophenol reduction, Carbohydrate Polymers, 222 (2019) 115029.
[9] R. Hassandoost, S. R. Pouran, A. Khataee, Y. Orooji, S. W. Joo, Hierarchically structured
ternary heterojunctions based on Ce3+/Ce4+ modified Fe3O4 nanoparticles anchored onto
graphene oxide sheets as magnetic visible-light-active photocatalysts for decontamination of
oxytetracycline. Journal of Hazardous Materials 376 (2019) 200-211.
[10] M. Kazemi, M. Ghobadi, A. Mirzaie, Cobalt ferrite nanoparticles (CoFe2O4 MNPs) as
catalyst and support: magnetically recoverable nanocatalysts in organic synthesis,
Nanotechnology Reviews, 7 (2018) 43-68.
[11] K. Tarade, S. Shinde, C. Rode, Magnetically separable catalyst for condensation of
renewable aldehydes and 2-methylfuran to saturated cyclic oxygenates, Fuel Processing
Technology, 197 (2020) 106191.
[12] W. Xie, H. Wang, Immobilized polymeric sulfonated ionic liquid on core-shell structured
Fe3O4/SiO2 composites:
A
magnetically recyclable catalyst for simultaneous
transesterification and esterifications of low-cost oils to biodiesel, Renewable Energy, 145
(2020) 1709-1719.
[13] M. Nasrollahzadeh, M. Bagherzadeh, H. Karimi, Preparation, characterization and
catalytic activity of CoFe2O4 nanoparticles as a magnetically recoverable catalyst for selective
oxidation of benzyl alcohol to benzaldehyde and reduction of organic dyes, Journal of Colloid
and Interface Science, 465 (2016) 271-278.
21

385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
[14] K. Maaz, A. Mumtaz, S.K. Hasanain, A. Ceylan, Synthesis and magnetic properties of
cobalt ferrite (CoFe2O4) nanoparticles prepared by wet chemical route, Journal of Magnetism
and Magnetic Materials, 308 (2007) 289-295.
[15] A.R. Hajipour, P. Abolfathi, Novel triazole-modified chitosan@nickel nanoparticles:
efficient and recoverable catalysts for Suzuki reaction, New Journal of Chemistry, 41 (2017)
2386-2391.
[16] T. Baran, A. Menteş, Highly efficient Suzuki cross-coupling reaction of biomaterial
supported catalyst derived from glyoxal and chitosan, Journal of Organometallic Chemistry,
803 (2016) 30-38.
[17] T. Baran, I. Sargin, Green synthesis of a palladium nanocatalyst anchored on magnetic
lignin-chitosan beads for synthesis of biaryls and aryl halide cyanation, International Journal
of Biological Macromolecules, 155 (2020) 814-822.
[18] I. Sargin, G. Arslan, Effect of glutaraldehyde cross-linking degree of
chitosan/sporopollenin microcapsules on removal of copper (II) from aqueous solution,
Desalination and Water Treatment, 57 (2016) 10664-10676.
[19] F. Rafiee, F. Rezaie Karder, Bio-crosslinking of chitosan with oxidized starch, its
functionalization with amino acid and magnetization: As a green magnetic support for silver
immobilization and its catalytic activity investigation, International Journal of Biological
Macromolecules, 146 (2020) 1124-1132.
[20] F. Rafiee, F. Rezaie Karder, Synthesis and characterization of magnetic glycocyamine-
modified chitosan as a biosupport for the copper immobilization and its catalytic activity
investigation, Reactive and Functional Polymers, 146 (2020) 104434.
[21] F. Rafiee, F. Rezaie Karder, Pd nanoparticles immobilized on the magnetic silica-
chitosan nanocomposite (NiFe2O4@SiO2@CS-Pd NPs) promoted the biaryl synthesis, Journal
of the Iranian Chemical Society, 16 (2019) 1993-2001.
22

410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
[22] P. Anbarasan, T. Schareina, M. Beller, Recent developments and perspectives in
palladium-catalyzed cyanation of aryl halides: synthesis of benzonitriles, Chemical Society
Reviews, 40 (2011) 5049-5067.
[23] P. Anbarasan, T. Schareina, M. Beller, Recent developments and perspectives in
palladium-catalyzed cyanation of aryl halides: synthesis of benzonitriles, Chemical Society
Reviews, 40 (2011) 5049-5067.
[24] K.W. Rosenmund, E. Struck, Das am Ringkohlenstoff gebundene Halogen und sein
Ersatz durch andere Substituenten. I. Mitteilung: Ersatz des Halogens durch die
Carboxylgruppe, Berichte der deutschen chemischen Gesellschaft (A and B Series), 52 (1919)
1749-1756.
[25] T. Sandmeyer, Ueber die Ersetzung der Amid‐ gruppe durch Chlor, Brom und Cyan in
den aromatischen Substanzen, Berichte der deutschen chemischen Gesellschaft, 17 (1884)
2650-2653.
[26] G.P. Ellis, T.M. Romney-Alexander, Cyanation of aromatic halides, Chemical Reviews,
87 (1987) 779-794.
[27] D. Ganapathy, S.S. Kotha, G. Sekar, Stable palladium nanoparticles catalyzed synthesis
of benzonitriles using K4[Fe(CN)6], Tetrahedron Letters, 56 (2015) 175-178.
[28] T. Schareina, A. Zapf, M. Beller, Improving palladium-catalyzed cyanation of aryl
halides: development of a state-of-the-art methodology using potassium hexacyanoferrate (II)
as cyanating agent, Journal of organometallic chemistry, 689 (2004) 4576-4583.
[29] M. Sundermeier, A. Zapf, M. Beller, Palladium‐ catalyzed cyanation of aryl halides:
Recent developments and perspectives, European Journal of Inorganic Chemistry, 2003
(2003) 3513-3526.
23

433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
[30] P. Y. Yeung, C. M. So, C. P. Lau, F. Y. Kwong, A mild and efficient palladium-
catalyzed cyanation of aryl chlorides with K4[Fe(CN)6], Organic Letters, 13(4) (2011) 648-
651.
[31] T.V. Magdesieva, O.M. Nikitin, E.V. Zolotukhina, M.A. Vorotyntsev, Palladium
nanoparticles–polypyrrole composite as an efficient catalyst for cyanation of aryl halides,
Electrochimica Acta, 122 (2014) 289-295.
[32] M. Nasrollahzadeh, S.M. Sajadi, Green synthesis of Pd nanoparticles mediated by
Euphorbia thymifolia L. leaf extract: Catalytic activity for cyanation of aryl iodides under
ligand-free conditions, Journal of Colloid and Interface Science, 469 (2016) 191-195.
[33] T. Schareina, A. Zapf, M. Beller, An environmentally benign procedure for the Cu-
catalyzed cyanation of aryl bromides, Tetrahedron letters, 46 (2005) 2585-2588.
[34] P.Y. Yeung, C.P. Tsang, F.Y. Kwong, Efficient cyanation of aryl bromides with
K4[Fe(CN)6] catalyzed by a palladium-indolylphosphine complex, Tetrahedron Letters, 52
(2011) 7038-7041.
[35] T. Baran, Pd NPs@Fe3O4/chitosan/pumice hybrid beads: A highly active, magnetically
retrievable, and reusable nanocatalyst for cyanation of aryl halides, Carbohydrate Polymers,
237 (2020) 116105.
[36] S.M. Sajjadi, M. Nasrollahzadeh, M. Maham, Aqueous extract from seeds of Silybum
marianum L. as a green material for preparation of the Cu/Fe3O4 nanoparticles: A
magnetically recoverable and reusable catalyst for the reduction of nitroarenes, Journal of
Colloid and Interface Science, 469 (2016) 93-98.
[37] A.K. Abay, D.-H. Kuo, X. Chen, A.D. Saragih, A new V-doped Bi2(O,S)3 oxysulfide
catalyst for highly efficient catalytic reduction of 2-nitroaniline and organic dyes,
Chemosphere, 189 (2017) 21-31.
24

457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
[38] O.A. Zelekew, D.-H. Kuo, Facile synthesis of SiO2@CuxO@TiO2 heterostructures for
catalytic reductions of 4-nitrophenol and 2-nitroaniline organic pollutants, Applied Surface
Science, 393 (2017) 110-118.
[39] K. Naseem, R. Begum, Z.H. Farooqi, Catalytic reduction of 2-nitroaniline: a review,
Environmental Science and Pollution Research, 24 (2017) 6446-6460.
[40] P. Chen, W. Lo, K. Hu, Molecular structures of mononitroanilines and their thermal
decomposition products, Theoretica Chimica Acta, 95 (1997) 99-112.
[41] K. Manjunatha, T.S. Koley, V. Kandathil, R.B. Dateer, G. Balakrishna, B. Sasidhar, S.A.
Patil, S.A. Patil, Magnetic nanoparticle‐ tethered Schiff base–palladium (II): Highly active
and reusable heterogeneous catalyst for Suzuki–Miyaura cross‐ coupling and reduction of
nitroarenes in aqueous medium at room temperature, Applied Organometallic Chemistry, 32
(2018) e4266.
[42] K. Li, Z. Zheng, X. Huang, G. Zhao, J. Feng, J. Zhang, Equilibrium, kinetic and
thermodynamic studies on the adsorption of 2-nitroaniline onto activated carbon prepared
from cotton stalk fibre, Journal of Hazardous Materials, 166 (2009) 213-220.
[43] R. Begum, K. Naseem, E. Ahmed, A. Sharif, Z.H. Farooqi, Simultaneous catalytic
reduction of nitroarenes using silver nanoparticles fabricated in poly(N-isopropylacrylamide-
acrylic acid-acrylamide) microgels, Colloids and Surfaces A: Physicochemical and
Engineering Aspects, 511 (2016) 17-26.
[44] Y.-C. Chang, D.-H. Chen, Catalytic reduction of 4-nitrophenol by magnetically
recoverable Au nanocatalyst, Journal of hazardous materials, 165 (2009) 664-669.
[45] R. Rajesh, R. Venkatesan, Encapsulation of silver nanoparticles into graphite grafted
with hyperbranched poly (amidoamine) dendrimer and their catalytic activity towards
reduction of nitro aromatics, Journal of Molecular Catalysis A: Chemical, 359 (2012) 88-96.
25

481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
[46] M. Shah, Q.-X. Guo, Y. Fu, The colloidal synthesis of unsupported nickel‐ tin bimetallic
nanoparticles with tunable composition that have high activity for the reduction of
nitroarenes, Catalysis Communications, 65 (2015) 85-90.
[47] S. Liu, M.-Q. Yang, N. Zhang, Y.-J. Xu, Nanocomposites of graphene-CdS as
photoactive and reusable catalysts for visible-light-induced selective reduction process,
Journal of energy chemistry, 23 (2014) 145-155.
[48] C.-S. Shin, D.-Y. Kim, W.-S. Shin, Characterization of chitosan extracted from
Mealworm Beetle (Tenebrio molitor, Zophobas morio) and Rhinoceros Beetle (Allomyrina
dichotoma) and their antibacterial activities, International Journal of Biological
Macromolecules, 125 (2019) 72-77.
[49] F. Huixia, C. Baiyi, Z. Deyi, Z. Jianqiang, T. Lin, Preparation and characterization of the
cobalt ferrite nano-particles by reverse coprecipitation, Journal of Magnetism and Magnetic
Materials, 356 (2014) 68-72.
[50] S. Ayyappan, J. Philip, B. Raj, A facile method to control the size and magnetic
properties of CoFe2O4 nanoparticles, Materials Chemistry and Physics, 115 (2009) 712-717.
[51] M. Khan, M. Khan, M. Kuniyil, S.F. Adil, A. Al-Warthan, H.Z. Alkhathlan, W. Tremel,
M.N. Tahir, M.R.H. Siddiqui, Biogenic synthesis of palladium nanoparticles using Pulicaria
glutinosa extract and their catalytic activity towards the Suzuki coupling reaction, Dalton
Transactions, 43 (2014) 9026-9031.
[52] S. Khajeh Dangolani, S. Sharifat, F. Panahi, A. Khalafi-Nezhad, Immobilized palladium
nanoparticles on a cyclodextrin-polyurethane nanosponge (Pd-CD-PU-NS): An efficient
catalyst for cyanation reaction in aqueous media, Inorganica Chimica Acta, 494 (2019) 256-
265.
26

504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
[53] A. Modak, J. Mondal, A. Bhaumik, Pd-grafted periodic mesoporous organosilica: an
efficient heterogeneous catalyst for Hiyama and Sonogashira couplings, and cyanation
reactions, Green Chemistry, 14 (2012) 2840-2855.
[54] V. Kandathil, R.B. Dateer, B. Sasidhar, S.A. Patil, S.A. Patil, Green synthesis of
palladium nanoparticles: applications in aryl halide cyanation and hiyama cross-coupling
reaction under ligand free conditions, Catalysis Letters, 148 (2018) 1562-1578.
[55] T. Baran, M. Nasrollahzadeh, Cyanation of aryl halides and Suzuki-Miyaura coupling
reaction using palladium nanoparticles anchored on developed biodegradable microbeads,
International Journal of Biological Macromolecules, 148 (2020) 565-573.
[56] R. Begum, J. Najeeb, G. Ahmad, W. Wu, A. Irfan, A.G. Al-sehemi, Z.H. Farooqi,
Synthesis and characterization of poly(N-isopropylmethacrylamide-co-acrylic acid) microgels
for in situ fabrication and stabilization of silver nanoparticles for catalytic reduction of o-
nitroaniline in aqueous medium, Reactive and Functional Polymers, 132 (2018) 89-97.
[57] M. Thomas, G.A. Naikoo, M.U.D. Sheikh, M. Bano, F. Khan, Fabrication of
hierarchically organized nanocomposites of Ba/alginate/carboxymethylcellulose/graphene
oxide/Au nanoparticles and their catalytic efficiency in o-nitroaniline reduction, New Journal
of Chemistry, 39 (2015) 9761-9771.
[58] S. Y Srinivasan, K. M. Paknikar, D. Bodas, V. Gajbhiye, Applications of cobalt ferrite
nanoparticles in biomedical nanotechnology, Nanomedicine, 13(10) (2018) 1221-1238.
[59] B. I. Kharisov, H.V. Rasika Dias, O. V. Kharissova, Mini-review: Ferrite nanoparticles
in the catalysis, Arabian Journal of Chemistry, 12(7) (2019) 1234-1246.
[60] B. Zeynizadeh, S. Rahmani, H. Tizhoush, The immobilized Cu nanoparticles on
magnetic montmorillonite (MMT@Fe3O4@Cu): As an efficient and reusable nanocatalyst
for reduction and reductive-acetylation of nitroarenes with NaBH4, Polyhedron, 175 (2020)
114201.
27

529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
[61] S. Karami, B. Zeynizadeh, Z. Shokri, Cellulose supported bimetallic Fe–Cu
nanoparticles: a magnetically recoverable nanocatalyst for quick reduction of nitroarenes to
amines in water, Cellulose, 25 (2018) 3295-3305.
[62] M. Gilanizadeh, B. Zeynizadeh, Synthesis of magnetic Fe3O4@SiO2@Cu–Ni–Fe–Cr
LDH: an efficient and reusable mesoporous catalyst for reduction and one-pot reductive-
acetylation of nitroarenes, Journal of the Iranian Chemical Society, 15 (2018) 2821-2837.
[63] B. Zeynizadeh, I. Mohammadzadeh, Z. Shokri, S.A. Hosseini, Synthesis and
characterization of NiFe2O4@ Cu nanoparticles as a magnetically recoverable catalyst for
reduction of nitroarenes to arylamines with NaBH4, Journal of colloid and interface science,
500 (2017) 285-293.
[64] M. Nasrollahzadeh, S.M. Sajadi, A. Rostami-Vartooni, M. Alizadeh, M. Bagherzadeh,
Green synthesis of the Pd nanoparticles supported on reduced graphene oxide using barberry
fruit extract and its application as a recyclable and heterogeneous catalyst for the reduction of
nitroarenes, Journal of colloid and interface science, 466 (2016) 360-368.
[65] X. Cui, H. Li, M. Yuan, J. Yang, D. Xu, Z. Li, G. Yu, Y. Hou, Z. Dong, Facile
preparation of fluffy N-doped carbon modified with Ag nanoparticles as a highly active and
reusable catalyst for catalytic reduction of nitroarenes, Journal of Colloid and Interface
Science, 506 (2017) 524-531.
[66] M. Kumari, R. Gupta, Y. Jain, Fe3O4–Glutathione stabilized Ag nanoparticles: A new
magnetically separable robust and facile catalyst for aqueous phase reduction of nitroarenes,
Applied Organometallic Chemistry, 33 (2019) e5223.
[67] K. Azizi, E. Ghonchepour, M. Karimi, A. Heydari, Encapsulation of Pd (II) into
superparamagnetic nanoparticles grafted with EDTA and their catalytic activity towards
reduction of nitroarenes and Suzuki–Miyaura coupling, Applied Organometallic Chemistry,
29 (2015) 187-194.
28
