Internal Catalysis in Covalent Adaptable Networks: Phthalate Monoester Transesterification As a Versatile Dynamic Cross-Linking Chemistry

Article abstract of DOI:10.1021/jacs.9b07269

Covalent adaptable networks (CANs) often make use of highly active external catalysts to provide swift exchange of the dynamic chemical bonds. Alternatively, milder species can act as internal catalysts when covalently attached to the matrix and in close proximity to the dynamic bonds. In this context, we introduce the dynamic exchange of phthalate monoesters as a novel chemistry platform for covalent adaptable networks. A low-molecular-weight (MW) model study shows that these monoesters undergo fast transesterification via a dissociative mechanism, caused by internal catalysis of the free carboxylic acid, which reversibly forms an activated phthalic anhydride intermediate. Using this dynamic chemistry, a wide series of CANs with a broad range of properties have been prepared by simply curing a mixture of diols and triols with bifunctional phthalic anhydrides. The dynamic nature of the networks was confirmed via recycling experiments for multiple cycles and via stress relaxation using rheology. The networks proved to be resistant to deformation but showed a marked temperature response in their rheological behavior, related to the swift exchange reactions that have a high activation energy (120 kJ/mol). While densely cross-linked and hydrolytically stable polyester networks with low soluble fractions can be obtained, we found that, by swelling the networks in a hot solvent, a gel-to-sol transition happened, which resulted in the full dissolution of the network.

Full text of DOI:10.1021/jacs.9b07269

Subscriber access provided by Nottingham Trent University
Article
Internal catalysis in covalent adaptable networks: phthalate monoester
transesterification as a versatile dynamic crosslinking chemistry
Maarten Delahaye, Johan M. Winne, and Filip E Du Prez
J. Am. Chem. Soc., Just Accepted Manuscript • DOI: 10.1021/jacs.9b07269 • Publication Date (Web): 30 Aug 2019
Downloaded from pubs.acs.org on August 30, 2019
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the
course of their duties.

Page 1 of 18
Journal of the American Chemical Society
1
2
3
4
5
6
Internal catalysis in covalent adaptable networks: phthalate monoester
transesterification as a versatile dynamic crosslinking chemistry
Maarten Delahaye1, Johan M. Winne*2, Filip E. Du Prez*1
7
8
9
1Polymer Chemistry Research Group (PCR), Centre of Macromolecular Chemistry (CMaC), Department
of Organic and Macromolecular Chemistry, Ghent University; Krijgslaan 281 S4-bis, B-9000 Ghent,
Belgium. E-mail: filip.duprez@ugent.be
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2Laboratory for Organic Synthesis, Department of Organic and Macromolecular Chemistry, Ghent
University; Krijgslaan 281 S4, B-9000 Ghent, Belgium. E-mail: johan.winne@ugent.be
Abstract
Covalent adaptable networks (CANs) often make use of highly active external catalysts to provide swift
exchange of the dynamic chemical bonds. Alternatively, milder species can act as an internal catalyst
when covalently attached to the matrix and in close proximity to the dynamic bonds. In this context,
we introduce the dynamic exchange of phthalate monoesters as a novel chemistry platform for
covalent adaptable networks. A low MW model study shows that these monoesters undergo fast
transesterification via a dissociative mechanism, caused by internal catalysis of the free carboxylic acid,
which reversibly forms an activated phthalic anhydride intermediate. Using this dynamic chemistry, a
wide series of CANs with a broad range of properties have been prepared by simply curing a mixture
of diols and triols with bifunctional phthalic anhydrides. The dynamic nature of the networks was
confirmed via recycling experiments for multiple cycles and via stress relaxation using rheology. The
networks proved to be resistant to deformation but showed a marked temperature response in their
rheological behavior, related to the swift exchange reactions that have a high activation energy (120
kJ/mol). While densely crosslinked and hydrolytically stable polyester networks with low soluble
fractions can be obtained, we found that by swelling the networks in a hot solvent, a gel-to-sol
transition happened, which resulted in the full dissolution of the network.
Introduction
Because of their excellent mechanical properties, thermosets are a widely used class of polymers.
However, due to their fixed crosslinked nature, thermosets need to be synthesized or ‘cured’ in their
desired final shape, giving a rigid material that cannot be reprocessed or recycled. A compromise
between thermoset rigidity and thermoplastic processing abilities can be found in reversibly cross-
linked polymer networks. These dynamic polymer networks have been referred to as covalent
adaptable networks or CANs, as their molecular architecture is malleable and it can adapt to external
stimuli by the rearrangement of network bonds.1-3
Based on the mechanism of exchange, CANs are typically subdivided in two classes. The first group
makes use of a so-called dissociative mechanism, for example the Diels-Alder reaction between furans
and maleimides.4,5 Here, the dynamic bond is in a thermal equilibrium with its constituent reagents.
By heating, this equilibrium should shift toward the reagents and thus a dissociated state. On the level
of the material, this dissociation leads to a depolymerization, which can cause an abrupt viscosity drop
related to a gel-to-sol transition, or a loss of network integrity, making the polymer not only more
liquid but also soluble.5 In 2011, Leibler and coworkers introduced a second class of CANs that undergo
dynamic exchanges without decrosslinking, following a so-called associative mechanism. In fact, these
CANs were found to show a highly unusual thermal behavior, not corresponding to that of thermosets
or thermoplastics, but to that of materials known as strong glass formers, a category known mainly for
inorganic materials. Because of the high resemblance in thermal properties of these remarkable CANs
to vitreous silica materials, these materials were called ‘vitrimers’.6 Leibler designed his vitrimers
1
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 2 of 18
1
2
3
4
5
6
7
8
9
around the transesterification of polyester-polyol networks, doped with a Lewis acid or strong base to
catalyze the addition/elimination of the pendant hydroxyl moiety to ester crosslinks.7 Since then, a lot
of associative covalent exchange chemistries have been explored in the context of vitrimers,8 such as
anhydride exchange,9 boronic esters10-12 and silyl ethers13 in the last couple of years. In our group, the
transamination of vinylogous urethanes14-16 or vinylogous ureas17 and the transalkylation of sulfonium
salts18 have been developed as chemistry platforms for associative CANs, together with the dissociative
triazolinedione chemistry19,20 and anthracene dimerization.21
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The unique properties of vitrimers have been related to the peculiarities of the bond exchange
mechanism. In an associative mechanism, a new bond is always formed before the original bond is
broken and the number of cross-links remains constant, preventing a sol-gel transition at all
temperatures (excluding degradation). Because all net molecular motion that results in network
rearrangements are controlled by the same chemical exchange reaction, this fixed cross-link density
results in a rheological behavior that is controlled solely by a chemical reaction rate. Thus, rheological
measurements can be used to determine a chemical activation energy, as the viscosity will show an
Arrhenius-type dependence on the temperature. Another important result of the permanently
crosslinked architecture, is that vitrimers remain insoluble in any non-reactive solvent at all
temperatures.6 Arrhenius-like properties have also been observed in networks that exchange bonds
through dissociative pathways, although at least theoretically such materials should show a gel-to-sol
transition, for instance upon heating in the presence of a good solvent. This behavior was observed for
CANs using furan-maleimide chemistry,22 transalkylation of triazolium salts23 or hindered urea.24
To achieve a swift exchange reaction in CANs, in order to allow macroscopic flow at useful
temperatures, often a highly active catalyst needs to be included as a material additive such as Lewis
acids, Brønsted acids, transition metals, strong bases or nucleophilic catalysts, which can lower the
activation energy of the exchange reaction.6,14,25-28 However, catalytic additives can result in problems
with catalyst ageing and thus in a deterioration of material properties over time. As another major
strategy to achieve rapid exchange kinetics in CANs, intrinsically reactive linking groups have been
introduced in CANs that are reactive even in the absence of a catalyst. However, such reactive moieties
are often also sensitive to hydrolysis, oxidation or other degradation reactions. Examples here are
networks that incorporate maleimides,4 phosphines,29 thiols30,31 and (di)sulphides,32 imines33 or free
amines.15

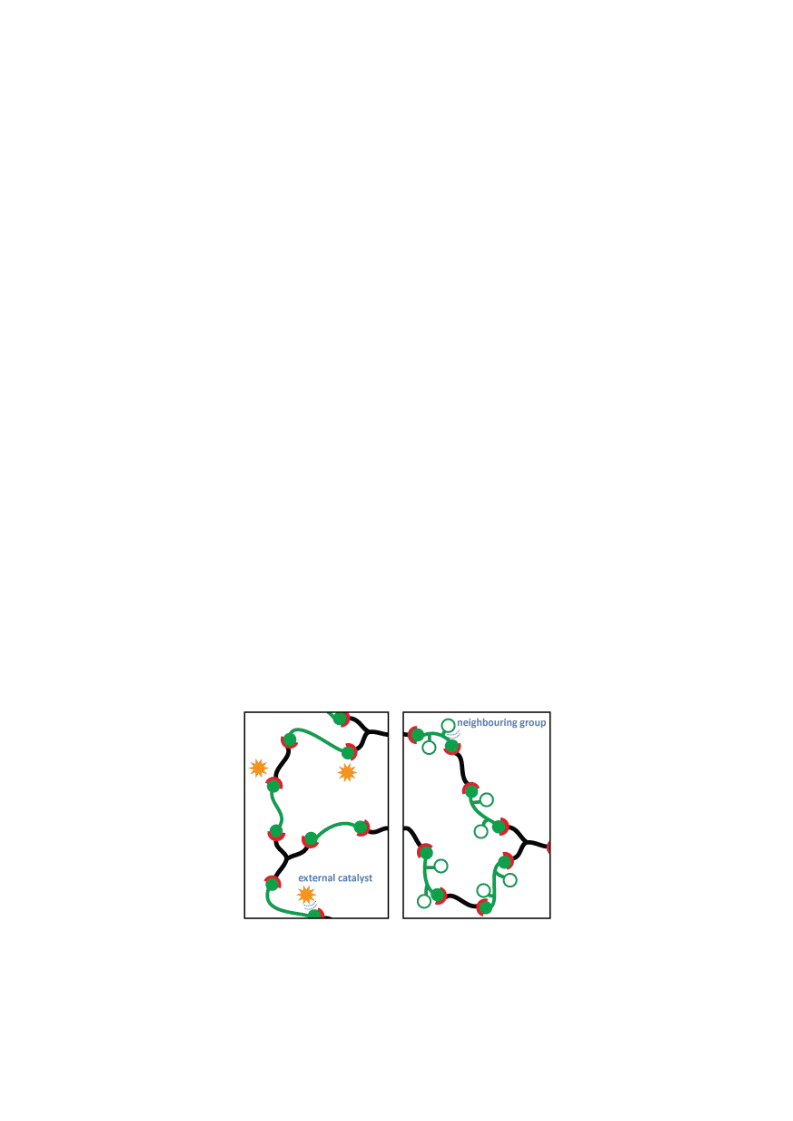

Figure 1: In the case of external catalysis (left), the catalyst (orange star) is often a highly active acid, base or
transition metal. With NGP (right), the catalyst (green hollow dot) is covalently bound to the network next to the
dynamic bond. Because of this proximity effect, less active species can be used as catalyst.
2
ACS Paragon Plus Environment

Page 3 of 18
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
From the outset of this work, we wanted to explore a conceptually novel option to achieve fast
exchange reactions in CANs. For this, our plan was to use only robust chemotypes as monomer,
polymer or crosslinkers in the design of polymer networks, as commonly found in normal industrially
applied polymers, but to combine these simple chemotypes into functional arrays that can undergo
more rapid exchange reactions. This would constitute an example of internal catalysis or neighboring
group participation (NGP). NGP is a classical principle in organic chemistry and has been studied
extensively in bio-organic chemistry, as this is also a mimic or model of enzymatic catalysis.34-36 In
general, NGP is the phenomenon where the relative proximity of functional groups within a compound
results in an enhancement of a reaction rate.37 Explicit applications of this principle in polymer
chemistry were reported in synthesis,38-44 modification45 or hydrolysis,46-50 although they have been
rare. Significant rate enhancements have also been observed in CANs that could be related to the
adventitious placement of neighboring amines10,13 or hydroxyl groups51-53 within the polymer
backbones. This encouraged us to pursue the use of the NGP principle as a design principle in CANs.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The general principle of internal catalysis or NGP for CANs is schematically depicted in Figure 1. It is
important to realize that next to ‘catalyst immobilization’, NGP first and foremost is a catalytic principle
in and of itself, and that in principle much less activated (and thus more robust) species can be used
as a ‘catalyst’ in such a scheme, because the enhancement of the reaction rate is also due to the
proximity effect, lowering the activation entropy rather than the activation enthalpy. Mildly acidic,
basic, electrophilic or nucleophilic functions can thus have a very pronounced (and mostly
temperature-independent) effect on the exchange kinetics.
One well-known example of NGP is the unusually rapid hydrolysis of phthalate monomethylester
(PME), in which the cleavage of the ester bond is greatly accelerated by a neighboring carboxylic
acid,54,55 whereas the corresponding benzoate esters, lacking this carboxylic neighbor, require heating
and strong (Lewis) acid or base catalysts to achieve swift hydrolysis.56 For example, the hydrolysis of
phthalate monomethylester was reported to be 10 times faster at 109°C54 than the ‘background’
hydrolysis of methyl benzoate at 200°C (See Scheme 1).57 Because of the widespread use of phthalates
and polyesters in polymer materials, including high end thermosets, we set out to explore the
internally catalyzed transesterification of PMEs as a chemistry platform for the design and synthesis of
CANs that would not require catalysts.

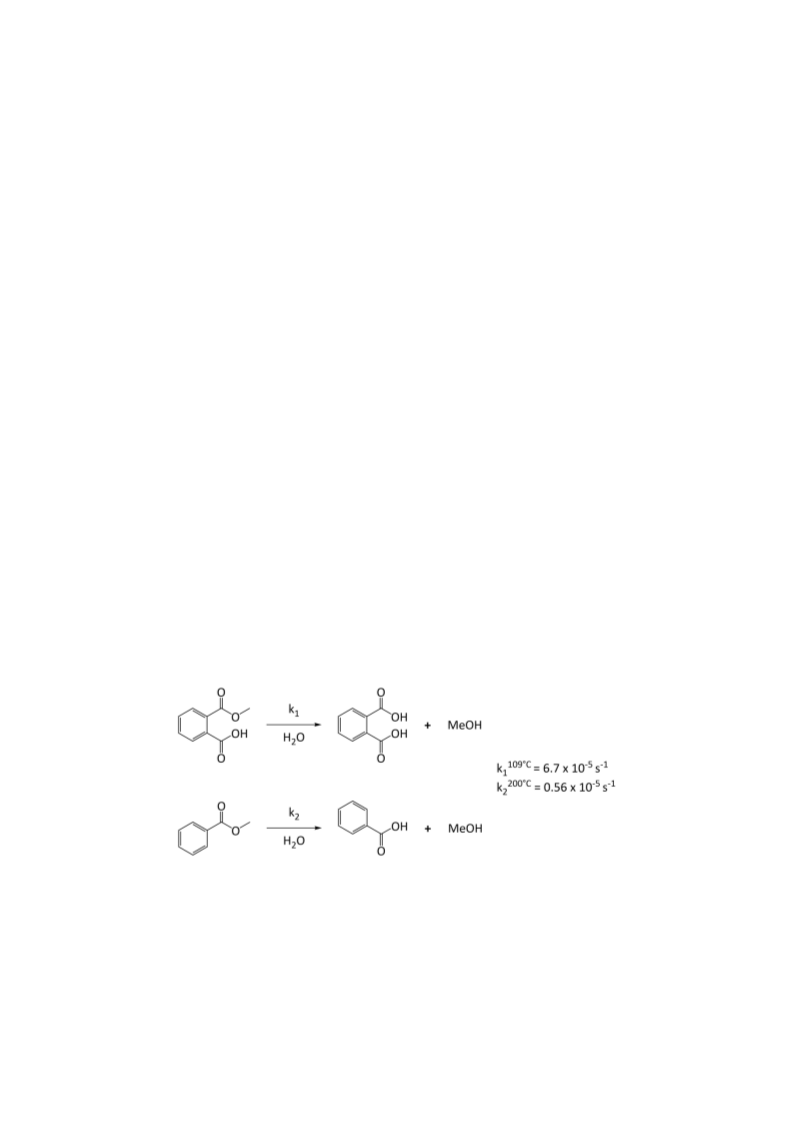

Scheme 1: Neighboring group effect in phthalate monoester (PME) hydrolysis.
As no information could be found in the literature, we started our investigations with the study of the
PME transesterification exchange mechanism, using low MW model compounds to assess the extent
and the nature of the neighboring group effect on transesterification kinetics. This then allowed us to
rationally design and optimize dynamic polyester networks based on PME transesterification
chemistry.
3
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 4 of 18
1
2
3
4
Results and discussion
5
6
7
8
Model Study. While the hydrolysis of phthalate monoesters (PMEs, see Scheme 1) has been studied in
great detail more than 60 years ago,54,55 to the best of our knowledge, the transesterification of PMEs
has not been studied explicitly. Thus, we set out to prepare some low MW PMEs that would allow us
to probe the kinetics of their transesterification reactions.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
In general, PMEs can be readily and selectively prepared by the reaction of a phthalic anhydride with
one equivalent of an alcohol. Even when an excess of the alcohol is used, only the PME is formed, as
the second esterification step of the released carboxylic acid is very slow in the absence of a catalyst.
Synthesis of the phthalate diesters typically requires prolonged heating in an excess of alcohol in the
presence of a strong acid (Fischer esterification) or heating above 200°C in the absence of catalyst. For
the synthesis of our model compounds (Scheme 2), phthalic anhydride was reacted with 1-decanol or
with 2-phenylethanol to obtain the ‘neighboring group’ model compounds phthalate monodecylester
1a and phthalate mono-2-phenylethylester 1b. Next to this, two reference esters (i.e. 2a and 2b),
lacking a pendant carboxyl group, were synthesized starting from benzoyl chloride.
Scheme 2: Synthetic procedure of mono-1-decyl phthalate (1a), mono-2-phenylethyl phthalate 1b, 1-decyl
benzoate (2a) and 2-phenylethyl benzoate (2b).
With the model compounds 1a and 1b in hand, the transesterification kinetics of PMEs were
investigated. Decyl ester 1a was reacted with 5 equiv. of 2-phenylethanol at different temperatures (X
= COOH, Figure 2a). Under these conditions, a clear exchange could be observed at temperatures of
100°C and above. Monitoring of the progression of this exchange was possible by 1H-NMR for a range
of temperatures (i.e. from 120°C to 160°C) by measuring the conversion of the decyl ester into
phenylethyl ester. As depicted in Figure 2b, an equilibrium is reached at longer reaction times, and a
strong temperature dependence is observed. By fitting the experimental data of the mono-phthalate
transesterification with a theoretical equation (see Equation S1),58 the rate constants k were obtained
for every temperature and plotted in an Arrhenius plot, resulting in an observed activation energy of
96 ± 5 kJ/mol (see Figure 2c and SI-file). When the reference compound 1-decyl benzoate 2a (X = H)
was treated under the conditions, no trace of a transesterified product could be detected after heating
to 140°C (Figure 2d), which shows that the free carboxylic acid is vital for a swift exchange. Finally, in
order to focus on the role of proximity of the neighboring carboxylic group, the same reference
experiment was repeated in the presence of one equivalent of benzoic acid. At 140°C, this resulted in
a detectable exchange reaction (blue triangles, Figure 2d), but with a forward reaction rate constant
kBA that is around 20 times smaller than for the neighboring group reaction kNGP (0.00190 vs 0.0388s-1
respectively). Thus, despite the very high concentration of benzoic acid in these reference
experiments, still an acceleration can be observed. These experiments thus demonstrate the clear NGP
effect in PMEs, compared to normal benzoyl esters.
4
ACS Paragon Plus Environment

Page 5 of 18
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2: a) Model reaction used for the kinetic study (X = COOH or H) b) Exchange kinetics between 1a and 2-
phenylethanol from 110 to 160 °C. c) Arrhenius plot of 1a and 2-phenylethanol exchange kinetics. d) Comparison
of the exchange reaction with 2-phenylethanol at 140°C of 1a (with a neighboring effect) and 2a (reference whit
and without external catalyst) e) Kinetic study at 160 °C with stoichiometric ratio of 1a and 2-phenylethanol (black
square), 2 eq. of 2-phenylethanol (blue triangle) and 2 eq. of 1a (red circle).
Since the nature of the exchange mechanism can significantly influence the viscoelastic behavior of
the materials at elevated temperatures, we further explored some model reactions to probe the
reaction mechanism of PME transesterification. A dissociative pathway involves cyclative cleavage of
the ester bond, with the formation of an intermediate anhydride and the release of an alcohol,
followed by the reverse reaction with another alcohol. In an associative mechanism on the other hand,
a new ester bond is directly formed by intermolecular addition of an alcohol to form a tetrahedral
intermediate, followed by expulsion of the other alcohol moiety (See Figure 3a). For hydrolysis of
PMEs, the prevailing mechanism is pH and solvent dependent, but is usually confirmed as a dissociative
pathway via an intermediate phthalic anhydride, and with the pendant carboxylic acid as a ‘general
nucleophilic catalyst’.54 In our case, such a dissociative pathway was also confirmed via investigating
the influence of the concentration of the alcohol in a dilute solution. In DMSO-d6, a reference exchange
reaction was kinetically monitored starting from a 1:1 mixture of PME (1a) and alcohol, both at a 0.1
M concentration. Only changing the concentration of the PME, not of the alcohol, had a significant
effect on the reaction rate (Figure 2e). This result can only be explained via a ‘monomolecular’ rate
5
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 6 of 18
1
2
3
4
5
6
7
8
9
determining step, such as the cyclative formation of the phthalic anhydride, and cannot be reconciled
with an associative addition of the alcohol to the PME. We further conducted some cross-over
experiments between different PMEs in the absence of alcohol to confirm the dissociative pathway.
Here, 1a and tetrafluorophthalic anhydride were mixed in a 1:5 ratio and heated in bulk for two hours
at 160°C in the absence of any alcohol (See Figure 3b). As can be seen from the NMR spectra, the
reaction is nearly quantitative because the aromatic signals of 1a (between 7.5 and 8 ppm) almost
completely disappeared. Furthermore, new signals appeared between 8 and 8.5 ppm, which can be
assigned to phthalic anhydride, clearly proving the dissociative mechanism.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 3: a) The two possible mechanisms (dissociative or associative) that could in principle be followed for the
PME transesterification. b) Exchange experiment without free alcohol. Tetrafluorophthalic anhydride is heated at
160°C for 2h together with mono-decyl phthalate. The disappearance of 1a signals is a clear proof of a dissociative
mechanism.
Material Synthesis. Motivated by the rapid transesterification kinetics observed in the model study,
the next step consisted of the implementation of reversible PME cross-links within polymer networks,
which could constitute internally catalyzed CANs. The general strategy for the material synthesis is
straightforward and is outlined in Figure 4. The trifunctional alcohol trimethylolpropane (TMP, 3) was
selected as cross-linker and combined with a diol as a chain extender, together with one of the bis-
phthalic anhydrides (6a, 6b, 6c or 7). Most commercially available bisanhydrides, such as 7, are highly
rigid polyaromatic monomers. To expand our study towards a wider range of material properties,
aliphatic bisanhydride monomers of different chain lengths were synthesized from the reaction of
commercial trimellitic anhydride chloride (5) with the diols 2,4-diethyl-1,5-pentanediol (DEPD),
6
ACS Paragon Plus Environment

Page 7 of 18
Journal of the American Chemical Society
1
2
3
4
5
6
polytetrahydrofuran diol (PTHF) or Pripol 2033 to obtain compounds 6a, 6b and 6c respectively. This
one-step process is high yielding and has been performed on a 50 gram scale. In order to obtain a rigid
(high Tg) reference material, the highly constrained commercially pyromellitic dianhydride (PMDA, 7)
was used as a chain mobility-limiting bisphthalic anhydride-type monomer.
7
8
9
Below, we refer to the synthesized materials in terms of the bisanhydride monomer that was used
(ranging from very flexible to very rigid), so we were able to prepare DEPD-networks, PTHF-networks,
Pripol-networks and PMDA-networks from bisanhydride monomers 6a, 6b, 6c and 7, respectively. For
these initial reference materials, a fixed molar ratio of 0.4:0.4:1.0 triol:diol:bisanhydride was used for
the synthesis, which theoretically gives molar equivalence of the anhydride and hydroxyl
functionalities. This would thus result in a very densely cross-linked network of PMEs, if a complete
conversion of the anhydrides is achieved. Such fully cured networks would also contain very few
remaining hydroxyl functions, present only as network defects or incompletely reacted chain ends.
Following the mixing of the polyol mixture and the bisanhydride, which is feasible without any solvent
(except for PMDA-network), a curing step at 100 °C for 16 hours was performed. The reaction between
the anhydride and alcohol functions during this curing has been readily monitored by FTIR, as shown
for the DEPD-network in Figure S5 (see SI). The characteristic signals of the phthalic anhydride function
gradually disappeared upon prolonged heating, indicative of a full conversion.59
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Taking into account the dissociative transesterification mechanism established on low MW model
compounds, we reasoned that heating to higher temperature would shift the equilibrium to the
endothermic, entropically favored side for the anhydride ring opening reaction. Indeed, heating the
fully cured sample at 180°C for 30 minutes revealed the reversible reappearance of the characteristic
absorption bands of the phthalic anhydride moiety. FTIR analysis shows that the anhydride stretches
appeared again after the heating step as a result of a small shift in the bond equilibrium towards the
dissociative side. Furthermore, when the material was subsequently annealed at 100°C for 30 minutes,
these signals completely disappeared again. This experiment confirmed the dynamic nature of the
mono-phthalate moiety and the dissociative pathway for the mechanism. Moreover, it also showed
that the phthalate ester structure is dominant at lower temperatures, while the equilibrium shifts more
and more to the dissociated state upon heating.
Although poly-PME materials have not been reported in the literature so far, it is interesting that
several industrial patents report formulations of phthalic anhydrides with alcohols to prepare
polyester networks, so-called alkyd resins, applied in coating formulations.60-64 However, to the best of
our knowledge, this chemistry is always driven to full curing by making use of a thermal vacuum curing
step, also using a 2:1 molar ratio of hydroxyl and anhydride functions, via a dehydrative (slow) ester
condensation at very high temperature (>200°C). Furthermore, such resins have also not been
described or studied in the context of dynamic and recyclable materials.
Thus, our formulation with 1:1 equivalence of hydroxyls and anhydrides, selectively leading to PME
formation, is quite distinct from these classical formulations, and leads to large differences in
properties. The fact that the chemistry and building blocks developed herein are already applied
industrially in thermosets, is actually quite appealing as it has the potential to be used as a ‘drop-in’
technology for industrial implementations. Indeed, the commercial availability of cheap and diverse
polyol monomers is very high because of their common use in several step-growth polymers. On the
other hand, while bifunctional phthalic anhydrides are also commercially available, the diversity is
more limited. Aromatic and rigid anhydrides are commonly used as bulk chemicals in the synthesis of
polyimides or polyesters, but flexible counterparts are much less available. Nevertheless, we
demonstrated the straightforward synthesis of several aliphatic bisanhydrides (i.e. 6a, 6b and 6c)
starting from flexible diols in a one-step strategy (vide supra).
7
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 8 of 18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 4: General strategy for the material synthesis. Dianhydride monomers were synthesised from a diol and
trimellitic anhydride chloride (5) or commercially available (7). A di- and triol were mixed with the bifunctional
anhydride and cured at 100°C to obtain the mono-phthalate containing network.
Material Characterization. The material properties of the different sets of materials were analyzed as
a function of the bisanhydride structure and are summarized in Table 1 (see also Figure S1-S4). As a
result of the used molar ratio of 0.4:0.4:1.0 (triol:diol:bisanhydride) in the formulations, and because
of the relatively high molecular weight of the bisanhydride, the anhydrides monomer represented the
highest weight fraction of the networks and will have the most significant impact on the material
properties, explaining the observed wide range of properties. For each formulation, DEPD and TMP
were used as polyols (Figure 4), in order to be able to compare the influence of the anhydride on the
material properties. All materials showed a good swelling in tetrahydrofuran (THF) at room
temperature, which made THF the solvent of choice for soluble fraction measurements, using a Soxhlet
extraction setup. While three materials show a soluble fraction below 10%, the PTHF-network (33%)
had higher measured soluble fractions. Because of the polymeric structure and thus inherent dispersity
of the reagents that build up this material, further optimization of the reaction conditions should be
performed. However, the PTHF-material was only prepared to show the versatility in terms of glass
transition and mechanical properties.
As the characterization and processing of CANs require numerous heating steps at high temperatures
(vide infra), the thermal stability of the materials was measured with TGA. For all four networks, a
similar Tdeg,5% around 270°C was obtained (N2 atmosphere). However, a markedly lower degradation
temperature of 218°C was obtained for the PMDA-network. The nature of the bisanhydride monomer
had a large influence on the glass transition temperature (Tg) of the networks, measured via DSC
analysis. Higher Tg-values were obtained for the low MW and more rigid DEPD-dianhydride (72°C) or
PMDA (93°C), while elastomeric materials with low Tg’s were obtained when starting from the flexible
PTHF-and Pripol-dianhydride (with a Tg of -30 and 4 °C respectively). The differences related to the
choice of the bisanhydride monomer also manifested themselves in the tensile properties. The
8
ACS Paragon Plus Environment

Page 9 of 18
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
elastomeric materials Pripol- and PTHF-network proved to be (very) elastic with a strain at break
between 500 up to almost 900%, respectively. As expected, this high elasticity is accompanied by a low
Young’s modulus and maximum stress at break. On the other hand, DEPD- and PMDA-network were
both characterized by a high E-modulus and stress at break, also resulting in a higher brittleness.
Because of its good thermal and mechanical properties, DEPD-network was chosen for a more in-depth
characterization in terms of recycling and rheological analysis.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Table 1: Swelling, mechanical and thermal properties of the anhydride-derived CANs.
Material properties
DEPD (6a)
176
PTHF (6b)
648
Pripol (6c)
416
PMDA (7)
80
Swelling degree (25°C, %, THF)
Measured soluble fraction (%, THF,
Soxhlet)
8.7 ± 1.6
33.0 ± 1.5
6.4 ± 0.1
8.3 ± 0.6
Tdeg,5% (N2, °C)
Tg (°C) (DSC)
270
271
287
4
218
72
-30
93
E-modulus (MPa)
Strain at break (%)
Stress at break (MPa)
1430 ± 86
5.0 ± 0.6
52.1 ± 3.4
0.46 ± 0.02
889 ± 39
1.57 ± 0.26
2.70 ± 0.06
503 ± 29
4.38 ± 0.52
1970 ± 69
2.6 ± 0.2
48.6 ± 2.4
Thermal recycling. An important feature of CANs is their recyclability, both chemically and thermally.
In this context, the thermal reprocessing and recyclability of the DEPD-network was first tested. For
this purpose, a crosslinked sample was ground to granules of around 1 mm and subsequently pressed
for 60 minutes at 150°C with 4 metric tons of pressure. A perfectly homogeneous and transparent
material was obtained, which strongly supports the dynamic character of the polyester networks (see
Figure 5a and Figure S6). This recycling step was repeated three times for the DEPD-network and some
of its properties were measured again after each cycle to characterize possible material degradation.
Thus, materials obtained after each cycle (networks P1, P2 and P3) were analyzed. Regarding the
chemical integrity of the network, no significant differences could be noticed via ATR-IR between the
recycled and initial samples (see Figure 5b). Hence, we can exclude significant side reactions that could
deteriorate and change the chemical nature of the material. The overall network integrity was also
confirmed by the similarity of the Tg-value after every recycling step (Figure 5c).
Finally, tensile strength measurements were performed on the recycled networks P1 – P3. The original
material could not be tested because no defect-free samples were obtained as the result of trapped
air bubbles, which appeared during the mixing process. However, degassing steps during heating could
easily solve this issue in industrial applications. As shown in the tensile graphs (Figure 5d), P2 showed
a lower stress and strain at break than P1, while its Young’s modulus slightly increased. In the next
recycling step, a steady state was obtained since P3 didn’t show a significant difference compared to
P2. The lower strain at break for P2 and P3 could be ascribed to a higher heterogeneity caused by the
subsequent grinding and pressing, making the material slightly more brittle.
9
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 10 of 18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 5: DEPD-network could be recycled multiple times without significant change or loss in properties.
Rheological analysis. Next to recycling experiments, the dynamic nature of the PME networks was
characterized extensively with rheology. In a first stage, stress relaxation experiments were performed
on the P1 DEPD-network. As shown in Figure 6a, the network readily relaxed stress, following an
exponential Maxwell decay (See also Figure S8). The noisy data at the beginning of each experiment
were replaced by a theoretical exponential fit (see SI for full details). The relaxation times ranged from
more than 7h at 100°C to around 1 minute (63s) at 180°C. When the results were plotted in an
Arrhenius plot, a linear correlation was obtained and an activation energy of 120 kJ/mole was
calculated from the slope (See Equation S7 to S9 for the calculations). Despite the dissociative nature
of the phthalate ester exchange, a linear evolution of the viscosity as a function of temperature was
observed in the viscosity plot, indicating that the degree of depolymerization (net loss of network
integrity) is negligible within the investigated temperature window. Although the equilibrium should
shift relatively to the endothermic side, the extent of decrosslinking does not affect the rheological
behavior, although a slight off-linearity and acceleration can be seen at the highest temperature data
point. This could also be related to some de-crosslinking, which prompted us to further investigate this
possibility.
10
ACS Paragon Plus Environment

Page 11 of 18
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 6: a) Stress relaxation from 100 °C to 180 °C with 20 °C interval of DEPD material b) Arrhenius plot of DEPD
(0.4:0.4:1.0) with a linear correlation. Arrhenius plots of DEPD with changing amount of alcohol (c) or anhydride
monomers (d).
In addition to the standard formulations used so far for our PME networks (i.e. 0.4:0.4:1.00
triol:diol:bisanhydride), different ratios of monomers were investigated to compare the influence of
free hydroxyls or unreacted anhydride on the relaxation kinetics. For this, we first kept the amount of
diol and triol monomers constant for each formulation and varied the relative amount of the
bisanhydride from 0.9 to 1.1 equivalents. We also prepared two stoichiometric formulations with a
different ratio of the triol cross-linker: a very weakly crosslinked network with only 22% triol (0.2:0.7
triol:diol, having a theoretical gel-point at 88% conversion), and a very densely crosslinked one with
86% triol (0.6:0.1 triol:diol), in comparison to all the other networks that have 50% triol (0.4:0.4).
The combined Arrhenius plots for all different formulations showed very similar kinetics and activation
energies (See Table S1 and S2), except for two (Figure 6, c and d). The weakly crosslinked material (22%
triol) showed significantly lower relaxation times, as can be expected. Conversely, the more strongly
crosslinked PME network (86% triol) did not show slower exchange kinetics. The network with a large
excess (10%) of hydroxyls (0.4:0.4:0.9 ratio), showed a clear deflection in the Arrhenius plot, with
similar kinetic at lower temperatures but slower rheology at higher temperatures. This translates into
a lower measured activation energy compared to other formulations materials (97 vs 120 kJ/mol
respectively). This effect could also be explained by the formation of additional and irreversible
phthalate diester bonds, by the reaction of the small excess of hydroxyls groups and free carboxylic
acids of the mono-phthalate moieties, which is known to occur around 200°C from the literature on
alkyd resins.60-64 The small amount of irreversible cross-links does not affect the dynamic behavior. On
the other hand, if even larger excesses of hydroxyl groups would be employed in the formulations, an
irreversibly cross-linked alkyd resin would result.
11
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 12 of 18
1
2
3
4
5
6
7
8
9
The same rheological behavior was observed for the elastomeric Pripol-network (TMP:Pripol:Pripol-
dianhydride 0.4:0.4:1.0, see Figure S9). Furthermore, temperature and frequency sweep experiments
didn’t show a significant drop in viscosity because of a loss in cross-link density, confirming the
Arrhenius-like behavior (Figure S10). The small deflection from the linearity at the highest temperature
(180°C) could be ascribed to the dehydration of two free carboxylic acids to give a linear anhydride,
which is a known condensation reaction for carboxylic acid containing polymers, like poly(acrylic
acid).65,66 Such dehydrative cross-links are formed irreversibly by the removal of water, but would be
reversible as long as free carboxylic acids remain in the network, that can exchange via trans-reactions
(addition elimination to activated anhydride cross-links).9 The formation of anhydrides between
carboxylic acids is slow because of the poor nucleophilicity of carboxylic acids. Thus, it will only present
itself during long thermal treatments, such as the rheology measurements with slow temperature
sweeps (1.5 °C/min). Flexible anhydride monomers as used in the pripol PME networks are indeed
expected to have better opportunities to form chain-to-chain additional crosslinks in this manner.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
From the above experiments, it can be concluded that a (small) excess of one of the reactive groups
(i.e. hydroxyl or anhydride) is not necessary and does not have a significant impact on the dynamic
properties, as expected for the monomolecular dissociative exchange mechanism of the PME
transesterification. The dissociation of the PME crosslink is a chemical equilibrium, which can shift to
the dissociated state with increasing temperature. Hence, each material should at least in theory have
a temperature where a gel-to-sol transition can be reached, resulting in a sudden and pronounced
drop in viscosity because of viscous flow. For all materials in this experiment, however, it was not
possible to observe such a transition in the investigated temperature range (100-180°C). This can be
rationalized by the high forward (exothermic) reactivity of the released anhydride in the investigated
conditions. As a result, only a small net amount of reformed anhydride will be able to accumulate, even
at elevated temperatures. From a theoretical point of view, the Boltzmann distribution between open
and closed states is sufficient to allow fast exchange but is insignificant in terms of network constitution
and net crosslinking density. At higher temperature, or under conditions that influence the
equilibration of open and closed forms, a different situation may thus arise.
As mentioned earlier, the synthesized materials show a high resemblance in terms of molecular
structure with well-known alkyd resins. To prove the static behavior of such alkyd resins, a reference
Pripol-network was made with a molar ratio of 2:1 OH:anhydride, enabling further esterification of the
free carboxylic acid in the PME. The curing step at 100°C (16h) was subsequently followed by a second
curing at 180°C under vacuum, which was the limit of the used equipment. As shown in Figure S11,
this alkyd reference could not relax stress or be recycled.
Solubility and hydrolytic stability. One way to establish decrosslinking at higher temperatures, would
be rheology measurements above 180°C, which is the limit of our experimental setup. Furthermore, it
was shown that extra cross-linking side reactions can occur above 180°C. Thus, other experiments were
performed, in which a solvent was used to impose the possible gel-to-sol transition and thus dissolve
the PME networks. For sure, also vitrimers, or associative CANs in general, can be dissolved, but only
with a reactive solvent that depolymerizes the dynamic crosslinks.6,67 Although no gel-sol transition, or
sudden drop in viscosity, can be observed in rheology measurements for our standard PME
formulations (see Figure 6 and S5), heating them to high temperatures in a high boiling solvent may
shift the dynamic equilibrium towards the depolymerized, dissolved state. The solubility of 0.4:0.4:1.0
DEPD-and Pripol-PME networks in non-hydroxylic, inert solvents was thus explored by immersing a
sample of the material in a vial filled with xylene. The vials were subsequently heated at 140°C for 16
hours and the samples were qualitatively compared. As shown in Figure S12, DEPD-network remained
insoluble in xylene at 140°C (even after 72h). However, the DEPD-network only shows a swelling
12
ACS Paragon Plus Environment

Page 13 of 18
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
degree of 1% in xylene at room temperature, which can explain its stability in this particular solvent.
Indeed, when diglyme was used, the swelling degree increased above 300% at room temperature and
the material dissolved at 140°C without the need to add a reactive alcohol. The more hydrophobic
Pripol-network on the other hand, had a high swelling degree in xylene (154%) and dissolved
completely in this solvent. The dissolution of both DEPD- and Pripol-network is in line with the
dissociative nature of the dynamic cross-links. We speculate that previous chemistries that have been
referred to as ‘vitrimers’,23,24 will also show this limited resistance to hot, inert solvents that can swell
the network at room temperature. However, it might be difficult to find a good or suitable solvent for
some networks. Thus, a simple experimental protocol can be put forward that is able to make the
distinction between ‘true’ associative vitrimers, and CANs that merely mimic their behavior because
of very fast network exchanges with no net depolymerizations in condensed phases. From the point of
view of processing applications, this distinction may have little importance, as in many contexts the
properties of both material classes will be indistinguishable. Still, it is an easy test to perform that can
and in fact should be performed for any new dynamic chemistry introduced into crosslinked materials.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
The limited resistance to (hot) solvents of dissociative CANs can be considered as a drawback
compared to vitrimers that can retain their structural integrity under a wider range of conditions.
However, this ‘reactive dissolution’ could also have some benefits. Interestingly, when the dissolved
Pripol-network was left in xylene at room temperature for one month, the dissolved network
fragments precipitated again on the bottom of the vial. After removal of the solvent and a heating step
at 100°C, a network was formed again. To check the generality of such a solvent-based recycling
approach, a freshly made Pripol-network xylene ‘solution’ - in fact a prepolymer mix that is reversibly
generated - was concentrated by heating to 100°C for 4h under a flow of N2, and the material was
recovered. TGA, DSC, infrared spectroscopy and tensile tests showed that the thermal, chemical and
mechanical properties of the material did not change after multiple dissolving and heating steps
(Figure S13).
As described in the introduction, PMEs are known to be prone to hydrolysis,54 which may be a serious
limitation of the application potential of PME materials. To investigate the extent of this potential issue
of PME networks, a DEPD-sample was immersed in water and left at room temperature for two weeks
or at 80°C for 24 hours. At room temperature, the network had a swelling degree of 4.2% and soluble
fraction of only 1.6%. The swelling at 80°C increased to 13.9%, but the sol fraction remained about the
same. The fact that the soluble fraction did not increase at higher temperatures can exclude hydrolysis.
Furthermore, the mechanical properties were measured after the hydrolysis test. As depicted in Figure
S15 (b), the Young’s modulus did not change. However, an increase in elongation is observed, which
could be the result of the drying step (100°C) in vacuum prior to the analysis.
As PME materials are polycarboxylic acids, they might be hygroscopic and show water uptake over
time, which can lead to hydrolysis in subsequent thermal treatments (> 80°C). Hydrolysis issues could
be expected at these higher processing temperatures if water is present in the material. In this context,
the hygroscopic nature of the DEPD-network was investigated. A TGA thermogram from a freshly made
(and thus dry) sample was compared with one that had been standing in open air for two weeks. As
depicted in Figure S14, absolutely no difference could be observed from the thermograms. In general,
no issues with hydrolysis were observed for DEPD-, Pripol- or PMDA-networks during all processing
and characterization steps. Only the more hydrophilic polyether PTHF-network seemed to be prone to
hydrolysis when heating, as was observed during a recycling experiment at 150°C. However, this
problem was circumvented when the network was dried before processing. Hydrophilic backbones
should thus be avoided in PME materials if applications require hydrolytic stability.
Conclusion
13
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 14 of 18
1
2
3
4
5
6
7
8
9
In this work, we have developed phthalate monoester (PME) transesterification as a new dynamic
chemistry for CANs. It was shown with model compounds and on material level that this type of esters
can undergo fast bond exchanges with free hydroxyl moieties. Because the reaction is ‘catalyzed’ by
the pendant carboxylic phthalate acid, as an example of the neighboring group participation effect,
the need of a highly active external catalyst was avoided. As a design principle for CANs, this approach
is quite attractive because exchange reactions that are catalyzed in this way can show relatively high
enthalpic activation barriers, which translates into much more pronounced temperature response of
the dynamic bond exchange and the corresponding rheological behavior. This is exemplified by our
PME networks that span a wide range of properties and all have a strong temperature dependence of
their viscosity with a high activation energy of ~120 kJ/mol.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Intrigued by the combination of a dissociative bond exchange mechanism and the dynamic properties
usually observed in associative CANs, a lot of focus was put on the rheological behavior of these
dynamic materials. In all the materials, only a gradual Arrhenius-type rheological behavior was
observed, despite the dissociative mechanism which could lead to depolymerization and a gel-to-sol
transition. Depending on the nature of the solvent (swelling or non-swelling), PME networks are either
completely insoluble or completely soluble at high temperatures. Hence, we put forward a simple and
essential test that can be performed on any CAN to establish its dissociative or its associative (vitrimer)
nature.
This study was performed primarily as a fundamental inquiry into the relation between dynamic
material properties and the mechanism of novel network exchange reactions, inspired by the classical
concept of NGP. However, we also believe that the PME chemistry platform for CANs introduced herein
is in fact a powerful, and partly overlooked polymer system with promising applications in dynamic
polymer systems, including applications more typically envisaged for vitrimers. Indeed, cheap and
easily accessible phthalic anhydride and polyol monomers can be used, and the material design is
straightforward. This chemistry, albeit at different stoichiometries, is already used widely in industrial
applications, such as for alkyd resins, making the PME platform a drop-in technology that does not
require custom made monomers. Finally, a broad range of material properties could be easily obtained
by changing the nature of the monomers in the network formulation, and the dynamic properties can
be related to the straightforward exchange chemistry. Further implementation of this platform into
common network formulations is part of ongoing research.
Acknowledgments
M.D. would like to thank the Research Foundation-Flanders (FWO) for the funding of his PhD
fellowship. F.D.P acknowledges BOF-UGent (GOA-funding) and Prof. L. Leibler for fruitful discussions.
We would like to thank Bernhard de Meyer for technical support.
Author contributions
The manuscript was written through contributions of all authors. All authors have given approval to
the final version of the manuscript.
Supporting Information
Synthetic procedures, NMR Spectroscopy, material synthesis and characterization, FTIR, thermal
analysis (DSC, TGA), stress relaxations, solubility, and hydrolytic stability.
References
14
ACS Paragon Plus Environment

Page 15 of 18
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
Kloxin, C. J., Scott, T. F., Adzima, B. J. & Bowman, C. N., Covalent Adaptable Networks (CANs):
A Unique Paradigm in Cross-Linked Polymers, Macromolecules, 2010, 43, 2643-2653.
Bowman, C. N. & Kloxin, C. J., Covalent Adaptable Networks: Reversible Bond Structures
Incorporated in Polymer Networks, Angew. Chem. Int. Ed., 2012, 51, 4272-4274.
Kloxin, C. J. & Bowman, C. N., Covalent adaptable networks: smart, reconfigurable and
responsive network systems, Chem. Soc. Rev., 2013, 42, 7161-7173.
Chen, X., Dam, M. A., Ono, K., Mal, A., Shen, H., Nutt, S. R., Sheran, K. & Wudl, F., A Thermally
Re-mendable Cross-Linked Polymeric Material, Science, 2002, 295, 1698-1702.
Zhang, Y., Broekhuis, A. A. & Picchioni, F., Thermally Self-Healing Polymeric Materials: The Next
Step to Recycling Thermoset Polymers?, Macromolecules, 2009, 42, 1906-1912.
Montarnal, D., Capelot, M., Tournilhac, F. & Leibler, L., Silica-Like Malleable Materials from
Permanent Organic Networks, Science, 2011, 334, 965-968.
Demongeot, A., Mougnier, S. J., Okada, S., Soulié-Ziakovic, C. & Tournilhac, F., Coordination
and catalysis of Zn2+ in epoxy-based vitrimers, Polym. Chem., 2016, 7, 4486-4493.
Denissen, W., Winne, J. M. & Du Prez, F. E., Vitrimers: permanent organic networks with glass-
like fluidity, Chem. Sci., 2016, 7, 30-38.
Lawton, M. I., Tillman, K. R., Mohammed, H. S., Kuang, W., Shipp, D. A. & Mather, P. T.,
Anhydride-Based Reconfigurable Shape Memory Elastomers, ACS Macro Lett., 2016, 5, 203-
207.
Cromwell, O. R., Chung, J. & Guan, Z., Malleable and Self-Healing Covalent Polymer Networks
through Tunable Dynamic Boronic Ester Bonds, J. Am. Chem. Soc., 2015, 137, 6492-6495.
Cash, J. J., Kubo, T., Dobbins, D. J. & Sumerlin, B. S., Maximizing the symbiosis of static and
dynamic bonds in self-healing boronic ester networks, Polym. Chem., 2018, 9, 2011-2020.
Caffy, F. & Nicolaÿ, R., Transformation of polyethylene into a vitrimer by nitroxide radical
coupling of a bis-dioxaborolane, Polym. Chem., 2019, 10, 3107-3115.
Nishimura, Y., Chung, J., Muradyan, H. & Guan, Z., Silyl Ether as a Robust and Thermally Stable
Dynamic Covalent Motif for Malleable Polymer Design, J. Am. Chem. Soc., 2017, 139, 14881-
14884.
Denissen, W., Droesbeke, M., Nicolaÿ, R., Leibler, L., Winne, J. M. & Du Prez, F. E., Chemical
control of the viscoelastic properties of vinylogous urethane vitrimers, Nat. Commun., 2017,
8, 14857.
Denissen, W., Rivero, G., Nicolaÿ, R., Leibler, L., Winne, J. M. & Du Prez, F. E., Vinylogous
Urethane Vitrimers, Adv. Funct. Mater., 2015, 25, 2451-2457.
Guerre, M., Taplan, C., Nicolaÿ, R., Winne, J. M. & Du Prez, F. E., Fluorinated Vitrimer
Elastomers with a Dual Temperature Response, J. Am. Chem. Soc., 2018, 140, 13272-13284.
Denissen, W., De Baere, I., Van Paepegem, W., Leibler, L., Winne, J. & Du Prez, F. E., Vinylogous
Urea Vitrimers and Their Application in Fiber Reinforced Composites, Macromolecules, 2018,
51, 2054-2064.
Hendriks, B., Waelkens, J., Winne, J. M. & Du Prez, F. E., Poly(thioether) Vitrimers via
Transalkylation of Trialkylsulfonium Salts, ACS Macro Lett., 2017, 6, 930-934.
Billiet, S., De Bruycker, K., Driessen, F., Goossens, H., Van Speybroeck, V., Winne, J. M. & Du
Prez, F. E., Triazolinediones enable ultrafast and reversible click chemistry for the design of
dynamic polymer systems, Nat. Chem., 2014, 6, 815-821.
Van Herck, N. & Du Prez, F. E., Fast Healing of Polyurethane Thermosets Using Reversible
Triazolinedione Chemistry and Shape-Memory, Macromolecules, 2018, 51, 3405-3414.
Van Damme, J., van den Berg, O., Brancart, J., Vlaminck, L., Huyck, C., Van Assche, G., Van Mele,
B. & Du Prez, F., Anthracene-Based Thiol–Ene Networks with Thermo-Degradable and Photo-
Reversible Properties, Macromolecules, 2017, 50, 1930-1938.
Kuang, X., Liu, G., Dong, X. & Wang, D., Correlation between stress relaxation dynamics and
thermochemistry for covalent adaptive networks polymers, Materials Chemistry Frontiers,
2017, 1, 111-118.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
10
11
12
13
14
15
16
17
18
19
20
21
22
15
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 16 of 18
1
2
3
4
5
6
7
8
9
23
24
Obadia, M. M., Jourdain, A., Cassagnau, P., Montarnal, D. & Drockenmuller, E., Tuning the
Viscosity Profile of Ionic Vitrimers Incorporating 1,2,3-Triazolium Cross-Links, Adv. Funct.
Mater., 2017, 27, 1703258.
Zhang, L. & Rowan, S. J., Effect of Sterics and Degree of Cross-Linking on the Mechanical
Properties of Dynamic Poly(alkylurea–urethane) Networks, Macromolecules, 2017, 50, 5051-
5060.
25
26
27
28
Capelot, M., Montarnal, D., Tournilhac, F. & Leibler, L., Metal-Catalyzed Transesterification for
Healing and Assembling of Thermosets, J. Am. Chem. Soc., 2012, 134, 7664-7667.
Lu, Y.-X., Tournilhac, F., Leibler, L. & Guan, Z., Making Insoluble Polymer Networks Malleable
via Olefin Metathesis, J. Am. Chem. Soc., 2012, 134, 8424-8427.
Capelot, M., Unterlass, M. M., Tournilhac, F. & Leibler, L., Catalytic Control of the Vitrimer Glass
Transition, ACS Macro Lett., 2012, 1, 789-792.
Zheng, N., Fang, Z., Zou, W., Zhao, Q. & Xie, T., Thermoset Shape-Memory Polyurethane with
Intrinsic Plasticity Enabled by Transcarbamoylation, Angew. Chem. Int. Ed., 2016, 55, 11421-
11425.
Lei, Z. Q., Xiang, H. P., Yuan, Y. J., Rong, M. Z. & Zhang, M. Q., Room-Temperature Self-Healable
and Remoldable Cross-linked Polymer Based on the Dynamic Exchange of Disulfide Bonds,
Chem. Mater., 2014, 26, 2038-2046.
Pepels, M., Filot, I., Klumperman, B. & Goossens, H., Self-healing systems based on disulfide-
thiol exchange reactions, Polym. Chem., 2013, 4, 4955-4965.
Worrell, B. T., Mavila, S., Wang, C., Kontour, T. M., Lim, C.-H., McBride, M. K., Musgrave, C. B.,
Shoemaker, R. & Bowman, C. N., A user's guide to the thiol-thioester exchange in organic
media: scope, limitations, and applications in material science, Polym. Chem., 2018, 9, 4523-
4534.
Rekondo, A., Martin, R., Ruiz de Luzuriaga, A., Cabanero, G., Grande, H. J. & Odriozola, I.,
Catalyst-free room-temperature self-healing elastomers based on aromatic disulfide
metathesis, Materials Horizons, 2014, 1, 237-240.
Taynton, P., Yu, K., Shoemaker, R. K., Jin, Y., Qi, H. J. & Zhang, W., Heat- or Water-Driven
Malleability in a Highly Recyclable Covalent Network Polymer, Adv. Mater., 2014, 26, 3938-
3942.
Roth, C., Petricevic, M., John, A., Goddard-Borger, E. D., Davies, G. J. & Williams, S. J., Structural
and mechanistic insights into a Bacteroides vulgatus retaining N-acetyl-β-galactosaminidase
that uses neighbouring group participation, Chem. Commun., 2016, 52, 11096-11099.
Murkin, A. S., Birck, M. R., Rinaldo-Matthis, A., Shi, W., Taylor, E. A. & Schramm, V. L.,
Neighboring Group Participation in the Transition State of Human Purine Nucleoside
Phosphorylase, Biochemistry, 2007, 46, 5038-5049.
Ondré, D., Wölfling, J., Iványi, Z., Schneider, G., Tóth, I., Szécsi, M. & Julesz, J., Neighboring
group participation: Part 17 Stereoselective synthesis of some steroidal 2-oxazolidones, as
novel potential inhibitors of 17α-hydroxylase-C17,20-lyase, Steroids, 2008, 73, 1375-1384.
Capon, B., Neighbouring group participation, Quarterly Reviews, Chemical Society, 1964, 18,
45-111.
Endo, T., Sanda, F. & Choi, W., Living ring-opening polymerization based on neighboring group
participation, Macromol. Symp., 2000, 157, 21-28.
Kudoh, R., Sudo, A. & Endo, T., A Highly Reactive Benzoxazine Monomer, 1-(2-Hydroxyethyl)-
1,3-Benzoxazine: Activation of Benzoxazine by Neighboring Group Participation of Hydroxyl
Group, Macromolecules, 2010, 43, 1185-1187.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
29
30
31
32
33
34
35
36
37
38
39
40
41
Motokucho, S., Sudo, A. & Endo, T., Living cationic ring-opening polymerization of five-
membered cyclic dithiocarbonate controlled by neighboring group participation of carbamate
group, J. Polym. Sci., Part A: Polym. Chem., 2007, 45, 4459-4464.
Choi, W., Sanda, F. & Endo, T., A Novel Construction of Living Polymerization by Neighboring
Group Participation:ꢀ Living Cationic Ring-Opening Polymerization of a Five-Membered Cyclic
Dithiocarbonate, Macromolecules, 1998, 31, 9093-9095.
16
ACS Paragon Plus Environment

Page 17 of 18
Journal of the American Chemical Society
1
2
3
4
5
6
7
8
9
42
43
44
45
46
47
48
Nemoto, N., Xu, X., Sanda, F. & Endo, T., Cationic Ring-Opening Polymerization of Cyclic
Monothiocarbonates:ꢀ Varying the Polymer Main Chain by Neighboring Group Participation,
Macromolecules, 2001, 34, 7642-7647.
Nemoto, N., Yoshii, K., Kameshima, H., Sanda, F. & Endo, T., Controlled cationic ring-opening
polymerization of cyclic thiocarbonates with ester groups, J. Polym. Sci., Part A: Polym. Chem.,
2003, 41, 185-195.
Oie, H., Sudo, A. & Endo, T., Acceleration effect of N-allyl group on thermally induced ring-
opening polymerization of 1,3-benzoxazine, J. Polym. Sci., Part A: Polym. Chem., 2010, 48,
5357-5363.
Kitaura, T., Tomioka, H., Fukatani, N. & Kitayama, T., Anchimeric assistance on sequence
regulation in partial modification of isotactic poly(propargyl methacrylate) by click reaction,
Polym. Chem., 2013, 4, 887-890.
Bankova, M., Manolova, N., Markova, N., Radoucheva, T., Dilova, K. & Rashkov, I., Hydrolysis
and Antibacterial Activity of Polymers Containing 8-Quinolinyl Acrylate, Journal of Bioactive
and Compatible Polymers, 1997, 12, 294-307.
Boudreaux, C. J., Bunyard, W. C. & McCormick, C. L., Controlled activity polymers. XI Hydrolytic
release studies of hydrophilic copolymers with labile esters of model allelopathic phenols, J.
Controlled Release, 1997, 44, 185-194.
McCormick, C. L. & Kim, K., Controlled Activity Polymers. V. Copolymers of 2-(1-
Naphthylacetyl) Ethyl Acrylate with Hydrophilic Comonomers: Release Behavior, J. Macromol.
Sci. - Chem., 1988, 25, 307-326.
Geng, Z. & Finn, M. G., Fragmentable Polycationic Materials Based on Anchimeric Assistance,
Chem. Mater., 2016, 28, 146-152.
Trachsel, A., deꢁSaintꢁLaumer, J.-Y., Haefliger, O. P. & Herrmann, A., Parameters Influencing the
Release of Tertiary Alcohols from the Surface of “Spherical” Dendrimers and “Linear”
Stylomers by Neighbouring-Group-Assisted Hydrolysis of 2-Carbamoylbenzoates, Chem. - Eur.
J., 2009, 15, 2846-2860.
Altuna, F. I., Pettarin, V. & Williams, R. J. J., Self-healable polymer networks based on the cross-
linking of epoxidised soybean oil by an aqueous citric acid solution, Green Chem., 2013, 15,
3360-3366.
Fortman, D. J., Brutman, J. P., Cramer, C. J., Hillmyer, M. A. & Dichtel, W. R., Mechanically-
Activated, Catalyst-Free Polyhydroxyurethane Vitrimers, J. Am. Chem. Soc., 2015, 44, 14019-
14022.
Chen, X., Li, L., Jin, K. & Torkelson, J. M., Reprocessable polyhydroxyurethane networks
exhibiting full property recovery and concurrent associative and dissociative dynamic
chemistry via transcarbamoylation and reversible cyclic carbonate aminolysis, Polym. Chem.,
2017, 8, 6349-6355.
Bender, M. L., Chloupek, F. & Neveu, M. C., Intramolecular Catalysis of Hydrolytic Reactions.
III. Intramolecular Catalysis by Carboxylate Ion in the Hydrolysis of Methyl Hydrogen
Phthalate1,2, J. Am. Chem. Soc., 1958, 80, 5384-5387.
Thanassi, J. W. & Bruice, T. C., Neighboring Carboxyl Group Participation in the Hydrolysis of
Monoesters of Phthalic Acid. The Dependence of Mechanisms on Leaving Group Tendencies,
J. Am. Chem. Soc., 1966, 88, 747-752.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
49
50
51
52
53
54
55
56
57
Otera, J., Transesterification, Chem. Rev., 1993, 93, 1449-1470.
Comisar, C. M., Hunter, S. E., Walton, A. & Savage, P. E., Effect of pH on Ether, Ester, and
Carbonate Hydrolysis in High-Temperature Water, Industrial & Engineering Chemistry
Research, 2008, 47, 577-584.
Logan, S. R., The kinetics of isotopic exchange reactions, J. Chem. Educ., 1990, 67, 371.
Smith, B. C., Infrared spectral interpretation : a systematic approach, (Boca Raton (Fla.) : CRC
press, 1999).
58
59
17
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 18 of 18
1
2
3
4
5
6
7
8
9
60
Ryosuke, K., Tomohiro, A. & Tomoharu, K., Carboxyl-containing polyesters with good flexibility,
adhesion, and insulation, thermosetting compositions containing them, film forming materials
and solder resists containing them, and their cured films, WO2015015889A1, 2015.
Tetsuo, K., Polyester resin, resin composition for can paint, painted metal plate for can, and
can, US20150064378A1, 2017.
Hideki, T. & Naoko, O., Poly(lactic acid)-based polyester resin, aqueous dispersion of poly(lactic
acid)-based polyester resin, aqueous adhesive, and process for producing aqueous dispersion
of poly(lactic acid)-based polyester resin, WO2013042677A1, 2013.
61
62
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
63
64
65
Toru, K., Makoto, F., Satoshi, I. & Noriko, K., Polyester resin, composition using the same, and
use thereof JP2016183310A, 2016.
Mcvay, R. & Most, C. L., Aqueous-based coating composition containing a polyanhydride,
WO2017003922A1, 2017.
Greenberg, A. R. & Kamel, I., Kinetics of anhydride formation in poly(acrylic acid) and its effect
on the properties of a PAA-alumina composite, J. Polym. Sci., Polym. Chem. Ed., 1977, 15, 2137-
2149.
McNeill, I. C. & Alston, A., Thermal degradation behaviour of acrylic salt polymers and
ionomers, Angew. Makromolek. Chem., 1998, 261-262, 157-172.
66
67
Shi, Q., Yu, K., Kuang, X., Mu, X., Dunn, C. K., Dunn, M. L., Wang, T. & Jerry Qi, H., Recyclable
3D printing of vitrimer epoxy, Materials Horizons, 2017, 4, 598-607.
For Table of Contents Only
18
ACS Paragon Plus Environment
