D. Carreira Batalha, et al.
Molecular Catalysis 489 (2020) 110941
−1
potentiometer (model W3B) with a glass electrode. Typically, 50 mg of
[41,42]. The broad band at 3600−3200 cm
regions refers to the
Nb
2 5 3
O was suspended in CH CN (ca. 30 mL) and magnetically stirred
vibration modes of hydrogen-bonded hydroxyl groups. The presence of
−1
for 3 h. Posteriorly, the suspension was titrated with slow addition of
portions of n-butylamine (ca. 0.025 mol L ) until that the electrode
potential remained stable after the addition of the titrant again.
bands at 1700 cm
reinforces the Nb-linked OH- groups.
−
1
It is noteworthy that the intensities of the bands in this last region
varied according to the synthesis time, suggesting that shorter synthesis
times favored a higher presence of the hydroxyl groups. The ability of
2 2
these groups to bind to H O molecules generating different reactive
oxygen species may improve the activity of these niobium oxides in
oxidation reactions [41,43].
Fig. 3 represents the X-rays diffractograms of the three synthesized
catalysts. The literature describes the existence of four different phases
Catalytic tests
Oxidation reactions were carried out in liquid phase using a glass
reactor fitted (ca. 50 mL) with a reflux condenser and sampling septum,
in a glycerin batch under magnetic stir and heating. Typically, H
2 2(aq)
O
2
for Nb O
5
: Nb
2
O
5
2
.nH O (amorphous), TT-Nb
2 5 2 5
O (hexagonal), T-Nb O
(
ca. 35 wt. %) and nerol (1.375 mmol) were dissolved in CH CN (ca. 10
3
(
orthorhombic) and H-Nb O
2 5
(monoclinic) [44]. The diffractograms
mL) and heated to 333 K. The addition of niobium started the reaction,
which proceeded for 8 h.
revealed by XRD analyses indicate the peaks are related to the hex-
agonal phase (JCPDS No. 28-0317) [39]. The broad peak noticed at 26°
is assigned to the amorphous phase due to the use of hydrated starting
materials and water. The presence of weak peaks is due to the low
temperature used in the synthesis, which influenced their crystallinity
Aliquots were collected at regular time intervals. Before the ana-
lysis, the aliquots were centrifuged, and the supernatant was analyzed
on a GC-2010 Plus Shimadzu Gas Chromatograph with a flame ioni-
zation detector (FID), equipped with an auto-injector AOC-20i, and
fitted with a capillary column Rtx®-Wax (30 m x 0.25 mmID x0.25 μm).
The chromatographic conditions were initial temperature (353 K/ 3
min), heating rate (10 K / min until 493 K), which was kept constant 3
min. Injector and detector temperatures were 523 K and 523 K, re-
spectively. Nitrogen was the carrier gas (1.2 ml / min).
[
45,46]. The Nb
sizes of 12.7 nm, 14.8 nm, and 15.1 nm, respectively.
Fig. 4 presents the Raman spectra of the three Nb
found that they had distinct profiles, indicating the presence of more
2 5
O samples of 2 h, 4 h, and 8 h exhibited crystallite
2 5
O samples. It was
−1
than one phase in each material. Bands in the region of 200−300 cm
were assigned to the stretching of Nb–O–Nb bonds [46].
The absorption bands in the 570−770 cm
symmetrical stretching modes of the Nb–O bonds (NbO
NbO ) [46,47]. For the two samples synthesized in shorter time, 2 and 4
−
1
region refer to the
Results and discussion
6
, NbO , and
7
8
Catalysts characterization
h, the single band in this region may indicate the greater presence of the
amorphous phase. For the catalyst synthesized for 8 h, this band has a
Table 1 shows the surface area, volume, and pore diameter values
quantified by the BET and DFT methods of Nb O catalysts.
2 5
−1
small shoulder closer to 700 cm , which may indicate the greater
formation of the orthorhombic phase due to longer synthesis time [48].
This indicates that the time of synthesis affected the proportion be-
tween these two phases.
An increase in the time of synthesis resulted in an improvement of
surface area and a higher volume of pores. Conversely, pores diameters
were lower when longer times were used. This effect was also verified
by us in a previous work [39]. We can consider that each rod that
compose this material is composed of several rods with smaller dia-
meters. The synthesis time influences the rods growth; if a greater time
of synthesis is used, larger will be the size of the stem. As a result, may
occurs an increase in surface area and pore volume [39].
The broad band more pronounced in the spectra of catalysts syn-
−1
thesized at 2 and 4 h, present in the 900-1000 cm
region, were as-
signed to the symmetrical and asymmetrical stretching of terminal
bonds Nb = O, which is associated with Lewis acid sites [47]. This
stretching band is related to the crystallinity degree of the sample; the
more intense is the band, the lower is the crystallinity and more acid is
the material [47–49]. This same phenomenon is little noticed for the
sample synthesized for 8 h, confirming the higher crystallinity and may
indicate a lower number of Lewis acid sites for this material.
2 5
The catalyst Nb O - 2 h presented the lowest values of surface area
and pore volume but showed a larger value in its diameter, above 30 Ǻ,
characteristic of a mesoporous material. In contrast, the two other
oxides showed an increasing on the surface area and pore volume when
the synthesis time was increased. Since pore diameter was reduced to
values lower than 20 Ǻ, we can conclude that micropores were formed
in the materials [38,39].
2 5
The lower crystallinity degree of the Nb O - 2 h catalyst can be
verified by the XRD graph. Comparing the results shown by XRD and IR,
it should be noted the shorter is the catalyst synthesis times, the lower is
−
the crystallinity and more intense is the OH grouping bands in IR
2

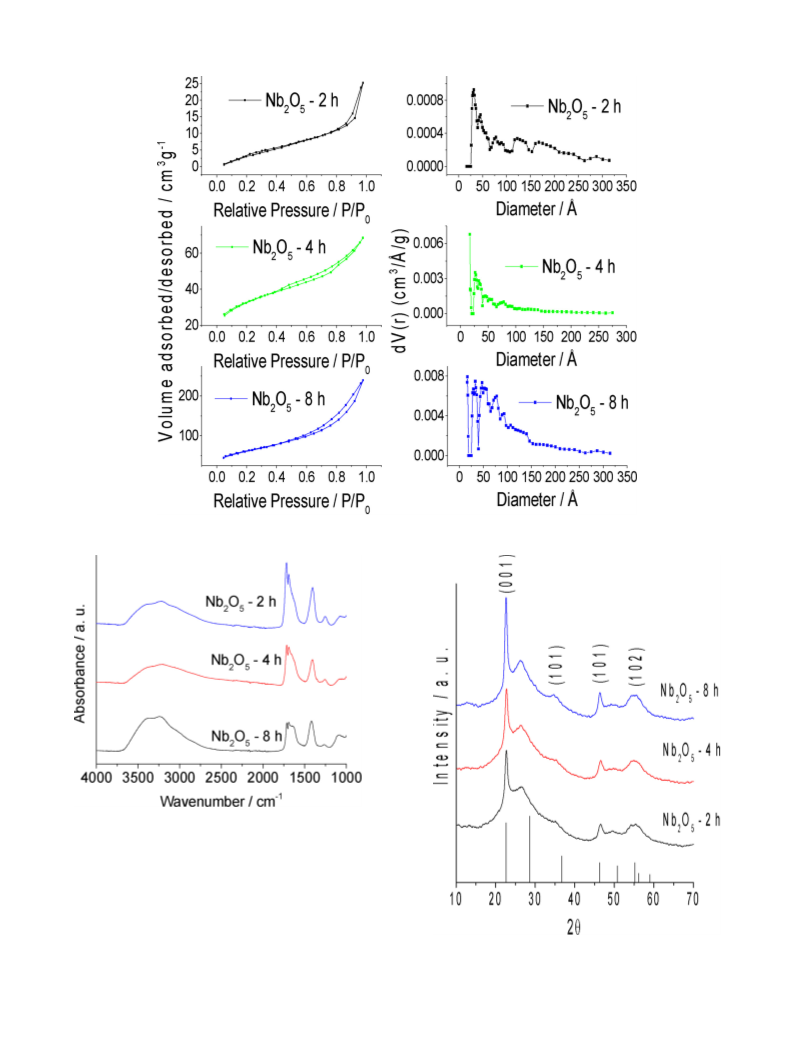

Fig. 1 shows the physical adsorption/desorption isotherms of N and
spectra. According to Ziolek et al, the activity for niobium oxides varies
according to its crystallinity, being a parameter proportional to the
number of hydroxyl groups present on the catalyst surface [17,43].
Fig. 5 shows the potentiometric titration curves of three synthesized
niobium oxides. The initial electrode potential (Ei) indicates the max-
imum acidity strength and the total number of acidic sites being pro-
vided by the inflection value of titration curve (ca. mEq n-butylamine /
g catalyst), which was obtained from the minimum of the first deriva-
tive of each titration curve. The strength of the sites can be classified
according to the scale: Ei > 100 mV (very strong), 0 < Ei < 100 mV
pore diameter distributions. According to IUPAC recommendations, the
isotherms of the synthesized salts can be classified as type V, char-
acteristic of microporous and mesoporous materials.
The hysteresis observed in the isotherm curves can be classified as
H3 type, which is typical of plate-shaped particle aggregates giving rise
to slit pores [40]. According to the pore diameter distribution curve
profiles, the niobium oxides synthesized presented diameters in the
range of micro and mesoporous.
−1
FT-IR spectra presented bands at approximately 1100 cm
were assigned to the asymmetric stretching of Nb–O–Nb bonds (Fig. 2)
that
(
strong), -100 < Ei < 0 mV (weak) e Ei < -100 mV (very weak) [50].
All the niobium catalysts presented very strong acidic sites as de-
Table 1
monstrated by the high Ei values showed in Fig. 5, which was higher
than 100 mV. Moreover, as higher the synthesis time, lower was the
acidity strength. The number of total acidic sites (ca. mEq of n-buty-
a
Characterization of the catalysts through the physical adsorption of nitrogen .
2
3
Catalyst
S
BET (m /g)
V
DFT (cm /g)
D (Ǻ)
lamine/ g of catalyst) followed the order 0.95, 0.45, and 0.40 for Nb
2 h, Nb - 4 h and Nb - 8 h oxides, respectively. Therefore, the
solid Nb - 2 h showed both the strongest acid sites and the greatest
2 5
O
Nb
Nb
Nb
2
2
2
O
O
O
5
5
5
- 2 h
- 4 h
- 8 h
17.4
107.4
215.9
0.035
0.095
0.340
31.7
16.9
16.9
-
2
O
O
2 5
5
2 5
O
number of total acidic sites.
a
S
BET = surface area; VDFT = cumulative pore volume; D = pore diameter.
It is important to highlight that the results of potentiometric
3
