Full Papers
paid to the catalyst’s heat-transfer ability, although the cata-
lysts usually need to operate in adiabatic packed-bed reactors
with high conversion, for which a good heat transfer is manda-
tory. Hence, from both academic and industrial points of view,
it is particularly urgent to develop a novel SiO2-free catalyst
with unique combination of high catalytic activity and selectiv-
ity, structural robustness, and excellent thermal conductivity.
Consequently, metal microfibrous-structured materials with
much higher heat-transfer ability than oxides have attracted in-
creasing interests as catalyst supports in strongly endothermic
and exothermic reactions.[15] We have demonstrated successful
applications of microfibrous matrixes and foams in the devel-
opment of many structured catalysts for the methanol-to-ole-
fins process,[16] vapor-phase oxidation of alcohols,[17] oxidative
coupling of methanol to methyl formate,[18] Fischer–Tropsch
synthesis to lower olefins,[19] coalbed methane deoxygena-
tion,[20] NH3 cracking,[21] syngas methanation,[22] and methanol
steam reforming.[23] In the light of the above success, we
aimed to utilize metal fibers with microfibrous structure to pre-
pare a novel SiO2-free Cu-based catalyst for DMO hydrogena-
tion. We expected that the sintering of the Cu NPs would be
relieved because of the higher thermal conductivity of the
metal fiber than that of the oxide supports and the SiO2 leach-
ing encountered for the traditional Cu/SiO2 during the DMO
hydrogenation would be avoided.[12]

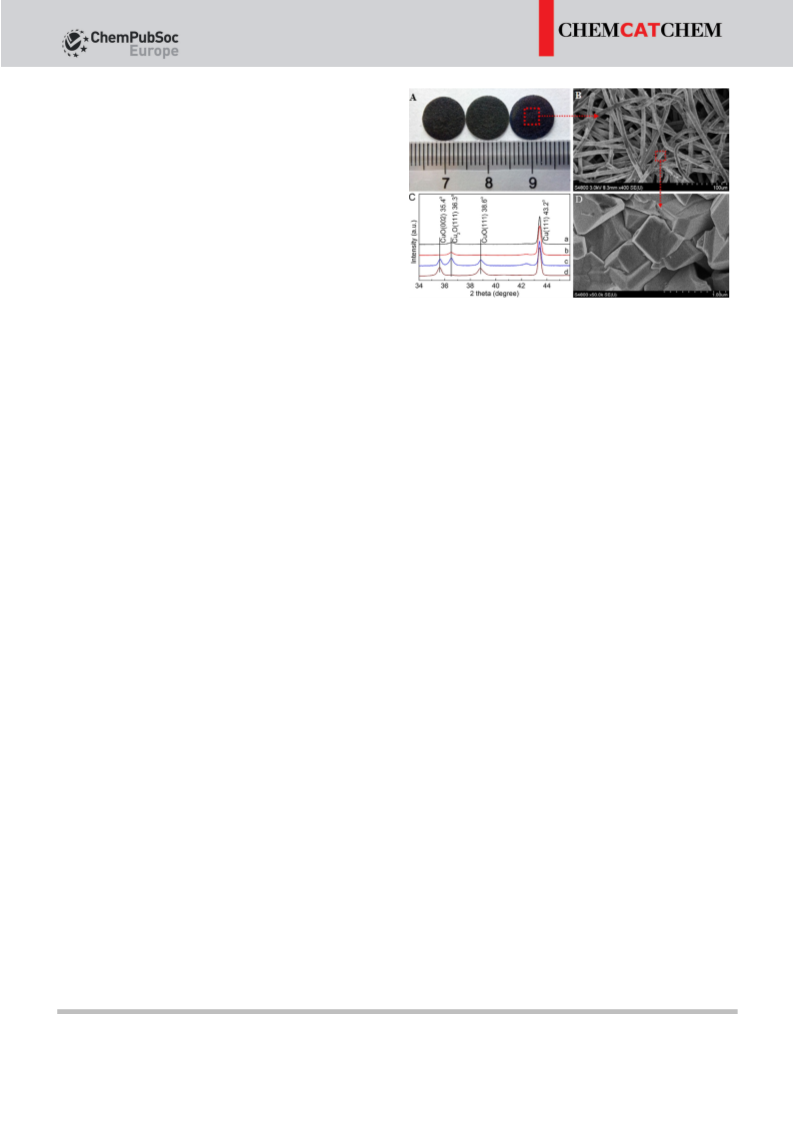

Figure 1. Structural features from nano- to macro-scales for the structured
0.5Pd–2.5Au–CuOx/Cu-fiber catalyst. A) Photograph of the macroscopic
sample; B) SEM image, showing its 3D porous network structure; C) XRD
patterns of a) CuOx/Cu-fiber, b) 0.5Pd–CuOx/Cu-fiber, c) 2.5Au–CuOx/Cu-fiber,
and d) 0.5Pd–2.5Au–CuOx/Cu-fiber catalysts; D) high-magnification SEM
image of 0.5Pd–2.5Au–CuOx/Cu-fiber catalyst.
work structure with entirely open but irregular submillimeter-
scaled macropores. Satisfactorily, Pd and Au were firmly em-
bedded onto the Cu-fiber surface with the aid of galvanic dep-
osition method, and the actual loadings account for about
70% of theoretical ones for all samples (see the inductively
coupled plasma atomic-emission spectroscopy, ICP–AES, results
in the Supporting Information, Table S1). Such galvanic deposi-
tion can proceed spontaneously if wetting the Cu-fiber surface
with the aqueous solution containing the appointed amounts
of Pd and Au cations, owing to the distinct electrode potential
differences between the Cu2+/Cu0 (0.34 V; or Cu+/Cu0, 0.52 V)
and Au3+/Au0 (1.5 V; or Pd2+/Pd0, 0.95 V) pairs. XRD patterns of
the fresh catalysts are shown in Figure 1C. Only one XRD peak
centered at 36.38 could be clearly detected on the CuOx/Cu-
fiber and the 0.5Pd–CuOx/Cu-fiber catalyst, which was attribut-
ed to Cu2O (JCPDS-77-0199). Except for the Cu2O diffraction
peak, peaks at 35.48 and 38.68 attributed to CuO (JCPDS-80-
1916) were also detected on the 2.5Au–CuOx/Cu-fiber and
0.5Pd–2.5Au–CuOx/Cu-fiber catalysts. Note that no XRD peaks
of Au, Pd, or PdO phase could be detected on all samples, indi-
cating high dispersion of the Au and Pd species. Indeed, the
TEM images shown in Figure 2 and Supporting Information
Figure S1 also confirmed the highly dispersed Au and Pd parti-
cles with sizes of approximately 4 nm over all samples. In addi-
tion, high magnification SEM image of 0.5Pd–2.5Au–CuOx/Cu
fiber revealed the large CuOx crystalline grains (Figure 1D). The
above results indicated that our novel galvanic deposition
method was working effectively and efficiently to create such
structured 0.5Pd–CuOx/Cu-fiber, 2.5Au–CuOx/Cu-fiber, and
0.5Pd–2.5Au–CuOx/Cu-fiber catalysts, which were expected to
be competent in DMO hydrogenation reaction.
Herein we report on a high-performance monolithic struc-
tured Pd–Au–CuOx/Cu-fiber catalyst by galvanically depositing
Pd and Au nanoparticles (NPs) onto the Cu-fiber surfaces. The
promising Pd–Au–CuOx/Cu-fiber catalyst with 0.1 wt% Pd and
0.5 wt% Au could deliver DMO conversion of 97–99% with EG
selectivity of 90–93% and could assure activity/selectivity
maintenance for at least 200 h at 2708C and 2.5 MPa, using
a liquid weight hourly space velocity (LWHSV) of 5.3 hÀ1 and
a H2/DMO molar ratio of 180. The synergistic effect of the ter-
nary Pd–Au–CuOx composite is tentatively discussed. Note that
some parts of results concerning this work were previously re-
ported as a short communication,[24] which focused on the
novel microstructured catalyst system rather than the effects
of Pd and Au loadings on the catalyst performance as well as
the reaction conditions including reaction temperature/pres-
sure, LWHSV, and H2/DMO ratio.
Results and Discussion
Pd and/or Au galvanic deposition, structure, and morpholo-
gy of the catalyst
Initially, the monolithic sinter-locked microfibrous-structured
8 mm Cu fibers were prepared by regular wet layup papermak-
ing with a subsequent sintering process,[25] which were then
tailored into desired circular chips (8 mm diameter, 2 mm
thickness). Subsequently, 2.5Au–CuOx/Cu-fiber, 0.5Pd–CuOx/
Cu-fiber, and 0.5Pd–2.5Au–CuOx/Cu-fiber catalysts were pre-
pared by the galvanic deposition method following by drying
at 1008C overnight and calcination at 3008C for 2 h in air. As
shown in Figure 1A,B, our representative circular chip-like
0.5Pd–2.5Au–CuOx/Cu-fiber sample has a 3D microfibrous net-
Catalytic performance
The as-prepared 0.5Pd–CuOx/Cu-fiber, 2.5Au–CuOx/Cu-fiber,
0.5Pd–2.5Au–CuOx/Cu-fiber, and CuOx/Cu-fiber catalysts were
ChemCatChem 2016, 8, 1065 – 1073
1066
ꢀ 2016 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
