Direct electrochemical hydrogenation of toluene at Pt electrodes in a microemulsion electrolyte solution

Article abstract of DOI:10.1016/j.elecom.2016.01.001

In the present study, we demonstrated a new concept for the direct electrochemical hydrogenation of toluene using an acidic microemulsion electrolyte with active Pt electrodes to pave the way for efficient methylcyclohexane mass production. We have achieved a Faradaic efficiency of 80% for the toluene/methylcyclohexane conversion at a Pt black electrode, under galvanostatic conditions and in a one-compartment cell. The reaction rate and selectivity of the toluene reduction were found to depend strongly on the surface structure of the Pt electrodes.

Full text of DOI:10.1016/j.elecom.2016.01.001

Direct electrochemical hydrogenation of toluene at Pt electrodes in a mi-
croemulsion electrolyte solution
Mitsuru Wakisaka, Masashi Kunitake
PII:
DOI:
Reference:
S1388-2481(16)00002-3
doi: 10.1016/j.elecom.2016.01.001
ELECOM 5613
To appear in:
Electrochemistry Communications
Received date:
Revised date:
Accepted date:
8 December 2015
24 December 2015
7 January 2016
Please cite this article as: Mitsuru Wakisaka, Masashi Kunitake, Direct electrochemi-
cal hydrogenation of toluene at Pt electrodes in a microemulsion electrolyte solution,
Electrochemistry Communications (2016), doi: 10.1016/j.elecom.2016.01.001
This is a PDF file of an unedited manuscript that has been accepted for publication.
As a service to our customers we are providing this early version of the manuscript.
The manuscript will undergo copyediting, typesetting, and review of the resulting proof
before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that
apply to the journal pertain.

ACCEPTED MANUSCRIPT
Direct electrochemical hydrogenation of toluene at Pt electrodes in a microemulsion electrolyte
solution
a,b,*
c
Mitsuru Wakisaka
and Masashi Kunitake
a
Fuel Cell Nanomaterials Center, University of Yamanashi, 6-43 Miyamae-cho, Kofu 400-0021,
Japan.
b
JST, PRESTO, 4-1-8 Honcho, Kawaguchi, Saitama, 332-0012, Japan.
c
Graduate School of Science and Technology, Kumamoto University, 2-39-1 Kurokami, Kumamoto,
860-8555, Japan.
*
Corresponding author. Tel/fax: +81 55 254 7094
E-mail address: wakisaka@yamanashi.ac.jp (M. Wakisaka)
ABSTRACT
In the present study, we demonstrated a new concept for the direct electrochemical hydrogenation
of toluene using an acidic microemulsion electrolyte with active Pt electrodes to pave the way for
efficient methylcyclohexane mass production. We have achieved a Faradaic efficiency of 80% for
the toluene/methylcyclohexane conversion at a Pt black electrode, under galvanostatic conditions
and in a one-compartment cell. The reaction rate and selectivity of the toluene reduction were found
to depend strongly on the surface structure of the Pt electrodes.
Keywords: organic hydride, hydrogenation, microemulsion, Pt electrode, surface-sensitive reaction,
hydrogenolysis
1. Introduction
To build a hydrogen-based society, it is imperative to establish a large-scale hydrogen supply
system. Organic chemical hydrides have been attracting considerable attention as hydrogen carriers,
because they are liquid at ambient temperature and pressure [1]. Recently, the Chiyoda Corporation
has demonstrated a large-scale hydrogen storage and transportation system making use of organic
chemical hydride technology involving the catalytic hydrogenation of toluene, forming
methylcyclohexane (MCH), and the dehydrogenation of MCH [2].
From the viewpoints of the effective use of electricity from renewable sources such as
photovoltaics and wind-power, and the total energy conversion efficiency, the direct electrochemical
hydrogenation of toluene is preferable to the conventional multistep reaction process consisting of
water electrolysis and gas-solid catalytic toluene hydrogenation with the produced hydrogen. So far,
1

ACCEPTED MANUSCRIPT
there have been several studies of the direct electrochemical hydrogenation of toluene by employing
a membrane electrode assembly (MEA) that consisted of a polymer electrolyte, Pt-based
nanoparticle electrodes containing an ionomeric binder, and carbon paper [3-5]. However, it is
questionable whether the MEA approach is best suited to the electrochemical hydrogenation of
liquid aromatic organics, because MEAs have been developed for fuel cells and water electrolyzers
in which the reactants or products are gaseous.
Toluene is an organic that has very low solubility in aqueous solution. The question arises—how
can toluene be supplied to a catalyst in a facile manner in an aqueous solution to react with protons?
One of the possible strategies is to use a microemulsion, which is a thermodynamically stable system
that consists of organic and aqueous phases, plus surfactants. In a microemulsion, the
electrochemical contact between the electrode and both micro-aqueous and organic phases can be
simultaneously achieved by controlling the hydrophilicity and lipophilicity of the electrode surface
[6-10]. So far, Rusling and co-workers have investigated the direct electrochemical reduction of
arenes such as naphthalene and biphenyl at a non-catalyzed carbon electrode in neutral
microemulsion media where the substrates were diluted with an organic solvent such as hexane
[11,12]. However, these workers reported that only partial hydrogenation of aromatic rings and low
Faraday efficiencies were achieved [11,12].
In the present study, we demonstrated the direct electrochemical hydrogenation of toluene using
an acidic microemulsion electrolyte with active Pt electrodes. We achieved a Faradaic efficiency of
80% for the toluene/methylcyclohexane conversion at a Pt black electrode. Furthermore, we found
that the reaction rate and selectivity of the toluene reduction depend strongly on the surface structure
of the Pt electrodes.
2
2
. Material and Methods
.1. Microemulsion
The microemulsion electrolyte for the direct toluene hydrogenation was prepared from undiluted
toluene (6 mL; 99.7% Cica-reagent for spectroscopy, Kanto Chemical Co., Inc., Japan) with sodium
-dodecanesulfonate (0.75 g; >98% hygroscopic, Tokyo Chemical Industry Co., Ltd., Japan), t-butyl
alcohol (1 mL; 99.0% Cica-reagent, Kanto Chemical Co., Inc., Japan) and 6 mL of 1 M H SO
1
2
4
aqueous solution. The 1 M H SO solution was prepared by diluting 96% H SO (Suprapur, Merck
2
4
2
4
KGaA, Germany) with Milli-Q water. The chemical mixture was sonicated for 40 min and then left

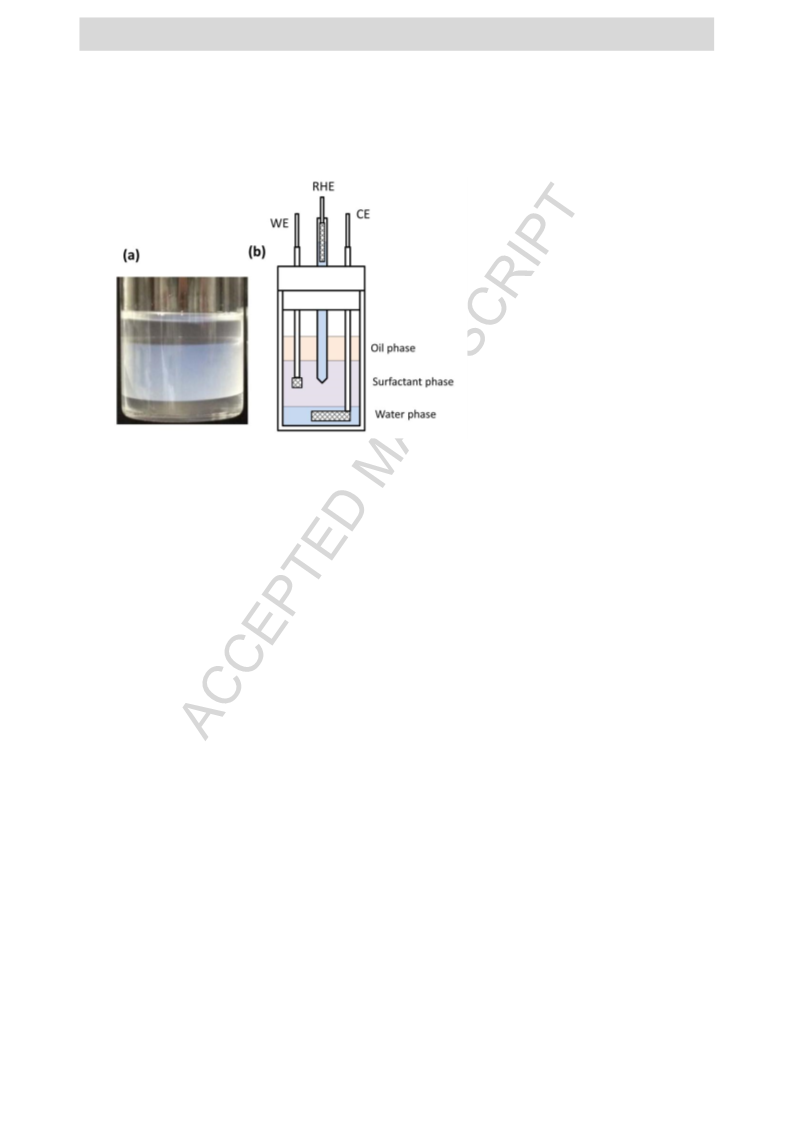

at least for a day to achieve equilibrium at room temperature. Figure 1a shows a photo of the
prepared microemulsion electrolyte, which separated into three phases (Winsor III type), i.e., organic
phase, surfactant-rich middle phase and aqueous (1 M H SO ) phase. The surfactant-rich middle
2
4
phase exhibited a blue color due to Rayleigh scattering. The average diameter of the micelles in the
middle phase was estimated to be 11 nm via a small-angle X-ray scattering (SAXS, Nano-STAR,
2

ACCEPTED MANUSCRIPT
Bruker AXS) measurement.
2.2. Cell Configuration
Figure 1b shows a schematic diagram of the three-electrode, single-compartment cell filled with
the microemulsion electrolyte for the direct electrochemical hydrogenation of toluene. The working
electrode (WE) is placed in the middle phase, at which the toluene hydrogenation occurs via the
following half-cell reaction:
CH3
CH3
+
-
+
6H
+
6e →
(1)
The produced MCH can be obtained from the organic phase, because the MCH molecules can
diffuse through the middle phase. On the other hand, the counter electrode (CE) is placed in the
aqueous phase, at which the oxygen evolution reaction takes place as follows:
+
-
H O
2
→
1/2O2
+
2H
+
2e
(2)
Thus, protons can be continuously supplied from the aqueous phase to the middle phase.
Consequently, the overall cell reaction can be expressed as follows:
CH3
CH3
+
3H O →
+
3/2O2
(3)
2
o
On the basis of the standard reaction Gibbs free energy, the standard cell voltage U for the overall
o
reaction (3) can be calculated to be 1.07 V. Thus, the standard electrode potential E for the half-cell
reaction of (1) is 0.16 V vs. the standard hydrogen electrode (SHE) [3-5]. In the present study, a
reversible hydrogen electrode (RHE) in aqueous 1 M H SO was employed as the reference
2
4
electrode. Hereinafter, all of the electrode potentials are reported vs. RHE
Unlike MEA-type cells, various forms of working electrodes can be examined in the
microemulsion electrolysis cell. In the present study, we tested two types of Pt working electrodes,
i.e. a mirror-finished Pt disk electrode (3 mm in diameter) purchased from ALS Co., Ltd., and a
Pt-black grid electrode prepared by platinization of a 80 mesh/inch Pt grid (0.5 cm × 0.5 cm; Nilaco
Corporation, Japan) in a chloroplatinic acid solution at 10 mA for 5 min. Prior to electrochemical
measurements, each Pt working electrode was subjected to 10 potential cycles between 0.05 and
1
.30 V in pure 1 M H SO solution in order to clean the electrode surface. Electrochemically-active
2 4
areas of the Pt electrodes were calculated from measured hydrogen adsorption charge densities on
-2
the basis of the theoretical value of 210 Ccm .
3
3
. Results and Discussion
.1. Cyclic voltammetry and Chronoamperometry

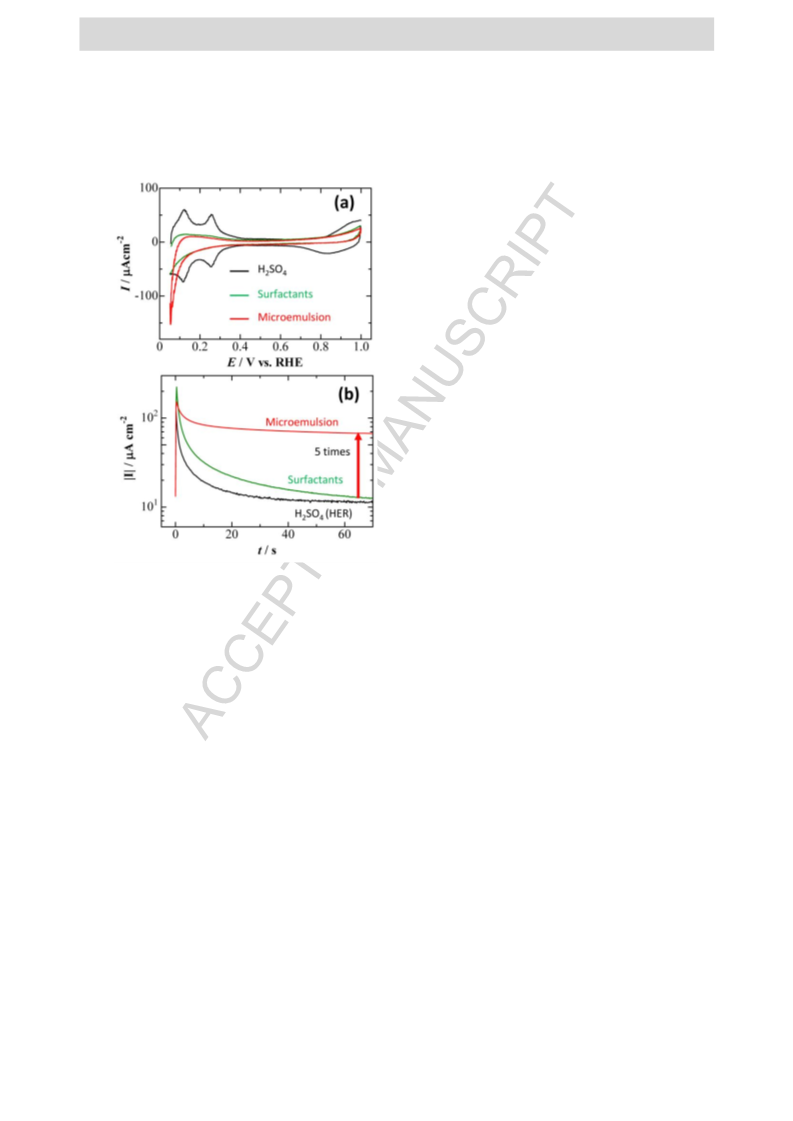

Figure 2a shows cyclic voltammograms (CVs) at a mirror-finished Pt disk electrode in 1 M H SO
2
4
solution, 1 M H SO solution containing the surfactants (sodium 1-dodecanesulfonate and t-butyl
2
4
3

ACCEPTED MANUSCRIPT
alcohol), and the toluene microemulsion electrolyte. Each solution was deaerated with pure N (6N,
2
Sumitomo Seika Chemicals Co., Ltd., Japan). The CV in the blank H SO exhibited a characteristic
2
4
reversible hydrogen adsorption wave below 0.4 V and an irreversible Pt surface oxidation wave
above 0.7 V. However, the characteristic hydrogen adsorption and surface oxidation waves were
suppressed in the surfactant-containing 1 M H SO solution, probably due to adsorption of the
2
4
surfactants on the Pt electrode surface over the whole potential range.
In the toluene microemulsion electrolyte, the hydrogen adsorption and surface oxidation waves
were also suppressed due to the adsorption of the surfactants in the same manner as in the
surfactant-containing electrolyte. However, a large reduction current arose around 0.15 V, i.e., quite
positive compared to that for the hydrogen evolution reaction (HER). This large reduction current
can be attributed to the toluene hydrogenation based on the standard potentials. Figure 2b shows
chronoamperograms (CAs) of the mirror-finished Pt electrode at 0.03 V after a potential step from
0.40 V in the same three solutions. The reduction currents in the blank and surfactant-containing
H O solutions dropped steeply, while that in the toluene microemulsion remained around 70 A
2
4
-
2
cm , 5 times larger than the current for the HER.
3.2. Faraday Efficiency and Selectivity
We then carried out a potentiostatic electrolysis of toluene at 0.02 V by using the mirror-finished
Pt electrode. The electrolysis was conducted in a single-compartment cell at room temperature
without stirring the microemulsion solution. After the electrolysis, 1 l of the organic phase was
sampled for a product analysis by gas chromatography (GC) using a GC-4000-plus (GL Sciences
Inc., Japan) with a flame ionization detector. The Faradaic efficiency  of toluene/MCH conversion
F
was estimated via the following equation:
F = NMCH × 6F / Q × 100
(4)
where NMCH, F and Q are the amount of synthesized MCH [mol] determined by the GC analysis, the
-
1
Faraday constant [C mol ], and consumed charge [C], respectively. Contrary to our expectation, the
Faradaic efficiency of toluene/MCH conversion at the flat Pt electrode was only less than 20%.
However, we found cyclohexane as the predominant product in the GC analysis, in an amount twice
that of MCH. The formation of cyclohexane is presumably due to the further reduction of MCH
(
hydrogenolysis) yielding CH , undetectable in the GC measurement, as expressed in the following
4
reaction:
CH3
+
-
+
2H
+
2e
→
+ CH4 (5)
The standard electrode potential for the half-cell reaction of (5) can be calculated to be 0.23 V vs.
SHE, more positive than that for the toluene hydrogenation. Thus, the formation of cyclohexane
during the toluene hydrogenation was quite reasonable from the thermodynamic viewpoint.
4

ACCEPTED MANUSCRIPT
However, we found that the MCH hydrogenation was a structure-sensitive reaction on Pt electrode
surfaces. We also performed a galvanostatic electrolysis of the toluene microemulsion at 1 mA using
2
the Pt black grid electrode, which had a large electrochemically-active area, 90.5 cm (apparent
roughness factor 360). Surprisingly, the Faraday efficiency of toluene/MCH conversion was much
improved up to ca. 80% at the Pt black electrode. No significant product other than MCH was found
in the GC analysis. Thus, 20% of the remaining charge in the electrolysis might be consumed mainly
by the competitive HER, secondarily by reduction of oxygen generated at the counter electrode
and/or reduction of surfactants (most likely t-butyl alcohol).
We then examined the reactivity of MCH at both the flat Pt electrode and the Pt-black electrode in

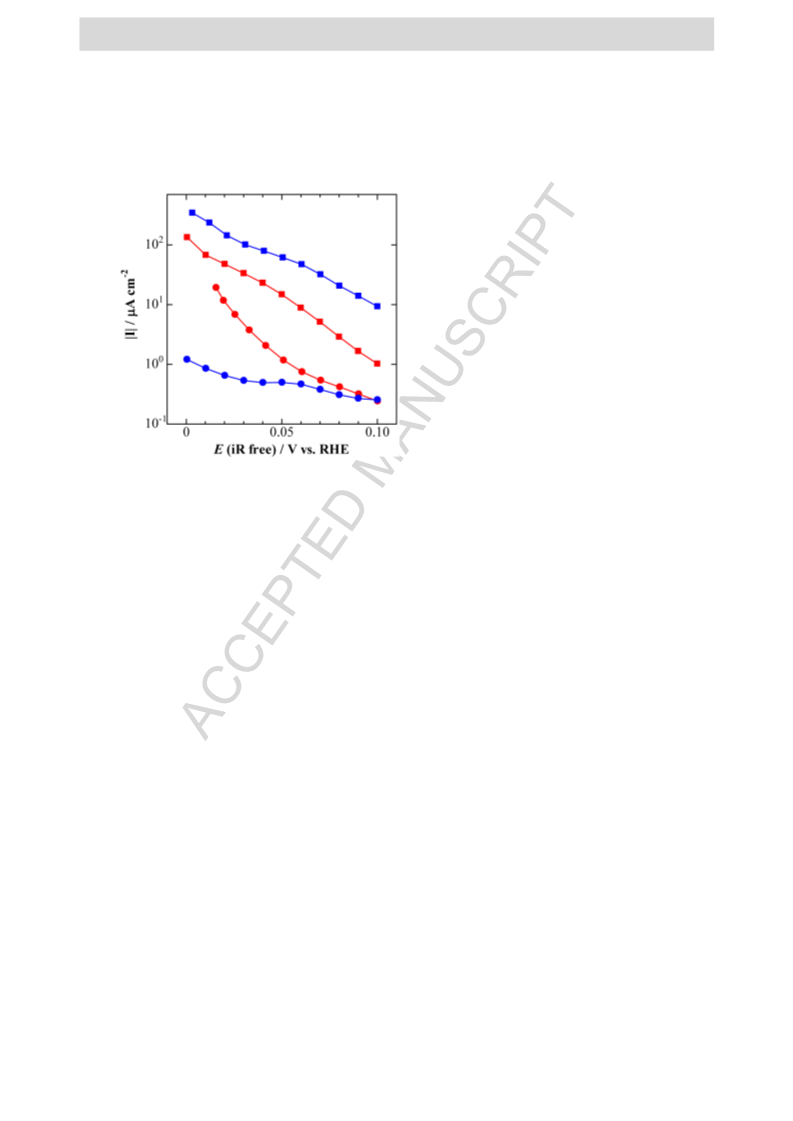

a microemulsion containing MCH instead of toluene. Figure 3 shows steady-state polarization
curves for the MCH microemulsion as well as the toluene microemulsion. It should be noted that the
current densities were based on the electrochemically-active areas, not the geometric areas. It is
clearly demonstrated in Figure 3 that both toluene hydrogenation and MCH hydrogenolysis are
strongly surface-structure sensitive reactions. At the smooth Pt electrode (mirror-finished), the
reaction rate of MCH was higher than that of toluene over the whole potential range. In contrast, the
high area Pt black electrode exhibited the inverse, a reaction rate for MCH lower than that for
toluene. In addition, it should be pointed out that the area-specific activities of the Pt black electrode
towards both the toluene hydrogenation and the MCH hydrogenolysis were lower than those of the
smooth Pt electrode. The present result that the flat Pt electrode rather than the high area Pt electrode
promoted the MCH hydrogenolysis seemed against the conventional understanding in gas-solid
catalytic reactions that C‒C bond scission is facilitated by kink sites on a Pt catalyst [13]. This
opposite trend in reaction selectivity might originate from the unique reaction field at the
microemulsion-electrode interface where the surfactants as well as (bi)sulphate anions strongly
adsorb on the electrode surfaces (specifically, the high area Pt black) to block kink sites.
4. Conclusion
In the present study, we have demonstrated a new concept for the direct electrochemical
hydrogenation of toluene at Pt electrodes in a microemulsion electrolyte solution. We have achieved
a Faradaic efficiency of 80% for the toluene/MCH conversion at a Pt black electrode under
galvanostatic conditions and in a one-compartment cell. The reaction rate and selectivity of the
toluene reduction were found to depend strongly on the surface structure of the Pt electrodes. GC
analyses revealed that MCH hydrogenolysis proceeded at a flat Pt electrode in MCH-containing
microemulsions. The present preliminary results indicate that our microemulsion approach, which is
much simpler and cheaper than the MEA approach, has great potential for the direct electrochemical
hydrogenation of aromatic organics as well as other hydrocarbon conversion reactions such as
hydrogenolysis. However, further investigations on high activity, high selectivity electrocatalysts,
5

ACCEPTED MANUSCRIPT
inert surfactants, as well as cell designs, are required to achieve higher Faradaic efficiency and mass
production of MCH.
Acknowledgement
This research was supported by Japan Science and Technology Agency, PRESTO.
References
[1] E. Bewson, TH. Haueter, P. Hottinger, F. Von Roth, G. W. H. Scherer, TH. H. Schucan, Seasonal
storage of hydrogen in stationary systems with liquid organic hydrides, Int. J. Hydrog. Energy 23
(1998) 905-909.
[2] Y. Okada, E. Sasaki, E. Watanabe, S. Hyodo, H. Nishijima, Development of dehydrogenation
catalyst for hydrogen generation in organic chemical hydride method, Int. J. Hydrog. Energy 31
(2006) 1348-1356.
[3] P. Wang, T. Minegishi, G. Ma, K. Takanabe, Y. Satou, S. Maekawa, Y. Kobori, J. Kubota, K.
Domen, Photoelectrochemical conversion of toluene to methylcyclohexane as an organic hydride by
Cu ZnSnS -based photoelectrode assemblies, J. Am. Chem. Soc. 134 (2012) 2469-2472.
2
4
[4] V. Kalousek, P. Wang, T. Minegishi, T. Hisatomi, K. Nakagawa, S. Oshima, Y. Kobori, J. Kubota,
K. Domen, Conversion of Toluene and Water to Methylcyclohexane and Oxygen using
Niobium-Doped Strontium Titanate Photoelectrodes, ChemSusChem 7 (2014) 2690-2694.
[
5] S. Mitsushima, Y. Takakuwa, K. Nagasawa, Y. Sawaguchi, Y. Kohno, K. Matsuzawa, Z.
Awaludin, A. Kato, Y. Nishiki, Membrane Electrolysis of Toluene Hydrogenation with Water
Decomposition for Energy Carrier Synthesis, Electrocatalysis 2015.
DOI:10.1007/s12678-015-0289-3.
6] R. A. Mackay and J. Texter, Electrochemistry in Colloids and Dispersions, Wiley-VCH,
Weinheim, 1992.
7] John Texter, Reactions and Synthesis in Surfactant Systems, Marcel Dekker, Inc., New York,
001.
8] J. F. Rusling, Electrochemistry in Micelles and Microemulsions, in: E. Calvo (Ed.), Encyclopedia
[
[
2
[
of Electrochemistry, Vol. 2, Interfacial Kinetics and Mass Transport, Willey-VCH, Weinheim, 2003,
pp. 418-439.
[9] S. Yoshitake, A. Ohira, M. Tominaga, T. Nishimi, M. Sakata, C. Hirayama, M. Kunitake,
Electrochemistry in middle phase microemulsion composed of saline and toluene with sodium
dodecylsulfate and n-butanol, Chem. Lett. 3(2002) 360-361.
[10] E. Kuray, S. Nagatomo, K. Sakata, D. Kato, O. Niwa, T. Nishimi, M. Kunitake, Simultaneous
Electrochemical Analysis of Hydrophilic and Lipophilic Antioxidants in Bicontinuous
Microemulsion, Anal. Chem. 87 (2015) 1489 -1493.
6

ACCEPTED MANUSCRIPT
[11] M. O. Iwunze, A. Sucheta and J. F. Rusling, Bicontinuous microemulsions as media for
electrochemical studies, Anal. Chem. 62 (1990) 644-649.
12] H. Carrero, J. Gao, J. F. Rusling, C.-W. Lee and A. J. Fry, Direct and catalyzed electrochemical
syntheses in microemulsions, Electrochim. Acta 45 (1999) 503-512.
13] G. A. Somorjai, Catalysis by Surfaces, in Introduction to Surface Chemistry and Catalysis, John
Wiley & Sons, New York, 1994, 442-595.
[
[
7

ACCEPTED MANUSCRIPT

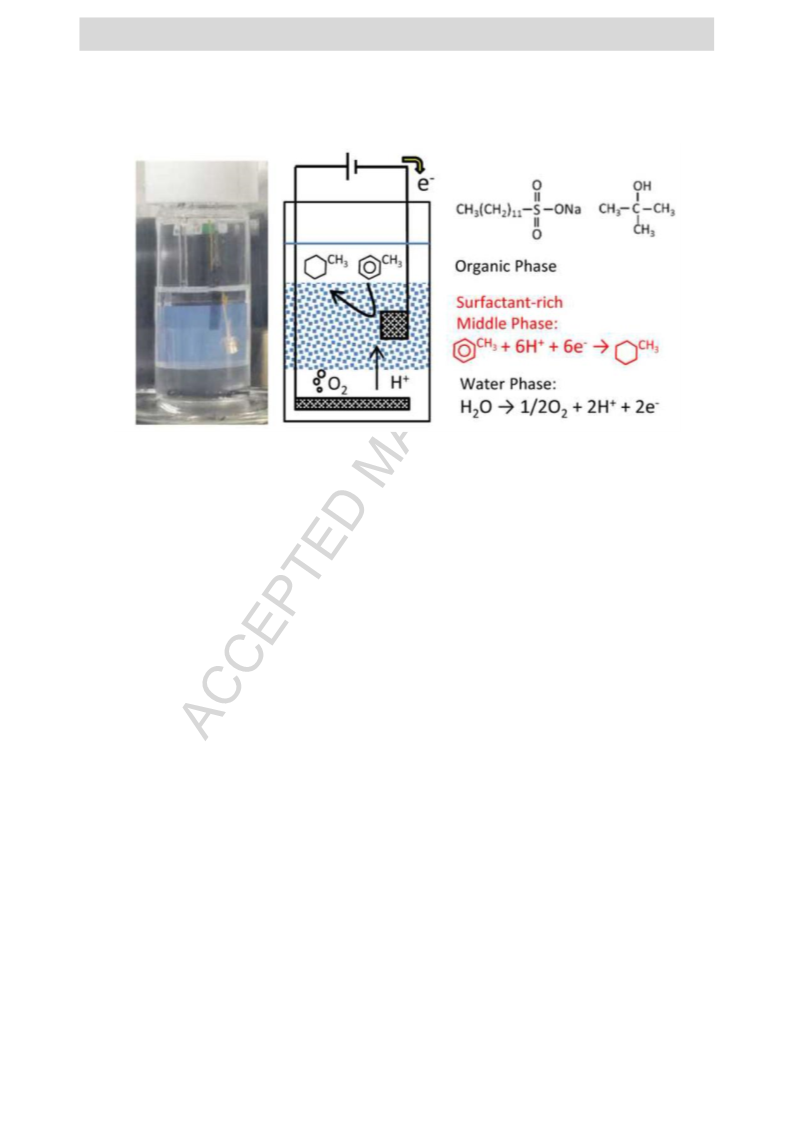

Fig. 1 (a) Photo of the prepared toluene microemulsion. (b) Schematic diagram of the
electrochemical cell for the direct electrochemical hydrogenation of toluene.
Fig. 2 (a) CVs and (b) CAs at a mirror-finished Pt electrode in 1 M H SO , surfactant-containing 1
2
4
M H SO and the toluene microemulsion electrolyte at room temperature, indicated by black, green
2
4
and red lines, respectively.
Fig. 3 Steady-state polarization curves at the flat Pt electrode (squares) and the Pt black electrode
(circles) in the toluene microemulsion (red symbols) and MCH microemulsion (blue ones) at room
temperature. The electrode potentials were iR-corrected.
8

ACCEPTED MANUSCRIPT
Fig. 1
9

ACCEPTED MANUSCRIPT
Fig. 2
1
0

ACCEPTED MANUSCRIPT
Fig. 3
1
1

ACCEPTED MANUSCRIPT
Graphical abstract
1
2

ACCEPTED MANUSCRIPT
Highlights
•
We demonstrated the direct electrochemical hydrogenation of toluene in a microemulsion
solution.
•
•
We achieved a Faradaic efficiency of 80% for the toluene conversion at a Pt black electrode.
The reaction rate and selectivity depend strongly on the surface structure of Pt electrodes.
1
3
