.
Angewandte
Communications
[
21]
found here at 104.1 eV, in agreement with the literature.
of Al-OH to Al-O-Si bonds; however, due to the low Si
loading only a small fraction of Al sites have Al-O-Si bonds,
precluding further interpretation of peak shape.
IV
Lower Si BEs relative to bulk silica are observed in other
aluminosilicates, and have been assigned to Si-O-M struc-
[
22]
tures where M ¼
6
Si. Increased acidity in the silanol proton
Ambient DRIFTS spectra of the catalysts were recorded
at 1008C after drying samples at 5008C for 1 hour, using
a KBr background (Figure S18). The spectral features are
is attributable to this electronic effect.
The surface geometry of the ALD-derived SiO /Al O
3

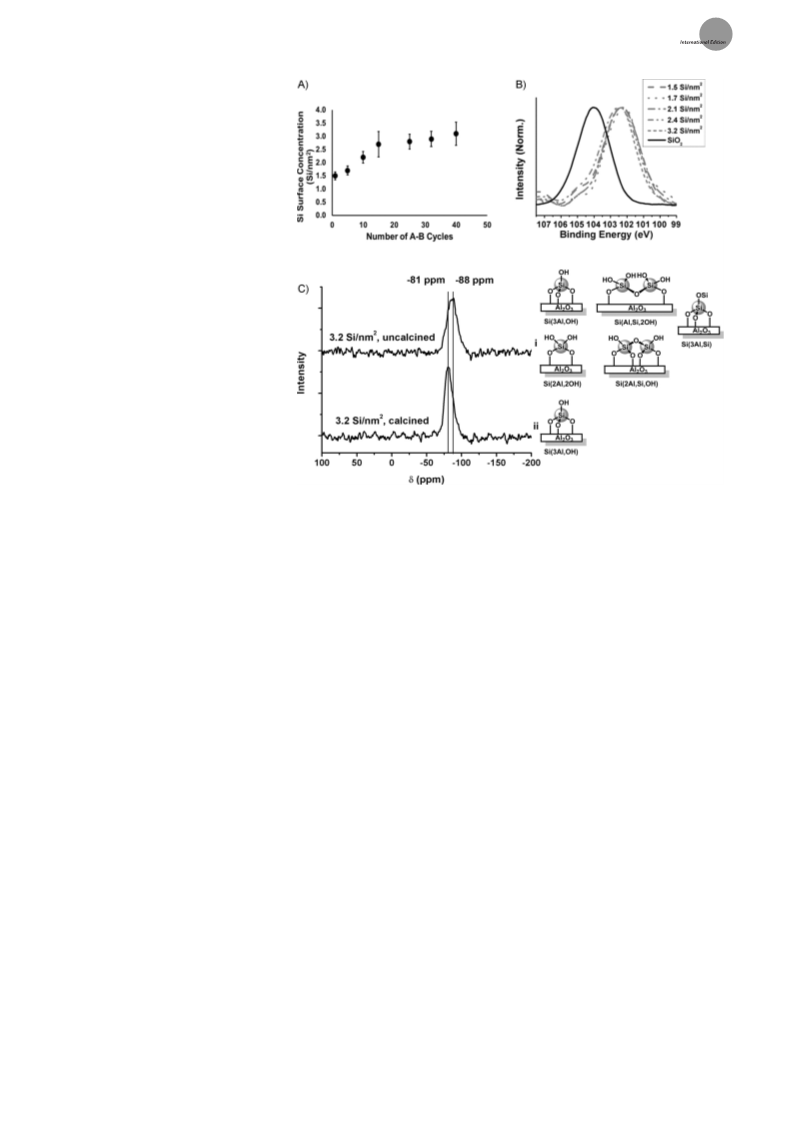

sites was next probed by DNP-enhanced Si{ H} cross-
polarization magic angle spinning (CPMAS) NMR spectros-
x
2
29
1
[27]
consistent with those previously noted in the literature.
Importantly, there is no shift in the position of the hydroxy
[23]
copy (Figure 2C, i–ii).
The DNP technique boosts the
signatures, hence no attenuation of the OÀH bond strength,
À1
sensitivity of conventional CPMAS by ca. 2 orders of
magnitude through excitation of the exogenously adminis-
tered biradicals at their ESR resonance frequency and
concomitant transfer of magnetization to the nuclear spins
although there is lessened intensity of the bands at 3790 cm
À1
and 3730 cm similar to that previously reported for Si
[27b]
deposition on g-Al O .
This contrasts with the analogous
2
3
but liquid-phase CLD process, which reveals attenuation
2
9
[11a]
(
due to the low Si loadings of these catalysts, conventional Si
under comparable conditions.
Notable is the appearance
À1
CPMAS NMR gave no detectable signals even after 40000
scans). In the uncalcined materials, the spectrum is assignable
to sites Si(2Al,Si,OH), Si(Al,Si,2OH) and Si(3Al,Si) species
of a sharp feature at 3723 cm in the present SiO /Al O
x 2 3
catalyst, assignable to surface SiÀOH species. Previously this
À1 [27b,28]
peak was assigned at 3725–3745 cm ,
with the lower
[24]
which are all expected at d = À85 to À90 ppm. Contribu-
frequency mode associated with greater OÀH bond ionicity,
À1
tions from other sites, such as Si(2Al,2OH) and Si(3Al,OH),
signifying enhanced Brønsted acidity. The 3723 cm position
[25]
cannot be excluded a priori. Furthermore, surface ethoxy
is thus consistent with the present assignment of the Si-O-H
sites as Brønsted acid sites.
13
1
groups cannot be detected by DNP-enhanced C{ H}
CPMAS NMR (Figure S13), arguing that hydrolysis is
essentially complete under the growth conditions.
NH DRIFTS experiments were next conducted to probe
3
surface acid sites, with catalyst surfaces exposed to NH at
3
The NMR results indicate that calcination enhances the Si
site homogeneity and increases the density of Si-O-Al
linkages, evidenced by narrowing and downfield displacement
1008C, then purged with Ar. The resulting spectra (Fig-
ure 3A,B) show that NH interaction with the neat g-alumina
3
hydroxy groups gives rise to Al -OH···NH features at 3769,
n
3
2
9
À1
of the Si signal. Moreover the d = À81 ppm position suggests
3727, and 3671 cm (Figure 3A, i, ii) in agreement with the
On ALD-derived SiO /Al O , an additional
x 2 3
band at 3741 cm (Figure 3A, iii, iv) is assigned to Si-
[29]
that the major Si surface species after calcination has an
literature.
[25b]
À1
Si(3Al,OH) geometry (Figure 2C, ii).
Minor responses
from the other species noted above are in principle possible;
however, the spectroscopic and catalytic data (see below)
argue that their contributions are minimal. Signals char-
acteristic of Si(4Si) (ca. d = À110 ppm) and Si(3Si,OH)
OH···NH species by analogy to similar modes in amorphous
3
[8a,30]
silica–aluminas.
The acid-site DRIFTS spectral region
[24]
(
ca. d = À100 ppm) sites
are also negligible, demon-
strating, in agreement with the XPS data, that the Si
deposition is limited by surface reactivity. Note that the
2
9
present Si NMR findings are consistent with other
studies arguing that the final stable geometry of surface
[26]
silica is a tridentate Si(3Al,OH) structure. We speculate
that here the geometry after calcination is a result of Si
atom spatial isolation. Although the deposition process
appears to yield some Si-O-Si linkages, polymeric SiO2
does not form, so that during the 5508C calcination, the Si
surface atoms reconstruct in a final geometry dictated
solely by the underlying g-Al O struture.
2
1
3
27
The DNP-enhanced Al{ H} CPMAS NMR measure-
ments were carried out to selectively detect Al sites on the
surface while excluding signals from underlying bulk
2
Al O . The spectra of g-Al O and 3.2 Si/nm SiO /Al O
2
3
2
3
x
2
3
before and after calcination (Figure S14) show two Al
VI
peaks assignable to octahedral sites (Al , d = 5 ppm) and
IV
[24]
tetrahedral sites (Al , d = 65 ppm).
Deposition of Si
VI
IV
converts a fraction of Al sites to Al sites, with no peak
shift or new signal apparent. The spectral intensities do not
undergo any further change upon calcination, suggesting
that the surface reconstruction by calcination involves
primarily the Si species, a result corroborated by infrared
Figure 3. A) DRIFTS spectra of NH treated SiO /Al O for: i) uncalcined
3
x
2
3
2
g-Al O , ii) calcined g-Al O , iii) uncalcined SiO /Al O with 3.2 Si/nm , and
2
3
2
3
x
2
3
2
iv) calcined SiO /Al O with 3.2 Si/nm . B) DRIFTS acid region spectra of
x
2
3
spectroscopy (see below). Note that a small upfield shift NH -treated SiO /Al O . C) Ratio of Brønsted-to-Lewis acid DRIFTS peak
3
x
2
3
IV
(
ca. 5 ppm) in the Al peak is expected upon conversion areas for NH
treated SiO /Al O samples.
3 x 2 3
1
ꢀ 2015 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Angew. Chem. Int. Ed. 2015, 54, 13346 –13351
