Chloride-Induced Highly Active Au Catalyst for Methyl Esterification of Alcohols

Article abstract of DOI:10.1002/cjoc.201800374

Chloride is generally regarded as a harmful species for the heterogeneous catalysts, especially Au catalysts. In this work, a series of active Au/NiO_x catalysts were successfully prepared with co-precipitation method by tracking the concentrations of chloride in the re-dispersed aqueous solutions. For methyl esterification of alcohols, the highest active Au/NiO_x catalysts could be prepared from aqueous solutions containing 8-13 ppm chloride, the yield of methyl benzoate of catalyst Au/NiO_x-9 was 99%. The catalyst structures and the role of chloride in catalysts were explored by ICP, BET, XPS, TEM and EXAFS characterizations. It was found that the appropriate amount of residual chloride in Au catalysts was beneficial to their catalytic activities. Especially for Au/NiO_x-9, the appropriate amount of residual chloride had positive effects on the physicochemical properties of Au/NiO_x catalyst, the position of Au nanoparticles (NPs) located on NiO_x crystallites and the ratio of Au^δ+/Au⁰ in catalyst, which together resulted in its high reactivity.

Full text of DOI:10.1002/cjoc.201800374

Accepted Article
Title: Chloride-induced highly active Au catalyst for methyl esterification
of alcohols
Authors: Chengming Zhang *, Yongzhao Wang
This manuscript has been accepted and appears as an Accepted Article online.
This work may now be cited as: Chin. J. Chem. 2019, 37, 10.1002/cjoc.201800374.
The final Version of Record (VoR) of it with formal page numbers will soon be
published online in Early View: http://dx.doi.org/10.1002/cjoc.201800374.
ISSN 1001-604X • CN 31-1547/O6
mc.manuscriptcentral.com/cjoc
www.cjc.wiley-vch.de

Chloride-induced highly active Au catalyst for methyl esterification
of alcohols
Chengming Zhang *, Yongzhao Wang
Engineering Research Center of Ministry of Education for Fine Chemicals, School of Chemistry and Chemical
Engineering, Shanxi University, Taiyuan 030006, China
Abstract
Chloride is generally regarded as a harmful species for the heterogeneous catalysts,
especially Au catalysts. In this work, a series of active Au/NiOx catalysts were
successfully prepared with co-precipitation method by tracking the concentrations of
chloride in the re-dispersed aqueous solutions. For methyl esterification of alcohols,
the highest active Au/NiOx catalysts could be prepared from aqueous solutions
containing 8-13ppm chloride, the yield of methyl benzoate of catalyst Au/NiOx-9 was
9
9%. The catalyst structures and the role of chloride in catalysts were explored by ICP,
BET, XPS, TEM and EXAFS characterizations. It was found that the appropriate
amount of residual chloride in Au catalysts was beneficial to their catalytic activities.
Especially for Au/NiOx-9, the appropriate amount of residual chloride had positive
effects on the physicochemical properties of Au/NiOx catalyst, the position of Au
δ+
0
nanoparticles (NPs) located on NiOx crystallites and the ratio of Au /Au in catalyst,
which together resulted in its high reactivity.
Keywords: Au catalyst; preparation; chloride; esterification
Introduction
In recent decades, Au catalysts have received growing attentions and been widely
applied in many important research fields [1] since good performance of Au catalysts
was discovered [2-6]. However, the controllable preparation of highly active
This article has been accepted for publication and undergone full peer review but has not
been through the copyediting, typesetting, pagination and proofreading process, which
may lead to differences between this version and the Version of Record. Please cite this
article as doi: 10.1002/cjoc.201800374
This article is protected by copyright. All rights reserved.

heterogeneous catalysts is still a longstanding challenge till now, especially Au
catalysts. Many efforts have been devoted to this problem. The active site, structure
and the quantum size effect of Au catalyst [7, 8], active oxygen species of the support
[
9, 10], suitable reducible oxide supports [11], and so on, have been extensively
studied. Additionally, catalyst precursors, bases, pH value, aging time, and calcination
temperature are also crucial conditions [2, 12-18]. Nevertheless, the controllable
preparation of highly active Au catalyst is still difficult to realize even strictly
following above conditions.
-
Chloride (usually as Cl ) is generally regarded as a harmful species for Au catalyst,
because of strong interaction of chloride and Au. However, in the light of the report
that the active Au catalysts were prepared without chloride removing [19], it was
deduced that the active Au catalyst may be possibly prepared in the presence of an
appropriate amount of chloride. In our previous work, by finely tracing the chloride
concentration in the re-dispersed aqueous solutions, we realized the reproducible
preparation of Au/Fe O catalyst for CO oxidation [20]. It is meaningful to explore
2
3
whether this method can be applied to other catalysts and reactions or not.
Methyl esterification reaction is one of the most fundamental transformations in
organic synthesis reactions. And methyl esters are commercially valuable chemicals.
Direct catalytic esterification of alcohols (or aldehydes) has been widely studied
[
21-23]. Yajuan Hao successfully synthesized uniform Au NPs by the nanocages of a
mesoporous material. Au NPs were catalytically active in the oxidative esterification
of straight-chain alcohols [24]. Huili Wei investigated Au/MgO was a highly efficient
catalyst for methyl esterification reaction [23]. High concentration of basic sites on
the support played a pivotal role in this catalytic esterification reaction [25, 26].
+
Guofeng Zhao found that large amounts of Ni O -Au hybrid On NiOx@Au
2
3
ensembles were highly active for the low-temperature oxidation of alcohols. Ni O
2
3
+
species not only promoted the formation of Au ions and stabilized them but also
+
served as an oxygen supplier to transfer oxygen species onto the Au sites [27]. Ken
Suzuki developed a novel supported Au-NiOx catalyst having a core-shell structure
that could efficiently catalyze Aerobic oxidative esterification of methacrolein in
This article is protected by copyright. All rights reserved.

methanol to methyl methacrylate [28].
In this work, Methyl esterification of alcohols was chosen as model reaction. The
active Au/NiOx catalysts were prepared by tracking the concentrations of chloride in
the re-dispersed aqueous solutions. When the chloride concentrations were in the
range of 8-13 ppm, active Au/NiOx catalysts for catalytic esterification of alcohols
could be repeatedly obtained. The role of chloride in the formation of highly active Au
catalysts has been preliminarily discussed in this article. Due to the non-detectability
of residual chlorine in the final catalyst at low content, our discussions were based on
the concentration of chlorine in the aqueous solution.
Results and Discussion
For esterification of benzyl alcohol, the catalytic activities of 15 Au/NiOx samples,
which were prepared from the re-dispersed aqueous solutions with chloride
concentrations in the range of 2 to 108 ppm, were studied. According to the results
shown in Fig.1, the yields of methyl benzoate were less than 21% if the catalysts were
prepared from aqueous solutions containing >22 ppm chloride. More active catalysts
were obtained when the chloride concentrations continued to decrease. The highest
active Au/NiOx catalysts could be prepared from aqueous solutions containing
8
-13ppm chloride, the yield of methyl benzoate of catalyst Au/NiOx-9 was 99%.
However, the catalysts turned less active again when the chloride concentrations were
8 ppm. Typically, the yield of methyl benzoate was 20% with catalyst Au/NiOx-3.
<
Combined with our previous work [20], the optimal chloride concentration range is
different for the different reactions and different catalyst systems. However, if
complying with the optimal the range of chloride concentration in aqueous solution,
the highly active Au catalysts would be obtained reproducibly. For comparison, the
catalytic activity of the sample Au/NiOx-0 prepared with gold hydroxide (Au(OH)3)
as the precursor was much less than Au/NiOx-9.
This article is protected by copyright. All rights reserved.

Table 1 Physicochemical properties of catalyst samples
Surface
Conversion Yield of
Ent
ry
Au
SBET
pore size
(nm)
-
Catalyst
[Cl ]
of benzyl
alcohol
20.5%
99%
methyl
benzoate
20%
a
Content(%)
(m²/g)
b
(
wt%)
0.40
0.52
0.89
--
1
2
3
Au/NiOx-3
Au/NiOx-9
Au/NiOx-22
Au/NiOx-0
2.90
2.96
3.07
3.1
238
226
221
6.3
7.4
9.6
9.3
99%
22.3%
68%
21%
4
231
90%
a
b
Determined by ICP measurement; Determined by XPS;
To check the relationships among the catalyst preparation operations, catalyst
structure and catalytic activity, three typical samples, Au/NiOx-3, Au/NiOx-9 and
Au/NiOx-22, with the yields of methyl benzoate 20%, 99% and 21% respectively,
were characterized by ICP, BET, XPS, TEM and EXAFS. According to ICP analysis
data, the Au loadings in these three samples were 2.90, 2.96 and 3.07 wt%, as shown
in Table 1, indicating that the catalytic activity variation was not caused by Au
loading.
The data of BET analysis for Au/NiOx-3, Au/NiOx-9 and Au/NiOx-22 are
summarized in Table 1 and Fig. 2. The N adsorption-desorption isotherms showed
2
that the catalyst samples were all mesoporous materials. The BET surface areas of
2
catalysts Au/NiOx-3, Au/NiOx-9 and Au/NiOx-22 were 238, 226 and 221 m /g, and
the pore size were 6.3, 7.4 and 9.6 nm, respectively. As shown in Fig 2, whether
adsorption process or desorption process, the N adsorption quantity of the sample
2
Au/NiOx-9 was higher than that of Au/NiOx-3 and Au/NiOx-22 under the same
pressure. Although the sample Au/NiOx-9 had no the highest specific surface area, it
had the highest catalytic activity. It could be concluded that the sample Au/NiOx-9
with the best catalytic performance should have more effectively adsorption sites in
the catalyst surface. These results suggested that the changing chloride concentration
in aqueous solution definitely influenced the physicochemical properties of Au/NiOx.
Accordingly, the appropriate physicochemical properties of Au catalyst should be a
most important factor that led to active Au/NiOx catalysts.

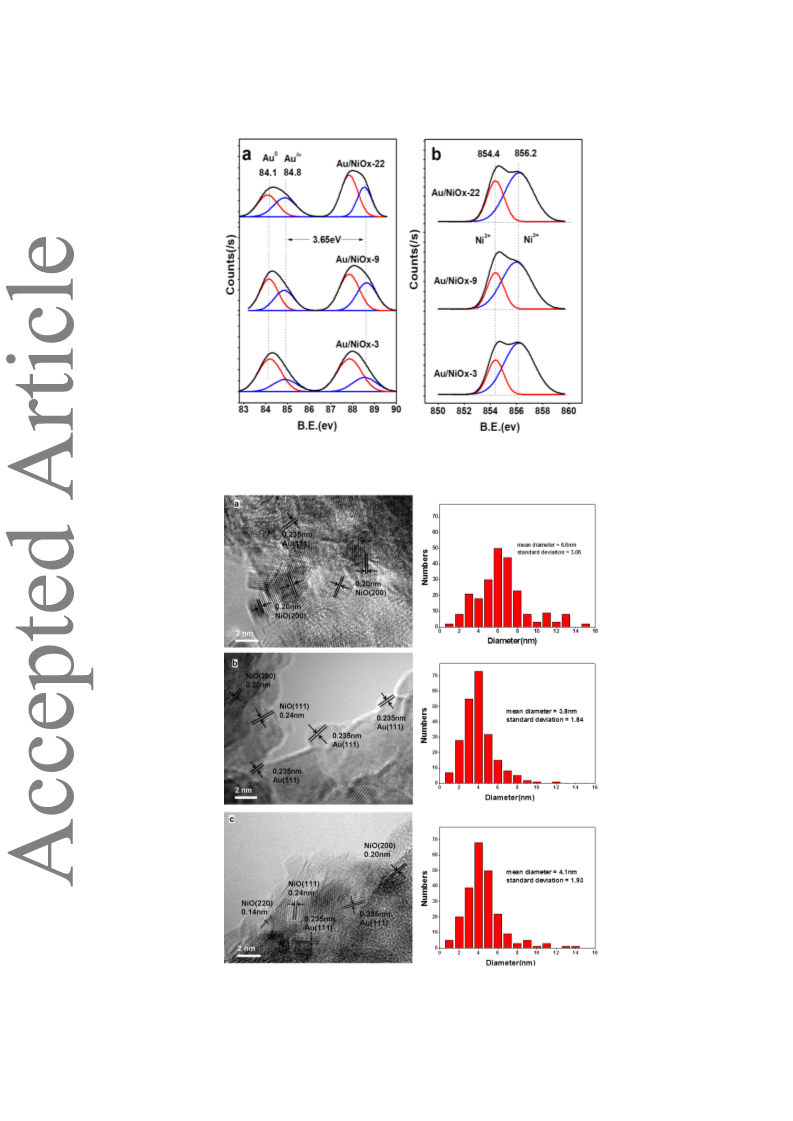

To obtain further information about the chemical states of Au/NiOx, XPS
measurements were performed for three representative catalysts Au/NiOx-3,
This article is protected by copyright. All rights reserved.

Au/NiOx-9 and Au/NiOx-22. As shown in Fig. 3a, Au species existed in the Au/NiOx
0
δ+
had two forms, metallic gold (Au ) and positively charged gold (Au ). The peak at
0
δ+
8
3
2
4.1eV was attributed to Au [30], and binding energy of Au was 84.8eV [26, 27, 29,
δ+
0]. The contents of Au in Au/NiOx-3, Au/NiOx-9 and Au/NiOx-22 were about 17,
9 and 42%, respectively. It can be concluded that the more chloride existed in the
δ+
catalyst the more Au produced. Above results suggested that the chemical state of
Au could be regulated by adjusting chloride concentration of the aqueous solution.
The best performance was observed with Au/NiOx-9 catalyst. Maybe that was
δ+
0
because the appropriate ratio of Au and Au directly led to the strengthening
polarization of electron clouds of Au NPs, and enhanced the ability to activate oxygen
molecules.
According to the XPS data depicted in Fig. 3b, for all samples Au/NiOx, the typical
2
+
3+
binding energies of Ni (854.4 eV) and Ni (856.2eV) [27, 31, 32] were all observed.
2
+
In spite of the change of chloride concentration in aqueous solution, the ratio of Ni
854.3 eV) in the support remained constant ~30%. This result might stem from the
(
controllable preparation process in which the other conditions maintained unchanged
except for chloride concentration.
TEM measurement results of Au/NiOx are shown in Fig. 4. Their TEM images
were similar and they all seemed amorphous. Three supports were aggregated by
small NiOx crystallites in nanoscales. As depicted in Fig. 4, for the sample
Au/NiOx-22, the lattice of Au could be observed and wrapped in NiOx crystallites.
Au NPs in Au/NiOx-9 and Au/NiOx-3 were clearer in comparison to Au/NiOx-22.
After minute investigation, for Au/NiOx-9, the most of Au NPs connected with the
edges of NiOx crystallite or the junctions of several NiOx crystallites [33, 34]. In
consideration of the best catalytic performance of this sample, this observation
strongly supported the former results about active site in Au catalyst, i.e. the interface
between Au and iron oxide [7]. This phenomenon was also observed in our previous
work [20]. It suggested that the appropriate amount of chloride might act as the
linkage between Au and the edge of NiOx crystallite to gain the active Au catalyst,
For Au/NiOx-22 and Au/NiOx-3, too much or less chloride was presented, the
This article is protected by copyright. All rights reserved.

interaction of Au and NiOx like Au/NiOx-9 decreased significantly. Accordingly, the
catalytic activity lost sharply. By metering more than 150 Au NPs, as given in Fig 4,
the mean diameters of Au NPs in samples Au/NiOx-3, Au/NiOx-9 and Au/NiOx-22
were 4.1, 3.8 and 6.6 nm with 1.91, 1.84 and 3.06 standard deviations. The size
distributions of Au NPs in Au/NiOx-3 and Au/NiOx-9 samples were extremely similar.
The marked difference of catalytic activities of these two catalysts did not come from
the size effect of Au NPs, but from the contact way of Au NPs and NiOx crystallites.
Fig. 5 shows Fourier transformed (FT) EXAFS spectra for three Au/NiOx and the
standard samples. Similar EXAFS spectra were obtained from Au/NiOx-3,
Au/NiOx-9 and Au/NiOx-22. Their EXAFS spectra peaks became broader in
comparison with Au foil. Furthermore, according to EXAFS data analysis by ifeffit
programs, Au-Cl bond was not found in all three samples. Further comparing three
typical catalysts with standard samples of Au foil and gold trichloride, the peaks of
three Au/NiOx samples between two dotted lines in Fig 6a shifted gradually to the
position of Au-Cl bond with the increase of the chloride concentration. This result
suggested that although no Au-Cl bond existed the presence of chloride did influence
the chemical state of Au in catalyst and gave rise to the existence of a certain amount
of positive gold. As shown in Fig 5b, NiOx supports of three samples Au/NiOx-3,
Au/NiOx-9 and Au/NiOx-22 were the same, and this result reconfirms the observation
from XPS characterization.
To date, there was still insufficient evidence to reveal the real role of chloride in
the formation of the active Au catalyst. But, based on the known data, we could make
some reasonable conjectures. First, as pH value of the mother aqueous solution rose,
Au-Cl bond broke, and chlorine in chloroauric acid was substituted by the hydroxyl.
And then, small Au NPs formed. Finally, chloride was adsorbed on the support NiOx
or existed in aqueous solution. Because of strong interaction of chloride and Au, the
presence of a major amount of chloride not only caused the agglomeration of Au NPs
but also led to the coating effect of Au NPs by the support in the process of
calcination. As shown in Fig. 6, when the content of chloride in Au catalysts
continued to decrease with the ultrasonication and washing operations, chloride
This article is protected by copyright. All rights reserved.

adsorbed on the planes of NiOx crystallites was preferentially eliminated.
Nevertheless, chloride located on the edges of NiOx crystallites still remained. It was
the residual chloride that induces Au NPs to anchor on the edges of NiOx crystallites.
If excessive ultrasonication and washing operations were carried out, chloride located
on the edges of NiOx crystallites disappeared entirely, and the guiding effect of
chloride did not exist. So, most of Au NPs were inclined to anchor on the planes of
NiOx crystallites or located between different planes, and the activity of the catalyst
dropped sharply.
The catalytic mechanism of methyl esterification of alcohols is as follows: First, the
alcohol molecules were adsorbed on the support surface to weaken the O-H bonds of
the alcohols [35]. The α-H was attracted by the O activated on the Au NPs surface.
2
Then, the α-H was removed, forming an oxygen-carbon double bond. And then, another
alcohol (CH OH) rapidly undertook a nucleophilic addition reaction to form hemiacetal.
3
Finally, the α-H of alcohol and the hydrogen in hydroxyl group of hemiacetal formed
H O with the activated O . Concurrently, the final product was obtained [36-38]. As we
2
2
all known, the alcohol molecules were preferentially adsorbed on the edges of NiOx
crystallites where there are abundant defective sites. If Au NPs located at the same
position, the adsorption sites of alcohols would act synergistically with the activation
sites of oxygen molecules because of the short distance. This synergetic effect caused
by chloride might be another important factor that influenced catalytic activity.
Au/NiOx-9 was chosen to test the generality of the Au/NiOx catalysts for the
methyl esterification reaction, and the results are shown in table 2. For benzyl alcohol,
the catalytic activity of Au/NiOx-9 was excellent (entry1), and the conversion and the
selectivity both reached 99%. For F and Cl substituent (entry4, 5), the conversion of
fluorobenzyl alcohol and chlorobenzyl alcohol was 95% and 90%, and their
selectivity was 93%, 91%，respectively. The substrates with electron-withdrawing
groups, such as F, Cl, NO , CF (entry 4, 5, 6, 8) and electron-donating group (entry 2，
2
3
3
, 7), all tended to obtain high catalytic activity. Additionally, furfural afforded the
desired ester product in 93% conversion and 96% selectivity.
This article is protected by copyright. All rights reserved.

Table 2. Esterification of methanol and other alcohols over Au/NiOx-9
entry
1
substrates
products
Conversion% Selectivity%
99
99
99
98
2
3
99
95
96
93
4
5
6
90
99
91
90
7
8
9
95
90
93
85
98
96
Table 3 Comparison between Au/NiOx-9 and the related catalysts in literatures
catalyst
Ag-MPTA-1
Au/CeO2
Au/CeO2
Au/TiO2
substrate
product
additive
K CO
Yield %
95
reference
[35]
2
3
Cs CO
99
[36]
2
3
--
12.6
76.3
86
[36]
Cs CO
[36]
2
3
Au/MgO
[25]
a
Pd/Cu Cl(OH)3
TBHP
K CO
71
[37]
2
Au-Pd/MSN
Au/NiOx
99
[38]
2
3
--
99
This work
[39]
a
Au/CMK-3
Co-N-C/MgO
Au/NiOx
TBHP
K CO
75.2
94.8
88.4
[40]
2
3
--
This work
a
used as oxidant
Table 1 compares Au/NiOx-9 catalyst with some reported catalysts. It could be seen
that Au/NiOx had an excellent catalytic activity compared with other reported
This article is protected by copyright. All rights reserved.

catalysts. In brief, controlling the chloride concentrations in the re-dispersed aqueous
solution was an effective method to obtain the active Au catalyst.
Conclusions
In summary, by tracing the chloride concentrations in the re-dispersed aqueous
solution, we successfully prepared active Au/NiOx catalyst for catalytic methyl
esterification of alcohols. If the chloride concentration was not in the range of
8
-13ppm, the catalytic activity dropped dramatically. These results indicated that the
presence of appropriate amounts of residual chloride was beneficial to obtain highly
active heterogeneous catalysts. According to the known data, it may be inferred that a
very small amount of residual chloride in Au catalyst had the guiding effect which
induced Au NPs to anchor on the edges of NiOx crystallites. Thus, the synergistic
effect of alcohol adsorption site and oxygen activation site is produced. In addition,
δ+
0
the ratio of Au /Au in catalysts and the textural properties of Au/NiOx catalyst were
also the important factors which affected catalytic activities. This work can offer a
new perspective to realize the controllable preparation of active heterogeneous
catalysts.
Experimental details
2
0 mL Ni(NO3)
２
·6H O (0.011 M) and 1.05 mL HAuCl (0.24 M) were mixed
2 4
together and were dropwise added into 60 mL Na CO solution (0.31 M) under
2
3
vigorous stirring in 0.5 h. It was further stirred for 3 h. The turbid liquid was divided
into four sections and separation by centrifugation. Each section of the recovered
precipitate was re-dispersed in different amount of deionized water and ultrasonically
washed for 1 h. The chloride concentration in the re-dispersed aqueous solution of
each section was determined by potentialstatic scanning method with a CHI660D
electrochemical workstation. Then, the solid was separated by centrifugation, dried at
o
o
8
0 C for 3 h and calcined at 350 C for 0.5 h to produce the catalyst sample, which
was denoted as Au/NiOx-X, in which X suggested the chloride concentration in ppm.
This article is protected by copyright. All rights reserved.

For comparison, Au/NiOx-0 was prepared with Gold hydroxide (Au(OH) ) as the
3
precursor.
1
mmol benzyl alcohol, 30 mg catalyst and 2 mL methanol were added into a glass
o
tube. And then it was exchanged with oxygen and reacted at 60 C (1 atm, O balloon).
2
After reaction, it was cooled to room temperature. Biphenyl was used as internal
standard and a certain amount of ethanol were added into the reaction mixture up to
1
0mL for quantitative analysis by GC-FID (Agilent 7890A)
Catalyst characterization
TEM analysis was carried out on a Tecnai-G2-F30 field emission transmission
electron microscope. The catalyst samples were dispersed in ethanol and
ultrasonicated at room temperature for 0.5 h. A part of solution was dropped on the
grid for the measurement of TEM images. XRD measurements are conducted by an
X’Pert PRO (PANalytical) diffractometer. The XRD diffraction patterns were scanned
in the 2θ range of 10-80°. The XPS measurements were performed with a Thermo
scientific ESCALAB 250 instrument provided with a dual Mg/Al anode X-ray source,
+
a hemispherical capacitor analyzer and a 5 keV Ar ion-gun. All spectra were
recorded using non-monochromatic Mg Kα (1253.6 eV) radiation. Nitrogen
adsorption-desorption isotherms were measured at 77 K using Micromeritics 2010
instrument. The pore-size distribution was calculated by Barrett, Joyner and Halenda
(BJH) method from desorption isotherm. The Au loadings of the catalysts were
measured by inductively coupled plasma-atomic emission spectrometry (ICP-AES),
using an Iris advantage Thermo Jarrel Ash device. Extended X-ray absorption fine
structure (EXAFS) experiments were performed at the Beijing Synchrotron Radiation
Facility (BSRF) in Beijing Institute of High Energy Physics, Chinese Academy of
Sciences with storage ring energy of 2.5 GeV and a beam current between 150 and
2
50 mA. EXAFS data analysis was carried out using ifeffit analysis programs
(http://cars9.uchicago.edu/ifeffit/). Radial distribution functions were obtained by
Fourier-transformed k -weightedχfunction.
3
Acknowledgement
This article is protected by copyright. All rights reserved.

This work was supported by the National Natural Science Foundation of China (grant
number 21073208) and the CAS for financial support
*
Corresponding author
Tel.: +86 0351-7010588
E-mail address: zhangchm@sxu.edu.cn (C. Zhang)
Reference
[
1] R. Ciriminna, E. Falletta, Cristina Della Pina, J.H. Teles, M. Pagliaro, Angew. Chem. Int. Ed. 2016,
5, 2.
5
[
[
[
[
[
[
[
[
[
[
[
[
[
[
[
[
[
[
[
2] M. Haruta, N. Yamada, T. Kobayashi, S. Iijima, J. Catal. 1989, 115, 301.
3] A.S.K. Hashmi, G.J. Hutchings, Angew. Chem. Int. Ed. 2006, 45, 7896.
4] B.K. Min, C.M. Friend, Chem. Rev. 2007, 107, 2709.
5] A. Corma, H. Garcia, Chem. Soc. Rev. 2008, 37, 2096.
6] J.L. Gong, C.B. Mullins, Acc. Chem. Res. 2009, 42, 1063.
7] G.C. Bond, D.T. Thompson, Gold Bull. 2000, 33, 41.
8] M. Valden, X. Lai, D.W. Goodman, Science 1998, 281, 1647.
9] M. Kotobuki, R. Leppelt, D.A. Hansgen, D. Widmann, R.J. Behm, J. Catal. 2009, 264, 67.
10] T. Fujitani, I. Nakamura, Angew. Chem. Int. Ed. 2011, 50, 10144.
11] X. Xu, Q. Fu, X. Guo, X. Bao, ACS Catal. 2013, 3, 1810.
12] S. Golunski, R. Rajaram, N. Hodge, G.J. Hutchings, C.J. Kiely, Catal. Today 2002,72, 107.
13] S.J. Lee, A. Gavriilidis, J. Catal. 2002, 211, 283.
14] J. Guzman, B.C. Gates, Angew. Chem. Int. Ed. 2003, 42, 690.
15] A. Hugon, N. El Kolli, C. Louis, J. Catal. 2010, 274, 239.
16] L. Liu, B. Qiao, Z. Chen, J. Zhang, Y. Deng, Chem. Commun. 2009, 6, 653.
17] L.Q. Liu, B.T. Qiao, Y.B. Ma, J. Zhang, Y.Q. Deng, Dalton Trans. 2008, 19, 2542.
18] B.T. Qiao, Y.Q. Deng, Chem. Commun. 2003,17, 2192.
19] D.S. Pinnaduwage, L. Zhou, W. Gao, C.M. Friend, J. Am. Chem. Soc. 2007, 129, 1872.
20] C. Zhang, L. Liu, X. Cui, L. Zheng, Y. Deng, Sci. Rep. 2013, 3, 1503.
This article is protected by copyright. All rights reserved.

[
21] Chao Liu, Shan Tang, Liwei Zheng, Dong Liu, Heng Zhang, A. Lei, Angew. Chem. Int. Ed. 2012,
1, 5662.
22] Chao Liu, Jing Wang, Lingkui Meng, Yi Deng, Yao Li, A. Lei, Angew. Chem. Int. Ed. 2011, 50,
144.
5
[
5
[
[
[
[
23] H. Wei, J. Li, J. Yu, J. Zheng, H. Su, X. Wang, Inorg. Chim. Acta 2015, 427, 33.
24] Y. Hao, Y. Chong, S. Li, H. Yang, J. Phys. Chem. C 2012, 116, 6512.
25] X. Wan, W. Deng, Q. Zhang, Y. Wang, Catal. Today 2014, 233, 147.
26] M. Estrada, V.V. Costa, S. Beloshapkin, S. Fuentes, E. Stoyanov, E.V. Gusevskaya, A. Simakov,
Appl. Catal. A: General 2014, 473, 96.
[
[
27] G. Zhao, H. Hu, W. Chen, Z. Jiang, S. Zhang, J. Huang, Y. Lu, Catal. Sci. Technol. 2013, 3, 404.
28] K. Suzuki, T. Yamaguchi, K. Matsushita, C. Iitsuka, J. Miura, T. Akaogi, H. Ishida, ACS Catal.
2
013, 3, 1845.
[
[
[
[
[
29] T. Wang, X. Yuan, S. Li, L. Zeng, J. Gong, Nanoscale 2015, 7, 7593.
30] H. Wang, W. Fan, Y. He, J. Wang, J.N. Kondo, T. Tatsumi, J. Catal. 2013, 299, 10.
31] G. Zhao, M. Deng, Y. Jiang, H. Hu, J. Huang, Y. Lu, J. Catal. 2013, 301, 46.
32] G. Zhao, H. Hu, M. Deng, Y. Lu, Chem. Commun (Camb) 2011, 47, 9642.
33] S.A. Nikolaev, A.V. Chistyakov, M.V. Chudakova, E.P. Yakimchuk, V.V. Kriventsov, M.V.
Tsodikov, J. Catal. 2013, 297, 296.
34] H. Tang, F. Liu, J. Wei, B. Qiao, K. Zhao, Y. Su, C. Jin, L. Li, J.J. Liu, J. Wang, T. Zhang, Angew.
Chem. Int. Ed. 2016, 55, 10606.
35] N. Salam, B. Banerjee, A. S. Roy, P. Mondal, S. Roy, A. Bhaumik, S. Manirul Islam, Appl. Catal.
A: General, 2014, 477, 184.
[
[
[
[
36] H. Wei, J. Li, J.Yu, J. Zheng, H. Su, X. Wang, Inorg. Chim. Acta, 2015, 427, 33.
37] T. Ghosh, P. Chandra, A. Mohammad, S. M. Mobin, Appl.Catal. B: Environmental, 2018, 226,
2
78.
[
[
38] C. H. Tsai, M. Xu, P. Kunal, B. G. Trewyn, Catal. Today, 2018, 306, 81.
39] R. Radhakrishnan, S. Thiripuranthagan, A. Devarajan, S. Kumaravel, E. Erusappan, K. Kannan,
Appl. Catal. A, General, 2017, 545, 33.
40] N. Huo, H. Ma, X. Wang, T. Wang, G. Wang, T. Wang, L.Hou,J. Gao, J. Xu, Chin. J. Catal., 2017,
8, 1148.
[
3
This article is protected by copyright. All rights reserved.

Fig. 1 The yield of methyl benzoate vs the chlorine concentration of the aqueous solution from
which the catalyst samples were prepared.
Fig. 2 N adsorption-desorption isotherms of Au/NiOx-22, Au/NiOx-9, and Au/NiOx-3.
2
Fig. 3 XPS spectra of Au (a) and Ni (b) of three typical catalysts
4f
2p
Fig. 4 HR-TEM (left) images and size distributions (right) of Au/NiOx-22 (a), Au/NiOx-9 (c), and
Au/NiOx-3 (e).
Fig. 5 Fourier transformed (FT) spectra of Au L -edge (a) and Ni k-edge (b) EXAFS of
III
Au/NiOx-22, Au/NiOx-9, and Au/NiOx-3.
Fig. 6 The simple scheme of Au/NiOx catalysts
Fig. 1
Fig. 2
This article is protected by copyright. All rights reserved.

Fig. 3
Fig. 4
This article is protected by copyright. All rights reserved.

Fig. 5
Fig. 6
This article is protected by copyright. All rights reserved.
