APPLIED PHYSICS LETTERS
VOLUME 81, NUMBER 23
2 DECEMBER 2002
Effects of nitridation of silicon and repeated spike heating on the electrical
properties of SrTiO3 gate dielectrics
Chih-Yi Liu, Hang-Ting Lue, and Tseung-Yuen Tsenga)
Department of Electronics Engineering and Institute of Electronics, National Chiao Tung University,
Hsinchu 300, Taiwan, Republic of China
͑Received 5 August 2002; accepted 9 October 2002͒
Electrical properties of SrTiO3 ͑STO͒ gate dielectrics on Si substrates grown by rf-magnetron
sputtering were studied. We employed the surface nitridation and repeated spike heating to improve
the interfacial properties of STO/Si. The nitrogen was moderately incorporated at the interface by
first growing a thin SiON layer and then removing this sacrificial layer before growing STO gate
dielectric. The experimental results indicate that this nitridation treatment may retard the formation
of thin interfacial layer during the high-temperature growth of STO gate dielectric and consequently
decrease the equivalent oxide thickness ͑EOT͒ by about 10% toward 24% at various deposition
pressures. The STO gate dielectric with this nitridation treatment exhibited slightly lower leakage
current at an accumulation region and nearly 2 orders of magnitude lower leakage current at an
inversion region. The repeated spike heating technique was also employed to deposit a STO gate
dielectric at repeated oscillating temperatures. The results show that this thermal treatment reduced
the interfacial trap states and the leakage current was also reduced by about 1 order of magnitude
at the same EOT. © 2002 American Institute of Physics. ͓DOI: 10.1063/1.1526914͔
Following the international technology roadmap of semi-
conductor, the conventional SiO2 gate oxide thickness is re-
quired to be less than 2 nm in the near future.1 However, the
use of ultrathin SiO2 gate oxide results in a number of
issues,2 including high gate leakage current, reduced drive
current, reliability degradation, boron penetration, unifor-
mity, etc. Any of these effects will fundamentally limit the
usefulness of SiO2 as a gate dielectric. As the oxide thickness
is scaled down to below 2 nm, the gate leakage current in-
creases significantly due to the direct tunneling, leading to
undesired power consumptions in complementary metal–
oxide semiconductor devices. As a result, many high-k gate
dielectrics have been investigated as potential replacements
for SiO2 to provide a physically thicker film to reduce the
leakage current. Among many possible candidates of high-k
gate dielectrics, SrTiO3 ͑STO͒ provides special functions be-
cause it can be epitaxially grown on silicon substrate.3 STO
possesses a very large dielectric constant, which is advanta-
geous for the realization of a metal/ferroelectric/insulator/
semiconductor ͑MFIS͒ structure for the application of 1 T
ferroelectric random access memory.4 In the MFIS structure,
the dielectric constant of the insulator should be increased to
match that of the ferroelectric material in order to reduce the
operation voltages. Moreover, STO is perovskite-type mate-
rial, which provides a good buffer layer for the growth of
perovskite-type ferroelectric thin films. However, it is very
difficult to fabricate high-quality STO gate dielectrics be-
cause a thin interfacial layer forms due to Si oxidation and
interdiffusion at high temperature. The resultant interfacial
layer with low permittivity will limit the highest possible
gate capacitance or the lowest achievable EOT. Several
methods have been employed to improve the interfacial
properties. Nitrogen implantation into silicon substrate has
been used to grow ultrathin oxide because nitrogen can ef-
fectively suppress the growth of silicon oxide.5 A repeated-
spike oxidation technique has been proposed by Hong
et al.6,7 to grow ultrathin oxide. The variation of radiation
heat absorption in different regions on a wafer could be com-
pensated by repeated-spike heating technique so that tem-
perature uniformity can be improved. Their results also
showed that the leakage current is reduced by an order of
magnitude. In the present study, we improve the interfacial
properties of STO/Si by means of surface nitridation and
repeated-spike-heating method. The microstructure, leakage
current density, and capacitance of STO gate dielectrics are
reported.
Boron-doped p-type silicon ͑100͒ wafers with 1 to 10 ⍀
cm resistivity were used as the starting substrates. After a
standard Radio Corporation of America clean, an 8 nm SiON
film was grown on the silicon wafer at 950 °C in pure N2O
gas in a furnace. For comparison, 8 nm SiO2 was thermally
grown in a pure O2 ambient as the control sample. After
these sacrificial SiON and SiO2 layers were removed by dip-
ping the wafer in diluted HF solution, the 20 nm STO thin
films were deposited on the aforementioned two pretreated
substrates by using rf-magnetron sputtering at a substrate
temperature of 500 °C. The two samples were grown on a
spin substrate holder at the same time for comparison. After
the removal of the SiON and SiO2 sacrificial layer, it can be
seen from the x-ray photoelectron spectroscopy profiles of
the silicon substrates that the characteristic binding energy of
N 1s was slightly increased for the N2O-pretreatment sample,
indicating that nitrogen has been moderately incorporated
into the silicon surface.
The repeated-spike-heating technique was carried out by
setting the temperature to ramp up and down between 450
and 550 °C for 30 min, while the control sample was held at
a constant temperature of 500 °C for the same time. After the
a͒
Email: tseng@cc.nctu.edu.tw
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP: 128.6.218.72
0003-6951/2002/81(23)/4416/3/$19.00 4416 © 2002 American Institute of Physics
On: Wed, 04 Jun 2014 20:05:19

Appl. Phys. Lett., Vol. 81, No. 23, 2 December 2002
Liu, Lue, and Tseng
4417

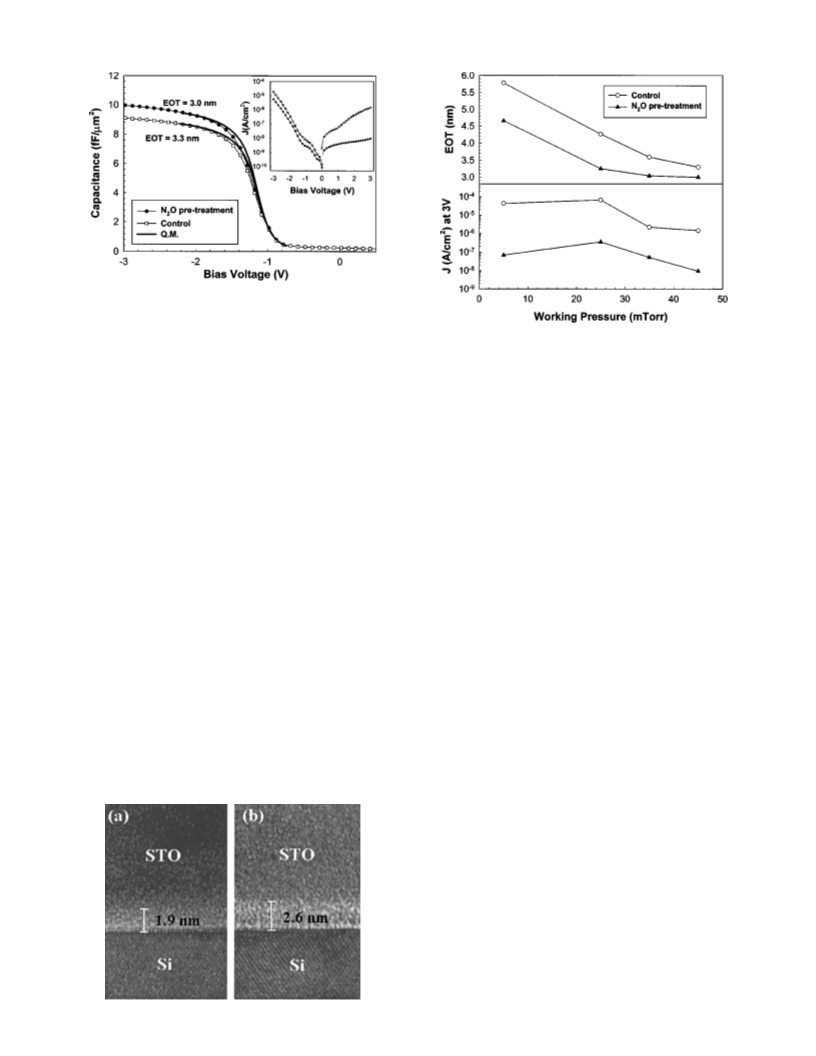

FIG. 1. The high-frequency (C–V) curves of control and N2O pretreatment
samples. The inset is the corresponding leakage current density.
FIG. 3. Variation of EOT and leakage current with working pressure for
control and N2O pretreatment samples.
film depositions, rapid thermal annealing in an N2 ambient at
650–800 °C was carried out to improve the crystallinity of
the films. The thickness of interfacial layer between STO and
Si was determined using transmission electron microscopy
͑TEM͒. For the electrical measurement, aluminum was used
as both the top electrode and backside substrate ohmic con-
tact. The capacitance–voltage (C–V) measurements were
performed by a HP 4284A LCR meter at 100 K to 1 MHz
while the current–voltage (I–V) measurements were re-
corded by a HP 4156A semiconductor parameter analyzer.
The C–V curves showed frequency dispersion during
C–V measurement which may be due to extrinsic parasitic
inductance and resistance. After being calibrated by four-
element model,8 the C–V curves of the STO gate dielectrics
at 45 mTorrr deposition pressure with and without N2O pre-
sample has leakage current of 2 orders of magnitude lower
than that of the control sample at the inversion region ͑posi-
tive bias͒, while the leakage current of the N2O pretreatment
sample is only 0.5 order of magnitude lower than that of
control sample at the accumulation region ͑negative bias͒.
The reasons may be explained by the following. Previously
reported results10 indicated that the conduction band offset
between STO and Si is almost zero. If STO is directly in
contact with Si, the leakage current density should be very
large. In order to reduce the leakage current, a thin interfacial
layer with higher band gap must be employed to increase the
barrier height. Since the nitridation can reduce the interdif-
fusion of STO and Si, the thinner interfacial layer with N2O
pretreatment contains less amounts of Sr or Ti species and is
expected to have a larger band gap, resulting in the reduction
of leakage current. The effect of increased barrier height is
more important in the inversion region than the accumulation
region because the electrons flow from Si substrate at posi-
tive bias voltage ͑inversion͒.
The EOT and leakage current density at ϩ3 V of 500 °C
deposited 20 nm thick STO gate dielectrics at various depo-
sition pressures are shown in Fig. 3. Generally, the EOT
decreases with increasing deposition pressure. The main rea-
son may be that the composition of STO thin film is varied
with deposition pressures and, consequently, affect the di-
electric constant of the thin films. Therefore, the EOT de-
creases with the increase of deposition pressure for the
samples indicated. We can observe that all the N2O pretreat-
ment samples have a significantly lower EOT than the con-
trol samples at various deposition pressures. The variation of
the leakage current density with deposition pressure is also
illustrated in Fig. 3. The N2O pretreatment sample has a leak-
age current density of nearly 2 orders of magnitude lower
than that of the control samples at various deposition pres-
sures.
9
treatment and the quantum-mechanical ͑QM͒ fitting curve
are shown in Fig. 1. We can observe that the EOT of the N2O
pretreatment sample is smaller than that of the control
sample. The reason for this phenomenon is attributed to the
nitrogen incorporation in the silicon surface that alleviated
the reaction of the silicon surface into low dielectric constant
SiOx thin interfacial layer during the high-temperature
growth of STO gate dielectrics. In fact, it shows from TEM
images that the thickness of the interfacial layers of the N2O
pretreatment sample and the control sample are 1.9 and 2.6
nm, respectively ͑Fig. 2͒. The inset of Fig. 1 shows the cor-
responding leakage current densities. The N2O pretreatment
The plots of leakage current density versus EOT for typi-
cal and repeated-spike-heating samples are shown in Fig. 4.
It is indicated that the repeated-spike-heating samples with
the same EOT have leakage current densities of 1–2 orders
of magnitude lower than those of typical samples. The reason
FIG. 2. TEM interface images of ͑a͒ N2O pretreatment sample and ͑b͒
control sample.
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP: 128.6.218.72
for the reduction of leakage current may be due to the
On: Wed, 04 Jun 2014 20:05:19

4418
Appl. Phys. Lett., Vol. 81, No. 23, 2 December 2002
Liu, Lue, and Tseng
Si—O bond are temperature dependent. Therefore, during
the temperature ramping up and down in the repeated-spike-
heating recipe, it is possible that the residual oxygen in films
has more of a chance to fill the silicon dangling bonds and
thus, a better interface has been formed.
In summary, we have proposed a method of surface ni-
tridation of silicon by first growing a sacrificial SiON layer
and then removing this layer before growing STO gate di-
electrics. The experimental results show that the EOTs of
N2O pretreatment samples were 10%–24% lower than that
of the control samples, and the leakage current density was
also reduced by 2 orders of magnitude at the positive bias.
The results imply that the incorporation of a certain amount
of nitrogen into the substrate surface may improve the inter-
facial properties due to the depression of the formation of the
interfacial layer during the high-temperature growth of STO
gate dielectrics. In addition, we have incorporated the
repeated-spike-heating method to grow STO gate dielectrics.
The experimental results show that this technique reduced
the interfacial trap states and the leakage current density by 1
order of magnitude compared to constant temperature depos-
ited films.
FIG. 4. Plots of leakage current density vs EOT for typical and repeated-
spike-heating samples.
smaller interface state density.11 Figure 5 shows the normal-
ized C–V curves of typical and repeated-spike-heating
samples. Theoretical QM simulation9 accounting for the
quantum well corrections for the metal–insulator–
semiconductor structure was also provided for comparison.
We can observe that the C–V curve of the repeated-spike-
heating sample is very close to the theoretical curve, while
the C–V curve of a typical sample shows obvious deviation.
This result implies that the repeated-spike-heating technique
reduces the interfacial trap state of the STO gate dielectric,
which is also similar to the previous reported results for ul-
trathin gate oxide.6,7 The wagging and stretching of the
The authors acknowledge the financial support from
the National Science Council of Republic of China under
Contract No. NSC 90-2215-E009-100.
1 International Technology Roadmap for Semiconductors ͑Semiconductor
Industry Association, Austin, Texas, 2001͒.
2 G. D. Wilk, R. M. Wallace, and J. M. Anthony, J. Appl. Phys. 89, 5243
͑2001͒.
3 K. Eisenbeiser, J. M. Finder, Z. Yu, J. Ramdani, J. A. Curless, J. A. Hall-
mark, R. Droopad, W. J. Ooms, L. Salem, S. Bradshaw, and C. D. Over-
gaard, Appl. Phys. Lett. 76, 1324 ͑2000͒.
4 T. Y. Tseng, Extended Abstracts of the First International Meeting on
Ferroelectric Random Access Memories, Gotemba, Japan, 19–21 Novem-
ber 2001, p. 20.
5 I. H. Nam, J. S. Sim, S. I. Hong, B. K. Park, J. D. Lee, S. W. Lee, M. S.
Kang, Y. W. Kim, K. P. Suh, and W. S. Lee, IEEE Trans. Electron Devices
48, 2310 ͑2001͒.
6 C. C. Hong, C. Y. Chang, C. Y. Lee, and J. G. Hwu, IEEE Electron Device
Lett. 23, 28 ͑2002͒.
7 C. C. Hong, C. Y. Lee, Y. L. Hsieh, C. C. Liu, I. K. Fong, and J. G. Hwu,
IEEE Trans. Semicond. Manuf. 14, 227 ͑2001͒.
8 H. T. Lue, C. Y. Liu, and T. Y. Tseng, IEEE Electron Device Lett. 23, 553
͑2002͒.
9 Berkeley Device Group ͓Online͔. Available: www.device.eecs.
berkeley.edu/qmcv/html
10 S. A. Chambers, Y. Liang, Z. Yu, R. Droopad, and J. Ramdani, J. Vac. Sci.
Technol. A 19, 934 ͑2001͒.
FIG. 5. The normalized C–V curves of typical and repeated-spike-heating
samples. The dashed line is the theoretical QM simulation.
11 M. Y. Doghish, and F. D. Ho, IEEE Trans. Electron Devices 39, 2771
͑1992͒.
This article is copyrighted as indicated in the article. Reuse of AIP content is subject to the terms at: http://scitation.aip.org/termsconditions. Downloaded to IP: 128.6.218.72
On: Wed, 04 Jun 2014 20:05:19
