Selective Hydrogenation of Unsaturated Carbon-Carbon Bonds in Aromatic-Containing Platform Molecules

Article abstract of DOI:10.1021/acscatal.6b00072

The combination of chemical and biological catalysis enables the production from biomass of coumarin and dihydrocoumarin (DHC), opening new routes to the formation of fine chemicals and pharmaceutical building blocks. Each of these products requires the hydrogenation of 4-hydroxycoumarin (4HC) to 4-hydroxydihydrocoumarin (4HDHC), which, in turn, requires the reduction of an unsaturated C-C bond in the presence of an aromatic ring. Using in situ attenuated total reflection Fourier transform infrared (ATR-FTIR) spectroscopy, we show that reaction at 348 K over monometallic Pd catalysts leads to the partial reduction of the aromatic ring in 4HC, obtaining 93% selectivity for C=C bond hydrogenation at 82% 4HC conversion and with a low turnover frequency (TOF). Decreasing the Pd dispersion from 70% to 6% not only leads to an increase in the rate of 4HC hydrogenation, but it also leads to an increase in the rate of overhydrogenation. However, the formation of bimetallic PdAu nanoparticles inhibits the overhydrogenation reaction while also doubling the TOF to a value of 6 ks^-1 for 4HDHC production. A bimetallic PdAu catalyst supported on SiO₂ leads to 97% selectivity for C=C bond hydrogenation at 86% 4HC conversion, while an acidic support such as amorphous silica-alumina can be used to produce DHC directly from 4HC.

Full text of DOI:10.1021/acscatal.6b00072

Subscriber access provided by ORTA DOGU TEKNIK UNIVERSITESI KUTUPHANESI
Article
Selective Hydrogenation of Unsaturated Carbon-Carbon
Bonds in Aromatic-Containing Platform Molecules
Thomas J. Schwartz, Spencer D. Lyman, Ali Hussain Motagamwala , Max A. Mellmer, and James A. Dumesic
ACS Catal., Just Accepted Manuscript • DOI: 10.1021/acscatal.6b00072 • Publication Date (Web): 12 Feb 2016
Downloaded from http://pubs.acs.org on February 16, 2016
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a free service to the research community to expedite the
dissemination of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts
appear in full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been
fully peer reviewed, but should not be considered the official version of record. They are accessible to all
readers and citable by the Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered
to authors. Therefore, the “Just Accepted” Web site may not include all articles that will be published
in the journal. After a manuscript is technically edited and formatted, it will be removed from the “Just
Accepted” Web site and published as an ASAP article. Note that technical editing may introduce minor
changes to the manuscript text and/or graphics which could affect content, and all legal disclaimers
and ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors
or consequences arising from the use of information contained in these “Just Accepted” manuscripts.
ACS Catalysis is published by the American Chemical Society. 1155 Sixteenth Street
N.W., Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 32
ACS Catalysis
1
2
3
4
5
6
7
8
9
Selective Hydrogenation of Unsaturated Carbon-
Carbon Bonds in Aromatic-Containing Platform
Molecules
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Thomas J. Schwartz,† Spencer D. Lyman, Ali Hussain Motagamwala, Max A. Mellmer,
James A. Dumesic*
Department of Chemical and Biological Engineering, University of Wisconsin–Madison,
Madison, WI 53706
ABSTRACT
The combination of chemical and biological catalysis enables the production from biomass of
coumarin and dihydrocoumarin (DHC), opening new routes to the formation of fine chemicals
and pharmaceutical building blocks. Each of these products requires the hydrogenation of 4-
hydroxycoumarin (4HC) to 4-hydroxydihydrocoumarin (4HDHC), which in turn requires the
reduction of an unsaturated carbon-carbon bond in the presence of an aromatic ring. Using in

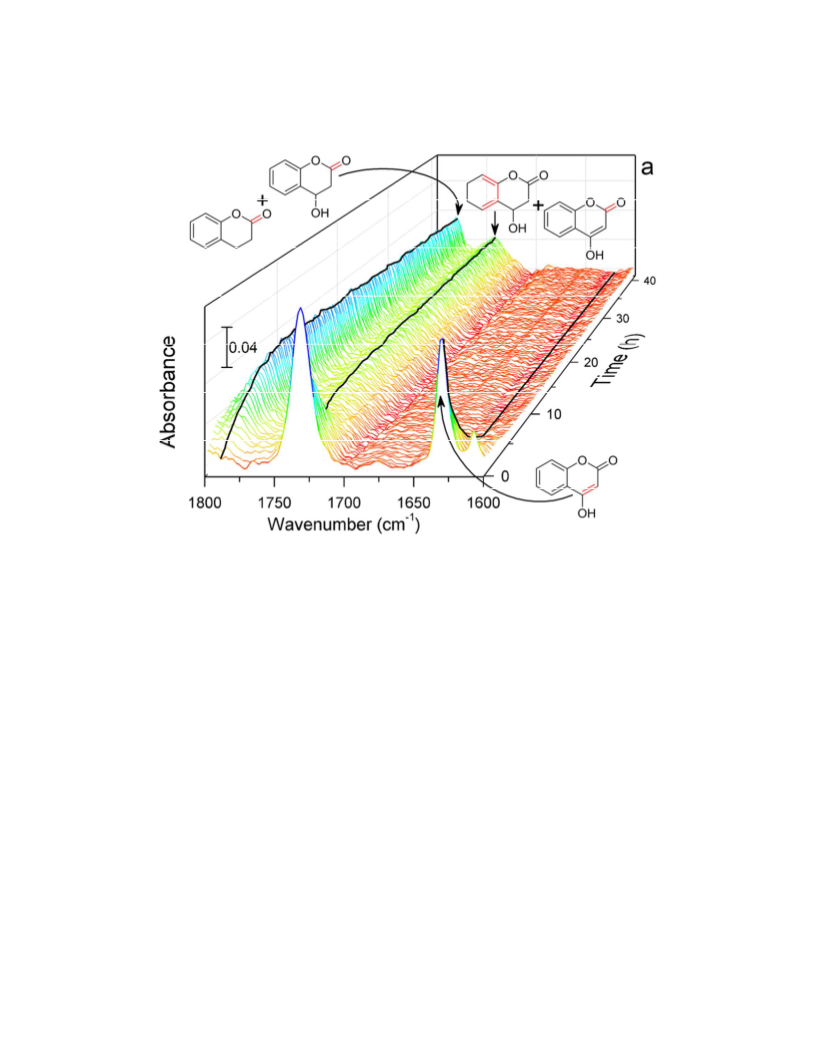

situ attenuated total reflection Fourier transform infrared (ATR-FTIR) spectroscopy, we show
that reaction at 348 K over monometallic Pd catalysts leads to the partial reduction of the
aromatic ring in 4HC, obtaining 93% selectivity for C=C bond hydrogenation at 82% 4HC
conversion and with a low turnover frequency (TOF). Decreasing the Pd dispersion from 70% to
ACS Paragon Plus Environment
1

ACS Catalysis
Page 2 of 32
1
2
3
4
5
6
7
8
9
6% not only leads to an increase in the rate of 4HC hydrogenation, but it also leads to an increase
in the rate of over-hydrogenation. However, the formation of bimetallic PdAu nanoparticles
inhibits the over-hydrogenation reaction while also doubling the TOF to a value of 6 ks-1 for
4HDHC production. A bimetallic PdAu catalyst supported on SiO2 leads to 97% selectivity for
C=C bond hydrogenation at 86% 4HC conversion, while an acidic support such as amorphous
silica-alumina can be used to produce DHC directly from 4HC.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
KEYWORDS. Selective Hydrogenation, Bimetallic Catalysts, Heterogeneous Catalysis,
Biocatalysis, Biorenewable Chemicals, Fine Chemicals
1. INTRODUCTION
Shifts in the price and availability of fossil-based feedstocks for the production of fuels and
chemicals have led to research in the use of biomass as a renewable source of carbon and the
emergence of nascent biofuels and biorenewable chemicals industries.1 While recent advances
in the recovery of shale gas and shale oil have extended the lifetime of petroleum-based
feedstocks,2 biomass remains an attractive alternative because of its inherent functionality. In
particular, the synthesis of highly oxygenated chemical building blocks may be more efficient
starting from biomass than starting from hydrocarbons.
The combination of chemical and biological catalysis is an attractive means of producing
biorenewable chemicals.3-5 In this framework, biocatalysis is used to selectively de-functionalize
biomass to yield platform species, which are then upgraded to final products using heterogeneous
chemical catalysis. Thus, complex molecules that would require multiple organic syntheses or
sequential biocatalytic steps can be produced using a small number of individual
transformations. For example, our group has demonstrated the broad applicability of triacetic
ACS Paragon Plus Environment
2

Page 3 of 32
ACS Catalysis
1
2
acid lactone (TAL) as a platform molecule that can be produced by polyketide biosynthesis.6-8 In
the case of 2-pyrones such as TAL, the hydrogenation of carbon-carbon double bonds is often
the critical step for producing value-added chemicals. While hydrogenation catalysts are often
susceptible to inhibition by biogenic impurities,9 such deactivation can be overcome by the
formation of a polymer-derived microenvironment that surrounds the active sites of the
catalyst.10
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Specialty chemicals are attractive biomass-derived products due to their high value relative to
those of fuels or commodity chemicals. In addition, fine chemicals and pharmaceutical building
blocks are even higher value species than specialty chemicals, making them attractive targets for
biomass conversion. This work focuses on the selective hydrogenation of 4-hydroxycoumarin
(4HC) as a prototypical platform chemical produced by biocatalysis that can subsequently be
upgraded to fine chemicals. Notably, 4HC can be obtained in a fashion analogous to that which
yields TAL, using polyketide biosynthesis in genetically engineered organisms.11 Indeed, much
of what has been learned about how to produce TAL in E. coli or S. cerevisiae can be applied to
the production of 4HC because of similarities in the enzymes involved.12
Herein, we show that 4HC can be converted to several fine chemicals and pharmaceutical
building blocks using transformations directly analogous to those involved in TAL upgrading, as
outlined in Scheme 1. The partial reduction of 4HC leads to 4HDHC, which is a key
intermediate for the synthesis of coumarin and dihydrocoumarin (DHC). Both coumarin and
DHC are valuable as fine chemicals and chemical intermediates. In particular, coumarin is a
fragrance used in soaps, lotions, and perfumes. It is also used in laser dyes, and it is a building
block for several pharmaceuticals (see Boisde and Meuly13 and the references therein).
Moreover, both coumarin and DHC could be converted to the corresponding quinolones
ACS Paragon Plus Environment
3

ACS Catalysis
Page 4 of 32
1
2
following the chemistry that has been developed for the conversion of lactones to lactams.14
3
4
5
6
Notably, the quinolone analogue of DHC is valuable for its use as a building block for the
7
8
9
16
synthesis of pharmaceutical compounds.15,
Finally, we note that 4HC itself is a key
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
intermediate in the synthesis of Warfarin,13 an anti-clotting agent. A significant difference
between 4HC upgrading and TAL upgrading pertains to the aromatic ring in 4HC. Herein, we
show that the presence of this aromatic ring leads to lower catalytic activity when using
monometallic Pd catalysts, likely due to high coverage of the Pd surface by 4HC bound through
its aromatic ring. Furthermore, over-hydrogenation of the aromatic ring is undesirable, as this
ring is required for the target products, and we show that the use of bimetallic PdAu
nanoparticles leads to the high selectivities required for the production of fine chemicals and
pharmaceuticals.
Scheme 1. Potential uses of 4-hydroxycoumarin (4HC), illustrating the importance of the
selective hydrogenation of unsaturated carbon-carbon bonds. 4-hydroxydihydrocoumarin
(4HDHC) is a key intermediate in these reactions, while coumarin and dihydrocoumarin (DHC)
are valuable platform species. The conversion of lactones, such as coumarin and DHC, to their
corresponding lactams has been described by Ito and Ooshida.14
ACS Paragon Plus Environment
4

Page 5 of 32
ACS Catalysis
1
2
3
4
5
6
2. EXPERIMENTAL DETAILS
7
8
9
2.1. CATALYST SYNTHESIS AND CHARACTERIZATION
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
A 10% Pd/C catalyst was purchased from Strem Chemical and used as received (Strem,
Palladium, 10% on activated carbon, dry powder). The 2% Pd/γ-Al2O3, 1% Pd/Si-Al, and both
the 2% and 10% low-dispersion Pd/SiO2 catalysts were prepared by incipient wetness
impregnation of γ-Al2O3 (Strem, low-soda), amorphous silica-alumina (Davicat 3113), or SiO2
(Davisil Grade 646, crushed and sieved between 50 and 100 mesh, washed with 5% HNO3 and
dried in air at 383 K for 12 hr), respectively, with aqueous solutions of Pd(NO3)2 (prepared from
Aldrich 10% Pd/(NO3)2 solution in 10% HNO3, 99.999%). The catalysts were dried overnight in
static air at 383 K, calcined at 673 K in flowing air (Airgas, medical grade USP), purged at 298
K with Ar, reduced at 773 K in flowing H2 (Airgas, industrial grade), purged at 298 K with Ar,
and passivated in 1% O2 in Ar (Airgas, research grade). The high-dispersion 2% Pd/SiO2
catalyst was prepared by ion exchange of Pd(NO3)2·4NH3 (Aldrich 10% Pd(NO3)2·4NH3
solution in water), as described previously.9 The catalyst was dried in air at 383 K for 2 hours,
calcined in air at 573 K, purged at 298 K with Ar, reduced in flowing H2 at 533 K, purged at 298
K with Ar, and passivated with 1% O2 in Ar. The (2%Pd-4%Au)/Al2O3 and (2%Pd-4%Au)/Si-
Al catalysts were prepared by simultaneous incipient wetness impregnation of γ-Al2O3 or
amorphous silica-alumina with PdCl2 (Aldrich, 99.5+%) and HAuCl4 (Sigma-Aldrich, 99.999%)
following the method outlined by Hutchings, et al., which is known to yield bimetallic
nanoparticles.17, 18 The catalysts were dried overnight in static air at 383 K, calcined at 673 K in
flowing air, purged at 298 K with Ar, reduced at 773 K in flowing H2, purged at 298 K with Ar,
and passivated in 1% O2 in Ar. The (2%Pd-4%Au)/SiO2 catalyst was prepared by ion exchange,
ACS Paragon Plus Environment
5

ACS Catalysis
Page 6 of 32
1
2
following the method of Lam and Boudart, which is known to yield bimetallic nanoparticles.19, 20
Briefly, [Au(en)2]Cl3 was prepared from HAuCl4 and ethylene diamine (Sigma-Aldrich,
≥99%) according to the procedure described by Block and Bailar.21 The required amount
of this material was dissolved in Milli-Q grade water (18 Mꢀ) and mixed with the
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
required amount of Pd(NO3)2·4NH3 solution. This mixture was then added dropwise to a
slurry of SiO2 (Davisil 646, crushed and sieved between 50 and 100 mesh, washed with 5%
HNO3 and dried in air at 383 K for 12 hr) at 343 K. The pH of the slurry was maintained at pH
11 with NH4OH (Sigma-Aldrich, ACS Reagent 28-30% NH3 basis). The suspension was stirred
for 1 hour, after which it was cooled, filtered, and washed with Milli-Q grade water until the
filtrate was neutral. The catalyst was dried overnight in static air at 383 K, after which it was
reduced at 423 K in flowing H2, purged at 298 K with Ar, and passivated in 1% O2 in Ar.
The CO uptake (Airgas, 99.99%) for each reduced and passivated catalyst was measured using
a Micromeritics ASAP 2020 system following reduction in flowing H2 (Airgas, UHP) at 323 K.
The metal dispersion of the monometallic Pd catalysts was determined based on the CO uptake
with a CO:Pd stoichiometry of 0.67 unless otherwise noted. The Pd dispersion was also
measured at 373 K by hydrogen (Airgas, UHP) titration of pre-adsorbed oxygen (Airgas, UHP),
according to the procedure described by Benson, Hwang, and Boudart22 and using the
stoichiometry shown in Equation 1. The turnover frequencies (TOF) for the monometallic Pd
catalysts were normalized to the number of Pd surface sites determined by H2 titration of
adsorbed O atoms. Using X-ray absorption spectroscopy (XAS) and transmission electron
23
microscopy (TEM), it has previously been shown20,
that the surfaces of bimetallic
nanoparticles in high-dispersion PdAu catalysts prepared by ion exchange are highly enriched in
Pd. Similar observations have been made using TEM and X-ray photoelectron spectroscopy
ACS Paragon Plus Environment
6

Page 7 of 32
ACS Catalysis
1
2
(XPS) for bimetallic PdAu catalysts prepared by simultaneous incipient wetness impregnation.18
Based on XAS and TEM data, coupled with an analysis of the kinetics of cyclohexene
hydrogenation, Davis and Boudart23 suggested that TOF values for C=C bond hydrogenation
using bimetallic PdAu catalysts containing small particles are most appropriately normalized to
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
the total Pd loading. We have used this approach to calculate our TOF values.
3
PdSO + 2 H2 → PdS H + H2O
Equation 1
2.2. REACTION KINETICS MEASUREMENTS
Hydrogenation of 4HC was carried out in a 50 mL Hastelloy pressure vessel (Parr Instrument,
model 4792). The catalyst and magnetic stir bar were loaded into the reactor with a feed solution
containing 4HC (Aldrich, 98%) or coumarin (Aldrich, ≥98%) dissolved in tetrahydrofuran
(Fisher, Certified Grade). The vessel was then sealed, purged with Ar, and pressurized with 27
bar of H2. Unless otherwise noted, reaction kinetics measurements were carried out at 348 K (5
K min-1) with 27 bar of H2, and the vessel was stirred at 500 rpm. For measurement of the
reaction orders and activation barriers, samples were periodically withdrawn from the reactor
through a dip tube, and the initial TOF and corresponding 95% confidence interval were
determined based on the slope of the plot of concentration versus time. A sample was withdrawn
after the reactor reached the selected reaction temperature, and this point was chosen as zero-
time. Negligible conversion was observed during the heat-up period. The absence of mass
transfer limitations was verified by evaluating the Weisz-Prater number (see Section 1 of the
Supporting Information).
Due to its thermal instability, the concentration of 4HC was determined by high performance
liquid chromatography (HPLC) (Waters Alliance 2695 equipped with a Waters 996 UV detector
and a reversed-phase Agilent Zorbax SB-C18 column (4.6 x 300 mm, 5 µm) using 5 mM H2SO4
ACS Paragon Plus Environment
7

ACS Catalysis
Page 8 of 32
1
2
3
4
5
6
7
8
9
as the aqueous phase with acetonitrile as the organic modifier). The concentrations of 4HDHC,
coumarin, DHC, and the over-hydrogenated product were determined by gas chromatography
(GC) (Shimadzu GC2010 equipped with an FID and a DB-5MS capillary column). The
identities of the species were verified using gas chromatography/mass spectrometry (GC/MS)
(Shimadzu GCMS-QP2010S equipped with a SHRXI-5MS capillary column), and the spectra
were compared with those in the NIST MS spectral library.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
2.3 IN SITU INFRARED SPECTROSCOPY
A specially configured Hastelloy autoclave (Parr Instrument, modified from model 4590) was
used to collect in situ attenuated total reflectance Fourier transform infrared (ATR-FTIR)
spectra. The spectra were obtained using a Mettler-Toledo AutoChem ReactIR iC10
spectrometer equipped with a photoconductive detector (MCT type). The spectrometer
interfaces with the reactor using a 9.5 mm AgX DiComp Diamond ATR probe that enters the
reactor at an angle from the bottom. A background spectrum was first obtained of the probe
sealed in an empty reactor at ambient temperature. Then, the catalyst and a feed solution
consisting of 4HC dissolved in THF were charged to the reactor, which was sealed, purged with
He, and pressurized with H2. The reactor was then heated to 348 K (1.67 K min-1), and stirring
was maintained at 500 rpm using an overhead mechanical stirrer. An absorbance spectrum was
collected every 15 minutes consisting of 256 co-averaged scans taken at 4 cm-1 resolution and
referenced to the background spectrum of the empty reactor at ambient temperature. Baseline
drift with respect to reaction time was accounted for by measuring the peak height with respect
to the flat baseline adjacent to the peak. In some experiments, samples were periodically
withdrawn through a dip tube and the concentrations of the species in solution were measured by
HPLC and GC as described above.
ACS Paragon Plus Environment
8

Page 9 of 32
ACS Catalysis
1
2
3
4
5
6
7
8
9
Spectral assignments were made based on spectra predicted by density functional theory
(DFT). Calculations were performed using Gaussian09 software.24 Geometry optimizations and
frequency calculations were performed at the B3LYP/6-31+G(d,p) level of theory. Solvation
effects were accounted for by the SMD solvation model using a THF dielectric medium. The
vibrational frequencies of the bonds of interest were scaled based on the difference between the
predicted and experimental frequency of the C-O bond in THF.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
3. RESULTS AND DISCUSSION
Several fine chemicals can be obtained from 4HC using a set of reactions analogous to those
required for TAL upgrading.8 The unsaturated carbon-carbon bond in the lactone ring of 4HC
can be hydrogenated using supported Pd catalysts (Entries 1-4, Table 1), consistent with previous
reports.25-28 Notably, some DHC is observed in these reactions. It is known that acid sites29, 30 or
oxophilic sites31 are needed for C-O hydrogenolysis to occur over Pd-based catalysts at the mild
conditions used here, which suggests that the formation of DHC may be due to 4HDHC
dehydration by acidic impurities on the catalyst support, yielding coumarin, which is easily
hydrogenated to dihydrocoumarin (DHC) at these reaction conditions (Entries 8 and 9, Table 1).
The silica gel support appears to have the least amount of acidic impurities, and by using a 2%
Pd/SiO2 catalyst we obtained 93% selectivity to hydrogenated products (4HDHC and DHC) at
82% 4HC conversion. In all three cases, we observed a small amount of selectivity to an over-
hydrogenated form of 4HDHC, where the aromatic ring was partially saturated.
A catalyst containing both metal and acid sites could lead to the direct production of DHC
from 4HC. Importantly, this reaction can proceed with high selectivity because 4HC cannot
undergo the same retro Diels-Alder reaction that prevents the direct conversion of TAL to δ-
hexalactone.32 Accordingly, we synthesized a Pd catalyst supported on amorphous silica-
ACS Paragon Plus Environment
9

ACS Catalysis
Page 10 of 32
1
2
3
4
5
6
7
8
9
alumina. At the same reaction conditions used for the hydrogenation of 4HC to 4HDHC, this
catalyst led to 71% DHC selectivity at 87% 4HC conversion (Entry 4, Table 1). Notably, the
only other products formed were 4HDHC (22% selectivity) and the over-hydrogenated form of
4HDHC (7% selectivity). Based on these results and our previously described acid-catalyzed
dehydration of hydroxy-pyrones,8 we suggest that coumarin could also be produced from 4HC
by the dehydration of 4HDHC.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Table 1. Hydrogenation of 4-hydroxycoumarin using Pd-based catalystsa
Entry Catalyst
Reactant Cat:Feed Time Conv Sel to Sel to Sel
4HDH DHC
C (%) (%)
to Init.
(g:g)
(h)
(%)
Overhyd. TOF.
(%)
5
(ks-1)b
8.5
2.9
2.2
--
10% Pd/C
4HC
0.17
0.69
0.33
0.34
0.17
0.17
0.88
5
78
79
78
85
22
83
87
12
--
14
16
8
1
2
3
4
5
6
7
8
9
2%Pd/Al2O3 4HC
12
27
48
19
12
48
2
88
6
2%Pd/SiO2
1%Pd/Si-Al
4HC
4HC
82
7
87
71
17
10
86
>99
>99
7
c
PdAu/Al2O3 4HC
87
<1
3
6.1
5.0
--
c
PdAu/SiO2
4HC
86
PdAu/Si-Alc 4HC
90
2
2%Pd/Al2O3 Coumarin 0.17
>99
>99
n.d.d
n.d.d
--
c
PdAu/SiO2
Coumarin 0.17
2
--
--
a) Reaction conditions: 2 wt% reactant in tetrahydrofuran, 348 K, 27 bar H2. b) Initial TOF
measured at conversions below 15%. Calculated based on surface Pd measured by H2 titration of
adsorbed O atoms (monometallic Pd catalysts) or total Pd (bimetallic Pd catalysts) according to
Davis and Boudart.23 c) PdAu catalysts are 2 wt% Pd and 4 wt% Au. d) Not detected.
The use of monometallic Pd catalysts leads to high but not quantitative selectivity for
hydrogenation of the carbon-carbon double bond in the lactone ring of 4HC. In each case (see
Entries 1-4 in Table 1), some of the 4HDHC is over-hydrogenated (i.e., the aromatic ring is
ACS Paragon Plus Environment
10

Page 11 of 32
ACS Catalysis
1
2
3
4
5
6
7
8
9
partially saturated), achieving 6-7% selectivity to the over-hydrogenated species at 78-88% 4HC
conversion. We used a batch reactor equipped with an in situ ATR-FTIR probe to monitor the

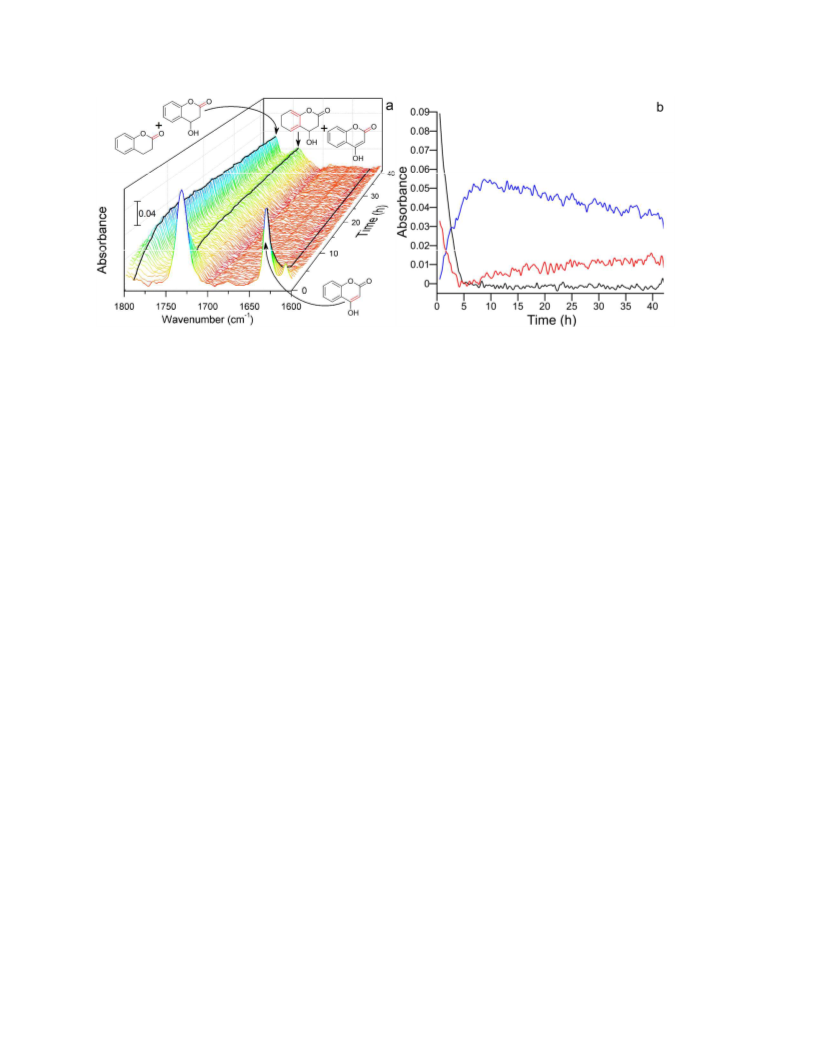

time-evolution of these consecutive reactions. Figure 1a shows the time-evolution of the FTIR
spectra between 1600-1800 cm-1. Three IR bands are highlighted that correspond to the C=C
stretch in 4HC (1630 cm-1), the C=O stretch in both 4HDHC and DHC (overlapping absorbances
at 1780 cm-1), and the asymmetric diene stretch in the over-hydrogenated product (1744 cm-1, see
Scheme 1). Figures S1-S4 show the infrared spectra predicted for these molecules using density
functional theory. Note that the band at 1744 cm-1 overlaps with the C=O stretch in 4HC (1735
cm-1), so the absorbance at short reaction times is dominated by contributions from 4HC. Figure

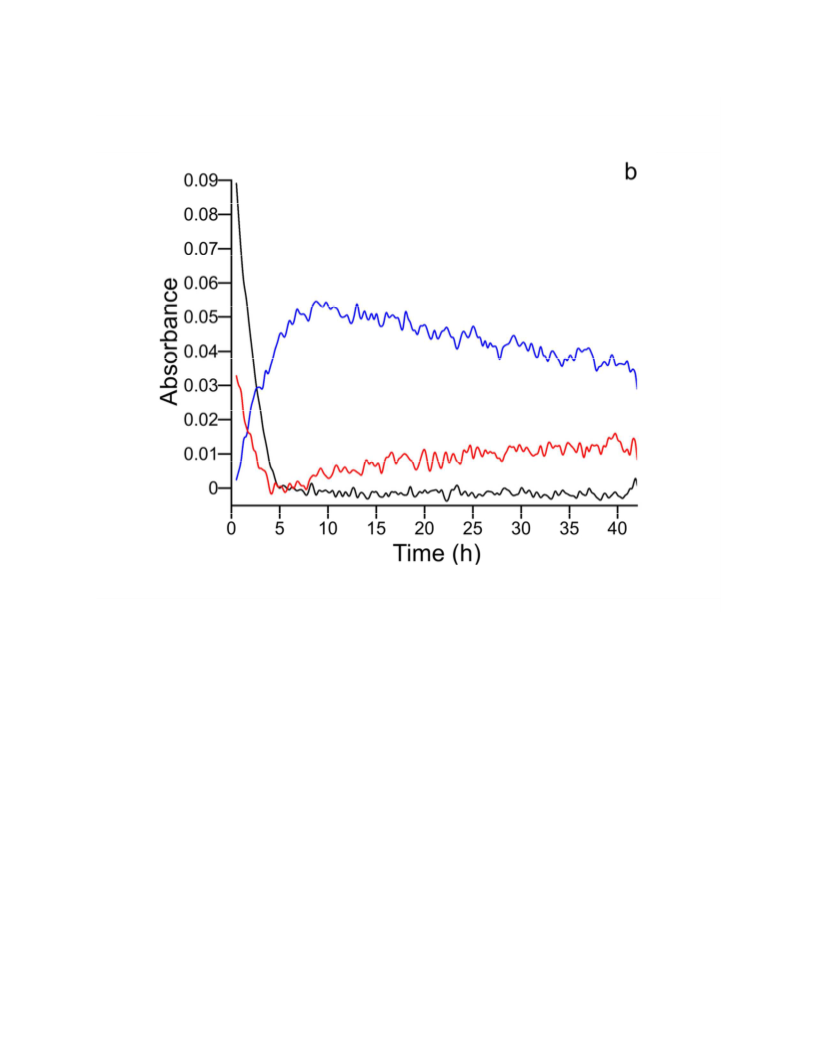

1b shows that the absorbance at 1780 cm-1 exhibits the behavior of an intermediate species and
passes through a maximum in intensity with respect to reaction time. The appearance of this
band corresponds to the disappearance of the band at 1630 cm-1. The decrease in the intensity of
the band at 1780 cm-1 corresponds to an increase in the intensity of the band at 1744 cm-1.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment
11

ACS Catalysis
Page 12 of 32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1. Hydrogenation of 4HC using 10%Pd/C, monitored by in situ ATR-FTIR spectroscopy.
(a) Changes in IR spectra with respect to reaction time, with the three absorbances of interest
highlighted. (b) Changes in IR absorbance with respect to reaction time. The absorbance at 1630
cm-1 corresponds to 4HC (black), the absorbance at 1780 cm-1 corresponds to 4HDHC and DHC
(blue), and the absorbance at 1744 cm-1 corresponds to the over-hydrogenated product (red).
Reaction conditions: 348 K, 27 bar H2, 133 mM 4HC in THF, cat:4HC = 0.42 g:g, Pds:4HC =
0.01 mol:mol.
Figure 2a shows that a similar trend is obtained for the 2% Pd/SiO2 catalyst, although as shown
in Table 1, the TOF is much lower for the silica-supported catalyst than for the carbon-supported
catalyst. The reactor was sampled periodically during this reaction, and the concentrations of
species in solution were measured by HPLC and GC. As shown in Figures 3a-c, the reaction
profiles generated by HPLC and GC are consistent with those generated by in situ ATR-FTIR
spectroscopy.
ACS Paragon Plus Environment
12

Page 13 of 32
ACS Catalysis
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

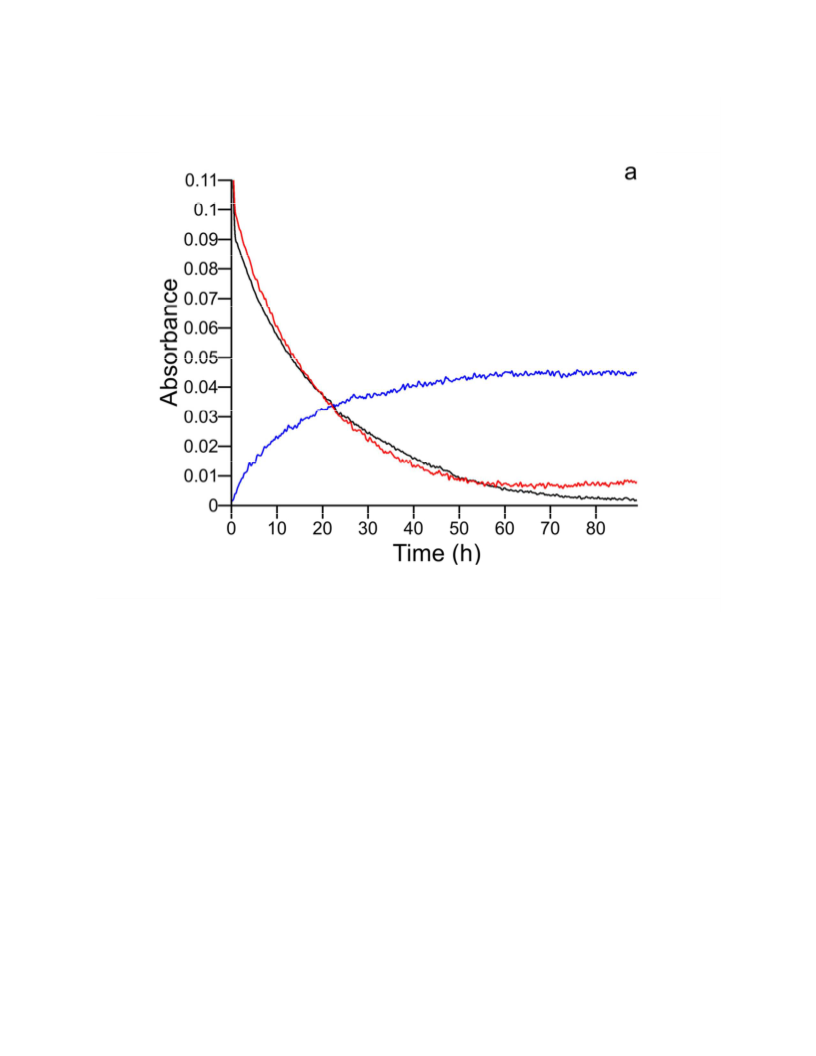

Figure 2. Infrared absorbance versus reaction time for the hydrogenation of 4HC using 2%
Pd/SiO2 (a) and (2% Pd-4% Au)/SiO2 (b). The absorbance at 1630 cm-1 corresponds to 4HC
(black), the absorbance at 1780 cm-1 corresponds to 4HDHC and DHC (blue), and the
absorbance at 1744 cm-1 corresponds to the overhydrogenated product (red). Reaction
conditions: 348 K, 27 bar H2, 133 mM 4HC in THF, cat:4HC = 0.42 g:g, (a) Pds:4HC = 0.009
mol:mol, (b) Pds:4HC = 0.13 mol:mol.
Achieving high selectivity is important for the stringent purity specifications demanded by the
fine chemicals and pharmaceuticals markets.33 Consequently, the key bottleneck for upgrading
4HC will be the selective hydrogenation of the unsaturated carbon-carbon bond without over-
hydrogenating the aromatic ring (to produce either 4HDHC or DHC). We have observed that the
formation of bimetallic PdAu nanoparticles decreases the over-hydrogenation activity of the
monometallic Pd materials, with the combined selectivity to 4HDHC and DHC increasing from
93% for the 2% Pd/SiO2 catalyst to 97% for the (2% Pd-4% Au)/SiO2 catalyst, as an example
(Entries 3 and 6, Table 1). As shown in Figure 2b, no over-hydrogenated products were detected
when using this catalyst for 15 hours beyond the time required for complete conversion of 4HC,
nor were any over-hydrogenated products detected when using the (2% Pd-4% Au)/Al2O3
ACS Paragon Plus Environment
13

ACS Catalysis
Page 14 of 32
1
2
3
4
5
6
7
8
9
catalyst (see Entry 5, Table 1). Also notable is the increase in the TOF that accompanies the
addition of Au, with the initial TOF for the (2% Pd-4% Au)/SiO2 catalyst more than double that
of the 2% Pd/SiO2 catalyst. Similar improvements were also observed when using γ-Al2O3 and
amorphous SiO2-Al2O3 as supports (see Table 1).
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

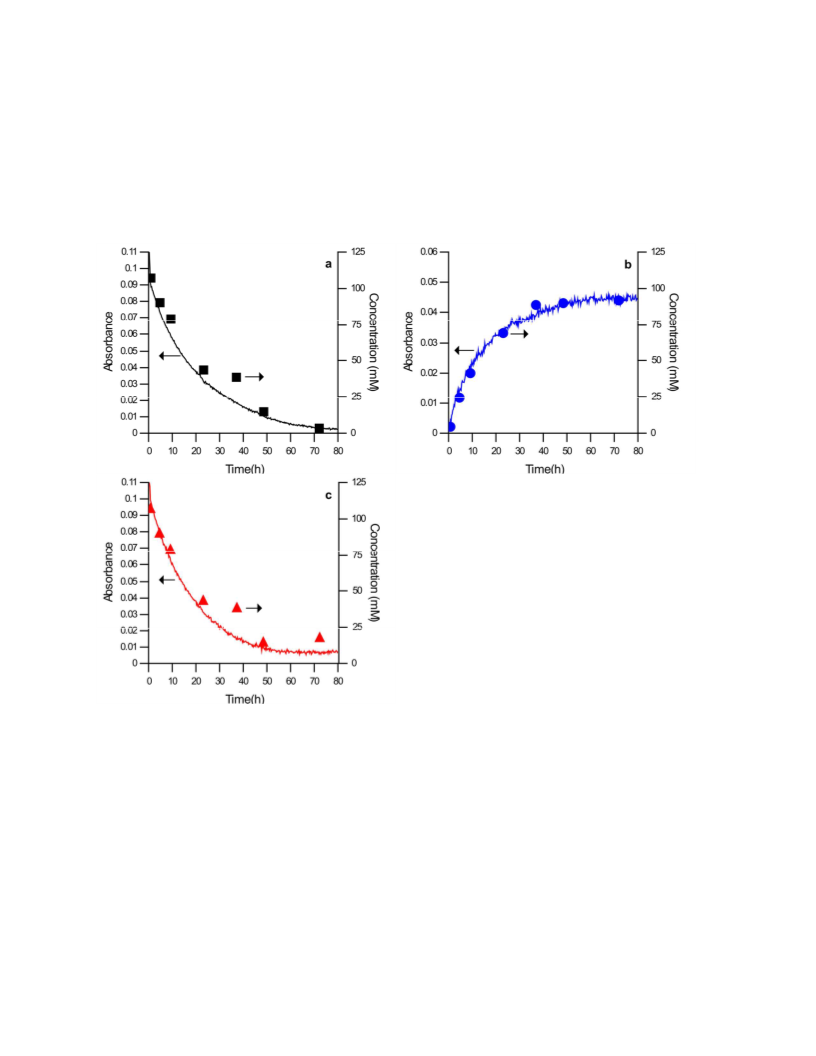

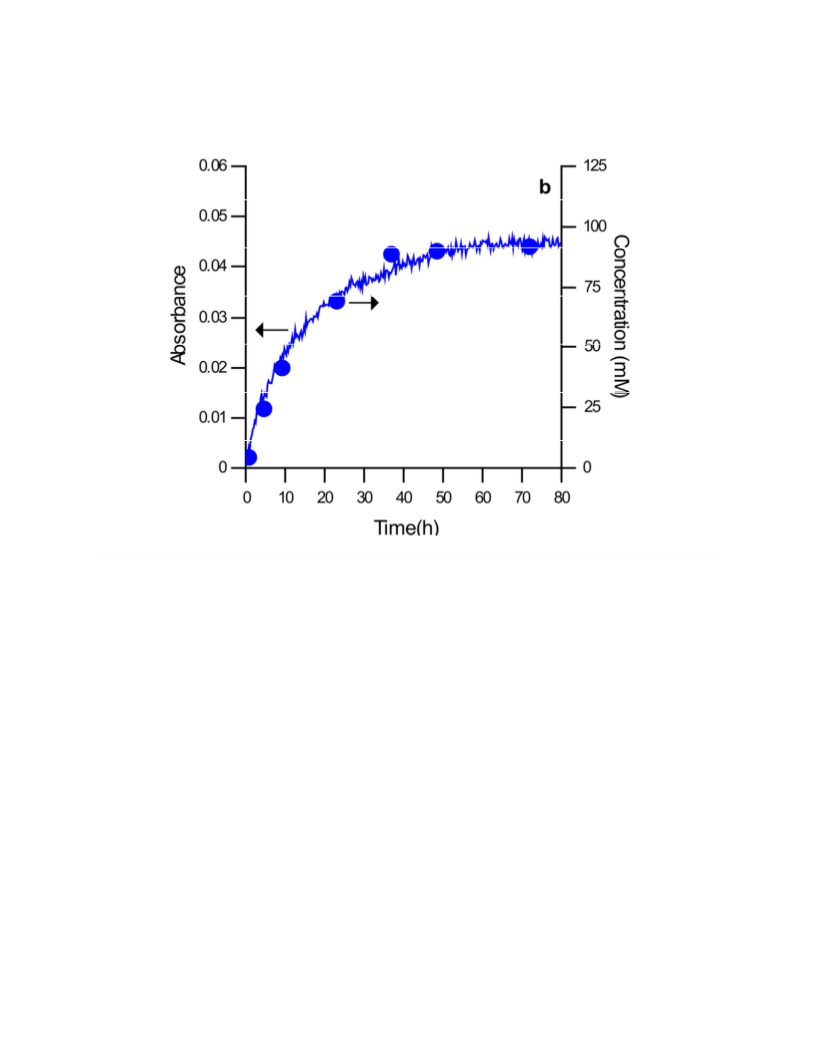

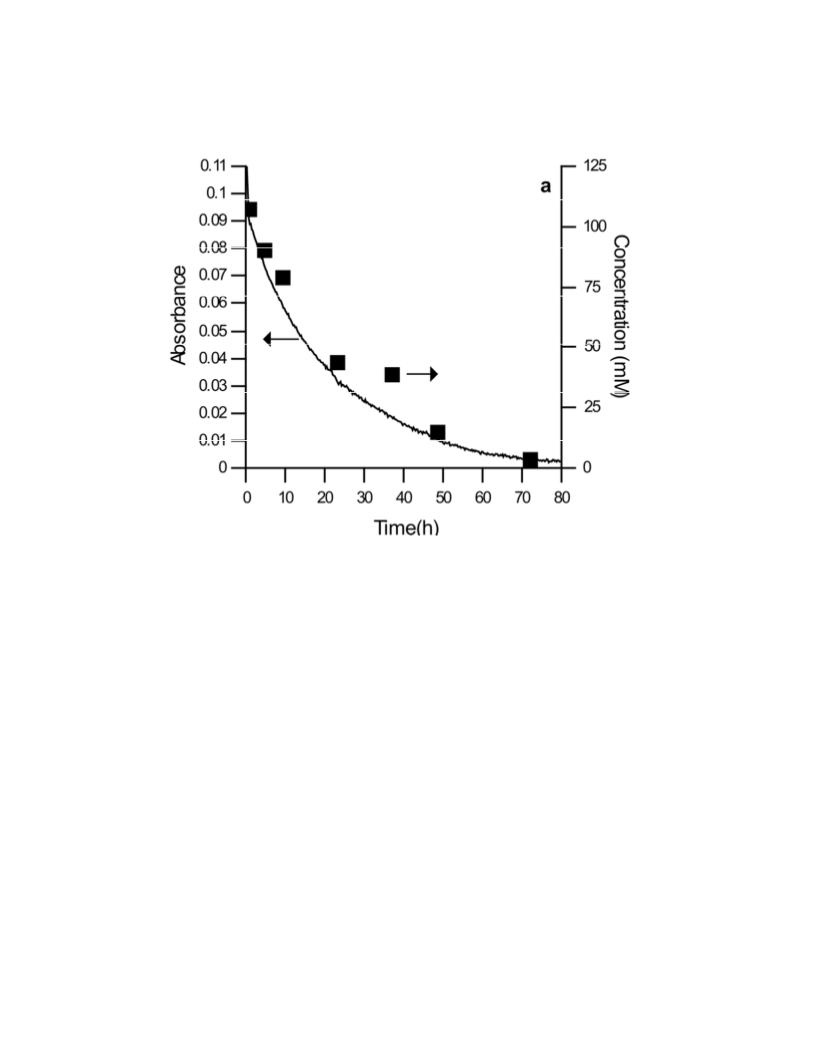

Figure 3. Infrared absorbance versus reaction time for the hydrogenation of 4HC using 2%
Pd/SiO2. Comparison of HPLC and GC data (points) with FTIR absorbance data (lines) for: (a)
the band at 1630 cm-1 (4HC), (b) the band at 1780 cm-1 (4HDHC and DHC), and (c) the band at
1744 cm-1 (the over-hydrogenated product and 4HC). Reaction conditions: 348 K, 27 bar H2,
133 mM 4HC in THF, cat:4HC = 0.42 g:g, Pds:4HC = 0.009 mol:mol.
ACS Paragon Plus Environment
14

Page 15 of 32
ACS Catalysis
1
2
3
4
5
6
7
8
9
The TOF for 4HDHC formation is significantly higher when using the 10% Pd/C catalyst than
when using the 2% Pd/SiO2 catalyst (comparing Entries 1 and 3 in Table 1). As shown in Table
2, which lists the Pd dispersion, D, and the nanoparticle size (calculated as 1.1/D) for the
catalysts used in this study, the 10% Pd/C catalyst has a substantially lower Pd dispersion than
does the 2% Pd/SiO2 catalyst. To rule out the possibility of an influence of the support on the
rate of 4HDHC production, we prepared a 2% Pd/SiO2 catalyst with a 6% Pd dispersion. As
shown in Figure 4, the initial TOF obtained using this catalyst was higher than that for the 10%
Pd/C catalyst, which has a 16% Pd dispersion. Indeed, Figure 4 shows that the TOF for the
formation of 4HDHC is dependent on the metal nanoparticle size, and is independent of the
nature of the support.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Table 2. Metal dispersion of the monometallic catalysts used in this studya
Entry Catalyst
Nominal metal H2 Uptake Pd Dispersion Pd nanoparticle
(D) (%)b
loading (µmol/g) (µmol/g)
size (nm)c
10% Pd/C
940
218
125
195
65
16
44
70
46
6
7.1
1
2
3
4
5
2% Pd/Al2O3 188
2.5
2% Pd/SiO2
1% Pd/Si-Al 94
2% Pd/SiO2 188
188
1.6
2.4
18
17
a) The Pd dispersion measured by CO chemisorption can be found in Table S1. b) Assuming
3
PdSO + 2 H2 → PdS H + H2O . Figure S5 shows the hydrogen titration data for Entry 3. c)
Calculated as 1.1/D, using the H2 titration data and assuming spherical particles.
In conjunction with the decrease in the 4HDHC formation rate when using small Pd
nanoparticles, the rate of over-hydrogenation by the high-dispersion 2% Pd/SiO2 catalyst is
qualitatively lower than that by the low-dispersion 10% Pd/C catalyst (comparing Figure 1b with
Figure 2a). Interestingly, Somorjai and coworkers observed a similar effect for the
ACS Paragon Plus Environment
15

ACS Catalysis
Page 16 of 32
1
2
hydrogenation of benzene and toluene using SBA-15-supported Pt catalysts.34 These authors
note that the activation barrier for the hydrogenation of both benzene and toluene decreases with
increasing Pt particle size, consistent with the qualitative increase in over-hydrogenation rate
observed in our work.
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
We have observed that the hydrogenation of 4HC by the high-dispersion 2% Pd/SiO2 catalyst
is negative-order with respect to 4HC, indicating that the Pd surface is highly covered by 4HC
(see Figure S7). However, the reaction is nearly zero-order with respect to 4HC when catalyzed
by a 10% Pd/SiO2 catalyst that has a low metal dispersion, indicating that the surface coverage
by 4HC decreases with increasing particle size. The reaction order with respect to hydrogen is
unaffected by particle size, as is the apparent activation barrier (see Figures S8 and S9),
indicating the mechanism is the same over both catalysts and the observed changes in rate are
due to surface coverage effects. Because the rate of over-hydrogenation is slow over both
catalysts, we postulate that aromatically-bound 4HC acts as a spectator species occupying sites
that would otherwise be active for 4HC hydrogenation. Stronger bonding of these aromatic
species on the low-coordination sites of the more highly dispersed Pd nanoparticles would lead
to more extensive blocking of the active sites and thus lower catalytic activity.
ACS Paragon Plus Environment
16

Page 17 of 32
ACS Catalysis
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

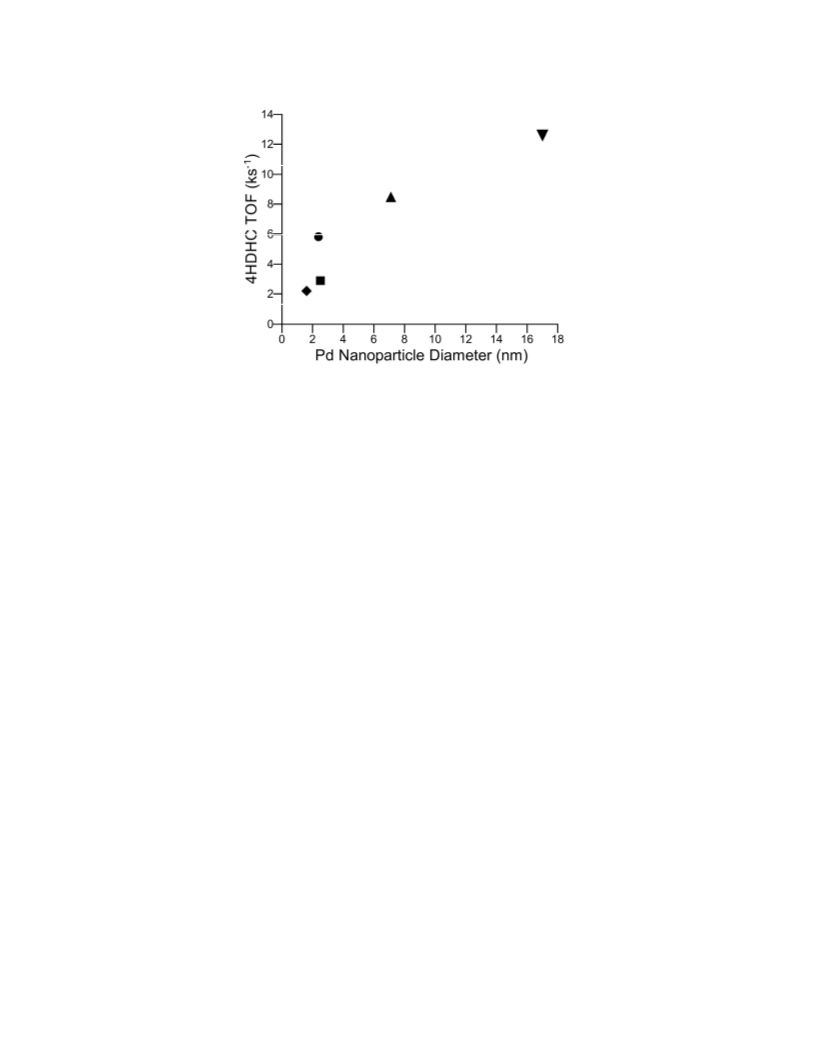

Figure 4. Influence of Pd nanoparticle size on the TOF for 4HDHC formation. 2% Pd/SiO2 (♦),
2% Pd/Al2O3 (■), 1% Pd/Si-Al (●), 10% Pd/C (▲), and 2% Pd/SiO2 (▼). The nanoparticle size,
d, was determined assuming spherical particles and based on the metal dispersion, D, as d=1.1/D.
A significant improvement in selectivity is achieved when using the PdAu catalysts. Puddu
and Ponec observed a similar effect for benzene hydrogenation by PtAu alloys, whereby the
addition of small amounts of Au to Pt completely deactivated the catalyst towards benzene
hydrogenation.35 It is difficult to determine whether this observation was due to an electronic
effect that would lead to a high barrier for aromatic hydrogenation or due to a geometric effect.
Notably, in the case of 4HC hydrogenation, the reaction is negative-order with respect to the
hydrocarbon when using both highly-dispersed Pd and PdAu catalysts, suggesting that the
surface coverage by 4HC is not affected by alloying.
Davis and Boudart23 found that the rate of cyclohexene hydrogenation over a SiO2-supported
PdAu catalyst is best described by a TOF normalized to the total amount of Pd rather than one
normalized to surface Pd sites counted by chemisorption. This observation indicates that, in the
presence of hydrocarbons, the surface of the PdAu nanoparticles is highly-enriched by Pd, in-line
ACS Paragon Plus Environment
17

ACS Catalysis
Page 18 of 32
1
2
3
4
5
6
7
8
9
with observations that the surface of PdAu bimetallic nanoparticles can restructure in response to
adsorption of species that bind strongly to Pd.36, 37 Importantly, the rate of 4HC hydrogenation
increases by a factor of two upon formation of bimetallic PdAu nanoparticles, consistent with the
observations of Davis and Boudart. Consequently, we postulate that, under the conditions of
4HC hydrogenation, the surface of the PdAu nanoparticles is enriched by Pd, which is highly
covered by 4HC bound through its aromatic ring. The presence of subsurface Au modifies the
catalyst to prevent saturation of the aromatic ring, as described by Puddu and Ponec for PtAu,
such that the aromatically-bound 4HC remains on the surface as a spectator species, as described
for the monometallic Pd catalysts. Consequently, the remaining vacant sites are more active for
hydrogenation of the unsaturated carbon-carbon bond in the lactone ring of 4HC, consistent with
the observations of Davis and Boudart.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
4. CONCLUSIONS
In this work we found that the selective reduction of unsaturated carbon-carbon bonds can
proceed in the presence of aromatic rings, enabling the production of high-value products from
biomass using biologically-derived platform intermediates. In particular, 4HC can be upgraded
to several fine chemicals and pharmaceutical building blocks, all of which require the selective
hydrogenation of 4HC to 4HDHC. This reaction proceeds over Pd-based catalysts, and the
highest selectivities were obtained using bimetallic PdAu catalysts. Both the surface coverage
by 4HC and its rate of hydrogenation are dependent on metal nanoparticle size for monometallic
Pd catalysts, likely due to changes in the activation barrier for saturation of the aromatic ring in
4HC. The addition of Au to the catalyst led to a factor-of-two increase in the TOF for 4HDHC
production.
ACS Paragon Plus Environment
18

Page 19 of 32
ACS Catalysis
1
2
3
4
ASSOCIATED CONTENT
5
6
7
8
9
Supporting Information. Evaluations of potential mass transport limitations, predicted FTIR
spectra for the reactants and products, representative plots of CO and H2 uptake for the
monometallic Pd catalysts, dispersion measurements by CO chemisorption, and measurements of
the apparent reaction kinetics using the low- and high-dispersion Pd/SiO2 catalysts and the
PdAu/SiO2 catalyst. This material is available free of charge via the Internet at
http://pubs.acs.org.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
AUTHOR INFORMATION
Corresponding Author
*E-mail: jdumesic@wisc.edu
Present Addresses
† Department of Chemical and Biological Engineering, University of Maine, Orono, ME 04469
ACKNOWLEDGMENT
This material is based upon work supported by the National Science Foundation Engineering
Research Center for Biorenewable Chemicals (CBiRC) under Award No. EEC-0813570.
Portions of the ATR-FTIR apparatus were purchased with support in part from the Advanced
Biofuel Intermediates program of the U.S. Forest Service and in part by the Agriculture and
Food Research Initative Grant No. 2011-67009-20056 from the USDA National Institute of Food
and Agriculture. T.J.S. acknowledges support from the National Science Foundation Graduate
Research Fellowship Program under Grant No. DGE-1256259. Any opinions, findings, and
ACS Paragon Plus Environment
19

ACS Catalysis
Page 20 of 32
1
2
3
4
5
6
conclusions or recommendations expressed in this material are those of the authors and do not
necessarily reflect the views of the National Science Foundation.
7
8
9
REFERENCES
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
1.
2.
Bozell, J. J., Clean: Soil, Air, Water 2008, 36, 641-647.
U.S. Crude Oil Production to 2025: Updated Projection of Crude Types. U.S. Energy
Information Administration: 2015.
3.
2069.
4.
5.
Schwartz, T. J.; O'Neill, B. J.; Shanks, B. H.; Dumesic, J. A., ACS Catal. 2014, 4, 2060-
Nikolau, B. J.; Perera, M.; Brachova, L.; Shanks, B., Plant J. 2008, 54, 536-545.
Shanks, B. H., ACS Chem. Biol. 2007, 2, 533-535.
Cardenas, J.; Da Silva, N. A., Metab. Eng. 2014, 25, 194-203.
6.
7.
Xie, D. M.; Shao, Z. Y.; Achkar, J. H.; Zha, W. J.; Frost, J. W.; Zhao, H. M., Biotechnol.
Bioeng. 2006, 93, 727-736.
8.
1854.
9.
10.
Rohr, K.; Dumesic, J. A., Angew. Chem. Int. Ed. 2014, 53, 12718-12722.
11.
12.
16, 365-372.
13.
Chia, M.; Schwartz, T. J.; Shanks, B. H.; Dumesic, J. A., Green Chem. 2012, 14, 1850-
Schwartz, T. J.; Brentzel, Z. J.; Dumesic, J. A., Catal. Lett. 2015, 145, 15-22.
Schwartz, T. J.; Johnson, R. L.; Cardenas, J.; Okerlund, A.; Da Silva, N. A.; Schmidt-
Liu, B.; Raeth, T.; Beuerle, T.; Beerhues, L., Plant Mol. Biol. 2010, 72, 17-25.
Stewart Jr, C.; Vickery, C. R.; Burkart, M. D.; Noel, J. P., Curr. Opin. Plant Biol. 2013,
Boisde, P. M.; Meuly, W. C., Coumarin. In Kirk-Othmer Encyclopedia of Chemical
Technology, John WIley & Sons: 2014; pp 1-10.
14.
15.
16.
17.
Ito, M.; Ooshida, T. Production of Epsilon-Caprolactam. JP4164603, 1997.
Sridharan, V.; Suryavanshi, P. A.; Menendez, J. C., Chem. Rev. 2011, 111, 7157-7259.
Felpin, F.-X.; Coste, J.; Zakri, C.; Fouquet, E., Chem. - Eur. J. 2009, 15, 7238-7245.
Edwards, J. K.; Solsona, B.; Ntainjua, N. E.; Carley, A. F.; Herzing, A. A.; Kiely, C. J.;
Hutchings, G. J., Science 2009, 323, 1037-1041.
18. Edwards, J. K.; Solsona, B. E.; Landon, P.; Carley, A. F.; Herzing, A.; Kiely, C. J.;
Hutchings, G. J., J. Catal. 2005, 236, 69-79.
19.
20.
21.
22.
23.
clusters, Catalytic Science and Technology: Proceedings of the First Tokyo Conference on
Advanced Catalytic Science and Technology, Tokoyo, Kodansha: Tokoyo, 1991; pp 129-134.
24.
J. R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G. A.; Nakatsuji, H.; Caricato, M.; Li,
X.; Hratchian, H. P.; Izmaylov, A. F.; Bloino, J.; Zheng, G.; Sonnenberg, J. L.; Hada, M.; Ehara,
M.; Toyota, K.; Fukuda, R.; Hasegawa, J.; Ishida, M.; Nakajima, T.; Honda, Y.; Kitao, O.;
Nakai, H.; Vreven, T.; Montgomery, J. J. A.; Peralta, J. E.; Ogliaro, F.; Bearpark, M.; Heyd, J. J.;
Lam, Y. L.; Boudart, M., J. Catal. 1977, 50, 530-540.
Davis, R. J.; Boudart, M., J. Phys. Chem. 1994, 98, 5471-5477.
Block, B. P.; Bailar, J. C., J. Am. Chem. Soc. 1951, 73, 4722-4725.
Benson, J. E.; Hwang, H. S.; Boudart, M., J. Catal. 1973, 30, 146-153.
Davis, R. J.; Boudart, M. Hydrogenation of alkenes on supported palladium-gold
Frisch, M. J.; Trucks, G. W.; Schlegel, H. B.; Scuseria, G. E.; Robb, M. A.; Cheeseman,
ACS Paragon Plus Environment
20

Page 21 of 32
ACS Catalysis
1
2
3
4
5
6
7
8
9
Brothers, E.; Kudin, K. N.; Staroverov, V. N.; Kobayashi, R.; Normand, J.; Raghavachari, K.;
Rendell, A.; Burant, J. C.; Iyengar, S. S.; Tomasi, J.; Cossi, M.; Rega, N.; Millam, N. J.; Klene,
M.; Knox, J. E.; Cross, J. B.; Bakken, V.; Adamo, C.; Jaramillo, J.; Gomperts, R.; Stratmann, R.
E.; Yazyev, O.; Austin, A. J.; Cammi, R.; Pomelli, C.; Ochterski, J. W.; Martin, R. L.;
Morokuma, K.; Zakrzewski, V. G.; Voth, G. A.; Salvador, P.; Dannenberg, J. J.; Dapprich, S.;
Daniels, A. D.; Farkas, Ö.; Foresman, J. B.; Ortiz, J. V.; Cioslowski, J.; Fox, D. J. Gaussian 09,
Revision C.01, Gaussian, Inc.: Wallingford, CT, 2009.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
25.
26.
27.
28.
29.
30.
31.
Huck, W. R.; Bürgi, T.; Mallat, T.; Baiker, A., J. Catal. 2003, 219, 41-51.
Huck, W. R.; Bürgi, T.; Mallat, T.; Baiker, A., J. Catal. 2001, 200, 171-180.
Huck, W.-R.; Mallat, T.; Baiker, A., J. Catal. 2000, 193, 1-4.
Huck, W.-R.; Mallat, T.; Baiker, A., New J. Chem. 2002, 26, 6-8.
Zhao, C.; He, J.; Lemonidou, A. A.; Li, X.; Lercher, J. A., J. Catal. 2011, 280, 8-16.
Marin-Flores, O. G.; Karim, A. M.; Wang, Y., Catal. Today 2014, 237, 118-124.
de Souza, P.; Nie, L.; Borges, L. P.; Noronha, F.; Resasco, D., Catal. Lett. 2014, 144,
2005-2011.
32.
Am. Chem. Soc. 2013, 135, 5699-5708.
33.
Sons: Hoboken, NJ, USA, 2011.
34. Pushkarev, V. V.; An, K.; Alayoglu, S.; Beaumont, S. K.; Somorjai, G. A., J. Catal.
2012, 292, 64-72.
35.
36.
37.
Chia, M.; Haider, M. A.; Pollock, G., III; Kraus, G. A.; Neurock, M.; Dumesic, J. A., J.
Pollak, P., Fine Chemicals : The Industry and the Business (2nd Edition). John Wiley &
Puddu, S.; Ponec, V., Recl. Trav. Chim. Pays-Bas 1976, 95, 255-284.
Kunz, S.; Iglesia, E., J. Phys. Chem. C 2014, 118, 7468-7479.
Gao, F.; Wang, Y.; Goodman, D. W., J. Phys. Chem. C 2009, 113, 14993-15000.
ACS Paragon Plus Environment
21

ACS Catalysis
Page 22 of 32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

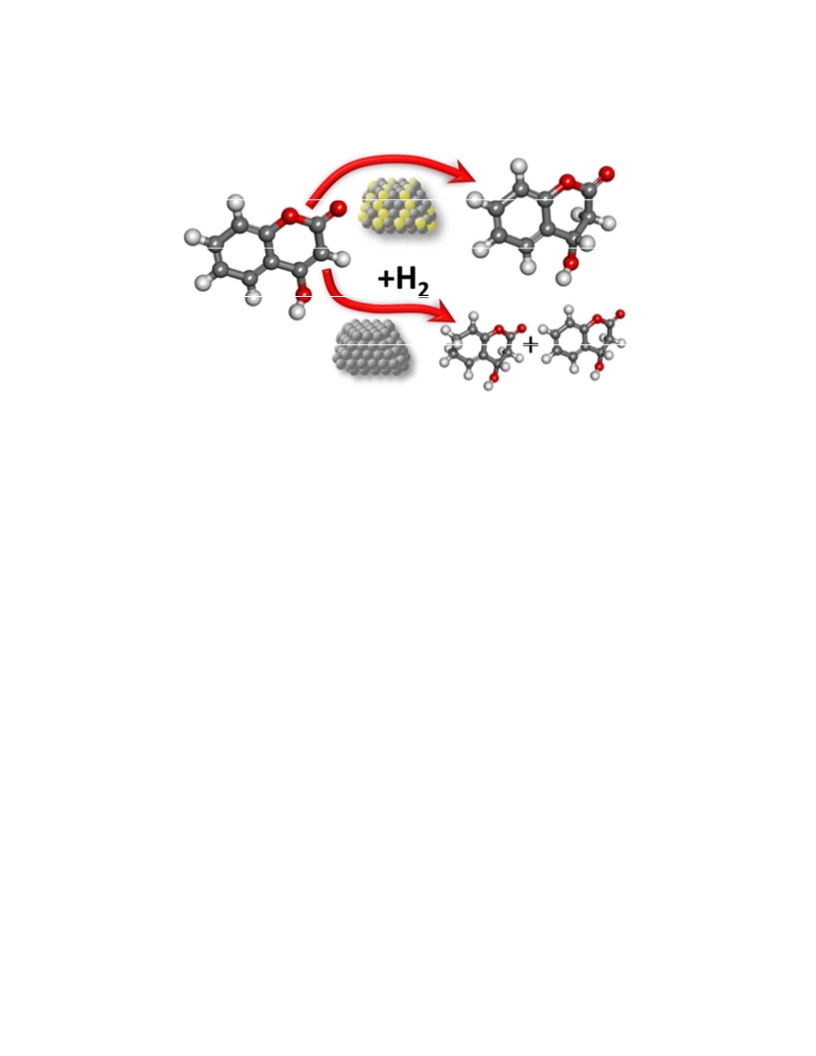

The use of supported bimetallic PdAu catalysts allows for the highly selective hydrogenation of
unsaturated carbon-carbon bonds in the presence of aromatic rings.
ACS Paragon Plus Environment
22

Page 23 of 32
ACS Catalysis
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Graphical abstract
38x20mm (300 x 300 DPI)
ACS Paragon Plus Environment

ACS Catalysis
Page 24 of 32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1a
66x51mm (300 x 300 DPI)
ACS Paragon Plus Environment

Page 25 of 32
ACS Catalysis
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1b
71x59mm (300 x 300 DPI)
ACS Paragon Plus Environment

ACS Catalysis
Page 26 of 32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2a
71x59mm (300 x 300 DPI)
ACS Paragon Plus Environment

Page 27 of 32
ACS Catalysis
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2b
71x59mm (300 x 300 DPI)
ACS Paragon Plus Environment

ACS Catalysis
Page 28 of 32
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 3a
66x51mm (300 x 300 DPI)
ACS Paragon Plus Environment

Page 29 of 32
ACS Catalysis
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 3b
66x51mm (300 x 300 DPI)
ACS Paragon Plus Environment
