Magnetic Fe3O4/graphene oxide/copper-based nanocomposite as a reusable catalyst for the reduction of 4-nitrophenol

Article abstract of DOI:10.1166/jnn.2020.16889

In the present investigation, Fe3O4/Graphene oxide/Pr–NH2–CuII was reported as a novel magnetically recoverable nanocomposite and characterized using various analytical techniques such as FT-IR spectroscopy, field emission scanning electron microscopy (FE-SEM), energy dispersive X-ray spectroscopy (EDX), vibrating sample magnetometry (VSM), X-ray diffraction (XRD), and inductively coupled plasma (ICP). The catalytic performance of the synthesized catalyst was evaluated in the reduction of 4-nitrophenol to 4-aminophenol by an excess amount of sodium borohydride as the source of hydrogen in aqueous solution. The reaction was monitored by UV-vis spectroscopy at ambient temperature. Magnetic nature of the catalyst led to its simple recovery by a permanent magnet and excellent recyclability without appreciable loss of the catalytic activity.

Full text of DOI:10.1166/jnn.2020.16889

Article
Journal of
Nanoscience and Nanotechnology
Vol. 20, 121–127, 2020
Copyright © 2020 American Scientific Publishers
All rights reserved
Printed in the United States of America
www.aspbs.com/jnn
Magnetic Fe O /Graphene Oxide/Copper-Based
3
4
Nanocomposite as a Reusable Catalyst for the
Reduction of 4-Nitrophenol
1
1ꢀ∗
1ꢀ∗
2
2
Mehdi Zabihzadeh , Farhad Shirini , Hassan Tajik , Zahra Shokri , and Shiva Karami
1Department of Chemistry, College of Science, University of Guilan, Rasht, 41335-19141, Iran
Department of Organic Chemistry, Chemistry Faculty, Urmia University, Urmia 5756151818, Iran
2
II
In the present investigation, Fe O /Graphene oxide/Pr–NH –Cu was reported as a novel magnet-
3
4
2
ically recoverable nanocomposite and characterized using various analytical techniques such as
FT-IR spectroscopy, field emission scanning electron microscopy (FE-SEM), energy dispersive X-ray
spectroscopy (EDX), vibrating sample magnetometry (VSM), X-ray diffraction (XRD), and induc-
tively coupled plasma (ICP). The catalytic performance of the synthesized catalyst was evaluated
in the reduction of 4-nitrophenol to 4-aminophenol by an excess amount of sodium borohydride as
the source of hydrogen in aqueous solution. The reaction was monitored by UV-vis spectroscopy
at ambient temperature. Magnetic nature of the catalyst led to its simple recovery by a permanent
magnet and excellent recyclability without appreciable loss of the catalytic activity.
IP: 91.200.81.81 On: Mon, 30 Dec 2019 09:57:25
Keywords: 4-Nitrophen Co lo pR ye r di gu hc tt i: o An ,m eF er ic Oa n- MS Nc iPe sn ,tif Gi cr aP p uh be lni se h eOr sx ide, NaBH , Copper (II)
3
4
4
Supported Catalysts. Delivered by Ingenta
1
. INTRODUCTION
discharge. Many methodologies have been reported for the
removal of 4-nitrophenol from contaminated water such
as photocatalytic degradation [8], catalytic reduction [9],
microwave-assisted catalytic oxidation [10], electrochem-
ical treatment [11], biodegradation [12], electro-Fenton
method [13], and so on. Among the above-mentioned
procedures, the catalytic reduction of 4-nitrophenol to
4-aminophenol in aqueous solution has been proved to be
an efficacious, cost-effective and clean method for this pur-
pose [14]. 4-aminophenol is a vital intermediate for the
synthesis of many analgesic and antipyretic drugs. Also, it
is used extensively as a corrosion inhibitor, photographic
developer, hair-dyeing agent, anticorrosion-lubricant [15].
Hence, it is very important to design an efficient and envi-
ronmentally benign catalytic system for the reduction of
Nitrobenzene and its derivatives are widely used as impor-
tant organic feedstocks in the chemical industry for the
production of dyes, pigments, pharmaceuticals, plastics,
fungicides, pesticides, industrial solvents, and explo-
sives [1, 2]. However, these compounds are highly haz-
ardous to the environment and human health [3]. As a
member of nitroaromatic compounds, 4-nitrophenol is one
of the most refractory organic pollutants which extensively
exists in industrial effluents of chemical plants and agri-
cultural waste-waters [4]. This compound is toxic and
due to its minuscule biodegradability, high stability and
solubility in water is stable in the environment and bio-
logical systems which can cause serious damage to the
central nervous system, liver, and kidney of humans and
animals even at low concentration [5–7]. For this rea-
son, the United States Environmental Protection Agency
4
-nitrophenol to 4-aminophenol.
In recent years, magnetic nanoparticles (MNPs) have
(
EPA) has classified 4-nitrophenol as ‘priority pollutant.’
attracted more attention because of their widespread range
of applications in environmental remediation, drug deliv-
ery, magnetic resonance imaging (MRI), energy storage,
magnetic inks, magnetic fluids, and catalysis [16, 17].
In the field of organic chemistry, the use of MNPs
as catalysts or catalyst supports (magnetic nanoparticles
Therefore, it is of great importance to assess the fate of
this compound in the environment and develop conve-
nient procedures to remove it from waste–water before
∗
Authors to whom correspondence should be addressed.
J. Nanosci. Nanotechnol. 2020, Vol. 20, No. 1
1533-4880/2020/20/121/007
doi:10.1166/jnn.2020.16889
121

Magnetic Fe O /Graphene Oxide/Copper-Based Nanocomposite as a Reusable Catalyst
Zabihzadeh et al.
3
4
supported catalytic systems) in organic transformations has
become a hot topic of numerous investigations. This is
because MNPs can be easily (via external magnet) sep-
arated and recovered which is very worthwhile from the
viewpoint of economic and environmental issues (green
chemistry) [18, 19].
analysis of Cu was carried out using inductively coupled
plasma-optical emission spectrometry (ICP-OES) (Optima
7300D-PerkinElmer). Magnetization curves were recorded
by a vibrating sample magnetometer (VSM, Meghnatis
Daghigh Kavir) at room temperature. UV-visible spectra
were acquired with a T60UV UV-VIS spectrophotometer.
Among the various types of MNPs, more atten-
tion has been paid to the Fe O nanoparticles because
3
4
2.2. Preparation of Fe O /Graphene
3
4
of their unique properties such as simple synthesis, inex-
pensiveness, low toxicity, biocompatibility, good super
paramagnetic property and having a very active surface
for adsorptions and immobilization of ligands, metals
and catalytic species [20–22]. On the other hand, due
Oxide Nanocomposite
Graphene oxide was prepared from graphite according to
the modified Hummers method [35, 36]. To synthesis of
the Fe O /Graphene oxide nanocomposite (with Fe O to
3
4
3
4
Graphene oxide mass ratio of 10) [37], Graphene oxide
(0.25 g) was dispersed in distilled water (30 mL). Then
ethanol (40 mL) was added and the mixture was sonicated
for 20 min. FeCl ·6H O (5.84 g 3.52 mmol) and FeCl ·
to their higher surface energy, Fe O nanoparticles may
3
4
rapidly aggregate and convert to bulkier form. So, to
overcome this drawback, improving the chemical stabil-
ity and also to achieve some advantages as the versatil-
ity in surface modification, this compound is generally
coated with various organic or inorganic materials and
recently graphene oxide [23].
3
2
2
4
H O (2.15 g, 3.78 mmol) were dissolved in 50 mL of dis-
2
tilled water under sonication. Then the solution was added
dropwise into the Graphene oxide suspension and stirred.
The obtained solution was slowly basified with aqueous
Graphene oxide, an attractive class of carbon-based
nanomaterial, is an excellent eco-friendly candidate for
NH OH (25%, 40 mL) up to pH∼10 and was heated
4
ꢀ
at 68 C for 2 h. Finally, the Fe O /Graphene oxide
3
4
protection of Fe O MNPs because of its exceptional prop-
3
4
nanocomposite was separated from the mixture using an
external magnet, washed three times with ethanol and dis-
tilled water respectively and dried at 65 C for 12 h.
erties such as mechanical stability, large surface area,
tunable electrical and optical properties [24]. Moreover,
the abundant of several types of oxygen-containing func-
tional groups including epoxy, hydroxyl groups and car-
ꢀ
2
.3. Preparation of Fe O /Graphene Oxide/Pr–NH
3 4 2
boxylic acids on the large surfaceI Pa r: e 9a 1 o. 2f 0G 0r. a8 p1h . e8 n1 e Oo xn i: d Me on, 30 Dec 2019 09:57:25
The obtained Fe O /Graphene oxide nanoparticles
3
4
Copyright: American Scientific Publishers
not only leads to excellent aqueous dispersity but also
(
3
2 g) were dispersed in EtOH (140 mL). Then,
-aminopropyltriethoxysilane (APTES) (4 mL) was added
Delivered by Ingenta
provide efficacious anchoring sites to immobilize desired
species and further chemical modifications [25–27]. On the
other hand, copper-based catalysts play an important role
in chemical transformations. In the last decade, a number
of copper-based catalytic systems have been used for the
conversion of the nitro group to amine [28–34]. Due to the
remarkable results of these studies and on the basis of
the above considerations, we were interested to investigate
and the mixture was sonicated for 1 h. After that, the
ꢀ
reaction mixture was stirred under N atmosphere (70 C,
2
2
0 h). The desired product was collected using a perma-
nent magnet, washed with distilled water and ethanol and
ꢀ
dried (60 C, a daytime).
2
.4. Preparation of Fe O /Graphene
3 4
II
the applicability of Fe O /Graphene oxide/Pr–NH –Cu as
II
3
4
2
Oxide/Pr–NH –Cu
2
a novel magnetically recoverable catalyst for the reduc-
tion of 4-nitrophenol to 4-aminophenol in the presence of
sodium borohydride.
Finally, for the preparation of Fe O /Graphene oxide/Pr–
3
4
II
NH –Cu , Cu(OAc) ·4H O (1 mmol) was added to a sus-
2
2
2
pension of Fe O /Graphene oxide/Pr–NH nanoparticles
3
4
2
(
1 g) in ethanol (25 mL). The mixture was refluxed for
2
. EXPERIMENTAL DETAILS
20 h. The final product (Fe O /Graphene oxide/Pr–NH –
3
4
2
II
2
.1. Materials and Methods
Cu ) was separated by permanent magnet, washed with
ꢀ
ethanol and dried at 50 C.
Highly pure Chemicals were purchased from Sigma-
Aldrich, Fluka and Merck Chemical Companies and used
without further purification. X-ray diffraction (XRD) mea-
surements were performed using Panalytical X’Pert Pro
instrument. Fourier transform infrared (FT-IR) spectra
were recorded on a Bruker Alfa FT-IR spectrometer using
pressed KBr pellets at room temperature. Morphology
and particle size were studied by field emission scan-
ning electron microscope (FE-SEM) (MIRA3 TESCAN).
The chemical composition of the catalyst was determined
using energy dispersive X-ray analyzer (EDX). Elemental
2.5. Catalytic Reduction of 4-Nitrophenol
To investigate the catalytic reduction of 4-nitrophenol,
NaBH (0.01 g) was added to a 20 ppm 4-nitrophenol
4
aqueous solution (20 mL). Then 0.01 g catalyst was added
and the mixture was allowed to stir at room temperature
until the deep yellow color of the solution turned color-
less. UV-Vis spectroscopy was used to monitor the reac-
tion progress. Upon completion of the reaction, the catalyst
was simply separated from the reaction mixture using a
122
J. Nanosci. Nanotechnol. 20, 121–127, 2020

Zabihzadeh et al.
Magnetic Fe O /Graphene Oxide/Copper-Based Nanocomposite as a Reusable Catalyst
3 4
permanent magnet, washed several times with ethanol and
deionized water and dried for the next cycle.
3
. RESULTS AND DISCUSSION
3
.1. Catalyst Characterization

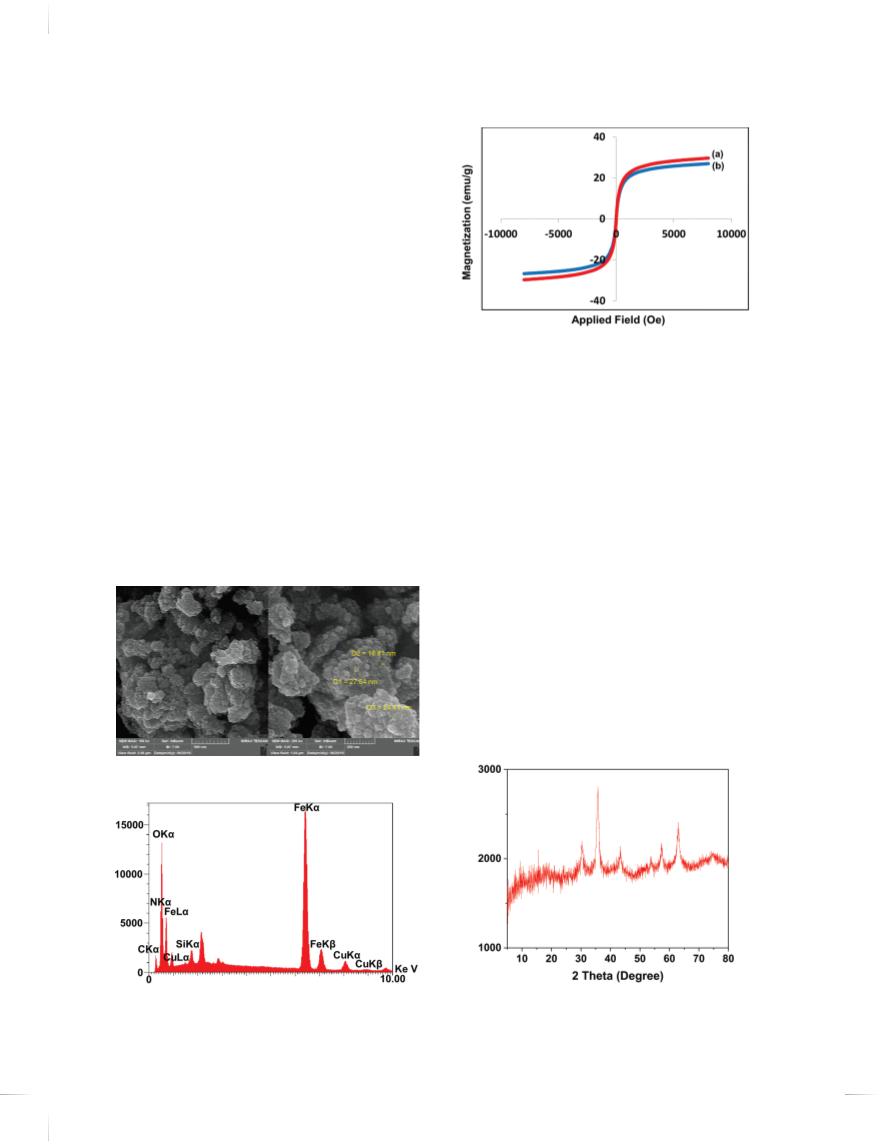

The size and morphology of particles in the prepared cat-
alyst was evaluated using FE-SEM (Fig. 1). Based on this
technique the catalyst is as granule nanoparticles with the
size distribution ranged from 18–28 nm. The EDX spec-
trum of the catalyst is presented in Figure 2, which indi-
cated the presence of all of the expected elements (C, Fe,
O, Si, N, and Cu) and also confirms that copper (II) com-
plex was immobilized on the Fe O /Graphene oxide/Pr–
3
4
Figure 3. Magnetization curves of (a) Fe O /graphene oxide and
3
4
NH . The actual amount of Cu in prepared catalyst was
2
II
(
b) Fe O /graphene oxide/Pr–NH –Cu .
3
4
2
determined using inductively coupled plasma-optical emis-
sion spectrometry (ICP-OES). This analysis indicated that
the weight percentage of Cu was 6.3%.
X-ray diffraction (XRD) analysis was performed in
order to determine the phase structure of Fe O /Graphene
Figure 3 shows the magnetization hysteresis curves for
Fe O /Graphene oxide nanoparticles (curve a) and the syn-
3
4
II
oxide/Pr–NH –Cu (Fig. 4). In XRD analysis, the diffrac-
2
3
4
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
tion peaks at 2ꢀ = 30.31 , 35.67 , 43.28 , 53.75 , 57.30 ,
thesized catalyst (curve b). As can be seen, the satu-
ꢀ
and 62.93 can be indexed to (2 2 0), (3 1 1), (4 0 0),
ration magnetization (M ) of the Fe O /Graphene oxide
s
3
4
−
1
(4 2 2), (5 1 1) and (4 4 0) planes of Fe O -NPs in
nanoparticles was about 29.63 emu g , which decreased
to 26.92 emu g for Fe O /Graphene oxide/Pr–NH –Cu .
3
4
−1
II
the cubic phase (JCPDS 89-2355). The pure Graphene
oxide shows a sharp characteristic peak at 2ꢀ = 11.28
which can be attributed to the (0 0 1) plane of Graphene
oxide. However, no diffraction peak related to Graphene
oxide is observable for the obtained XRD spectrum
3
4
2
However, it was still large enough for magnetic separation.
Thus, after the end of the reaction, the catalyst could be
easily collected by a permanent magnetic from the reaction
medium.
IP: 91.200.81.81 On: Mon, 30 Dec 2019 09:57:25
II
of Fe O /Graphene oxide/Pr–NH –Cu , probably because
Copyright: American Scient
3
ific
4
Publishers
2
Delivered byt hI ne g lea ny te ar stacking of the Graphene oxide sheets were
destroyed by the loading of Fe O -NPs [37]. The average
3
4
nanoparticel diameter of the prepared catalyst was calcu-
lated about 12 nm from the XRD results using the Debye
Scherrer formula.
The FT-IR spectra of Fe O /Graphene oxide and
3
4
II
Fe O /Graphene oxide/Pr–NH –Cu
are shown in
3
4
2
Figure 5. These spectra show absorption bands at 443 and
−1
5
84 cm , which are attributed to the vibrational frequency
of Fe–O bond. In the case of Fe O /Graphene oxide,
3
4
II
Figure 1. FE-SEM image of Fe O /graphene oxide/Pr–NH –Cu .
3
4
2
II
II
Figure 2. EDX spectrum of Fe O /graphene oxide/Pr–NH –Cu .
Figure 4. The XRD pattern of Fe O /graphene oxide/Pr–NH –Cu .
3 4 2
3
4
2
J. Nanosci. Nanotechnol. 20, 121–127, 2020
123

Magnetic Fe O /Graphene Oxide/Copper-Based Nanocomposite as a Reusable Catalyst
Zabihzadeh et al.
3
4
Figure 6. UV-visible spectrum of the 4-nitrophenol aqueous solution.
Figure 5. FT-IR spectra of (a) Fe O /graphene oxide and
3
4
II
(
b) Fe O /graphene oxide/Pr–NH –Cu .
Cu–NH cannot be seen in the FT-IR spectrum because it
3
4
2
2
is covered by the Fe–O stretching vibrations [39].
−
1
the broad band observed at around 3400 cm is related
to the presence of hydroxyl groups of Graphene oxide
and Fe O . The absorption bands at 1180, 1402, 1618,
3
.2. Catalytic Activity
After synthesis and characterization of Fe O /Graphene
oxide/Pr–NH –Cu nanocomposite, its catalytic activity
was investigated in the reduction of 4-nitrophenol in the
presence of an excess amount of NaBH as the mild reduc-
ing agent in the aqueous solution (Scheme 1).
It is well documented that NaBH4 as the source
of hydrogen, does not reduce nitro group alone under ordi-
3
4
3
4
II
−1
2
and 1711 cm can be attributed to C–O (epoxy group),
C–OH (carboxyl group), C C, and C O stretching
vibrations (carboxyl group) of graphene oxide, respec-
tively. The addition of APTES to the Fe O /Graphene
4
3
4
oxide is confirmed by the new peaks at 2927, 2863, 1073
−1
and 1127 cm that are correspo nI Pd :t 9o 1t .h2 e0 0s y. 8m 1 m. 8e 1t r iOc na :n Md on, 30 Dec 2019 09:57:25
nary conditions [40] and requires to associate with an ade-
Copyright: American Scientific Publishers
asymmetric stretching vibrations of C–H bonds and Si–O
quate amount of catalyst. So, in order to demonstrate the
Delivered by Ingenta
stretching vibrations [38]. The presence of Cu(OAc) in
the catalyst is confirmed by the absorption bands at 1462,
581 and 1725 cm that are related to asymmetric and
2
necessity of using a catalytic system for the conversion
of 4-nitrophenol to 4-aminophenol, the reduction proce-
dure was conducted in the absence of the synthesized cat-
alyst at first. The chemical reduction of 4-nitrophenol was
easily studied using UV-Vis spectroscopy. As observed in
−1
1
symmetric stretching vibrations of acetate ions and C
O
−1
stretching vibration. The peak at 428 cm related to
II
Scheme 1. Preparation process and application of Fe O /Graphene oxide/Pr–NH –Cu in the reduction of 4-nitrophenol.
3
4
2
124
J. Nanosci. Nanotechnol. 20, 121–127, 2020

Zabihzadeh et al.
Magnetic Fe O /Graphene Oxide/Copper-Based Nanocomposite as a Reusable Catalyst
3 4
NO2
NO2
NH2
Table I. Comparison of various catalysts in the reduction of
-nitrophenol by NaBH4.
4
NaBH4
NaBH , Catalyst
4
Catalyst
loading
Conversion
time (min)
H O, r.t.
H O, r.t.
Entry
Catalyst
Ref.
2
2
OH
O
OH
1
2
3
Au/graphene hydrogel
Au@TpPa-1
Au–Ag bimetallic
NPs supported on
LDH
0.1 mg
20 mg
20 ꢂL, 1 mg
12
13
30
[42]
[43]
[15]
Scheme 2. The catalytic reduction of the 4-nitrophenol to 4-aminophen.
Figure 6, 4-nitrophenol aqueous solution shows a strong
absorption peak at 317 nm. Upon the addition of NaBH4,
the absorption shows red-shift to 400 nm with a color
change from pale yellow to dark yellow because of the for-
mation of 4-nitrophenolate ions under alkaline conditions.
The maximum absorption peak remained unchanged at
00 nm even after two days, which revealed the reduction
of 4-nitrophenol will not proceed only in the presence of
NaBH . However, after the addition of a suitable amount
of the Fe O /Graphene oxide/Pr–NH –Cu nanocompos-
4
5
Cu microspheres
Ag/KCC-1
5 mg
20 ꢂL,
18
8.5
[44]
[45]
−1
10 mg mL
6
7
Pd@HCS
3 mg
150 mg
5
10
[46]
[47]
Hypercross-linked
porous PS/IL
networks
4
8
9
Ni-PVAm/SBA-15
Fe O /graphene
12 mg
10 mg
85
4
[48]
[This work]
3
4
II
4
oxide/Pr–NH –Cu
2
II
3
4
2
ite to this solution, the peak at 400 nm gradually dropped
in intensity and a new peak related to the formation
of 4-aminophenol appeared as a shoulder at 300 nm
magnet, washed several times with ethyl acetate, dried and
reused for the consecutive runs. For this experiment, the
catalyst was reused at least for five consecutive runs with-
out significant change in its catalytic activity.
(
Scheme 2, Fig. 7). After about 4 min the whole peak at
00 nm disappeared and the yellow color of the solution
4
altered to colorless which shows the complete conversion
of 4-nitrophenol to 4-aminophenol.
The applicability and efficiency of the prepared cat-
alyst was compared with some other published works
In the catalytic reduction of 4-nitrophenol with NaBH
for the reduction of 4-nitrophenol by NaBH . As can be
4
II
4
II
in the presence of Fe O /Graphene oxide/Pr–NH –Cu ,
3
4
2
seen, Fe O /Graphene oxide/Pr–NH –Cu has an excel-
3
4
2
as an electron transfer procedure [41], at first, the
IP: 91.200.81.81 On: Mon,l e3 n0 t Dc ae t ca l y2 t0i c1 9a c 0t i9v :i 5t y7 :f 2o 5r the reduction of 4-nitrophenol to
-nitrophenol and BH ion are both a Cb so opr yb re i dg ho t n: At hme es rui cr -a n Scientific Publishers
−
4
4
4-aminophenol (Table I).
Delivered by Ingenta
face of the catalyst by ꢁ–ꢁ stacking interactions. After
−
that, an electron transfer process happens from BH4 to
4
. CONCLUSION
4
-nitrophenol ions. Finally, the 4-aminophenol was des-
In summary, we have reported the synthesis and char-
orbed from the surface of the catalyst.
acterization of a novel nanocomposite formulated as
The reusability of a catalyst is very worthwhile from the
viewpoint of green chemistry and commercial applications.
To evaluate this issue, after completion of the reaction,
monitored by UV-Vis spectroscopy, the catalyst was sep-
arated from the reaction medium simply by a permanent
II
Fe O /Graphene oxide/Pr–NH –Cu as an efficacious and
3
4
2
environmentally benign catalyst for the reduction of
-nitrophenol to 4-aminophenol with NaBH in aqueous
4
4
solution. The advantages of this catalytic system are ease
of preparation, short time of the reaction, high catalytic
activity and the use of commercially available, cheap
and eco-friendly materials. Also, the magnetic nature of
this catalyst allows its easy separation from the reaction
medium by an external magnet. The catalyst can be reused
five times without noticeable changes of its catalytic activ-
ity. This catalytic system may also be used in the reduction
of other toxic organic pollutants.
Acknowledgments: We are thankful to the Research
Council of the University of Guilan for the partial support
of this research.
References and Notes
1
. Zhang, W., Tan, F., Wang, W., Qiu, X., Qiao, X. and Chen, J., 2012.
Facile, template-free synthesis of silver nanodendrites with high cat-
alytic activity for the reduction of p-nitrophenol. Journal of Haz-
ardous Materials, 217, pp.36–42.
Figure 7. UV-visible spectra of the 4-nitrophenol aqueous solu-
tion reduced by NaBH4 in the presence of Fe O /graphene
3
4
II
oxide/Pr–NH –Cu .
2
J. Nanosci. Nanotechnol. 20, 121–127, 2020
125

Magnetic Fe O /Graphene Oxide/Copper-Based Nanocomposite as a Reusable Catalyst
Zabihzadeh et al.
3
4
2
3
4
. Ju, K.S. and Parales, R.E., 2010. Nitroaromatic compounds, from
synthesis to biodegradation. Microbiology and Molecular Biology
Reviews, 74(2), pp.250–272.
. Kulkarni, M. and Chaudhari, A., 2007. Microbial remediation of
nitro-aromatic compounds: An overview. Journal of Environmental
Management, 85(2), pp.496–512.
. Shen, W., Qu, Y., Pei, X., Li, S., You, S., Wang, J., Zhang, Z.
and Zhou, J., 2017. Catalytic reduction of 4-nitrophenol using gold
nanoparticles biosynthesized by cell-free extracts of Aspergillus sp.
WL-Au. Journal of Hazardous Materials, 321, pp.299–306.
. Zhang, C., Zhang, R., He, S., Li, L., Wang, X., Liu, M. and
Chen, W., 2017. 4-nitrophenol reduction by a single platinum pal-
ladium nanocube caged within a nitrogen-doped hollow carbon
nanosphere. ChemCatChem., 9(6), pp.980–986.
20. Moeini, N., Tamoradi, T., Ghadermazi, M. and Ghorbani-
Choghamarani, A., 2018. Anchoring Ni (II) on Fe O @tryptophan:
3
4
A recyclable, green and extremely efficient magnetic nanocatalyst for
one-pot synthesis of 5-substituted 1H-tetrazoles and chemoselective
oxidation of sulfides and thiols. Applied Organometallic Chemistry,
32(9), p.e4445.
21. Gawande, M.B., Branco, P.S. and Varma, R.S., 2013. Nano-
magnetite (Fe O ꢃ as a support for recyclable catalysts in the devel-
3
4
opment of sustainable methodologies. Chemical Society Reviews,
42(8), pp.3371–3393.
5
22. Yao, Y., Miao, S., Liu, S., Ma, L.P., Sun, H. and Wang, S., 2012.
Synthesis, characterization, and adsorption properties of magnetic
Fe O @graphene nanocomposite. Chemical Engineering Journal,
3
4
184, pp.326–332.
6
. Wang, Z. and Chen, Q., 2018. Metal-free catalytic reduction of
23. Doustkhah, E. and Rostamnia, S., 2016. Covalently bonded sulfonic
acid magnetic graphene oxide: Fe O @GO-Pr–SO H as a power-
4-nitrophenol by MOFs-derived N-doped carbon. ChemistrySelect,
3
4
3
3
(4), pp.1108–1112.
ful hybrid catalyst for synthesis of indazolophthalazinetriones. Jour-
nal of Colloid and Interface Science, 478, pp.280–287.
7
. Xiao, G., Zhao, Y., Li, L., Pratt, J.O., Su, H. and Tan, T., 2018. Facile
synthesis of dispersed Ag nanoparticles on chitosan-TiO composites
as recyclable nanocatalysts for 4-nitrophenol reduction. Nanotech-
nology, 29(15), p.155601.
24. Li, F., Jiang, X., Zhao, J. and Zhang, S., 2015. Graphene oxide:
A promising nanomaterial for energy and environmental applica-
tions. Nano Energy, 16, pp.488–515.
2
8
. Achamo, T. and Yadav, O.P., 2016. Removal of 4-nitrophenol from
25. Loh, K.P., Bao, Q., Eda, G. and Chhowalla, M., 2010. Graphene
oxide as a chemically tunable platform for optical applications.
Nature Chemistry, 2(12), p.1015.
water using Ag–N–P-tridoped TiO by photocatalytic oxidation tech-
2
nique. Analytical Chemistry Insights, 11, pp. ACI-S31508.
9
. Chang, Y.C. and Chen, D.H., 2009. Catalytic reduction of
26. Basu, S. and Bhattacharyya, P., 2012. Recent developments
on graphene and graphene oxide based solid state gas sensors. Sen-
sors and Actuators B: Chemical, 173, pp.1–21.
4-nitrophenol by magnetically recoverable Au nanocatalyst. Journal
of Hazardous Materials, 165(1–3), pp.664–669.
1
1
1
1
1
0. Bo, L.L., Zhang, Y.B., Quan, X. and Zhao, B., 2008. Microwave
assisted catalytic oxidation of p-nitrophenol in aqueous solution
using carbon-supported copper catalyst. Journal of Hazardous Mate-
rials, 153(3), pp.1201–1206.
27. Lu, B., Zhang, Z., Hao, J. and Tang, J., 2014. Facile synthe-
sis of Au@Fe O -graphene and Pt@Fe O -graphene ternary hybrid
3
4
3
4
nanomaterials and their catalytic properties. RSC Advances, 4(42),
pp.21909–21917.
1. Canizares, P., Saez, C., Lobato, J. and Rodrigo, M.A., 2004. Elec-
trochemical treatment of 4-nitrophenol-containing aqueous wastes
28. Zeynizadeh, B., Mohammadzadeh, I., Shokri, Z. and Hosseini, S.A.,
2017. Synthesis and characterization of NiFe O @Cu nanoparticles
2
4
IP: 91.200.81.81 On: Mon, 30 Dec 2019 09:57:25
using boron-doped diamond anodes. Industrial & Engineering
as a magnetically recoverable catalyst for reduction of nitroarenes to
Copyright: American Scientific Publishers
Chemistry Research, 43(9), pp.1944–1951.
arylamines with NaBH . Journal of Colloid and Interface Science,
4
Delivered by Ingenta
2. Gemini, V.L., Gallego, A., De Oliveira, V.M., Gomez, C.E., Manfio,
G.P. and Korol, S.E., 2005. Biodegradation and detoxification of
p-nitrophenol by rhodococcus wratislaviensis. International Biode-
terioration & Biodegradation, 55(2), pp.103–108.
500, pp.285–293.
29. Tamuly, C., Saikia, I., Hazarika, M. and Das, M.R., 2014. Reduction
of aromatic nitro compounds catalyzed by biogenic CuO nanoparti-
cles. RSC Advances, 4(95), pp.53229–53236.
30. Subramanian, T. and Pitchumani, K., 2012. Selective reduction of
nitroarenes by using zeolite-supported copper nanoparticles with
2-propanol as a sustainable reducing agent. ChemCatChem., 4(12),
pp.1917–1921.
31. Karami, S., Zeynizadeh, B. and Shokri, Z., 2018. Cellulose sup-
ported bimetallic Fe–Cu nanoparticles: A magnetically recoverable
nanocatalyst for quick reduction of nitroarenes to amines in water.
Cellulose, 25(6), pp.3295–3305.
32. Zeynizadeh, B., Zabihzadeh, M. and Shokri, Z., 2016. Cu nanoparti-
cles: A highly efficient non-noble metal catalyst for rapid reduction
of nitro compounds to amines with NaBH4 in water. Journal of the
Iranian Chemical Society, 13(8), pp.1487–1492.
33. Zhang, P., Sui, Y., Xiao, G., Wang, Y., Wang, C., Liu, B., Zou, G.
and Zou, B., 2013. Facile fabrication of faceted copper nanocrystals
with high catalytic activity for p-nitrophenol reduction. Journal of
Materials Chemistry A, 1(5), pp.1632–1638.
34. Singh, G., Rani, S., Arora, A., Duggal, H. and Mehta, D., 2017.
Organic–inorganic nano-hybrid decorated by copper (II) incarcera-
tion: A versatile catalytic assembly for the swift reduction of aro-
matic nitro and dye compounds. Molecular Catalysis, 431, pp.15–26.
35. Hummers Jr., W.S. and Offeman, R.E., 1958. Preparation
of graphitic oxide. Journal of the American Chemical Society, 80(6),
pp.1339–1339.
3. Oturan, M.A., Peiroten, J., Chartrin, P. and Acher, A.J., 2000.
Complete destruction of p-nitrophenol in aqueous medium by
electro-fenton method. Environmental Science & Technology, 34(16),
pp.3474–3479.
4. Vilian, A.E., Choe, S.R., Giribabu, K., Jang, S.C., Roh, C., Huh, Y.S.
and Han, Y.K., 2017. Pd nanospheres decorated reduced graphene
oxide with multi-functions: Highly efficient catalytic reduction and
ultrasensitive sensing of hazardous 4-nitrophenol pollutant. Journal
of Hazardous Materials, 333, pp.54–62.
1
1
1
1
1
5. Arora, N., Mehta, A., Mishra, A. and Basu, S., 2018. 4-Nitrophenol
reduction catalysed by Au–Ag bimetallic nanoparticles supported on
LDH: Homogeneous versus heterogeneous catalysis. Applied Clay
Science, 151, pp.1–9.
6. Cardoso, V.F., Francesko, A., Ribeiro, C., Bañobre-López, M.,
Martins, P. and Lanceros-Mendez, S., 2018. Advances in mag-
netic nanoparticles for biomedical applications. Advanced Health-
care Materials, 7(5), p.1700845.
7. Abu-Dief, A.M. and Abdel-Fatah, S.M., 2018. Development and
functionalization of magnetic nanoparticles as powerful and green
catalysts for organic synthesis. Beni-Suef University Journal of Basic
and Applied Sciences, 7(1), pp.55–67.
8. Sharma, R.K., Dutta, S., Sharma, S., Zboril, R., Varma, R.S. and
Gawande, M.B., 2016. Fe O4 (iron oxide)-supported nanocatalysts:
3
Synthesis, characterization and applications in coupling reactions.
Green Chemistry, 18(11), pp.3184–3209.
36. Bielawski, C.W., Dreyer, D.R., Park, S. and Ruoff, R.S., 2010.
The chemistry of grapheme oxide. Chemical Society Reviews, 39(1),
pp.228–240.
9. Karimi, B., Mansouri, F. and Mirzaei, H.M., 2015. Recent appli-
cations of magnetically recoverable nanocatalysts in C–C and C–X
coupling reactions. ChemCatChem., 7(12), pp.1736–1789.
37. He, G., Liu, W., Sun, X., Chen, Q., Wang, X. and Chen, H., 2013.
Fe O @graphene oxide composite: A magnetically separable and
3
4
126
J. Nanosci. Nanotechnol. 20, 121–127, 2020

Zabihzadeh et al.
Magnetic Fe O /Graphene Oxide/Copper-Based Nanocomposite as a Reusable Catalyst
3 4
efficient catalyst for the reduction of nitroarenes. Materials Research
Bulletin, 48(5), pp.1885–1890.
for enhanced activity for nitrophenol reduction. Chemical Commu-
nications, 50(24), pp.3169–3172.
3
8. Kassaee, M.Z., Masrouri, H. and Movahedi, F., 2011. Sulfamic
acid-functionalized magnetic Fe O nanoparticles as an efficient and
44. Zhang, Y., Zhu, P., Chen, L., Li, G., Zhou, F., Lu, D.D., Sun, R.,
Zhou, F. and Wong, C.P., 2014. Hierarchical architectures of
monodisperse porous Cu microspheres: Synthesis, growth mecha-
nism, high-efficiency and recyclable catalytic performance. Journal
of Materials Chemistry A, 2(30), pp.11966–11973.
45. Dong, Z., Le, X., Li, X., Zhang, W., Dong, C. and Ma, J., 2014.
Silver nanoparticles immobilized on fibrous nano-silica as highly
efficient and recyclable heterogeneous catalyst for reduction of
4-nitrophenol and 2-nitroaniline. Applied Catalysis B: Environmen-
tal, 158, pp.129–135.
46. Liu, H., Feng, Z., Wang, J., Zhang, L. and Su, D., 2016. Facile
synthesis of Pd nanoparticles encapsulated into hollow carbon
nanospheres with robust catalytic performance. Catalysis Today, 260,
pp.55–59.
47. Chinnappan, A., Tamboli, A.H., Chung, W.J. and Kim, H.,
2016. Green synthesis, characterization and catalytic efficiency
of hypercross-linked porous polymeric ionic liquid networks
towards 4-nitrophenol reduction. Chemical Engineering Journal,
285, pp.554–561.
3
4
reusable catalyst for one-pot synthesis of ꢄ-amino nitriles in water.
Applied Catalysis A: General, 395(1–2), pp.28–33.
39. Zarghani, M. and Akhlaghinia, B., 2015. Copper immobi-
lized on aminated ferrite nanoparticles by 2-aminoethyl dihydro-
II
gen phosphate (Fe O @AEPH -Cu ꢃ catalyses the conversion of
3
4
2
aldoximes to nitriles. Applied Organometallic Chemistry, 29(10),
pp.683–689.
4
0. Zeynizadeh, B. and Zabihzadeh, M., 2015. Rapid and green reduc-
tion of aromatic/aliphatic nitro compounds to amines with NaBH4
and additive Ni B in H O. Journal of the Iranian Chemical Society,
2
2
12(7), pp.1221–1226.
41. Omidvar, A., Jaleh, B., Nasrollahzadeh, M. and Dasmeh, H.R.,
017. Fabrication, characterization and application of GO/Fe O /Pd
2
3
4
nanocomposite as a magnetically separable and reusable catalyst for
the reduction of organic dyes. Chemical Engineering Research and
Design, 121, pp.339–347.
4
2. Li, J., Liu, C.Y. and Liu, Y., 2012. Au/graphene hydrogel: Synthesis,
characterization and its use for catalytic reduction of 4-nitrophenol.
Journal of Materials Chemistry, 22(17), pp.8426–8430.
48. Kalbasi, R.J., Nourbakhsh, A.A. and Babaknezhad, F., 2011. Synthe-
sis and characterization of Ni nanoparticles-polyvinylamine/SBA-15
catalyst for simple reduction of aromatic nitro compounds. Catalysis
Communications, 12(11), pp.955–960.
43. Pachfule, P., Kandambeth, S., Díaz, D.D. and Banerjee, R., 2014.
Highly stable covalent organic framework-Au nanoparticles hybrids
Received: 8 December 2018. Accepted: 30 January 2019.
IP: 91.200.81.81 On: Mon, 30 Dec 2019 09:57:25
Copyright: American Scientific Publishers
Delivered by Ingenta
J. Nanosci. Nanotechnol. 20, 121–127, 2020
127
