2.1.4. Synthesis of [Cu2(L2)(N3)Cl2] (2)
In continuation to our interest in CeH activation [19e22], we
report here synthesis, characterization and catalytic properties of
two copper(II) complexes, [Cu2(L1)Cl3].2H2O (1) and [Cu2(L2)(N3)
Cl2] (2) where HL1 ¼ 4-methyl-2,6-bis((2-morpholinoethylimino)
methyl) phenol and HL2 ¼ 4-methyl-2,6-bis((3-morpholinopro-
pylimino)methyl)phenol. These complexes have been character-
ized by elemental analysis, various spectroscopic methods and
single crystal X-ray diffraction analysis. They were found to be
active catalyst for epoxidation of various olefins in acetonitrile in
the presence of tert-butyl hydroperoxide as the oxidant under mild
conditions.
Copper(II) chloride dihydrate (0.136 g, 0.8 mmol) was added into
the Schiff base solution (HL2, ‘0.4 mmol’) in methanol and stirred
for 30 min. Aqueous solution (2.0 mL) of sodium azide (0.026 g,
0.4 mmol) was added dropwise into the mixture with constant
stirring. After that, it was refluxed for 1 h. Then it was cooled to
room temperature. The mixture was filtered and the filtrate was
kept at ambient temperature. From the filtrate, brown colored
crystals of complex 2 suitable for X-ray diffraction were obtained on
evaporation of solvent within two weeks. Yield: 0.117 g, 45%. Anal.
Calc. for C23H35Cl2N7O3Cu2: C, 42.10; H, 5.38; N, 14.95. Found C,
42.03; H, 5.33; N14.99.
Caution! Azide salts are potentially explosive and should be
handled in small quantities with care. No problems were faced with
the complexes reported herein.
2. Experimental section
2.1. Materials and physical methods
2.1.5. X-ray data collection and structure determination
The crystal data of complexes 1 and 2 are summarized in Table 1.
The structures of the complexes were determined by single crystal
X-ray diffraction analysis. Single crystal data collections were per-
formed with an automated Bruker SMART APEX CCD diffractometer
4-(2-Aminoethyl)morpholine and 4-(3-aminopropyl)morpho-
line were purchased from Sigma Aldrich. All other reagents were
obtained from commercial source and used as received. 4-Methyl-
2,6-Diformylphenol (DFP) was synthesized following a published
procedure [23]. Solvents used for spectroscopic studies were pu-
rified and dried by standard procedures before use [24]. FT-IR
spectra were obtained on a RX-1 Perkin Elmer spectrophotometer
with samples prepared as KBr pellets. Elemental analysis was car-
ried out in a 2400 Series-II CHN analyzer, Perkin Elmer, USA. The
ESI-MS was recorded on Qtof Micro YA263 mass spectrometer.
Absorption spectra were recorded on Lambda 25 Perkin Elmer
spectrophotometer. Thermogravimetric analysis was performed on
a Mettler Toledo instrument (Model no.: TGA/SDTA-851e). Gas
chromatography analysis was performed with a Shimadzu made
next generation high speed gas chromatography system (model:
GC-2025 AF) equipped with a fused silica capillary column and a
FID detector. All experiments were carried out at room temperature
in air unless reported otherwise.
using graphite monochromatized Mo K
Reflection data were recorded using the
a
u
radiation (
scan technique. Unit cell
l
¼ 0.71073 Å).
parameters were determined from least-squares refinement of
setting angles with
out of 18,842 collected data 5379 with I > 2
q
in the range 1.62 ꢀ
q
ꢀ 26.50ꢁ. For complex 1,
s (I) were used for
structure solution. For complex 2, out of 40,108 collected data 5697
with I > 2 (I) were used for structure solution. The structures were
s
solved and refined by full-matrix least-squares techniques on F2
using the SHELXS-97 program [25]. The absorption corrections
were done by the multi-scan technique. All data were corrected for
Lorentz and polarization effects, and the non-hydrogen atoms were
refined anisotropically. Hydrogen atoms were generated using
SHELXL-97 [25] and their positions calculated based on the riding
mode with thermal parameters equal to 1.2 times that of the
associated C atoms, and participated in the calculation of the final
R-indices.
2.1.1. Synthesis of 4-methyl-2,6-bis((2-morpholinoethylimino)
methyl) phenol (HL1)
2.1.6. Catalytic activity
To a 20 mL methanolic solution of DFP (0.065 g, 0.4 mmol), 4-(2-
aminoethyl)morpholine (0.104 g, 0.8 mmol) was added. The
resulting mixture was stirred for 15 min and then it was refluxed
for 2 h. This ‘solution of HL1’ was used for subsequent reactions
without isolation and further purification or characterization.
10.0 mmol of the substrate in 5.0 mL of acetonitrile was taken in
a magnetically stirred two necked round-bottomed flask fitted with
a condenser, followed by the addition of 0.03 mmol of the metal
complex. The mixture was heated to 323 K. 20.0 mmol of tert-butyl
hydroperoxide was added to the mixture to initiate the catalytic
reaction. Aliquots from the mixture were collected at regular time
interval. 10.0 mL of diethylether were added for extracting the re-
actants and product(s). The substrate and product(s) were analyzed
by gas chromatography and identified by the comparison with
known standards.
A blank experiment, namely epoxidation of cyclohexene, was
carried out as the representative case without addition of any
catalyst under the same experimental conditions. Another blank
reaction for the epoxidation of cyclohexene was performed in the
presence of copper(II) chloride in place of copper(II) complex with
all other parameters unchanged.

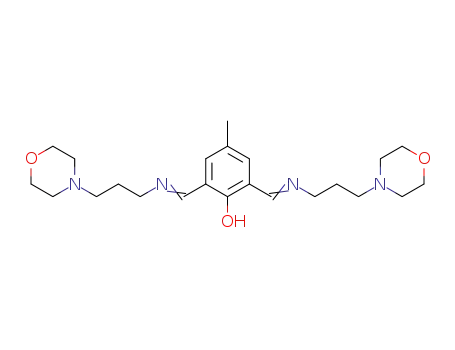

2.1.2. Synthesis of 4-methyl-2,6-bis((3-morpholinopropylimino)
methyl) phenol (HL2)
4-(3-Aminopropyl)morpholine (0.115 g, 0.8 mmol) was added to
methanolic solution (20 mL) of DFP (0.065 g, 0.4 mmol) and the
resulting solution was stirring for 15 min and then refluxed for 2 h.
This ‘solution of HL2’ was used for subsequent reactions without
isolation and further purification or characterization.
2.1.3. Synthesis of [Cu2(L1)Cl3].2H2O (1)
Copper(II) chloride dihydrate (0.136 g, 0.8 mmol) was added into
the Schiff base solution (HL1, ‘0.4 mmol’) in methanol and stirred
for 30 min. Aqueous solution (2.0 mL) of sodium azide (0.026 g,
0.4 mmol) was added drop by drop into the mixture with constant
stirring. After its addition, the mixture was refluxed for 1 h. Then it
was cooled to room temperature. The mixture was filtered and the
filtrate was kept at ambient temperature. From the filtrate, green
colored crystals of complex 1 suitable for single crystal X-ray
diffraction were obtained on evaporation of solvent within few
days. Yield: 0.170 g, 65%. Anal. Calc. for C21H35Cl3N4O5Cu2: C, 38.39;
H, 5.37; N, 8.52. Found C, 38.33; H, 5.30; N, 8.60.
3. Results and discussion
3.1. Synthesis and characterization
Complexes 1 and 2 were synthesized following a reaction
pathway as shown in Scheme 1. The ligand, HL1, was prepared by
refluxing one equivalent of DFP and two equivalents of 4-(2-
aminoethyl)morpholine in methanol for 2 h. Complex 1 was syn-
thesized by in situ reaction between the ligand, copper(II) chloride
