Magnetically separable and Recyclable Fe3O4-supported Ag Nanocatalysts for reduction of nitro compounds and selective Hydration of Nitriles to Amides in Water

Article abstract of DOI:10.3390/molecules19010699

As hybrid nanostructures have become more important in many fields of chemistry, Ag nanoparticles (NPs) are being increasingly immobilized onto Fe₃O₄ microspheres in situ. Structural characterization reveals that the Ag NPs are uniformly immobilized in the Fe₃O ₄ microsphere-based supports. Moreover, Ag NPs are more stable in the hybrid structure than in the naked state and show high catalytic activity for the reduction of nitro compounds and hydration of nitriles to amides in water. The Fe3O4 microspheres were recycled several times using an external magnet.

Full text of DOI:10.3390/molecules19010699

Molecules 2014, 19, 699-712; doi:10.3390/molecules19010699
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Magnetically Separable and Recyclable Fe3O4-Supported Ag
Nanocatalysts for Reduction of Nitro Compounds and Selective
Hydration of Nitriles to Amides in Water
Hyunje Woo 1, Kyoungho Lee 1, Sungkyun Park 2 and Kang Hyun Park 1,*
1
Department of Chemistry and Chemistry Institute for Functional Materials, Pusan National
University, Busan 609-735, Korea; E-Mails: hjwoo@chemistry.or.kr (H.W.);
kyoungho@chemistry.or.kr (K.L.)
2
Department of Physics, Pusan National University, Busan 609-735, Korea;
E-Mail: psk@pusan.ac.kr
* Author to whom correspondence should be addressed; E-Mail: chemistry@pusan.ac.kr;
Tel.: +82-51-510-2238; Fax: +82-51-980-5200.
Received: 28 November 2013; in revised form: 27 December 2013 / Accepted: 30 December 2013 /
Published: 7 January 2014
Abstract: As hybrid nanostructures have become more important in many fields of
chemistry, Ag nanoparticles (NPs) are being increasingly immobilized onto Fe3O4
microspheres in situ. Structural characterization reveals that the Ag NPs are uniformly
immobilized in the Fe3O4 microsphere-based supports. Moreover, Ag NPs are more stable
in the hybrid structure than in the naked state and show high catalytic activity for the
reduction of nitro compounds and hydration of nitriles to amides in water. The Fe3O4
microspheres were recycled several times using an external magnet.
Keywords: silver; Fe3O4 support; reduction; hydration; magnetic separation
1. Introduction
In recent years, numerous attempts have been made toward designing and synthesizing hybrid
nanostructures, which combine or even improve the physical and chemical properties of the constituent
parts [1]. Many studies have discussed the syntheses of these multicomponent nanostructures with
increased functionality [2,3]. The presence of multicomponent functions combined with the enhanced
chemical and physical properties make hybrid nanostructures suitable for research fields pertaining to

Molecules 2014, 19
700
the study of magnetic, plasmonic, and semiconducting properties [4]. Metal NPs immobilized onto
metal oxide supports can be used as catalysts in organic reactions, wherein they show higher catalytic
activity than the naked metal NPs because of electron transfer across the interface [5–8].
Among the existing metal oxide supports, Fe3O4 has gained significance owing to its nanostructure
and cutting-edge technological applications, including its usage as a magnetic storage medium [9], in
biosensors [10], as well as medical applications such as targeted drug delivery [11,12]. Furthermore,
Fe3O4 microspheres have been used as supports for the immobilization of metal NPs in nanocatalysis
because of the ease of their recyclability using external magnets after the reactions [13].
Recently, many researchers have described the preparation of Ag NPs and studied their various
applications in highly active surface-enhanced Raman scattering substrates [14], antibacterial coatings [15],
electrochemical and biosensors [16], and as efficient catalysts for organic reactions [17]. A significant
number of studies on the catalytic reactions of Ag NPs have been conducted, such as alcohol
dehydrogenation, oxidation of phenylsilanes, reduction of aromatic compounds, and Diels-Alder
cycloadditions [17–20]. However, during a reaction, the highly active surface atoms destabilize the
NPs. To overcome this problem, metal NPs have been immobilized onto supports to increase the
stability of the catalysts [21,22].
4-Nitrophenol (Scheme 1) is considered to be one of the most refractory pollutants in wastewaters
generated by industrial sources such as companies that manufacture explosives and dyes [23,24]. Due
to the importance of 4-aminophenol, there have been many reports about applications of Ag
nanoparticles on various supports as catalysts for the reduction of 4-nitrophenol [25–27]. Among them,
the use of water as a solvent under mild conditions has attracted much attention in the environmental
field. Also, the hydration of nitriles to yield the corresponding amides is of tremendous significance to
researchers in academia and industry alike because the resulting amides have numerous applications in
synthetic organic and pharmaceutical chemistry. Among various heterogeneous nanocatalysts,
supported Ag NPs have been used for this reaction as catalyst [28,29]. In our earlier work, Ag NPs
were also used as catalysts for the hydration of nitriles to amides [30].

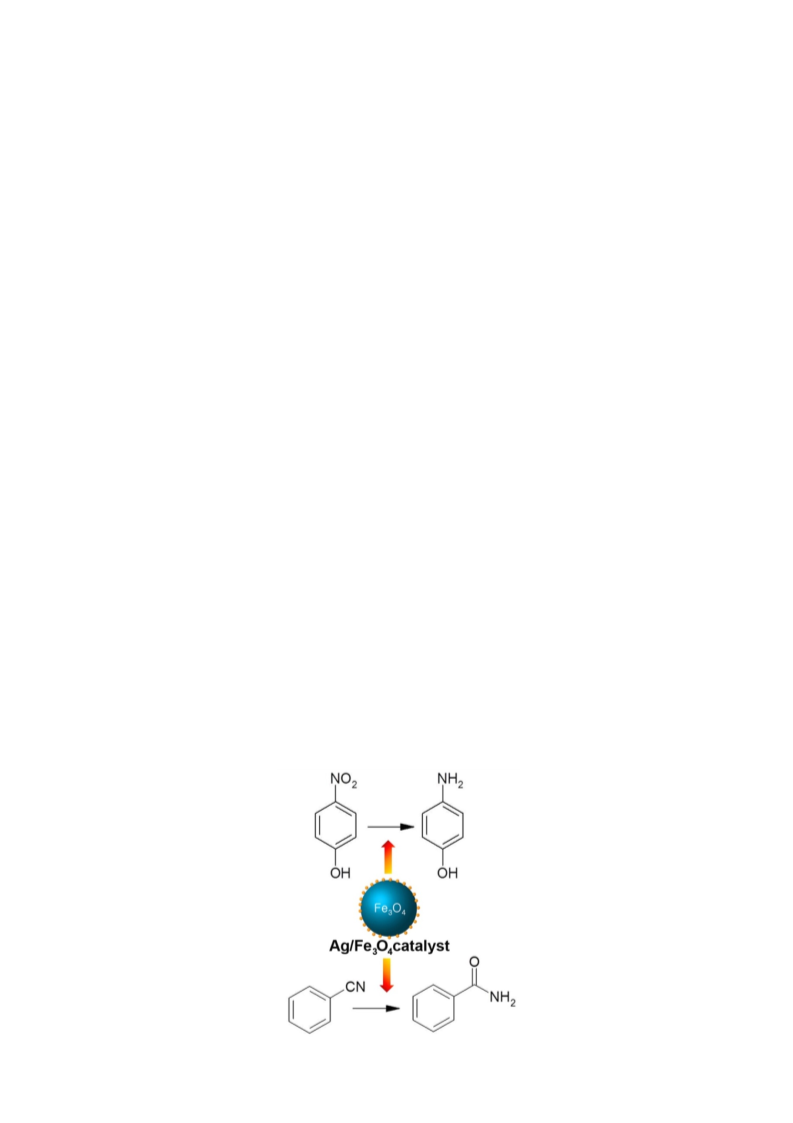

Scheme 1. Reduction of a nitro compound and hydration of a nitrile to an amide catalyzed
by Ag/Fe3O4 catalyst.

Molecules 2014, 19
701
In this paper, Ag NP, immobilized onto Fe3O4 microspheres were synthesized and tested as a
catalyst in reduction of nitro compounds and nitrile hydration reactions in water (Scheme 1). The
monodisperse Ag NPs were easily immobilized without any pretreatment such as attaching functional
groups onto the Fe3O4 microspheres. This catalyst showed increased Ag NP stability and could be
easily recycled using an external magnet after the completion of the reaction.
2. Results and Discussion
2.1. Catalyst Preparation and Characterization
The Fe3O4 microspheres were synthesized using the solvothermal method [31]. The partial
reduction of FeCl3 was done at 200 °C using ethylene glycol as a solvent, sodium acetate as a reducing
agent, and Na3Cit as an electrostatic stabilizer. No pretreatment procedures such as attaching
functional groups and coating polymers or carbon onto Fe3O4, were required prior to the
immobilization of Ag NPs onto the Fe3O4 microspheres. In fact, Ag NPs were easily immobilized on
the surface of Fe3O4 in situ because of the interaction between the Fe atoms and carboxyl groups of
Na3Cit with Ag. Figure 1 illustrates the morphology of the Ag/Fe3O4 catalyst. Figure 1a shows a
scanning electron microscopy (SEM) image of spherical Fe3O4 microspheres. The immobilized Ag
NPs on Fe3O4 microspheres were observed in the transmission electron microscopy (TEM) images
(Figure 1b–d). The X-ray diffractometer (XRD) pattern of the Ag/Fe3O4 and reused Ag/Fe3O4
microspheres corresponded to a cubic spinel structure of Fe3O4 (JCPDS No. 19-0629) and face-
centered cubic of Ag (JCPDS No. 04-07831) (Figure 2a).

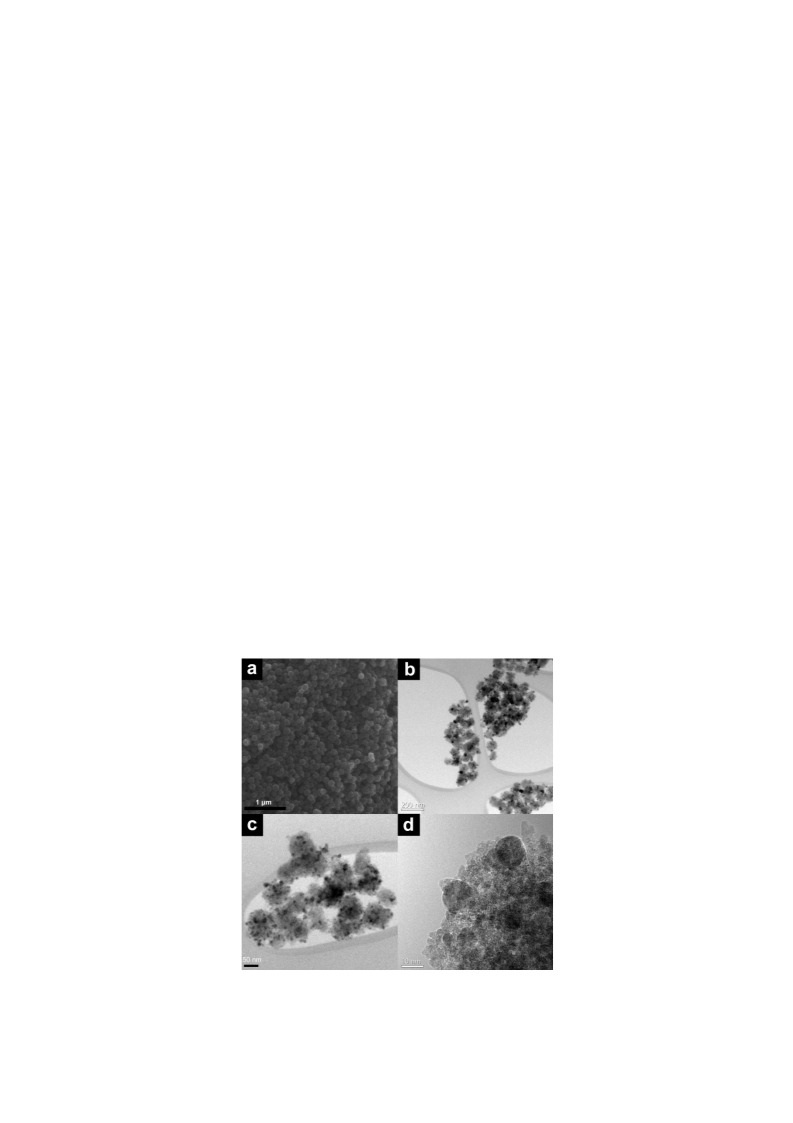

Figure 1. (a) SEM image of Fe3O4 microspheres; (b,c) TEM images of Ag/Fe3O4;
and (d) Immobilized Ag NPs onto Fe3O4 microspheres.
In particular, the crystalline pattern was assigned to the (220), (311), (422) and (511) reflections of
Fe3O4 and (111), (200) and (311) reflections of Ag. The superconducting quantum interference device
(SQUID) results in Figure 2b shows the magnetic curves as a function of the applied field at 300 K.

Molecules 2014, 19
702
The saturation magnetization value of Ag/Fe3O4 was 58.7 emu·g−1, which was similar to that of the
Fe3O4 microspheres (56.9 emu·g−1). The small decrease of the magnetization value of Ag/Fe3O4
microspheres compared to that of Fe3O4 microspheres can be attributed to the slight increase of mass
due to the immobilized Ag nanoparticles on the surface of Fe3O4 microspheres [32]. After hydration,
the saturated magnetization value was decreased to 13.7 emu·g−1. Moreover, both the remanence (Mr)
and coercivity (Hc) of Fe3O4 microspheres were close to zero, indicating superparamagnetism. The
average diameters of Fe3O4 microspheres and Ag NPs were 150 nm and 12 nm, respectively, as
determined from the TEM images (Figure 2c). The elemental compositions of Ag/Fe3O4 catalysts were
obtained using energy-dispersive X-ray spectroscopy (EDS), showing Ag content (atomic: 6.15% and
weight: 17 wt%) (Figure 2d).
Figure 2. (a) XRD pattern of Ag/Fe3O4 and reused Ag/Fe3O4; (b) SQUID data; (c) Size
distributions of Ag NPs and Fe3O4 microspheres; and (d) EDS spectrum of Ag/Fe3O4.
2.2. Reaction Tests
2.2.1. Reduction of Nitro Compounds
As shown in Figure 3a, the UV/Vis spectrum of the reaction mixture was monitored with time
during the catalytic reduction of 4-nitrophenol. Specifically, the absorption of 4-nitrophenol at 400 nm
decreases rapidly with a concomitant increase in the peak at 300 nm, which is attributed to the
reduction product, 4-aminophenol. The control experiments, where only Fe3O4 microspheres were
used as the catalyst, showed no reaction (entry 1, Table 1). In the absence of NaBH4, Ag/Fe3O4 catalyst
showed no catalytic activity (entry 2, Table 1). As expected, increasing the number of equivalents of
NaBH4 increased the catalytic activity (entries 3–5, Table 1). As shown in Figure 3b, the reaction rate
constant k is compared under different temperatures at 2.0 mol% of Ag/Fe3O4 and 50 equiv. of NaBH4.
The highest catalytic efficiency (0.924 min−1) was obtained at 35 °C.

Molecules 2014, 19
Figure 3. (a) Time-dependent UV/vis absorption spectra for the reduction of 4-nitrophenol
703
over hybrid Ag/Fe3O4 catalyst in aqueous media at 303 K (NaBH4: 50 equiv.); and (b) Plot
of ln(Ct/C0) versus time for the reduction of 4-nitrophenol over hybrid Ag/Fe3O4 catalysts
under different temperatures at 2.0 mol% of catalyst and 50 equiv. of NaBH4.
Table 1. Optimization of reaction conditions.
NO2
NH2
OH
OH
Entry
Catalyst (mol%)
Fe3O4 (2.0)
Temp. (°C)
NaBH4 (equiv.)
Time
4 h
TOF (h−1)
No reaction
No reaction
150
1
2
3
4
5
6
25
25
25
25
25
25
300
0
Ag/Fe3O4 (2.0)
Ag/Fe3O4 (2.0)
Ag/Fe3O4 (2.0)
Ag/Fe3O4 (2.0)
Ag/Fe3O4 (2.0)
4 h
50
20 min
3 min
200
300
300
1000
4 min 10 s
2 min 5 s
1059
1440
Reaction conditions: 10 mL of 7.50 * 10−4 M 4-nitrophenol, 0.026 mg of Ag/Fe3O4 [Ag base (17 wt%):
2.0 mol%], 1.0 mL of 2.22 M NaBH4 (300 equiv. to the substrate).
We then sought to optimize reaction temperature during the reduction (entries 5 and 6, Table 1).
The reduction was finished in 2 min 5 s where Ag/Fe3O4 was used as the catalyst (2.0 mol% of

Molecules 2014, 19
704
catalyst, 300 equiv. of NaBH4 per equiv. substrate). Ag/Fe3O4 catalyst exhibited superior catalytic
activity to previous reported Ag/halloysite nanocomposites and Ag nanoshell-coated cationic
polystyrene beads in the comparison with turnover frequency (TOF) value [33,34].
We also confirmed the catalytic activity of hybrid Ag/Fe3O4 for the reduction of other nitroarene
analogues (Table 2). As shown in Table 2, we found that our Ag/Fe3O4 catalyst promoted high
reactivities and excellent yields for a series of model nitrophenols and aniline compounds, regardless
of the types and positions of the substituents.
Table 2. Reduction of various nitroarenes using hybrid Ag/Fe3O4 catalyst.
TOF (h−1)
Entry
Substrate
Product
Time
NO2
NH2
1
2 min 5 s
1440
OH
OH
NO2
NH2
2
3
1 min 40 s
6 min 50 s
1800
439
OH
OH
OH
OH
NO2
NH2
NO2
NH2
4
6 min
500
NH2
NO2
NH2
NH2
5
6
5 min 40 s
529
164
NH2
NH2
NH2
NO2
NH2
NH2
18 min 20 s
Reaction conditions: 10 mL of 7.50 * 10−4 M 4-nitrophenol, 0.026 mg of Ag/Fe3O4 [Ag base (17 wt%):
2.0 mol%], 1.0 mL of 2.22 M NaBH4 (300 equiv. to the substrate) at 308 K.
Interestingly, when the reductions of 4-, 3-, and 2-nitrophenols were catalyzed by Ag/Fe3O4, the 4-
and 3-nitrophenol reductions showed better activities than that of 2-nitrophenol because of a steric

Molecules 2014, 19
705
effect (entries 1–3, Table 2). Remarkably, the TOF in Entry 2 is 1,800 h−1, which is calculated using
the moles of nitroarene consumed per mole of the hybrid Ag/Fe3O4 catalyst for a reaction time of 1 h
under the present reaction condition. Interestingly, m-nitro compounds exhibited better conversion
efficiencies than other nitro compounds because of a resonance effect (entries 4–6, Table 2).
2.2.2. Hydration of Nitriles to Amides
The reaction of benzonitrile in water was chosen as the test model. A possible mechanism of nitrile
hydration by Ag catalyst is shown by Satsuma’s group [28]. Almost no reaction occurred in the
absence of a catalyst (entry 1, Table 3). Generally, time, temperature, and quantity of catalyst are
important considerations for increasing rate of the conversion. A 2% conversion was obtained at 100 °C
within 2 h of the reaction in the presence of 1.0 mol% catalyst (entry 2, Table 3). When the
temperature was increased to 150 °C, 25% conversion was achieved within the same reaction time, i.e.,
2 h (entry 3, Table 3). As mentioned in entry 4, the conversion increased slightly within 6 h of the
reaction. Finally, the optimum reaction conditions were found to be as follows: nitrile (0.1 mL,
1.0 mmol) with Ag/Fe3O4 (19.0 mg, 3.0 mol%) in H2O (3.0 mL) in a stainless steel reactor (entry 5,
Table 3). Under these conditions, Ag/Fe3O4 catalyst showed better catalytic activity than a previously
reported SiO2-supported Ag nanocatalyst [28]. 27% conversion was obtained with a reaction time of 6 h
at 120 °C (entry 6, Table 3).
Table 3. Optimization of reaction conditions.
O
CN
NH2
Entry
Catalyst (mol%)
Temp. (°C)
150
Time (h)
Conversion a (%)
1
2
Blank
6
2
2
6
6
6
6
1
6
6
6
8
1
100
2
3
1
150
25
4
1
150
36
5
3
150
>99
27
6
3
120
7
2
150
85
8
3
150
31
9
Recovered from #5
Recovered from #9
Recovered from #10
150
>99
>99
>99
10
150
11
150
a Determined by using gas chromatography-mass spectrometery (GC-MS) spectroscopy. Reaction conditions:
nitriles (1.0 mmol), Ag/Fe3O4 catalyst (3.0 mol%), H2O (3.0 mL).
Interestingly, the conversion decreased only slightly when 2.0 mol% Ag/Fe3O4 was used (entry 7,
Table 3). As expected, lowering the reaction time effectively decreased the conversion (entry 8,
Table 3). Among the three factors of reaction time, temperature, and quantity of catalyst, we found that
the reaction temperature was the most important because the conversion decreased drastically at 120 °C
(entries 5 and 6, Table 3). Remarkably, the Ag/Fe3O4 catalysts were easily separated using an external

Molecules 2014, 19
706
magnet (Scheme 2) after the completion of the reaction, and reused three times under the same reaction
conditions without any loss of catalytic activity (entries 9–11, Table 3). As shown in Figure 4, the
structure of the Ag/Fe3O4 microspheres remained unchanged after the reaction ended, thereby
demonstrating catalyst recyclability.
Scheme 2. Magnetic separation and recycling of the Ag/Fe3O4 catalyst.
The optimized reaction conditions determined for the Ag/Fe3O4 catalyst system were applied to
various other substituents (Table 4).
Table 4. Hydration of various nitriles catalyzed by Ag/Fe3O4 catalyst.
Entry
Substrate
Product
Yield a (%)
O
1
>99
CN
CN
Cl
Br
Cl
Br
NH2
O
2
96
NH2
O
CN
O2N
O2N
H2N
H3C
3
4
5
60
40
98
NH2
O
CN
CN
CN
H2N
H3C
NH2
O
NH2
O
NH2
6
86
H3C
H3C

Molecules 2014, 19
707
Table 4. Cont.
Entry
Substrate
Product
Yield a (%)
O
CN
7
13
NH2
CH3
CH3
O
H3C CN
H3C
8
>99
87
NH2
O
H2C
H2C
CN
9
NH2
a
Determined by using GC-MS Spectroscopy. Reaction conditions: nitriles (1.0 mmol), Ag/Fe3O4 catalyst
(3.0 mol%), H2O (3.0 mL), 150 °C, 6 h.
We confirmed that this reaction could be extended to a wide variety of nitriles. The reaction rates
were not influenced substantially by the electronic effects of the substituents on the aromatic rings of
nitriles. Both, 4-chlorobenzonitrile and 4-bromobenzonitrile showed high conversions of more than
95% (entries 1 and 2, Table 4). The nitro and amino groups on the nitrile were less active than the
halide substituents (entries 3 and 4, Table 4). When the hydration of o-, m-, and p-tolunitriles was
catalyzed by Ag/Fe3O4, steric effects of ortho-substituted nitriles on the reaction rates were observed
(entries 5–7, Table 4). The hydration of aliphatic nitriles such as acetonitrile and acrylonitrile was also
accomplished with high conversions (entries 8 and 9, Table 4)
3. Experimental
3.1. General Remarks
The morphology of each sample was characterized by TEM (FEI, Tecnai F30 Super-Twin) located
at the National Nanofab Center (Daejeon, South Korea) by placing a few drops of the corresponding
colloidal solution on carbon-coated copper grids (200 mesh, F/C coated, Ted Pella Inc., Redding, CA,
USA). The SEM images were taken using a SEM (VEGA3, TESCAN, Busan, South Korea).
Magnetization data were taken using a SQUID (MPMS-7, Quantum Design, Busan, South Korea). The
elemental compositions of the hybrid catalysts were obtained using EDS (550i, IXRF Systems, Inc.,
Busan, South Korea), while the XRD patterns were recorded by a Rigaku RINT 2200 HK
diffractometer (Rigaku Corporation, Tokyo, Japan). Mass spectra were obtained on a Shimadzu
GC/MS, QP-2010 SE (EI) (Shimadzu Co., Kyoto, Japan). Reagents were purchased from Aldrich
Chemical Co., TCI and Strem Chemical Co. and used as received without further purification. The
concentration of 4-nitrophenol was determined at a wavelength of 400 nm using a SINCO S-3150
spectrophotometer (SINCO, Daejeon, Korea).

Molecules 2014, 19

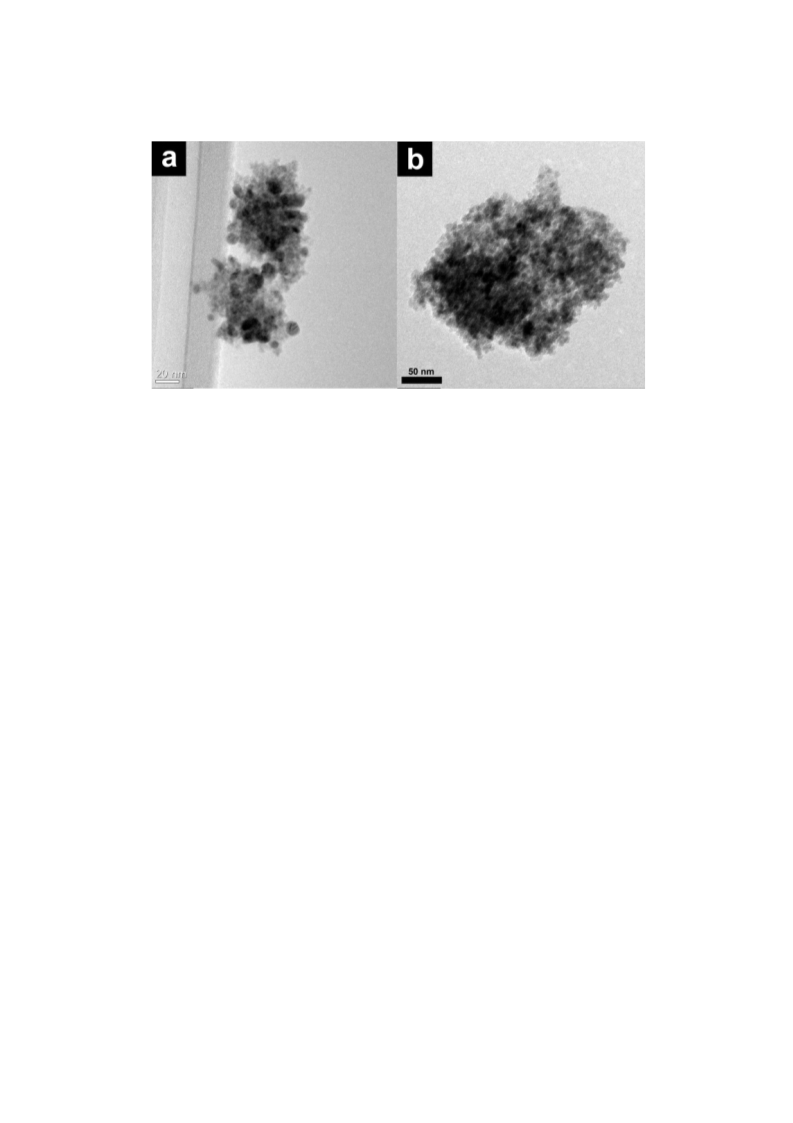

Figure 4. TEM images of Ag/Fe3O4, (a) before and (b) after the third cycles.
708
3.2. Synthesis of Fe3O4 Microspheres
Magnetite particles were synthesized using a solvothermal method [31]. The details were as
follows: FeCl3•6H2O (0.36 g, 1.3 mmol) and trisodium citrate (Na3Cit, 0.072 g, 0.24 mmol) were
dissolved in ethylene glycol/ethanol (36 mL/4 mL) solution; then, sodium acetate (0.48 g, 5.9 mmol)
was added under vigorous stirring for 10 min. The resulting mixture was then transferred to a Teflon-
lined stainless-steel autoclave (with a capacity of 50 mL) for heating at 200 °C for 10 h. Then, the
autoclave was carefully taken out and allowed to cool to room temperature. The as-made black
products were thoroughly washed with ethanol three times, and they were then vacuum-dried.
3.3. Immobilization of Ag NPs onto Fe3O4 Microspheres
Ag NPs were immobilized onto Fe3O4 microspheres according to modified procedure of
Yang et al. [31]. Fe3O4 microspheres were incubated in 0.2 M NaOH aqueous solution to ionize the
carboxyl groups. The residual NaOH was removed by washing with deionized water through
centrifugation. Then, the ionized Fe3O4 microspheres were dispersed in the solution (30 mL, 0.1 M) of
AgNO3 during 1 h under sonication. After this, the microspheres were harvested with the aid of the
magnet and washed with deionized water three times. Then, the microspheres were redispersed in 20 mL
of deionized water, and 50 mM NaBH4 aqueous solution (1 mL) was added dropwise under ice water
bath cooling during 5 min with vigorous stirring. The final product was purified through washing with
water three times and dried under vacuum.
3.4. A Typical Procedure for Reduction of Nitroarenes
As a representative example, 7.50 × 10−4 M 4-nitrophenol solution and 0.026 mg of Ag/Fe3O4 [Ag
base (17 wt%): 2.0 mol%] were mixed and sonicated for 30 s at room temperature. Then, 1.0 mL of
2.22 M NaBH4 (300 equiv. to per equiv. of substrate) solution was added to the mixture. The reaction
progress was monitored by UV/vis spectrometer.

Molecules 2014, 19
709
3.5. A Typical Procedure for the Hydration of Nitriles
Ag/Fe3O4 catalyst (3.0 mol%), water (3.0 mL), and the corresponding nitrile (1.0 mmol) were
introduced into a stainless steel reactor. After the reaction, the catalysts were separated from the
solution by external magnet. The reaction products were analyzed by mass spectra on GC-MS.
(Figures S1–S10).
3.5.1. GC-MS Data
Benzamide (Table 3, entry 5). To a stainless steel reactor equipped with magnetic stirrer were added
benzonitrile 0.1 mL (1.0 mmol), Ag/Fe3O4 19.0 mg (0.03 mmol) and H2O (3 mL). The mixture was
heated at 150 °C for 6 h. After cooling to room temperature, the solution was extracted with
ethylacetae (20 mL). MS (EI) m/z: 28(100), 32(34), 51(30), 77(74), 105(75), 121(60).
4-Chlorobenzamide (Table 4, entry 1). 4-Chlorobenzonitrile (138 mg, 1.0 mmol) was hydrolysed as
above. MS (EI) m/z: 75(33), 111(52), 139(100), 155(51).
4-Bromobenzamide (Table 4, entry 2). 4-Bromobenzonitrile (182 mg, 1.0 mmol) was hydrolysed as
above. MS (EI) m/z: 28(27), 50(48), 139(100), 155(51), 183(100), 199(51).
4-nitrobenzamide (Table 4, entry 3). 4-nitrobenzonitrile (148 mg, 1.0 mmol) was hydrolysed as
above. MS (EI) m/z: 28(100), 118(28), 150(78), 166(55).
4-aminobenzamide (Table 4, entry 4). 4-aminobenzonitrile (118 mg, 1.0 mmol) was hydrolysed as
above. MS (EI) m/z: 28(100), 32(33), 65(29), 92(31), 120(75), 136(55).
4-Methylbenzamide (Table 4, entry 5). 4-Methylbenzonitrile (117 mg, 1.0 mmol) was hydrolysed
as above. MS (EI) m/z: 28(85), 32(28), 65(25), 91(72), 119(100), 135(62).
3-methylbenzamide (Table 4, entry 6). 3-methylbenzonitrile (117 mg, 1.0 mmol) was hydrolysed as
above. MS (EI) m/z: 65(26), 91(83), 119(100), 135(71).
2-methylbenzamide (Table 4, entry 7). 2-methylbenzonitrile (117 mg, 1.0 mmol) was hydrolysed as
above. MS (EI) m/z: 65(33), 91(100), 119(87), 135(84 ).
Acetamide (Table 4, entry 8). acetonitrile (0.052 mL, 1.0 mmol) was hydrolysed as above. MS (EI)
m/z: 28(100), 32(32), 44(77), 59(89).
Acrylamide (Table 4, entry 9). acrylonitrile (0.066 mL, 1.0 mmol) was hydrolysed as above. MS
(EI) m/z: 27(75), 28(73), 32(17), 43(31), 74(83), 55(64), 71(100).
4. Conclusions
Ag NPs were immobilized onto Fe3O4 microspheres in situ by substituting sodium cations with Ag
ions. The Ag NPs were uniformly immobilized in the Fe3O4 support while preserving their particle size
and crystallinity, as well as the structural integrity of the Fe3O4 support. The Ag/Fe3O4 catalyzed the
reduction of nitro compounds and hydration of nitriles to amides in water with high conversion.
Furthermore, the Ag/Fe3O4 catalyst was readily separated using an external magnet and could be
reused at least three times with benzonitrile under the optimized reaction conditions without any loss
of catalytic activity. The magnetic separability eliminated the requirement of catalyst filtration after the
completion of the reaction.

Molecules 2014, 19
710
Supplementary Materials
Supplementary materials can be accessed at: http://www.mdpi.com/1420-3049/19/1/699/s1.
Acknowledgments
This research was supported by Basic Science Research Program through the National
Research Foundation of Korea (NRF) funded by the Ministry of Science, ICT & Future Planning
(No. 2013R1A1A1A05006634) and Ministry of Education (MOE) and National Research Foundation
of Korea (NRF) through the Human Resource Training Project for Regional Innovation
(No. 2012H1B8A2026225).
Conflicts of Interest
The authors declare no conflict of interest.
References
1. Kaneda, K.; Mitsudome, T.; Mizugaki, T.; Jitsukawa, K. Development of heterogeneous olympic
medal metal nanoparticle catalysts for environmentally benign molecular transformations based
on the surface properties of hydrotalcite. Molecules 2010, 15, 8988–9007.
2. Gan, N.; Hou, J.; Hu, F.; Zheng, L.; Ni, M.; Cao, Y. An amperometric immunosensor based on a
polyelectrolyte/ gold magnetic nanoparticle supramolecular assembly-modified electrode for the
determination of HIV p24 in serum. Molecules 2010, 15, 5053–5065.
3. Kamat, P.V. Meeting the clean energy demand: Nanostructure architectures for solar energy
conversion. J. Phys. Chem. C 2007, 111, 2834–2860.
4. Steiner, D.; Mokari, T.; Banin, U.; Millo, O. Electronic structure of metal-semiconductor
nanojunctions in gold CdSe nanodumbbells. Phys. Rev. Lett. 2005, 95, 056805.
5. Haruta, M.; Yamada, N.; Kobayashi, T.; Iijima, S. Gold catalysts prepared by coprecipitation for
low-temperature oxidation of hydrogen and of carbon monoxide. J. Catal. 1989, 115, 301–309.
6. Chen, M.S.; Goodman, D.W. The structure of catalytically active Au on titania. Science 2004, 306,
252–255.
7. Wang, H.; You, T.; Shi, W.; Li, J.; Guo, L. Au/TiO2/Au as a plasmonic coupling photocatalyst.
J. Phys. Chem. C 2012, 116, 6490–6494.
8. Chen, S.; Si, R.; Taylor, E.; Janzen, J.; Chen, J. Synthesis of Pd/Fe3O4 hybrid nanocatalysts with
controllable interface and enhanced catalytic activities for CO oxidation. J. Phys. Chem. C 2012,
116, 12969–12976.
9. Sun, S.; Murray, C.B.; Weller, D.; Folks, L.; Moser, A.A. monodisperse FePt nanoparticles and
ferromagnetic FePt nanocrystal superlattices. Science 2000, 287, 1989–1992.
10. Miller, M.M.; Prinz, G.A.; Cheng, S.F.; Bounnak, S. Detection of a micron-sized magnetic sphere
using
a
ring-shaped anisotropic magnetoresistance-based sensor:
A
model for
a
magnetoresistance-based biosensor. Appl. Phys. Lett. 2002, 81, 2211–2213.
11. Jain, T.K.; Morales, M.A.; Sahoo, S.K.; Leslie-Pelecky, D.L.; Labhasetwar, V. Iron oxide
nanoparticles for sustained delivery of anticancer agents. Mol. Pharm. 2005, 2, 194–205.

Molecules 2014, 19
711
12. Chourpa, I.; Douziech-Eyrolles, L.; Ngaboni-Okassa, L.; Fouquenet, J.F.; Cohen-Jonathan, S.;
Souce, M.; Marchais, H.; Dubois, P. Molecular composition of iron oxide nanoparticles,
precursors for magnetic drug targeting, as characterized by confocal Raman microspectroscopy.
Analyst 2005, 130, 1395–1403.
13. Jang, Y.; Chung, J.; Kim, S.; Jun, S.W.; Kim, B.H.; Lee, D.W.; Kim, B.M.; Hyeon, T. Simple
synthesis of Pd–Fe3O4 heterodimer nanocrystals and their application as a magnetically recyclable
catalyst for Suzuki cross-coupling reactions. Phys. Chem. Chem. Phys. 2011, 13, 2512–2516.
14. Zhai, Q.-G.; Hu, M.-C.; Li, S.-N.; Jiang, Y.-C. Synthesis, structure and blue luminescent
properties of a new silver(I) triazolate coordination polymer with 8210-a topology. Inorg. Chim.
Acta 2009, 362, 1355–1357.
15. Lee, D.; Cohen, R.E.; Rubner, M.F. Antibacterial properties of Ag nanoparticle loaded
multilayers and formation of magnetically directed antibacterial microparticles. Langmuir 2005,
21, 9651–9659.
16. Luo, X.; Morrin, A.; Killard, A.J.; Smyth, M.R. Application of nanoparticles in electrochemical
sensors and biosensors. Electroanalysis 2006, 18, 319–326.
17. Mitsudome, T.; Mikami, Y.; Funai, H.; Mizugaki, T.; Jitsukawa, K.; Kaneda, K. Oxidant-free
alcohol dehydrogenation using a reusable hydrotalcite-supported silver nanoparticle catalyst.
Angew. Chem. 2008, 120, 144–147.
18. Guan, Y.; Li, Y.; van Santen, R.A.; Hensen, E.J.M.; Li, C. Controlling reaction pathways for
alcohol dehydration and dehydrogenation over FeSBA-15 catalysts. Catal. Lett. 2007, 117, 18–24.
19. Pradhan, N.; Pal, A.; Pal, T. Silver nanoparticle catalyzed reduction of aromatic nitro compounds.
Colloid. Surf. A-Physicochem. Eng. Asp. 2002, 196, 247–257.
20. Cong, H.; Becker, C.F.; Elliott, S.J.; Grinstaff, M.W.; Porco, J.A., Jr. Silver nanoparticle-catalyzed
Diels-Alder cycloadditions of 2'-hydroxychalcones. J. Am. Chem. Soc. 2010, 132, 7514–7518.
21. Narayanan, R.; El-Sayed, M.A. Catalysis with transition metal nanoparticles in colloidal solution:
Nanoparticle shape dependence and stability. J. Phys. Chem. B 2005, 109, 12663–12676.
22. Motokura, K.; Fujita, N.; Mori, K.; Mizugaki, T.; Ebitani, K.; Kaneda, K. One-pot synthesis of
α-alkylated nitriles with carbonyl compounds through consecutive aldol reaction/hydrogenation
using a hydrotalcite-supported palladium nanoparticle as a multifunctional heterogeneous catalyst.
Tetrahedron Lett. 2005, 46, 5507–5510.
23. Mori, T.; Watanuki, T.; Kashiwaguru, T. Diesel exhaust particles disturb gene expression in
mouse testis. Environ. Toxicol. 2007, 22, 58–63.
24. Li, C.M.; Taneda, S.; Suzuki, A.K.; Furuta, C.; Watanabe, G.; Taya, K. Estrogenic and
anti-androgenic activities of 4-nitrophenol in diesel exhaust particles. Toxicol. Appl. Pharmacol.
2006, 217, 1–6.
25. Pradhan, N.; Pal, A.; Pal, T. Catalytic reduction of aromatic nitro compounds by coinage metal
nanoparticles. Langmuir 2001, 17, 1800–1802.
26. Esumi, K.; Isono, R.; Yoshimura, T. Preparation of PAMAM- and PPI-metal (silver, platinum,
and palladium) nanocomposites and their catalytic activities for reduction of 4-nitrophenol.
Langmuir 2004, 20, 237–243.

Molecules 2014, 19
712
27. Zhang, P.; Shao, C.; Zhang, Z.; Zhang, M.; Mu, J.; Guoab, Z.; Liua, Y. In situ assembly of
well-dispersed Ag nanoparticles (AgNPs) on electrospun carbon nanofibers (CNFs) for catalytic
reduction of 4-nitrophenol. Nanoscale 2011, 3, 3357–3363.
28. Shimizua, K.; Imaiidab, N.; Sawabeb, K.; Satsuma, A. Hydration of nitriles to amides in water by
SiO2-supported Ag catalysts promoted by adsorbed oxygen atoms. Appl. Catal. A-Gen. 2012,
421–422, 114–120.
29. Mitsudome, T.; Mikami, Y.; Mori, H.; Arita, S.; Mizugaki, T.; Jitsukawa, K.; Kaneda, K.
Supported silver nanoparticle catalyst for selective hydration of nitriles to amides in water.
Chem. Commun. 2009, 3258–3260.
30. Kim, A.Y.; Bae, H.S.; Park, S.; Park, S.; Park, K.H. Silver nanoparticle catalyzed selective
hydration of nitriles to amides in water under neutral conditions. Catal. Lett. 2011, 141, 685–690.
31. Liu, B.; Zhang, W.; Yang, F.; Feng, H.; Yang, X. Facile method for synthesis of Fe3O4@Polymer
microspheres and their application as magnetic support for loading metal nanoparticles. J. Phys.
Chem. C 2011, 115, 15875–15884.
32. Hu, H.; Wang, Z.; Pan, L.; Zhao, S.; Zhu, S. Ag-coated Fe3O4@SiO2 three-ply composite
microspheres: Synthesis, characterization, and application in detecting melamine with their
surface-enhanced raman scattering. J. Phys. Chem. C 2010, 114, 7738–7742.
33. Liu, P.; Zhao, M. Silver nanoparticle supported on halloysite nanotubes catalyzed reduction of
4-nitrophenol (4-NP). Appl. Surf. Sci. 2009, 255, 3989–3993.
34. Jana, S.; Ghosh, S.K.; Nath, S.; Pande, S.; Praharaj, S.; Panigrahi, S.; Basu, S.; Endo, T.; Pal, T.
Synthesis of silver nanoshell-coated cationic polystyrene beads: A solid phase catalyst for the
reduction of 4-nitrophenol. Appl. Catal. A-Gen. 2006, 313, 41–48.
Sample Availability: Samples of the compounds are available from the authors.
© 2014 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
