Chapter 6
Galantamine Derivatives as Acetylcholinesterase Inhibitors:
Docking, Design, Synthesis, and Inhibitory Activity
Irini Doytchinova, Mariyana Atanasova, Georgi Stavrakov,
Irena Philipova, and Dimitrina Zheleva-Dimitrova
Abstract
Galantamine (GAL) is a well-known acetylcholinesterase (AChE) inhibitor, and it is widely used for
treatment of Alzheimer’s disease. GAL fits well in the catalytic site of AChE, but it is too short to block
the peripheral anionic site (PAS) of the enzyme, where the amyloid beta (Aβ) peptide binds and initiates the
Aβ aggregation. Here, we describe a docking-based technique for designing of GAL derivatives with dual-
site binding fragments – one blocking the catalytic site and another blocking the PAS. The highly scored
compounds are synthesized and tested. Protocols for docking, design, synthesis, and AChE inhibitory test
are given.
Key words Galantamine, Acetylcholinesterase inhibition, Docking, Drug design, Dual-site binding
1 Introduction
The binding site of recombinant human AChE (rhAChE) consists
of several domains [1–5]. The catalytic anionic site (CAS) lies on
˚
the bottom of 20 A deep and narrow binding gorge. It consists of
the catalytic triad: Ser203, Glu334, and His447. The anionic
domain binds the quaternary trimethylammonium choline moiety
of acetylcholine (ACh). Despite its name, it does not contain any
anionic residues but only aromatic ones: Trp86, Tyr130, Tyr337,
and Phe338. They are involved in cation-pi interactions with the
protonated head of ACh. The acyl pocket consists of two bulky
residues, Phe295 and Phe297, and it determines the selective bind-
ing of ACh by preventing the access of larger choline esters. The
oxyanion hole hosts one molecule of structural water and consists
of Gly121, Gly122, and Ala204. The water molecule bridges the
binding between enzyme and substrate by hydrogen-bond net-
working and stabilizes the substrate tetrahedral transition state.
Kunal Roy (ed.), Computational Modeling of Drugs Against Alzheimer’s Disease, Neuromethods,
vol. 132, DOI 10.1007/978-1-4939-7404-7_6, © Springer Science+Business Media LLC 2018
163

164
Irini Doytchinova et al.
Finally, the peripheral anionic site (PAS) lies at the entrance to
binding gorge. It is composed of five residues: Tyr72, Asp74,
Tyr124, Trp286, and Tyr341. PAS allosterically modulates catalysis
[6] and is implicated in non-cholinergic functions such as amyloid
deposition [7], cell adhesion, and neurite outgrowth [8, 9]. It was
found that the Aβ peptide binds close to PAS, interacting hydro-
phobically with residues 275–305 [7]. This interaction promotes
the formation of amyloid fibrils characteristic of Alzheimer’s disease
[10, 11]. The blockade of PAS prevents the AChE-induced Aβ
aggregation [7]. This pivotal finding prompted the design of
novel AChEIs with dual binding moieties – one blocking the CAS
at the bottom of the gorge and one blocking the PAS [12–17].
Galantamine (GAL) is an alkaloid initially isolated from the
bulbs and flowers of Galanthus caucasicus, Galanthus woronowii
(Amaryllidaceae), and related genera [18]. Paskov first developed
GAL as an industrial drug under the trade name Nivalin
(Sopharma, Bulgaria) [19]. It has been used for treatment of
myasthenia gravis, myopathy, residual poliomyelitis paralysis syn-
dromes, sensory and motor disorders of CNS, and decurarization
[20–24]. Because of its ability to cross the blood-brain barrier and
to affect the central cholinergic function, in the 1980s, GAL was
investigated for treatment of Alzheimer’s disease (AD) and in 2000
was approved for use in Europe, the United States, and Asia
[25–27].
In addition to its acetylcholinesterase (AChE)-inhibiting abil-
ity, GAL has been identified as an allosteric modulator of nicotinic
acetylcholine receptors (nAChRs) [28–31]. The stimulation of
nAChRs can increase intracellular Ca2+ levels and facilitate nor-
adrenaline release; both effects enhance the cognitive brain func-
tion [32]. Recently, Takata et al. have demonstrated that treatment
of rat microglia with GAL significantly enhanced microglial amy-
loid-β (Aβ) phagocytosis and facilitated Aβ clearance in brains of
rodent AD models [33]. This multiple-target action of GAL makes
it a most valuable drug for AD treatment and prompts the synthesis
of novel GAL derivatives with improved binding to AChE [33–39].
Several series of GAL derivatives with dual-site binding to the
enzyme have been prepared and tested [16, 36, 37, 40–42]. All
of them showed good AChE inhibitory activities.
In the present paper, we summarize our experience in develop-
ing of galantamine derivatives as acetylcholinesterase inhibitors
with dual-site binding [43–45]. We used docking-based design in
a stepwise manner to develop derivatives with binding affinity more
than 1000 times higher than that of GAL.

Galantamine Derivatives as Acetylcholinesterase Inhibitors: Docking. . .
165
2 Materials
GOLD [46] is a docking tool based on a genetic algorithm, and it
has proven successful in virtual screening, lead optimization, and
identification of the correct binding mode of active molecules [47,
48]. GOLD takes into account the flexibility of the ligand as well as
the flexibility of the residues in the binding site. GOLD v. 5.1 was
used in our studies.
2.1 Docking
Software
Fine chemicals: 5-hydroxyindole, 97%; 5-aminoindole, 97%; 4-
hydroxybenzaldehyde, 99%; 1,6-dibromohexane, 98%; 7-
bromoheptanoic acid, 97%; 6-bromohexanoic acid, 98%; 5-
bromovaleric acid, 97%; 4-bromobutyric acid, 98%; aniline,
99.8%; benzylamine, 99%; phenethylamine, 99%; (S)-(þ)-2-phe-
nylglycine methyl ester hydrochloride, 97%; L-phenylalanine
methyl ester hydrochloride, 98%; L-tryptophan methyl ester hydro-
chloride, 98%; galantamine hydrobromide, 95%.
2.2 Reactants for
Synthesis
Reagents: potassium carbonate, 99 þ %; sodium triacetoxybor-
ohydride, 97%; N-(3-dimethylaminopropyl)-N0-ethylcarbodiimide
hydrochloride (EDC), 98%; 1-hydroxybenzotriazole hydrate, 99%;
N,N-diisopropylethylamine, for synthesis; 3-chloroperoxybenzoic
acid, 70–75%; ammonia water, 25%, pure for analysis; iron(II)
sulfate heptahydrate, 99 þ %; sodium sulfate, anhydrous, 99 þ %;
sodium bicarbonate, 99 þ %; triethylamine, 99%; hydrochloric acid,
ca. 37% solution in water.
Solvents: 1,2-dichloroethane, extra pure; acetonitrile, 99.9%,
extra dry over molecular sieve; methylene chloride, extra pure;
ꢀ
petroleum ether 40–60 C, extra pure; ethyl acetate, for analysis;
methanol for HPLC.
Electrophorus electricus AChE (Sigma-Aldrich), acetylthiocholine
(ATCl), 5,50-dithio-bis-(2-nitrobenzoic acid) (DTNB), phosphate
buffer (pH 7.6), UV-Vis Spectrophotometer Shimadzu UV-
1203 at 405 nm.
2.3 Reactants for
AChE Inhibition Assay
3 Methods
The GAL derivatives are N-substituted products (Fig. 1). Linkers of
different type and length connect the GAL core to aromatic frag-
ments. The GAL core fits into the catalytic site, while the aromatic
fragment aims to block the PAS (Fig. 2).
3.1 Design
The optimized docking protocol includes the following settings:
1. Protein: X-ray structure of rhAChE in complex with galanta-
3.2 Molecular
Docking Protocol
˚
mine (GAL) (pdb id: 4EY6, R ¼ 2.15 A) [49]. The ligand is
removed.

166
Irini Doytchinova et al.
Fig. 1 N-substituted GAL derivatives
Fig. 2 The GAL core fits into the catalytic site, while the aromatic fragment
blocks the PAS. AChE given as gray surface, inhibitor in cyan, and amyloid beta
peptide in blue
2. Ligands: The structures of the designed molecules are entered
in .mol2 format.
3. Scoring function: GoldScore or ChemPLP.
´
˚
4. Radius of the binding site: 10A.
5. One water molecule (HOH846) is kept within the binding site.
6. Flexible side chains in the binding site: Tyr72, Asp74, Trp86,
Tyr124, Ser125, Trp286, Phe297, Tyr337, Phe338, and
Tyr341.

Galantamine Derivatives as Acetylcholinesterase Inhibitors: Docking. . .
167
The compounds with the highest GoldScores or ChemPLP
scores are selected for synthesis.
Protocol 1: Synthesis of 4-(6-bromohexyloxy)benzaldehyde
3.3 Synthesis
3.3.1 Synthesis of
Bromo-Containing Linkers
of Different Type and
Length Connected to
Aromatic Fragments:
Br-Linker-Ar
1. Load a 100 ml round bottom flask with 4-hydroxybenzaldehyde
(0.5 g, 4.1 mmol), K2CO3 (2.83 g, 20.5 mmol), and CH3CN
(20 ml).
2. Add to the stirred suspension 1,6-dibromohexane (12.3 mmol,
1.86 ml), equip the flask with a condenser, and reflux for 5 hours.
3. Stop the heating, remove the condenser, and concentrate till dry
under reduced pressure.
4. Separate the residue between ethyl acetate and water, extract the
aqueous phase with ethyl acetate, and dry the organic extracts over
Na2SO4. Filter from the solids and concentrate.
5. Purify via flash column chromatography using silica gel as station-
ary phase and a mixture of ethyl acetate/petroleum ether (1:9) as
mobile phase.
Protocol 2: Synthesis of N-(4-(6-bromohexyloxy)benzyl)-1H-indol-5-
amine
1. Load a 50 ml round bottom flask with 1H-indol-5-amine
(0.100 g, 0.757 mmol), 4-(6-bromohexyloxy)benzaldehyde
(0.216 g, 0.757 mmol), and 1,2-dichloroethane (8 ml).
2. Stir the mixture for 30 min at room temperature, add NaBH
(OAc)3 (0.240 g, 1.136 mmol), and continue the stirring for 24 h.
3. Quench the reaction with sat.aq.NaHCO3 (50 ml), extract the
product with CH2Cl2, and dry the organic extracts over Na2SO4.
Filter from the solids and concentrate.
4. Purify via flash column chromatography using silica gel as station-
ary phase and a mixture of petroleum ether/ethyl acetate/triethy-
lamine (2:1:0.5) as mobile phase.

168
Irini Doytchinova et al.
Protocol 3: Synthesis of 5-(6-bromohexyloxy)-1H-indole
1. Load a 50 ml round bottom flask with 1H-indol-5-ol (0.100 g,
0.750 mmol), CH3CN (15 ml), and K2CO3 (0.310 g,
2.250 mmol).
2. Add to the stirred suspension 1,6-dibromohexane (0.220 g,
0.900 mmol) and heat at 60 ꢀC for 24 h.
3. Cool to room temperature, filter through a pad of Celite, and
concentrate till dry under reduced pressure.
4. Purify via flash column chromatography using silica gel as station-
ary phase and a mixture of petroleum ether/ethyl acetate (4:1) as
mobile phase.

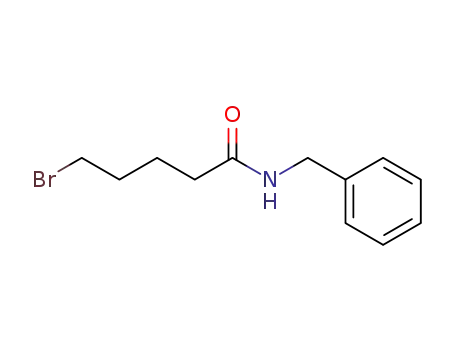

Protocol 4: Synthesis of bromo-amide intermediates
aa
Bromo carboxylic acid
Appropriate amine
Product (bromo-amide intermediate)
Yield %
n ¼ 5
n ¼ 6
84
88
n ¼ 4
n ¼ 4
90
67
n ¼ 5
89
(continued)

Galantamine Derivatives as Acetylcholinesterase Inhibitors: Docking. . .
169
Bromo carboxylic acid
Appropriate amine
Product (bromo-amide intermediate)
Yield %
n ¼ 6
94
78
n ¼ 5
n ¼ 6
n ¼ 3
n ¼ 4
n ¼ 5
n ¼ 6
n ¼ 5
80
88
90
86
89
99

170
Irini Doytchinova et al.
1. Load a 50 ml round bottom flask with bromo carboxylic acid
(1.1 mmol), CH2Cl2(20 ml), N-[3-(dimethylamino)propyl]-N-
ethylcarbodiimide (0.210 g, 1.1 mmol), 1-hydroxybenzotriazole
(0.148 g, 1.1 mmol), and the appropriate amine (1 mmol).
2. In the cases of amino acid methyl ester hydrochlorides, add also N,
N-diisopropylethylamine (1.1 mmol).
3. Stir the mixture at room temperature. Follow the reaction develop-
ment by TLC.
4. Concentrate under reduced pressure till dry.
5. Purify via flash column chromatography using silica gel as station-
ary phase and a mixture of dichloromethane/ethyl acetate (20:1)
as mobile phase.
Protocol 5: Synthesis of norgalantamine and its subsequent alkylation
with Br-Linker-Ar:
3.3.2 Synthesis of the
Target Compounds
1. To a stirred suspension of galantamine hydrobromide (0.734 g,
2 mmol) in dichloromethane (10 ml), add 25% aqueous NH4OH
(1 ml) and stir till clear. Separate the organic layer, dry it over
Na2SO4, and concentrate under reduced pressure to isolate free
galantamine base.
2. Dissolve the galantamine (2 mmol) into dichloromethane
(10 ml), add portionwise 3-chloroperoxybenzoic acid (0.542 g,
2.2 mmol), and stir at room temperature for 1 h.
3. Cool the mixture to 0 ꢀC and add methanol (20 ml) followed by
FeSO4.7H2O (0.556 g, 2 mmol). Stir for ½ h at 0 ꢀC and for 3 h
at room temperature.
4. Quench the reaction with 5 N HCl (40 ml), remove the organic
solvents under reduced pressure, and wash the aqueous residue
twice with ether.
ꢀ
5. Cool the aqueous layer to 0 C and basify it with 25% aqueous
NH4OH.
6. Extract with dichloromethane, dry over Na2SO4, and
concentrate.

Galantamine Derivatives as Acetylcholinesterase Inhibitors: Docking. . .
171
7. Purify via flash column chromatography using silica gel as sta-
tionary phase and a mixture of dichloromethane/methanol (5:1)
as mobile phase to isolate norgalantamine.
8. Prepare under argon atmosphere a solution of norgalantamine
(0.200 g, 0.732 mmol) in anhydrous acetonitrile (25 mL).
9. Add the appropriate Br-Linker-Arom (0.951 mmol) and anhy-
drous K2CO3 (0.303 g, 2.2 mmol).
10. Stir at 60 ꢀC for 24 h, cool to room temperature, filter through a
pad of Celite, and remove the solvent under reduced pressure.
11. Purify via flash column chromatography using silica gel as sta-
tionary phase and a mixture of dichloromethane/methanol/
ammonia (20:1:0.05) to isolate the desired product.
Structure elucidation: The structures of the newly synthesized com-
pounds were confirmed by 1D and 2D NMR spectra. Their purity was
proven by elemental analysis or HRMS. The spectral analyses were in
accordance with the assigned structures. Additionally, the compounds
were characterized by melting points and specific rotation for the chiral
compounds.
The AChE activity is assayed as described by Ellman et al. [50] with
some modifications [51]. 50 μL of E. electricus AChE (Sigma-
Aldrich) in buffer phosphate (pH 7.6) and 50 μL of the test
compounds (4–500 μM in methanol) dissolved in 700 μL in the
same buffer are mixed. The mixtures are incubated for 30 min at
room temperature. 100 μL of the substrate solution (0.5 M DTNB,
0.6 mM ATCI in buffer, pH 7.6) is added. The absorbance is read
in Shimadzu spectrophotometer at 405 nm after 3 min. Enzyme
activity is calculated as a percentage compared to an assay using a
buffer without any inhibitor using nonlinear regression. IC50
values are means Æ SD of three individual determinations each
performed in triplicate. GAL is used as a positive control.
3.4 AChE Inhibition
Assay
4 Some Results Illustrating the Docking-Based Design Efficiency
In order to illustrate the efficiency of the proposed docking-based
design of novel dual-site binding GAL derivatives, in Table 1., we
present some results from our in-house database of GAL derivatives
designed to block simultaneously the CAS and PAS [44, 45]. More
than hundred compounds were designed and docked into AChE
and the best scored of them were synthesized and tested.
Most of the compounds were 10–100 times more active than
GAL. However, two of them – compounds 9 and 15 – were more
than 1000 times more active. They are subject to further research.

172
Irini Doytchinova et al.
Table 1
Docking scores and experimental IC50 values of the designed GAL derivatives
Times
IC50 (exp) more active
Docking
scorea
Comp. Linker
Ar
μM
than GAL
1
(CH2)6O
Phenyl-CH2NH-
indolyl
119.15
0.011
95
2
3
4
(CH2)6O
Indolyl
Indolyl
Indolyl
112.32
109.06
113.89
0.012
0.015
0.094
93
72
11
(CH2)5CONH
(CH2)5CONHCH
(COOCH3)CH2
5
(CH2)6CONH
Phenyl
Phenyl
Phenyl
Phenyl
Phenyl
Phenyl
100.87
99.82
0.0169
0.0308
0.0308
0.021
63
35
6
(CH2)4CONHCH2
(CH2)4CONH(CH2)2
(CH2)5CONH(CH2)2
(CH2)6CONH(CH2)2
7
101.79
106.09
109.94
107.52
35
8
51
9
0.0008
0.0527
1338
20
10
(CH2)5CONHCH
(COOCH3)
11
12
13
14
15
(CH2)6CONHCH
(COOCH3)
Phenyl
Phenyl
Phenyl
Phenyl
Phenyl
111.86
97.53
0.0211
0.0958
0.0264
0.0246
0.0011
1.07
51
11
(CH2)3CONHCH
(COOCH3)CH2
(CH2)4CONHCH
(COOCH3)CH2
104.38
108.24
116.95
74.56
40
(CH2)5CONHCH
(COOCH3)CH2
43
(CH2)6CONHCH
(COOCH3)CH2
1008
1
GAL HBr
Data are taken from Refs. [44, 45]
aGoldScores for compounds 1–4
GAL HBr ChemPLP scores for compounds 5–15
5 Conclusions
Molecular docking is a widely used structure-based method for
virtual screening of huge databases of compounds as well as for
binding prediction of newly designed ligands. It was used solely or
in combination with 2D- and 3D-QSAR or machine learning
methods [52–64]. Here, we described a protocol for molecular
docking of GAL derivatives into the enzyme AChE. The protocol
was optimized stepwise to find the settings (scoring function,

Galantamine Derivatives as Acetylcholinesterase Inhibitors: Docking. . .
173
flexible binding site, radius of the binding site, presence/absence of
a water molecule) correlating best with the binding affinities of
compounds. The optimized protocol was used to predict the affi-
nities of newly designed GAL derivatives with dual-site binding to
AChE. The best scored compounds were synthesized and tested.
All of them are 10–100 times more active than GAL. Even more,
two of them are more than 1000 times more active.
6 Note
The BLAST alignment of AChEs from human, rat, rabbit, and
E. electricus shows that the main residues forming the binding site
are conserved.
Acknowledgments
This work has been supported by the Council on Medical Science at
the Medical University of Sofia, Bulgaria (Grants 2-S/2013, 1-S/
2014, 8-S/2015, and 10-S/2016).
References
1. Harel M, Schalk I, Ehret-Sabatier L, Bouet F,
Goeldner M, Hirth C, Axelsen PH, Silman I,
Sussman JL (1993) Quaternary ligand binding
to aromatic residues in the active-site gorge of
acetylcholinesterase. Proc Natl Acad Sci USA
90:9031–9035
californica: a prototypic acetylcholine-binding
protein. Science 253:872–879
6. Kitz RJ, Braswell LM, Ginsburg S (1970) On
the question: is acetylcholinesterase an alloste-
ric protein? Mol Pharmacol 6:108–121
7. De Ferrari GV, Canales MA, Shin I, Weiner
LM, Silman I, Inestrosa NC (2001) A struc-
tural motif of acetylcholinesterase that pro-
motes amyloid beta-peptide fibril formation.
Biochemistry 40:10447–10457
2. Ordentlich A, Barak D, Kronman C, Flashner
Y, Leitner M, Segall Y, Ariel N, Cohen S, Velan
B, Shafferman A (1993) Dissection of the
human acetylcholinesterase active center deter-
minants of substrate specificity. Identification
of residues constituting the anionic site, the
hydrophobic site, and the acyl pocket. J Biol
Chem 268:17083–17095
8. Johnson G, Moore SW (2004) Identification of
a structural site on acetylcholinesterase that
promotes neurite outgrowth and binds
laminin-1 and collagen IV. Biochem Biophys
Res Commun 319:448–455
3. Ordentlich A, Barak D, Kronman C, Ariel N,
Segall Y, VelanB SA (1998) Functional charac-
teristics of the oxyanion hole in human acetyl-
9. Johnson G, Moore SW (2006) The peripheral
anionic site of acetylcholinesterase: structure,
functions and potential role in rational drug
design. Curr Pharm Des 12:217–225
cholinesterase.
273:19509–19517
J
Biol
Chem
4. Radic Z, Pickering NA, Vellom DC, Camp S,
Taylor P (1993) Three distinct domains in the
cholinesterase molecule confer selectivity for
acetyl- and butyrylcholinesterase inhibitors.
Biochemistry 32:12074–12084
10. Inestrosa NC, Alvarez A, Perez CA, Moreno
RD, Vicente M, Linker C, Casanueva OI,
Soto C, Garrido J (1996) Acetylcholinesterase
accelerates assembly by amyloid beta-peptides
into Alzheimer’s fibrils; possible role pf the
peripheral site of the enzyme. Neuron
16:881–891
5. Sussman JL, Harel M, Frolow F, Oefner C,
Goldman A, Toker L, Silman I (1991) Atomic
structure of acetylcholinesterase from Torpedo

174
Irini Doytchinova et al.
11. Inestrosa NC, Alarcon R (1998) Molecular
interactions of acetylcholinesterase with senile
plaques. J Physiol Paris 92:341–344
Bulgarian academy of sciences. Ser Exp Biol
Med, Sofia 1:29–35
21. Bubeva-Ivanova L (1957) Phytochemical study
on Galanthus nivalis var. gracilis. Pharmacia
(Sofia) 2:23–26
12. Viayna E, Sabate R, Munoz-Torrero D (2006)
Dual inhibitors of β-amyloid aggregation and
acetylcholinesterase as multi-target anti-
Alzheimer drug candidates. Curr Top Med
Chem 13:1820–1842
22. Nastev G (1960) Nivalin treatment of patients
with diseases of nervous system. Cult Med
(Roma) 15:87–97
13. Camps P, Formosa X, Galdeano C, Munoz-
Torrero D, Ramirez L, Gomez E, Isambert N,
Lavilla R, Badia A, Clos MV, Bartolini M, Man-
cini F, Andrisano V, Arce MP, Rodrigues-
Franco MI, Huertas O, Dafni T, Luque FJ
23. Stoyanov EA (1964) Galanthaminum hydro-
bromicum “Nivalin”, einneues Antidot der
nichtdepolarisierenden
Muskelrelaxantien.
Pharmakologie und klinische Anwendung.
Anaesthesist 13:217–220
(2009)
Pyrano[3,2-c]quinoline-6-chlorota-
24. Paskov DS (1986) Galanthamine. In: Kharke-
vich DA (ed) Handbook of experimental phar-
macology. Springer, Berlin/Heidelberg/New
York/Tokyo, pp 653–672
crine hybrids as a novel family of acetylcholin-
esterase- and beta-amyloid-directed anti-
Alzheimer compounds.
52:5365–5379
J
Med Chem
25. Parys W (1998) Development of Reminyl
14. Yu L, Cao R, Yi W, Yan Q, Chen Z, Ma L, Peng
W, Song H (2010) Synthesis of 4-[(diethyla-
mino)methyl]-phenol derivatives as novel cho-
linesterase inhibitors with selectivity towards
butyrylcholinesterase. Bioorg Med Chem Lett
20:3254–3258
(galantamine),
a novel acetylcholinesterase
inhibitor, for the treatment of Alzheimer’s dis-
ease. Alzheimer’s Reports 53:S19–S20
26. Farlow MR (2001) Pharmacokinetics profiles
of current therapies for AD: implications for
switching to galantamine. Clin Ther 23:
A13–A24
15. Leon R, Marco-Contelles J (2011) A step fur-
ther towards multitarget drugs for Alzheimer
and neuronal vascular diseases: targeting the
cholinergic system, amyloid-β aggregation and
Ca(2þ) dyshomeostasis. Curr Med Chem
18:552–576
´
27. Marco-Contelles J, Rodrıguez C, Carreiras
MC, Villarroya M, Garcıa AG (2006) Synthesis
´
and pharmacology of galantamine. Chem Rev
106:116–133
28. Pereira EF, Reinhardt-Maelicke S, Schratten-
holz A, Maelicke A, Albuquerque EX (1993)
Identification and functional characterization
of a new agonist site on nicotinic acetylcholine
receptors of cultured hippocampal neurons. J
Pharmacol Exp Ther 265:1474–1491
16. Simoni E, Daniele S, Bottegoni G, Pizzirani D,
Trincavelli ML, Goldoni L, Tarozzo G,
Reggiani A, Martini C, Piomelli D, Melchiorre
C, Rosini M, Cavalli A (2012) Combining
galantamine and memantine in multitargeted,
new chemical entities potentially useful in Alz-
heimer’s disease. J Med Chem 55:9708–9721
29. Storch A, Schrattenholz A, Cooper JC, Abdel
Ghani EM, Gutbrod O, Weber KH, Reinhardt
S, Lobron C, Hermsen B, Soskic V, Pereira
EFR, Albuquerque EX, Methfessel C, Maelicke
A (1995) Physostigmine, galanthamine and
codeine act as ‘noncompetitive nicotinic recep-
tor agonists’ on clonal rat pheochromocytoma
cells. Eur J Pharm 290:207–219
17. Nepovimova E, Uliassi E, Korabechy J, Pena-
Altamira LE, Samez S, Pesaresi A, Garcia GE,
Bartolini M, Andrisano V, Bergamini C, Fato
R, Lamba D, Roberti M, Kuca K, Monti B,
Bolognesi ML (2014) Multitarget drug design
strategy: quinone-tacrine hybrids designed to
block amyloid-β aggregation and to exert anti-
cholinesterase and antioxidant effects. J Med
Chem 57:8576–8589
30. Schrattenholz A, Pereira EF, Roth U, Weber
KH, Albuquerque EX, Maelicke A (1996)
Agonist responses of neuronal nicotinic acetyl-
choline receptors are potentiated by a novel
class of allosterically acting ligands. Mol Phar-
macol 49:1–6
18. Heinrich M, Teoh HL (2004) Galanthamine
from snowdrop–the development of a modern
drug against Alzheimer’s disease from local
Caucasian knowledge.
92:147–162
J
Ethnopharmacol
31. Albuquerque EX, Alkondon M, Pereira EF,
Castro CF, Schrattenholz A, Barbosa CT,
Bonfante-Canarcas R, Aracava Y, Eisenberg
HM, Maelicke A (1997) Properties of neuronal
nicotinic acetylcholine receptors: pharmaco-
logical characterization and modulation of syn-
19. Paskov DS (1959) Nivalin: pharmacology and
clinical application. MedicinaiFizkultura Sofia
Bulgaria
20. Paskov DS (1957) Effect of galanthamine on
the skeletal muscles. Proceedings of the depart-
ment of biological and medical sciences at the
aptic function.
280:1117–1136
J
Pharmacol Exp Ther

Galantamine Derivatives as Acetylcholinesterase Inhibitors: Docking. . .
175
32. Dajas-Bailador FA, Heimala K, Wonnacott S
(2003) The allosteric potentiation of nicotinic
acetylcholine receptors by galantamine is trans-
duced into cellular responses in neurons: Ca2þ
signals and neurotransmitter release. Mol Phar-
macol 64:1217–1226
acetylcholinesterase catalytic gorge with two
novel bis-functional galanthamine derivatives.
J Med Chem 53:745–751
43. Atanasova M, Yordanov N, Dimitrov I, Berkov
S, Doytchinova I (2015) Molecular docking
study on galantamine derivatives as cholinester-
ase inhibitors. Mol Inf 34:394–403
33. Takata K, Kitamura Y, Saeki M, Terada M,
Kagitani S, Kitamura R, Fujikawa Y, Maelicke
A, Tomimoto H, Taniguchi T, Shimohama S
(2010) Galantamine-induced amyloid-{beta}
clearance mediated via stimulation of micro-
glial nicotinic acetylcholine receptors. J Biol
Chem 285:40180–40191
44. Atanasova M, Stavrakov G, Philipova I, Zhe-
leva D, Yordanov N, Doytchinova I (2015)
Galantamine derivatives with indole moiety:
docking, design, synthesis and acetylcholines-
terase inhibitory activity. Bioorg Med Chem
23:5382–5389
34. Han SY, Sweeney JE, Bachman ES, Schweiger
´
45. Stavrakov G, Philipova I, Zheleva D, Atanasova
M, Konstantinov S, Doytchinova I (2016)
Docking-based design of galantamine deriva-
tives with dual-site binding to acetylcholines-
terase. Mol Inf 35:278–285
EJ, Forloni G, Coyle JT, Davis BM, Joullie
MM (1992) Chemical and pharmacological
characterization of galanthamine, an acetylcho-
linesterase inhibitor, and its derivatives. A
potential application in Alzheimer’s disease?
Eur J Med Chem 27:673–687
46. Jones G, Willett P, Glen RC, Leach AR, Taylor
R (1997) Development and validation of a
genetic algorithm for flexible docking. J Mol
Biol 267:727–748
35. Bores GM, Kosley RW (1996) Galanthamine
derivatives for the treatment of Alzheimer’s
disease. Drugs Future 21:621–635
47. Kellenberger E, Rodrigo J, Muller P, Rognan
D (2004) Comparative evaluation of eight
docking tools for docking and virtual screening
accuracy. Proteins 57:225–242
36. Mary A, Renko DZ, Guillou C, Thal C (1998)
Potent acetylcholinesterase inhibitors: design,
synthesis, and structure-activity relationships of
bis-interacting ligands in the galanthamine
series. Bioorg Med Chem 6:1835–1850
48. Perola E, Walters WP, Charifson PS (2004) A
detailed comparison of current docking and
scoring methods on systems of pharmaceutical
relevance. Proteins 56:235–249
37. Guillou C, Mary A, Renko DZ, Thal C (2000)
Potent acetylcholinesterase inhibitors: design,
synthesis and structure-activity relationships of
49. Cheung J, Rudolph MJ, Burshteyn F, Cassidy
MS, Gary EN, Love J, Franklin MC, Height JJ
(2012) Structures of human acetylcholinester-
ase in complex with pharmacologically impor-
tant ligands. J Med Chem 55:10282–10286
alkylene
linked
bis-galanthamine
and
galanthamine-galanthaminium salts. Bioorg
Med Chem Lett 10:637–639
38. Treu M, Jordis U, Mereiter K (2001) 12H-[2]-
Benzothiepino[6,5a,5-bc]benzofuran: synthe-
sis of a sulfuranalog of galanthamine. Hetero-
cycles 55:1727–1735
50. Ellman GL, Courtney KD, Andreas V Jr,
Featherstone RM (1961) A new and rapid col-
orimetric determination of acetylcholinesterase
activity. Biochem Pharmacol 7:88–95
39. Poschalko A, Welzig S, Treu M, Nerdinger S,
Mereiter K, Jordis U (2002) Synthesis of (Æ)-
6-H-benzofuro[3a,3,2,ef][3]benzazepine:
anunnaturalanalog of (À)-galanthamine. Tet-
rahedron 58:1513–1518
51. Ortiz J, Berkov S, Pigni N, Theoduloz C, Roit-
man G, Tapia A, Bastida J, Feresin GE (2012)
Wild Argentinian Amaryllidaceae,
a new
renewable source of the acetylcholinesterase
inhibitor galanthamine and other alkaloids.
Molecules 17:13473–13482
40. Herlem D, Martin MT, Thal C, Guillou C
(2003) Synthesis and structure-activity rela-
tionships of open D-ring galanthamine analo-
gues. Bioorg Med Chem Lett 13:2389–2391
52. Jansen JJ, Martin EJ (2004) Target-biased
scoring approaches and expert systems in
structure-based virtual screening. Curr Opin
Chem Biol 8:359–364
41. Greenblatt HM, Guillou C, Guenard D, Arga-
man A, Botti S, Badet B, Thal C, Silman I,
Sussman JL (2004) The complex of a bivalent
derivative of galanthamine with torpedo acetyl-
cholinesterase displays drastic deformation of
the active-site gorge: implications for
structure-based drug design. J Am Chem Soc
126:15405–15411
53. Jain AN (2004) Virtual screening in lead dis-
covery and optimization. Curr Opin Drug Dis-
cov Devel 7:396–403
54. Kishan KV (2007) Structural biology, protein
conformations and drug designing. Curr Pro-
tein Pept Sci 8:376–380
42. Bartolucci C, Haller LA, Jordis U, Fels G,
Lamba D (2010) Probing Torpedo californica
55. Villoutreix BO, Renaut N, Lagorce D, Speran-
dio O, Montes M, Miteva MA (2007) Free

176
Irini Doytchinova et al.
resources to assist structure-based virtual
ligand screening experiments. Curr Protein
Pept Sci 8:381–411
60. Debnath AK (2013) Rational design of HIV-1
entry inhibitors. Methods Mol Biol
993:185–204
56. Fukunishi
Y
(2009) Structure-based drug
61. Safavi M, Baeeri M, Abdollahi M (2013) New
methods for the discovery and synthesis of
PDE7 inhibitors as new drugs for neurological
and inflammatory disorders. Expert Opin Drug
Discov 8:733–751
screening and ligand-based drug screening
with machine learning. Comb Chem High
Throughput Screen 12:397–408
57. Sobhia ME, Singh R, Kare P, Chavan S (2010)
Rational design of CCR2 antagonists: a survey
of computational studies. Expert Opin Drug
Discov 5:543–557
62. Kumar V, Chandra S, Siddiqi MI (2014)
Recent advances in the development of anti-
viral agents using computer-aided structure
based approaches. Curr Pharm Des
20:3488–3499
58. Kirchmair J, Distinto S, Liedl KR, Markt P,
Rollinger JM, Schuster D, Spitzer GM, Wolber
G (2011) Development of anti-viral agents
using molecular modeling and virtual screen-
ing techniques. Infect Disord Drug Targets
11:64–93
63. Tomioka H (2014) Current status and perspec-
tive on drug targets in tubercle bacilli and drug
design of antituberculous agents based on
structure-activity relationship. Curr Pharm
Des 20:4305–4306
59. Scotti L, BezerraMendonca FJ Jr, Magalhaes
Moreira DR, da Silva MS, Pitta IR, Scotti MT
(2012) SAR, QSAR and docking of anticancer
flavonoids and variants: a review. Curr Top
Med Chem 12:2785–2809
64. Siddiqi NI, Siddiqi MI (2014) Recent advances
in QSAR-based identification and design of
anti-tubercular agents. Curr Pharm Des
20:4418–4426
