Bimetallic nanoparticle decorated perovskite oxide for state-of-the-art trifunctional electrocatalysis

Article abstract of DOI:10.1039/c9ta06123a

The development of stable ABO₃ type perovskite oxides with trifunctional electrocatalytic activity is an arduous task. Such a feat is achieved by exsolution of the B-site cations to bimetallic nanoparticles (NPs) decorated on the perovskite surface. Sr_0.95Nb_0.1Co_0.9-xNi_xO_3-δ (0.1 ≤ x ≤ 0.4) was prepared by calcination at 1000 °C and treated under 10% H₂/N₂ to create <30 nm Co-Ni exsolved NPs. Oxygen evolution reaction (OER) and oxygen reduction reaction (ORR) activities are facilitated with x = 0.1 composition whereas hydrogen evolution reaction (HER) activity is boosted when x = 0.2. NP exsolution at 400 °C results in remarkable improvement in the activities such that the overpotentials drop by 58, 48 and 91 mV from their preceding parent compositions to 380, 347 and 208 mV at 10 mA cm^-2, -3 mA cm^-2 and -10 mA cm^-2 for the OER, ORR and HER, respectively at pH 14. In terms of pH universality, HER overpotential is redressed to 183 mV at pH 0. The improved catalytic activity as compared to several reported perovskite oxide and non-perovskite based systems could be attributed to the simultaneous regulation of an optimal e_g orbital filling, cation vacancies at catalytically active B-sites, lower metal-oxygen bond hybridization, oxygen non-stoichiometry, surface oxygen vacancies, and ionic and charge-transfer abilities.

Full text of DOI:10.1039/c9ta06123a

View Article Online
View Journal
Journal of
Materials Chemistry A
Materials for energy and sustainability
Accepted Manuscript
This article can be cited before page numbers have been issued, to do this please use: Q. A. Islam, R.
Majee and S. Bhattacharyya, J. Mater. Chem. A, 2019, DOI: 10.1039/C9TA06123A.
Volume
Number 12
March 2018
Pages 4883-5230
6
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
28
Journal of
Materials Chemistry A
Materials for energy and sustainability
rsc.li/materials-a
Accepted Manuscripts are published online shortly after acceptance,
before technical editing, formatting and proof reading. Using this free
service, authors can make their results available to the community, in
citable form, before we publish the edited article. We will replace this
Accepted Manuscript with the edited and formatted Advance Article as
soon as it is available.
You can find more information about Accepted Manuscripts in the
Information for Authors.
Please note that technical editing may introduce minor changes to the
text and/or graphics, which may alter content. The journal’s standard
Terms & Conditions and the Ethical guidelines still apply. In no event
shall the Royal Society of Chemistry be held responsible for any errors
or omissions in this Accepted Manuscript or any consequences arising
from the use of any information it contains.
ISSN 2050-7488
COMMUNICATION
Zhenhai Wen et al.
An electrochemically neutralized energy-assisted low-cost
acid-alkaline electrolyzer for energy-saving electrolysis
hydrogen generation
rsc.li/materials-a

Page 1 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
Bimetallic Nanoparticle Decorated Perovskite Oxide for State-of-the-art
Trifunctional Electrocatalysis
Quazi Arif Islam, Rahul Majee and Sayan Bhattacharyya*
Department of Chemical Sciences and Centre for Advanced Functional Materials, Indian
Institute of Science Education and Research (IISER) Kolkata, Mohanpur - 741246 India
*
Email for correspondence: sayanb@iiserkol.ac.in
ABSTRACT
The development of stable ABO type perovskite oxides with trifunctional electrocatalytic
3
activity is an arduous task. Such a feat is achieved by exsolution of the B-site cations to
bimetallic nanoparticles (NPs) decorated on perovskite surface. Sr0.95Nb Co Ni O (0.1 ≤ x
0.1
0.9-x
x
3-δ
o
≤
0.4) was prepared by calcination at 1000 C and treated under 10% H /N to create <30 nm Co-
2 2
Ni exsolved NPs. Oxygen evolution reaction (OER) and oxygen reduction reaction (ORR)
activities are facilitated with x = 0.1 composition whereas hydrogen evolution reaction (HER)
o
activity is boosted when x = 0.2. NP exsolution at 400 C results in remarkable improvement in
the activities such that the overpotentials drop by 58, 48 and 91 mV from their preceding parent
-2
-2
-2
compositions to 380, 347 and 208 mV at 10 mA cm , -3 mA cm and -10 mA cm for OER,
ORR and HER, respectively at pH 14. In terms of pH universality, HER overpotential is
redressed to 183 mV at pH 0. The improved catalytic activity as compared to several reported
perovskite oxide and non-perovskite based systems owes to the simultaneous regulation of an
optimal e orbital filling, cation vacancies at catalytically active B-sites, lower metal-oxygen
g
bond hybridization, oxygen non-stoichiometry, surface oxygen vacancies, ionic and charge-
transfer abilities.
1

Journal of Materials Chemistry A
Page 2 of 25
View Article Online
DOI: 10.1039/C9TA06123A
Introduction
The increasing global demands for eco-friendly and low cost renewable storage and
conversion technologies have propelled the advent of state-of-the-art electrocatalysts for devices
such as metal-air batteries, fuel cells, and water electrolyzers.1-3 While the fundamental
challenges in terms of performance, cost and operational stability are major concerns, the
sluggish kinetics of oxygen electrocatalytic reactions that limit the efficiency and power density
of the devices need prime attention.4,5 Furthermore for cost reduction and system simplification
in industrial applications, the development of homologous catalysts with multifunctional activity
in OER, ORR and HER is technologically vital.1,6,7 Such a desirable catalyst should also work at
lower overpotentials surpassing the benchmark precious metal/metal oxides.
In this context, the ABO type perovskite oxides besides having interesting physical
3
attributes,8,9 have emerged as cost-effective electrocatalysts due to their key properties such as
generation of redox couples due to flexibility of metal oxidation states upon doping, tunable
structural defects, high ionic conductivity, and fast oxygen exchange kinetics.10,11 For example,
1
2
Ba Sr Co Fe O (BSCF) has been highlighted as a strong candidate for ORR/OER, and
0
.5 0.5
0.8
0.2 3-δ
1
3
recently as HER catalyst, while in the early 1990s, Goodenough et al. reported Sr NbO as
1
-x
3-δ
HER catalyst in strong acids.14 Although perovskite oxides with structural and chemical
flexibilities can catalyze OER/ORR efficiently, they were not studied extensively for HER
catalysis. In the SrMO (M = 3d transition metal) family, although SrNiO is theoretically more
3
3
1
5
covalent and catalytically active than SrCoO , the highly covalent Co 3d - O 2p bonding in
3
1
6
SrCoO2.7 results in an improved OER activity. Nb doping in SrCoO is particularly beneficial
3
for the improvement of OER activity in alkaline medium, even surpassing the benchmark IrO2
1
7
and BSCF catalysts, whereas nanostructured SrNb Co Fe O shows a decent bifunctional
0
.1
0.7
0.2 3-δ
6
OER/HER activity. Nevertheless the oxygen electrocatalytic activity of perovskite oxides still
lag behind several other nanoheterostructures, alloys and layered double hydroxides.2,5,7
The catalytic activity of perovskite oxides can be improved by in situ decoration of
1
8
metallic NPs on their surface. The traditional methods of surface incorporation of NPs are wet
impregnation or vapor deposition, which however offer limited control over size, distribution,
anchorage of the deposited particles along with coarsening and agglomeration of the NPs at
o
19,20
higher temperatures (≥700 C) leading to performance degradation.
In case of NPs grown by
traditional methods at low or room temperature, there is always a possibility of agglomeration
2

Page 3 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
and detachment of NPs from the catalyst surface during long term operation at high applied
potential. In situ surface immobilization of metallic NPs exsolved from the parent perovskite
lattice can avoid such issues and this strategy has been applied in high-temperature solid oxide
fuel cells and room temperature electrocatalytic applications.21-25 Although the stability of such a
1
9
surface immobilization is still not understood, the exsolution process is particularly facilitated
2
6
from A-site vacant ABO lattice. A:B stoichiometry plays a vital role during the exsolution
3
process. When A/B = 1, B site vacancies created by exsolution usually results in the segregation
of A-site cations, leading to a decrease in the catalytic activity but in the presence of A-site
deficiency (A/B < 1), A-oxides are less likely to form upon exsolution and a wider range of NP
compositions with superior surface distribution and coverage can be achieved. A-site deficiency
therefore serves as a general driving force to trigger B-site exsolution along with the formation
of stable perovskite structure preventing the undesirable components containing A-site cation.27
In spite of the advantage of creating additional catalytically active sites by surface modification
with metal NPs,1,11 the challenge is steeper when this strategy is applied to create a NP decorated
single perovskite composition with trifunctional catalytic activity for OER, ORR and HER. The
chosen exsolution temperature, particle size and surface area control, optimization of e orbital
g
filling and rational steering of the defect chemistry thereby tuning the electronic environment are
the crucial factors in governing the electrocatalytic activity.11,28
Herein we exhibit a perovskite composition that can be engineered into an efficient
trifunctional electrocatalyst. Starting from SrCoO3 (SC) and SrCo Nb O
(SCN),
0.9
0.1 3-δ
Sr0.95Nb Co Ni O (SNCN, 0.1 ≤ x ≤ 0.4) was prepared by non-aqueous sol-gel method and
0.1
0.9-x
x
3-δ
then reduced in 10% H /N atmosphere at different temperatures to create exsolved Co-Ni NPs.
2
2
A uniform distribution of smaller Co-Ni NPs can be tuned at lower reduction temperatures which
results in improved ORR, OER and HER activity with lower overpotentials, In turn surpassing
many reported perovskite oxide catalysts. Besides the presence of bimetallic NPs on the oxide
surface, the enhanced catalytic activity in alkaline medium is due to a synergism between the
oxide host and exsolved NPs, B-site point defects, oxygen non-stoichiometry, optimized eg
filling, surface oxygen defects, metal-oxygen bond covalency, charge transfer resistance and
effective metallicity at B-site of the perovskite.
3

Journal of Materials Chemistry A
Page 4 of 25
View Article Online
DOI: 10.1039/C9TA06123A
Results and discussion
The introduction of point defects by cation exsolution occurs through the instantaneous
creation of oxygen and metal vacancies, according to step (1) in the following mechanism. The
surface metal oxide thus formed is then converted to the corresponding metal under reducing
atmosphere according to step (2):
Bx
+ O  BO (s) + V + VCo/Ni
x
00
(1)
(2)
Co/Ni
0
O
BO (s)  BMetallic (s) + ½O (g)
2
where, Bx
is the B-site dopant with net charge zero, O is oxygen in the lattice with net
0
x
Co/Ni
charge zero, VO00 is the oxygen ion vacancy with net charge +2, VCo/Ni is the cation vacancy at
B-site with net charge -2, and BO is the oxide formed with B-site cation. Oxygen vacancies
enable a relatively inactive catalyst surface to become reactive even at room temperature.
Presence of surface oxygen vacancies accelerate the kinetics of redox reactions by reducing the
2
9
energy barriers, and moreover the initially adsorbed species gets trapped at these defect sites for
3
0
conversion to new chemical entities which otherwise may diffuse along the surface. The
vacancy sites also possess weakly bound electrons which serve as Lewis base sites for adsorption
of molecules and forming the intermediates, thereby making the overall reaction more efficient.31
Since surface co-segregation of Co, Ni, and Co-Ni accompanied by oxygen vacancy is
thermodynamically favorable,19,32 the possibility of bimetallic NP formation on the perovskite
surface becomes a feasible process. SrNb Co Ni O (0.1 ≤ x ≤ 0.4) perovskites were
0
.1
0.9-x
x
3-δ
o
obtained by calcination at 1000 C and even with A-site vacancy and partial substitution of Co by
Nb and Ni, the X-ray diffraction (XRD) patterns conform to the parent SrCoO3-δ according to
JCPDS 39-1083 (Fig. S1a†).
Rietveld
refined
XRD
patterns
of
Sr0.95Co Nb Ni O
(S1)
and
0.8
0.1
0.1 3-δ
Sr0.95Co Nb Ni O (S2) show their crystallization in the perovskite phase with space group
0.7
0.1
0.2 3-δ
Pm-3m (Fig. 1a and b). With increasing Ni content the (110) reflection gradually shifts to higher
2
+
2+
2
 indicating reduction in lattice volume due to the ionic radii of Ni and high spin Co being
0
.69Å and 0.745Å, respectively (Fig. S1b†). The composition estimated by X-ray fluorescence
(XRF) shows the Sr:Co:Nb:Ni ratio to be 47.7:39.7:4.8:5.1 for S1 and 46.9:35.7:4.9:9.8 for S2,
o
which are very close to the original compositions. After reduction at 400 C in 10% H /N , both
2
2
S1-400 and S2-400 retain their perovskite structure predominantly along with the formation of
4

Page 5 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
impurity phases such as CoO and NbO (Fig. S1c and d†). The exsolved bimetallic CoNi
2
o
reflection at 2θ = 44.3 lies in between Co (JCPDS 15-0806) and Ni (JCPDS 04-0850).

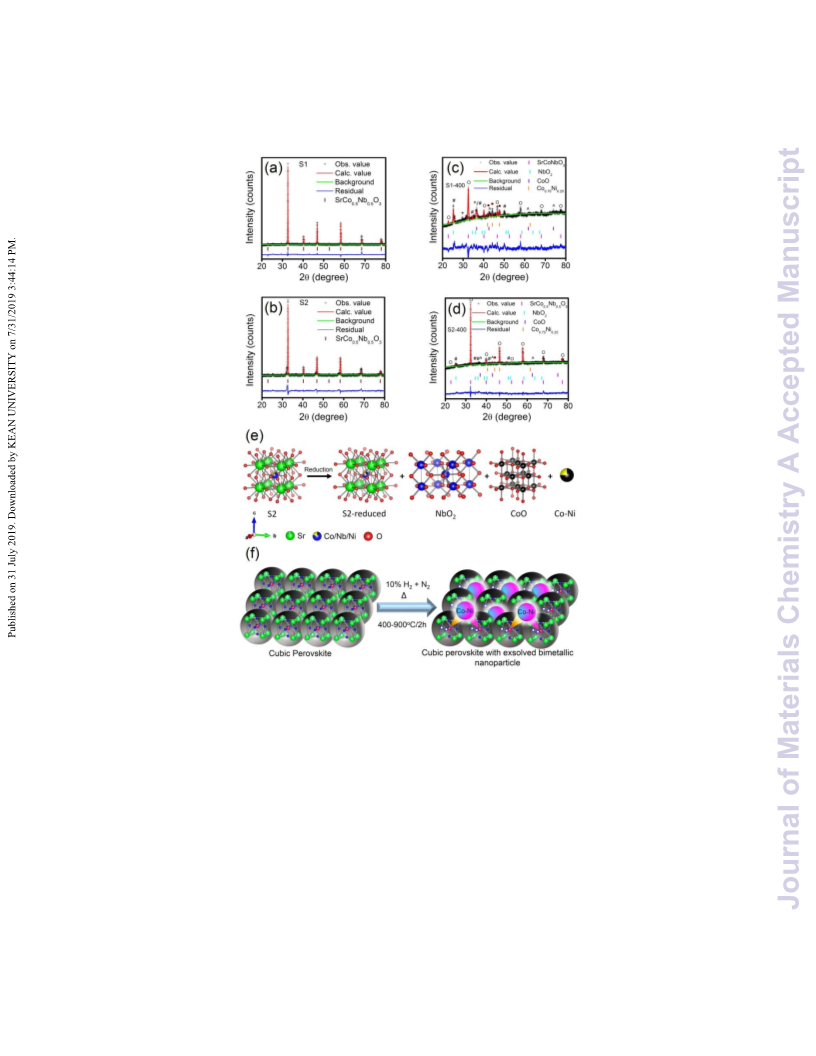

Fig. 1 Rietveld refined XRD patterns of (a) S1, (b) S2, (c) S1-400 and (d) S2-400. Schematic
representations of (e) structural transformation and (f) surface morphology evolution of S2 to S2-
4
00 under reducing atmosphere. The symbols are: perovskite (o), NbO (#), CoO (^), CoNi (●)
2
and unknown phase (+).
o
With the rise in reduction temperature up to 900 C, the perovskite structure starts to degrade
more along with the formation of higher amount of impurity phases. Surface localization of the
NPs results in Schottky type defects and oxygen vacancies within the perovskite lattice, because
of which the repulsive force between neighboring cations expands the lattice observed from a
2
1
downshift of the (110) reflection (Fig. S1e and f†). The oxygen nonstoichiometry (δ) is found
to be 0.22, 0.28, 0.33, and 0.39 for S1, S2, S1-400, and S2-400, respectively (Discussion S1 and
5

Journal of Materials Chemistry A
Page 6 of 25
View Article Online
DOI: 10.1039/C9TA06123A
Table S1†). In S1-400 and S2-400, while the perovskite phase in the XRD patterns were refined
against SrCo Nb O (Crystallography Open Database, COD 1522293), the reflections of
0
.5
0.5
3
bimetallic CoNi NPs were matched with Co0.75Ni0.25 (COD 1525374) and the impurity phases
were refined against CoO (COD 1533087) and NbO (COD 1548821) (Fig. 1c and d). In S1-400
2
and S2-400, the B-site point defects weaken the hybridization strength between B-site metal and
3
3
O, because of which the B-O bond length increases (Table 1). Although exsolution maintains
an intact perovskite lattice there are local changes in electronic environment around the B-site
cation due to introduction of point defects, accompanied by surface localization of bimetallic
NPs and metal oxide impurities of NbO and CoO, schematically represented in Fig. 1e and f.
2
Table 1. Rietveld refinement data.
Sample
S1
S2
S1-400
S2-400
A
Volume (Å3)
58.239
57.956
58.873
59.511

Rwp
B-O (Å)
1.938
1.935
1.945
1.952
3.8762
3.8699
3.8902
3.9042
0.93
1.75
2.61
2.37
2.18
3.55
5.74
4.18
Fig. 2 Low and high resolution TEM images with SAED patterns of (a) S1, (b) S2 (c) S1-400
and (d) S2-400. The legible heterojunction between exsolved CoNi and the perovskite host is
shown in (c) and (d).
6

Page 7 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
High temperature reduction in 10% H /N changes the agglomerated clusters of parent
2
2
perovskite oxides (Fig. S2†) to exsolved 15-80 nm NPs uniformly distributed on the perovskite
o
oxide surface (Fig. S3 and Fig. S4†). Exsolution at 400-500 C maintains the surface localized
NP size to 15-30 nm, ideal for maintaining the catalytically active sites. Transmission electron
microscopy (TEM) images in Fig. 2 show the anisotropic morphology of the perovskite oxide
particles. The lattice spacing of 0.27 nm matches well with (110) reflection and selected area
electron diffraction (SAED) patterns with the (110), (111), (210), (211) and (220) diffraction
spots of cubic perovskite lattice validate the crystallinity of the particles. In S1-400 and S2-400,
the surface localization of the <30 nm NPs on the perovskite surface is clearly visible (Fig. 2c
and d†), with a crystalline hetero-junction between the perovskite backbone and exsolved NP.
The measured d-spacing can be assigned to (110) plane of SNCN perovskite (0.27 nm) and (111)
plane of CoNi bimetallic NP (0.21 nm). The bimetallic nature of the exsolved NPs is validated
from the high-angle annular dark-field scanning TEM (HAADF-STEM) imaging coupled to
energy-dispersive X-ray spectral (EDS) mapping in Fig. 3 where only Co and Ni are observed on
the NPs in comparison to the perovskite backbone where all the elements are uniformly
distributed. The perovskite backbone after high temperature reduction strongly resembles the
elemental maps of S1 and S2, before reduction (Fig. S5†). Oxygen signal is absent on the
exsolved NPs, further strengthening the claim of their composition to be Co-Ni. When the
o
reduction was performed at a higher temperature such as 900 C, the diameter of the exsolved
NPs expectedly increases to 50-80 nm (Fig. S6†). The surface segregation of the Co-Ni NPs was
also cross-checked from atomic force microscopy (AFM) where ~20 nm NPs are observed to be
uniformly distributed on the perovskite surface (Fig. S7†).
The oxidation states of the elements were elucidated from the X-ray photoelectron
spectral (XPS) analyses (Fig. 4, Fig. S8, Fig. S9 and Table S2 and S3†). Between different
perovskite oxide compositions, S1 and S2, no significant change in the binding energies of Sr 3d
and Nd 3d levels is observed (Fig. S8†). The O 1s spectra are deconvoluted to four characteristic
2
-
2-
-
peaks of lattice oxygen species, O (529.6 eV), highly oxidative species, O /O (530.5 eV),
2
hydroxyl groups or the surface adsorbed oxygen, -OH/O (531.2 eV) and adsorbed molecular
2
water (532.5 eV) (Fig. S9†).6,13 From the area of fitted peaks, the relative content of O /O
2-
-
2
species is found to be higher in S1 than S2, which has direct correlation with the catalytic
6
activity of the perovskites. The oxidation states of the catalytically active B-site cations are of
7

Journal of Materials Chemistry A
Page 8 of 25
View Article Online
DOI: 10.1039/C9TA06123A
most significance here (Fig. 4). The Co 2p3/2 and 2p1/2 doublets at 780.42 and 795.60 eV for S1,
and 780.23 and 795.45 eV for S2, respectively are deconvoluted into three peaks corresponding
3
+
2+
to Co , Co and Co satellite. From the relative peak area, the average cobalt oxidation state is
calculated to be 2.60 and 2.45 for S1 and S2, respectively.

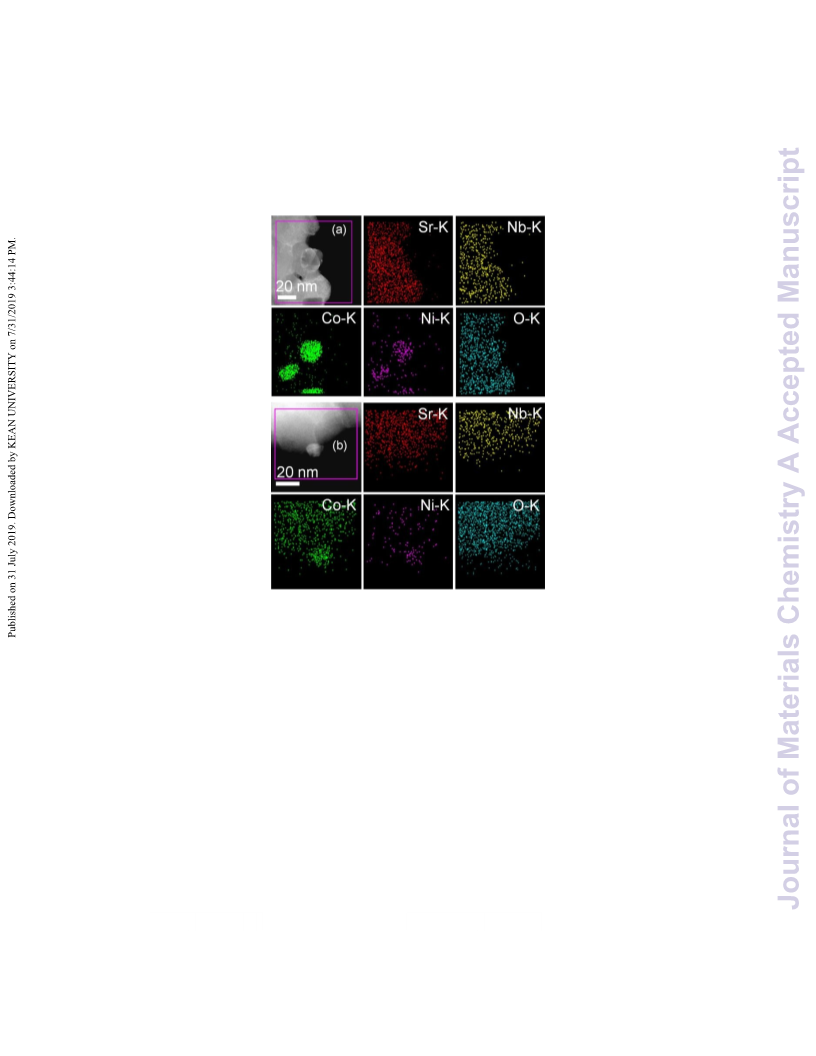

Fig. 3 STEM-HAADF images and elemental mapping of (a) S1-400 and (b) S2-400, showing the
exclusive presence of Co and Ni in the exsolved NPs.
Similarly the Ni 2p3/2 and 2p1/2 peaks observed at 855.71 and 872.19 eV for S1, and
3
+
2+,
8
55.55 and 872.73 eV for S2, respectively are deconvoluted into Ni , Ni and Ni satellite. The
average oxidation state of Ni is found to be 2.34 and 2.20 in S1 and S2, respectively.
3
+
2+
3+
Considering Co in intermediate-spin state, Co in the high-spin state and Ni as low-spin, the
eg orbital filling is 1.23 and 1.37 for S1 and S2, respectively, close to the reported best eg
occupancy of 1.0 for ORR and 1.2 for OER.28,34 Due to bimetallic NP segregation at the
0
0
perovskite oxide surface, S1-400 and S2-400 also have metallic Co and Ni states observed at
78 and 852.40 eV, respectively. The spectral broadness is due to the presence of multiple
7
species which results in multiplet splitting of conduction electrons and shake-up phenomena,
8

Page 9 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
and/or intra-and inter-band transitions allowed by breakdown of dipole selection rules in
polycrystalline samples with delocalized electrons.35

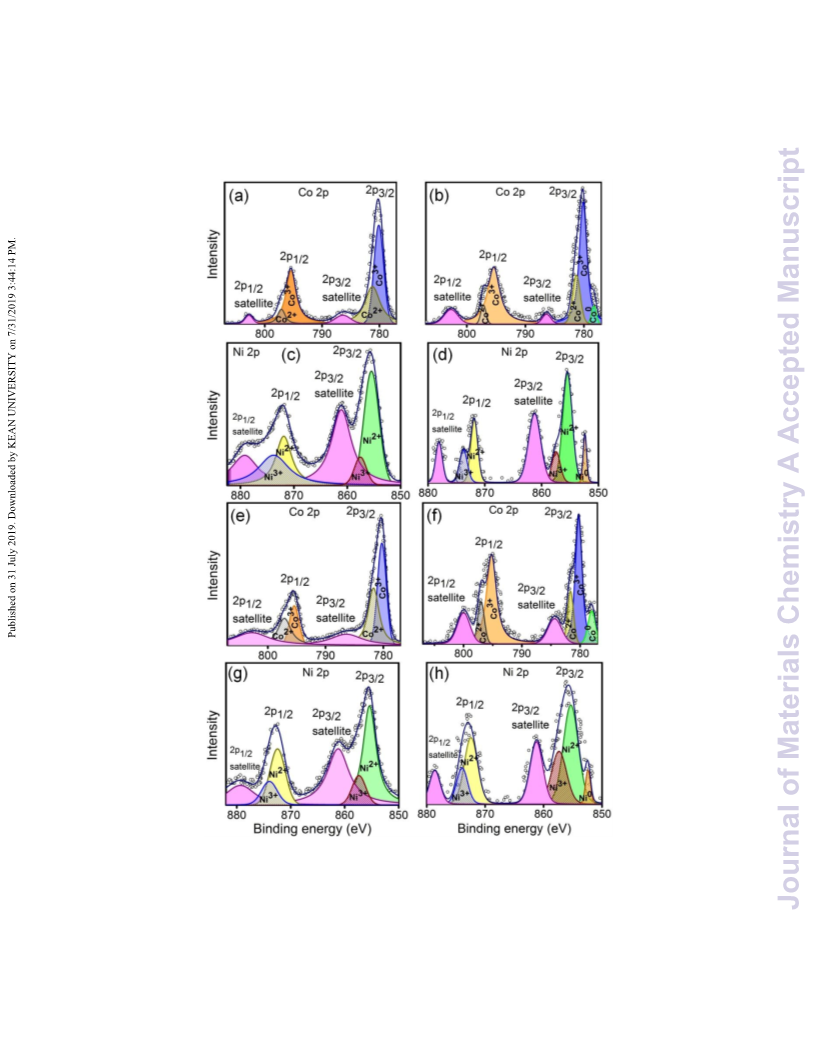

Fig. 4 XPS spectra of Co 2p level in (a) S1 and (b) S1-400; Ni 2p level in (c) S1 and (d) S1-400;
Co 2p level in (e) S2 and (f) S2-400; Ni 2p level in (g) S2 and (h) S2-400.
9

Journal of Materials Chemistry A
Page 10 of 25
View Article Online
DOI: 10.1039/C9TA06123A
-2

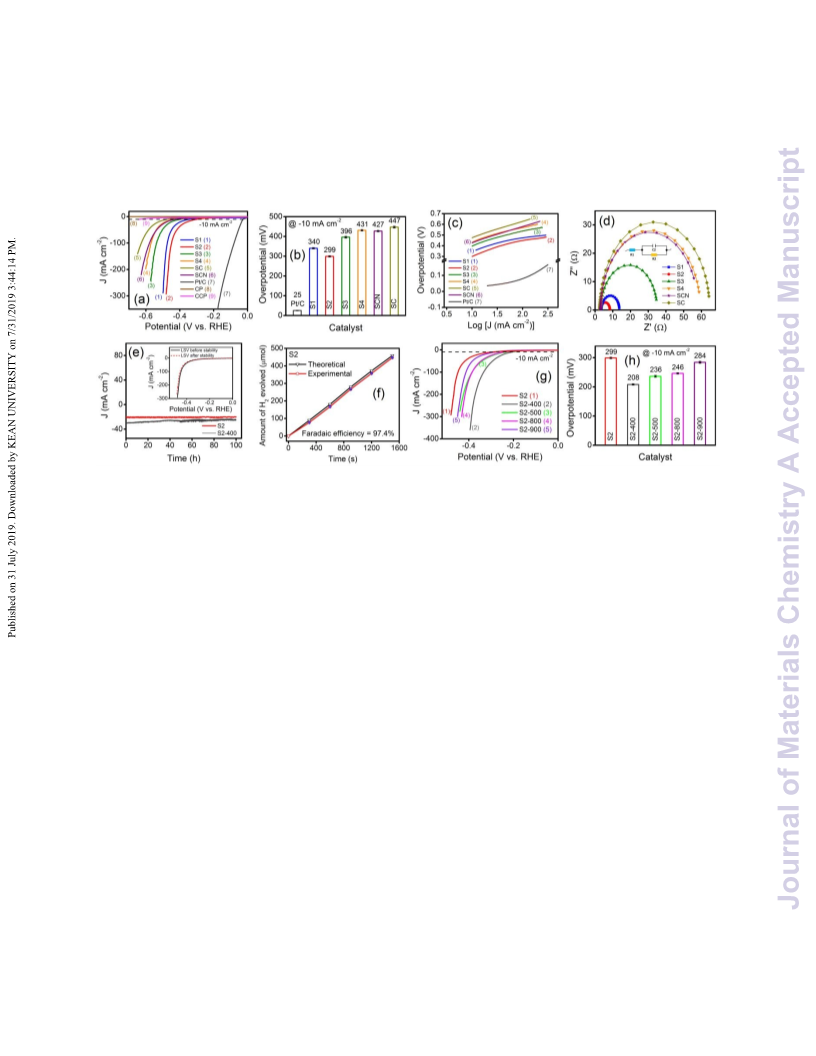

Fig. 5 (a) LSV polarization curves for OER, (b) required overpotentials to achieve 10 mA cm ,
c) Tafel plots of the perovskite oxides with different compositions. (d) Nyquist plots obtained at
.6 V versus RHE for OER. Inset shows the equivalent circuit. (e) Chronoamperometric
(
1
durability test of S1 and S1-400. Inset shows the LSV curves of S1 before and after the durability
test. (f) Faradaic efficiency of S1 showing the theoretically calculated and experimentally
measured O gas with time at -1.7 V versus RHE. (g) OER polarization curves of differently
2
-2
reduced S1 and (h) their required overpotentials to achieve 10 mA cm .
The above characterization details have direct implications on the electrocatalytic
activities of the SNCN catalysts before and after reduction. Fig. 5a shows the linear sweep
voltammogram (LSV) curves demonstrating OER activity of the catalysts mixed with 10 wt%
conducting carbon black. Both carbon paper (CP) and conducting carbon powder (CCP) show
negligible activity validating no significant role of the electrodes themselves. S1 shows an onset
potential of 1.55 V which is little higher compared to state-of-the-art OER catalysts including
IrO2.17,36 S1 catalyst shows the lowest overpotential (η ) of 438 mV while all other catalysts in
10
the series show lesser performance (Fig. 5b). The activity trend draws a direct correspondence to
2
-
-
the e orbital filling and O /O ratios, discussed earlier. The Tafel slope of S1 is found to be 64
g
2
-1
mV dec (Fig. 5c and Table S4†) which is lower than that other reported catalysts like
-1
-1 17
Ba Sr Co Fe O (94 mV dec ), SrNb Co Fe O (76 mV dec ), Pr Ba CoO (82
0
.5 0.5
0.8
0.2 3-δ
0.1
0.7
0.2 3-δ
0.5
0.5
3-δ
-1
36
-1 37
38-60
mV dec ), and LaNiO (95 mV dec ), indicating superior kinetics of S1 (Table S5†).
3
‑δ
Nyquist plots reveal the least charge transfer resistance for S1 (Fig. 5d). The best performing
catalyst, S1 shows excellent stability for at least 100 h at a constant potential of 1.68 V (vs.
-2
RHE) to achieve a current density of 20 mA cm (Fig. 5e). The catalyst morphology remains
1
0

Page 11 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
intact after 100 h demonstrating its suitability for long-term operation (Fig. S10†). The faradic
efficiency of OER measured by eudiometry is 96% revealing maximum consumption of charge
and absence of any side reaction (Fig. 5f). Among the reduced samples containing exsolved NPs,
S1-400 shows the best OER activity with an onset potential 1.5 V and overpotential of 380 mV
-2
to achieve a current density of 10 mA cm (Fig. 5g and h). The decrease in η by 58 mV from
1
0
S1 to S1-400 without compromising the 100 h stability (Fig. 5e) owes to the creation of point
defects by introducing cation vacancies at the catalytically active B-site of perovskite oxide
lattice, and enhanced electrochemically active surface area (ECSA). ECSA is directly
proportional to the electrochemical double-layer capacitance (C ) which is 8, 5, 13 and 11 mF
dl
for S1, S2, S1-400 and S2-400, respectively (Fig. S11†), highlighting the significance of
exposing more active sites by exsolution. Furthermore, the intrinsic property of the OER catalyst
-1
is revealed by another figure-of-merit, the turnover frequency (TOF), which is 0.11 s for S1-
-1
4
00 larger than 0.03 s for S2-400 at 300 mV overpotential (Discussion S2†). With further rise
o
in reduction temperature from 400 to 900 C, η increases since the perovskite structure starts to
1
0
disintegrate (Fig. 1) accompanied by the exsolved NP diameter (Fig. S3†). The lowest OER
overpotential that of S1-400 is in fact lower or comparable to other literature reported perovskite
oxide catalysts (Table S5†).
Fig. 6 (a) LSV polarization curves for ORR at 1600 rpm, (b) required overpotentials to achieve -
-2
3
mA cm , (c) Tafel plots of the perovskite oxides with different compositions. (d) Nyquist plots
obtained at 0.5 V versus RHE for ORR at 1600 rpm. Inset shows the equivalent circuit. (e) LSV
polarization curves for ORR of S1 at different rpm. (f) Chronoamperometric durability test of S1
and S1-400. Inset shows the LSV curves of S1 before and after the durability test. (g) ORR
polarization curves of differently reduced S1 and (h) their required overpotentials to achieve -3
-
2
mA cm .
1
1

Journal of Materials Chemistry A
Page 12 of 25
View Article Online
DOI: 10.1039/C9TA06123A
The electronic structure dependent ORR performance measured by rotating disc electrode
(
RDE) in O -saturated 1 M KOH solution is evident from the LSV plots recorded at a rotation
2
speed of 1600 rpm (Fig. 6a). As expected, Pt/C shows the best ORR performance while CP and
CCP show negligible activity. Here too S1 shows the best ORR activity in the series with an
-2
onset potential of 0.97 V (Fig. S12†) and a limiting current density of -6.2 mA cm . The
-2
overpotential to reach a current density of -3 mA cm is found to be minimum for S1 (395 mV,
Fig. 6b) and this activity is superior or comparable to several perovskite oxides reported in the
literature (Table S5†).12,38-63 S1 also shows more positive half-wave potential as compared to rest
of the compositions viz. 0.87 V for S1, 0.82 V for S2, 0.75 V for S3 and 0.65 V for S4 versus
RHE. In the control cyclic voltammetry (CV) experiments with S1, there has been no
-1
oxidation/reduction feature in N saturated solution in 1 M KOH at 10 mV s however a small
2
ORR peak appears in O saturated medium at 0 rpm (Fig. S13†). At 1600 rpm in O saturated
2
2
KOH medium, the current increases which is consistent with previous reports confirming high
-1
ORR activity of S1 (Table S5†). S1 also shows a Tafel slope of only 90 mV dec (Fig. 6c and
Table S4†) and lower electron-transfer resistance (Fig. 6d). At different rotations, 0-2800 rpm,
the current changes from a transient behavior to steady state curve, demonstrating positive
relationship of the limiting current density with rotation speed (Fig. 6e). The
chronoamperometric test at 483 mV versus RHE reveals no loss in current density even after 10h
operation (Fig. 6f) and the LSV curves measured at 1600 rpm before and after the stability test
show no significant change indicating superior stability of S1 catalyst (Fig. 6f inset) also
retaining its morphology intact (Fig. S14†). Similar to OER, the ORR performance of S1-400 is
the best among the reduced samples, with an overall decrease in overpotential at -3 mA cm-2
from S1 to S1-400 by 48 mV (Fig. 6g and h). The synergistic contribution of the exsolved NPs
and host perovskite along with the surface oxygen defects, optimized e filling and lower metal-
g
oxygen bond hybridization result in improved ORR activity of S1-400.23 The presence of
catalytically inactive NbO on the perovskite oxide surface is thereby surpassed by the active
2
bimetallic Co-Ni NPs.
The remaining last part of the trifunctional activity of these perovskite catalysts is HER
and herein S2 shows better activity than S1 considering the η-10 values (Fig. 7a and b). While by
Nb doping, η-10 decreases from SC (447 mV) to SCN (427 mV), the B-site Ni-doping further
decreases η-10 from S1 (340 mV) to S2 (299 mV). An excess of Ni doping as in S3 and S4
1
2

Page 13 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
however does not help. The effective metallicity and optimized oxygen vacancy concentration
1
3
boost the HER activity of S2, which is better than BSCF (η = 342 mV), and several other
1
0
bulk or nanostructured perovskite / non-perovskite electrocatalysts (Table S6†).13,64-73
-2

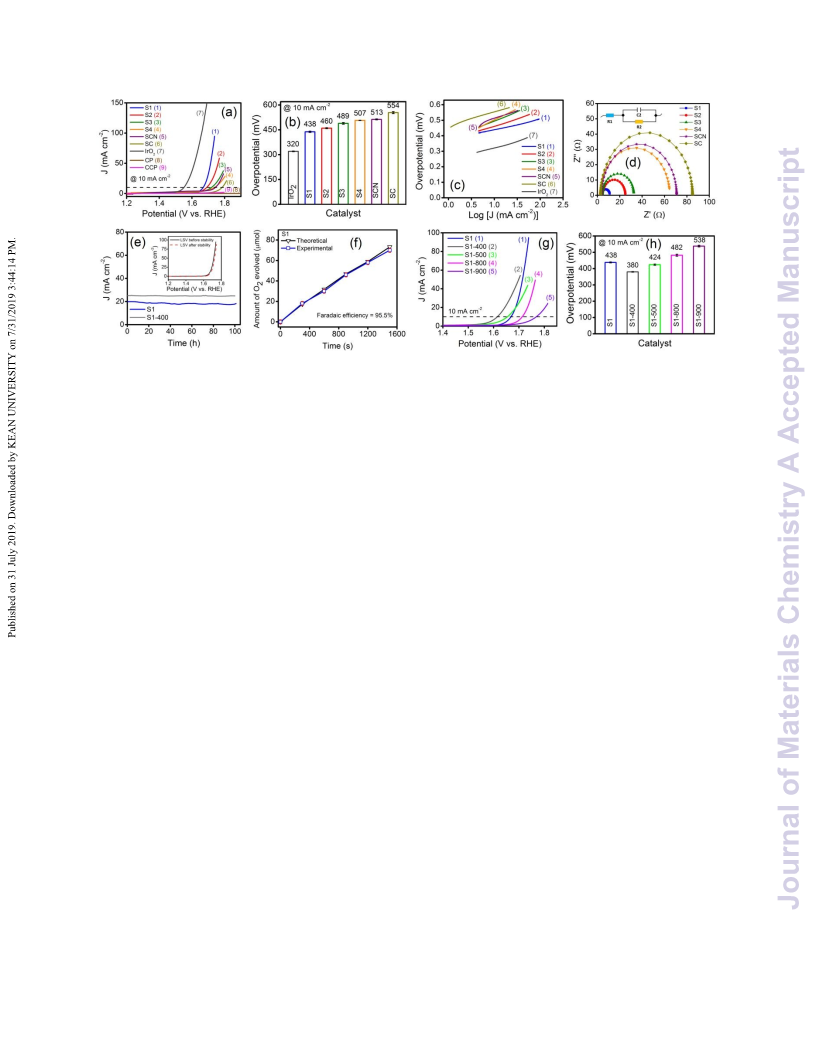

Fig. 7 (a) LSV polarization curves for HER, (b) required overpotentials to achieve -10 mA cm ,
(
-
c) Tafel plots of the perovskite oxides with different compositions. (d) Nyquist plots obtained at
0.4 V versus RHE for HER. Inset shows the equivalent circuit. (e) Chronoamperometric
durability test of S2 and S2-400. Inset shows the LSV curves of S2 before and after the durability
test. (f) Faradaic efficiency of S2 showing the theoretically calculated and experimentally
measured H gas with time at -0.4 V versus RHE. (g) HER polarization curves of differently
2
-2
reduced S2 and (h) their required overpotentials to achieve -10 mA cm .
The Tafel slopes obtained from the Tafel plots (Fig. 7c) are however the lowest for S1 (64 mV
-1
-1
dec ) than for S2 (80 mV dec ) (Table S4†). In fact the slopes do not match with the limiting
-1
values of 120, 40 or 30 mV dec applicable for the Volmer, Heyrovsky or Tafel processes,
respectively.13 Therefore ambiguities exist regarding the HER mechanism which generally
involves the Volmer process (electrochemical hydrogen adsorption) followed by either the
7
4
Heyrovsky process (electrochemical desorption) or Tafel process (chemical desorption). S2 has
the fastest charge transfer kinetics (Fig. 7d) and very good stability tested for 100h at a constant
potential of 357 mV (Fig. 7e and Fig. S15†). S2 also shows a faradaic efficiency of 97.4%
demonstrating its high energy conversion efficiency (Fig. 7f). Among the reduced samples, the
best performing S2-400 works at η-10 = 208 mV, a remarkable drop of η-10 by 91 mV from S2
to S2-400 (Fig. 7g and h). The better HER performance of S2 and S2-400 than S1 and S1-400,
1
3

Journal of Materials Chemistry A
Page 14 of 25
View Article Online
DOI: 10.1039/C9TA06123A
respectively is evidently due to higher Ni content in the former two, since Ni serves as the active
2
site because of its lower Gibbs free energy of H* adsorption. In a perfect synergy in S2-400, an
intact perovskite host lattice albeit with lower metal-oxygen hybridization aids the dissociation
2
5
of water whereas the exsolved NPs assist in hydrogen adsorption. The TOF of S2-400 for HER
-1
-1
is found to be higher (2.08 H s ) than S1-400 (0.66 H s , Discussion S2†). S2-400 also shows
2
2
constant HER activity during a 100 h long run (Fig. 7e). Post OER and HER 100 h stability
experiments, XRD patterns remain similar to those before catalysis, confirming the long-term
phase stability under OER and HER conditions (Fig. S16†). In fact S2-400 is a pH universal
HER catalyst wherein at pH 0, η is only 183 mV (Fig. S17†), lower than that at pH 14, since
-10
+
reduction of H to H* is more facile than H O to H*. Because of the outstanding capability of
2
reduced samples in catalyzing OER and HER, an electrolyzer with two electrode configuration
using S1-400 and S2-400, both deposited on carbon paper, as anode and cathode, respectively
was constructed for overall water electrolysis. The S1-400 || S2-400 electrolyzer delivers a
-2
current density of 10 mA cm at a cell voltage of 1.81 V in 1 M KOH solution with continuous
release of gas bubbles (Fig. S18†).
OER and HER electrochemical measurements of the best performing catalysts, S1-400
and S2-400, were also carried out in 0.1 M KOH for effective comparison with the literature.
Due to lower ionic conductivity of the electrolyte in dilute alkaline solution, catalyzing the OER
and HER processes become slightly more strenuous, in spite of which these catalysts exhibit
prominent activity. The required overpotential for S1-400 becomes 429 mV for OER and S2-400
shows overpotential of 274 mV for HER (Fig. S19†). In case of ORR, the trend is reversed as
compared to 1 M KOH because the oxygen solubility increases with decrease in KOH
concentration (Fig. S20a†). S1-400 also shows more positive half-wave potential of 0.92 V in 0.1
M KOH compared to 0.87 V versus RHE in 1 M KOH. The overpotential to reach a current
-2
density of -3 mA cm is found to be 293 mV for S1-400 in 0.1 M KOH (Fig. S20b†). The ORR
onset potential of S1-400 also shifts to more positive value from 0.97 V in 1 M KOH to 0.98 V
in 0.1 M KOH along with the increase in current density. For quantitative evaluation of the ORR
activity of S1-400, the RRDE technique has been employed to obtain kinetic information in O2-
saturated 0.1 M KOH solution. Fig. S20c† shows the disk and ring currents collected on a rotated
S1-400 electrode at 1600 rpm. The RRDE test shows a quasi-four-electron transfer process
1
4

Page 15 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
(
above 3.9) in the potential range of 0.6-0.9 V and the yield of H O is below 2% (Fig. S20d†),
2 2
demonstrating the desired ORR activity of S1-400.
In alkaline medium, the overall HER process consists of adsorption of H O molecules
2
-
-
and their reduction to form Hads and OH , adsorption and desorption OH and formation of H
ads
7
5
-
for H evolution (Fig. S21†). OER generally proceeds through the adsorption of OH on to the
2
active sites, followed by four electron transfer steps involving a series of intermediates like HO*,
O*, and HOO* along with the redox of B-site cation.6,76 In ORR, the undissolved oxygen
molecule adsorbs directly on the active sites according to the inner-sphere mechanism, whereas
in case of outer-sphere mechanism, the surface adsorbs hydroxide ions and oxygen molecules are
7
7
-
solvated. Here too the 4e process is associated with the change in valence state of the transition
metal where O-O bond cleaves to produce O* and OOH* intermediates, and B(m+1)+-O is
2-
3
4
formed by electron transfer from the metal site to the O* intermediate. The activity of best
performing catalysts were also measured without adding 10 wt% conducting carbon black
(Figure S22†). As expected the OER, ORR and HER overpotentials slightly increase in the
absence of synergistic interfacial interaction between perovskite and carbon. The OER and ORR
overpotentials of S1-400 increase by 20 and 23 mV, respectively while the HER overpotential of
S2-400 increases by 11 mV. Besides enhancing electronic conductivity of the electrode, the
above results suggest a more complex role of carbon black, understanding the mechanism of
which needs detailed future studies. The perovskite-carbon interface likely changes the local
electronic environment of the perovskite which attunes the catalytic performance.78
Although the detailed mechanistic understanding of these reactions on perovskite oxide
surface is still limited, we have attempted elucidating the participating radicals across the
potential range of measurement, by employing scavengers for specific radical intermediates in
7
9
case of ORR only, since in the potential window of OER, the scavengers get oxidized. In the
.
-
present study KI, p-benzoquinone and sodium azide are selected as OH*, O , and OOH* radical
2
8
0
scavengers, respectively and the corresponding processes are shown in Fig. 8a and c. Adding a
scavenger at different potentials decreases the abundance of that particular radical and if the
radical plays a prominent role in that potential range, the current will also drop (Fig. S23†). The
effect of KI is more prominent at lower potentials, -0.1 and -0.4 V, while the scavenging by p-
benzoquinone and sodium azide is effective in the higher potential range, here -0.6 V. Observing
1
5

Journal of Materials Chemistry A
Page 16 of 25
View Article Online
DOI: 10.1039/C9TA06123A
the drop in current by these three scavengers (Fig. 8d and f), OH* is predominant in the entire
.
-
potential range whereas O , and OOH* play major role at higher potentials.
2

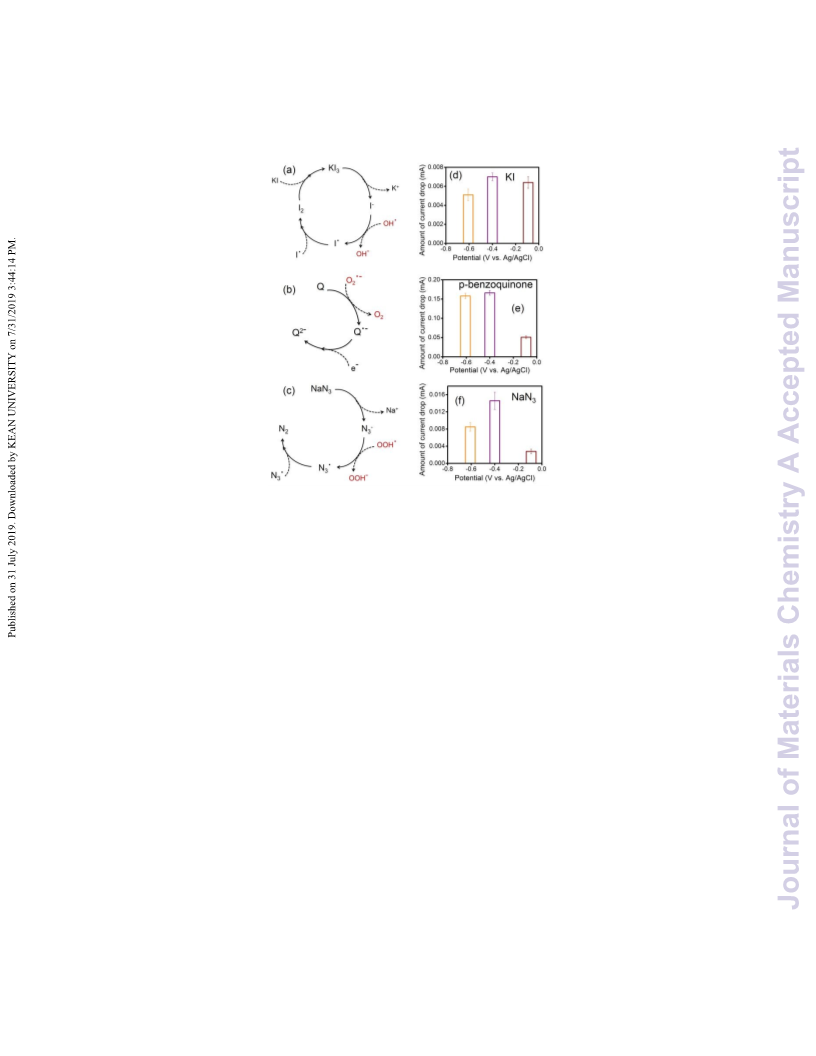

Fig. 8 Schematic representation of the radical scavenging reactions by (a) KI, (b) p-
benzoquinone and (c) NaN , and the corresponding drop in current at different potentials due to
3
addition of the scavengers, (d) KI, (e) p-benzoquinone, and (f) NaN3.
Conclusions
In summary, we demonstrated the design of trifunctional perovskite oxide catalysts by
creating oxygen vacancies and point defects by NP exsolution, and reduced B-site metal –
oxygen hybridization. Sr0.95Nb Co Ni O (SNCN, 0.1 ≤ x ≤ 0.4) systems were prepared by
0.1
0.9-x
x
3-δ
o
the nonaqueous sol-gel route and calcined at 1000 C. The oxygen vacancies and point defects
were created through exsolution of B-site metals and their uniform surface localization in the
form of <30 nm Co-Ni bimetallic NPs by reducing the perovskite oxides in 10% H /N at
2
2
o
different temperatures. 400 C was observed to be the most suitable reducing temperature since at
higher temperatures, the perovskite oxide structure was found to disintegrate. Although when x =
0
.1, both OER and ORR activity improved, whereas HER is more facilitated by x = 0.2. The
utility of the exsolution process is the remarkable drop in overpotential by 58, 48 and 91 mV at
-2
-2
-2
1
0 mA cm , -3 mA cm and -10 mA cm for OER, ORR and HER, respectively at pH 14 as
.
-
compared to the preceding parent perovskites. In case of ORR, the radical intermediates O , and
2
1
6

Page 17 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
OOH* are more active at higher potentials whereas OH* is prevalently active over the entire
potential range. The best HER catalyst is pH universal such that the overpotential drops to 183
mV at pH 0. The obtained hybrid catalysts exhibited excellent ORR/OER/HER activity and
durability in alkaline solution, comparable or even better than many reported perovskite oxide
and non-perovskite based catalysts. The modulation of several factors such as optimal e orbital
g
filling, metal-oxygen bond hybridization, oxygen non-stoichiometry, surface oxygen vacancies,
good ionic and charge-transfer abilities, the synergistic effect of bimetallic NP and perovskite
oxide pave the way for achieving this rare class of trifunctional electrocatalysts based on
perovskite oxide.
Experimental section
Materials
For the synthesis of SrCoO , SrCo Nb O , Sr0.95Co0.9-xNb Ni O (x = 0.1-0.4) catalysts,
3
0.9
0.1 3-δ
0.1
x
3-δ
strontium (II) nitrate (Alfa Aesar, 99%), cobalt (II) nitrate hexahydrate (Merck, ≥98%), nickel
II) nitrate hexahydrate (Merck, ≥97%), niobium (V) oxalate hydrate (Alfa Aesar), and ethylene
(
glycol (Merck, ≥99%) were used. For electrochemical measurements Toray carbon paper (Alfa
Aesar), nafion (Sigma Aldrich, 5 wt%), carbon black (Alfa Aesar, Super P conductive, 99+%),
and potassium hydroxide (Merck, ≥85%), were used along with double distilled water. In the
present work, all the chemicals were used without further purification.
Synthesis of the catalysts
SrCoO (SC), SrCo Nb O (SCN), Sr0.95Co Nb O (S95CN), Sr0.95Co Nb Ni O
0.1 3-δ
3
0.9
0.1 3-δ
0.9
0.1 3-δ
0.8
0.1
(
S1), Sr0.95Co Nb Ni O (S2), Sr0.95Co Nb Ni O (S3), Sr0.95Co Nb Ni O (S4)
0.7 0.1 0.2 3-δ 0.6 0.1 0.3 3-δ 0.5 0.1 0.4 3-δ
8
were synthesized following our previously reported nonaqueous sol-gel method. Stoichiometric
amounts of metal salts corresponding to a particular composition were dissolved one by one in
o
4
0 ml ethylene glycol under continuous stirring at 80 C for 1h. The obtained clear solution was
o
refluxed for 12h at 120 C. Then the dark brown colored solution was transferred into a beaker
and heated at 120°C to obtain a dry black powder. The powder was ground by mortar-pestle and
calcined in an alumina boat at the center of a tube furnace (Thermo SCIENTIFIC, model:
o
STF55433PC-1) at 1000 C for 10h in air with 5°C/min heating rate to obtain single phase
perovskite oxides.
NP exsolution – creation of point defects
1
7

Journal of Materials Chemistry A
Page 18 of 25
View Article Online
DOI: 10.1039/C9TA06123A
Calcined S1 and S2 powders were subjected to 10% H balanced by N for 2h at temperatures
2
2
o
4
00, 500, 800 and 900 C to form the exsolved NPs. The reduced samples are denoted as S1-400,
S1-500, S1-800, S1-900, S2-400, S2-500, S2-800 and S2-900.
Physicochemical characterization
The samples were characterized by room temperature powder XRD by Rigaku mini flex II with
Cu Kα radiation (λ = 1.54059 Å) operated at a tube voltage of 40 kV and a current of 40 mA
o
o
with scan speed 2θ = 1 /min in the 2θ range 20-80 . Rietveld refinement of the XRD patterns
was performed by General Structure Analysis System (GSAS) software (Los Alamos National
Laboratory Report, 2004). Oxygen nonstoichiometry of best-performing compositions was
1
1
analyzed by thermogravimetric analysis. The composition of calcined powders was determined
by X-ray fluorescence instrument (S8 Tiger from Bruker-AXS, Germany). The morphology of
the calcined and reduced powders was obtained by field-emission scanning electron microscopy
(FESEM, Carl Zeiss SUPRA 55VP). TEM images were recorded with the DST-FIST TEM
facility of IISER Kolkata, model UHR-FEG-TEM, JEOL, JEM 2100 F operating at 200 kV.
HAADF-STEM and the corresponding EDS mapping were recorded by the same instrument.
o
Surface topology of the 400 C reduced samples was studied by AFM using NT-MDT Nova
AFM. Elemental oxidation states at the NP surface were determined by XPS using PHI
5
000 Versaprobe II, FEI Inc. and the data fitted by Fityk 0.9.8 software.
Electrode preparation
Working electrodes for OER and HER measurements were prepared by drop casting the catalyst
ink on carbon paper. The catalyst ink was prepared by dispersing 3 mg powder in 500 l of 1:1
ethanol:water mixture followed by addition of 10 l of 5% Nafion and 0.3 mg conducting
carbon. For uniform dispersion, the mixture was bath sonicated for 30 min. The prepared ink was
2
then uniformly drop-casted on carbon paper of geometric area ~0.3 cm with a loading of 1
2
mg/cm . The working electrode for ORR measurement was prepared by controlled drop-casting
2
of the catalyst ink on a rotating disc electrode (RDE) made of glassy carbon (0.07 cm , ALS
Japan). Before use, the RDE was polished using aqueous alumina suspension and sonicated in
ethanol. The RDE was finally rinsed with distilled water. All the working electrodes were dried
properly in air before each measurement.
Electrochemical measurements
1
8

Page 19 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
OER and HER electrochemical measurements were performed in a customized three-neck glass
cell with a conventional three-electrode configuration controlled by a two-channel
electrochemical workstation from BioLogic Scientific Instruments, VSP300. Catalyst loaded
carbon paper was used as the working electrode, Pt rod as counter electrode, Ag/AgCl in 3 M
KCl as reference electrode and 1 M KOH was used as electrolyte. The catalyst mass loading was
-2
fixed at 1 mg cm . The polarization curves for HER and OER were obtained from LSV
-1
measurements at a scan rate of 5 mV s . The working electrode was prepared by drop-casting
catalyst ink containing perovskite oxide and carbon black (10 wt%) on a carbon paper. The
carbon black is mainly used to eliminate limitations regarding electronic conductivity and ensure
full utilization of the perovskite catalyst. LSV measurements were also carried out with
commercial 20 wt% Pt/C catalyst (Sigma-Aldrich), IrO (Sigma-Aldrich), carbon paper (CP,
2
Toray carbon fiber paper, Alfa Aesar) and carbon paper drop cast with conducting carbon
powder (CCP) for comparison. All applied potentials were referenced to a reversible hydrogen
electrode (RHE) using the equation ERHE = EAg/AgCl + 0.059 pH + Eo
and reported after iR
Ag/AgCl
correction to eliminate charge compensation due to solvent resistance using the following
equation:
EiR‐corrected = Eapplied - iRu,
(3)
where, i is the current on the electrode and R is the uncompensated resistance.
u
ORR measurements were carried out in 1 M KOH electrolyte using a three-electrode setup where
the catalyst coated glassy carbon RDE was used as working electrode, Pt wire as counter
electrode and Ag/AgCl in 3 M KCl as reference electrode. The working electrodes consist of the
catalysts mixed with carbon black (10%) to enhance the electrical conductivity and Nafion (5
wt%, Sigma-Aldrich) acting as the binder onto glassy carbon RDE. Before each experiment, pure
oxygen gas (99.9%) was purged for 1 h to make the electrolyte saturated with oxygen. During
the measurements the RDE was continuously rotated at 1600 rpm to remove bubbles. LSV
measurements at different rpm were also carried out. Before measuring the LSV plots, normal
CV scan of 50 cycles was performed to confirm the removal of surface impurities. Tafel plots
were obtained by plotting overpotential as a function of the logarithmic value of obtained current
density. ECSA was calculated in the non-Faradaic zone (0-0.05 V vs. RHE) by measuring the
double layer capacitance of the electrochemically active surface by CV plots. The slope,
measured from the current at same potential with different scan rates denotes capacitance of the
1
9

Journal of Materials Chemistry A
Page 20 of 25
View Article Online
DOI: 10.1039/C9TA06123A
active surface (C ), and ECSA is the ratio of C to the specific capacitance for the standard oxide
s
s
1
1
surface (C ). Electrochemical impedance spectra were measured in the frequency range from
o
1
0 mHz to 1 MHz. Chronoamperometric stability tests were performed at constant potentials
depending upon the process. Faradaic efficiencies were calculated using eudiometric gas
collection techniques.
ASSOCIATED CONTENT
Supporting Information
XRD patterns, FESEM images and elemental mapping of differently calcined and reduced
samples, Calculation of oxygen non-stoichiometry, AFM images, XPS spectra of Sr 3d, Nb 3d
and O 1s, Tables showing XPS parameters and Tafel slopes, Literature comparison of OER,
ORR and HER activities, FESEM images of catalysts after electrochemical stability tests, ECSA
plots, TOF calculation, ORR onset potential, ORR plots of S1 under different conditions, pH
universal HER activity, Electrocatalysis in dilute alkaline medium, Overall water splitting,
Mechanism of electrocatalysis, LSV plots for ORR with radical scavengers.
Acknowledgements
QAI thanks Science and Engineering Research Board under the Department of Science and
Technology, Government of India for his National Postdoctoral Fellowship (PDF/2016/001801).
RM thanks Council of Scientific & Industrial Research (CSIR) for his fellowship. The financial
support from SERB under grant no. EMR/2016/001703 is duly acknowledged.
Keywords: Perovskite oxide; Exsolved nanoparticles; Point defect; Trifunctional catalyst;
Electrocatalysis
2
0

Page 21 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
References:
1
B. Hua, M. Li, Y. F. Sun, Y. Q. Zhang, N. Yan, J. Chen, T. Thundat, J. Li and J. L. Luo, Nano
Energy, 2017, 32, 247-254.
2
3
4
5
1
6
A. Sahasrabudhe, H. Dixit, R. Majee and S. Bhattacharyya, Nat. Commun., 2018, 9, 2014.
H. F. Wang, C. Tang and Q. Zhang, Adv. Funct. Mater., 2018, 28, 1803329-1803350.
D. Li, H. Baydoun, B. Kulikowski and S. L. Brock, Chem. Mater., 2017, 29, 3048-3054.
A. Kumar, D. K. Chaudhary, S. Parvin and S. Bhattacharyya, J. Mater. Chem. A, 2018, 6,
8948-18959.
Y. Zhu, W. Zhou, Y. Zhong, Y. Bu, X. Chen, Q. Zhong, M. Liu and Z. Shao, Adv. Energy
Mater., 2017, 7, 1602122.
7
8
9
1
A. Kumar and S. Bhattacharyya, ACS Appl. Mater. Interfaces, 2017, 9, 41906-41915.
A. Sadhu and S. Bhattacharyya, Chem. Mater., 2014, 26, 1702-1710.
A. Sadhu, H. G. Salunke and S. Bhattacharyya, J. Phys. Chem. C, 2017, 121, 21029-21036.
0 Y. Duan, S. Sun, S. Xi, X. Ren, Y. Zhou, G. Zhang, H. Yang, Y. Du and Z. J. Xu, Chem.
Mater., 2017, 29, 10534-10541.
1
2
1
1
6
1
2
1
1
1 R. Majee, S. Chakraborty, H. G. Salunke and S. Bhattacharyya, ACS Appl. Energy Mater.,
018, 1, 3342-3350.
2 J. -I. Jung, S. Park, M. G. Kim and J. Cho, Adv. Energy Mater., 2015, 5, 1501560.
3 X. Xu , Y. Chen , W. Zhou , Z. Zhu , C. Su , M. Liu and Z. Shao, Adv. Mater., 2016, 28,
442-6448.
4 J. B. Goodenough, R. Manoharan and M. Paranthaman, J. Am. Chem. Soc., 1990, 12, 2076-
082.
5 X. Rong, J. Parolin and A. M. Kolpak, ACS Catal., 2016, 6, 1153-1158.
6 R. P. Forslund, W. G. Hardin, X. Rong, A. M. Abakumov, D. Filimonov, C. T. Alexander, J.
T. Mefford, H. Iyer, A. M. Kolpak, K. P. Johnston and K. J. Stevenson, Nat. Commun., 2018, 9,
3
1
150.
7 Y. Zhu, W. Zhou, Z. G. Chen, Y. Chen, C. Su, M. O. Tadé and Z. Shao, Angew. Chem. Int.
Ed., 2015, 54, 3897-3901.
1
1
8 K. Y. Lai and A. Manthiram, Chem. Mater., 2018, 30, 2838-2847.
9 O. Kwon, S. Sengodan, K. Kim, G. Kim, H. Y. Jeong, J. Shin, Y. W. Ju, J. W. Han and G.
Kim, Nat. Commun., 2017, 8, 15967.
2
1

Journal of Materials Chemistry A
Page 22 of 25
View Article Online
DOI: 10.1039/C9TA06123A
2
0 L. D. Rogatis, M. Cargnello, V. Gombac, B. Lorenzut, T. Montini and P. Fornasiero,
ChemSusChem, 2010, 3, 24-42.
1 Y. Sun, J. Li, Y. Zeng, B. S. Amirkhiz, M. Wang, Y. Behnamian and J. Luo, J. Mater. Chem.
A, 2015, 3, 11048-11056.
2
2
2
2
2
1
2
9
2
2 Y. Zhu, W. Zhou, R. Ran, Y. Chen, Z. Shao and M. Liu, Nano Lett., 2016, 16, 512-518.
3 Y. Gao, J. Wang, Y. Q. Lyu, K. Lam, and F. Ciucci, J. Mater. Chem. A, 2017, 5, 6399-6404.
4 K. Zhu, T. Wu, M. Li, R. Lu, X. Zhu and W. Yang, J. Mater. Chem. A, 2017, 5, 19836-19845.
5 Y. Zhu, J. Dai, W. Zhou, Y. Zhong, H. Wang and Z. Shao, J. Mater. Chem. A, 2018, 6, 13582-
3587.
6 D. Neagu, G. Tsekouras, D. N. Miller, H. Menard and J. T. S. Irvine, Nat. Chem., 2013, 5,
16-923.
7 D. Neagu, E. I. Papaioannou, W. K. W. Ramli, D. N. Miller, B. J. Murdoch, H. Ménard, A.
Umar, A. J. Barlow, P. J. Cumpson, J. T. S. Irvine and I. S. Metcalfe, Nat. Commun., 2017, 8,
1
2
3
2
3
2
3
855.
8 J. Suntivich, K. J. May, H. A. Gasteiger, J. B. Goodenough and Y. S. Horn, Science, 2011,
34, 1383-1388.
9 G. Pacchioni, ChemPhysChem, 2003, 4, 1041-1047.
0 J. Xu, X. Xiao, J. Zhang, J. J. Liu, J. K. Ni, H. G. Xue and H. Pang, Part. Part. Syst. Char.,
017, 34, 1600420.
1 J. Bao, X. D. Zhang, B. Fan, J. J. Zhang, M. Zhou, W. L. Yang, X. Hu, H. Wang, B. C. Pan
and Y. Xie, Angew. Chem., Int. Ed., 2015, 54, 7399-7404.
2 O. Kwon, K. Kim, S. Joo, H. Y. Jeong, J. Shin, J. W. Han, S. Sengodan and G. Kim, J. Mater.
Chem. A, 2018, 6, 15947-15953.
3 N. I. Kim, Y. J. Sa, T. S. Yoo, S. R. Choi, R. A. Afzal, T. Choi, Y. S. Seo, K. S. Lee, J. Y.
Hwang, W. S. Choi, S. H. Joo and J. Y. Park, Sci. Adv., 2018, 4, eaap9360.
4 J. Suntivich, H. A. Gasteiger, N. Yabuuchi, H. Nakanishi, J. B. Goodenough and Y. S. Horn,
Nat. Chem., 2011, 3, 546-550.
3
3
3
3
5 J. F. Moulder, W. F. Stickle, P. E. Sobol and K. D. Bomben, In Handbook of X-ray
nd
Photoelectron Spectroscopy, 2 Edition; Chastain, J., Ed.; Perkin-Elmer Corporation (Physical
Electronics): Eden Prairie, MN, 1992.
3
6 D. He, G. He, H. Jiang, Z. Chen and M. Huang, Chem. Commun., 2017, 53, 5132-5135.
2
2

Page 23 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
3
3
7 W. Zhou and J. Sunarso, J. Phys. Chem. Lett., 2013, 4, 2982-2988.
8 W. G. Hardin, D. A. Slanac, X. Wang, S. Dai, K. P. Johnston and K. J. Stevenson, J. Phys.
Chem. Lett., 2013, 4, 1254-1263.
3
4
1
4
9 Y. Zhu, W. Zhou, J. Yu, Y. Chen, M. Liu and Z. Shao, Chem. Mater., 2016, 28, 1691-1697.
0 D. Chen, J. Wang, Z. Zhang, Z. Shao and F. Ciucci, Chem. Commun., 2016, 52, 10739-
0742.
1 G. Liu, H. Chen, L. Xia, S. Wang, L. X. Ding, D. Li, K. Xiao, S. Dai and H. Wang, ACS
Appl. Mater. Interfaces, 2015, 7, 22478-22486.
4
4
1
4
2
4
4
2 Y. Zhang, Y. F. Sun and J. L. Luo, ECS Trans., 2016, 75, 955-964.
3 H. W. Park, D. U. Lee, P. Zamani, M. H. Seo, L. F Nazar and Z. Chen, Nano Energy, 2014,
0, 192-200.
4 K. Elumeeva, J. Masa, J. Sierau, F. Tietz, M. Muhler and W. Schuhmann, Electrochim. Acta,
016, 208, 25-32.
5 Y. Q. Lyu and F. Ciucci, ACS Appl. Mater. Interfaces, 2017, 9, 35829-35836.
6 J. –I. Jung, M. Risch, S. Park, M. G. Kim, G. Nam, H. Y. Jeong, Y. S. Horn and J. Cho,
Energy Environ. Sci., 2016, 9, 176-183.
7 Z. Wang, Y. You, J. Yuan, Y. X. Yin, Y. T. Li, S. Xin and D. Zhang, ACS Appl. Mater.
Interfaces, 2016, 8, 6520-6528.
4
4
2
4
9
5
4
5
5
1
5
5
8 Z. Du, P. Yang, L. Wang, Y. Lu, J.B. Goodenough, J. Zhang and D. Zhang, J. Power Sources,
014, 265, 91-96.
9 D. Zhang, Y. Song, Z. Du, L. Wang, Y. Li and J. B. Goodenough, J. Mater. Chem. A, 2015, 3,
421-9426.
0 J. –I. Jung, H. Y. Jeong, J. S. Lee, M. G. Kim and J. Cho, Angew. Chem. Int. Ed., 2014, 53,
582-4588.
1 M. Y. Oh, J. S. Jeon, J. J. Lee, P. Kim and K. S. Nahm, RSC Adv., 2015, 5, 19190-19198.
2 C. Jin, X. Cao, F. Lu, Z. Yang and R. Yang, Int. J. Hydrogen. Energy, 2013, 38, 10389-
0393.
3 C. Jin, Z. Yang, X. Cao, F. Lu and R. Yang, Int. J. Hydrogen. Energy, 2014, 39, 2526-2530.
4 Z. Wu, L. P. Sun, T. Xia, L. H. Huo, H. Zhao, A. Rougier and J. C. Grenier, J. Power
Sources, 2016, 334, 86-93.
2
3

Journal of Materials Chemistry A
Page 24 of 25
View Article Online
DOI: 10.1039/C9TA06123A
5
5
5
5 Y. Xu, A. Tsou, Y. Fu, J. Wang, J. H. Tian and R. Yang, Electrochim. Acta, 2015, 174, 551-
56.
6 C. Kim, O. Gwon, I. Y. Jeon, Y. Kim, J. Shin, Y. W. Ju, J. B. Baek and G. Kim, J. Mater.
Chem. A, 2016, 4, 2122-2127.
7 X. Cui, R. O’Hayre, S. Pylypenko, L. Zhang, L. Zeng, X. Zhang, Z. Hua, H. Chen and J. Shi,
Dalton Trans., 2017, 46, 13903-13911.
8 N. I. Kim, R. A. Afzal, S. R. Choi, S. W. Lee, D. Ahn, S. Bhattacharjee, S. C. Lee, J. H. Kim
and J. Y. Park, J. Mater. Chem. A, 2017, 5, 13019-13031.
9 W. G. Hardin, J. T. Mefford, D. A. Slanac, B. B. Patel, X. Wang, S. Dai, X. Zhao, R. S.
Ruoff, K. P. Johnston and K. J. Stevenson, Chem. Mater., 2014, 26, 3368-3376.
5
5
5
6
2
6
0 M. Prabu, P. Ramakrishnan, P. Ganesan, A. Manthiram and S. Shanmugam, Nano Energy,
015, 15, 92-103.
1 B. Hua, Y. Q. Zhang, N. Yan, M. Li, M. Sun, Y. F. Sun, J. Chen, J. Li and J. L. Luo, Adv.
Funct. Mater., 2016, 26, 4106-4112.
6
2
6
2 Y. Shen, Y. Zhu, J. Sunarso, D. Guan, B. Liu, H. Liu, W. Zhou and Z. Shao, Chem. Eur. J.,
018, 24, 6950-6957.
3 C. P. Jijil, M. Lokanathan, S. Chithiravel, C. Nayak, D. Bhattacharyya, S. N. Jha, P. D. Babu,
B. Kakade and R. N. Devi, ACS Appl. Mater. Interfaces., 2016, 8, 34387-34395.
6
3
6
3
6
4 J. Wang, Y. Gao, D. Chen, J. Liu, Z. Zhang, Z. Shao and F. Ciucci, ACS Catal., 2018, 8, 364-
71.
5 M. Ledendecker, G. Clavel, M. Antonietti and M. Shalom, Adv. Funct. Mater., 2015, 25, 393-
99.
6 Y. Zhu, W. Zhou, Y. Zhong, Y. Bu, X. Chen, Q. Zhong, M. Liu and Z. Shao, Adv. Energy
Mater., 2017, 7, 1602122.
6
6
6
8
7
7
1
7 J. Tian, Q. Liu, A. M. Asiri and X. Sun, J. Am. Chem. Soc., 2014, 136, 7587-7590.
8 X. Li, Z. Niu, J. Jiang and L. Ai, J. Mater. Chem. A, 2016, 4, 3204-3209.
9 S. Du, Z. Ren, J. Zhang, J. Wu, W. Xi, J. Zhu and H. Fu, Chem. Commun., 2015, 51, 8066-
069.
0 H. Vrubel and X. Hu, Angew. Chem., Int. Ed., 2012, 51, 12703-12706.
1 W. Ma, R. Ma, C. Wang, J. Liang, X. Liu, K. Zhou and T. Sasaki, ACS Nano, 2015, 9, 1977-
984.
2
4

Page 25 of 25
Journal of Materials Chemistry A
View Article Online
DOI: 10.1039/C9TA06123A
7
2 X. Zou, X. Huang, A. Goswami, R. Silva, B. R. Sathe, E. Mikmekova and T. Asefa, Angew.
Chem. Int. Ed., 2014, 53, 4372-4376.
7
2
7
7
7
7
7
7
8
3 B. Cao, G. M. Veith, J. C. Neuefeind, R. R. Adzic and P. G. Khalifah, J. Am. Chem. Soc.,
013, 135, 19186-19192.
4 X. Yan, L. Tian, M. He and X. Chen, Nano Lett., 2015, 15, 6015-6021.
5 Y. P. Zhu, Y. P. Liu, T. Z. Ren and Z. Y. Yuan, Adv. Funct. Mater., 2015, 25, 7337-7347.
6 A. Datta, S. Kapri and S. Bhattacharyya, J. Mater. Chem. A, 2016, 4, 14614-14624.
7 Y. Wang, J. Li and Zidong Wei, J. Mater. Chem. A, 2018, 6, 8194-8209.
8 Y. Zhu, W. Zhou, and Z. Shao, Small, 2017, 13, 1603793.
9 B. Debnath, A. S. Roy, S. Kapri and S. Bhattacharyya, ChemistrySelect, 2016, 1, 4265-4273.
0 N. H. Abdullah, M. K. A. Selamat, N. Nasuha, H. Hassan and N. A. Zubir, IOP Conf. Series:
Mater. Sci. Engg., 2018, 374, 012031.
Table of Contents
2
5
