The influence of moisture barrier films in ZnO-based thin film transistors

Article abstract of DOI:10.1149/2.002204jes

We investigated the impact of ALD-deposited moisture barrier films on the stability of ZnO and HfZnO thin film transistors. While the device without a moisture barrier film showed a large turn-on voltage shift under negative bias temperature stress, the suitably protected device with the lowest water vapor transmission rate showed a dramatically improved device performance. As the water vapor transmission rate of the barrier films decreased, the turn-on voltage instability was reduced. The charge trapping model alone could not explain this stability improvement. Instead, the improvement was attributed to effective blockage of bias-enhanced moisture in the ambient atmosphere during gate voltage stress.

Full text of DOI:10.1149/2.002204jes

Journal of The Electrochemical Society, 159 (4) H353-H357 (2012)
H353
0013-4651/2012/159(4)/H353/5/$28.00 © The Electrochemical Society
The Influence of Moisture Barrier Films in ZnO-Based
Thin Film Transistors
Woong-Sun Kim, Sae-Young Shin, and Jong-Wan Parkz
Department of Materials Science and Engineering, Hanyang University, Seoungdong-ku, Seoul 133-791, Korea
We investigated the impact of ALD-deposited moisture barrier films on the stability of ZnO and HfZnO thin film transistors. While
the device without a moisture barrier film showed a large turn-on voltage shift under negative bias temperature stress, the suitably
protected device with the lowest water vapor transmission rate showed a dramatically improved device performance. As the water
vapor transmission rate of the barrier films decreased, the turn-on voltage instability was reduced. The charge trapping model alone
could not explain this stability improvement. Instead, the improvement was attributed to effective blockage of bias-enhanced moisture
in the ambient atmosphere during gate voltage stress.
© 2012 The Electrochemical Society. [DOI: 10.1149/2.002204jes] All rights reserved.
Manuscript submitted September 28, 2011; revised manuscript received December 20, 2011. Published January 18, 2012.
Transparent thin film transistors (TFTs) based on oxide semicon-
ductors have been intensively studied as alternative active matrix back-
planes for next-generation flat panel displays. Oxide semiconductor-
based TFTs have several advantages compared to conventional
amorphous silicon (a-Si) TFTs including their low temperature pro-
cessing, excellent uniformity due to the amorphous nature of the
oxide, and high saturation field effect mobility.1–4 Moreover, they
are transparent in the visible range. A significant amount of research
has been devoted to the most promising applications including TFT
backplanes for active matrix liquid crystal displays (AMLCD) and ac-
tive matrix organic light emitting diode (AMOLED) displays. Since
the report by Nomura et al., InGaZnO semiconductors, in particular,
have received considerable attention, and flat panel displays utilizing
amorphous InGaZnO TFTs as active matrix backplanes have been
successfully fabricated.5,6 However, the electrical properties of oxide
semiconductors are significantly affected by interactions with the out-
side atmosphere. Jeong et al. reported that the channel of InGaZnO
TFTs is very sensitive to water vapor adsorption. The water molecules
induce the formation of an accumulation layer of extra electron car-
riers in the a-InGaZnO film. In addition, it was shown that the pos-
itive Vth shift during positive bias stress is not only due to charge
trapping, but also to the dynamic interaction between the exposed
backchannel and the ambient atmosphere.7,8 Therefore, water vapor
barrier films are necessary for the long-term stability of oxide-based
TFTs. Also, OLEDs are sensitive to moisture (H2O) and oxygen (O2),
which can cause device degradation, and must be protected from these
species.9 Simple calculations, primarily based on the degradation of
the OLED cathode material when exposed to water vapor, suggest
that the water vapor protection layer must provide a barrier that limits
the water vapor permeation rate to less than 10−6 g/m2/day in order
to achieve a device lifetime of 10,000 hours at room temperature. In
FPD (flat panel display) fabrication processes such as AMLCD and
AMOLED, a water vapor barrier film or encapsulation layer will also
cover the TFT backplane. To date, various organic or inorganic pro-
tection layers such as polymers, SiO2, SiNx, and Al2O3 have been
investigated.10–13 There has been no report on the relationship be-
tween the water vapor transmission rate (WVTR) and characteris-
tics of oxide semiconductor TFTs. In this regard, we investigated
the atomic layer deposition (ALD) of Al2O3 and TiO2 thin films as
water vapor barrier films and their suitability for stable ZnO-based
TFTs.
sulator (plasma enhanced chemical vapor deposition SiO2 layer of
10 nm /low pressure chemical vapor deposition SiNx layer of
100 nm). A 40-nm-thick channel layer was grown using a DC mag-
netron sputtering system. A 4-inch-diameter target was placed 4 cm
from the substrate, and a base pressure of 2.7 × 10−4 Pa, a working
pressure of 6.6 × 10−1 Pa, and a plasma discharge power density of
0.5 W/cm2 were applied. The channel was patterned using shadow
masks with a channel length and width:length ratio of 100 μm
and 10:1, respectively. After S/D (Mo) electrode deposition, Al2O3
and TiO2 barrier films were deposited using a plasma enhanced
atomic layer deposition (PEALD) system. The barrier layer was
etched using a dilute HF solution for the S/D contact. After de-
position, the devices were subjected to thermal annealing at 300◦C
for 60 min in ambient air. The precursors used in the PEALD
of the Al2O3 and TiO2 films were trimethylaluminum (TMA) and
tetrakis(dimethylamino)titanium (TDMATi), respectively. The TMA
and TDMATi sources were injected into the reaction chamber with-
out a carrier gas. The injection times of the TMA, TDMATi, and O2
plasma were fixed at 0.1 s, 1 s, and 10 s, respectively. The total cycle
consisted of four steps to deposit the multilayer structure. The first and
third step sequences consisted of TMA (0.1 s)/Ar (20 s)/O2 plasma
(10 s)/Ar (20 s), while the second and fourth steps included TDMATi
(1 s)/Ar (20 s)/O2 plasma (10 s)/Ar (20 s). The multilayer stacks
with alternating Al2O3 and TiO2 layers were deposited repeatedly. To
control the thickness of the Al2O3 and TiO2 layers, the number of re-
peated cycles was varied. The temperatures of the TMA and TDMATi
sources were maintained at 20◦C by a cooling system and at 40◦C by
a heating system, respectively, and the base pressure inside the reactor
was maintained at 13.3 Pa. The device structure was analyzed using
high resolution transmission electron microscopy. The channel layer
had a polycrystalline structure regardless of Hf insertion, as shown in
Fig. 1b. It was confirmed in the micrograph that the amorphous water
vapor barrier film was well formed on the device. Electron cyclotron
resonance (ECR) plasma was used for deposition of the water vapor
barrier layers because it is produced as a high density plasma under
low pressure, and substrate damage due to ion collisions is not a major
concern because no electrode was present. The ECR plasma power
and the deposition temperature were varied from 100 to 700 W and
from 40 to 100◦C, respectively. In order to measure the WVTR of
the water vapor barrier films, a 200-μm-thick 50×50 mm2 polyether-
sulfone (PES) substrate was employed. Prior to the deposition of the
barrier films, the PES substrate was washed with isopropyl alcohol
(IPA) and methanol in an ultrasonic bath before drying in a stream
of nitrogen. The measurements of the WVTR were carried out at
38◦C and 100% RH using a PERMATRAN W 3/33 (Modern Con-
trols, Inc.). All electrical characterizations were performed using a
semiconductor parameter analyzer (Agilent HP 4145B) at room tem-
perature in the dark. To investigate the density of the deposited films,
X-ray reflectometry (XRR, PANalytical X’Pert PRO) was utilized.
Experimental
Figure 1a shows a cross-sectional schematic of a bottom-gate ZnO-
based TFT with a staggered structure. The devices were prepared on
heavily doped n-type silicon substrates containing a buffered gate in-
z E-mail: jwpark@hanyang.ac.kr
Downloaded on 2015-04-02 to IP 138.251.14.35 address. Redistribution subject to ECS terms of use (see ecsdl.org/site/terms_use) unless CC License in place (see abstract).

H354
Journal of The Electrochemical Society, 159 (4) H353-H357 (2012)

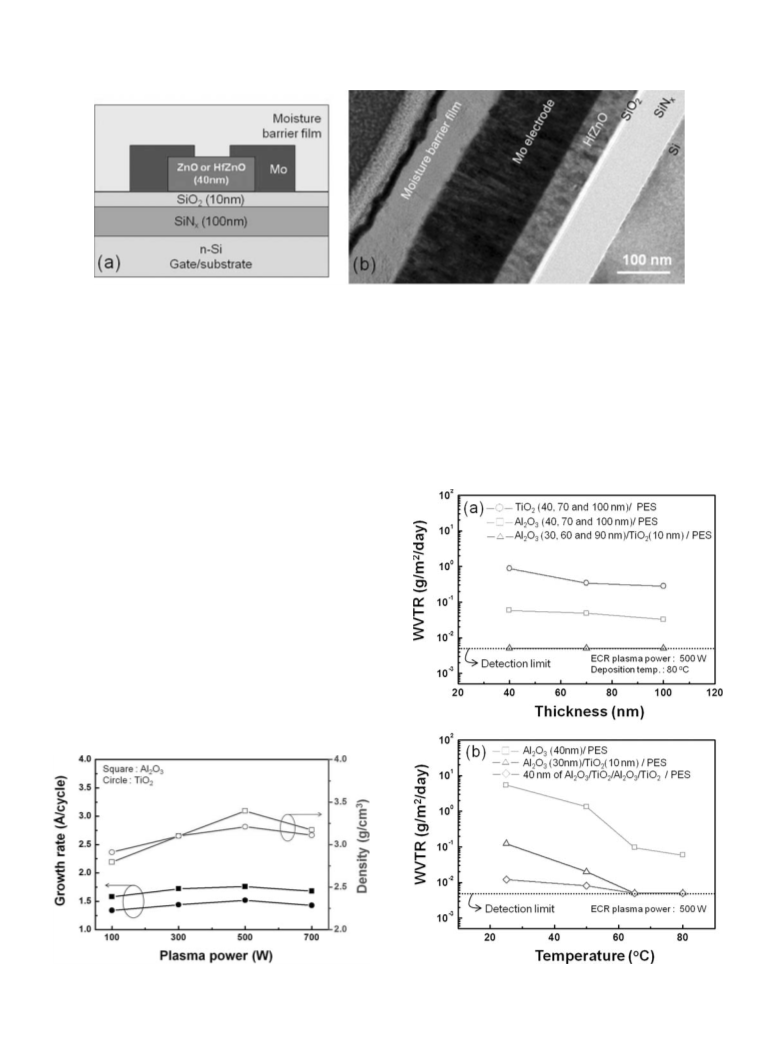

Figure 1. (a) Cross-sectional schematic of a bottom-gate-type ZnO-based TFT with a staggered structure and (b) TEM cross-sectional image of a HfZnO TFT
with a TiO2 water vapor barrier film.
decreasing tendencies. Compared to the bare PES film (50 g/m2day),
the TiO2 and Al2O3 films showed considerable improvement of the
WVTR. However, in the case of a single layer, although the thickness
and deposition temperature increased, the WVTR did not reach the
detection limit of the measurement system (5 × 10−3 g/m2 day). The
most widely quoted value for the required WVTR for an OLED is
10−6 g/m2day. However, none of the commercially available systems
based on these techniques meet the sensitivity requirements for the
Results and Discussion
Figure 2 shows the dependence of the growth rate and density of
the Al2O3 and TiO2 films on the plasma power, which was varied in
the range of 100 to 700 W at a deposition temperature of 80◦C. The
growth rate and density of the Al2O3 and TiO2 films increased when
the plasma power was increased from 100 to 500 W. At a plasma
power of 700 W, however, the growth rate and density decreased. It
appears that the O2 plasma reactant was accompanied by energetic ion
bombardment, resulting in plasma damage at a high plasma power.
Also, when the density of the films increases, it is expected that the
WVTR value of the films will slightly increase as the plasma power
increases due to plasma-induced damage to the films.14
To date, considerable effort has been undertaken to develop sim-
ple single layer barrier coatings, but their resulting performance has
not been adequate for the most demanding next-generation electronics
applications. The newly designed multilayer deposition approach pro-
vides adequate barrier properties (including buffer layer deposition).
The basic idea is to have multilayers separated by an inorganic film,
the purpose of which is to decouple the growth of defects from one
layer to another. Figures 3a and 3b display the WVTR as a function
of (a) film thickness and (b) deposition temperature for three different
types of barrier films (single layer, buffered, and multilayer) deposited
on a PES substrate. To investigate the effect of a buffered barrier
layer or multilayer structure, single layer (Al2O3 and TiO2), buffered
barrier layer (Al2O3 (30 nm)/TiO2 (10 nm)), and multilayer (Al2O3
(10 nm)/TiO2 (10 nm)/Al2O3 (10 nm)/TiO2 (10 nm)) films with thick-
nesses of 40 nm were prepared. As the film thickness and deposition
temperature were increased, the WVTRs of the three samples showed
Figure 2. The growth rate and packing density of Al2O3 and TiO2 films as a
function of plasma power.
Figure 3. The WVTR values of the water vapor barrier films as a function of
(a) film thickness and (b) deposition temperature.
Downloaded on 2015-04-02 to IP 138.251.14.35 address. Redistribution subject to ECS terms of use (see ecsdl.org/site/terms_use) unless CC License in place (see abstract).

Journal of The Electrochemical Society, 159 (4) H353-H357 (2012)
H355
the maximum slope in the transfer curve expressed in the log scale for
VGS < VON
.
Possible explanations for the transfer characteristic changes of the
TFTs were examined. The transfer characteristic changes including
μFE and SS can be explained by (i) plasma induced damage and
(ii) ambient effects. The field-effect mobilities (μFE) of the multilayer
and buffered barrier layer TFTs were comparable to each other and
were higher than those of the other TFTs. The decreased mobilities
of the TFTs with a TiO2 barrier layer indicate plasma damage due
to the direct barrier deposition process. In general, μFE is affected
by shallow traps near the conduction band, and the interaction of
oxygen vacancies and zinc interstitials is an important source of n-
type conductivity in ZnO.15 During the O2 plasma process, ionized
oxygen with a high bombardment energy enters active layers and
reduces the oxygen vacancies at the top surface of the channel layer
and thereby decrease the mobility. Therefore, suppressing the defect-
related plasma damage with the buffer layer deposition process can
effectively protect the channel layers. Also, the SS values of the TiO2
barrier layer TFTs were higher than those of the other devices. The
increase in SS value can be attributed to the increase in total trap
density in deep-level states in the channel layer including the interface
trap and bulk trap density.16,17 It can be noted that the similar SS value
for the TiO2 barrier TFTs suggests an increase of the total trap density
caused by plasma damage during the barrier deposition process. Also,
the μFE and SS values of the ZnO TFT without the barrier deposition
process were higher and lower than that of the TFT subjected to
the direct barrier deposition process, respectively. It is possible that
the 10-nm-thick TiO2 buffer layer effectively prevented the plasma-
induced damage that occurs during water vapor barrier deposition.
These results indicate that the plasma-induced damage during the
direct deposition process on the channel layer may be responsible for
degradation of the TFT properties.
As mentioned above, the device characteristic changes of the μFE
and SS values can be attributed to interactions between the active
backchannel and the ambient environment. It is well known that ad-
sorbed oxygen/moisture can capture/release an electron and the re-
sulting adsorbed species form a depletion/accumulation layer in the
channel, respectively. Furthermore, water vapor adsorption involves
trap creation in the channel layer, which is in contrast to oxygen
adsorption.7,8 The traps can be in either the shallow state or deep
level state in the forbidden bandgap of the oxide semiconductor. It is
believed that an increase in the deep state trap density is the dominant
mechanism causing the degradation of the SS value. In addition, the
traps created due to water vapor adsorption are in the deep-level state.
However, in this work, water vapor adsorption is not the dominant
origin of the transfer characteristic changes because, if this were the
case, simultaneous deterioration of the μFE and SS values would not
be observed.

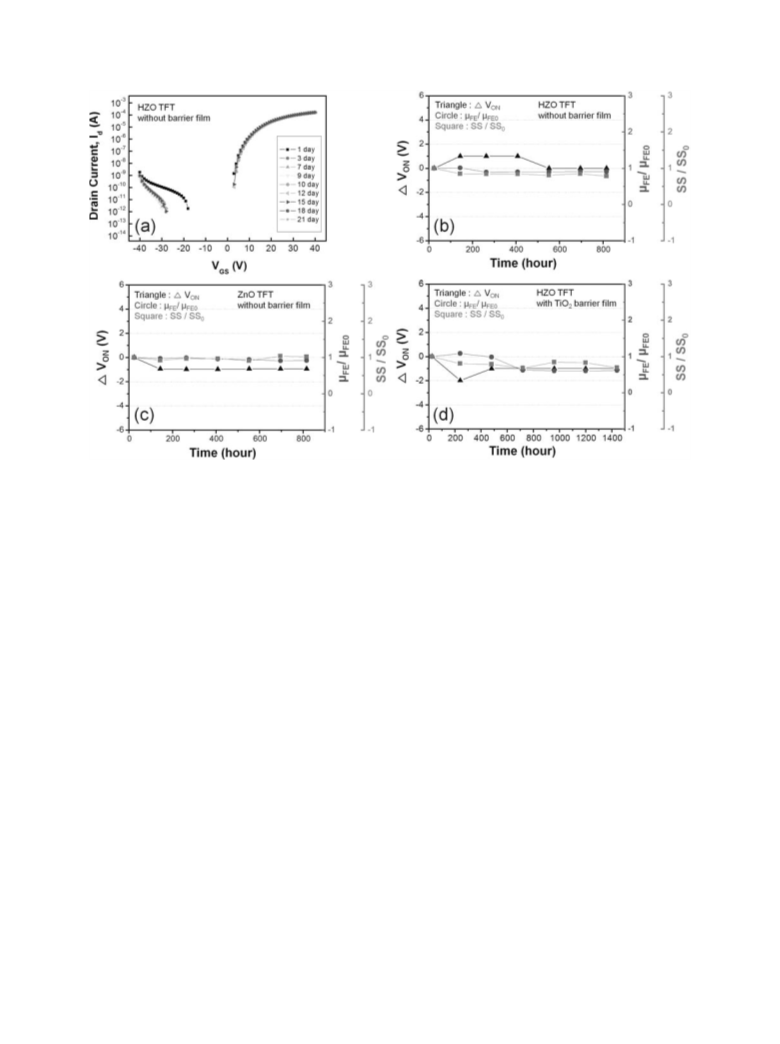

Figures 5b–5d show the variations in ꢀVON shift, SS/SS0, and
μFE/μFE0 values as a function of time for the HfZnO TFT without a
barrier film, the ZnO TFT without a barrier film, and the HfZnO TFT
with a TiO2 barrier film, respectively. As shown in Figs. 5a–5c, there
was very little change in the ꢀVON shift, SS/SS0, and μFE/μFE0 values
for roughly 21 days in ambient air when the device was fabricated
without a barrier layer. Otherwise, the μFE/μFE0 ratio of the HfZnO
TFT with a TiO2 barrier film decreased to about 60% of the initial
value after 30 days in ambient air. It is noted that, even though a
barrier layer was beneficial to maintain the ꢀVON and SS/SS0 values,
the barrier layer deposition process accompanied by plasma-induced
damage resulted in a reduction of the initial value of μFE. This is in
agreement with the assumption that plasma-induced damage results
in transfer characteristic changes and thus a degraded μFE value. This
indicates that ambient effects can be excluded as the possible reason
for the changes in transfer characteristics. Therefore, we can con-
clude that plasma-induced damage more likely resulted in the transfer
characteristics changes of the devices. As a result, the multilayer and
buffer layer barrier deposition processes (protecting the channel lay-
ers from the plasma-induced damage) play an important role in the
achievement of superior device performance.
Figure 4. Transfer characteristics of ZnO and HfZnO TFTs with different
water vapor barrier films. The devices had a width of 1,000 μm, a length of
100 μm, and VDS = 1 V.
low permeation rates required for OLEDs. In this study, the minimum
measurable WVTR value using the PERMATRAN W 3/33 system
was 5 × 10−3 g/m2 day. The system could be used to obtain the
relative WVTR characteristics of the films.
In order to protect the film from plasma damage, a 10-nm-thick
TiO2 layer was first deposited at a plasma power of 100 W as a
buffer layer. Next, dense, amorphous Al2O3 and TiO2 films were
alternately deposited onto the buffer layer. All buffered barrier layers
and multilayers exhibited a WVTR less than the detection limit above
a deposition temperature of 65◦C and a thickness of 40 nm. Therefore,
it was shown that the individual layers in a buffered barrier layer or
multilayer can act to effectively block moisture penetration.
In order to investigate the relationship between moisture and the
TFT oxide characteristics, three kinds of barrier films were prepared
on the ZnO and HfZnO TFTs. The atomic ratio of Hf in the HfZnO film
analyzed by inductively coupled plasma mass spectroscopy (ICPMS)
was 0.8 atom%. Figure 4 and Table I show the transfer curves and the
device parameters, respectively, of the ZnO TFTs and HfZnO TFTs
after the deposition of barrier films and annealing at 300◦C. The ap-
parent field-effect mobility, which is defined as μFE = Lgm/WCiVDS
,
was extracted using the transconductance measured at a low drain
voltage (VDS ≤ 1 V), where W is the channel width, L is the channel
length, Ci is the gate capacitance per unit area of the gate insulator,
and gm is the transconductance. The subthreshold swing (SS), defined
as the voltage required to increase the source-to-drain current by a
factor of 10, was calculated from SS = dVGS/d(logIDS), where SS was
Table I. Comparison of the electrical properties of ZnO and
HfZnO TFTs.
Water vapor barrier
film structure
μFE
(cm2/V s)
SS
(V/decade)
VON
(V)
ION/IOFF
TiO2/ZnO TFT
Multilayer/ZnO
TFT
TiO2/HfZnO TFT
Buffered barrier
layer/HfZnO TFT
Multilayer/HfZnO
TFT
1.00
5.37
1.84 × 108
3.33 × 108
0.64
0.44
1
2
2.08
5.12
4.50 × 107
0.56
0.50
−1
−5
3.49 × 108
6.23
6.14
4.96 × 108
6.13 × 107
0.48
2.24
−3
−3
ZnO TFT without a
barrier18
Downloaded on 2015-04-02 to IP 138.251.14.35 address. Redistribution subject to ECS terms of use (see ecsdl.org/site/terms_use) unless CC License in place (see abstract).

H356
Journal of The Electrochemical Society, 159 (4) H353-H357 (2012)
Figure 5. The variations in ꢀVON shift, SS/SS0, and μFE/μFE0 values for (a, b) the HfZnO TFT without a barrier film, (c) the ZnO TFT without a barrier film,
and (d) the HfZnO TFT with a TiO2 barrier film as a function of time in ambient air.

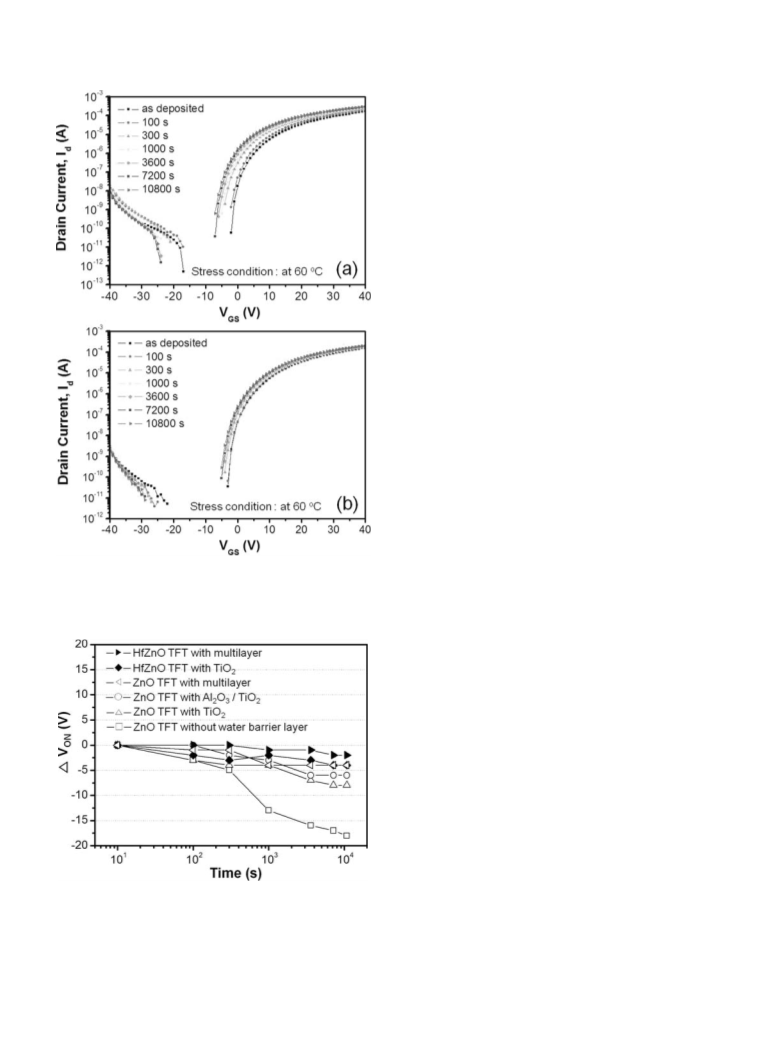

Figures 6a and 6b show the evolution of the transfer curves as a
function of the applied negative bias stress time for the HfZnO TFT
without a water vapor barrier film and with a multilayer, respectively.
In particular, in commercial AMLCD devices, the total stress time of
the negative gate bias was more than 500 times that of the positive
gate bias. Thus, device degradation due to negative bias temperature
instability (NBTI) is a critical issue. The devices were stressed under
a −20 V gate source voltage relative to the turn on voltage (VON) and
at a 0.1 V drain source bias at 60◦C. The VON shifted gradually from
−3 to −5 V after a total stress time of 3 h for the HfZnO TFT with
a multilayer. As in previous reports, the device showed a negative
rigid log (ID)-VGS transfer curve shift and a negligible change in SS
value. These results can be explained by simple charge trapping rather
than by defect creation.19–22 In this study, because the devices shown
in Figs. 6a and 6b have identical gate dielectrics and HfZnO chan-
nels, the charge trappings at or near the channel/dielectric interface
during the gate voltage stress were expected to be similar. However,
the VON shifts for the HfZnO TFTs with a multilayer and without
a water vapor barrier were −2 and −5 V, respectively. Therefore,
the charge trapping model alone cannot entirely account for the ob-
served results. Obviously, the interaction between the channel layer
and ambient species can play a critical role in determining the VON in-
stability. Therefore, the contribution of the interaction effect between
the channel and the ambient on VON instability can be suppressed
by the insertion of a proper water vapor barrier film. The negative
VON shift during bias temperature stress was dramatically improved
by protecting the HfZnO channel layer with a multilayer water vapor
barrier at the lowest WVTR value.
large increase in SS after application of bias stress for 3 h.18 In contrast,
the HfZnO TFT with a multilayer barrier had the smallest VON shift
under a bias stress of −20 V and a duration of 10,000 s. Previous
reports suggest that Hf ions may be oxygen binders in ZnO-based
TFTs because of their electronegativity of 1.3, resulting in a reduction
of the carrier concentration.23 Hf ions, due to their high oxygen binding
energy, may play a key role in improving the stability of TFTs, and the
water vapor barrier films with superior barrier properties may affect the
stability enhancement. Therefore, the HfZnO TFTs with a barrier layer
showed an excellent bias stability improvement. In the case of ZnO
TFTs, there was a decrease in the WVTR value of the barrier layer, and
the VON stability of the devices was improved. Therefore, the devices
with a lower WVTR value are much more stable against the application
of the negative bias stress than the devices with a higher WVTR value.
Previous reports showed that the water adsorption/desorption process
on the oxide channel involves trap creation/removal in the active layer,
indicating that water molecules can act as electron trap centers as well
as electron donors.8 The interaction between the active backchannel
and ambient played a critical role in determining the VON instability.
The adsorbed water vapor can release an electron to the conduction
band, and the resulting water vapor can be charged, resulting in a
positive charge. As a result of charge transfer, an accumulation layer
is formed beneath the backchannel surface, leading to a decrease in
VON of the transistor. Also, it is expected that some of the positively-
charged water molecules at the backchannel surface will be desorbed
upon the application of a positive bias during the transfer characteristic
measurements (measurement range of −40 to +40 V). Following this,
the re-adsorbed water vapor can release an electron, and the resulting
VON can more dramatically shift in the negative direction. Therefore,
water vapor desorption would result in a simultaneous additional VON
shift. The large shift in the VON and change in the SS value for the
ZnO TFT without a barrier was attributed to the electric-field-induced
water desorption.7 Briefly, the water molecules adsorbed onto the
back channel surface can act as donors. The enhanced adsorption of
positively-charged water molecules induces the delocalized electron
Figure 7 shows the effect of the water vapor barrier films on each
device. The variations in ꢀVON shift of the HfZnO and ZnO TFTs as
a function of gate voltage stress duration are shown. All devices with
barrier films showed parallel VON changes in the negative direction for
negative bias stress with increasing stress time, without any significant
changes in the field-effect mobility, SS, or ION/OFF ratio. The ZnO TFT
without a barrier showed a large negative VON shift of −18 V and a
Downloaded on 2015-04-02 to IP 138.251.14.35 address. Redistribution subject to ECS terms of use (see ecsdl.org/site/terms_use) unless CC License in place (see abstract).

Journal of The Electrochemical Society, 159 (4) H353-H357 (2012)
H357
carrier, leading to a negative VON shift. The water dynamic interaction
in the ambient environment can cause a negative VON shift. We note
that the multilayer device showed improved stability compared to
those of the other devices. As a result, the origin of the VON instability
was strongly affected by moisture permeation, which was overcome
by the use of a moisture-blocking layer such as the multilayer.
Conclusions
In summary, we investigated the changes in device characteristics
of ZnO and HfZnO TFTs using PEALD-deposited Al2O3 and TiO2
water vapor barrier films. By adopting a superior barrier, the device
properties were improved, and the VON stability under the negative
bias stress was considerably improved in the ZnO and HfZnO TFTs.
It was shown that the negative VON shift during bias stress was due
not only to charge trapping, but also to dynamic interactions between
the exposed backchannel and the ambient atmosphere. Therefore, a
suitable barrier layer with the lowest WVTR is essential to improve
the long term reliability of ZnO and HfZnO TFTs.
Acknowledgments
This research was supported by the National Research Foundation
of Korea (NRF) funded by the Korea government (MEST) (2011-
0018593).
References
1. K. Nomura, H. Ohta, A. Takagi, T. Kamiya, M. Hirono, and H. Hosono, Nature
(London), 432, 488 (2004).
2. W. B. Jackson, R. L. Hoffman, and G. S. Herman, Appl. Phys. Lett., 87, 193503
(2005).
3. H. Q. Chiang, J. F. Wager, and R. L. Hoffman, Appl. Phys. Lett., 86, 013503
(2005).
4. H. Yabuta, M. Sano, K. Abe, T. Aiba, T. Den, H. Kumomi, K. Nomura, T. Kamiya,
and H. Hosono, Appl. Phys. Lett., 89, 112123 (2006).
5. J. Lee, D. Kim, D. Yang, S. Hong, K. Yoon, P. Hong, C. Jeong, H. Park, S. Y. Kim,
and S. L. Lim, Proceedings of the SID ‘08 Digest, p. 625 (2008).
6. J. K. Jeong, J. H. Jeong, H. W. Yang, T. K. Ahn, M. Kim, K. S. Kim, B. S. Gu, H.-J.
Chung, J.-S. Park, and Y.-G. Mo, J. Soc. Inf. Disp., 17, 95 (2009).
7. J. K. Jeong, H. W. Yang, J. H. Jeong, Y.-G. Mo, and H. D. Kim, Appl. Phys. Lett., 93,
123508 (2008).
Figure 6. The evolution of transfer curves for the (a) HfZnO TFTs with-
out water vapor barrier films and (b) HfZnO TFTs with a multilayer barrier
(40 nm) as a function of applied stress time.
8. J.-S. Park, J. K. Jeong, H.-J. Chung, Y.-G. Mo, and H. D. Kim, Appl. Phys. Lett., 92,
072104 (2008).
9. P. E. Burrows, V Bulovic, S. R. Forrest, L. S. Sapochack, D. M. McCarty, and M. E.
Thompson, Appl. Phys. Lett., 65, 2922 (1994).
10. S.-M. Seo, C.-H. Jang, and J.-H. Park, Org. Electron, 9, 899 (2008).
11. M. Kim, J. H. Jeong, H. J. Lee, T. K. Ahn, H. S. Shin, J.-S. Park, J. K. Jeong, Y.-G.
Mo, and H. D. Kim, Appl. Phys. Lett., 90, 212114 (2007).
12. Y. Liu, H. Wang, and K. Radhakrishnan, Thin Solid Films, 515, 4387 (2007).
13. M. D. Groner, S. M. George, R. S. McLean, and P. F. Carcia, Appl. Phys. Lett., 88,
051907 (2006).
14. W.-S. Kim, M.-G. Ko, T.-S. Kim, S.-K. Park, Y.-K. Moon, S.-H. Lee, J.-G. Park, and
J.-W. Park, J. Nanosci. Nanotechnol., 8, 4726 (2008).
15. Y.-S. Kim and C. H. Park, Phys. Rev. Lett., 102, 086403 (2009).
16. M. K. Ryu, S. Yang, S.-H. Ko Park, C.-S. Hwang, and J. K. Jeong, Appl. Phys. Lett.,
95, 072104 (2009).
17. D. W. Greve, in Field Effect Devices and Application: Devices for Portable, Low-
power, and Imaging Systems, 1st ed. Prentice-Hall, Englewood Cliffs, NJ (1998).
18. W. S. Kim, Y. K. Moon, K. T. Kim, S. Y. Shin, B. D. Ahn, J. H. Lee, and J. W. Park,
Electrochem. Solid-State Lett., 13, H295 (2010).
19. K.-H. Lee, J. S. Jung, K. S. Son, J. S. Park, T. S. Kim, R. Choi, J. K. Jeong, J.-Y.
Kwon, B. Koo, and S. Lee, Appl. Phys. Lett., 95, 232106 (2009).
20. P. Gorrn, P. Holzer, T. Reidl, W. Kowalsky, J. Wang, T. Weimann, P. Hinze, and S.
Kipp, Appl. Phys. Lett., 90, 063502 (2007).
21. A. Suresh and J. F. Muth, Appl. Phys. Lett., 92, 033502 (2008).
22. J. M. Lee, I. T. Cho, J. H. Lee, and H. I. Kown, Appl. Phys. Lett., 93, 093504 (2008).
23. C.-J. Kim, S. Kim, J.-H. Lee, J.-S. Park, S. Kim, J. Park, E. Lee, J. Lee, Y. Park, J.
H. Kim, S. T. Shin, and U.-I. Chung, Appl. Phys. Lett., 95, 252103 (2009).
Figure 7. Logarithmic dependence of the turn-on voltage shift (ꢀVON) on
the duration of gate bias stress for the ZnO and HfZnO TFTs.
Downloaded on 2015-04-02 to IP 138.251.14.35 address. Redistribution subject to ECS terms of use (see ecsdl.org/site/terms_use) unless CC License in place (see abstract).
