70
P.J. Chupas, C.P. Grey / Journal of Catalysis 224 (2004) 69–79
oxide catalysts and, for alumina, can lead to a strengthening
of the acid sites [1–7]. Several techniques have been em-
ployed to study the effects of the fluorination of aluminum
oxide, including NMR [9–12], XANES (X-ray absorption
near-edge spectroscopy) [13], IR [14–17], and X-ray diffrac-
tion [9,10,19–21]. There has been considerable discussion
in the literature as to the basis of the modification of both
Brønsted and Lewis acidity on the surface of alumina. Two
conclusions seem to be universal: (1) that stronger Lewis
acid sites form as a result of fluorination and (2) that fluo-
rination leads to the formation of Brønsted acid sites on the
surface of partially fluorinated alumina.

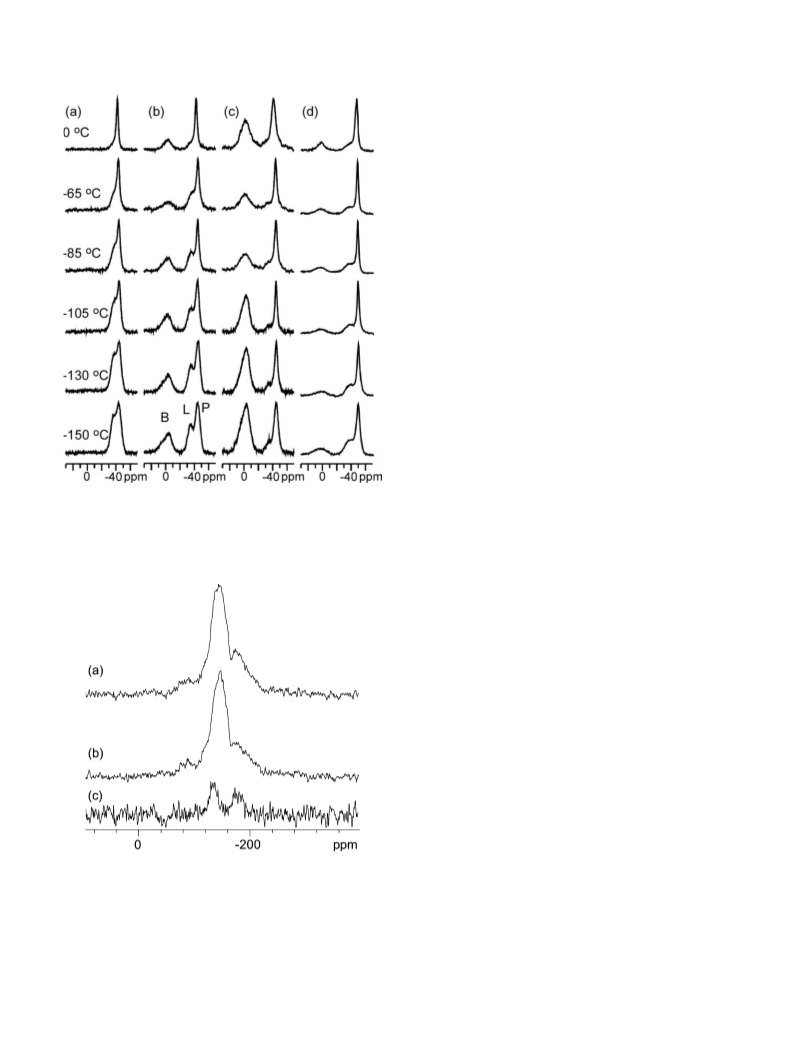

by the chlorofluorocarbon CHClF2. The basic probe mole-
cule (phenyl dimethylphosphine) is used in conjunction with
31P NMR to quantify the number and types of acid sites.
We show that fluorination of the surface leads to the forma-
tion of Brønsted acid sites with the concurrent consumption
of Lewis acid sites and provide a structural model for the
change in the surface structure that is also able to rationalize
the observed changes in acidity.
2. Experimental
Previous studies of fluorinated aluminas have employed
fluorinating agents such as NH4F [9,11,12,14,17,18], HF
[23], F2 [21], and CHClF2 [10,13,22]. Our work has,
however, shown that the fluorination mechanism depends
strongly on the fluorinating agent employed [13]. Acidic
protons on the fluorinating agent, and the mode of oxygen
removal as either H2O or CO, for example, may alter the sur-
face structure and acidic properties of the intermediates that
are formed. Changing the fluorinating agent may also affect
the surface sites that are attacked first during the initial fluo-
rination reactions. This becomes particularly relevant when
halocarbons are used as fluorinating agents. For example,
CHClF2 and CHF3 would be expected to attack different
surface sites, CHClF2 chemisorbing as a carbocation and
CHF3 adding as a carbanion.
Studies investigating the acidic properties of fluorinated
aluminas have coupled the use of probe molecules with IR
spectroscopy, allowing the changes to acid properties to be
quantified. For example, Peri has demonstrated an increase
in the strength of the Lewis acid sites on aluminas fluori-
nated with NH4F [14]. In line with this, Scokart et al. have
applied IR methods and have concluded that strong Lewis
acid sites and stronger Brønsted acid sites form as a result
of fluorination of the oxide surface, in aluminas fluorinated
with aqueous solutions of NH4F [17].
A recent report by Boese et al. has investigated the ini-
tial stages of the fluorination of γ -Al2O3 with CHClF2 us-
ing XAES (X-ray excited Auger electron spectroscopy) and
XANES [13]. They demonstrated that the surface of the par-
ticles is first fluorinated with the formation of singly bound
fluorine species (F–Al). This is followed by destruction of
the oxide lattice and concurrent formation of strong Lewis
acid sites. Lastly, an AlF3 phase with a high defect concen-
tration is formed. Our previous work, which utilized in situ
X-ray diffraction, has also shown that further fluorination of
the oxide leads to the formation of an AlF3 phase that re-
sembles α-AlF3 but contains significant concentrations of
defects [10]. While these analytical methods are able to track
the specific structural changes that occur, they do not allow
these changes to be directly correlated with the changing na-
ture of the acid sites present on the surface.
2.1. Sample preparation
Aluminum-sec-tributoxide (99%) and chlorodifluoro-
methane (HCFC-22) were obtained from Aldrich. The alu-
minas were prepared as follows: Aluminum-sec-tributoxide
(ASB) was dissolved in 2-butanol (molar ratio 1:16). While
stirring vigorously, 3.5 eq of water per ASB molecule were
added dropwise at room temperature. The solution was
stirred vigorously for 1 h at room temperature and was then
aged for 24 h at 95 ◦C in a covered glass dish. The resulting
gel was subsequently dried at 95 ◦C for 24 h. The dried ma-
terial was calcined under nitrogen as follows: 10 ◦C/min to
400 ◦C, 400 ◦C hold for 30 min, followed by rapid cooling to
room temperature. This sample, referred to as untreated alu-
mina, is labeled U/Al2O3. A dehydrated sample, D/Al2O3,
was prepared by drying a sample under vacuum to 400 ◦C
at a rate of 2 ◦C/min and holding at 400 ◦C for an addi-
tional 4 h.
Surface fluorination of the samples was performed in a
controlled manner using a vacuum line for low fluorination
levels and a reactor tube for higher fluorination levels. All
samples were heated and dried under vacuum, from room
temperature to 400 ◦C at a rate of 2 ◦C/min. 100 Torr of
CHClF2 was added to a 162-mL volume vacuum line to
which a tube containing a shallow bed of approximately
100 mg of alumina (described above) was attached. After the
sample was heated for 2 h at 400 ◦C, the sample was evac-
uated for 30 min. This procedure was repeated once for the
sample labeled F1/Al2O3 and twice for sample F2/Al2O3.
Sample F1/Al2O3 was heated an additional 2.5 h at 400 ◦C
so that both samples received the same overall heat treat-
ment. Sample F3/Al2O3 was prepared in a 1/4-in. Inconel
reactor, by flowing CHClF2 over the alumina sample at a
rate of 40 cc/min. The sample was initially heated to 280 ◦C
under a flow of dry N2. The flow of CHClF2 was then initi-
ated and continued for a total of 75 min. Gas flow was then
switched back to dry nitrogen and the sample was heated to
400 ◦C for an additional 2 h. Sample surface areas were de-
termined by N2 physisorption according to the BET method
using a Micromeritics ASAP 2010 volumetric sorption ana-
lyzer, and the results are given in Table 1. A Leo 1550 field
emission gun scanning electron microscope was used to con-
duct EDS (energy-dispersive X-ray spectroscopy) analysis,
Here, we report a single- and double-resonance solid-
state NMR study of the structural changes that are associ-
ated with the fluorination of the surface of alumina xerogels
