Fabrication of luminescent SrWO4 thin films by a novel electrochemical method

Article abstract of DOI:10.1016/j.materresbull.2006.12.002

Highly crystallized SrWO₄ thin films with single scheelite structure were prepared within 60 min by a cell electrochemical method. X-ray diffraction analysis shows that SrWO₄ thin films have a tetragonal structure. Scanning electron microscopy examinations reveal that SrWO₄ grains grow well in tetragonal tapers and grains like flowers or bunches, which can usually form by using the electrolysis electrochemical method, have disappeared under cell electrochemical conditions. X-ray photoelectron spectra and energy dispersive X-ray microanalysis examinations demonstrate that the composition of the film is consistent with its stoichiometry. These SrWO₄ films show a single blue emission peak (located at 460 nm) using an excitation wave of 230 nm. The speed of cell electrochemical method can be controlled by changing temperature. The optimum treatment temperature is about 50-60 °C.

Full text of DOI:10.1016/j.materresbull.2006.12.002

Materials Research Bulletin 42 (2007) 1823–1830
www.elsevier.com/locate/matresbu
Fabrication of luminescent SrWO thin films by a novel
4
electrochemical method
a,
Lianping Chen , Yuanhong Gao
b
*
a
College of Materials Science & Engineering, Sichuan University, Chengdu 610064, China
b
Textile Alliance Apparel (Dongguan) Ltd., Dongguan, Guangdong 523649, China
Received 22 July 2006; received in revised form 22 November 2006; accepted 1 December 2006
Available online 26 January 2007
Abstract
Highly crystallized SrWO
4
thin films with single scheelite structure were prepared within 60 min by a cell electrochemical
method. X-ray diffraction analysis shows that SrWO thin films have a tetragonal structure. Scanning electron microscopy
4
examinations reveal that SrWO grains grow well in tetragonal tapers and grains like flowers or bunches, which can usually form by
4
using the electrolysis electrochemical method, have disappeared under cell electrochemical conditions. X-ray photoelectron spectra
and energy dispersive X-ray microanalysis examinations demonstrate that the composition of the film is consistent with its
stoichiometry. These SrWO films show a single blue emission peak (located at 460 nm) using an excitation wave of 230 nm. The
4
speed of cell electrochemical method can be controlled by changing temperature. The optimum treatment temperature is about
5
0–60 8C.
2006 Elsevier Ltd. All rights reserved.
#
Keywords: A. Thin films; D. Luminescence
1
. Introduction
Scheelite-structured tungstates and molybdates are good laser host materials [1–4], particularly for pulsed lasers
5]. They are also important materials in electrooptics due to their blue or green luminescence [6,7]. They remain a
[
tetragonal structure over wide range of temperatures [3] and pressures [8]. For this reason, they may become the first-
chosen materials under some extreme environments.
It is generally agreed that a thin film phosphor has superior resolution compared to powders because of their
inherently smaller grain size and less lateral scattering. Various film preparation methods, such as sputtering [9],
vacuum evaporation [10], pulsed-laser deposition [11] and spray pyrolysis [12], have been adopted to prepare AMO4
(
A = Ca, Sr, Ba; M = Mo, W) thin films. But such films as-prepared show no luminescence [9,12] because of poor
crystallization. In order to obtain good quality films, heat treatments (500–1100 8C) are necessary. This not only
consumes a huge amount of energy but also is apt to produce impurity phases [9]; at the same time, this leads to
Schottky defects and poor adhesion. These problems make it important to develop new ways to prepare thin films
without or with lower temperature annealing treatment.
*
Corresponding author. Tel.: +86 28 85412415; fax: +86 28 85416050.
E-mail address: lianpingchen@163.com (L.P. Chen).
0025-5408/$ – see front matter # 2006 Elsevier Ltd. All rights reserved.
doi:10.1016/j.materresbull.2006.12.002

1824
L.P. Chen, Y.H. Gao / Materials Research Bulletin 42 (2007) 1823–1830
Ever since the end of last century, electrochemical methods, such as galvanostatic or potentiostatic methods, have
been widely used to prepare AMO (A = Ca, Sr, Ba; M = Mo, W) films [13–18]. Advantages of electrochemical
4
coating techniques over conventional techniques have been summarized by Switzer [19]. During the course of
reactions, energy in form of currents or potentials should be supplied by electrochemical apparatuses.
But the following investigations reveal that such energy is unnecessary for preparations of AMO (A = Ca, Sr, Ba;
4
2
ꢀ
M = Mo, W) films. According to the Pourbiax Diagram [20], in alkaline solutions tungsten exists WO4 ions:
W þ 8OHꢀ ! WO42ꢀ þ 4H2O þ 6e
Handbook on Standard Potential of Electrode Reaction [21] shows that the standard potential of WO4 /W is
1.05 V versus normal hydrogen electrode.
The following equation [22] shows the relation between the loss of Gibbs energy and standard potential.
(1)
2
ꢀ
ꢀ
0
0
DG ¼ nFE
where DG stands for the loss of Gibbs energy (J), n refers to the number of electron transferred in reaction [1], n equals
(2)
0
0
and E is the standard electrode potential of WO4 /W.
2ꢀ
6
From formula (2), it can be concluded that reaction (1) (i.e., metal corrosion) occurs spontaneously with an
accompanying negative loss of Gibbs energy.
Since tungsten metal becomes solvated ions in alkaline solutions spontaneously, it is unnecessary to supply energy
to make reaction (1) work. Our attention will be rather concentrated on applications of the spontaneous dissolution
phenomenon (i.e., corrosion) to synthesize crystalline AMO (A = Ca, Sr, Ba; M = Mo, W) thin films directly.
4
In general, it is unpractical to prepare functional ceramic thin films using pure corrosion because of its low rate. To
overcome the slow rate of natural corrosion, we have proposed cell electrochemical techniques [23]. It is well-known
that two different metals generally have different potentials when dipped in an electrolyte. While connected by wires
or conductors, they constitute a cell so that electrons can transfer from one metal to the other efficiently. The method
based on cell and metal’s spontaneous corrosion phenomenon is called cell electrochemical technique. It has its own
characteristics:
(
(
(
1) it has two different electrodes which can constitute a cell;
2) one electrode acts as reducer;
3) electrode reactions happen spontaneously.
It is interesting that scheelite-typed crystalline AMO (A = Ca, Sr, Ba; M = Mo, W) thin films have been
4
successfully prepared by cell electrochemical methods in our research group. As far as we know, this is the first time
that cell electrochemical methods have been used to prepare functional ceramic thin films directly. This paper is
devoted to the fabrication of luminescent SrWO thin films by this novel method.
4
2
. Experimental procedure
Tungsten (20 mm ꢁ 10 mm ꢁ 0.1 mm, with purity of 99.5%) and platinum plates were used as the anode and
cathode, respectively. An Ag/AgCl (saturated KCl) standard electrode was used as reference electrode.
After being polished mechanically, the tungsten plates were pretreated with degreasing and ultrasonic cleaning.
The electrolyte was prepared from SrCl ꢂ6H O (with purity of 99.5%) and NaOH (with purity of 96%). The
2
2
2
+
concentration of Sr ions was 0.4 mol/l. Before experiments, solutions were purged with N gas for 10 min. During
2
electrochemical treatments, solution temperature was controlled by a constant temperature regulator. After treatments,
samples were washed with deionized water and dried.
The films were characterized by X-ray diffraction (X’Pert PRO MPD, made in Netherlands) using Cu Ka radiation
at the conditions of 40 kV and 40 mA with a graphite monochrometer. The scanning rate of 2u was 0.068/s.
Morphologies and microstructures of films were investigated by scanning electron microscopy (JSM-5000, JEOL,
Tokyo, Japan). Compositions of the thin films were measured by X-ray photoelectron spectrometry (XSAM-800,
made in U.K.) using Al Ka radiation and under FRR mode. EDXA measurement was tested by scanning electron
microscopy, too. Luminescence was examined by spectrofluorometry (M-850, Hitachi, Japan).

L.P. Chen, Y.H. Gao / Materials Research Bulletin 42 (2007) 1823–1830
1825
3
. Results and discussions
3
.1. XRD analysis
Fig. 1 gives the XRD patterns of a SrWO thin film prepared by a cell electrochemical method for 60 min at 60 8C in
4
2
+
alkaline solutions containing Sr ions. It can be seen from Fig. 1 that the SrWO film is well-crystallized and has the
4
˚
scheelite-typed structure. The peak intensities, the peak positions and the lattice parameters (a = 5.4119 A and
˚
c = 12.0103 A) agree well with the standard JCPDS data [24].
3
.2. Scanning electron micrographs examinations
Fig. 2(a and b) present the comparison of scanning electron micrographs of SrWO thin films prepared by constant
4
current and cell electrochemical method, respectively.
Fig. 2(a) shows that under the condition of constant current, SrWO polycrystals are inclined to growing in clusters
4
like bunches or flowers. Such a phenomenon is often observed in surfaces of SrWO thin films prepared by constant
4
current method. In addition, grain sizes are not homogeneous and the surfaces of thin films are very rough.
Fig. 2(b) reveals that SrWO polycrystals fabricated by the cell electrochemical technique grow in tetragonal
4
tapers. Though intergrowth is easily seen, the clusters like bunches or flowers are not observed yet. The average grain
size is about 2 mm in width and 6 mm in length.
From Fig. 2, it can be deduced that the film surface has been markedly improved by using cell electrochemical
technique instead of the constant current method. Since currents in cell electrochemical methods are correspondingly
low, the driving force of nucleation of SrWO is accordingly weak. Thus, growth units could freely transfer to sites
4
with lower energy. Clusters are not apt to form.
3
.3. XPS and EDXA measurements
Fig. 3(a–c) shows the narrow-scan XPS spectra for W, Sr and O elements of SrWO films prepared by cell
4
electrochemical method, respectively.
To investigate the multi-spitting effect caused by the coupling of spinning momentum and orbiting momentum,
Gaussian–Lorentzian fitting was employed (Fig. 3) according to the program provided by the XPS operator.
It can be seen from Fig. 3 that the XPS peak of W 4f7/2 is at 35.470 eV, the peak of Sr 3d5/2 is at 133.410 eVand the
peak of O 1s is at 529.850 eV. The results are consistent with those reported in literature [25]. Therefore, the
4

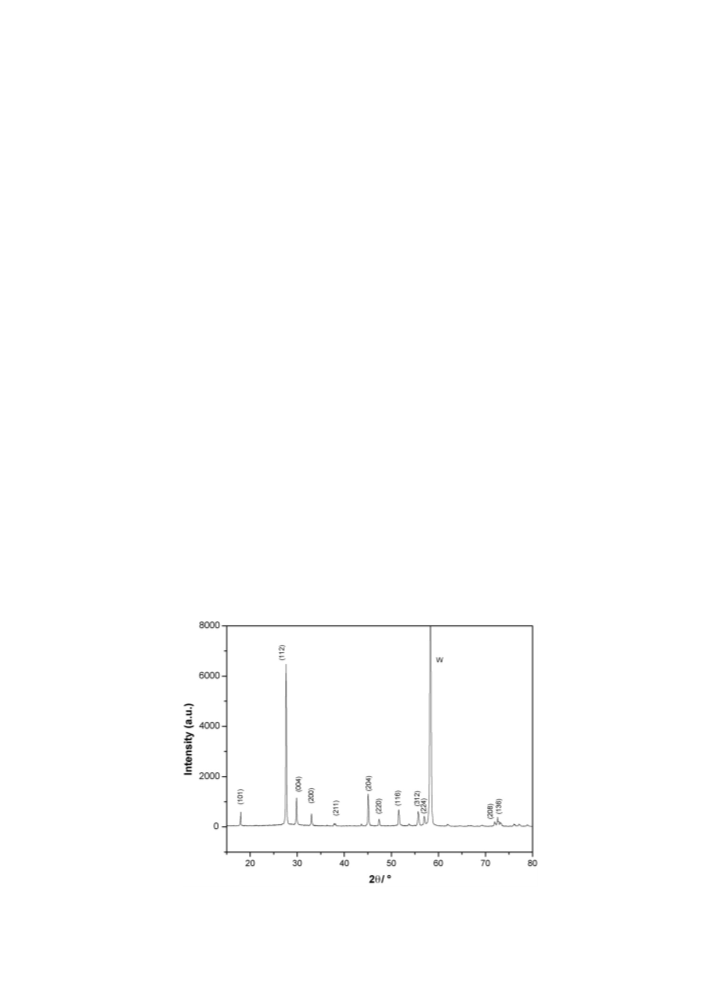

Fig. 1. XRD patterns of SrWO thin films prepared by a cell electrochemical method at 60 8C for 60 min.

1826
L.P. Chen, Y.H. Gao / Materials Research Bulletin 42 (2007) 1823–1830
2
Fig. 2. SEM images of SrWO
4
thin films prepared by electrochemical methods at 60 8C. (a) Constant current method, I = 0.4 mA/cm , t = 230 min;
(b) cell electrochemical technique, 60 min.
measurement results reveal the presence of Sr, Wand O elements in the films and confirm that the valence of Sr, Wand
O elements are +2, +6 and ꢀ2, respectively.
EDXA measurements show that the atomic ratio of Sr:W in the film is 46.499:53.501. Considering that the detective
depth of electron beam might exceed the thickness of SrWO film, electron beam can reach tungsten substrate. So the
4
amount of tungsten might appear to be a little larger than that of strontium. The results of XPS and EDXA
measurements agree well with the XRD analysis, which firmly demonstrate that the composition of the film accords
with its stoichiometry.
3
.4. Luminescence
Fig. 4 presents the luminescent property of SrWO thin films prepared by a cell electrochemical method. These
4
SrWO thin films show single emission peak around 460 nm at the excitation of 230 nm at room temperature, which is
4
in agreement with literature results [14–16]. Other researchers [7,26] obtained green emission from their SrWO4
powders or CaWO crystals in addition to the blue emission at liquid-nitrogen temperature. This green emission was
4
ascribed to the transition on WO group [7,26]. Such defect is usually produced due to the volatilization of oxygen on
3
2
ꢀ
WO4 group during the high temperature treatment. However, the present sample was prepared directly via solution
routines and without any annealing treatment. In the present study, such green emission is not observed, but there
exists only single blue emission, which suggests that the SrWO film should be free of Schottky defect WO .
4
3
3
.5. A solution to control the rate of cell electrochemical methods
For a long time, cell electrochemical method was considered to be an uncontrollable and taking-time method to
deposit functional thin films. Because of these problems, almost no researchers thought cell electrochemical methods
seriously. While in our research group, much consideration has been paid on how to improve cell electrochemical
techniques. It is found that assisted by hydrothermal treatments the time span of deposition can be reduced from
several days into several tens of minutes. Obviously, experiment efficiency has been greatly improved.
Here, we define average current density in the starting 5 min as the parameter indicating the speed of cell
electrochemical method.
Table 1 gives the effects of temperature on average current density. It shows that average current density increases
with the increase of temperature at first and then decreases with the increase of temperature. The increase trend is
ascribed to the following reasons.
On one hand, increasing the temperature can speed up the rate of cell reactions. According to the Arrhenius
equation [22],
k ¼ koeꢀ
Ea=RT
(3)

L.P. Chen, Y.H. Gao / Materials Research Bulletin 42 (2007) 1823–1830
1827
4

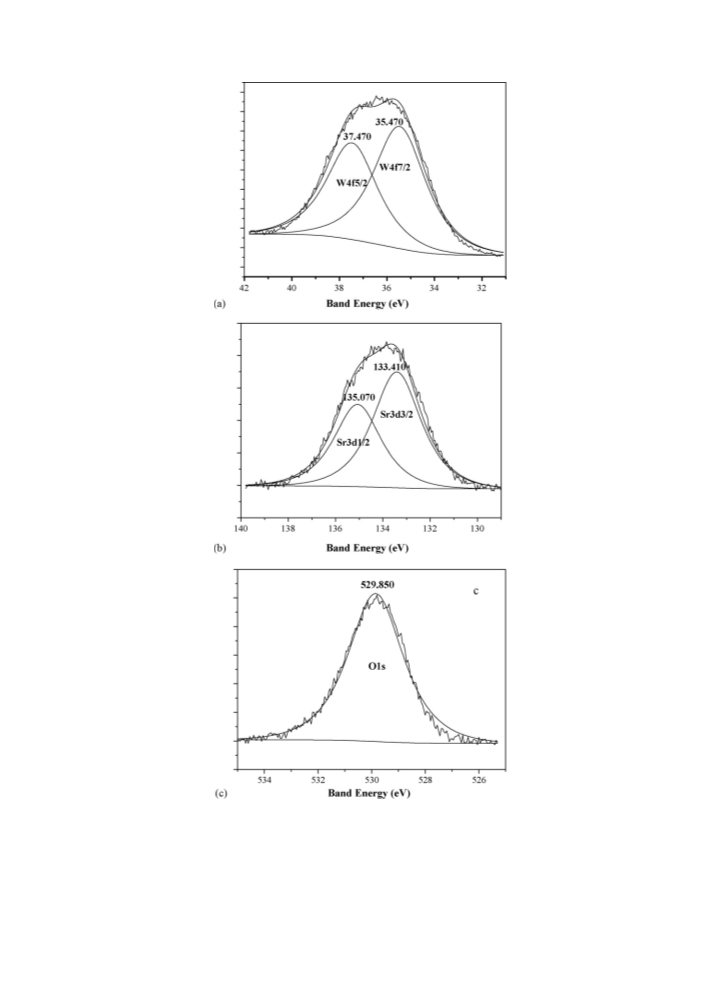

Fig. 3. XPS spectra of SrWO film prepared by a cell electrochemical method: (a) W 4f; (b) Sr 3d; (c) O 1s.
where k stands for frequency coefficient, E stands for active energy, k stands for reaction rate, T means temperature
o
a
ꢀ1
and R = 8.314 JꢂK . From the equation, it can be seen that reaction rate increases with increasing the temperature.
Secondly, increasing temperature can accelerate hydrogen desorption. In the tungsten–platinum cell system, the
reduction of hydrogen is the cathodic reaction. Hydrogen often adsorbs on cathode. The higher the temperature is, the

1828
L.P. Chen, Y.H. Gao / Materials Research Bulletin 42 (2007) 1823–1830
4
Fig. 4. Excitation (a) and emission (b) spectra of SrWO thin films prepared by a cell electrochemical method at room temperature.
more tempestuously hydrogen molecules move, which makes hydrogen be desorbed easier. According to the laws of
reaction equilibriums, the loss of hydrogen helps the generation of hydrogen, which makes anodic oxidation reaction
go efficiently.
2
+
2ꢀ
Thirdly, temperature will affect the diffusion of Sr and WO4 ions. The diffusion driving force of these two ions
lies in their concentration gradients. Their movements can be treated as Brownian movement among the medium with
viscosity coefficient of a. The temperature dependence of the diffusion coefficients [27] is
kT
D ¼ a
(4)
2
ꢀ1
ꢀ23
JꢂKꢀ1, T the absolute temperature
where D is the diffusion coefficient (m ꢂs ), k the Boltzman constant, 1.38 ꢁ 10
1
(
K) and a is the viscosity coefficient (kgꢂsꢀ ).
Table 1
Effects of temperature on average current density
2
Average current density (mA/cm )
Number
Temperature
1
2
3
4
5
6
25
40
50
60
70
80
0.045
0.2818
0.4787
0.4402
0.2481
ꢀ0.2393

L.P. Chen, Y.H. Gao / Materials Research Bulletin 42 (2007) 1823–1830
1829
It shows that the diffusion will be accelerated by increasing temperature.
The decrease of average current density may arise from counter-polarization. Once counter-polarization happens,
tungsten will serve as cathode and tungsten’s oxidation will be stopped. This counter-polarization phenomenon was
observed when the temperature came up to 80 8C.
Table 1 reveals that the speed of cell electrochemical method can be altered by changing the temperature. To deposit
thin films quickly, the optimum temperature is about 50–60 8C.
4
. Conclusions
Highly crystallized SrWO thin films have been prepared on tungsten foils by a cell electrochemical method. The
4
XRD result shows that the film is well-crystallized and has single scheelite structure. SEM examinations reveal that
SrWO polycrystalline grains grow well with di-pyramid growth habits and clusters like flowers or bunches, which
4
can usually form by using the electrolysis electrochemical method, have disappeared under cell electrochemical
conditions. XPS and EDXA measurements demonstrate that the composition of the film consists with its
stoichiometry. The as-grown films show single blue emission at 460 nm with the excitation light of 230 nm at room
temperature.
The cell electrochemical technique is a novel electrodeposition method. Its reaction speed can be controlled by
changing treatment temperature. The optimum temperature is about 50–60 8C.
Acknowledgements
Financial supports from National Science Foundation of China (Project Nos. 50372042 and 50410179), and Fok
Ying Tung Education Foundation (Project No. 94008) are gratefully acknowledged. The authors wish to thank
Professors Zhu Jumu and Zeng Jiayu for their helpful XRD and EDXA measurements, and also to thank researchers
Xin Chuan, Wang Hui and Zhou Pin for their useful XPS, SEM and photoluminescence examinations, respectively.
References
[
[
[
[
[
[
[
[
[
1] G. Bayer, H.G. Wiedemann, Thermochim. Acta 133 (1988) 125.
2] A.G. Page, S.V. Godbole, M.D. Sastry, J. Phys. Chem. Solids 50 (1989) 571.
3] T.T. Basiev, A.A. Sobol, Yu.K. Voronko, P.G. Zverev, Opt. Mater. 15 (3) (2000) 205–216.
4] L.I. Ivleva, T.T. Basiev, I.S. Voronina, P.G. Zverev, V.V. Osiko, N.M. Polozkov, Opt. Mater. 23 (2003) 439–442.
5] P. Cerny, P.G. Zverev, H. Jelinkova, T.T. Basiev, Opt. Commun. 177 (2000) 397–404.
6] F.A. Kroger, Some Aspects of the Luminescence of Solids, Elsevier, Amsterdam, 1948, pp. 107.
7] G. Blasse, W.J. Schipper, Phys. Status Solidi A 25 (2) (1974) K163–K165.
8] D. Christofilos, G.A. Kourouklis, S. Ves, J. Phys. Chem. Solids 56 (8) (1995) 1125–1129.
9] Y. Kashiwakura, O. Kanehisa, Japan Patent No. 1-263188, October 19 (1989).
[
[
[
[
[
[
[
[
10] C. Feldman, J. Soc. Motion Pict. Eng. 67 (1958) 455.
11] J.Y. Huang, Q.X. Jia, Thin Solid Films 444 (2003) 95–98.
12] Z.D. Lou, M. Cocivera, Mater. Res. Bull. 37 (2002) 1573–1582.
13] M. Yoshimura, M. Ohmura, W.S. Cho, M. Kakihana, J. Am. Ceram. Soc. 80 (9) (1997) 2464–2466.
14] W.S. Cho, M. Yashima, M. Kakihana, A. Kudo, T. Sakata, M. Yoshimura, J. Am. Ceram. Soc. 78 (11) (1995) 3110–3112.
15] W.S. Cho, M. Yashima, M. Kakihana, A. Kudo, T. Sakata, M. Yoshimura, Appl. Phys. Lett. 66 (9) (1995) 1027–1029.
16] W.S. Cho, M. Yashima, M. Kakihana, A. Kudo, T. Sakata, M. Yoshimura, Appl. Phys.Lett. 68 (1) (1996) 137–139.
17] D.J. Gao, Research on the preparation and properties of molybdate, tungstate and titanate thin films by soft solution processing technique,
Doctorate Dissertation of Sichuan University, Chengdu, China, 2003 (in Chinese).
[
[
[
18] L.P. Chen, D.Q. Xiao, J. Bi, P. Yu, Z.N. Yang, G.L. Yu, J.G. Zhu, J. Funct. Mater. 36 (1) (2005) 127–128 (in Chinese).
19] J.A. Switzer, Am. Ceram. Soc. Bull. 66 (1987) 1521–1524.
20] M. Pourbiax, Atlas of Electrochemical Equilibria in Aqueous Solution, second ed., National Association of Corrosion Engineers, Houston,
TX, USA, 1974, pp. 272–279.
[
[
[
[
21] W.C. Wu, H.Q. Feng, K.Z. Wu, Handbook on Standard Potential of Electrode Reaction, Science Publishing Company, Beijing, China, 2005.
22] Z.J. Chen, Inorganic Chemistry, Publishing House of Sichuan University, 1995,, p. 50, 117 (in Chinese).
23] P. Yu, L.P. Chen, D.Q. Xiao, China Patent 200510022471.3 (2005).
24] Powder Diffraction File, Nos. 72-0747, 85-0587, Joint Committee on Powder Diffraction Standards, International Center for Diffraction Data,
Newtowne Square, PA.

1830
L.P. Chen, Y.H. Gao / Materials Research Bulletin 42 (2007) 1823–1830
[
25] C.D. Wagner, W.M. Riggs, L.E. Davis, G.E. Muilenberg, A Reference Book of Standard Data for Use in X-Ray Photoelectron Spectroscopy,
Perkin-Elemer Cprporation and Physical Electronics Division, 6509 Flying Cloud Drive Eden Prairie, Minnesota 553447, USA.
26] R. Grasser, A. Scharmann, J. Lumin. 12/13 (1976) 473–478.
[
[
27] C.Z. Wang, Thermodynamics and Statistical Physics, second ed., Publishing House of Higher Education, 1993, pp. 386–391 (in Chinese).
