Synthesis of 5,12-Diazapentacenes and Their Properties

Article abstract of DOI:10.1021/acs.joc.9b01628

An efficient synthesis via a precursor route to a new class of linear dialkyldiaminoazapentacenes is reported. The synthetic route involves the coupling of 4-substituted aniline derivatives to 2,5-dibromoterephthalonitrile via Buchwald-Hartwig amination f

Full text of DOI:10.1021/acs.joc.9b01628

Subscriber access provided by UB der LMU Muenchen
Article
Synthesis of 5,12-Diazapentacenes and Their Properties
Rosalva C. Garcia, Matthew J. Pech, Roger D. Sommer, and Christopher B Gorman
J. Org. Chem., Just Accepted Manuscript • DOI: 10.1021/acs.joc.9b01628 • Publication Date (Web): 04 Nov 2019
Downloaded from pubs.acs.org on November 4, 2019
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 13
The Journal of Organic Chemistry
1
2
3
4
5
6
7
8
9
Synthesis of 5,12-Diazapentacenes and Their Properties
Rosalva C. Garcia, Matthew J. Pech, Roger Sommer, and Christopher B. Gorman*
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Department of Chemistry, North Carolina State University, Box 8204, Raleigh, NC 27695, USA
Diazapentacenes, N-heteroacenes, organic electronics
ABSTRACT: An efficient synthesis via a precursor route to a new class of linear dialkyldiaminoazapentacenes is reported. The
synthetic route involves the coupling of 4-substituted aniline derivatives to 2,5-dibromoterephthalonitrile via Buchwald-Hartwig
amination followed by an acid-mediated cyclization to furnish the diazapentacenes. These reactions occur under short reaction times
(<2 h.) and high yields (77–99%) and do not require column chromatography for purification. The electrochemical and optical
properties of the diazapentacenes were evaluated, and the values indicate that these molecules are promising n-type materials for
organic electronic devices. The photostability of these molecules was significantly greater than unsubstituted acenes. Their method
of degradation via endoperoxide generation was confirmed by X-ray crystallography and mass spectrometry.
INTRODUCTION
The market for flexible electronics is expected to reach 70 billion USD by 2026.1 One strategy to achieve the properties of flexibility,
light-weight, and low-cost in electronics is to incorporate organic-based materials as the key components in the electronic devices as
organic field-effect transistors (OFETs), organic light-emitting diodes (OLEDs), organic photovoltaics (OPVs), organic resistive
memories (ORMs), and organic sensors. Specifically, there is interest in the development of complementary organic circuits based
on p- and n-type materials for hole and electron charge carriers in OFETs in the next generation of organic electronics.2 Currently,
there is a shortage of n-type materials compared to their counter p-type due to issues arising from ambient stability, charge carrier
mobility, and energy alignment.3–6
Acenes, molecules with linearly fused benzene rings, have been used in electronics as the organic material in organic thin-film
transistors (OTFTs), OFETs, and OLEDs.7,8 Diazapentacenes, also known as N-heteroacenes, are analogs of acenes in which a CH
moiety is substituted with an imino-nitrogen atom where the number and position of the nitrogen atoms in the backbone can affect
the electronic structure, molecular packing, solubility, and stability.9–13 Because the imino-nitrogen atoms stabilize the N-heteroacene
by lowering its LUMO level, N-heteroacenes are promising candidates for organic n-type semiconductors.14 Thus, there is interest
in the development of novel N-heteroacenes and their properties.
Traditionally, N-heteroacenes have been prepared by condensation reactions. However, these reactions between aromatic o-diamines
with aromatic o-dihydroxy compounds yielded N-heteroacenes but functional group tolerance was low due to the harsh conditions
that can result in the decomposition of the starting materials.15 Recently, there was a report of a 12,14-disubstituted
5,7-diazapentacenes via a Friedländer condensation followed by an oxidation; however, the yields were moderate to poor.16 In
addition to the moderate to poor yields, the authors report difficulties to synthesize the initial precursors, to dehydrogenate the
alternative precursors to the fully aromatized 5,7-diazapentacenes, and to crystallize their one 5,7-diazapentacene molecule.16
Furthermore, the synthesis of larger N-heteroacenes, such as N-heteropentacene and N-heterohexaacene, resulted in the N,N’-dihydro
compounds due to the increased difficulty of oxidizing them. A more recent approach in the synthesis of larger, substituted
N-heteroacenes used palladium-catalyzed coupling. In the synthesis of alkynylated N-heteropentacenes, this method works the best
with activated halides, and it has limitations with deactivated halides.17 These limitations make new approaches for the synthesis of
N-heteroacenes of interest.
Here, we present a synthetic route for 5,12 diazapentacenes with C2h symmetry in high yields with short reaction times. The route
involves the synthesis of a diazapentacene precursor followed by an acid-mediated cyclization to obtain the diazapentacene. A similar
coupling and cyclization was performed on a dihexyl ketone using copper in one pot, albeit a low yield, for the synthesis of 5,7-
diazapentacene derivatives which degrade by forming the dimer structure.18 In this work, the outstanding feature of the syntheses of
the building block, precursors, and diazapentacenes is the ease of synthesis, high yields, and no need of column chromatography for
purification.
RESULTS AND DISCUSSION
Synthesis of Diazapentacenes. First, 2,5-dibromoterephthalonitrile (1), a building block for the diazapentacene precursors, was
synthesized (Scheme 1). The synthesis of this molecule has been reported19 and it was optimized to reduce the overall reaction time
ACS Paragon Plus Environment

The Journal of Organic Chemistry
Page 2 of 13
to 4 h and to increase the overall yield to 83%. Key to the optimization involved adding the acyl chloride to the ammonium hydroxide
as opposed to the reversed addition which reduced the amidation step from a 3-hour reaction to a 5-minute reaction and increased the
yield from 76% to 94%. The electron withdrawing nitrile groups were placed on the aryl halide to facilitate the oxidative addition
step in the Buchwald-Hartwig catalytic cycle.20
1
2
3
4
5
6
Scheme 1. Synthesis of 2,5-dibromoterephthonitrile (1). Conditions: i.) (COCl)2, cat. DMF, DCM, reflux, 3 h.; ii). NH4OH,
RT, 5 min.; and iii) POCl3, 110 °C, 1 h.
7
8
9
O
Br
COOH
Br
Br
Cl
i
ii
Cl
HOOC
Br
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
O
quant.
O
Br
H2N
O
Br
CN
Br
NH2
Br
iii
NC
94%
88%
1
The diazapentacenes were synthesized via a precursor route (Scheme 2). The precursors were synthesized by the Buchwald-Hartwig
amination of 1 and commercially available 4-substituted anilines. For this coupling, it was important to use the palladium precursor
Brettphos Pd G1 to take advantage of its high selectivity for monoarylation.21 The identity of these compounds was confirmed by 1H
and 13C NMR spectroscopy as well as single crystal X-ray crystallography (Figure S26-S28). The diazapentacenes were obtained
from an acid-mediated cyclization of the precursors with trifluoroacetic acid (TFA) and/or trifluoromethanesulfonic acid (TFMSA)
using a previous report for the synthesis of 9-aminoacridine (9-AA).22 It is noteworthy that the syntheses of the precursors and
diazapentacenes proceed in relatively short reaction times with high yields and do not require column chromatography for
purification.
Scheme 2. Synthesis of diazapentacenes via a precursor route. Conditions: i.) BrettPhos Pd G1, Cs2CO3, t-BuOH, 80 °C, 2 h.
and ii.) TFA and/or TFMSA, 60 °C, 1 h.
Synthesis of Precursors
H
R
R
NC
N
i
+
1
NH2
N
H
CN
R
2 eq.
1 eq.
2a: R=H, 94%
3a: R=(CH2)5CH3, 77%
4a: R=C(CH3)3, 90%
Cyclization of Precursors
NH2
R
N
2a
3a
4a
ii
N
R
NH2
2b: R=H, 95%
3b: R=(CH2)5CH3, 99%
4b: R=C(CH3)3, 78%
The placement of the nitrile groups on the center ring of the diazapentacene precursor has two purposes. First, placement here should
favor the second cyclization in an acidic environment by making the carbon of the nitrile group more electrophilic. Under the strongly
acidic conditions employed, the pyridyl and aniline nitrogens are protonated (Scheme 3a). If the nitrile groups were placed on the
outer benzene rings, then the pyridinium ion would reduce the nucleophilicity of the carbon on the adjacent benzene ring which can
be detrimental to the second cyclization (Scheme 3b). Second, as long as the aniline building block has a line of symmetry through
the amino group, then it is anticipated that the cyclization of the precursor will yield the linear diazapentacene when the nitrile groups
are on the center benzene ring. Otherwise, when the nitrile groups are situated on the outer benzene rings, then there are two potential
products, the bent and the linear structure. Of these two products, there is a preference for the bent structure as it is more stable than
the linear structure in accordance with Clar’s rule.23 This phenomenon has been reported in the literature.24 Indeed, it is observed
that the cyclization of the precursor shown in Scheme 3b results in the recovery of starting material at 60 °C and a mixture of products
at higher temperatures.
ACS Paragon Plus Environment

Page 3 of 13
The Journal of Organic Chemistry
Scheme 3. General schematic for the electronics of the second cyclization in an acidic environment and the diazapentacene
structures for precursors with (a) the nitrile group on the center and with (b) nitrile groups on the outer benzene rings.
1
2
3
4
a.)
b.)
H
N
H
N
NC
CN
5
6
7
8
N
H
CN
N
H
NC
H+
H+
9
NH3
NH3
H
N
H
N
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
N
H
CN
N
H
NC
H+
H+
NH3
H
H
N
3
3
N
N H
NH
N
H
NH3
N
H
2bp
+ 2bp + additional products
Optical, Electrical, and Photophysical Properties. It has been reported that, in acenes, there is a bathochromic shift of the longest
wavelength absorption by approximately 100 nm with each benzannulation.25 The UV-visible absorption spectra of 2b, 3b, and 4b
were obtained and compared to 9-AA, the three-ring analogue (Figure 1a). Indeed, there is approximately an increase of ~200 nm
from 9-AA with λmax = 424 nm to 2b, 3b, and 4b with λmax = 648 nm, 649 nm, and 638 nm, respectively. Furthermore, the UV-visible
absorption spectra were used to calculate the optical HOMO-LUMO gaps (Eg) to 1.86 eV, 1.82 eV, and 1.83 eV for 2b, 3b, and 4b,
respectively, using their λonset = 668 nm, 680 nm, and 679 nm, respectively. These Eg values are also consistent with the trend where
Eg=1/n where n is the number of rings.
ACS Paragon Plus Environment

The Journal of Organic Chemistry
Page 4 of 13
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 1. (a) UV-Visible absorption spectra of 9-AA, 2b, 3b, and 4b in 50:50 THF:MeOH and (b) the cyclic voltammograms of 2b, 3b, and
4b in 0.1 M n-Bu4PF6 in THF at 50 mV/s.
Cyclic voltammetry measurements of 2b, 3b, and 4b were carried out in THF using ferrocene as an internal standard (Figure 1b).
Diazapentacene 2b has one irreversible reduction peak whereas diazapentacenes 3b and 4b have two reversible redox peaks. Based
on these reduction potentials, the LUMO energy levels for 2b, 3b, and 4b where calculated to -3.88 eV, -3.97 eV, and -3.78 eV vs.
Fc/Fc+, respectively. These LUMO energy levels are not below the threshold reported of -4.1 eV for n-type materials stable in air.26
However, these LUMO energy levels are close to or within range of -3.9 eV to -4.1 eV in which electron transport can be obfuscated
by the degradation of molecules by oxygen and/or water.5,26 Nonetheless, electron transport may be viable if the material is protected
from air. Since oxidations were not observed for these molecules, the HOMO energy levels were calculated to -5.74 eV, -5.79 eV,
and -5.61 eV using the onset wavelength for λmax (Table 1).
Table 1. Summary of the optical and electrical properties of 2b, 3b, and 4b in THF.
Optical
Electrical
Compound
λmax
Eg, opt. Ered.
LUMOb
HOMOc
(nm) (eV)a
(V)
2b
3b
4b
648
649
638
1.86
1.82
1.83
-0.92
-0.83
-1.02
-3.88
-3.97
-3.78
-5.74
-5.79
-5.61
a Eg, opt. (eV) =1240/ λonset (nm).
b Calculated as following: ELUMO = -4.80 – Ered
c Calculated as following: EHOMO = ELUMO – Eg, opt.
.
Emission spectra were collected in MeOH since the peaks in absorption spectra of the dry diazapentacene in THF were not well
defined without the slight addition of water (Figure S16). This poor peak resolution was not observed in dry methanol. Furthermore,
because these diazapentacenes contain a 4-aminopyridine moiety, then various reactions such as excited state proton transfer may
ACS Paragon Plus Environment

Page 5 of 13
The Journal of Organic Chemistry
occur. When the neutral molecule 2b was excited at 450 nm, negative Stokes shifts were observed (Figure 2a). This may be due to
emission from Sn→S0 where n>1. It is also possible that excited state proton transfer, can occur.27 However, the emission spectrum
of the fully protonated species of 2b (2bp) (vida infra) has a positive Stokes shift of 17 nm (Figure 2b), suggesting that additional
photophysical complexities are eliminated in these species. Furthermore, a single exponential decay time constant of 13.6 ns was
found for 2bp. The absorption and emission spectra of 3b, 3bp, 4b, and 4bp are shown in the SI (Figure S17 and Figure S18). The
time constants for 3bp and 4bp are 10.1 ns and 10.6 ns, respectively.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2. UV-Visible absorption and emission spectra of (a) 2b and (b) 2bp.
Like 2bp, 3bp and 4bp also have small Stokes shift, 20 and 25 nm, respectively. A small Stokes shift is reflective of the rigid
molecular geometry of the diazapentacenes.28,29 Furthermore, small Stokes shifts are promising for exhibiting a low reorganization
energy in charge transport. In addition to obtaining a Stokes shift, quantum yields (Φ) of the protonated diazapentacenes were
obtained and calculated to 0.38, 0.30, and 0.29. The Stokes shift and quantum yields are summarized in Table 2.
Table 2. Photophysical properties for 2bp, 3bp, and 4bp in MeOH.
Compound
2bp
Stokes shift (nm)
Φ
τ (ns)
13.6
10.1
10.6
17
20
25
0.38
0.30
0.29
3bp
4bp
Acidochromism. The diazapentacenes 2b, 3b, and 4b possess four nitrogen atoms that could be protonated, and thus these molecules
are expected to exhibit acidochromism upon the addition of up to four equivalents of acid. Because there are two different types of
nitrogen atoms, it was hypothesized the first two equivalents of acid would protonate the pyridyl nitrogen atoms since their lone pairs
ACS Paragon Plus Environment

The Journal of Organic Chemistry
Page 6 of 13
are orthogonal to the π-system. Then, the addition of two more equivalents of acid should protonate the amino nitrogen atoms. This
order of protonation has been reported in 9-aminoacridine and 4-aminopyridine.30,31
1
2
3
4
5
6
7
8
9
The absorption spectra for 2b do not change significantly with the addition of the first two equivalents of TFA (Figure 3a) which is
congruent with the protonation of the pyridyl nitrogen atoms. The addition of two more equivalents of TFA to 2b (Figure 3b) results
in hypsochromic shifts for the longest wavelength from λmax = ~640 nm to λmax = ~600 nm. This trend is consistent with the
protonation of the amino nitrogen atoms whose lone pairs are no longer in resonance with the π-system, decreasing the number of
conjugated atoms. The addition of TFA after roughly four equivalents of TFA does not change the spectrum, as expected, since there
are no more sites for protonation. Molecules 3b and 4b exhibit the same behavior (Figure S19 and S20). This acidochromic behavior
of the diazapentacenes makes them candidates for metal ion- and proton-sensing applications.14
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60

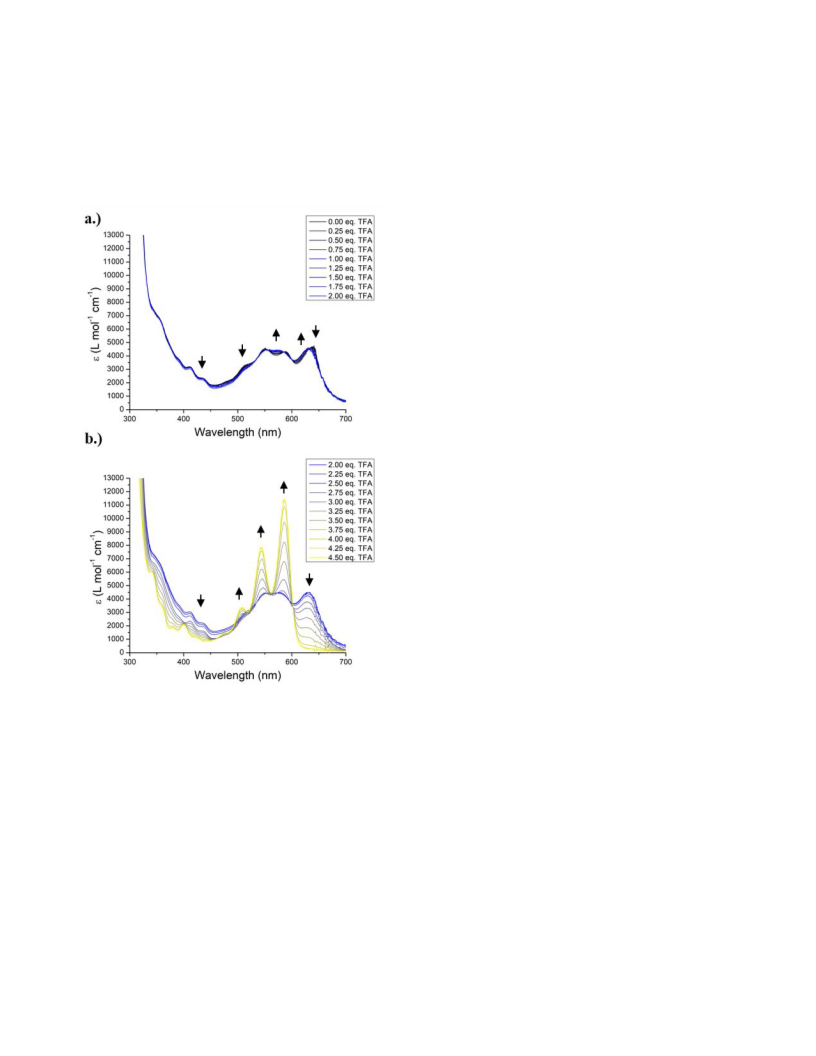

Figure 3. Acidochromism of 2b (a) upon the addition of 0.0-2.0 equivalents of TFA and (b) upon 2.0-4.5 equivalents of TFA in methanol.
Stability. With increasing molecular length, acenes are known to degrade by dimerizing or oxidizing via Diels-Alder reactions. To
evaluate the photooxidative stability of acenes and N-heteroacenes, some researchers choose to monitor the decrease of absorbance
over time in air-free solutions and UV light while others choose ambient air and light.32–35 In this
ACS Paragon Plus Environment

Page 7 of 13
The Journal of Organic Chemistry
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33

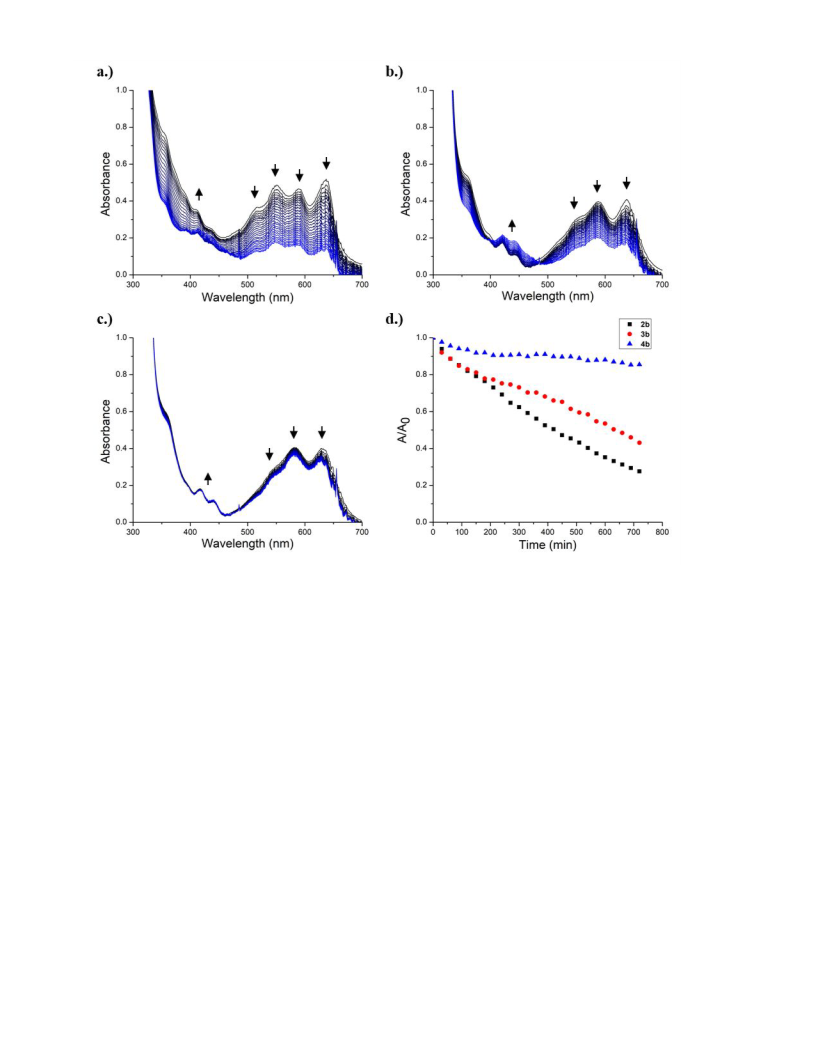

Figure 4. Photodegradation studies of (a) 2b, (b) 3b, and (c) 4b. (d) Plot of A/A0 vs time for 2b, 3b, and 4b.
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment

The Journal of Organic Chemistry
Page 8 of 13
work, the degradation studies were carried out under ambient air and light. To validate these conditions, the degradation of pentacene,
as a reference, was studied and its half-life was calculated to 11.0 min. when monitoring the absorbance (A) of λmax = 575 nm over
the initial absorbance (A0) (Figure S21). While the kinetics for the degradation of these molecules may be complicated, many
researchers report degradation data with plots of A/A0 versus time. The half-life of pentacene in THF under air-saturated and ambient
light has been reported to be 10±3 min.36 Based on results for the degradation of pentacene in THF, the degradation of the
diazapentacenes were carried out under ambient air and light over a period of 12 h (Figure 4a, b, and c). A plot of A/A0 for 2b, 3b,
and 4b at λmax = 637 nm, 637 nm, and 629 nm, respectively, (Figure 4d) shows “half-lives” of 420 min. and 630 min. for 2b and 3b.
For 4b, after 12 h, the A/A0 was 0.86. These degradation studies illustrate an enhanced stability of the diazapentacenes 2b-4b
compared to other N-heteropentacenes in the literature.9
1
2
3
4
5
6
7
8
9
While pentacene can degrade via dimerization or oxidation, it is highly susceptible to degradation via the endoperoxide formation to
form the quinone via a Diels-Alder reaction with molecular oxygen.37 The mass spectrum of the residual pentacene from the
photodegraded sample was analyzed for the dimer (C44H28) and endoperoxide (C22H14O2). The endoperoxide with a proton adduct
was found with an experimental mass of 311.1067 which is within 1.3 ppm of the theoretical mass of 311.1072. Likewise, the
byproducts of the photodegradation of the diazapentacenes were studied by mass spectrometry. Diazapentacene 2b-4b showed the
corresponding mass for the quinone product (Figure S22) where the quinone was not observed in the HRMS of the diazapentacenes
(Figures S23-S25). The formation of the quinone structure can also be confirmed by the crystal structures of the oxidized
diazapentacenes.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Crystallizations of the diazapentacenes were attempted via solvent evaporation of the samples in DMSO in NMR tubes where the
solutions were kept in the dark to minimize the degradation of the diazapentacenes. From these crystallizations, purple crystals, as
opposed to the orange color for the precursors, were obtained. However, when the crystallographic data was received, the structures
obtained were for the oxidized diazapentacenes 2b and 3b (Figures S29 and S30). From these crystal structures, it can be surmised
that the targeted diazapentacenes were synthesized. Degradation of pentacene to the endoperoxide and the quinone has been reported
in the literature.37
CONCLUSIONS
This article reported a two-step synthetic method for the synthesis of 5,12 diazapentacenes via a precursor route with excellent yields
(>77%) and short reaction times (<2 h.). The purification is relatively simple and does not require column chromatography. The
ease of synthesis and purification enables the synthesis of novel diazapentacene derivatives for the analysis of structure-property
relationships.
The characterization of the diazapentacenes in this work reveal their potential as reasonable candidates in organic electronics. The
optical data show the diazapentacenes 2b, 3b, and 4b have optical HOMO-LUMO gaps of 1.86, 1.82, and 1.83 eV which are
consistent with other five-ringed azaacenes. While these 5,12 diazapentacenes undergo photooxidation as confirmed by X-ray
crystallography and mass spectrometry, they are more stable than other N-heteroacenes as shown by 4b which as A/A0 = 0.86 after
12 h. From cyclic voltammetry, the LUMO energy levels are -3.88 eV, -3.97 eV, and -3.78 eV vs. Fc/Fc+ which can be acceptable
materials for electron transport. Lastly, these diazapentacenes exhibit acidochromism up to four equivalents of acid. The fully
protonated diazapentacenes have small Stokes shifts ranging from 17 to 25 nm which is characteristic of a rigid structure that is
promising for electron transport in thin film devices.
Overall, this synthetic route gives access to the synthesis of diazapentacenes with a unique distribution of the imino-nitrogen atoms
in the framework of the acene for research on structure-property relationships. These molecules are relatively easy to synthesize in
high yields and appear to have increased ambient stability compared to other diazapentacenes.
EXPERIMENTAL SECTION
Materials.
All reagents were purchased from commercial sources and used without further purification unless otherwise specified. The
palladium precursor catalyst BrettPhos Pd G1 was purchased from Sigma-Aldrich. Dichloromethane (DCM) and tetrahydrofuran
(THF) were obtained from a solvent purification system. Dimethylformamide (DMF) and t-butanol (t-BuOH) were distilled and
stored over 4 Å molecular sieves. Thin-layer chromatography (TLC) was performed on Biotage’s KP-SIL TLC plates and visualized
under UV light.
Instrumentation.
Nuclear magnetic resonance spectra were recorded at room temperature on a Varian Inova 400 MHz NMR spectrometer or on either
a Bruker Avance NEO 700 MHz or Bruker Avance III 700 MHz NMR spectrometer. The chemical shifts (δ) are reported in ppm
and the abbreviations used to describe the multiplicities are as following: s (singlet), d (doublet), t (triplet), and m (multiplet). FT-IR
spectra were recorded on a Bruker Platinum-ATR spectrometer. Melting points were determined using a MEL-TEMP II Laboratory
Devices apparatus. UV-Visible spectra were recorded on a HP 8453 spectrophotometer in THF and MeOH or on a Shimadzu UV-
1800. Emission spectra were recorded on Edinburgh Instruments FS920 spectrofluorometer. Quantum yields were calculated as
ACS Paragon Plus Environment

Page 9 of 13
The Journal of Organic Chemistry
reported by equation 1.38 ESI-MS measurements were carried out on a Thermo Fisher Scientific Q Exactive Plus MS. Single crystal
suitable for structure analysis were selected from the bulk and mounted on a MiTeGen mounts. Data were collected on a Bruker-
Nonius X8 Kappa Apex II diffractometer by ω and φ scans using MoKα radiation (λ = 0.71073 Å). Corrections for Lorentz and
polarization effects, and absorption were made using SADABS.39 All five structures were solved using direct methods and refined
using full-matrix least squares (on F2) using the SHELX software package.40 All non-hydrogen atoms were refined anisotropically.
Unless otherwise mentioned, H atoms were added at calculated positions, with coordinates and Uiso values allowed to ride on the
parent atom. When H atoms participate in hydrogen bonding, their coordinates, but not Uiso, are allowed to refine for calculation of
hydrogen bond analysis. Cyclic voltammetry (CV) experiments were carried out on a BASi CV-50W Potentiostat using a platinum
working electrode (diameter 1.6 mm), a platinum wire as an auxiliary electrode, and a silver wire (diameter 1.0 mm) as a pseudo-
reference electrode. The compounds were dissolved in 0.1 M n-Bu4PF6 as the supporting electrolyte in dried and degassed THF.
Fc/Fc+ was used as an internal standard (-4.8 eV vs NHE). A scan rate of 50 mV/s was employed. The Pt working electrode required
cleaning between samples. The LUMO energies were determined from the onsets of the first reduction waves.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Syntheses.
General Procedure for Buchwald-Hartwig amination (GP1). BrettPhos Pd G1, Methyl t-Butyl Ether Adduct (2 mol%)21, cesium
carbonate (2 eq.), dry t-butanol (2 mL), 1 (1 eq.), and aniline (2 eq.) were added to a scintillation vial equipped with a cross stir bar
in a dry box. The reaction mixture was stirred at 80 °C and monitored by TLC for completion.
General Procedure for acid-mediated cyclization (GP2). The diazapentacene precursor (2 mmol) was added to a scintillation vial
with a cross stir bar and trifluoromethanesulfonic acid (TFMSA) (2 mL) or trifluoroacetic acid (TFA) (2 mL) and TFMSA (400 µL).
The reaction was stirred at 60 °C for 1 h. Upon completion, the reaction was cooled and diluted with water. The solution was
quenched by adding it to a beaker with 10% NaOH (making sure that the pH of the solution remained basic by pH paper). The
precipitate was filtered and rinsed with DI water until the filtrate was not basic.
2,5-Dibromoterephthalonitrile (1).19
Br
CN
Br
NC
1
2,5-Dibromoterephthaloyl dichloride. 2,5-Dibromoterephthalic acid (11.4 g, 35.0 mmol) was treated with oxalyl chloride (10 mL,
118 mmol) and distilled DMF (10 drops) in DCM (60 mL) and refluxed under N2 for 3 h. The solvent was removed under reduced
pressure and further dried under vacuum to yield a pale-yellow solid (12.6 g, quant.). 2,5-Dibromoterephthalamide. 2,5-
Dibromoterephthaloyl dichloride (12.6 g, 35.0 mmol) was slowly added to a beaker with ammonium hydroxide (50 mL) and stirred
at room temperature for 5 min. The precipitate was filtered and rinsed with DI water (60 mL) three times followed by cold acetone
(50 mL) to yield a white solid (10.6 g, 94%). 1H NMR (400 MHz, DMSO-d6): δ [ppm] = 7.99 (s, 2H); 7.72 (s, 2H); 7.64 (s, 2H).
2,5-Dibromoterephthalonitrile. 2,5-Dibromoterephthalamide (10.6 g, 33.0 mmol) was added to a round bottom flask followed by
phosphoryl chloride (40 mL) and stirred at 110 °C under N2 for 1 h. It was quenched by slowly adding the reaction mixture to ice
water. The precipitate was filtered and rinsed with DI water to afford the pure 2,5-dibromoterephthalonitrile as a colorless
solid (8.28 g, 87.8%). 1H NMR (400 MHz, DMSO-d6): δ [ppm] = 8.60 (s, 2H); 13C{H} NMR (100 MHz, DMSO-d6):
δ [ppm] = 115.3, 120.1, 124.1, 138.3; IR (neat): 1/λ [cm-1] = 3078, 3010, 2233, 1811; Rf (SiO2, 80:20 (hexanes:ethyl acetate)): 0.35;
m.p.: 269-272 °C.
2,5-bis(phenylamino)terephthalonitrile (2a).
H
NC
N
N
H
CN
2a
2a was prepared via procedure GP1 using Brettphos Pd G1 (317 mg, 40.0 µmol), cesium carbonate (1.33 g, 4.09 mmol), t-butanol
(4 mL), 1 (576 mg, 2.01 mmol), and aniline (380 µL, 4.16 mmol). After 2 h., the reaction was cooled, and the solvent was removed
under vacuum. Once dried, acetone (2 mL) was added to the vial and the contents were filtered over Celite. The solid was rinsed
with acetone (3х with 2 mL) and the filtrate collected in an Erlenmeyer flask was discarded. In a clean Erlenmeyer flask, the solid
was rinsed with 1,4-dioxane (~125 mL) until the filtrate was no longer fluorescent. The filtrate was reduced under vacuum and the
1
solid was rinsed with acetone (2х with 1 mL) and dried under vacuum to give an orange solid (587 mg, 93.9%). H NMR (400 MHz,
ACS Paragon Plus Environment

The Journal of Organic Chemistry
Page 10 of 13
DMSO-d6): δ [ppm] = 6.92-6.95 (t, J = 7.4 Hz, 2H), 7.05-7.07 (d, J = 7.8 Hz, 4H), 7.26-7.30 (t, J = 7.8 Hz, 4H), 7.55 (s, 2H), 8.43
(s, 2H); 13C{H} NMR (100 MHz, DMSO-d6): δ [ppm] = 108.6, 116.4, 117.7, 121.3, 124.7, 129.4, 139.8, 142.8; IR (neat): 1/λ [cm-
1] = 3588, 3482, 3323, 3060, 2215, 1660, 1601, 1579, 1524; λmax (THF): 438 nm; HRMS (ESI-orbitrap) m/z [M+H]+: calcd for
C20H15N4: 311.1291, found: 311.1298; Rf (SiO2, 80:20 (hexanes:ethyl acetate)): 0.26.
1
2
3
4
5
6
7
quinolino[2,3-b]acridine-7,14-diamine (2b).
8
NH2
9
N
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
N
2b
NH2
2b was prepared via procedure GP2 using 2a (633 mg, 2.04 mmol) and TFMSA (2.00 mL, 22.6 mmol). After rinsing with DI water,
the solid was rinsed with ethyl acetate until the filtrate was colorless. The solid was dried in an oven for 15 h. at 105 °C to yield a
1
purple product (600 mg, 94.8%). H NMR (400 MHz, DMSO-d6): δ [ppm] = 7.22-7.26 (t, J = 7.5 Hz, 2H), 7.62-7.66 (t, J = 7.5 Hz,
2H), 7.71-7.73 (d, J = 9.2 Hz, 2H), 8.38-8.40 (d, J = 8.3 Hz, 2H), 8.94 (s, 2H); 13C{H} NMR (100 MHz, DMSO-d6): δ [ppm] = 112.1,
118.7, 119.2, 121.7, 124.6, 125.3, 132.1, 140.2, 146.8, 153.6; λmax (THF): 648 nm; HRMS (ESI-orbitrap) m/z [M+H]+: calcd for
C20H15N4: 311.1291, found: 311.1290.
2,5-bis((4-hexylphenyl)amino)terephthalonitrile (3a).
H
C6H13
NC
N
N
H
CN
C6H13
3a
3a was prepared via procedure GP1 using Brettphos Pd G1 (354 mg, 44.3 µmol), cesium carbonate (1.47 g, 4.50 mmol), t-butanol
(4 mL), 1 (572 mg, 2.00 mmol), and 4-hexylaniline (800 µL, 4.15 mmol). After 2 h., the reaction was cooled and diluted with
methanol (5 mL) and filtered over Celite. The solid was rinsed with methanol (10 mL) followed by acetone (2 mL) and the filtrate
collected in an Erlenmeyer flask was discarded. In a clean Erlenmeyer flask, the solid was rinsed with chloroform (~150 mL) until
the filtrate was no longer fluorescent. The filtrate was reduced under vacuum and the crude product was sublimed at 110 °C to
1
remove the dihalide starting material to yield the product as a bright, orange solid (741 mg, 77.4%). H NMR (400 MHz, CDCl3-d):
δ [ppm] = 0.90-0.93 (t, 6H), 1.34-1.40 (m, 12H), 1.60-1.67 (q, 4H), 2.60-2.63 (t, 4H), 6.00 (s, 2H), 7.02-7.05 (d, J = 8.3 Hz, 4H),
7.19-7.21 (d, J = 8.3 Hz, 4H), 7.30 (s, 2H); 13C{H} NMR (100 MHz, CDCl3-d): δ [ppm] = 14.1, 22.6, 29.0, 31.5, 31.7, 35.3, 104.6,
116.2, 118.9, 121.3, 129.7, 137.5, 139.3, 139.8; IR (neat): 1/λ [cm-1] = 3319, 2958, 2919, 2852, 2219, 1613, 1589, 1532; λmax (THF):
445 nm; HRMS (ESI-orbitrap) m/z [M+H]+: calcd for C32H39N4: 479.3169, found: 479.3166; Rf (SiO2, 80:20 (hexanes:ethyl acetate)):
0.48.
2,9-dihexylquinolino[2,3-b]acridine-7,14-diamine (3b).
NH2
C6H13
N
N
C6H13
3b
NH2
3b was prepared via procedure GP2 using 3a (943 mg, 1.97 mmol) and TFMSA (2.00 mL, 22.6 mmol). After rinsing with DI water,
the solid was rinsed with dichloromethane until the filtrate was colorless. The solid was dried in an oven for 15 h. at 105 °C to yield
ACS Paragon Plus Environment

Page 11 of 13
The Journal of Organic Chemistry
a purple product (936 mg, 99.2%). 1H NMR (700 MHz, cryoprobe, DMSO-d6): δ [ppm] = 0.88-0.90 (t, 6H), 1.31-1.38 (m, 12H),
1.71-1.75 (q, 4H), 2.80-2.820 (t, 4H), 7.93-7.94 (d, J = 7 Hz, 2H), 7.96-7.97 (d, J = 7 Hz, 2H), 8.47 (s, 2H), 8.97 (s, 2H); 13C{H}
NMR (176 MHz, cryoprobe, DMSO-d6): δ [ppm] = 14.4, 22.5, 28.8, 31.0, 31.6, 35.4, 111.0, 114.9, 118.1, 119.4, 120.2, 122.0, 123.3,
133.7, 138.9, 140.2, 158.5; λmax (THF): 649 nm; HRMS (ESI-orbitrap) m/z [M+H]+: calcd for C32H39N4: 479.3169, found: 479.3155.
1
2
3
4
5
6
7
2,5-bis((4-(tert-butyl)phenyl)amino)terephthalonitrile (4a).
8
9
H
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
NC
N
N
H
CN
4a
4a was prepared via procedure GP1 using Brettphos Pd G1 (490 mg, 61.3 µmol), cesium carbonate (1.99 g, 6.14 mmol), t-butanol
(6 mL), 1 (903 mg, 3.16 mmol), and 4-t-butylaniline (1.00 mL, 6.28 mmol). After 2 h., the reaction was cooled and diluted with
methanol (5 mL) and filtered over Celite. The solid was rinsed with methanol (15 mL) followed by acetone (2 mL) and the filtrate
collected in an Erlenmeyer flask was discarded. In a clean Erlenmeyer flask, the solid was rinsed with chloroform (~200 mL) until
the filtrate was no longer fluorescent. The filtrate was reduced under vacuum to yield the product as a yellow solid (1.20 g, 90.4%).
1H NMR (400 MHz, CDCl3-d): δ [ppm] = 1.36 (s, 18H), 6.02 (s, 2H), 7.05-7.07 (d, J = 8.8 Hz, 4H), 7.34 (s, 2H), 7.40-7.42 (d,
J = 8.8 Hz, 4H); 13C{H} NMR (100 MHz, CDCl3-d): δ [ppm] = 31.4, 34.4, 104.7, 116.2, 119.0, 120.8, 126.7, 137.3, 139.7, 147.4;
IR (neat): 1/λ [cm-1] = 3328, 2947, 2898, 2863, 2237, 2217, 1613, 1593, 1536; λmax (THF): 448 nm; HRMS (ESI-orbitrap) m/z
[M+H]+: calcd for C28H31N4: 423.2543, found: 423.2535; Rf (SiO2, 80:20 (hexanes:ethyl acetate)): 0.24.
2,9-di-tert-butylquinolino[2,3-b]acridine-7,14-diamine (4b).
NH2
N
N
4b
NH2
4b was prepared via procedure GP2 using 4a (856 mg, 2.02 mmol), TFA (2 mL, 26.1 mmol) and TFMSA (400 µL, 4.52 mmol).
After rinsing with DI water, the solid was rinsed with chloroform until the filtrate was colorless. The solid was dried in an oven for
15 h. at 105 °C to yield a purple product (665 mg, 77.7%). 1H NMR (700 MHz, cryoprobe, DMSO-d6): δ [ppm] = 1.42 (s, 18H),
7.71-7.72 (d, J = 7 Hz, 2H), 7.80-7.81 (d, J = 7 Hz, 2H), 8.26 (s, 2H), 9.00 (s, 2H); 13C{H} NMR (176 MHz, cryoprobe, DMSO-d6):
δ [ppm] = 31.5, 35.4, 111.0, 118.9, 125.7, 131.2, 140.3, 144.2, 146.0, 152.9; λmax (THF): 595 nm; HRMS (ESI-orbitrap) m/z [M+H]+:
calcd for C28H31N4: 423.2543, found: 423.2524.
ASSOCIATED CONTENT
Supporting Information. 1H and 13C NMR, UV-visible spectroscopy, mass spectrometry, and X-ray crystallography.
AUTHOR INFORMATION
Corresponding Author
*cbgorman@ncsu.edu
ACKNOWLEDGMENT
The authors would like to acknowledge the financial support by ACS Petroleum Research Fund (Grant PRF# 57251-ND7). We also thank
Prof. F. N. Castellano and Chris Papa for helpful discussions and assistance with photophysical measurements. All nuclear magnetic
resonance, mass spectrometry, and X-ray crystallography measurements were made in the Molecular Education, Technology, and Research
Innovation Center (METRIC) at NC State University.
ACS Paragon Plus Environment

The Journal of Organic Chemistry
Page 12 of 13
REFERENCES
1
2
3
4
5
6
7
8
(1)
Guo, X.; Xu, Y.; Ogier, S.; Ng, T. N.; Caironi, M.; Perinot, A.; Li, L.; Zhao, J.; Tang, W.; Sporea, R. A.; et al. Current Status and Opportunities of
Organic Thin-Film Transistor Technologies. IEEE Trans. Electron Devices 2017, 64 (5), 1906–1921.
Usta, H.; Facchetti, A.; Marks, T. J. N -Channel Semiconductor Materials Design for Organic Complementary Circuits. Acc. Chem. Res. 2011, 44
(7), 501–510.
(2)
(3)
(4)
Naibi Lakshminarayana, A.; Ong, A.; Chi, C. Modification of Acenes for N-Channel OFET Materials. J. Mater. Chem. C 2018, 6 (14), 3551–3563.
Wang, C.; Dong, H.; Hu, W.; Liu, Y.; Zhu, D. Semiconducting π-Conjugated Systems in Field-Effect Transistors: A Material Odyssey of Organic
Electronics. Chem. Rev. 2012, 112 (4), 2208–2267.
(5)
(6)
Quinn, J. T. E.; Zhu, J.; Li, X.; Wang, J.; Li, Y. Recent Progress in the Development of N-Type Organic Semiconductors for Organic Field Effect
Transistors. J. Mater. Chem. C 2017, 5 (34), 8654–8681.
Zhao, Y.; Guo, Y.; Liu, Y. 25th Anniversary Article: Recent Advances in n-Type and Ambipolar Organic Field-Effect Transistors. Adv. Mater.
2013, 25 (38), 5372–5391.
9
(7)
(8)
(9)
Anthony, J. E. Functionalized Acenes and Heteroacenes for Organic Electronics. Chem. Rev. 2006, 106 (12), 5028–5048.
Zhao, Y.; Mondal, R.; Neckers, D. C. Photochemical Formation of Substituted Pentacenes. J. Org. Chem. 2008, 73 (14), 5506–5513.
Liang, Z.; Tang, Q.; Xu, J.; Miao, Q. Soluble and Stable N-Heteropentacenes with High Field-Effect Mobility. Adv. Mater. 2011, 23 (13), 1535–
1539.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(10)
(11)
(12)
Shi, X.; Chi, C. Different Strategies for the Stabilization of Acenes and Acene Analogues. Chem. Rec. 2016, 16 (3), 1690–1700.
Bunz, U. H. F. The Larger N-Heteroacenes. Pure Appl. Chem. 2010, 82 (4), 953–968.
Bunz, U. H. F.; Engelhart, J. U.; Lindner, B. D.; Schaffroth, M. Large N-Heteroacenes: New Tricks for Very Old Dogs? Angew. Chemie - Int. Ed.
2013, 52 (14), 3810–3821.
(13)
(14)
(15)
(16)
Bunz, U. H. F.; Freudenberg, J. N-Heteroacenes and N-Heteroarenes as N-Nanocarbon Segments. Acc. Chem. Res. 2019, 52, 1575–1587.
Isoda, K. Acid-Responsive N -Heteroacene-Based Material Showing Multi-Emission Colors. ChemistryOpen 2017, 6 (2), 242–246.
Bunz, U. H. F. The Larger Linear N-Heteroacenes. Acc. Chem. Res. 2015, 48 (6), 1676–1686.
Lunchev, A. V; Hendrata, V. C.; Jaggi, A.; Morris, S. A.; Ganguly, R.; Chen, X.; Sun, H.; Grimsdale, A. C. A Friedländer Route to 5,7-
Diazapentacenes. J. Mater. Chem. C 2018, 6 (14), 3715–3721.
(17)
(18)
Bunz, U. H. F.; Engelhart, J. U. The Palladium Way to N-Heteroacenes. Chem. - A Eur. J. 2016, 22 (14), 4680–4689.
Lunchev, A.; Morris, S.; Ganguly, R.; Grimsdale, A. C. Synthesis and Electronic Properties of Novel 5,7-Diazapentacene Derivatives. Chem. - A
Eur. J. 2018, 25 (7), 1819–1823.
(19)
Cheng, J. Z.; Lin, C. C.; Chou, P. T.; Chaskar, A.; Wong, K. T. Fluorene as the π-Spacer for New Two-Photon Absorption Chromophores.
Tetrahedron 2011, 67 (4), 734–739.
(20)
(21)
Surry, D. S.; Buchwald, S. L. Dialkylbiaryl Phosphines in Pd-Catalyzed Amination: A User’s Guide. Chem. Sci. 2011, 2 (1), 27–50.
Fors, B. P.; Watson, D. A.; Biscoe, M. R.; Buchwald, S. L. A Highly Active Catalyst for Pd-Catalyzed Amination Reactions: Cross-Coupling
Reactions Using Aryl Mesylates and the Highly Selective Monoarylation of Primary Amines Using Aryl Chlorides. J. Am. Chem. Soc. 2008, 130
(41), 13552–13554.
(22)
Fraleoni-morgera, A.; Zanirato, P. BF3.OEt2-Promoted Synthesis of Acridines via N-Aryl Nitrenium-BF3 Ions Generated by Dissociation of 2-Oxo
Azidoarenes in Benzene. Arkivoc 2006, 2006 (12), 111–120.
(23)
(24)
Solà, M. Forty Years of Clar’s Aromatic π-Sextet Rule. Front. Chem. 2013, 1 (22), 1–8.
Kuninobu, Y.; Tatsuzaki, T.; Matsuki, T.; Takai, K. Indium-Catalyzed Construction of Polycyclic Aromatic Hydrocarbon Skeletons via Dehydration.
J. Org. Chem. 2011, 76 (17), 7005–7009.
(25)
(26)
Anthony, J. E. The Larger Acenes: Versatile Organic Semiconductors. Angew. Chemie - Int. Ed. 2008, 47 (3), 452–483.
Zhou, K.; Dong, H.; Zhang, H.-L.; Hu, W. High Performance N-Type and Ambipolar Small Organic Semiconductors for Organic Thin Film
Transistors. Phys. Chem. Chem. Phys. 2014, 16 (41), 22448–22457.
(27)
(28)
(29)
(30)
Gafni, A.; Brand, L. Excited State Proton Transfer Reactions of Acridine Studied by Nanosecond Fluorometry. Chem. Phys. Lett. 1978, 58 (3), 346–
350.
Müller, M.; Reiss, H.; Tverskoy, O.; Rominger, F.; Freudenberg, J.; Bunz, U. H. F. Stabilization by Benzannulation: Butterfly Azaacenes. Chem. -
A Eur. J. 2018, 24 (49), 12801–12805.
Gómez, P.; Georgakopoulos, S.; Cerón, J. P.; da Silva, I.; Más-Montoya, M.; Pérez, J.; Tárraga, A.; Curiel, D. Hydrogen-Bonded Azaphenacene: A
Strategy for the Organization of π-Conjugated Materials. J. Mater. Chem. C 2018, 6 (15), 3968–3975.
Talacki, R.; Carrell, H. L.; Glusker, J. P. 9-Aminoacridine Hydrochloride Monohydrate. Acta Crystallogr. Sect. B Struct. Crystallogr. Cryst. Chem.
1974, 30 (4), 1044–1047.
(31)
(32)
Fossey, J.; Loupy, A.; Strzelecka, H. An Ab Initio Study of Protonation and Alkylation of Aminopyridine. Tetrahedron 1981, 37 (10), 1935–1941.
Liang, Z.; Tang, Q.; Mao, R.; Liu, D.; Xu, J.; Miao, Q. The Position of Nitrogen in N-Heteropentacenes Matters. Adv. Mater. 2011, 23 (46), 5514–
5518.
(33)
(34)
(35)
(36)
Rüdiger, E. C.; Müller, M.; Koser, S.; Rominger, F.; Freudenberg, J.; Bunz, U. H. F. Dibenzohexacene: Stabilization Through Additional Clar
Sextets. Chem. - A Eur. J. 2018, 24 (5), 1036–1040.
Kaur, I.; Jia, W.; Kopreski, R. P.; Selvarasah, S.; Dokmeci, M. R.; Pramanik, C.; McGruer, N. E.; Miller, G. P. Substituent Effects in Pentacenes:
Gaining Control over HOMO−LUMO Gaps and Photooxidative Resistances. J. Am. Chem. Soc. 2008, 130 (48), 16274–16286.
Liu, K.; Song, C.; Zhou, Y.; Zhou, X.; Pan, X.; Cao, L.; Zhang, C.; Liu, Y.; Gong, X.; Zhang, H. Tuning the Ambipolar Charge Transport Properties
of N-Heteropentacenes by Their Frontier Molecular Orbital Energy Levels †. J. Mater. Chem. C 2015, 3, 4188–4196.
Maliakal, A.; Raghavachari, K.; Katz, H.; Chandross, E.; Siegrist, T. Photochemical Stability of Pentacene and a Substituted Pentacene in Solution
and in Thin Films. Chem. Mater. 2004, 16 (24), 4980–4986.
(37)
(38)
Zade, S. S.; Bendikov, M. Reactivity of Acenes: Mechanisms and Dependence on Acene Length. J. Phys. Org. Chem. 2012, 25 (6), 452–461.
Brouwer, A. M. Standards for Photoluminescence Quantum Yield Measurements in Solution (IUPAC Technical Report). Pure Appl. Chem. 2011,
83 (12), 2213–2228.
(39)
(40)
G. M. Sheldrick. Crystal Structure Refinement with SHELXL. Acta Crystallogr. Sect. C Struct. Chem. 2015, C71, 3–8.
Sheldrick, G. M. A Short History of SHELX. Acta Crystallogr. Sect. A Found. Crystallogr. 2008, 64 (1), 112–122.
ACS Paragon Plus Environment

Page 13 of 13
The Journal of Organic Chemistry
R
Diazapentacenes
Diazapentacene precursors
1
2
3
4
5
6
7
NH2
NH2
H
R
N
R
NC
N
2 eq.
+
N
R
N
H
CN
R
NC
Br
Br
NH2
 Designed to obtain linear
structure
 Obtained in times ~15-60 min.
with yields 78%
 Optimized to obtain the
monoarylated product
 Obtained in times ~2 h. with
yields 77%
CN
1 eq.
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
13
ACS Paragon Plus Environment
