Synthesis of nitro-aryl functionalised 4-amino-1,8-naphthalimides
and their evaluation as fluorescent hypoxia sensors
Liam D. Adaira, Natalie Trinha, Pauline M. Véritéb, Denis Jacqueminb, Katrina A. Jolliffea,c,d, and
Elizabeth J. Newa,c,d
[a]
[b]
Dr L. D. Adair, N. Trinh, Prof K. A. Jolliffe, A/Prof E. J. New
School of Chemistry
The University of Sydney
NSW 2006, Australia
E-mail: elizabeth.new@sydney.edu.au
P. M. Vérité, Prof D. Jacquemin
CNRS
Université de Nantes
CEISAM UMR 6230
F-44000 Nantes, France
[c]
[d]
Prof K. A. Jolliffe, A/Prof E. J. New
The University of Sydney Nano Institute (Sydney Nano)
The University of Sydney
NSW 2006, Australia
Prof K. A. Jolliffe, A/Prof E. J. New
Australian Research Council Centre of Excellence for Innovations in Peptide and Protein Science
The University of Sydney
NSW 2006, Australia
Supporting information for this article is given via a link at the end of the document
Abstract: Fluorescent sensors are a vital research tool, enabling the
study of intricate cellular processes in a sensitive manner. The design
and synthesis of responsive and targeted probes is necessary to allow
such processes to be interrogated in the cellular environment. This
remains a challenge, and requires methods for functionalisation of
fluorophores with multiple appendages for sensing and targeting
groups. Methods to synthesise more structurally complex derivatives
of fluorophores will expand their potential scope. Most known 4-
amino-1,8-naphthalimides are only functionalised at imide and 4-
positions, and structural modifications at additional positions will
increase the breadth of their utility as responsive sensors. Here we
evaluate methods for the incorporation of a hypoxia sensing group to
4-amino-1,8-naphthalimide. We developed an intermediate that
allowed us to incorporate a sensing group, targeting group, and ICT
donor to the naphthalimide core in a modular fashion. Synthetic
strategies for attaching the hypoxia sensing group and how they
affected the fluorescence of the naphthalimide were evaluated by
photophysical characterisation and time-dependent density functional

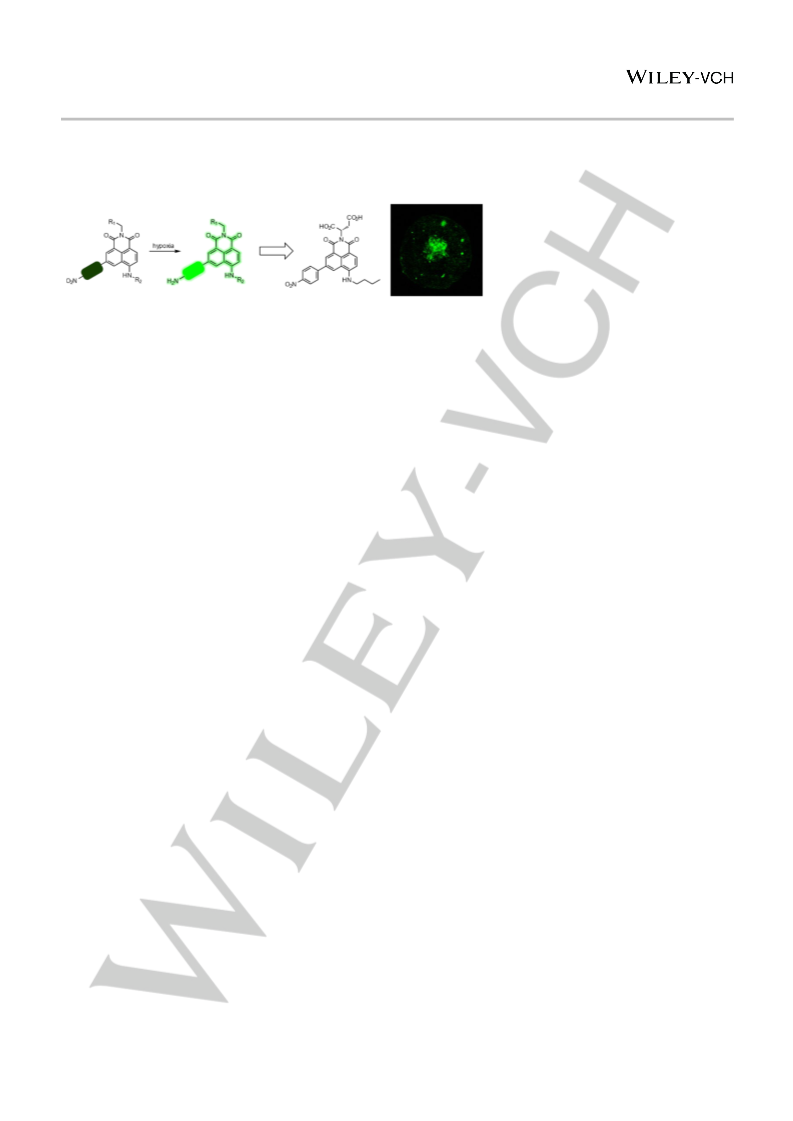

theory. We then rationally designed an extracellular hypoxia probe
that could selectively image the hypoxic and necrotic region of tumour
spheroids. Our results demonstrate the versatility of the naphthalimide
scaffold and expand its utility. This approach to probe design will
enable the flexible, efficient generation of selective, targeted
fluorescent sensors for various biological purposes.
targeted, responsive fluorescent sensors and their development
remains challenging.[1] Responsive fluorescent sensors typically
comprise a sensing moiety tethered to a fluorophore, often
through a conjugated linker. A particular challenge in the rapid
development of new fluorescent sensors is the identification of
fluorophore precursors to which sensing groups can be readily
conjugated. To achieve this, it is important to identify fluorophore-
linker scaffolds that enable facile conjugation of sensing groups,
and for which the analyte induces a measurable fluorescence
response.
4-Amino-1,8-naphthalimides are donor-acceptor molecules with
an internal charge-transfer (ICT) excited state, and typically
display strong fluorescence emission.[2] They are commonly used
in bioimaging due to their chemical stability, photostability, high
quantum yields, and large Stokes shifts.[3] Responsive 4-amino-
1,8-naphthalimide based sensors have been reported for several
analytes including metal ions,[4] anions,[5] and reactive small
molecules.[6] Functionalisation at the imide or the 4-position
predominates the literature (Figure 1), with additional
functionalisation uncommon. Because of the limited scope for
derivatisation to date, naphthalimides remain an underexplored
class of fluorophore, and in order to maximise the potential of
naphthalimides as responsive fluorescent sensors, it is essential
to develop methods for functionalisation at other positions.
Importantly, we identified the need to determine robust synthetic
methods for introducing a broad range of sensor groups. This will
allow rapid access to more structurally complex derivatives and
enable more efficient development of a set of fluorescent sensors.
We were particularly interested in a third point of attachment
which could be functionalised orthogonally to the imide and 4-
position.
Introduction
Fluorescent sensing, particularly when applied to bioimaging, is a
vital tool for studying chemical processes in biological systems.
Many unanswered biochemical questions require selective,
1
This article is protected by copyright. All rights reserved.

10.1002/chem.202002088
Chemistry - A European Journal
FULL PAPER
hypoxic regions can aid in tumorigenicity and promote changes
that lead to disease progression, with acute hypoxia being
associated with more aggressive tumour phenotypes and
resistance to treatment.[12] Fluorescence imaging is a useful
technique for imaging hypoxic regions of tumours as it is non-
invasive, highly sensitive, and can provide spatiotemporal
resolution. Other commonly-used methods for measuring hypoxia,
such as microelectrodes, are invasive techniques.[13] To
investigate the ease with which the nitro-aryl hypoxia sensing
groups could be introduced onto the 4-amino-1,8-naphthalimide
scaffold, together with the impact of different linkers on the
photophysical properties of these systems we prepared a small
series of 6-substituted-4-amino-1,8-naphthalimides and report
here our investigations of these as fluorescent sensors of hypoxic
microenvironments..
R1
N
O
O
1
4
8
7
2
6
3
5
N
R3 R2

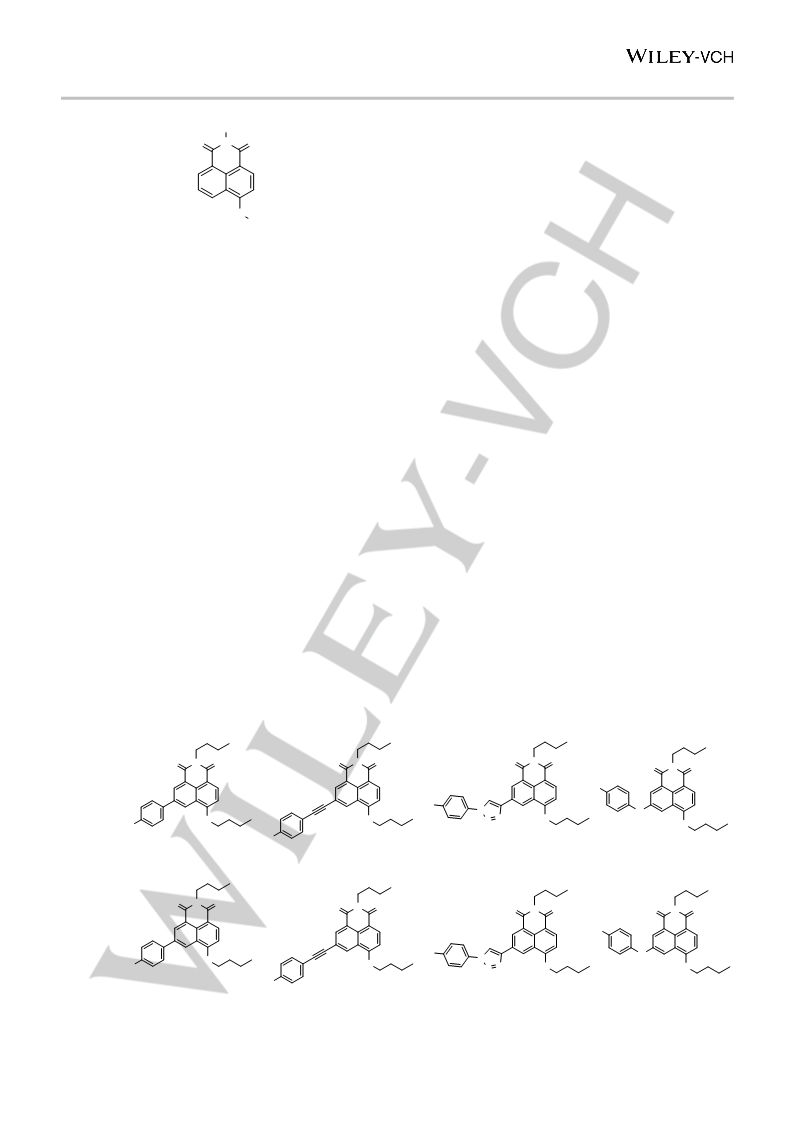

Figure 1. 4-Amino-1,8-naphthalimide structure.
We have previously reported several substituted 4-amino-1,8-
naphthalimide derivatives with various simple structural
modifications and found that the addition of substituents,
particularly at the 6-position, expanded the range of emission
wavelengths available.[7] An additional electron donating group at
this position was shown to have a large impact as a secondary
charge transfer (CT) donor, making it a promising position for
incorporation of sensing groups. Among the compounds
previously synthesised was a 6-bromo analogue, which had the
potential to be used as a synthetic handle. This work aims to
assess the synthetic strategies that are most promising for
attaching sensing groups at this position, both in terms of optimal
photophysical properties, and synthetic considerations.
We envisaged that the incorporation of nitro-aryl substituents onto
the 4-amino-1,8-naphthalimide scaffold would provide a suitable
model system in which to examine the above properties,
anticipating that the resulting molecules would be useful probes
for sensing hypoxic environments, since aromatic nitro
compounds are known to be reduced to the corresponding aniline
in hypoxic conditions.[8] Nitro groups generally quench
fluorescence,[9] whereas in amine-containing fluorophores, strong
fluorescence is common. This difference in fluorescence
properties, coupled with the ease of reduction of the nitro group
makes this an attractive strategy for the design of fluorogenic
hypoxia probes and an ideal model system for our studies.[10]
Hypoxia develops in advanced solid tumours due to uncontrolled
proliferation of cancer cells, resulting in regions that are distant
from blood vessels, or possess inadequate tumoral vasculature,
and therefore are starved of oxygen.[11] The development of these
Results and Discussion
Design/Synthesis
We chose to incorporate the aryl-nitro functionality via four robust
methodologies that are commonly used in synthetic chemistry,
with readily available substrates: directly conjugated by a Suzuki-
coupling, with an alkyne linker using a Sonogashira coupling, a
triazole linker using Cu-catalysed azide-alkyne cycloaddition
(CuAAC) click reaction, and by Buchwald-Hartwig amination. We
designed four nitro-compounds (1NO2 - 4NO2), and their reduced
aniline analogues (1NH2 - 4NH2) (Figure 2), to investigate how the
aryl-nitro functionality is incorporated impacts the emission.
The reported synthesis of 6-bromonaphthalimide 7 contains a
non-selective nitration and is low yielding for the desired
regioisomer.[7] We therefore developed an alternative route to 7
with selective bromination of 4-nitro-1,8-naphthalic anhydride as
the initial step. Commercially available 4-nitronaphthalic
anhydride 5 was brominated regioselectively at the 6-position
using NBS in strongly acidic conditions, giving the desired product
6 with no need for chromatographic purification. This substituted
anhydride 6 is a key intermediate and allows for facile and
O
N
O
O
N
O
O
N
O
N
O
O
N
O2
N
O2
N
N
N
N
HN
H
HN
HN
HN
N
O2
N
O2
3NO2
1NO2
2NO2
4NO2
O
N
O
O
N
O
O
N
O
O
N
O
H2N
H2N
N
N
N
HN
H
HN
H2N
N
HN
HN
H2N
1NH2
2NH2
3NH2
4NH2
Figure 2. Structure of 6-aryl-nitro naphthalimides 1 – 4NO2 and their reduced aniline derivatives 1 – 4NH2.
2
This article is protected by copyright. All rights reserved.

10.1002/chem.202002088
Chemistry - A European Journal
FULL PAPER
O
N
O
HN
O
N
O
R
1NO
1NH
R = NO2
R = NH2
,
,
2
2
HN
(iii)
H2N
2NH2
(iv)
O
N
O
O
O
O
O
O
O
O
N
O
O
N
O
(v)
(vi)
(i)
(ii)
Br
Br
HN
2NO2
NO2
NO2
HN
HN
5
6
O2N
7
8
(vii)
(viii)
O
N
O
O
N
O
O
N
O
H2N
(ix) O2N
R
N
N
H
N
H
N
HN
N
HN
4NH2
HN
4NO2
R = NO2 3NO
,
2
R = NH2 3NH
,
2

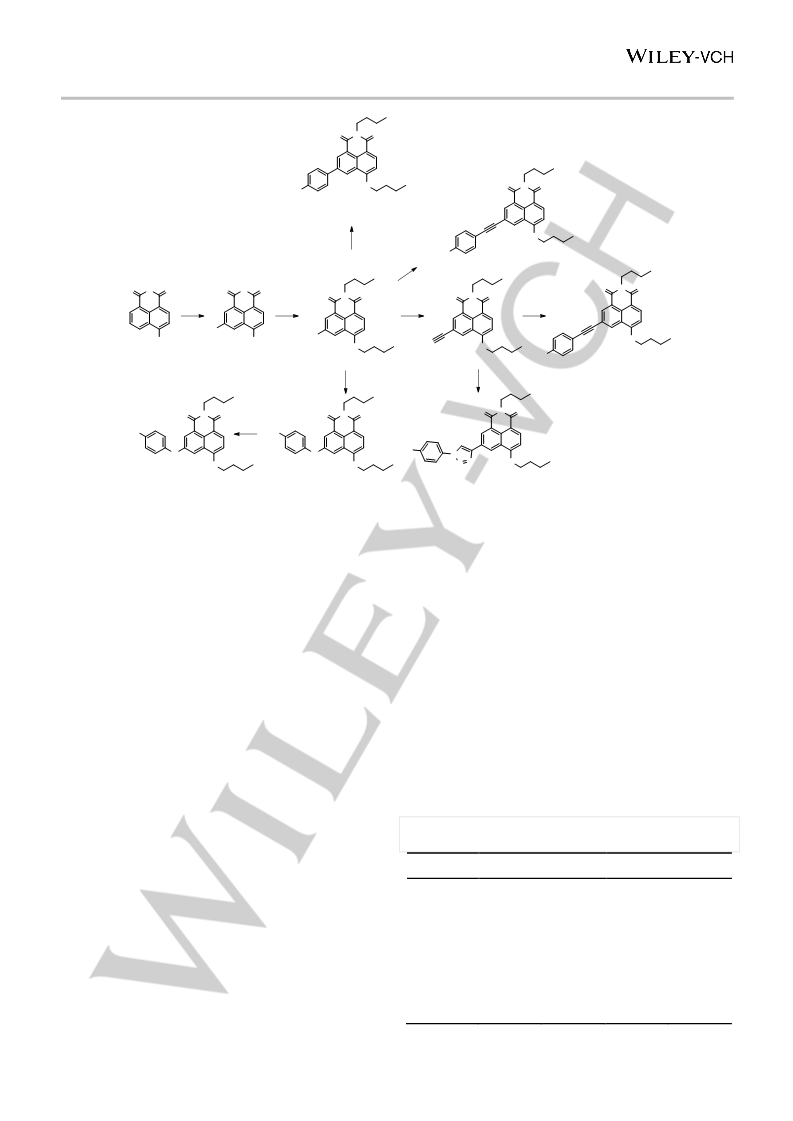

Scheme 1. Synthesis of 1NO2 – 4NO2 and 1NH2 – 4NH2. Reagents and conditions: (i) NBS, H2SO4, 60 °C, 93%; (ii) nBuNH2, EtOH, 80 °C, 55%; (iii) 4-
nitrophenyl boronic acid or 4-aminophenyl boronic acid, Pd(PPh3)4, K2CO3, THF:H2O, 70 °C, 41% (1NO2), 98% (1NH2); (iv) 4-ethynylaniline, Pd(PPh3)2Cl2,
CuI, THF:Et3N, 80 °C, 76%; (v) 1. TMS-acetylene, Pd(PPh3)2Cl2, CuI, THF:Et3N, 80 °C, 2. TBAF, THF, 69% (over 2 steps); (vi) 4-bromo-1-nitrobenzene,
Pd(PPh3)2Cl2, CuI, THF:Et3N, 80 °C, 62%; (vii) 1-azido-4-nitrobenzene or 4-azidoaniline, CuSO4.5H2O, NaAsc, Na2CO3, THF:H2O, 66% (3NO2), 98%
(3NH2); (viii) Pd(OAc)2, RuPhos, Cs2CO3, toluene, 110 °C, 72%; (ix) Pd/C, NH4CO2H, EtOAc:MeOH, 98%.
selective functionalisation at each of the 4-, 6- and anhydride
positions of the scaffold. Treatment with excess n-butylamine in
EtOH gave bromo-naphthalimide 7, in good overall yield leaving
the 6-bromide handle for further functionalisation. Suzuki coupling
of 7 with 4-nitrophenylboronic gave the desired product 1NO2.
The aniline derivative 1NH2 was similarly synthesised by Suzuki
coupling, using 4-aminophenylboronic acid. Sonogashira
coupling of 7 directly with 4-nitrophenylacetylene proved to be
very low yielding. However, using TMS-acetylene as the coupling
partner, followed by desilylation with TBAF, gave alkyne 8 in good
yield over two steps. Subsequent coupling with 4-bromo-1-
nitrobenzene gave the desired compound 2NO2. In contrast, 4-
ethynylaniline was successfully coupled directly to the 6-
bromonaphthalimide to generate the corresponding aniline
analogue 2NH2 in good yield. Acetylene 8 pleasingly also gave an
intermediate to allow incorporation of the nitro-aryl functionality
using CuAAC. 1-Azido-4-nitrobenzene and 4-azidoaniline were
each prepared from the corresponding boronic acids via copper
mediated conditions.[14] CuAAC reaction of acetylene 8 with 1-
azido-4-nitrobenzene and 4-azidoaniline, respectively using
CuSO4 in THF:H2O gave the desired triazoles 3NO2 and 3NH2 in
excellent yield for both products. Buchwald-Hartwig amination of
7 using 4-nitroaniline gave the desired product 4NO2. Subsequent
reduction of the nitro group using Pd-catalysed transfer
hydrogenation with ammonium formate as the hydrogen source,
gave the aniline derivative 4NH2 (Scheme 1).
Photophysical studies
The photophysical properties of 1NO2 - 4NO2 and 1NH2 - 4NH2
were next measured in CH2Cl2 to determine both how these
changed upon reduction of the nitro group and how these varied
with the nature of the linker (Figure 3, Table 1). For the NO2 series,
compounds 3NO2, and to a lesser extent compound 1NO2, show
appreciable fluorescence, whereas 2NO2 and 4NO2 are almost
completely quenched. In all four cases, reduction to the aniline
resulted in a turn-on in fluorescence intensity rather than a change
in emission wavelength. 4NH2 has the weakest emission of the
NH2 series, but also shows a significant bathochromic shift (Δ 30
nm).
Table 1. Comparison of excitation and emission maxima (in CH2Cl2) of 1 – 4
and unsubstituted N-butyl-4-butylamino-1,8-naphthalimide.
λex (nm)
λem (nm)
Unsubstituted
421
503
NO2
442
445
444
456
NH2
440
450
446
459
NO2
507
520
511
497
NH2
509
509
512
527
1
2
3
4
3
This article is protected by copyright. All rights reserved.

10.1002/chem.202002088
Chemistry - A European Journal
FULL PAPER

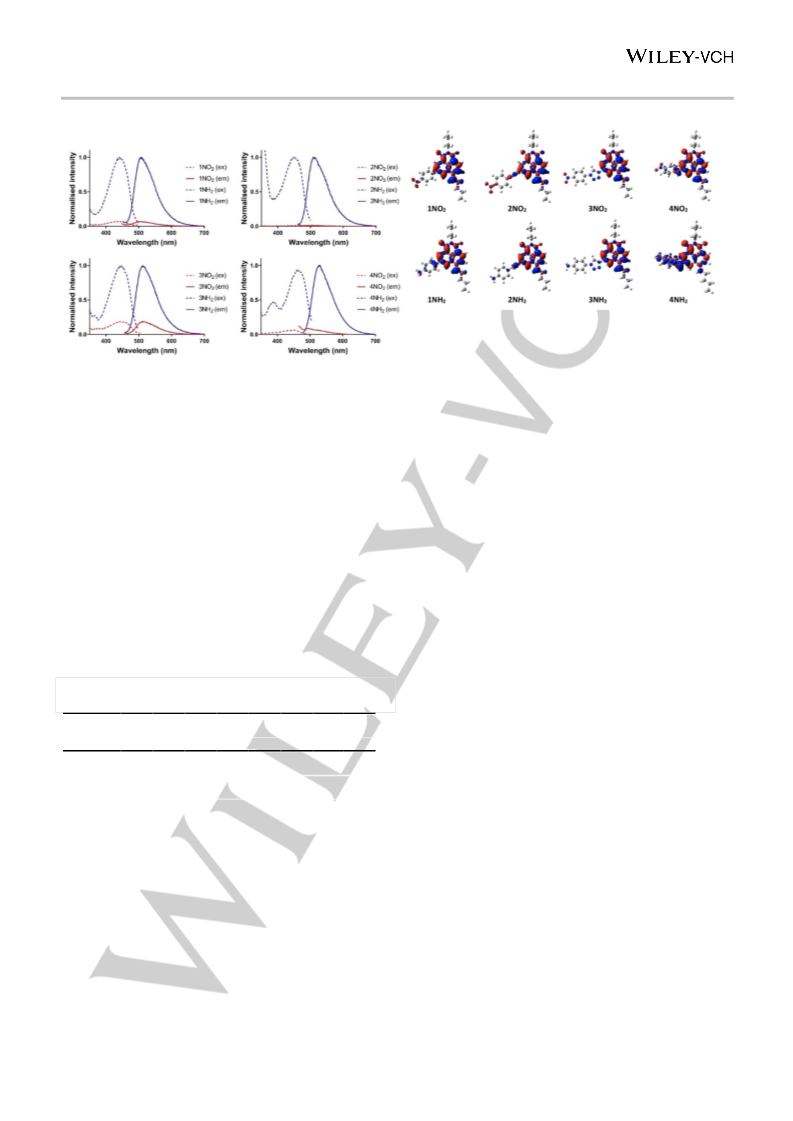

Figure 4: Density difference plots for the lowest transition in all compounds. The
blue and red lobes represent regions of decrease and increase of density upon
photon absorption. Contour threshold 8 × 10-4 au.
Figure 1: Excitation and emission spectra of 1 (1 µM in CH2Cl2, λex 440 nm, λem
510 nm), 2 (1 µM in CH2Cl2, λex 440 nm, λem 510 nm), 3 (1 µM in CH2Cl2, λex
440 nm, λem 510 nm), 4 (5 µM in CH2Cl2, λex 450 nm, λem 520 nm).
Next, we examined the emission behaviour. In the NH2 series, the
S1 optimisations led to small structural changes in 1NH2 – 3NH2
with computed emission wavelengths reasonably fitting the
values that were observed experimentally. Again, 4NH2 was an
exception to this general rule, as the optimisation of the lowest
state led to a very low-lying “theoretical fluorescence” at 1.64 eV
with a large ICT effect involving the amine at the 6-position (as in
the absorption figure 4). Such a low-lying transition will be dark
experimentally, due to the well-known energy gap law, and hence
the very low residual emission observed experimentally is likely
coming from a side effect, e.g., an emission from S2 or a fast
emission from S1 before its full relaxation. In that sense, the CT in
4NH2 is too large and it consequently becomes an ineffective
emitter. On the other hand, the three other NH2 compounds show
the more classical behaviour of effective emitters with a more
moderate CT, which fits with the experimental observations. As
stated in the introduction, it is well known that nitro groups quench
fluorescence, hence it is not surprising to see that all the NO2
compounds are less bright than their corresponding NH2 systems.
Nevertheless, there are notable differences in the nitro series. For
1NO2 – 4NO2 the theoretical calculations predict fluorescence in
the 2.52 – 2.62 eV range, which again fits the measurements
(2.38 – 2.46 eV), with similar excited state topologies for all four
compounds. Therefore, the experimental differences, and
specifically the fact that (relative) quenching is much stronger in
1NO2 and 2NO2 than in 3NO2, should be explained by another
phenomena. We reasoned that intersystem crossing (ISC) might
be taking place and we have therefore computed S-T gaps on the
lowest S1 geometry for 1NO2 – 4NO2. In all cases, the gap
between S1 and T1 is very large (>0.6 eV) and therefore ISC is
unlikely with the lowest triplet. In contrast, the S1-T2 gaps are very
low in 4NO2 (0.00 eV) and 2NO2 (0.07 eV) and strong quenching
would be expected, as is indeed found experimentally. In 3NO2,
T2 lies 0.49 eV higher than S1 making ISC very unlikely, consistent
with the relatively bright fluorescence observed. 1NO2 is
intermediate with a S1-T2 gap of 0.18 eV. These trends are clearly
consistent with the experimental measurements.
Computational studies
To shed more light on the photophysical properties of the
compounds, we have used first principle calculations using a
technique detailed in the SI and successfully applied to many
dyes before.[15] Table 2 reports the computed positions of the
lowest dipole-allowed transitions. The agreement between the
theoretical and experimentally observed values is satisfactory: i)
the mean absolute error is 0.20 eV, typical of such an
approach;[15a] ii) theory overshoots the experimental value, which
is the expected error sign when neglecting vibronic couplings;[15b]
iii) the experimental fact that only 4NH2 undergoes a significant
bathochromic shift is reasonably reproduced.
Table 2. Comparison between theoretical (CC2, see the SI) and experimental
excitation wavelengths given in eV.
1NO2
2NO2
3NO2
4NO2
1NH2
2NH2
3NH2
4NH2
Theoretical
2.94
2.70
2.89
2.72
2.93
2.71
2.93
2.78
2.99
2.75
2.95
2.72
2.94
2.71
2.69
2.58
Experimental
Figure 4 represents the density difference plots for all compounds.
In all cases, except for 4NH2, there is a significant ICT from the
N-butylamino group (mostly in blue, donor) at position 4 to the
core of the compound (mostly in red, acceptor). The side groups
added at the 6-position play a minor role. 4NH2 is a notable
exception, with a strong ICT from the amine at the 6-position to
the core of the molecule, an effect well in line with the large
redshift measured for that compound. In 4NO2, there is likely a
counterbalancing effect between the nitro and amino groups, and
hence, a small overall effect is evident.
4
This article is protected by copyright. All rights reserved.

10.1002/chem.202002088
Chemistry - A European Journal
FULL PAPER

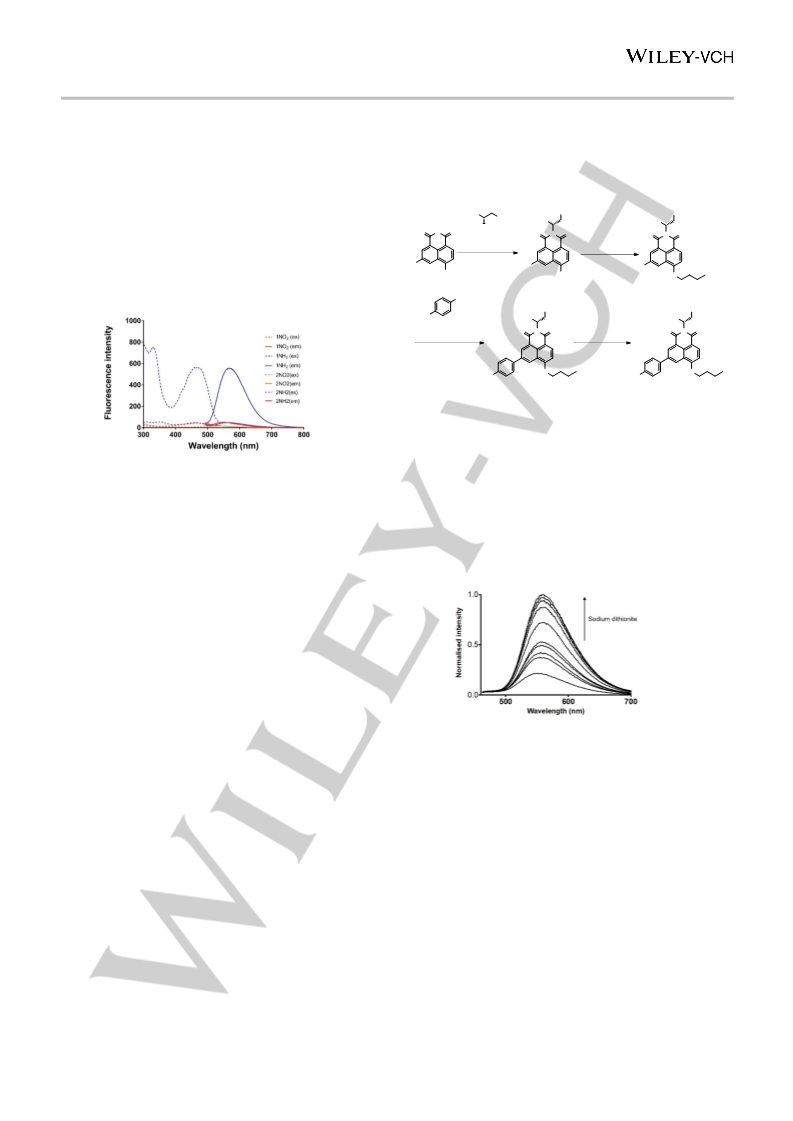

With these results we then evaluated which scaffold would be
optimal for a useful hypoxia sensor. As compound 3 had
significant fluorescence in the 3NO2 form (Φ 0.06 in EtOH, Table
S1), reducing the turn on response and compound 4NH2 was not
bright enough to be a promising candidate, these scaffolds were
ruled out. The turn-on response for compounds 1 and 2 made
them the most promising candidates for a hypoxia probe. Non-
radiative decay in 4-amino-1,8-naphthalimides is generally
increased in aqueous solvents,[16] but interestingly, the
fluorescence of 2NH2 was significantly quenched in aqueous
buffer, whereas 1NH2 remained bright (Figure 5). 1NH2 was also
the scaffold with the highest quantum yield (Φ 0.42 in EtOH, Table
S1).
