The excited-state intramolecular proton transfer properties of three imine-linked two-dimensional porous organic polymers

Article abstract of DOI:10.1039/c7tc00123a

We report the synthesis and excited-state intramolecular proton transfer (ESIPT) properties of three tris(N-salicylideneaniline)-based (TSA) imine-linked porous organic polymers (POPs) containing C₃-symmetric 1,3,5-Triarylbenzene (TAB),-Tristyr

Full text of DOI:10.1039/c7tc00123a

View Article Online
View Journal
Journal of
M at erials Chemistry C
Accepted Manuscript
This article can be cited before page numbers have been issued, to do this please use: P. Jagadesan, G.
Eder and P. Mcgrier, J. Mater. Chem. C, 2017, DOI: 10.1039/C7TC00123A.
Volume
4
Number
1
7
January 2016 Pages 1–224
This is an Accepted Manuscript, which has been through the
Royal Society of Chemistry peer review process and has been
accepted for publication.
Journal of
Materials Chemistry C
Materials for optical, magnetic and electronic devices
www.rsc.org/MaterialsC
Accepted Manuscripts are published online shortly after
acceptance, before technical editing, formatting and proof reading.
Using this free service, authors can make their results available
to the community, in citable form, before we publish the edited
article. We will replace this Accepted Manuscript with the edited
and formatted Advance Article as soon as it is available.
You can find more information about Accepted Manuscripts in the
author guidelines.
Please note that technical editing may introduce minor changes
to the text and/or graphics, which may alter content. The journal’s
standard Terms & Conditions and the ethical guidelines, outlined
in our author and reviewer resource centre, still apply. In no
event shall the Royal Society of Chemistry be held responsible
for any errors or omissions in this Accepted Manuscript or any
consequences arising from the use of any information it contains.
ISSN 2050-7526
PAPER
~
Nguyên T. K. Thanh, Xiaodi Su et al.
Fine-tuning of gold nanorod dimensions and plasmonic properties using
the Hofmeister effects
rsc.li/materials-c

Page 1 of 6
Jo uP rl ne aa sl eo ꢀ fd Mo ꢀ an to et rꢀ ai ad l jsu sC t hꢀ me am r ig si nt rsyꢀ C
View Article Online
DOI: 10.1039/C7TC00123A
JournalꢀNameꢀ
COMMUNICATIONꢀ
ꢀ
TheꢀExcited-StateꢀIntramolecularꢀProtonꢀTransferꢀPropertiesꢀofꢀ
ThreeꢀImine-LinkedꢀTwo-DimensionalꢀPorousꢀOrganicꢀPolymersꢀꢀ
Receivedꢀ00thꢀJanuaryꢀ20xx,ꢀ
Acceptedꢀ00thꢀJanuaryꢀ20xxꢀ
PradeepkumarꢀJagadesan,ꢀGraceꢀEder,ꢀPsarasꢀL.ꢀMcGrier*ꢀ
DOI:ꢀ10.1039/x0xx00000xꢀ
www.rsc.org/ꢀ
Weꢀreportꢀtheꢀsynthesisꢀandꢀexcited-stateꢀintramolecularꢀprotonꢀ
transferꢀ (ESIPT)ꢀ propertiesꢀ ofꢀ threeꢀ tris(N-salicylideneaniline)-
basedꢀ (TSA)ꢀ imine-linkedꢀ porousꢀ organicꢀ polymersꢀ (POPs)ꢀ
ꢀ
containingꢀ
C
3
-symmetricꢀ 1,3,5-triarylbenzeneꢀ (TAB),ꢀ
-
tristyrylbenzeneꢀ (TSB),ꢀ andꢀ -tris(arylethynyl)benzeneꢀ (TAE)ꢀ
monomerꢀ units.ꢀ Theꢀ TSA-POPsꢀ areꢀ fluorescentꢀ inꢀ theꢀ solid-stateꢀ
2
+
2+
andꢀresponsiveꢀtoꢀCu ꢀandꢀPd .ꢀꢀꢀꢀ
[1]
Excited-stateꢀ intramolecularꢀ protonꢀ transferꢀ (ESIPT) ꢀ isꢀ aꢀ
phototautomerizationꢀthatꢀoccursꢀwhenꢀaꢀchromophoreꢀcontainingꢀ
2
anꢀintramolecularꢀprotonꢀdonorꢀ(-OH,ꢀ-NH )ꢀandꢀprotonꢀacceptorꢀ(-
C=O,ꢀ-C=N-)ꢀareꢀinꢀcloseꢀproximity.ꢀAꢀkeyꢀfeatureꢀofꢀESIPTꢀisꢀaꢀlargeꢀ
Stokesꢀ shiftedꢀ emissionꢀ withoutꢀ self-absorption,ꢀ whichꢀ emanatesꢀ
fromꢀ aꢀ rapidꢀ photoinducedꢀ enol-ketoꢀ tautomerizationꢀ processꢀ
(
Schemeꢀ1).ꢀThisꢀuniqueꢀfeatureꢀmakesꢀchromophoresꢀthatꢀexhibitꢀ
[2]
ESIPTꢀ potentiallyꢀ usefulꢀ forꢀ theꢀ constructionꢀ ofꢀ laserꢀ dyes, ꢀ
[3]
[4]
photostabilizers, ꢀ chemicalꢀ sensors, ꢀ andꢀ optoelectronicꢀ
Schemeꢀ 1ꢀ Schematicꢀ representationꢀ ofꢀ theꢀ ESIPTꢀ enol-ketoꢀ
tautomerizationꢀprocessꢀforꢀtheꢀTSA-BasedꢀPOPs.ꢀ
[5]
devices. ꢀAlthoughꢀtheꢀESIPTꢀpropertiesꢀofꢀvariousꢀsingle-moleculeꢀ
[6]
[7]
systems ꢀ andꢀ one-dimensionalꢀ (1D) ꢀ polymersꢀ haveꢀ beenꢀ
[8]
[20]ꢀ
evaluated,ꢀtwo-dimensionalꢀ(2D) ꢀpolymericꢀmaterialsꢀthatꢀexhibitꢀ frameworksꢀ (PPFs)
haveꢀ beenꢀ synthesizedꢀ employingꢀ variousꢀ
ESIPTꢀ areꢀ extremelyꢀ rare.ꢀ Recently,ꢀ weꢀ haveꢀ demonstratedꢀ thatꢀ fluorescentꢀ π-conjugatedꢀ units,ꢀ onlyꢀ aꢀ limitedꢀ numberꢀ exhibitꢀ
tris(N-salicylideneaniline)ꢀ (TSA)ꢀ chromophoresꢀ containingꢀ luminescence.ꢀ Theꢀ absenceꢀ ofꢀ luminescenceꢀ inꢀ theseꢀ systemsꢀ isꢀ
preformedꢀ C=NŸŸŸH-Oꢀ bondsꢀ exhibitꢀ enhancedꢀ luminescentꢀ mostlyꢀ attributedꢀ toꢀ aggregationꢀ causedꢀ quenchingꢀ (ACQ),ꢀ whichꢀ
propertiesꢀinꢀtheꢀsolid-stateꢀdueꢀtoꢀtheirꢀabilityꢀtoꢀundergoꢀefficientꢀ oftenꢀ occursꢀ dueꢀ toꢀ theꢀ strongꢀ π-πꢀ interactionsꢀ betweenꢀ theꢀ
[9]
ESIPTꢀ toꢀ formꢀ theꢀ ketoꢀ tautomer. ꢀ However,ꢀ utilizingꢀ TSAꢀ adjacentꢀ layersꢀ ofꢀ theꢀ material.ꢀ However,ꢀ aꢀ majorityꢀ ofꢀ theꢀ POPsꢀ
chromophoresꢀ toꢀ constructꢀ imine-linkedꢀ 2Dꢀ porousꢀ organicꢀ thatꢀ exhibitꢀ fluorescenceꢀ inꢀ theꢀ solid-stateꢀ isꢀ creditedꢀ toꢀ anꢀ
[10]
[21]
polymersꢀ(POPs) ꢀthatꢀcanꢀundergoꢀESIPTꢀhasꢀnotꢀbeenꢀreportedꢀ aggregation-inducedꢀ emissionꢀ (AIE)ꢀ mechanism. ꢀ AIEꢀ typicallyꢀ
toꢀdate.ꢀ reliesꢀonꢀtheꢀrestrictedꢀintramolecularꢀrotationꢀorꢀmotionꢀofꢀtheꢀπ-
POPsꢀ areꢀ aꢀ uniqueꢀ classꢀ ofꢀ amorphousꢀ porousꢀ polymersꢀ thatꢀ conjugatedꢀ unitsꢀ toꢀ produceꢀ aꢀ luminescenceꢀ response.ꢀ Asꢀ aꢀ
ꢀ
[11]
haveꢀ beenꢀ utilizedꢀ forꢀ applicationsꢀ relatedꢀ toꢀ gasꢀ storage,
ꢀ
consequence,ꢀ onlyꢀ aꢀ handfulꢀ ofꢀ π-conjugatedꢀ monomersꢀ canꢀ beꢀ
[12]
[13]
[14]
separations, ꢀ catalysis, ꢀ andꢀ energyꢀ storage. ꢀ Althoughꢀ aꢀ usedꢀ toꢀ produceꢀ theꢀ desiredꢀ AIE-basedꢀ luminescence.ꢀ Developingꢀ
numberꢀ ofꢀ POPsꢀ suchꢀ asꢀ conjugatedꢀ microporousꢀ polymersꢀ POPsꢀthatꢀcanꢀundergoꢀESIPTꢀcouldꢀprovideꢀanꢀalternativeꢀstrategyꢀ
[
15]ꢀ
[16]
(
CMPs),
polymersꢀ ofꢀ intrinsicꢀ microporosityꢀ (PIMs), ꢀ porousꢀ forꢀconstructingꢀluminescentꢀmaterialsꢀwithoutꢀrelyingꢀonꢀtheꢀπ-πꢀ
[17]
aromaticꢀ frameworksꢀ (PAFs), ꢀ covalentꢀ triazineꢀ frameworksꢀ interactionsꢀ ofꢀ carefullyꢀ selectedꢀ π-conjugatedꢀ monomers.ꢀ Suchꢀ
[
18]
[19]
(
CTFs), ꢀcovalentꢀorganicꢀpolymersꢀ(COPs) andꢀporousꢀpolymerꢀ investigationsꢀ couldꢀ alsoꢀ beꢀ usefulꢀ forꢀ designingꢀ otherꢀ novelꢀ 2Dꢀ
polymericꢀsystemsꢀforꢀoptoelectronicꢀapplications.ꢀꢀ
ꢀ
Herein,ꢀweꢀreportꢀtheꢀsynthesisꢀofꢀthreeꢀimine-linkedꢀ2DꢀTSA-
POPsꢀ containingꢀ C -symmetricꢀ 1,3,5-triarylbenzeneꢀ (TAB),ꢀ -
3
tristyrylbenzeneꢀ (TSB),ꢀ andꢀ -tris(arylethynyl)benzeneꢀ (TAE)ꢀ
monomerꢀunits.ꢀꢀWeꢀꢀdemonstrateꢀꢀthatꢀꢀtheꢀꢀpreformedꢀꢀC=NŸŸŸH-Oꢀ
Thisꢀjournalꢀisꢀ©ꢀTheꢀRoyalꢀSocietyꢀofꢀChemistryꢀ20xxꢀ
J.ꢀName.,ꢀ2013,ꢀ00,ꢀ1-3ꢀ|ꢀ1ꢀꢀ
Pleaseꢀdoꢀnotꢀadjustꢀmarginsꢀ

Jo uP rl ne aa sl eo ꢀ fd Mo ꢀ an to et rꢀ ai ad l jsu sC t hꢀ me am r ig si nt rsyꢀ C
Page 2 of 6
View Article Online
DOI: 10.1039/C7TC00123A
JournalꢀNameꢀ
ꢀ
COMMUNICATIONꢀ
BDP
CHO
HO
Dimethylacetamide / 1,2-Dichlorobenzene
Dimethylacetamide / 1,2 Dichlorobenzene
20 °C / 3 days
°
NH
2
1
95
C / 3 days
NH
2
OH
CHO
NH
2
Dimethylacetamide / Toluene
H
2
N
20 °C / 3 days
H2
N
NH2
1
TSB
NH
2
TAE
H
2
N
NH
2
TAB
OH
N
N
OH
N
OH
N
N
HO
OH
N
N
HO
OH
N
HO
OH
N
N HO
N HO
N HO
N
N
N
N
N
HO
N
HO
HO
HO
HO
HO
TSA-POP 1
TSA-POP 2
TSA-POP 3
OH
OH
OH
OH
OH
N
OH
N
N
N
N
N
OH
N
N
OH
N
OH
OH
N
HO
N
N
N
N HO
HO
HO
OH
OH
N
N
N HO
N HO
Schemeꢀ2ꢀꢀSynthesisꢀofꢀtheꢀTSA-POPsꢀ1-3.ꢀ
bondsꢀofꢀtheꢀTSA-POPsꢀcanꢀundergoꢀꢀESIPTꢀtoꢀproduceꢀfluorescentꢀ POPsꢀ (Fig.ꢀ S11-S13,ꢀ ESI).ꢀ Theꢀ presenceꢀ ofꢀ theꢀ alkeneꢀ andꢀ alkynylꢀ
materialsꢀ withꢀ respectableꢀ surfaceꢀ areas.ꢀ Theꢀ TSA-POPsꢀꢀꢀꢀꢀꢀ uꢀ ꢀ nꢀ ꢀ ꢀi ꢀtꢀ sꢀ ꢀ ꢀꢀ forꢀTSA-POPꢀ1ꢀandꢀ3ꢀwereꢀconfirmedꢀatꢀresonancesꢀofꢀ~127.9ꢀ
2+
alsoꢀexperienceꢀquenchingꢀofꢀfluorescenceꢀinꢀtheꢀpresenceꢀofꢀCu ꢀ andꢀ90.8ꢀppm,ꢀrespectively.ꢀPowderꢀx-rayꢀdiffractionꢀ(PXRD)ꢀprofilesꢀ
2+
andꢀ Pd ꢀ metalꢀ ionsꢀ makingꢀ themꢀ potentiallyꢀ usefulꢀ forꢀ sensoryꢀ ofꢀtheꢀTSA-POPsꢀrevealedꢀnoꢀpeaksꢀindicatingꢀthatꢀtheꢀmaterialsꢀareꢀ
ꢀ
[22]
applications. ꢀꢀꢀꢀꢀ

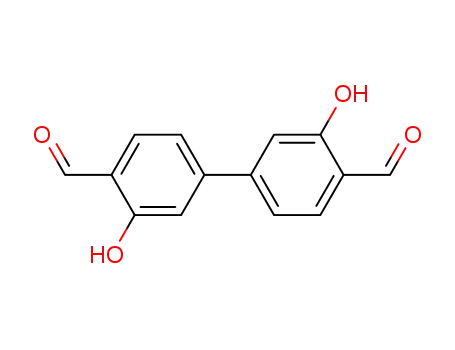

ꢀꢀTheꢀ imine-linkedꢀ POPsꢀ wereꢀ synthesizedꢀ byꢀ reactingꢀ theꢀ aminoꢀ ꢀꢀꢀTheꢀ porosityꢀ ofꢀ theꢀ TSA-POPsꢀ wasꢀ evaluatedꢀ usingꢀ nitrogenꢀ gasꢀ
functionalizedꢀ TSB,ꢀ TAB,ꢀ andꢀ TAEꢀ monomersꢀ withꢀ 3,3'-dihydroxy- adsorptionꢀ isothermsꢀ atꢀ 77ꢀ Kꢀ (Fig.ꢀ 1).ꢀ Allꢀ threeꢀ ofꢀ theꢀ TSA-POPsꢀ
1,1'-biphenyl]-4,4'-dicarbaldehydeꢀ (BDP)ꢀ inꢀ aꢀ mixtureꢀ ofꢀ solventsꢀ exhibitedꢀreversibleꢀtypeꢀIVꢀisotherms,ꢀwhichꢀisꢀindicativeꢀofꢀtheirꢀ
containingꢀ 6Mꢀ aceticꢀ acidꢀ atꢀ 95°Cꢀ orꢀ 120ꢀ °Cꢀ forꢀ threeꢀ daysꢀ toꢀ mesoporosity.ꢀ Applyingꢀ theꢀ Brunauer-Emmett-Tellerꢀ (BET)ꢀ modelꢀ
produceꢀTSA-POPsꢀ1-3,ꢀrespectivelyꢀ(Schemeꢀ2).ꢀTheꢀTSA-POPsꢀwereꢀ overꢀ theꢀ low-pressureꢀ regionꢀ (0.04ꢀ <ꢀ P/P ꢀ <ꢀ 0.24-0.29)ꢀ providedꢀ
amorphousꢀandꢀexhibitꢀnoꢀlong-rangeꢀorderꢀ(FigꢀS14-S16,ꢀESI).ꢀꢀ
ꢀ
[
0
2
-1
obtainedꢀ byꢀ filtrationꢀ andꢀ washedꢀ withꢀ tetrahydrofuranꢀ (THF)ꢀ toꢀ surfaceꢀareasꢀofꢀ601,ꢀ427,ꢀandꢀ135ꢀm ꢀg ꢀforꢀTSA-POPꢀ1,ꢀ2,ꢀandꢀ3,ꢀ
obtainꢀyellowꢀpowdersꢀthatꢀwereꢀinsolubleꢀinꢀorganicꢀsolvents.ꢀTheꢀ respectivelyꢀ (Fig.ꢀ S23-S25,ꢀ ESI).ꢀ Theꢀ nonlocalꢀ densityꢀ functionalꢀ
optimalꢀ reactionꢀ conditionsꢀ wereꢀ obtainedꢀ byꢀ screeningꢀ differentꢀ theoryꢀꢀ(NLDFT)ꢀporeꢀsizeꢀdistributionsꢀrevealedꢀmajorꢀpeaksꢀatꢀ2.1,ꢀꢀ
solventꢀmixtures,ꢀreactionꢀtimes,ꢀandꢀtemperaturesꢀ(TablesꢀS1-S3,ꢀ _______________________________________________________ꢀ
ESI).ꢀ Thermogravimetricꢀ analysisꢀ (TGA)ꢀ impliedꢀ thatꢀ theꢀ TSA-POPsꢀ (a)ꢀ2
(b)ꢀ0.25ꢀ
50ꢀ
00ꢀ
50ꢀ
00ꢀ
areꢀstableꢀupꢀtoꢀ400ꢀ°Cꢀ(FigꢀS2-S4,ꢀESI),ꢀwhileꢀtheꢀscanningꢀelectronꢀ
0.2ꢀ
2
microscopyꢀ (SEM)ꢀ imagesꢀ revealedꢀ aꢀ cauliflower-likeꢀ morphologyꢀ
0.15ꢀ
1
forꢀtheꢀmaterialsꢀ(FigꢀS5-S7,ꢀESI).ꢀꢀ
0.1ꢀ
1
ꢀ
ꢀꢀTheꢀ TSA-POPsꢀ wereꢀ characterizedꢀ usingꢀ Fourierꢀ Transformꢀ
0.05ꢀ
0ꢀ
13
5
0ꢀ
infraredꢀ(FT-IR)ꢀandꢀ Cꢀcross-polarizationꢀmagicꢀangleꢀspinningꢀ(CP-
MAS)ꢀ NMRꢀ spectroscopies.ꢀ Theꢀ FT-IRꢀ spectraꢀ revealedꢀ theꢀ
characteristicꢀ C=Nꢀ stretchingꢀ vibrationsꢀ forꢀ theꢀ imine-linkageꢀ atꢀꢀꢀꢀꢀꢀꢀ
0ꢀ
0ꢀ
0.2ꢀ
0.4ꢀ
0.ꢁꢀ
0.8ꢀ
1ꢀ
1.7ꢀ
2.7ꢀ
3.7ꢀ
4.7ꢀ
5.7ꢀ
Rela6veꢀPressureꢀ(P/Po)ꢀ
PoreꢀWidthꢀ(nm)ꢀ
ꢀ
-1ꢀ
13
~
1612ꢀcm (Fig.ꢀS8-S10,ꢀESI).ꢀTheꢀ CꢀCP-MASꢀspectraꢀdisplayedꢀtheꢀ Fig.ꢀ 1ꢀ Nitrogenꢀ adsorption-desorptionꢀ isothermsꢀ (a)ꢀ andꢀ NLDFTꢀ poreꢀ sizeꢀ
distinctꢀresonanceꢀforꢀtheꢀC=Nꢀbondꢀatꢀ~161ꢀppmꢀforꢀallꢀofꢀtheꢀTSA- distributionsꢀ (b)ꢀ forꢀ TSA-POP-1ꢀ (green),ꢀ TSA-POP-2ꢀ (red),ꢀ andꢀ TSA-POP-3ꢀ
blue)ꢀmeasuredꢀatꢀ77ꢀK.ꢀ
(
Thisꢀjournalꢀisꢀ©ꢀTheꢀRoyalꢀSocietyꢀofꢀChemistryꢀ20xxꢀ
J.ꢀName.,ꢀ2013,ꢀ00,ꢀ1-3ꢀ|ꢀ2ꢀꢀ
Pleaseꢀdoꢀnotꢀadjustꢀmarginsꢀ

Page 3 of 6
Jo uP rl ne aa sl eo ꢀ fd Mo ꢀ an to et rꢀ ai ad l jsu sC t hꢀ me am r ig si nt rsyꢀ C
JournalꢀNameꢀ
a)ꢀ
ꢀCOMMUNICATIONꢀ
(
(b)ꢀ
(a)ꢀ
(b)ꢀ
View Article Online
DOI: 10.1039/C7TC00123A
1ꢀ
700ꢀ
800ꢀ
600ꢀ
400ꢀ
200ꢀ
0ꢀ
600ꢀ
500ꢀ
400ꢀ
0
.8ꢀ
.6ꢀ
.4ꢀ
.2ꢀ
0
0
0
TSA-POPꢀ1ꢀ
TSA-POPꢀ2ꢀ
300ꢀ
200ꢀ
100ꢀ
0ꢀ
Fꢀ Li+ꢀ
+ꢀ
Ag
g2+ꢀ
+ꢀ
+ꢀ
d2+ꢀ u2+ꢀ
C
Fꢀ Li+ꢀ
+ꢀ
Ag
g2+ꢀ
+ꢀ
+ꢀ
2
d2+ꢀ u2+ꢀ
P C
0ꢀ
TH
3
Fe
2
TH
3
Fe
H
Zn
P
H
Zn
5
20ꢀ 545ꢀ 570ꢀ 595ꢀ 620ꢀ 645ꢀ 670ꢀ
(
c)ꢀ
(d)ꢀ
Wavelengthꢀ(nm)ꢀ
TSA-POPꢀ3ꢀ
ꢀ
400ꢀ
300ꢀ
(1)ꢀ
Fig.ꢀ 2ꢀ ꢀ Solid-Stateꢀ emissionꢀ spectraꢀ (a)ꢀ ofꢀ TSA-POPꢀ 1ꢀ (red),ꢀ TSA-POPꢀ 2ꢀ
green),ꢀandꢀTSA-POPꢀ3ꢀ(blue).ꢀ(b)ꢀPhotographsꢀofꢀtheꢀluminescentꢀTSA-POPsꢀ
takenꢀusingꢀaꢀhand-heldꢀUV-lampꢀatꢀ365ꢀnm.ꢀ
(
ꢀ(2)ꢀ
(3)ꢀ
2
00ꢀ
00ꢀ
0ꢀ
1
_
ꢀ
_____________________________________________________________ꢀ
ꢀ
Fꢀ Li+ꢀ
+ꢀ
Ag
+ꢀ
+ꢀ
+ꢀ
+ꢀ
+ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
H
2
3
Fe
2
2
2
u
C
ꢀTHF Li ꢀAgꢀHg ꢀFe ꢀZn ꢀPd ꢀCu
2
.1,ꢀandꢀ2.5ꢀnmꢀforꢀTSA-POPꢀ1,ꢀ2,ꢀandꢀ3,ꢀrespectively,ꢀinꢀadditionꢀtoꢀ
otherꢀporesꢀthatꢀextendꢀintoꢀtheꢀmesoporousꢀrange.ꢀꢀTheꢀtotalꢀporeꢀ
volumes,ꢀwhichꢀwereꢀcalculatedꢀatꢀsingleꢀpointꢀvaluesꢀ(P/P ꢀ=ꢀ0.94,ꢀ
T
g
Zn
d
H
P
ꢀ
Fig.ꢀ4ꢀꢀꢀEmissionꢀintensitiesꢀofꢀTSA-POPꢀ1ꢀ(a),ꢀTSA-POPꢀ2ꢀ(b),ꢀandꢀTSA-POPꢀ3ꢀ
(c)ꢀ suspendedꢀ inꢀ THFꢀ beforeꢀ andꢀ afterꢀ theꢀ additionꢀ ofꢀ metalꢀ ions.ꢀ (d)ꢀ
PhotographsꢀofꢀTSA-POPꢀ1ꢀ(1),ꢀTSA-POPꢀ2ꢀ(2),ꢀandꢀTSA-POPꢀ3ꢀ(3)ꢀsuspendedꢀ
inꢀTHFꢀbeforeꢀandꢀafterꢀtheꢀadditonꢀofꢀmetalꢀions.ꢀTheꢀpicturesꢀwereꢀtakenꢀ
0
3
-1
0
.90,ꢀ0.89),ꢀprovidedꢀvaluesꢀofꢀ0.40,ꢀ0.20,ꢀandꢀ0.12ꢀcm ꢀg ꢀforꢀTSA-
POPꢀ1,ꢀ2,ꢀandꢀ3,ꢀrespectively.ꢀ
ꢀ
ꢀꢀTheꢀsolid-stateꢀemissionꢀspectraꢀandꢀluminescentꢀphotographsꢀofꢀ takenꢀusingꢀaꢀhand-heldꢀUV-lampꢀatꢀ365ꢀnm.ꢀ
TSA-POPsꢀ1,ꢀ2,ꢀandꢀ3ꢀareꢀshownꢀinꢀFig.ꢀ2.ꢀTSA-POPꢀ2ꢀandꢀ3ꢀexhibitꢀaꢀ
maxꢀ ofꢀ 565ꢀ nmꢀ andꢀ 567ꢀ nm,ꢀ respectively.ꢀ Inꢀ comparison,ꢀ theꢀ
emissionꢀmaximaꢀofꢀTSA-POPꢀ1ꢀdisplaysꢀaꢀbathochromicꢀshiftꢀofꢀ~ꢀ8-
0ꢀ nmꢀ withꢀ aꢀ λmaxꢀ ofꢀ 575ꢀ nm.ꢀ Theꢀ bathochromicꢀ shiftꢀ couldꢀ beꢀ
_
ꢀ
_____________________________________________________________ꢀ
λ
emissionꢀ bandsꢀ ofꢀ theꢀ TSA-POPsꢀ beganꢀ toꢀ decreaseꢀ inꢀ intensity,ꢀ
whichꢀeventuallyꢀleadsꢀtoꢀtheꢀquenchingꢀofꢀfluorescenceꢀ(Figꢀ3a-3c).ꢀ
Weꢀ believeꢀ theꢀ quenchingꢀ ofꢀ fluorescenceꢀ isꢀ attributedꢀ toꢀ theꢀ
suppressionꢀ ofꢀ theꢀ enol-ketoꢀ tautomerizationꢀ inꢀ theꢀ excited-stateꢀ
dueꢀꢀtoꢀꢀtheꢀꢀprotonationꢀꢀofꢀꢀtheꢀꢀimineꢀꢀnitrogenꢀꢀatomsꢀ(Fig.ꢀ3d).ꢀInꢀ
addition,ꢀitꢀshouldꢀbeꢀnotedꢀthatꢀtheꢀsolid-stateꢀfluorescenceꢀofꢀtheꢀ
TSA-POPsꢀ isꢀ highlyꢀ dependentꢀ onꢀ theꢀ structureꢀ ofꢀ theꢀ aldehydeꢀ
precursor.ꢀ Forꢀ example,ꢀ itꢀ hasꢀ beenꢀ shownꢀ thatꢀ aꢀ 2,5-
1
attributedꢀtoꢀtheꢀrestrictedꢀrotationꢀofꢀtheꢀalkeneꢀunitsꢀofꢀtheꢀTSBꢀ
linker,ꢀ whichꢀ leadsꢀ toꢀ enhancedꢀ π-conjugationꢀ byꢀ reducingꢀ theꢀ
energyꢀgapꢀofꢀtheꢀπ−π*ꢀtransitionꢀforꢀTSA-POPꢀ1.ꢀꢀThisꢀphenomenonꢀ
isꢀ consistentꢀ withꢀ whatꢀ hasꢀ beenꢀ observedꢀ forꢀ theꢀ previouslyꢀ
[9]
reportedꢀalkene-basedꢀTSAꢀanalog. ꢀInterestingly,ꢀtheꢀTABꢀandꢀTAEꢀ
linkersꢀ doꢀ notꢀ appearꢀ toꢀ haveꢀ aꢀ significantꢀ effectꢀ onꢀ theꢀ bulkꢀ
fluorescentꢀ propertiesꢀ ofꢀ theꢀ materials.ꢀUV-Visꢀ diffuseꢀ reflectanceꢀ
spectraꢀ showꢀ thatꢀ theꢀ TSA-POPsꢀ exhibitꢀ broadꢀ absorptionꢀ bandsꢀ
thatꢀextendꢀfromꢀ380ꢀnmꢀtoꢀ550ꢀnmꢀ(Fig.ꢀS17,ꢀESI).ꢀꢀ
ꢀ
dihydroxyterephthalaldehydeꢀ (Dha)ꢀlinkerꢀcanꢀbeꢀusedꢀtoꢀconstructꢀ
[23]
crystallineꢀimine-linkedꢀcovalentꢀorganicꢀframeworksꢀ(COFs) ,ꢀbutꢀ
toꢀtheꢀbestꢀofꢀourꢀknowledgeꢀtheꢀmaterialsꢀdoꢀnotꢀundergoꢀESIPTꢀinꢀ
ꢀ
ꢀꢀInꢀ anꢀ effortꢀ toꢀ verifyꢀ thatꢀ theꢀ materialsꢀ areꢀ indeedꢀ undergoingꢀ
theꢀ solid-state.ꢀ Toꢀ verifyꢀ this,ꢀ weꢀ constructedꢀ theꢀ COF-DhaTabꢀ
ESIPT,ꢀ weꢀ titratedꢀ suspensionsꢀ ofꢀ theꢀ TSA-POPsꢀ inꢀ THFꢀ withꢀ
trifluoroaceticꢀacidꢀꢀ(TFA).ꢀꢀUponꢀtheꢀꢀadditionꢀꢀofꢀꢀ0-75ꢀꢀμLꢀꢀTFA,ꢀꢀtheꢀꢀ
[23c]
previouslyꢀ reportedꢀ byꢀ Banerjee
ꢀ andꢀ comparedꢀ it'sꢀ
photophysicalꢀ propertiesꢀ toꢀ TSA-POPꢀ 2,ꢀ whichꢀ containsꢀ theꢀ
extendedꢀBPDꢀlinker.ꢀSurprisingly,ꢀCOF-DhaTabꢀwasꢀnotꢀfluorescentꢀ
inꢀ theꢀ solid-state,ꢀ whileꢀ TSA-POPꢀ 2ꢀ exhibitedꢀ aꢀ brightꢀ yellowꢀ
fluorescentꢀ colorꢀ (Fig.ꢀ S18,ꢀ ESI).ꢀ Weꢀ believeꢀ theꢀ absenceꢀ ofꢀ
fluorescenceꢀforꢀCOF-DhaTabꢀcouldꢀbeꢀattributedꢀtoꢀ1)ꢀtheꢀabilityꢀofꢀ
theꢀ stackedꢀ layersꢀ toꢀ undergoꢀ anꢀ ACQꢀ mechanism,ꢀ orꢀ 2)ꢀ theꢀ
weakenedꢀphotoacidityꢀofꢀtheꢀDhaꢀhydroxylꢀgroupsꢀdueꢀtoꢀhavingꢀ
bothꢀsubstituentsꢀattachedꢀtoꢀtheꢀsameꢀphenylꢀring.ꢀTheꢀlatterꢀcouldꢀ
inhibitꢀ theꢀ abilityꢀ ofꢀ theꢀ preformedꢀ C=NŸŸŸH-Oꢀ bondsꢀ toꢀ undergoꢀ
ESIPTꢀinꢀtheꢀsolid-state.ꢀ
(
a)ꢀ
(b)ꢀ
0
ꢀμLꢀ
TFAꢀ
5ꢀμLꢀ
0ꢀμLꢀ
TFAꢀ
7
75ꢀμLꢀ
ꢀ
ꢀꢀꢀInꢀanꢀeffortꢀtoꢀexploreꢀtheꢀabilityꢀofꢀtheꢀTSA-POPsꢀtoꢀfunctionꢀasꢀ
Wavelengthꢀ(nm)ꢀ
Wavelengthꢀ(nm)ꢀ
fluorescentꢀ probesꢀ forꢀ metalꢀ ionsꢀ onꢀ accountꢀ ofꢀ theirꢀ preformedꢀ
c)ꢀ
(d)ꢀ
C=NŸŸŸH-Oꢀ bonds,ꢀ weꢀ evaluatedꢀ theꢀ chemosensingꢀ abilityꢀ ofꢀ theꢀ
(
0
ꢀμLꢀ
+
+
2+
3+
2+
2+
2+
hνꢀ
materialsꢀinꢀtheꢀpresenceꢀofꢀLi ,ꢀAg ,ꢀHg ,ꢀFe ,ꢀZn ,ꢀPd ,ꢀandꢀCu ꢀ
inꢀ THFꢀ (Fig.ꢀ 4).ꢀ TSA-POPꢀ 1,ꢀ 2ꢀ andꢀ 3ꢀ allꢀ undergoꢀ quenchingꢀ ofꢀ
N
H
O
NH
OH transfer
NH
O
TFAꢀ
No proton
2+
2+
H+
fluorescenceꢀuponꢀtheꢀexcessꢀadditionꢀofꢀ180ꢀμMꢀPd ꢀandꢀCu ꢀinꢀ
tetrahydrofuranꢀ(THF)ꢀ(Fig.ꢀS19-S21,ꢀESI).ꢀInterestingly,ꢀtheꢀadditionꢀ
7
5ꢀμLꢀ
O
H
HO
HN
HO
HN
2+
N
ofꢀZn ꢀresultsꢀinꢀaꢀdecreaseꢀinꢀemissionꢀintensityꢀforꢀtheꢀTSA-POPs,ꢀ
whichꢀisꢀdifferentꢀinꢀcontrastꢀtoꢀtheꢀenhancementꢀinꢀfluorescenceꢀ
Wavelengthꢀ(nm)ꢀ
[9]
ꢀ
thatꢀ wasꢀ experiencedꢀ forꢀ theꢀ TSAꢀ analogs. ꢀ Theꢀ differenceꢀ inꢀ
Fig.ꢀ3ꢀꢀꢀEmissionꢀtitrationꢀspectraꢀofꢀTSA-POPꢀ1ꢀ(a),ꢀTSA-POPꢀ2ꢀ(b),ꢀandꢀTSA- fluorescentꢀ propertiesꢀ couldꢀ beꢀ attributedꢀ toꢀ theꢀ inabilityꢀ ofꢀ theꢀ
2
+
POPꢀ3ꢀ(c)ꢀwithꢀTFAꢀsuspendedꢀinꢀTHF.ꢀ(d)ꢀSchematicꢀrepresentationꢀofꢀTFAꢀ
inhibitingꢀtheꢀESIPTꢀtautomerizationꢀprocess.ꢀꢀ
rigidꢀ TSA-POPsꢀ toꢀ formꢀ 1:2ꢀ complexesꢀ withꢀ Zn ,ꢀ whichꢀ couldꢀ
impedeꢀ anꢀ efficientꢀ metal-to-ligandꢀ chargeꢀ transferꢀ (MLCT)ꢀ orꢀ
Thisꢀjournalꢀisꢀ©ꢀTheꢀRoyalꢀSocietyꢀofꢀChemistryꢀ20xxꢀ
J.ꢀName.,ꢀ2013,ꢀ00,ꢀ1-3ꢀ|ꢀ3ꢀ
Pleaseꢀdoꢀnotꢀadjustꢀmarginsꢀ

Jo uP rl ne aa sl eo ꢀ fd Mo ꢀ an to et rꢀ ai ad l jsu sC t hꢀ me am r ig si nt rsyꢀ C
Page 4 of 6
COMMUNICATIONꢀ
ligand-to-metalꢀchargeꢀtransferꢀ(LMCT)ꢀprocess.ꢀSuspensionsꢀofꢀtheꢀ
JournalꢀNameꢀ
Macromoleculesꢀ2000,ꢀ33,ꢀ7223-7225;ꢀ(c)ꢀSV.ꢀiePwarAkrt,icꢀSle.ꢀOKnilmine,ꢀ
J.ꢀ Seo,ꢀ S.ꢀ Y.ꢀ Park,ꢀ Macromolecule sD ꢀ O2 I0: 01 05 .,1ꢀ 03 38 9, /ꢀ C4 75 T5 C7 0- 40 51 25 39A ;ꢀ
d)ꢀ K.ꢀ Kanosue,ꢀ R.ꢀ Augulis,ꢀ D.ꢀ Peckus,ꢀ R.ꢀ Karpicz,ꢀ T.ꢀ
Tamulevičius,ꢀ S.ꢀ Tamulevičius,ꢀ V.ꢀ Gulbinas,ꢀ S.ꢀ Ando,ꢀ
Macromoleculesꢀ2016,ꢀ49,ꢀ1848-1857.ꢀꢀꢀꢀꢀꢀ
J.ꢀW.ꢀColson,ꢀW.ꢀR.ꢀDichtel,ꢀNat.ꢀChem.ꢀ2013,ꢀ5,ꢀ453–465.ꢀ
P.ꢀ Jagadesan,ꢀ T.ꢀ Whittemore,ꢀ T.ꢀ Beirl,ꢀ C.ꢀ Turro,ꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀꢀ
P.ꢀ L.ꢀ McGrier,ꢀ Chem.ꢀ Eur.ꢀ Jꢀ 2016,ꢀ DOI:ꢀ
+
+
2+
3+ꢀ
TSA-POPsꢀwereꢀunresponsiveꢀtoꢀLi ,ꢀAg ,ꢀHg ,ꢀandꢀFe inꢀTHFꢀ(Fig.ꢀ
S22,ꢀESI).ꢀ
(
ꢀ
3
ꢀꢀInꢀ conclusion,ꢀ weꢀ haveꢀ demonstratedꢀ thatꢀ aꢀ BDPꢀ linkerꢀ andꢀ C -
symmetricꢀ amino-functionalizedꢀ monomersꢀ canꢀ beꢀ usedꢀ toꢀ
constructꢀimine-linkedꢀTSA-POPsꢀthatꢀcanꢀundergoꢀESIPTꢀtoꢀproduceꢀ
[
[
8]ꢀ
9]ꢀ
2+
luminescentꢀ materials.ꢀ Theꢀ TSA-POPsꢀ areꢀ alsoꢀ responsiveꢀ toꢀ Cu ꢀ
2+
andꢀ Pd ꢀ makingꢀ themꢀ potentiallyꢀ usefulꢀ asꢀ fluorescent-basedꢀ
1
0.1002/chem.201604315.ꢀ
[24]ꢀ
chemosensors. Toꢀ theꢀ bestꢀ ofꢀ ourꢀ knowledge,ꢀ thisꢀ isꢀ theꢀ firstꢀ
exampleꢀofꢀꢀ2DꢀPOPsꢀexhibitingꢀESIPTꢀinꢀtheꢀsolid-state.ꢀWeꢀbelieveꢀ
[
10]ꢀ
D.ꢀWu,ꢀF.ꢀXu,ꢀB.ꢀSun,ꢀR.ꢀFu,ꢀH.ꢀHe,ꢀK.ꢀMatyjaszewski,ꢀChem.ꢀ
Rev.ꢀ2012,ꢀ112,ꢀ3959-4015.ꢀ
suchꢀ investigationsꢀ areꢀ necessaryꢀ forꢀ notꢀ onlyꢀ advancingꢀ theꢀ [11]ꢀ
structuralꢀ diversityꢀ ofꢀ thisꢀ uniqueꢀ classꢀ ofꢀ materials,ꢀ butꢀ alsoꢀ
designingꢀnovelꢀfunctionalꢀ2Dꢀpolymersꢀforꢀpracticalꢀapplications.ꢀꢀ
(a)ꢀ R.ꢀ Dawson,ꢀ E.ꢀ Stockel,ꢀ J.ꢀ R.ꢀ Holst,ꢀ D.ꢀ J.ꢀ Adams,ꢀ A.ꢀ I.ꢀ
Cooper,ꢀEnergyꢀEnviron.ꢀSci.ꢀ2011,ꢀ4,ꢀ4239-4245;ꢀ(b)ꢀY.ꢀXie,ꢀ
T.-T.ꢀWang,ꢀX.-H.ꢀLiu,ꢀK.ꢀZou,ꢀW.-Q.ꢀDeng,ꢀNatꢀCommun.ꢀ
2
013,ꢀ 4,ꢀ 1960–1965.ꢀ (c)ꢀ H.ꢀ A.ꢀ Patel,ꢀ D.ꢀ Ko,ꢀ C.ꢀ T.ꢀ Yavuz,ꢀ
Acknowledgements
ꢀ
Chem.ꢀ Mater.ꢀ 2014,ꢀ 26,ꢀ 6729−6733;ꢀ (d)ꢀ S.ꢀ
Bandyopadhyay,ꢀA.ꢀG.ꢀAnil,ꢀA.ꢀJames,ꢀA.ꢀPatra,ꢀACSꢀAppl.ꢀ
Mater.ꢀInterfacesꢀ2016,ꢀ8,ꢀ27669−27678.ꢀꢀ
(a)ꢀC.ꢀD.ꢀWood,ꢀB.ꢀTan,ꢀA.ꢀTrewin,ꢀH.ꢀNiu,ꢀD.ꢀBradshaw,ꢀM.ꢀ
J.ꢀ Rosseinsky,ꢀ Y.ꢀ Z.ꢀ Khimyak,ꢀ N.ꢀ L.ꢀ Campbell,ꢀ R.ꢀ Kirk,ꢀ E.ꢀ
Stockel,ꢀA.ꢀI.ꢀCooper,ꢀChem.ꢀMater.ꢀ2007,ꢀ19,ꢀ2034–2048;ꢀ
P.L.Mꢀ acknowledgesꢀ theꢀ Nationalꢀ Scienceꢀ Foundationꢀ (NSF)ꢀ andꢀ
Georgiaꢀ Techꢀ Facilitatingꢀ Academicꢀ Careersꢀ inꢀ Engineeringꢀ andꢀ
Scienceꢀ(GT-FACES)ꢀforꢀaꢀCareerꢀInitiationꢀGrant,ꢀandꢀfundingꢀfromꢀ
Theꢀ Ohioꢀ Stateꢀ University.ꢀ Weꢀ thankꢀ Katjaꢀ Meyerꢀ andꢀ Dr.ꢀ Umitꢀ
OzkanꢀforꢀassistanceꢀwithꢀtheꢀTGAꢀmeasurements.ꢀꢀ
[
12]ꢀ
(
b)ꢀC.ꢀD.ꢀWood,ꢀB.ꢀTan,ꢀA.ꢀTrewin,ꢀF.ꢀSu,ꢀM.ꢀJ.ꢀRosseinsky,ꢀ
D.ꢀ Bradshaw,ꢀ Y.ꢀ Sun,ꢀ L.ꢀ Zhou,ꢀ A.ꢀ I.ꢀ Cooper,ꢀ Adv.ꢀ Mater.ꢀ
008,ꢀ20,ꢀ1916–1921;ꢀ(c)ꢀS.ꢀYuan,ꢀB.ꢀDorney,ꢀD.ꢀWhite,ꢀS.ꢀ
Kirklin,ꢀP.ꢀZapol,ꢀL.ꢀYu,ꢀD.-J.ꢀLiu,ꢀChem.ꢀCommun.ꢀ2010,ꢀ46,ꢀ
547–4549.ꢀ
P.ꢀKaur,ꢀJ.ꢀT.ꢀHupp,ꢀS.ꢀT.ꢀNguyen,ꢀACSꢀCatal.ꢀ2011,ꢀ1,ꢀ819–
35.ꢀ
Notesꢀandꢀreferencesꢀ
2
[
1]ꢀ
(a)ꢀ C.-C.ꢀ Hsieh,ꢀ C.-M.ꢀ Jiang,ꢀ P.-T.ꢀ Chou,ꢀ Acc.ꢀ Chem.ꢀ Res.ꢀ
2
2
010,ꢀ43,ꢀ1364-1374;ꢀ(b)ꢀJ.ꢀE.ꢀKwon,ꢀS.ꢀY.ꢀPark,ꢀAdv.ꢀMater.ꢀ
011,ꢀ23,ꢀ3615–3642;ꢀ(c)ꢀV.ꢀI.ꢀTomin,ꢀA.ꢀP.ꢀDemchenko,ꢀP.-
4
[
[
13]ꢀ
14]ꢀ
T.ꢀChou,ꢀJ.ꢀPhotochem.ꢀPhotobiol.,ꢀCꢀꢀ2015,ꢀ22,ꢀ1-18.ꢀ(d)ꢀV.ꢀ
S.ꢀPadalkar,ꢀS.ꢀSeki,ꢀChem.ꢀSoc.ꢀRev.ꢀ2016,ꢀ45,ꢀ169-202.ꢀꢀ
(a)ꢀA.ꢀU.ꢀKhan,ꢀM.ꢀKasha,ꢀProc.ꢀNatl.ꢀAcad.ꢀSci.ꢀUSAꢀ1983,ꢀ
8
(a)ꢀJ.-X.ꢀJiang,ꢀA.ꢀTrewin,ꢀD.ꢀJ.ꢀAdams,ꢀA.ꢀI.ꢀCooper,ꢀChem.ꢀ
Sci.ꢀ2011,ꢀ2,ꢀ1777-1781;ꢀ(b)ꢀA.ꢀThomas,ꢀP.ꢀKuhn,ꢀJ.ꢀWeber,ꢀ
M.-M.ꢀ Titirici,ꢀ M.ꢀ Antonietti,ꢀ Macromol.ꢀ Rapidꢀ Commun.ꢀ
[
[
2]ꢀ
3]ꢀ
8
0,ꢀ1767ꢀ–1770.ꢀ(b)ꢀK.-i.ꢀSakai,ꢀM.ꢀIchikawa,ꢀY.ꢀTaniguchi,ꢀ
Chem.ꢀPhys.ꢀLett.ꢀ2006,ꢀ420,ꢀ405-409.ꢀꢀ
2
009,ꢀ30,ꢀ221–236.ꢀ
(a)ꢀ M.ꢀ J.ꢀ Paterson,ꢀ M.ꢀ A.ꢀ Robb,ꢀ L.ꢀ Blancafort,ꢀ A.ꢀ D.ꢀ
DeBellis,ꢀ J.ꢀ Phys.ꢀ Chem.ꢀ Aꢀ 2005,ꢀ 109,ꢀ 7527–7537;ꢀ (b)ꢀ Y.ꢀ
Gong,ꢀZ.ꢀWang,ꢀS.ꢀZhang,ꢀZ.ꢀLuo,ꢀF.ꢀGao,ꢀH.ꢀLi,ꢀInd.ꢀEng.ꢀ
Chem.ꢀRes.ꢀ2016,ꢀ55,ꢀ5223–5230.ꢀ
[
15]ꢀ
(a)ꢀJ.-X.ꢀJiang,ꢀF.ꢀSu,ꢀA.ꢀTrewin,ꢀC.ꢀD.ꢀWood,ꢀN.ꢀL.ꢀCampbell,ꢀ
H.ꢀ Niu,ꢀ C.ꢀ Dickinson,ꢀ A.ꢀ Y.ꢀ Ganin,ꢀ M.ꢀ J.ꢀ Rosseinsky,ꢀ Y.ꢀ Z.ꢀ
Khimyak,ꢀ A.ꢀ I.ꢀ Cooper,ꢀ Angew.ꢀ Chem.ꢀ Int.ꢀ Ed.ꢀ 2007,ꢀ 46,ꢀ
8
574ꢀ–8578;ꢀ(b)ꢀL.ꢀChen,ꢀY.ꢀHonsho,ꢀS.ꢀSeki,ꢀD.ꢀJiang,ꢀJ.ꢀAm.ꢀ
[
4]ꢀ
(a)ꢀQ.ꢀChu,ꢀD.ꢀA.ꢀMedvetz,ꢀY.ꢀPang,ꢀChem.ꢀMater.ꢀ2007,ꢀ19,ꢀ
Chem.ꢀSoc.ꢀ2010,ꢀ132,ꢀ6742−6748;ꢀ(c)ꢀG.ꢀCheng,ꢀT.ꢀHasell,ꢀ
A.ꢀTrewin,ꢀD.ꢀJ.ꢀAdams,ꢀA.ꢀI.ꢀCooper,ꢀAngew.ꢀChem.ꢀInt.ꢀEd.ꢀ
6
421–6429;ꢀ(b)ꢀB.ꢀLiu,ꢀH.ꢀWang,ꢀT.ꢀWang,ꢀY.ꢀBao,ꢀF.ꢀDu,ꢀJ.ꢀ
Tian,ꢀQ.ꢀLi,ꢀR.ꢀBai,ꢀChem.ꢀCommun.ꢀ2012,ꢀ48,ꢀ2867-2869;ꢀ
c)ꢀ J.ꢀ Zhao,ꢀ S.ꢀ Ji,ꢀ Y.ꢀ Chen,ꢀ H.ꢀ Guo,ꢀ P.ꢀ Yang,ꢀ Phys.ꢀ Chem.ꢀ
2
012,ꢀ 51,ꢀ 12727-12731;ꢀ (d)ꢀ B.ꢀ Bonillo,ꢀ R.ꢀ S.ꢀ Sprick,ꢀ A.ꢀ I.ꢀ
(
Cooper,ꢀChem.ꢀMater.ꢀ2016,ꢀ28,ꢀ3469−3480.ꢀ
N.ꢀ B.ꢀ McKeown,ꢀ P.ꢀ M.ꢀ Budd,ꢀ Chem.ꢀ Soc.ꢀ Rev.ꢀ 2006,ꢀ 35,ꢀ
Chem.ꢀPhys.ꢀ2012,ꢀ14,ꢀ8803-8817.ꢀ
[
16]ꢀ
[
[
5]ꢀ
6]ꢀ
S.-J.ꢀLim,ꢀJ.ꢀSeo,ꢀS.ꢀY.ꢀPark,ꢀJ.ꢀAm.ꢀChem.ꢀSocꢀ2006,ꢀ128,ꢀ
6
75–683.ꢀ
1
4542-14547.ꢀ
(a)ꢀT.ꢀArthen-Engeland,ꢀT.ꢀBultmann,ꢀN.ꢀP.ꢀErnsting,ꢀM.ꢀA.ꢀ
Rodriguez,ꢀW.ꢀThielꢀChem.ꢀPhys.ꢀ1992,ꢀ163,ꢀ43-53;ꢀ(b)ꢀD.ꢀ
[
[
17]ꢀ
18]ꢀ
T.ꢀBen,ꢀS.ꢀQiu,ꢀCrystEngCommꢀ2013,ꢀ15,ꢀ17-26.ꢀ
C.ꢀE.ꢀChan-Thaw,ꢀA.ꢀVilla,ꢀP.ꢀKatekomol,ꢀD.ꢀSu,ꢀA.ꢀThomas,ꢀ
L.ꢀPrati,ꢀNanoꢀLett.ꢀ2010,ꢀ10,ꢀ537–541.ꢀ
ꢁ
W.ꢀ Brousmiche,ꢀ P.ꢀ Wan,ꢀ J.ꢀ Photochem.ꢀ Photobiol.ꢀ A:ꢀ
Chem.ꢀ 2000,ꢀ 130,ꢀ 113-118;ꢀ (c)ꢀ N.ꢀ Otsubo,ꢀ C.ꢀ Okabe,ꢀ H.ꢀ
Mori,ꢀ K.ꢀ Sakota,ꢀ K.ꢀ Amimoto,ꢀ T.ꢀ Kawato,ꢀ H.ꢀ Sekiya,ꢀ J.ꢀ
Photochem.ꢀPhoto-ꢀbiol.ꢀAꢀ 2002,ꢀ154,ꢀ33−39ꢀ;ꢀ(d)ꢀM.-W.ꢀ
Chung,ꢀT.-Y.ꢀLin,ꢀC.-C.ꢀHsieh,ꢀK.-C.ꢀTang,ꢀH.ꢀFu,ꢀP.-T.ꢀChou,ꢀ
S.-H.ꢀYang,ꢀY.ꢀChi,ꢀJ.ꢀPhys.ꢀChem.ꢀAꢀ2010,ꢀ114,ꢀ7886–7891;ꢀ
[
[
19]ꢀ
20]ꢀ
Z.ꢀXiang,ꢀD.ꢀCao,ꢀL.ꢀDai,ꢀPolym.ꢀChem.ꢀ2015,ꢀ6,ꢀ1896-1911.ꢀ
Y.ꢀZhu,ꢀH.ꢀLong,ꢀW.ꢀZhang,ꢀChem.ꢀMater.ꢀ2013,ꢀ25,ꢀ1630–
1
635.ꢀ
[
[
21]ꢀ
22]ꢀ
S.ꢀDalapati,ꢀC.ꢀGu,ꢀD.ꢀJiang,ꢀSmallꢀ2016,ꢀ12,ꢀ6513-6527.ꢀ
(a)ꢀW.-L.ꢀGong,ꢀM.ꢀP.ꢀAldred,ꢀG.-F.ꢀZhang,ꢀC.ꢀLi,ꢀM.-Q.ꢀZhu,ꢀ
J.ꢀMater.ꢀChem.ꢀC,ꢀ2013,ꢀ1,ꢀ7519-7525;ꢀ(b)ꢀL.ꢀGuo,ꢀD.ꢀCao,ꢀ
J.ꢀMater.ꢀChem.ꢀCꢀ2015,ꢀ3,ꢀ8490-8494;ꢀ(c)ꢀD.ꢀMa,ꢀB.ꢀLi,ꢀZ.ꢀ
Cui,ꢀK.ꢀLiu,ꢀC.ꢀChen,ꢀG.ꢀLi,ꢀJ.ꢀHua,ꢀB.ꢀMa,ꢀZ.ꢀShi,ꢀS.ꢀFeng,ꢀ
Appl.ꢀMater.ꢀInt.ꢀ2016,ꢀ8,ꢀ24097-24103.ꢀ
(
e)ꢀ T.ꢀ Sekikawa,ꢀ O.ꢀ Schalk,ꢀ G.ꢀ Wu,ꢀ A.ꢀ E.ꢀ Boguslavskiy,ꢀ A.ꢀ
Stolow,ꢀ J.ꢀ Phys.ꢀ Chem.ꢀ Aꢀ 2013,ꢀ 117,ꢀ 2971−2979;ꢀ (f)ꢀꢀ
Benelhadj,ꢀW.ꢀMuzuzu,ꢀJ.ꢀMassue,ꢀP.ꢀRetailleau,ꢀA.ꢀCharaf-
Eddin,ꢀ A.ꢀ D.ꢀ Laurent,ꢀ D.ꢀ Jacquemin,ꢀ G.ꢀ Ulrich,ꢀ R.ꢀ Ziessel,ꢀ
Chem.ꢀEur.ꢀJꢀ2014,ꢀ20,ꢀ12843-12857;ꢀ(g)ꢀK.ꢀSkonieczny,ꢀJ.ꢀ
Yoo,ꢀ J.ꢀ M.ꢀ Larsen,ꢀ E.ꢀ M.ꢀ Espinoza,ꢀ M.ꢀ Barbasiewicz,ꢀ V.ꢀ I.ꢀ
Vullev,ꢀC.-H.ꢀLee,ꢀD.ꢀT.ꢀGryko,ꢀChem.ꢀEur.ꢀJꢀ2016,ꢀ22,ꢀ7485ꢀ
[
23]ꢀ
(a)ꢀS.ꢀKandambeth,ꢀD.ꢀB.ꢀShinde,ꢀM.ꢀK.ꢀPanda,ꢀB.ꢀLukose,ꢀT.ꢀ
Heine,ꢀR.ꢀBanerjee,ꢀAngew.ꢀChem.ꢀInt.ꢀEd.ꢀ2013,ꢀ52,ꢀ13052ꢀ
-
ꢀ13056;ꢀ(b)ꢀX.ꢀChen,ꢀM.ꢀAddicoat,ꢀE.ꢀJin,ꢀL.ꢀZhai,ꢀH.ꢀXu,ꢀN.ꢀ
Huang,ꢀZ.ꢀGuo,ꢀL.ꢀLiu,ꢀS.ꢀIrle,ꢀD.ꢀJiang,ꢀJ.ꢀAm.ꢀChem.ꢀSoc.ꢀ
015,ꢀ137,ꢀ3241-3247;ꢀ(c)ꢀS.ꢀKandambeth,ꢀV.ꢀVenkatesh,ꢀ
–
7496;ꢀ(h)ꢀP.ꢀSingh,ꢀH.ꢀSingh,ꢀR.ꢀSharma,ꢀG.ꢀBhargava,ꢀS.ꢀ
2
Kumar,ꢀJ.ꢀMater.ꢀChem.ꢀCꢀꢀ2016,ꢀ4,ꢀ11180-11189.ꢀ
(a)ꢀR.ꢀM.ꢀTarkka,ꢀX.ꢀZhang,ꢀS.ꢀA.ꢀJenekhe,ꢀJ.ꢀAm.ꢀChem.ꢀSoc.ꢀ
D.ꢀB.ꢀShinde,ꢀS.ꢀKumari,ꢀA.ꢀHalder,ꢀS.ꢀVerma,ꢀR.ꢀBanerjee,ꢀ
Nat.ꢀCommun.ꢀ2015,ꢀ6,ꢀ6786-6795.ꢀ
[
7]ꢀ
1
996,ꢀ118,ꢀ9438-9439;ꢀ(b)ꢀD.ꢀW.ꢀChang,ꢀS.ꢀKim,ꢀS.ꢀY.ꢀPark,ꢀ
4
ꢀ|ꢀJ.ꢀName.,ꢀ2012,ꢀ00,ꢀ1-3ꢀ
Thisꢀjournalꢀisꢀ©ꢀTheꢀRoyalꢀSocietyꢀofꢀChemistryꢀ20xxꢀ
Pleaseꢀdoꢀnotꢀadjustꢀmarginsꢀ

Page 5 of 6
Jo uP rl ne aa sl eo ꢀ fd Mo ꢀ an to et rꢀ ai ad l jsu sC t hꢀ me am r ig si nt rsyꢀ C
JournalꢀNameꢀ
ꢀCOMMUNICATIONꢀ
[
24]ꢀ
ꢀ
L.ꢀ Prodi,ꢀ F.ꢀ Bolletta,ꢀ M.ꢀ Montalti,ꢀ N.ꢀ Zaccheroni,ꢀ Coord.ꢀ
Chem.ꢀRev.ꢀ2000,ꢀ205,ꢀ59-83.ꢀ
View Article Online
DOI: 10.1039/C7TC00123A
Thisꢀjournalꢀisꢀ©ꢀTheꢀRoyalꢀSocietyꢀofꢀChemistryꢀ20xxꢀ
J.ꢀName.,ꢀ2013,ꢀ00,ꢀ1-3ꢀ|ꢀ5ꢀ
Pleaseꢀdoꢀnotꢀadjustꢀmarginsꢀ

Journal of Materials Chemistry C
Page 6 of 6
View Article Online
DOI: 10.1039/C7TC00123A
The excited-state intramolecular proton transfer (ESIPT) properties of three tris(N-
salicylideneaniline)-based (TSA) imine-linked porous organic polymers (POPs) were
investigated.
N
NH
O
TSAꢀPOP 1
TSAꢀPOP 2
OH
hν
HO
HO
N
N
TSAꢀPOP 3
