Journal of the Chemical Society, Faraday Transactions 1: Physical Chemistry in Condensed Phases p. 2195 - 2208 (1988)
Update date:2022-08-11
Topics:
Rao, Kanithi Mohana
Spoto, Giuseppe
Guglielminotti, Eugenio
Zecchina, Adriano

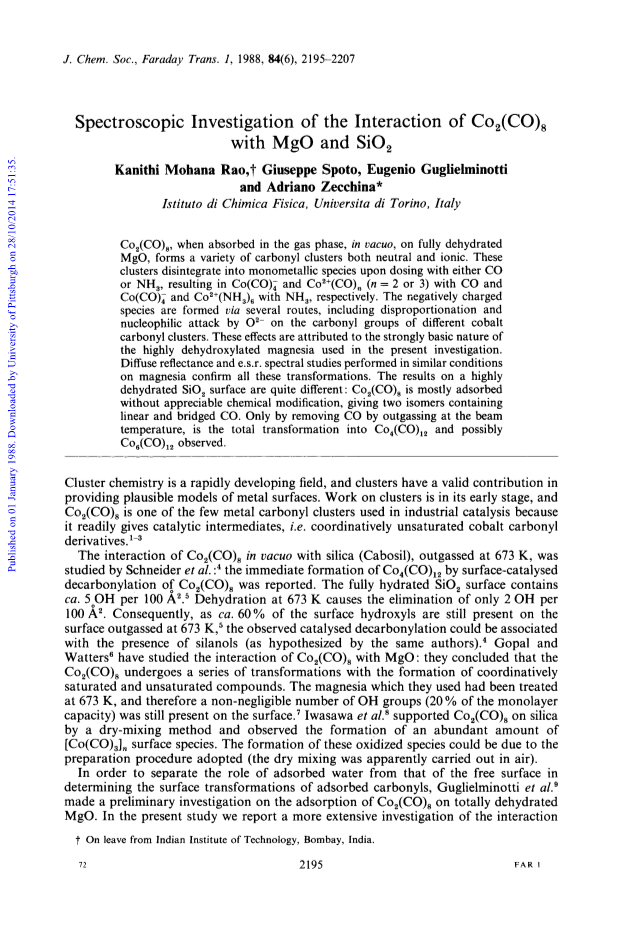

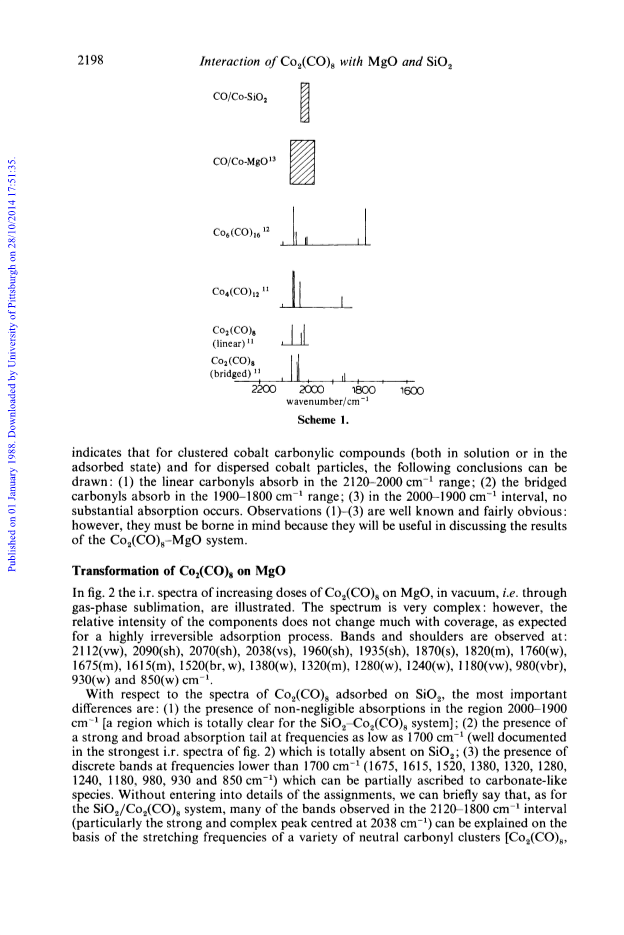

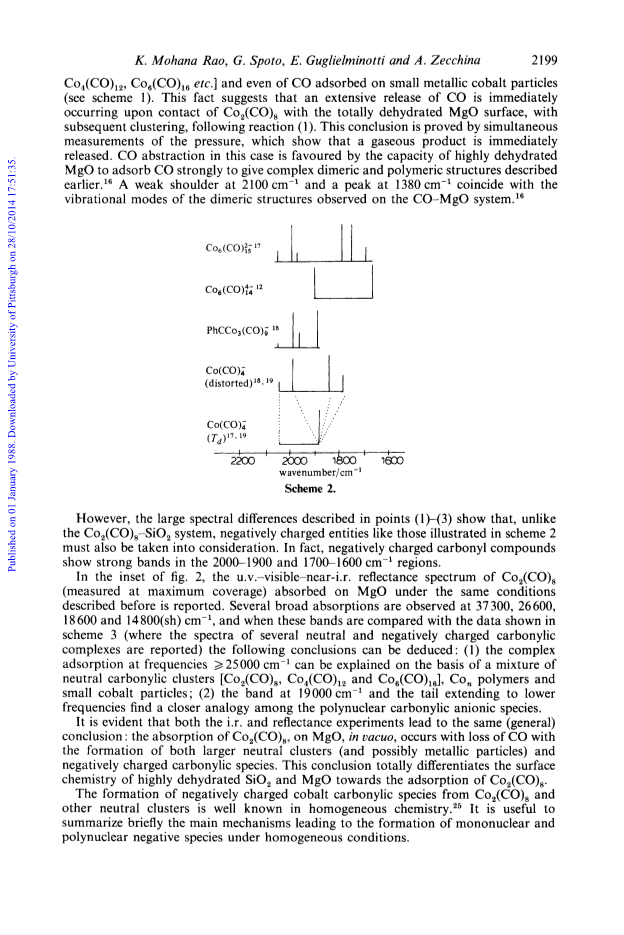

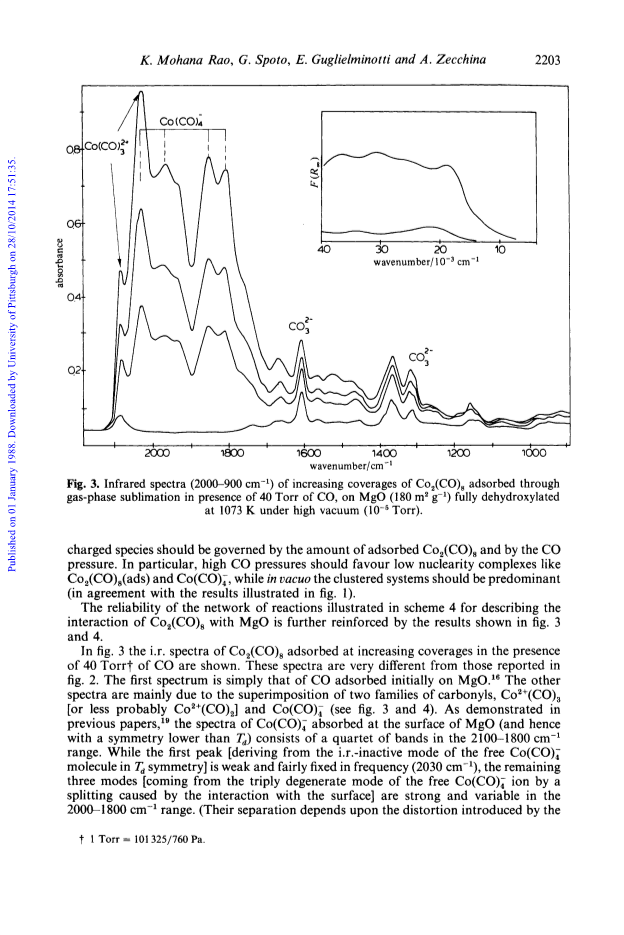

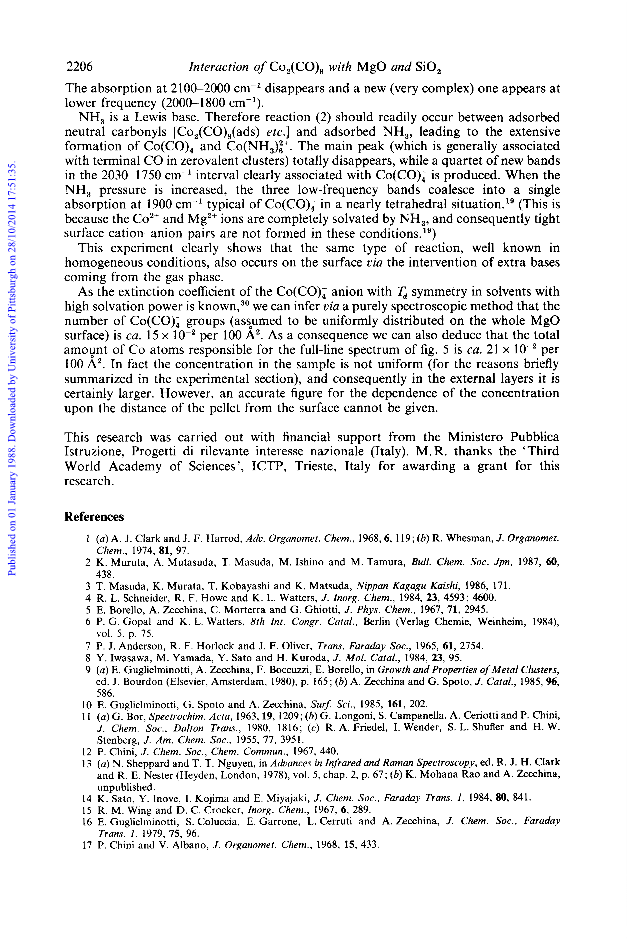

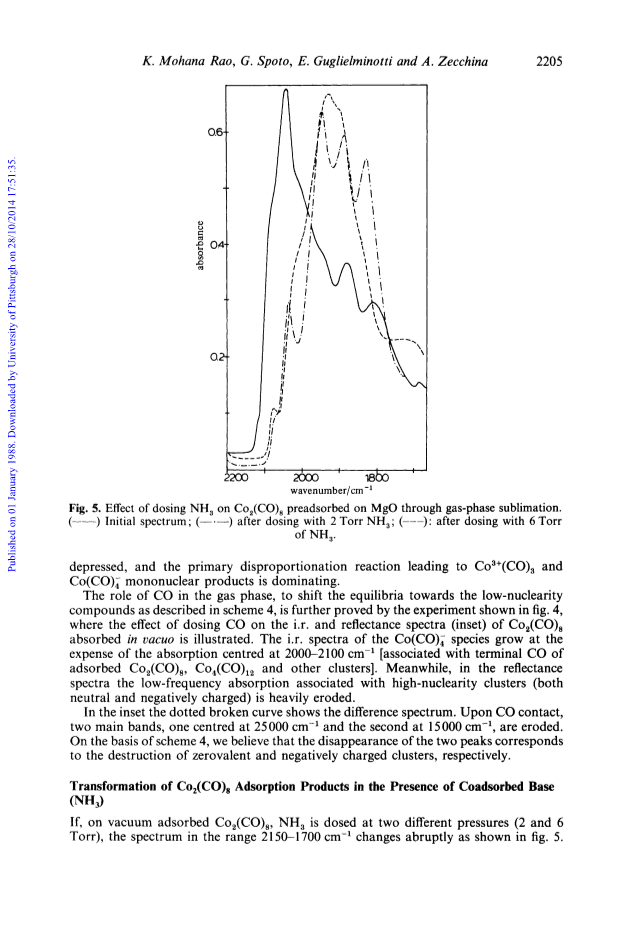

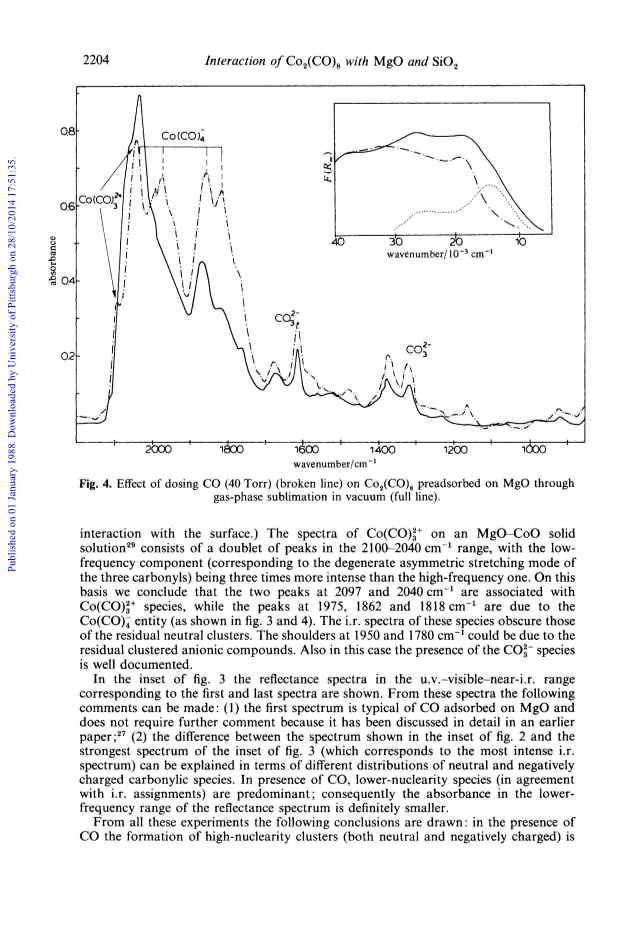

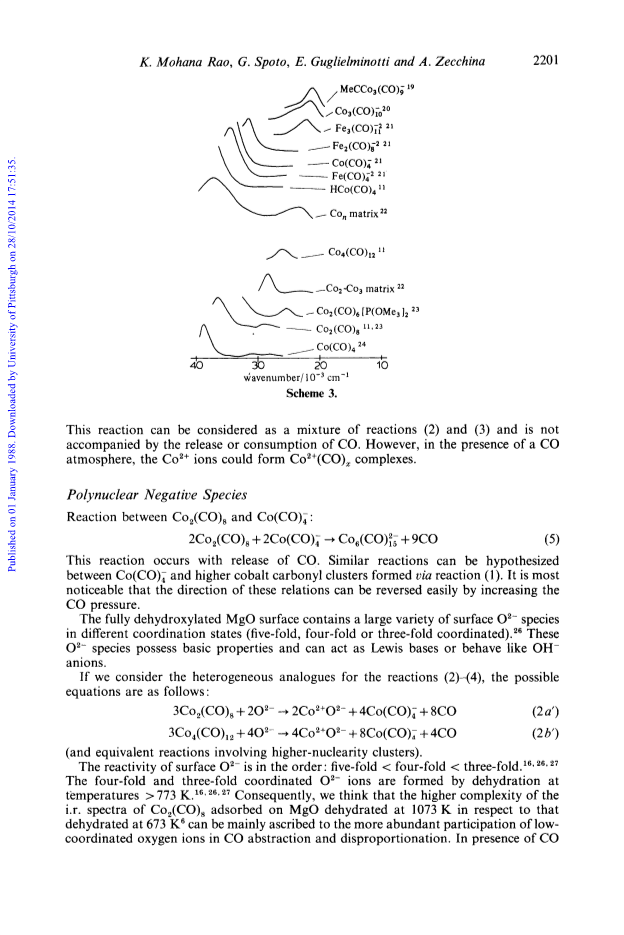

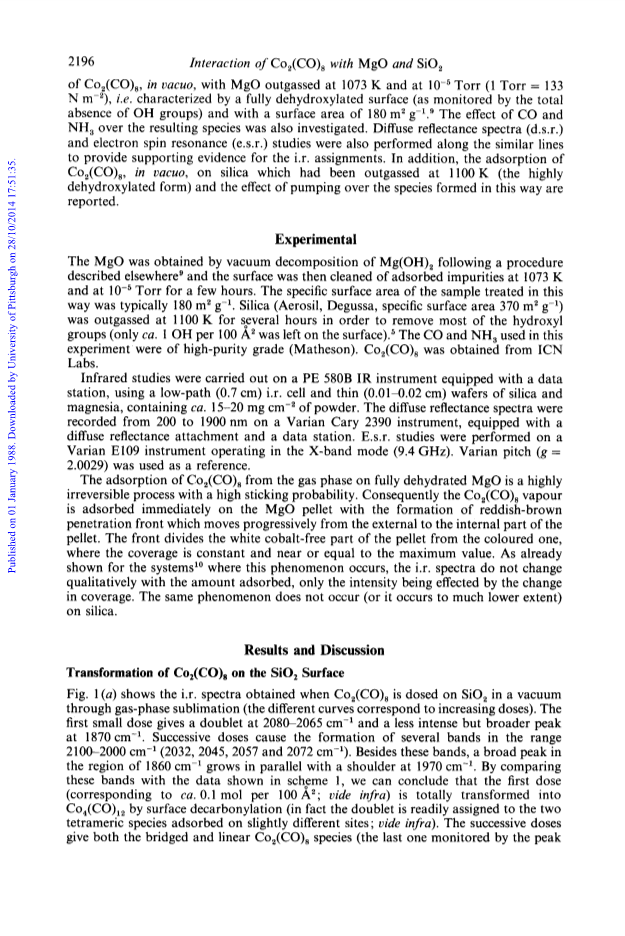

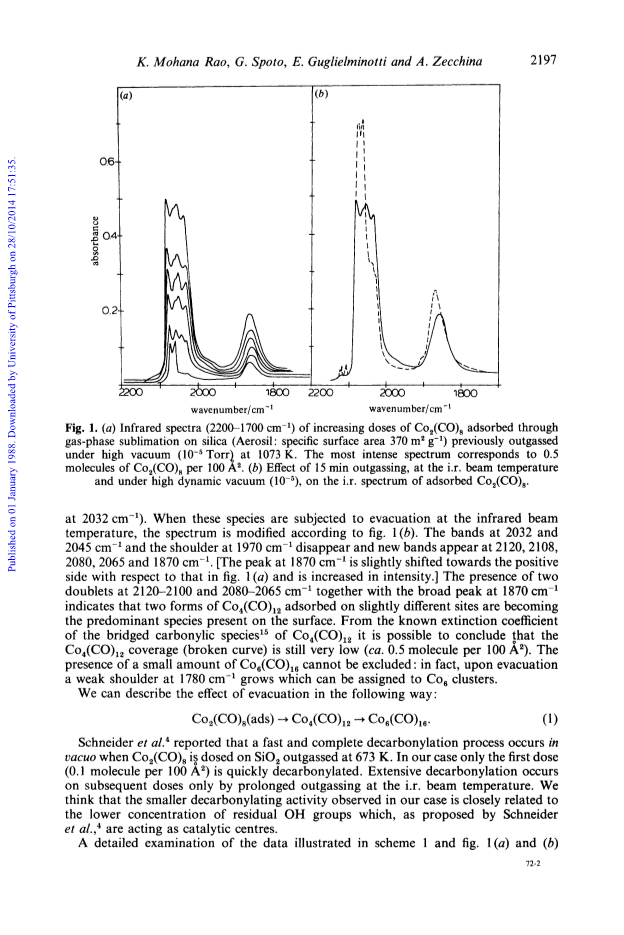

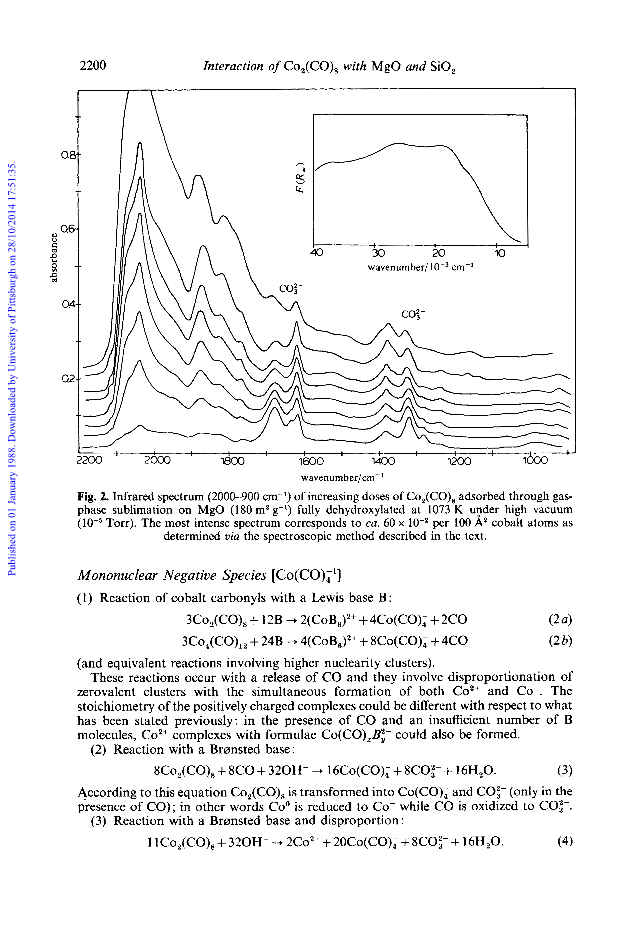

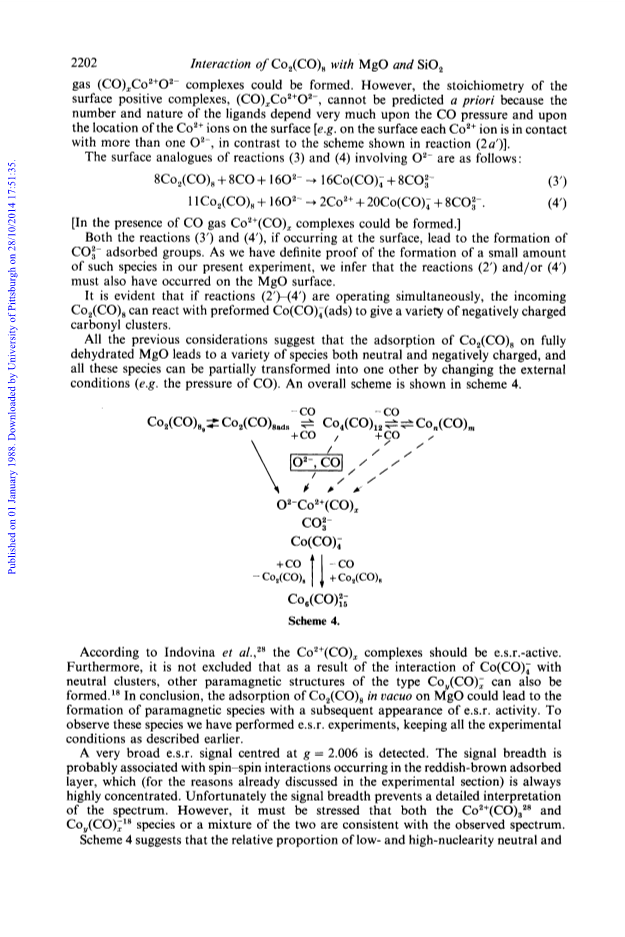

Co2(CO)8, when absorbed in the gas phase, in vacuo, on fully dehydrated MgO, forms a variety of carbonyl clusters both neutral and ionic.These clusters disintegrate into monometallic species upon dosing with either CO or NH3, resulting in Co(CO)4- and Co2+(CO)n (n=2 or 3) with CO and Co(CO)4- and Co2+(NH3)6 with NH3, respectively.The negatively charged species are formed via several routes, including disproportionation and nucleophilic attack by O2- on the carbonyl groups of different cobalt carbonyl clusters.These effects are attributed to the strongly basic nature of the highly dehydroxylated magnesia used in the present investigation.Diffuse reflectance and e.s.r. spectral studies performed in similar conditions on magnesia confirm all these transformations.The results on a highly dehydrated SiO2 surface are quite different: Co2(CO)8 is mostly absorbed without appreciable chemical modification, giving two isomers containing linear and bridged CO.Only by removing CO by outgassing at the beam temperature, is the total transformation into Co4(CO)12 and possibly Co6(CO)12 observed.
Beijing Top Science biological technology co., LTD
Contact:+86-13439059536
Address:15-1705 jre three mile, Beijing 100000,CHINA
MedicalChem(Yancheng)Manuf.Co.,Ltd.
Contact:+86-515-84383366
Address:Touzeng BinHai, YanCheng City, JiangSu Province, China
Zibo Kunran Enterprises Co. LTD
website:http://www.kunranchem.com
Contact:0086 533 5200669
Address:No. 96 Jinjing Avenue, Zibo, Shandong, China
Beijing Cooperate Pharmaceutical Co.,Ltd
website:http://www.cooperate-pharm.com/
Contact:86-01060279497
Address:No.507,Building 4,Tianhua Street, Biomedicine industrial Base
Yueyang Hudex Pharmaceuticals Ltd.
Contact:0730-8748800
Address:Wujiang Bridge，Yueyang Economy & Technology Development Zone
Doi:10.1080/14786419.2017.1405411
(2018)Doi:10.1016/j.tet.2012.06.080
(2012)Doi:10.1007/s11164-012-0741-4
(2013)Doi:10.1016/j.polymer.2010.04.014
(2010)Doi:10.1107/S2053229614004999
(2014)Doi:10.1002/jccs.201200015
(2012)
