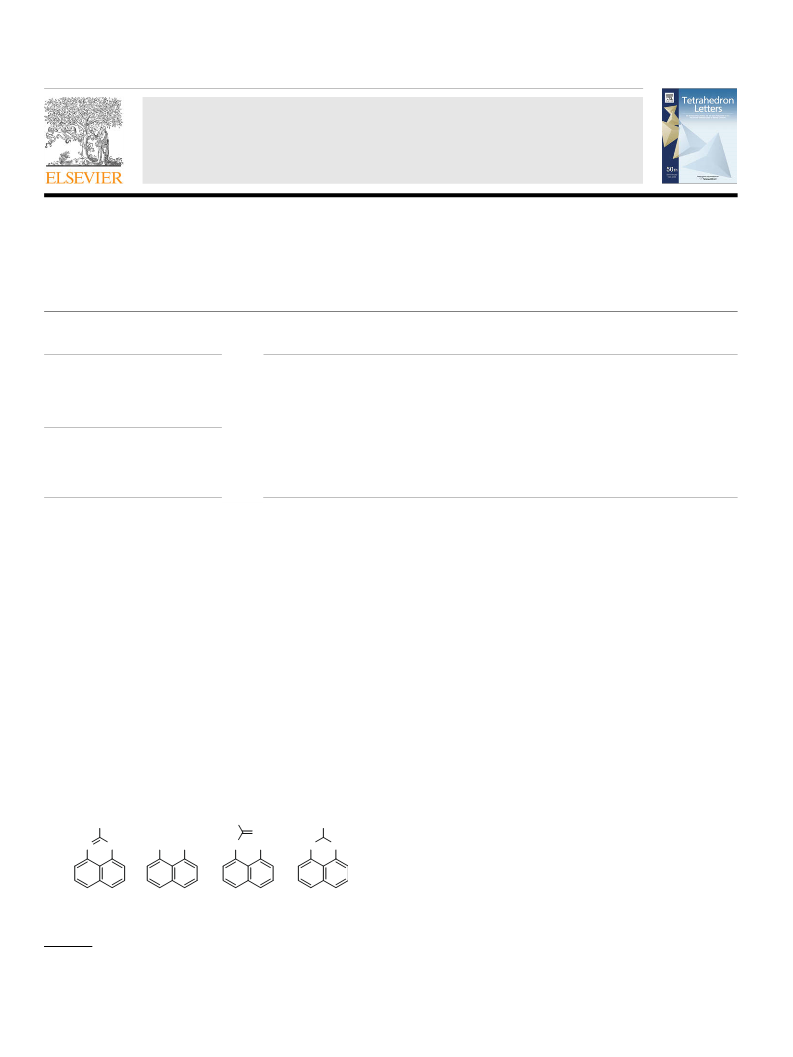

A new route to 2-substituted perimidines based on nitrile oxide chemistry
*
Iain A. S. Smellie, Andreas Fromm, R. Michael Paton
EaStCHEM, School of Chemistry, The University of Edinburgh, King’s Buildings, West Mains Road, Edinburgh EH9 3JJ, UK
a r t i c l e i n f o
a b s t r a c t
Article history:
A new route to perimidines has been developed which involves reaction of a nitrile oxide with 1,8-dia-
minonaphthalene. Benzonitrile oxide, generated by dehydrochlorination of benzohydroximoyl chloride,
and 1,8-diaminonaphthalene afforded 2-phenylperimidine. 2-Pyranosylperimidines were prepared by
the same approach from pyranosyl hydroximoyl chlorides.
Received 14 March 2009
Revised 9 April 2009
Accepted 28 April 2009
Available online 3 May 2009
Ó 2009 Elsevier Ltd. All rights reserved.
Keywords:
C-Glycosides
Nitrile oxides
Perimidines
Glycals
It has previously been shown10–12 that the reactions of nitrile
oxides with 1,2-diaminobenzene can be used to prepare 2-substi-
tuted benzimidazoles. In view of the peri-arrangement of the two
amino groups in DAN, we reasoned that DAN and nitrile oxides
should react similarly, and thus provide a new synthetic approach
to 2-substituted perimidines. To test this hypothesis we attempted
to prepare the known 2-phenylperimidine (1, R = Ph)1,13 by reac-
tion of DAN with benzonitrile oxide (5, R = Ph). As nitrile oxides
are prone to dimerise to furoxans (1,2,5-oxadiazole N-oxides),14
the benzonitrile oxide was generated in situ by dehydrochlorina-
tion of benzohydroximoyl chloride (6, R = Ph). A solution of
PhCCl@NOH (1.3 mmol) and DAN (2.5 mmol) in dry EtOH was
heated at reflux for 5 h. After cooling and addition of CH2Cl2, the
reaction mixture was worked up by washing with aq K2CO3 and
then with 4% aq CuSO4, followed by chromatography; washing
with aq CuSO4 was found to be an effective means of removing
excess DAN. The product was identified as 2-phenylperimidine (1
R = Ph, 68%) by comparison of its physical and spectroscopic prop-
erties with those reported in the literature.13,15 The reaction is
believed to involve initial dehydrochlorination of the hydroximoyl
chloride by DAN acting as a base to generate the nitrile oxide 5,
then nucleophilic addition of one of the amino groups of a second
molecule of DAN to the nitrile oxide to form the mono-amidoxime
7, followed by cyclisation with loss of hydroxylamine, as illustrated
in Scheme 1.
Perimidines (1H-benzo[d,e]quinazolines) (1) are unusual among
azines in that the lone pair of a pyrrole-like nitrogen participates in
the
p-system of the molecule, and there is a transfer of electron
density from the heterocycle to the naphthalene ring.1 These peri-
naphtho-fusedpyrimidinesthereforehavethecharacteristicsofboth
p
-deficient and p
-excessive systems.2 They have long been used in
dyestuffs1 and in the manufacture of polyester fibres,1 and more
recently as a source of a novel carbene ligand.3 Their biological activ-
ity has also attracted attention, for example, their potential to act as
anti-fungal, anti-microbial, anti-ulcer and anti-tumour agents.1,4,5
Most synthetic routes1 to 2-substituted perimidines are based on
the reactions of 1,8-diaminonaphthalene (2, DAN) with various car-
bonyl compounds. Carboxylic acids,6,7 acyl halides and anhydrides
afford the mono-amide derivatives 3, and these undergo acid-cata-
lysed cyclisation to 1. The corresponding reaction with aldehydes af-
fords 2,3-dihydroperimidines 4, which are readily dehydrogenated
to 1.8,9 Althougha wide range of 2-alkyl, aryl and heterocycle-substi-
tuted perimidines have been prepared by these approaches, there
have been no examples bearing carbohydrate groups so far.
R
R
R
O
NH2
N
NH
NH2 NH2
HN
HN
NH
Having established that 2-phenylperimidine could be prepared
by reaction of DAN with benzonitrile oxide, the same approach was
investigated using pyranosyl nitrile oxides as a route to 2-pyrano-
sylperimidines. We have previously described a method for the
synthesis of pyranosyl hydroximoyl chlorides and shown that they
are an efficient source of pyranosyl nitrile oxides.16,17 The same
1
2
3
4
* Corresponding author. Tel: +44 31 650 4714; fax: +44 31 650 4743.
E-mail address: R.M.Paton@ed.ac.uk (R. M. Paton).
0040-4039/$ - see front matter Ó 2009 Elsevier Ltd. All rights reserved.
doi:10.1016/j.tetlet.2009.04.118

I. A. S. Smellie et al. / Tetrahedron Letters 50 (2009) 4104–4106
4105
R
R
NOH
NH2
HN
N
NH
R
DAN
- NH2OH
DAN
- HCl
NOH
R
N O
Cl
6
5
7
1
Scheme 1.
method was therefore used in the present work. In a typical exper-
iment, a solution of -xylose-derived hydroximoyl chloride 6a
reflux, compound 9b was the major product (Table 1, entries 3 and
4). -Galactopyranosyl-perimidine 8d (69%) was prepared similarly
from DAN and 6d (Table 1, entry 7). The corresponding reaction at
room temperature in the -mannose series also yielded the expected
mannopyranosyl-perimidine 8c (55%), but in ethanol at reflux the
proportion of the glycal-perimidine increased to 9b:8c = 8.5:1
(Table 1, entries 5 and 6), consistent with the more favourable
arrangement for the elimination of AcOH.
D
D
(0.6 mmol) and DAN (1.5 mmol) in dry EtOH was heated at reflux
for 5 h. Work-up of the reaction mixture as described above for 1
(R = Ph) afforded two products (Table 1, entry 1). The more polar
product (silica/Et2O, Rf = 0.27) was identified from its spectroscopic
D
properties18 as the target
D-xylopyranosyl-perimidine 8a (16%). In
the 1H and 13C NMR spectra there were, in addition to the expected
peaks associated with the tri-O-acetylxylopyranosyl substituent,
characteristic signals for the carbons and hydrogens of the perimi-
dine moiety;9 in particular the dC values for C-2 (154.0 ppm), C-3a
(145.8), C-9a (139.4) and C-9b (123.6). The less polar product
(Rf = 0.35) was assigned the corresponding glycal structure 9a
(43%).19 In contrast to 8a, in this case only two acetate groups were
detected in the NMR spectra [dH 2.12, 2.10 (Me); dC 171.0, 170.9
(C@O) and 22.3, 22.2 (Me)] and, in addition to the perimidine sig-
AcO
AcO
AcO
AcO
O
O
X
X
AcO
OAc
AcO
8b
9b
HN
N
X =
13
nals, there were distinctive C peaks for the glycal carbons C-10
AcO
AcO
AcO
AcO
O
O
and C-20 at 149.2 and 99.9 ppm, respectively. In order to minimise
the formation of the glycal the reaction was repeated under less
forcing conditions (room temperature, 15 h). Under these condi-
tions the major product was the target pyranosyl-perimidine 8a
(60%) with only traces of 9a being detected (Table 1, entry 2).
The formation of 9a is attributed to facile base-catalysed elimina-
tion of acetic acid at C-10/C-20 of the xylopyranosyl ring yielding
the glycal in which the alkene unit is conjugated to the perimidine.
X
X
AcO
OAc
AcO
OAc
8c
8d
In conclusion, a new and efficient route to 2-substituted
perimidines has been established, based on the cyclocondensation
of 1,8-diaminonaphthalene with nitrile oxides. This approach is
particularly suited for the synthesis of 2-pyranosyl-perimidines
from pyranosyl nitrile oxides, which can readily be generated from
the corresponding hydroximoyl chlorides.
O
O
HN
N
AcO
AcO
CCl=NOH
AcO
AcO
OAc
OAc
Acknowledgement
6a
8a
We thank the EPSRC for financial support.
O
HN
AcO
AcO
