Study of Aromatic Nucleophilic Substitution with Amines on
Nitrothiophenes in Room-Temperature Ionic Liquids: Are the
Different Effects on the Behavior of para-Like and ortho-Like
Isomers on Going from Conventional Solvents to
Room-Temperature Ionic Liquids Related to Solvation Effects?
Francesca D’Anna,*,† Vincenzo Frenna,† Renato Noto,*,† Vitalba Pace,† and
Domenico Spinelli*,‡
Dipartimento di Chimica Organica “E. Paterno`”, UniVersita` degli Studi di Palermo, Viale delle
Scienze-Parco d’Orleans II, 90128 Palermo, Italy, and Dipartimento di Chimica Organica “A. Mangini”,
UniVersita` degli Studi di Bologna, Via S. Giacomo 11, 40126 Bologna, Italy
fdanna@unipa.it; rnoto@unipa.it; domenico.spinelli@unibo.it
ReceiVed March 1, 2006
The kinetics of the nucleophilic aromatic substitution of some 2-L-5-nitrothiophenes (para-like isomers)
with three different amines (pyrrolidine, piperidine, and morpholine) were studied in three room-
temperature ionic liquids ([bmim][BF4], [bmim][PF6], and [bm2im][BF4], where bmim ) 1-butyl-3-
methylimidazolium and bm2im ) 1-butyl-2,3-dimethylimidazolium). To calculate thermodynamic
parameters, a useful instrument to gain information concerning reagent-solvent interactions, the reaction
was carried out over the temperature range 293-313 K. The reaction occurs faster in ionic liquids than
in conventional solvents (methanol, benzene), a dependence of rate constants on amine concentration
similar to that observed in methanol, suggesting a parallel behavior. The above reaction also was studied
with 2-bromo-3-nitrothiophene, an ortho-like derivative able to give peculiar intramolecular interactions
in the transition state, which are strongly affected by the reaction medium.
Introduction
As a result of their nonflammability and nondetectable vapor
pressure, they have attracted not only academic but also
industrial interest.2 These organic onium salts have been used
largely as solvents in organic synthesis,3 biocatalysis,4 electro-
chemistry,5 and separation processes,6 and many applications
have been documented. At present, however, only a few papers
have reported mechanistic studies,7 although, from this point
of view, ionic liquids might be very interesting media, as they
are formed only of ions, they provide a reaction environment
In the past few years, room-temperature ionic liquids (RTILs,
usually organic onium salts) have been proposed as environ-
mentally benign alternatives to conventional organic solvents.1
* Corresponding Authors. Phone: +39091596919 (F.D. and R.N.); +39051209-
5689 (D.S). Fax: +39091596825 (F.D. and R.N.); +390512095688 (D.S.).
† Universita` degli Studi di Palermo.
‡ Universita` degli Studi di Bologna.
(1) (a) Welton, T. Chem. ReV. 1999, 99, 2071-2084. (b) Wasserscheid,
P.; Keim, M. Angew. Chem., Int. Ed. 2000, 39, 3772-3789. (c) Wilkes, J.
S. Green Chem. 2002, 4, 73-80. (d) Rogers, R. D.; Seddon, K. R. Ionic
Liquids as Green SolVents. Progress and Prospects; ACS Symposium Series
856; American Chemical Society: Washington, DC, 2003. (e) Kumar, A.;
Pawar, S. S. J. Org. Chem. 2004, 69, 1419-1420. (f) Wilkes, J. S. J. Mol.
Catal. A: Chem. 2004, 214, 11-17. (g) Picquet, M.; Poinsot, D.; Stutzmann,
S.; Tkatchenko, I.; Tommasi, I.; Wasserscheid, P.; Zimmermann, J. Top.
Catal. 2004, 29, 139-143. (h) Chiappe, C.; Pieraccini, D. J. Phys. Org.
Chem. 2005, 18, 275-297. (i) Gu, D.-G.; Ji, S.-J.; Jiang, Z.-Q.; Zhou, M.-
F.; Loh, T.-P. Synlett 2005, 959-962. (j) Conte, V.; Floris, B.; Galloni, P.;
Mirruzzo, V.; Scarso, A.; Sordi, D.; Strukul, G. Green Chem. 2005, 7, 262-
266. (k) Zhao, H.; Malhotra, S. V. Aldrichimica Acta 2002, 35, 75-83.
(2) (a) Rogers, R. D.; Seddon, K. R. Ionic Liquids: Industrial Application
to Green Chemistry; ACS Symposium Series 818; American Chemical
Society: Washington, DC, 2002. (b) Rogers, R. D.; Seddon, K. R.; Volkov,
S. Green Industrial Application of Ionic Liquids; NATO Science Series II,
Mathematics, Physics and Chemistry; Kluwer: Dordrecht, 2003; Vol. 92.
(c) Volland, M.; Seitz, V.; Maase, M.; Flores, M.; Papp, R.; Massonne, K.;
Stegmann, V.; Halbritter, K.; Noe, R.; Bartsch, M.; Siegel, W.; Becker,
M.; Huttenlock, O. Method for Separation of Acids from Chemical Reaction
Mixtures by Means of Ionic Fluids. PCT Int. Appl. W003/06225, 31.7.2003,
BASF AG. (d) Freemantle, M. Chem. Eng. News 2003, 81, 9. (e)
Weyershausen, B.; Hell, K.; Hesse, U. Green Chem. 2005, 7, 283-287.
10.1021/jo060435q CCC: $33.50 © 2006 American Chemical Society
Published on Web 06/10/2006
5144
J. Org. Chem. 2006, 71, 5144-5150

SNAr with Amines on Nitrothiophenes in RTILs
that is completely different from that offered by conventional
solvents, thus possibly modifying the mechanism or even
changing the outcome of a reaction.
of the comparison with the results in a conventional solvent.
For example, solvation effects of some RTILs containing the
[TF2N] anion, similar to those of acetonitrile, have been claimed
studying the keto-enol tautomerism of 2-nitrocyclohexanone.12
According to this approach, we decided to perform a kinetic
study in RTILs of the nucleophilic aromatic substitution (SN-
Ar), an organic reaction well-investigated in conventional
organic solvents. Nucleophilic substitutions (aromatic as well
as aliphatic) represent “one of the most important reactions”
“and can lead to a wide variety of new functional groups”.13
For years some of us have been interested in the mechanistic
aspects of this reaction in conventional organic solvents.14
Furthermore, it is well-known that the process is affected by
the nature of the solvent used, and it has been used frequently
as a probe to better understand the microscopic properties of
solvent systems.15
Recent studies have demonstrated that changes in the nature
of the cation and/or of the counterion bring about notable
variations in the properties (e.g., electrophilicity or nucleophi-
licity) of the reacting molecules8 as well as in the mechanism
of reaction.9 Accordingly, we recently proposed a shift from
the E1cB (in MeOH)10a to the E2 mechanism (in RTILs)10b for
the amine-promoted dehydrobromination of the 1,1,1-tribromo-
2,2-bis(phenyl-substituted)ethanes in ionic liquids.
Despite the enormous interest in RTILs, their microscopic
properties are not fully understood. Several reports have
attempted to determine empirically some of their solvent
parameters.11 Completely different values have been obtained,
however, as a result of the different natures of the molecular
probes used and to the lack of a single probe able to account
for different intermolecular forces and, thus, to give a reliable
polarity scale.
Results and Discussion
Choice of Substrates and Nucleophiles. We herein report

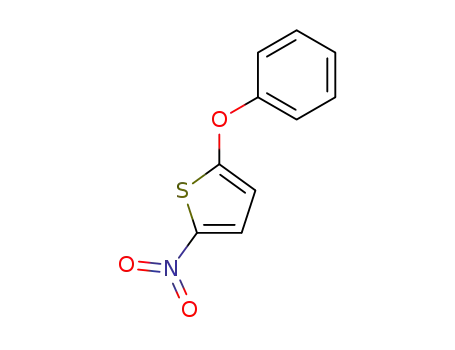

on the aromatic amination of some 2-L-5-nitrothiophenes (1),
para-like derivatives, by the action of three secondary cyclic
amines, namely, pyrrolidine (Pyr), piperidine (Pip), and mor-
pholine (Mor; Chart 1). These amines show different nucleo-
philicities and/or structures that could cause specific interactions
with organized solvents such as ionic liquids. Four different
leaving groups (L ) Br, OMe, OC6H5, and OC6H4-4-NO2)
were chosen to verify their leaving group ability order.
We also examined the behavior of an ortho-like derivative,
namely, 2-bromo-3-nitrothiophene (2a), which gives peculiar
intramolecular interactions in the transition state (TS), to gain
information about the dependence of such interactions on the
nature of the medium used.
The reaction was followed spectrophotometrically at not less
than six amine concentrations (0.00869-0.0350 M) and over a
significant temperature range (293-313 K), determining the
thermodynamic parameters, which are a useful instrument in
studying reagent-solvent interactions.
Three ionic liquids ([bmim][BF4], [bmim][PF6], and [bm2-
im][BF4], where bmim ) 1-butyl-3-methylimidazolium and bm2-
im ) 1-butyl-2,3-dimethylimidazolium) were chosen because
of the different properties of their cations and anions. In
An alternative approach, so far less investigated, is a
mechanistic study in ionic liquid solution of a classic organic
reaction to better understand their solvent properties by means
