X-RAY DIFFRACTION STUDY
OF CRYSTAL AND MOLECULAR STRUCTURES
OF AZO COMPOUNDS OF TWO β-DIKETONES
1 2
F. N. Bahmanova *, Sh. A. Tahirli ,
1 1
R. K. Askerov , S. R. Hajiyeva ,
1
and F.M. Chyragov

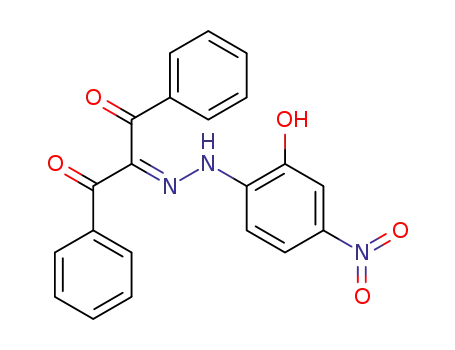

Novel compounds 2-(2-(2-hydroxy-4-nitrophenyl) hydrazono)-1,3-diphenyl propane-1,3-dione and 2-(2-(2-
hydroxy-4-nitrophenyl) hydrazono)-1-phenyl butane-1,3-dione are prepared on the base of β-diketones.
Crystal and molecular structures of synthesized compounds are determined by X-ray diffraction analysis.
The crystals are found to be monoclinic. The compounds are represented only by their hydrazo forms. The
structural data for the two obtained compounds are compared with previously reported data.
DOI: 10.1134/S0022476619100147
Keywords: β-diketone, synthesis of azo compounds, X-ray diffraction analysis, molecular packing,
hydrogen bonding.
INTRODUCTION
It is known that β-diketone and its derivatives are widely used to identify different metals [1-3]. The ability of these
ligands to form stable complexes with metals was discussed in [4]. The class of chelates capable of forming stable complexes
with metals is extended by introducing nitrogen atoms in the ligand, including the substitution of oxygen atoms by one [5-7]
or two imino groups [8] and by a hydrazone group [9]. The attachment of an azo group to the gamma carbon atom is another
approach that is still little studied. Currently, these ligands are of particular interest, since azo derivatives of β-diketones can
exist in solutions as three tautomeric forms: enol-azo, keto-azo, hydrazo [10] (Scheme 1).
Scheme 1.
1
2
Baku State University, Baku, Azerbaijan; *fidan_chem@rambler.ru. Lankaran State University, Lankaran,
Azerbaijan. Original article submitted March 13, 2019; revised April 2, 2019; accepted May 11, 2019.
0022-4766/19/6010-1681 © 2019 by Pleiades Publishing, Ltd.
1681

It was established by IR, NMR, and X-ray photoelectron spectroscopy methods that the hydrazo form is the most
preferable form due to the presence of three conjugated double bonds and an intramolecular hydrogen bond (O…H).
This work aims at preparing azo compounds based on β-diketones and determining their structure using X-ray
analysis.
EXPERIMENTAL
Synthesis. Compound C H N O I was prepared by the azo coupling of diazotized m-nitrophenol with
23 21 3 6
dibenzoylacetone in a weakly alkaline medium [10]: 3.475 g (0.025 mol) of m-nitrophenol was dissolved in 20 mL of water
and slightly heated with the addition of 1 g of crystalline КОН. The obtained solution was cooled in an ice bath to 0 °C for
30 min with 1.725 g (0.025 mol) of NaNO added in portions. The temperature did not exceed +3 °C.
2
A mixture of 5.6 g (0.025 mol) of dibenzoylacetone and 15 mL of ethanol was cooled down by adding 11.952 g
(0.146 mol) of СН СООNa. The solution was cooled in an ice bath with m-nitrophenol diazonium suspension. The next day
3
the reagent residue was filtered off, washed with ethanol, and dried in air.
Compound C H N O II was prepared according to the above procedure.
16 13 3 5
XRD. Unit cell parameters and the crystal space group were determined and refined on a Bruker SMART APEX II
CCD automated diffractometer (θ/2θ scanning, МоK -radiation, λ = 0.71073 Å, graphite monochromator, Т = 100 K).
α
Table 1 shows experimental details and some crystallographic characteristics. All crystallographic data were deposited with
the Cambridge Crystallographic Data Centre (CCDC numbers 1886864 I and 1886866 II).
The structures were solved by direct methods using the SHELXTL-2001 software [11] in automated mode and
refined by the least squares method (LSM) in the anisotropic approximation for non-hydrogen atoms. The difference electron
density synthesis showed that the solvate molecule of ethanol in structure I is disordered over three positions (in the 40:30:30
ratio). The positions of H atoms linked to carbon atoms were calculated geometrically using a riding model and refined
isotropically.
TABLE 1. Main Crystallographic Parameters and Characteristics of the X-Ray Diffraction Experiment for I and II
Parameter
I
II
Empirical formula
C H N O
23 21 3
C H N O
16 13 3 5
6
М
Crystal system
Space group; Z
a, Å
435.62
327.29
Monoclinic
P2 /n; 4
1
12.443(1)
10.3659(3)
8.8551(2)
16.9032(6)
93.306(1)
1548.98(8)
1.403
b, Å
10.1819(7)
17.594(2)
100.819(3)
2189.4(3)
1.322
c, Å
β, deg
3
V, Å
3
d
, g/cm
calc
–1
0.097
0.107
μ, mm
F(000)
912
680
Crystal size, mm
0.220×0.160×0.067
2.604-26.401
0.522×0.275×0.166
2.367-30.035
θ range, deg
h, k, l ranges
–15 ≤ h ≤ 15, –11 ≤ k ≤ 12, –21 ≤ l ≤ 21
R = 0.0463, wR = 0.1032
–14 ≤ h ≤ 12, –9 ≤ k ≤ 12, –23 ≤ l ≤ 14
R = 0.0510, wR = 0.1321
R (I > 2σ )
I
1
2
1
2
R (I
)
R = 0.0889, wR = 0.1273
1 2
R = 0.0675, wR = 0.1441
1 2
hkl all data
2
GOOF on F
1.002
1.005
1682

RESULTS AND DISCUSSION
Crystal structure I. The C H N O molecule (Fig. 1) is the building unit of compound I; its geometrical
23 21 3 6
parameters (bond lengths and bond angles) are listed in Table 2.
Fig. 1. Structure of molecule C H N O I with numbered atoms.
23 21 3 6
TABLE 2. Main Interatomic Distances and Bond Angles in C H N O I
23 21 3 6
Bond
d, Å
Bond
d, Å
Bond
d, Å
O(1)–N(1)
O(2)–N(1)
O(3)–C(3)
O(4)–C(8)
O(5)–C(15)
O(6)–C(23)
N(1)–C(1)
N(2)–N(3)
N(2)–C(4)
N(3)–C(7)
C(1)–C(2)
1.227(2)
1.223(2)
1.350(2)
1.231(2)
1.218(2)
1.481(3)
1.458(2)
1.3184(19)
1.391(2)
1.313(2)
1.374(3)
C(1)–C(6)
C(2)–C(3)
C(3)–C(4)
C(4)–C(5)
C(5)–C(6)
C(7)–C(8)
C(7)–C(15)
C(8)–C(9)
C(9)–C(10)
C(9)–C(14)
C(10)–C(11)
1.375(3)
1.378(2)
1.400(2)
1.379(3)
1.378(3)
1.477(2)
1.492(2)
1.488(3)
1.377(3)
1.379(3)
1.371(4)
C(11)–C(12)
C(12)–C(13)
C(13)–C(14)
C(15)–C(16)
C(16)–C(21)
C(16)–C(17)
C(17)–C(18)
C(18)–C(19)
C(19)–C(20)
C(20)–C(21)
C(23)–C(22)
1.369(4)
1.373(4)
1.379(3)
1.482(3)
1.386(3)
1.396(2)
1.371(3)
1.379(3)
1.372(3)
1.379(3)
1.513(3)
Angle
Angle
Angle
ω, deg
ω, deg
ω, deg
O(2)–N(1)–O(1)
O(2)–N(1)–C(1)
O(1)–N(1)–C(1)
N(3)–N(2)–C(4)
C(7)–N(3)–N(2)
C(2)–C(1)–C(6)
C(2)–C(1)–N(1)
C(6)–C(1)–N(1)
C(1)–C(2)–C(3)
O(3)–C(3)–C(2)
O(3)–C(3)–C(4)
C(2)–C(3)–C(4)
C(5)–C(4)–N(2)
C(5)–C(4)–C(3)
N(2)–C(4)–C(3)
122.9(2)
119.3(2)
117.8(2)
120.1(2)
120.3(2)
122.8(2)
119.0(2)
118.2(2)
118.7(2)
124.8(2)
116.1(2)
119.1(2)
122.9(2)
121.0(2)
116.2(2)
C(6)–C(5)–C(4)
C(1)–C(6)–C(5)
N(3)–C(7)–C(8)
N(3)–C(7)–C(15)
C(8)–C(7)–C(15)
O(4)–C(8)–C(7)
O(4)–C(8)–C(9)
C(7)–C(8)–C(9)
C(10)–C(9)–C(14)
C(10)–C(9)–C(8)
C(14)–C(9)–C(8)
C(11)–C(10)–C(9)
C(12)–C(11)–C(10)
C(11)–C(12)–C(13)
C(12)–C(13)–C(14)
119.7(2)
118.6(2)
121.1(2)
115.1(2)
120.2(2)
119.9(2)
118.7(2)
121.3(2)
119.7(2)
118.4(2)
121.9(2)
120.3(3)
119.8(3)
120.6(2)
119.7(3)
C(9)–C(14)–C(13)
O(5)–C(15)–C(16)
O(5)–C(15)–C(7)
120.2(2)
121.0(2)
117.8(2)
121.2(2)
118.5(2)
124.1(2)
117.3(2)
120.5(2)
120.0(2)
120.5(2)
119.6(2)
120.9(2)
118.0(1)
C(16)–C(15)–C(7)
C(21)–C(16)–C(17)
C(21)–C(16)–C(15)
C(17)–C(16)–C(15)
C(18)–C(17)–C(16)
C(17)–C(18)–C(19)
C(20)–C(19)–C(18)
C(19)–C(20)–C(21)
C(20)–C(21)–C(16)
O(6)–C(23)–C(22)
1683

Atoms О(4), С(8), С(7), N(3), N(2), H(2) lie almost in the same plane (the mean square deviation of the atoms from
the plane is 0.0632 Å).
Table 2 shows that all these bonds are single or double bonds. The bond lengths are distorted around atoms С(7)–
С(8), N(2)–N(3), C(4)–N(2). Bond lengths С(4)–N(2) and N(2)–N(3) are 1.391 Å and 1.318 Å, respectively, which is typical
of azo compounds. Bonds N(3)–C(7) and C(8)–O(4) are longer than standard bonds and are partially conjugated. These
bonds along with the N(2)…O(4) distance (2.604 Å) testify that the molecule contains an intramolecular hydrogen bond
(Fig. 1) [12, 13]. At first glance, both hydrogen bonds N–H…O=C (hydrazo) and O–H…O=C (keto-azo) seem to be strong;
however, it is in the hydrazo form only that the hydrogen bond is additionally strengthened by the acyl group of the
neighboring molecule. Therefore, hydrogen bond (N–H…O=C) is stronger than other similar bonds (O–H…O=C, O–H…N)
in other tautomeric forms of this molecule.
Compound I crystallizes in a cell with one ethanol molecule to form a hydrogen bond between the hydrogen atom
Н(3) of the C H N O molecule I and the oxygen atom О(6) of ethyl alcohol (Fig. 2). Fig. 3 shows the projection of the
23 21
3
6
packing of molecules I on the (010) plane.
Crystal structure II. Fig. 4 shows the structure of molecule C H N O II; its geometrical parameters (main bond
16 13 3 5
lengths and bond angles) are listed in Table 3.
Atoms О(1), С(2), С(3), N(1), N(2), H(2) lie almost in the same plane (the mean square deviation of the atoms from
the plane is 0.0613 Å).
As can be seen from Table 3, the lengths of all these bonds correspond to single or double bonds [12]. There are
strong distortions around С(3)–С(2), N(1)–N(2), C(11)–N(2) atoms. The length of С(11)–N(2) and N(1)–N(2) bonds is
1.399 Å and 1.307 Å, respectively, which is typical of azo compounds. N(1)–C(3) and C(2)–O(1) bonds are longer than
standard bonds and are partially conjugated. These bonds along with the distance between N(2)…O(1) atoms (2.565 Å)
testify the existence of an intramolecular hydrogen bond in this part of the molecule (Fig. 4) [12, 13]. Compound II also
exhibits additional strengthening of N–H…O=C (hydrazo) and O–H…O=C (keto-azo) hydrogen bonds due to the
neighboring acyl group, which is typical of the hydrazo form.
Fig. 2. Hydrogen bonds in structure I.
1684

Fig. 3. Molecular packing in structure I in the projection onto the (010) plane.
Fig. 4. Structure of molecule C H N O II with
16 13 3 5
numbered atoms.
1685

TABLE 3. Main Interatomic Distances and Bond Angles in C H N O II
16 13 3 5
Bond
d, Å
Bond
d, Å
Bond
d, Å
O(1)–C(2)
O(2)–C(4)
O(3)–C(12)
O(4)–N(3)
O(5)–N(3)
N(1)–N(2)
N(1)–C(3)
N(2)–C(11)
N(3)–C(14)
1.232(2)
1.230(2)
1.348(2)
1.210(2)
1.220(2)
1.307(1)
0.321(2)
1.399(2)
1.467(2)
C(1)–C(2)
C(2)–C(3)
C(3)–C(4)
C(4)–C(5)
C(5)–C(10)
C(5)–C(6)
C(6)–C(7)
C(7)–C(8)
1.499(2)
1.479(2)
1.480(2)
1.487(2)
1.385(2)
1.390(2)
1.383(2)
1.375(3)
C(8)–C(9)
C(9)–C(10)
C(11)–C(16)
C(11)–C(12)
C(12)–C(13)
C(13)–C(14)
C(14)–C(15)
C(15)–C(16)
1.373(3)
1.385(2)
1.386(2)
1.405(2)
1.383(2)
1.377(2)
1.381(2)
1.383(2)
Angle
Angle
Angle
ω, deg
ω, deg
ω, deg
N(2)–N(1)–C(3)
N(1)–N(2)–C(11)
O(4)–N(3)–O(5)
O(4)–N(3)–C(14)
O(5)–N(3)–C(14)
O(1)–C(2)–C(3)
O(1)–C(2)–C(1)
C(3)–C(2)–C(1)
N(1)–C(3)–C(4)
N(1)–C(3)–C(2)
C(4)–C(3)–C(2)
O(2)–C(4)–C(3)
121.3(1)
119.4(1)
123.8(2)
118.1(2)
118.1(2)
118.6(1)
119.7(1)
121.7(1)
111.9(1)
124.1(1)
124.0(1)
121.2(1)
O(2)–C(4)–C(5)
C(3)–C(4)–C(5)
C(10)–C(5)–C(6)
C(10)–C(5)–C(4)
C(6)–C(5)–C(4)
C(7)–C(6)–C(5)
C(8)–C(7)–C(6)
C(9)–C(8)–C(7)
C(8)–C(9)–C(10)
C(5)–C(10)–C(9)
C(16)–C(11)–N(2)
121.1(1)
117.7(1)
120.0(1)
120.6(1)
119.4(1)
119.5(2)
120.1(2)
120.6(2)
119.8(2)
119.9(2)
123.0(1)
C(16)–C(11)–C(12)
N(2)–C(11)–C(12)
O(3)–C(12)–C(13)
O(3)–C(12)–C(11)
C(13)–C(12)–C(11)
C(14)–C(13)–C(12)
C(13)–C(14)–C(15)
C(13)–C(14)–N(3)
C(15)–C(14)–N(3)
C(14)–C(15)–C(16)
C(15)–C(16)–C(11)
120.9(1)
116.2(1)
124.6(1)
116.3(1)
119.1(1)
118.9(1)
122.9(1)
117.9(1)
119.2(2)
118.4(1)
119.8(1)
Fig. 5. Hydrogen bonds in structure II.
The crystal packing of molecules II is formed due to strong intermolecular hydrogen bonds О(3)–Н(3)…О(2). The
О(3)–Н(3) distance is 0.832 Å; the О(2)…Н(3) distance is 1.918 Å (x+1/2, –y+1/2, z+1/2); the О(3)Н(3)О(2) angle is 176°.
A more detailed study of crystal structure II revealed weak intermolecular hydrogen bonds occurring between
hydrogen atoms Н(8) of the phenyl group and the oxygen О(1) of the carbonyl group С(8)–Н(8)…О(1). Due to these weak
contacts, the molecules are arranged parallel to each other. The С(8)–Н(8) distance is 0.930 Å; the О(1)…Н(8) distance is
1686

Fig. 6. Molecular packing in structure II.
2.460 Å (–1/2+x, 1/2+y, 1/2+z); the С(8)Н(8)О(1) angle is 172° [12, 13]. Strong О(3)–Н(3)…О(2) and weak С(8)–
Н(8)…О(1) contacts are shown by dotted lines in Fig. 5. The molecular packing of structure II is shown in Fig. 6.
Thus, X-ray diffraction revealed that the synthesis of ligands based on β-diketones lead to the formation of hydrazo
forms of compounds I and II.
CONFLICT OF INTERESTS
The authors declare that they have no conflict of interests.
REFERENCES
1. M. A. Magerramov, R. A. Alieva, R. Z. Nazarova et al. J. Struct. Chem., 2011, 52(1), 198.
2. M. A. Magerramov, R. A. Alieva, R. N. Sulhnejat et al. Russ. J. Coord. Chem., 2011, 37(1), 45.
3. M. A. Magerramov, R. A. Alieva, R. Z. Nazarova et al. J. Struct. Chem., 2016, 57(4), 819.
4. P. A. Stabnikov, L. G. Bulusheva, N. I. Alferova et al. J. Struct. Chem., 2012, 53(4), 740.
5. P. A. Stabnikov, I. A. Baydina, S. V. Sysoev et al. J. Struct. Chem., 2003, 44(6), 1054.
6. I. A. Baydina, P. A. Stabnikov, A. D. Vasiliev et al. J. Struct. Chem., 2014, 45(4), 671.
7. G. I. Zharkova, S. V. Sysoev, I. A. Baidina et al. J. Struct. Chem., 2015, 46(3), 494.
8. N. B. Morozova, P. A. Stabnikov, I. A. Baidina et al. J. Struct. Chem., 2007, 48(5), 889.
9. N. V. Kuratyeva, E. S. Vikulova, A. D. Shushanyan et al. J. Struct. Chem., 2017, 58(5), 1004.
10. K. T. Mahmudov. Investigation and Analytical Application of Complexes of Copper(II) With Azoderivatives of
β-Diketones. Dissertation for PhD, Chemistry, Baku, 2006.
11. G. M. Sheldrick. SHELXTL, 6.12. Structure Determination software Suite, Bruker AXS. Madison, Wisconsin, USA, 2001.
12. F. H. Allen, D. G. Watson, L. Brammer et al. Int. Tables Crystallogr., 2006, C9(5), 790.
13. R. Gawinecki, E. Kolehmainen, H. Janota et al. J. Phys. Org. Chem., 2001, 14, 797.
1687
