Benzenedisulfonic Acid as an ALD/MLD Building Block for
Crystalline Metal-Organic Thin Films**
Abstract: Two new atomic/molecular layer deposition proc-
esses for depositing crystalline metal-organic thin films, built
from 1,4-benzenedisulfonate (BDS) as the organic linker and
Cu or Li as the metal node, are reported. The processes yield
in-situ crystalline but hydrated Cu-BDS and Li-BDS films; in
the former case, the crystal structure is of a previously known
metal-organic-framework-like structure, while in the latter
case not known from previous studies. Both hydrated
materials can be readily dried to obtain the crystalline

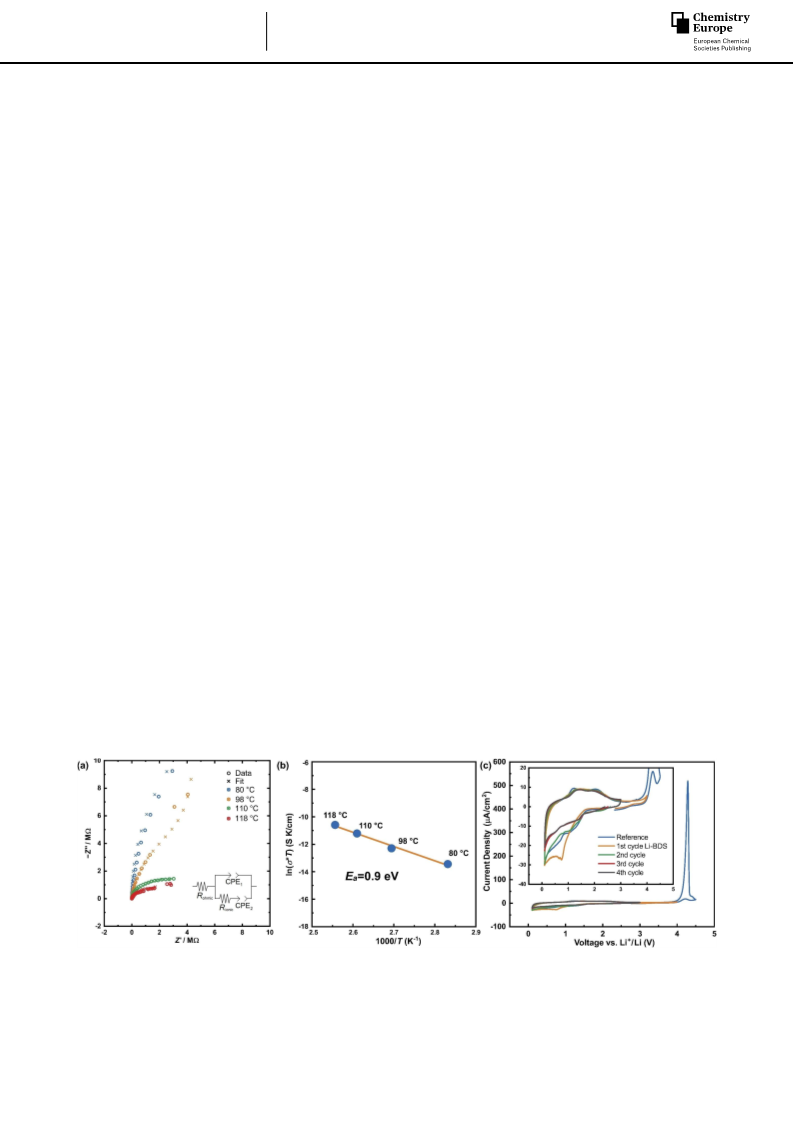

unhydrated phases. The stability and the ionic conductivity of
the unhydrated Li-BDS films were characterized to assess their
applicability as a thin film solid polymer Li-ion conductor.
Introduction
lithium transference number is usually larger than in SPEs and
closer to unity. These materials are also electrochemically stable,
and – according to theoretical calculations – can effectively
reduce the Li-ion concentration gradient in Li plating/
stripping.[21,22] However, the most significant drawback of
SPSLICs is still their low ionic conductivity compared to the ISEs
and SPEs. This is due to the strong association between the
sulfonate and the lithium ion. To overcome the problem,
SPSLICs are often polymerized e.g. in a polyethylene oxide
matrix or with other oligomers that can dissociate the Li+ ion to
make it more mobile.[23–25]
The only SPSLIC-type materials deposited with ALD/MLD are
aliphatic lithium compounds.[12,26,27] Here we like to propose
dilithium-1,4-benzenedisulfonate (Li-BDS) as a relatively simple
SPSLIC and possibly attainable through ALD/MLD synthesis.
Interestingly, the prospective precursor for BDS in ALD/MLD,
1,4-benzenedisulfonic acid (HBDS), shares many chemical
properties with terephthalic acid (TPA; 1,4-benzenedicarboxylic
acid), which is one of the most common MLD precursors and is
known to readily react with metal-bearing ALD precursors to
form stable crystalline metal-organic thin films, somewhat
similar to metal-organic framework (MOF) structures.[28–36]
Hence, we consider HBDS as an interesting analog to TPA in
ALD/MLD. It is significantly (approx. six orders of magnitude)[37]
more acidic than TPA, which could enable the use of less
reactive inorganic precursors. For some MOFs replacing the TPA
linker with BDS considerably enhances the thermal stability,
Atomic layer deposition (ALD) has been already for years the
fastest-growing thin-film deposition technology in micro-
electronics,[1,2] but it is gaining attention in energy applications
as well, including the lithium-ion battery (LIB) field.[3,4] Molecular
layer deposition (MLD) is a much less exploited counterpart of
ALD for organic thin films.[2,5] Combining these two methods
into ALD/MLD allows the deposition of metal-organic films. In
the LIB field, all these methods are used, especially in the
contexts of the micro-battery,[6] inorganic solid electrolyte (ISE),
solid polymer electrolyte (SPE), and electrode-electrolyte inter-
face design.[3,7–13] In particular, ALD/MLD has been exploited to
modify the electrode/electrolyte interfaces to improve the cycle
life of the battery.[14–17]
A prototype SPE is a polyethylene oxide mixed with lithium
salt. The lithium salt is needed to enhance the poor ionic
conductivity of the SPE, but the drawback is that it at the same
time tends to deteriorate the electrochemical stability of the
SPE material.[18] On the other hand, the SPEs win out in
processability and flexibility, suffer less from interfacial resist-
ance, and are cheaper to manufacture compared to the
ISEs.[19,20] Recently, a new type of SPE has regained research
interest, so-called solid polymeric single Li-ion conductor
(SPSLIC).[21] A SPSLIC material is based on immobilized anions
such as Li-sulfonates. Since the anions are immobilized, the
°
e.g. from ca. 200 to ca. 400 C for the Cu-TPA versus Cu-
BDS.[38,39] So far in the literature, considerably fewer BDS-based
MOFs have been reported compared to the extensive literature
on metal carboxylates.
[a] J. Heiska, Dr. O. Sorsa, Prof. T. Kallio, Prof. M. Karppinen
Department of Chemistry and Materials Science
Aalto University
00076 Espoo (Finland)

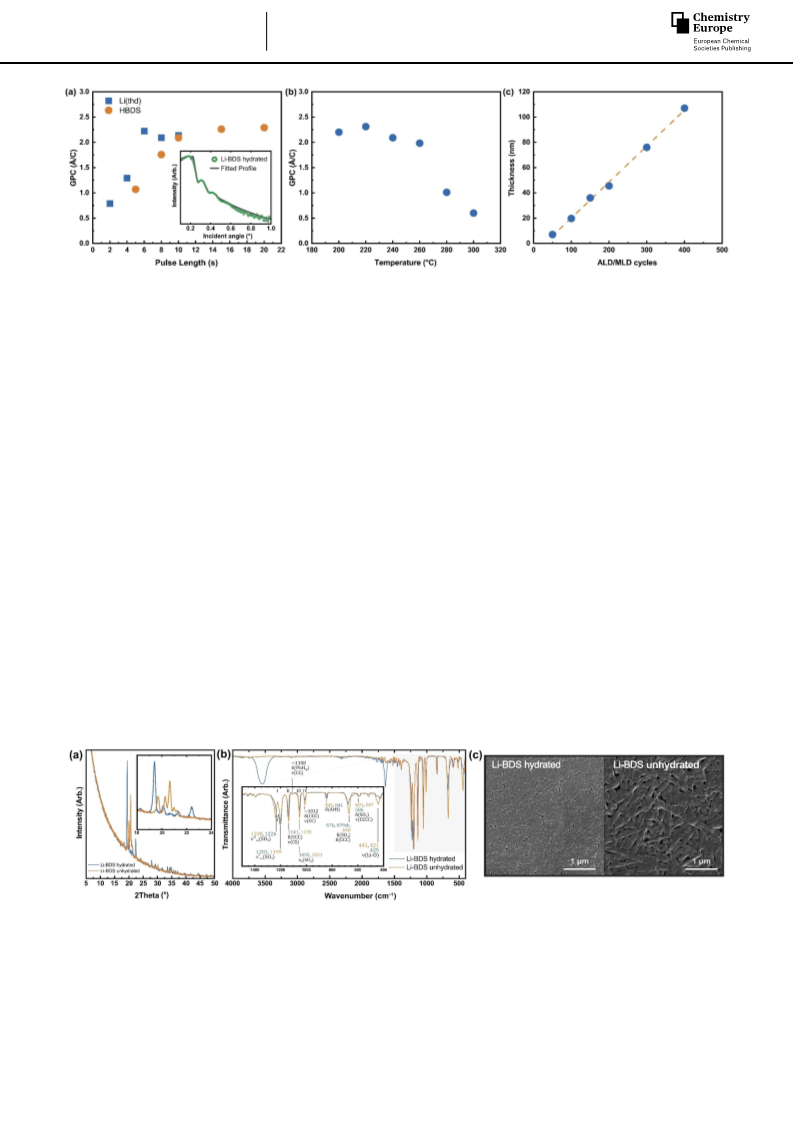

In this article, we report new ALD/MLD processes for two
metal 1,4-benzenedisulfonate materials, Cu-BDS and Li-BDS, see
Figure 1. The former compound was chosen as its crystal
structure was known from solution-synthesized bulk samples[39]
and it had shown some promise as a matrix for sulfur infiltration
in LiÀ S batteries, implying some degree of porosity.[40] The latter
Li-BDS compound, which we consider as the main candidate for
the new SPSLIC material, has been only briefly mentioned in
E-mail: maarit.karppinen@aalto.fi
[**] ALD=atomic layer deposition; MLD=molecular layer deposition.
Supporting information for this article is available on the WWW under
